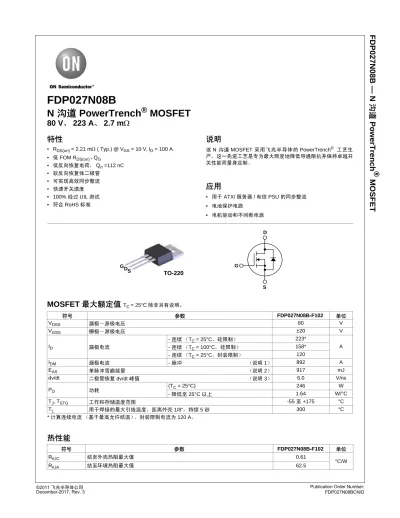

FDP027N08B N

沟道 PowerTrench ® MOSF ET

G

S D

FDP027N08B

N 沟道 PowerTrench ^® MOSFET

80 V、 223 A、 2.7 m

特性

• R

_DS(on)

= 2.21 m ( Typ.) @ V

_GS

= 10 V, I

_D

= 100 A

•

低 FOM R_{DS(on) *}

Q

_G

•

低反向恢复电荷，

Q

_rr

=112 nC

•

软反向恢复体二极管

•

可实现高效同步整流

•

快速开关速度

• 100% 经过 UIL 测试

•

符合 RoHS 标准

说明

该 N 沟道 MOSFET 采用飞兆半导体的 PowerTrench^® 工艺生 产，这一先进工艺是专为最大限度地降低导通阻抗并保持卓越开 关性能而量身定制。

应用

•

用于 ATX/服务器

/

电信 PSU 的同步整流

•

电池保护电路

•

电机驱动和不间断电源

MOSFET 最大额定值 T

_C

= 25°C

除非另有说明。

热性能

符号 参数

FDP027N08B

-

F102

单位

V

_DSS 漏极－源极电压

80 V

V

_GSS 栅极－源极电压

±20 V

I

_D 漏极电流

-

连续 （T_C

= 25°C，硅限制） 223*

-

连续 （T_C

= 100°C，硅限制） 158* A -

连续 （T_C

= 25°C，封装限制） 120

I

_DM 漏极电流

-

脉冲

（说明 1） 892 A

E

_AS 单脉冲雪崩能量

（说明 2）

917 mJ

dv/dt

二极管恢复 dv/dt 峰值 （说明 3）

6.0 V/ns

P

_D 功耗

(T

_C

= 25°C) 246 W

-

降低至 25°C 以上

1.64 W/°C

T

_J

, T

_STG 工作和存储温度范围

-55 至 +175 °C

T

_L 用于焊接的最大引线温度，距离外壳 1/8"，持续 5 秒

300 °C

符号 参数

FDP027N08B

-

F102

单位

R

_JC 结至外壳热阻最大值

0.61

°C/W

*

计算连续电流 （基于最高允许结温）。封装限制电流为 120 A。

TO-220

G DS

沟道 PowerTrench ® MOSF ET 封装标识与定购信息

电气特性 T

_C

= 25°C

除非另有说明。

关断特性

导通特性

动态特性

开关特性

漏极 - 源极二极管特性

器件编号 顶标 封装 包装方法 卷尺寸 带宽 数量

FDP027N08B-F102 FDP027N08B TO-220

塑料管

N/A N/A 50 个

符号 参数 测试条件 最小值 典型值 最大值 单位

BV

_DSS 漏极

- 源极击穿电压 I

_D

= 250 A， V

_GS

= 0 V 80 - - V

BV_DSS

/ T

_J 击穿电压温度系数

I

_D

= 250 A，参考温度为 25°C - 0.05 - V/°C

I

_DSS 零栅极电压漏极电流

V

_DS

= 64 V， V

_GS

= 0 V - - 1 V

_DS

= 64 V， T

_C

= 150°C - - 500

A

I

_GSS 栅极

-

体漏电流

V

_GS

= ±20 V， V

_DS

= 0 V - - ±100 nA

V

_GS(th) 栅极阈值电压

V

_GS

= V

_DS，

I

_D

= 250 A 2.5 - 4.5 V

R

_DS(on) 漏极至源极静态导通电阻

V

_GS

= 10 V， I

_D

= 100 A - 2.21 2.7 m

g

_FS 正向跨导

V

_DS

= 10 V， I

_D

= 100 A - 227 - S

C

_iss 输入电容

V

_DS

= 40 V， V

_GS

= 0 V，

f = 1 MHz

- 10170 13530 pF

C

_oss 输出电容

- 1670 2220 pF

C

_rss 反向传输电容

- 35 - pF

C

_oss

(er)

能量相关输出电容

V

_DS

= 40 V， V

_GS

= 0 V - 3025 - pF

Q

_g(tot)

10 V

的栅极电荷总量

V

_DS

= 40 V， V

_GS

= 10 V，

I

_D

= 100A

（说明4）

- 137 178 nC

Q

_gs 栅极 - 源极栅极电荷

- 56 - nC

Q

_gs2 栅极平台电荷阈值

- 25 - nC

Q

_gd 栅极 - 漏极

“

米勒

”

电荷

- 28 - nC

ESR

等效串联电阻 (G-S)

f = 1 MHz - 2.4 -



t

_d(on) 导通延迟时间

V

_DD

= 40 V， I

_D

= 100 A，

V

_GS

= 10 V， R

_G

= 4.7 

（说明4）

- 47 104 ns

t

_r 开通上升时间

- 66 142 ns

t

_d(off) 关断延迟时间

- 87 184 ns

t

_f 关断下降时间

- 41 92 ns

I

_S 漏极 - 源极二极管最大正向连续电流

- - 223* A

I

_SM 漏极 - 源极二极管最大正向脉冲电流

- - 892 A

V

_SD 漏极 - 源极二极管正向电压

V

_GS

= 0 V， I

_SD

= 100 A - - 1.3 V t

_rr 反向恢复时间

V

_GS

= 0 V， V

_DD

= 40 V， I

_SD

= 100 A，

dI

_F

/dt = 100 A/s

- 80 - ns

Q

_rr 反向恢复电荷

- 112 - nC

注意：

1. 重复额定值：脉冲宽度受限于最大结温。

2. L = 3 mH，I_AS = 24.72 A，R_G = 25 ，开始 T_J = 25°C。

3. I_SD 100 A，di/dt  200 A/s，V_DD  BV_DSS，开始 T_J = 25°C。

4. 本质上独立于工作温度的典型特性。

沟道 PowerTrench ® MOSF ET 典型性能特征

图 1. 导通区域特性 图 2. 传输特性

图 3. 导通电阻变化与漏极电流和 图 4. 体二极管正向电压变化与源极电流

栅极电压的关系 和温度的关系

图 5. 电容特性 图 6. 栅极电荷特性

2.5 3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 1

10 100 500

-55^oC 175^oC

*Notes:

1. V_DS = 10V 2. 250s Pulse Test

25^oC

ID, Drain Current[A]

VGS, Gate-Source Voltage[V]

0.1 1 4

5 10 100 500

*Notes:

1. 250s Pulse Test 2. T_C = 25^oC ID, Drain Current[A]

VDS, Drain-Source Voltage[V]

VGS = 15.0V 10.0V

8.0V 7.0V 6.5V 6.0V 5.5V

0 100 200 300 400 500

1.0 1.5 2.0 2.5 3.0

*Note: TC = 25^oC VGS = 20V

VGS = 10V

RDS(ON)

[

m

]

, Drain-Source On-Resistance

ID, Drain Current [A]

0.2 0.4 0.6 0.8 1.0 1.2 1.3

1 10 100 500

*Notes:

1. V_GS = 0V 2. 250s Pulse Test 175^oC

IS, Reverse Drain Current [A]

V_SD, Body Diode Forward Voltage [V]

25^oC

0 30 60 90 120 150

0 2 4 6 8 10

*Note: I_D = 100A V_DS = 16V

V_DS = 40V VDS = 64V

VGS, Gate-Source Voltage [V]

Qg, Total Gate Charge [nC]

0.1 1 10 80

10 100 1000 10000 30000

C_oss C_iss

Ciss = Cgs + Cgd (Cds = shorted) Coss = Cds + Cgd

Crss = Cgd

*Note:

1. V_GS = 0V 2. f = 1MHz

Crss

Ca paci tan ces [p F ]

V

DS

, Drain-Source Voltage [V]

沟道 PowerTrench ® MOSF ET 典型性能特性

（接上页）

图 7. 击穿电压变化与温度的关系 图 8. 导通电阻变化与温度的关系

图 9. 最大安全工作区 图 10. 最大漏极电流与壳温的关系

图 11. Eoss 与漏源极电压的关系 图 12. 非箝位感性开关能力

-100 -50 0 50 100 150 200

0.5 1.0 1.5 2.0

*Notes:

1. VGS = 10V 2. I_D = 100A

R

DS(on)

, [N orma lize d ] Drai n -S o u rce On -Resi stance

T

J

, Junction Temperature [

^o

C ]

-80 -40 0 40 80 120 160 200

0.92 0.96 1.00 1.04 1.08

*Notes:

1. VGS = 0V 2. ID = 250A

BV

DSS

, [ N ormali z e d] Dra in- S ourc e Bre a k down V o lta g e

T

J

, Junction Temperature [

^o

C ]

1 10 100 200

0.01 0.1 1 10 100 1000 2000

100us 10us

1ms 10ms

ID, Drain Current [A]

V_DS, Drain-Source Voltage [V]

Operation in This Area is Limited by R DS(on)

*Notes:

1. TC = 25^oC 2. TJ = 175^oC 3. Single Pulse

DC

25 50 75 100 125 150 175

0 50 100 150 200 250

I

D

, Drai n Cu rr ent [ A ]

T

C

, Case Temperature [

^o

C ]

V_GS= 10V

R_JC= 0.61^oC/W

0 20 40 60 80

0 1 2 3 4 5 6

E

OSS

, [



J ]

V

_DS

, Drain to Source Voltage [ V ] ^{0.001 0.01 0.1 1 10 100 1000} 1

10 100 200

T

_J

= 25

^o

C

T_J = 150 ^oC

t_AV, TIME IN AVALANCHE (ms) IAS, AVALANCHE CURRENT (A)

沟道 PowerTrench ® MOSF ET 典型性能特性

（接上页）

图 13. 瞬态热响应曲线

10

^-5

10

^-4

10

^-3

10

^-2

10

^-1

1

0.005 0.01 0.1 1

0.01 0.1 0.2

0.05

0.02 *Notes:

1. ZJC(t) = 0.61^oC/W Max.

2. Duty Factor, D= t₁/t₂ 3. TJM - TC = PDM * ZJC(t) 0.5

Single pulse

Thermal Response

[

ZJC

]

Rectangular Pulse Duration [sec]

t1

P_DM t2

ZJC(t)，热响应 [oC/W]

t₁，矩形脉冲持续时间 [秒]

沟道 PowerTrench ® MOSF ET

图 14. 栅极电荷测试电路与波形

图 15. 阻性开关测试电路与波形

图 16. 非箝位电感开关测试电路与波形 V

GS

V

_DS

10%

90%

td(on) t

r

t_on t_off

td(off) t_f

V

_DD

10V

V

DS

R

L

DUT R

G

V

_GS

V

GS

V

_DS

10%

90%

td(on) t

r

t_on t_off

td(off) t_f

V

_DD

10V

V

DS

R

L

DUT R

G

V

_GS

V

_GS

V

_GS

I_G=常量

沟道 PowerTrench ® MOSF ET

图 17. 二极管恢复 dv/dt 峰值测试电路与波形 DUT

V

_DS

+

_

Driver R

_G

Same Type as DUT

V

_GS

• dv/dt controlled by R

_G

• I

_SD

controlled by pulse period

V

_DD

L

I

_SD

V

_GS

10V ( Driver )

I

_SD

( DUT )

V

_DS

( DUT )

V

_DD

Body Diode Forward Voltage Drop

V

_SD

I

_FM

, Body Diode Forward Current

Body Diode Reverse Current I

_RM

Body Diode Recovery dv/dt di/dt D = Gate Pulse Width

Gate Pulse Period --- DUT

V

_DS

+

_

Driver R

_G

Same Type as DUT

V

_GS

• dv/dt controlled by R

_G

• I

_SD

controlled by pulse period

V

_DD

L

L I

_SD

V

_GS

10V ( Driver )

I

_SD

( DUT )

V

_DS

( DUT )

V

_DD

Body Diode Forward Voltage Drop

V

_SD

I

_FM

, Body Diode Forward Current

Body Diode Reverse Current I

_RM

Body Diode Recovery dv/dt di/dt D = Gate Pulse Width

Gate Pulse Period --- D = Gate Pulse Width

Gate Pulse Period

---

沟道 PowerTrench ® MOSF ET 机械尺寸

图 18. TO-220 模塑 3 引线 Jedec 变体 AB (Delta)

封装图纸作为一项服务，提供给考虑飞兆半导体元件的客户。具体参数可能会有变化，且不会做出相应通知。请注意图纸上的版本和

/

或日期，并联系飞兆半导体代表核实或获得最新版本。封装规格并不扩大飞兆公司全球范围内的条款与条件，尤其是其中涉及飞兆公司 产品保修的部分。
