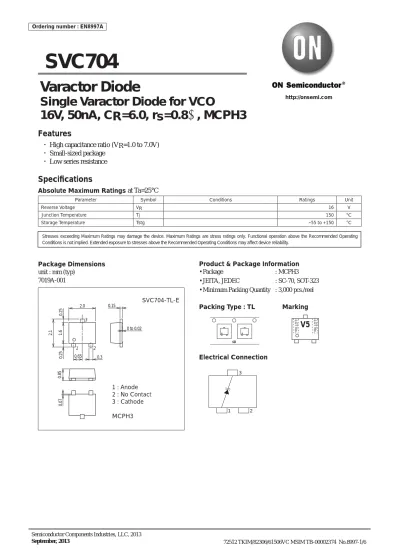

Varactor Diode

http://onsemi.com

SVC704

Varactor Diode

Single Varactor Diode for VCO

16V, 50nA, CR=6.0, rs=0.8Ω , MCPH3

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

Features

•

High capacitance ratio (VR=1.0 to 7.0V)

•

Small-sized package

•

Low series resistance

Specifi cations

Absolute Maximum Ratings at Ta=25°C

Parameter Symbol Conditions Ratings Unit

Reverse Voltage VR 16 V

Junction Temperature Tj 150 °C

Storage Temperature Tstg --55 to +150 °C

Package Dimensions unit : mm (typ)

7019A-001

Product & Package Information

• Package : MCPH3

• JEITA, JEDEC : SC-70, SOT-323

• Minimum Packing Quantity : 3,000 pcs./reel Packing Type : TL Marking

Electrical Connection

1 : Anode 2 : No Contact 3 : Cathode MCPH3

0.250.250.07

2.1 1.6

2.0

0.65 0.3

0.85

0.15

1 2

3

0 to 0.02 ^{LOT No.}

V5

^{LOT No.}

TL

SVC704-TL-E

3

1 2

No.8997-2/6

Electrical Characteristics at Ta=25°C

Parameter Symbol Conditions Ratings

min typ max Unit

Breakdown Voltage V(BR)R IR=10μA 16 V

Reverse Current IR VR=10V 50 nA

Interterminal Capacitance* C1.0V VR=1.0V, f=1MHz 26.0 30.0 pF

C7.0V VR=7.0V, f=1MHz 3.4 4.6 pF

Series Resistance rs VR=1.0V, f=470MHz 0.8 Ω

Capacitance Ratio CR C1.0V / C7.0V 6.0

Ordering Information

Device Package Shipping memo

SVC704-TL-E MCPH3 3,000pcs./reel Pb Free

Interterminal Capacitance, C - - pF

Reverse Voltage, VR -- V

C, Q -- VR

Qualit y F actor , Q

0 1 2 3 4 5 6 7 8 9 10

1000

100

10 7 5

3 2 7 5

3 2 7 5

3 2

1.0

1000

100

10 7 5

3 2 7 5

3 2 7 5

3 2

1.0 IT10665

VRF=20mVrms

Quality F actor

, Q f=470MHz

Interterminal Capacitance, C f=1MHz

V R=1.0V

2.5V 4.0V

7.0V

VR=7.0V 4.0V

2.5V 1.0V

IT10666

--50 --25 0 25 50 75 100 125 150

0.90 0.92 0.94 0.96 0.98 1.00 1.02 1.04 1.06 1.08 1.10 1.12 1.14 1.16 1.18 1.20

C -- Ta

Capacitance Ratio

Ambient Temperature, Ta -- °C

VRF=20mVrms

f=1MHz

No.8997-4/6 Taping Specifi cation

SVC704-TL-E

Outline Drawing Land Pattern Example SVC704-TL-E

Mass (g) Unit 0.007

* For reference mm

Unit: mm

0.65 0.65 0.4

2.1 0.6

PS No.8997-6/6
