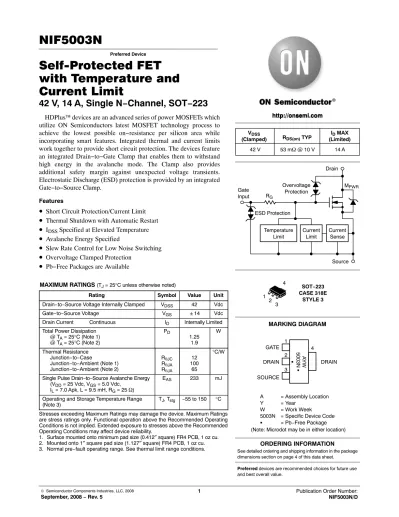

NIF5003N Preferred Device Self-Protected FET with Temperature and Current Limit

(1)

Preferred Device

Self-Protected FET

with Temperature and Current Limit

42 V, 14 A, Single N−Channel, SOT−223

HDPlus™ devices are an advanced series of power MOSFETs which utilize ON Semiconductors latest MOSFET technology process to achieve the lowest possible on−resistance per silicon area while incorporating smart features. Integrated thermal and current limits work together to provide short circuit protection. The devices feature an integrated Drain−to−Gate Clamp that enables them to withstand high energy in the avalanche mode. The Clamp also provides additional safety margin against unexpected voltage transients.

Electrostatic Discharge (ESD) protection is provided by an integrated Gate−to−Source Clamp.

Features

• Short Circuit Protection/Current Limit

• Thermal Shutdown with Automatic Restart

• ^I

DSS

Specified at Elevated Temperature

• Avalanche Energy Specified

• Slew Rate Control for Low Noise Switching

• Overvoltage Clamped Protection

• Pb−Free Packages are Available

MAXIMUM RATINGS (T_J = 25°C unless otherwise noted)

Rating Symbol Value Unit

Drain−to−Source Voltage Internally Clamped V_DSS 42 Vdc

Gate−to−Source Voltage V_GS "14 Vdc

Drain Current Continuous I_D Internally Limited Total Power Dissipation

@ T_A = 25°C (Note 1)

@ T_A = 25°C (Note 2)

P_D

1.251.9 W

Thermal Resistance Junction−to−Case

Junction−to−Ambient (Note 1) Junction−to−Ambient (Note 2)

R_qJC R_qJA R_qJA

10012 65

°C/W

Single Pulse Drain−to−Source Avalanche Energy (VDD = 25 Vdc, VGS = 5.0 Vdc,

I_L = 7.0 Apk, L = 9.5 mH, R_G = 25 W)

EAS 233 mJ

Operating and Storage Temperature Range

(Note 3) T_J, T_stg −55 to 150 °C

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings

MPWR

Drain

Source Temperature

Limit Gate

Input

Current

Limit Current Sense R_G

Overvoltage Protection

ESD Protection

http://onsemi.com

V_DSS

(Clamped) R_DS(on) TYP I_D MAX (Limited)

42 V 53 mW @ 10 V 14 A

http://onsemi.com

SOT−223 CASE 318E

STYLE 3 1

MARKING DIAGRAM

A = Assembly Location

Y = Year

W = Work Week

5003N = Specific Device Code 2 3

4

1

AYW5003NGG

2 3 GATE 4 DRAIN SOURCE

DRAIN

(2)

NIF5003N

http://onsemi.com 2

MOSFET ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise noted)

Characteristic Symbol Min Typ Max Unit

OFF CHARACTERISTICS

Drain−to−Source Clamped Breakdown Voltage (V_GS = 0 Vdc, I_D = 250 mAdc)

(V_GS = 0 Vdc, I_D = 250 mAdc, T_J = −40°C to 150°C)

V(BR)DSS

4240 46

45 51

51 Vdc

mV/°C Zero Gate Voltage Drain Current

(V_DS = 32 Vdc, V_GS = 0 Vdc)

(VDS = 32 Vdc, VGS = 0 Vdc, TJ = 150°C)

I_DSS

−− 0.6

2.5 5.0

−

mAdc Gate Input Current

(VGS = 5.0 Vdc, VDS = 0 Vdc) I_GSS − 50 125 mAdc

ON CHARACTERISTICS Gate Threshold Voltage

(V_DS = V_GS, I_D = 1.2 mAdc)

Threshold Temperature Coefficient (Negative)

V_GS(th)

1.0− 1.7

5.0 2.2

− Vdc

mV/°C Static Drain−to−Source On−Resistance (Note 4)

(VGS = 10 Vdc, ID = 3.0 Adc, TJ @ 25°C) (V_GS = 10 Vdc, I_D = 3.0 Adc, T_J @ 150°C)

R_DS(on)

−− 53

95 68

123

mW Static Drain−to−Source On−Resistance (Note 4)

(V_GS = 5.0 Vdc, I_D = 3.0 Adc, T_J @ 25°C) (V_GS = 5.0 Vdc, I_D = 3.0 Adc, T_J @ 150°C)

R_DS(on)

−− 63

105 76

135

mW Source−Drain Forward On Voltage

(I_S = 7.0 A, V_GS = 0 V) V_SD − 0.95 1.1 V

SWITCHING CHARACTERISTICS Turn−on Time

(V_in to 90% I_D) R_L = 4.7 W, Vin = 0 to 10 V, V_DD = 12 V T_(on) − 16 20 ms Turn−off Time

(Vin to 10% ID) RL = 4.7 W, Vin = 10 to 0 V, VDD = 12 V T_(off) − 80 100 ms

Slew Rate On R_L = 4.7 W,

V_in = 0 to 10 V, V_DD = 12 V −dVDS/dton − 1.4 − V/ms

Slew Rate Off R_L = 4.7 W,

Vin = 10 to 0 V, VDD = 12 V dV_DS/dt_off − 0.5 − V/ms SELF PROTECTION CHARACTERISTICS(TJ = 25°C unless otherwise noted) (Note 5)

Current Limit (V_GS = 5.0 Vdc)

VDS = 10 V (VGS = 5.0 Vdc, TJ = 150°C) I_LIM 12

7.0 18

13 24

18 Adc

Current Limit (VGS = 10 Vdc)

V_DS = 10 V (V_GS = 10 Vdc, T_J = 150°C) ILIM 18

13 22

18 30

25 Adc

Temperature Limit (Turn−off) V_GS = 5.0 Vdc T_LIM(off) 150 175 200 °C

Thermal Hysteresis V_GS = 5.0 Vdc DT_LIM(on) − 15 − °C

Temperature Limit (Turn−off) V_GS = 10 Vdc T_LIM(off) 150 165 185 °C

Thermal Hysteresis V_GS = 10 Vdc DT_LIM(on) − 15 − °C

ESD ELECTRICAL CHARACTERISTICS(T_J = 25°C unless otherwise noted)

Electro−Static Discharge Capability Human Body Model (HBM) ESD 4000 − − V

Electro−Static Discharge Capability Machine Model (MM) ESD 400 − − V

4. Pulse Test: Pulse Width = 300 ms, Duty Cycle = 2%.

5. Fault conditions are viewed as beyond the normal operating range of the part.

(3)

TYPICAL PERFORMANCE CURVES

100°C

Figure 1. On−Region Characteristics

1 2

4

4 0

Figure 2. Transfer Characteristics V_GS, GATE−TO−SOURCE VOLTAGE (VOLTS)

0.3

4 6

0.5

0

Figure 3. On−Resistance vs. Gate−to−Source Voltage

V_GS, GATE−TO−SOURCE VOLTAGE (VOLTS)

RDS(on),DRAIN−TO−SOURCE RESISTANCE (W) ID,DRAIN CURRENT (AMPS)

0.05

Figure 4. On−Resistance vs. Drain Current and Gate Voltage

I_D, DRAIN CURRENT (AMPS)

1.4

1.0 1.0

3 5

T_J = −55°C

ID = 3 A TJ = 25°C

0.045

0.03

I_D = 3 A V_GS = 5 V

RDS(on),DRAIN−TO−SOURCE RESISTANCE (NORMALIZED)

25°C

RDS(on),DRAIN−TO−SOURCE RESISTANCE (W)

1.8

2 10

V_GS = 0 V

IDSS, LEAKAGE (nA)

T_J = 150°C

T_J = 100°C 0.06

10000 100000

100

V_DS≥ 10 V

0.055 20

3

7 8 9 2 3 4 5

0.1 0.2 0.4 0.7 0.9

0.6 0.8

0.035 0.04

1000 8 12

1.5 2.5 3.5

6 7 8 9 10

0.8 1.2 1.6

16

2 18

6 10 14

0.07 0.065 0.075

T_J = 25°C

VGS = 10 V VGS = 5 V 0

35

20

3 1

V_DS, DRAIN−TO−SOURCE VOLTAGE (VOLTS) ID,DRAIN CURRENT (AMPS)

15

5 0

2 5

10 30 25

4

0.5 1.5 2.5 3.5 4.5

VGS = 10 V VGS = 9 V

V_GS = 8 V V_GS = 7 V

V_GS = 6 V

V_GS = 5 V V_GS = 4 V V_GS = 3 V T_J = 25°C

Current Limit Inception Region

(4)

NIF5003N

http://onsemi.com 4

TYPICAL PERFORMANCE CURVES

0.9 1

VSD, SOURCE−TO−DRAIN VOLTAGE (VOLTS) Figure 7. Diode Forward Voltage vs. Current IS, SOURCE CURRENT (AMPS)

V_GS = 0 V T_J = 25°C 10

0.7

0.5 1

0.10.4 0.6 0.8

ORDERING INFORMATION

Device Package Shipping^†

NIF5003NT1 SOT−223 1000 / Tape & Reel

NIF5003NT1G SOT−223

(Pb−Free) 1000 / Tape & Reel

NIF5003NT3 SOT−223 4000 / Tape & Reel

NIF5003NT3G SOT−223

(Pb−Free) 4000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

HDPlus is a trademark of Semiconductor Components Industries, LLC (SCILLC)

(5)

SOT−223 (TO−261) CASE 318E−04

ISSUE R

DATE 02 OCT 2018 SCALE 1:1

q

(6)

SOT−223 (TO−261) CASE 318E−04

ISSUE R

DATE 02 OCT 2018

STYLE 4:

PIN 1. SOURCE 2. DRAIN 3. GATE 4. DRAIN

STYLE 6:

PIN 1. RETURN 2. INPUT 3. OUTPUT 4. INPUT

STYLE 8:

CANCELLED STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 10:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE STYLE 7:

PIN 1. ANODE 1 2. CATHODE 3. ANODE 2 4. CATHODE

STYLE 3:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN STYLE 2:

PIN 1. ANODE 2. CATHODE 3. NC 4. CATHODE

STYLE 9:

PIN 1. INPUT 2. GROUND 3. LOGIC 4. GROUND

STYLE 5:

PIN 1. DRAIN 2. GATE 3. SOURCE 4. GATE

STYLE 11:

PIN 1. MT 1 2. MT 2 3. GATE 4. MT 2

STYLE 12:

PIN 1. INPUT 2. OUTPUT 3. NC 4. OUTPUT

STYLE 13:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

1

A = Assembly Location

Y = Year

W = Work Week

XXXXX = Specific Device Code G = Pb−Free Package

GENERIC MARKING DIAGRAM*

AYW XXXXXG

G

(Note: Microdot may be in either location)

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
