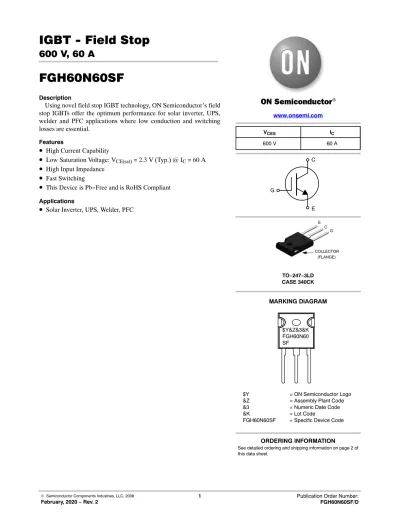

IGBT - Field Stop 600 V, 60 A

600 V, 60 A

FGH60N60SF

Description

Using novel field stop IGBT technology, ON Semiconductor’s field stop IGBTs offer the optimum performance for solar inverter, UPS, welder and PFC applications where low conduction and switching losses are essential.

Features

• High Current Capability

• Low Saturation Voltage: V _CE(sat) = 2.3 V (Typ.) @ I _C = 60 A

• High Input Impedance

• Fast Switching

• This Device is Pb−Free and is RoHS Compliant Applications

• Solar Inverter, UPS, Welder, PFC

TO−247−3LD CASE 340CK

See detailed ordering and shipping information on page 2 of this data sheet.

ORDERING INFORMATION www.onsemi.com

V

I

600 V 60 A

MARKING DIAGRAM

$Y = ON Semiconductor Logo

&Z = Assembly Plant Code

&3 = Numeric Date Code

&K = Lot Code

FGH60N60SF = Specific Device Code

COLLECTOR (FLANGE) E

C G

$Y&Z&3&K FGH60N60 SF

E C

G

www.onsemi.com 2

ABSOLUTE MAXIMUM RATINGS

Symbol Description Ratings Unit

V

Collector to Emitter Voltage 600 V

V

Gate to Emitter Voltage ±20 V

Transient Gate−to−Emitter Voltage ±30 V

I

Collector Current T

= 25°C 120 A

T

100°C 60 A

I

(Note 1) Pulsed Collector Current T

= 25°C 180 A

P

Maximum Power Dissipation T

25°C 378 W

T

= 100°C 151 W

T

Operating Junction Temperature −55 to +150 °C

T

Storage Temperature Range −55 to +150 °C

T

Maximum Lead Temp. for Soldering Purposes, 1/8” from Case for 5 Seconds 300 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Repetitive test: Pulse width limited by max. junction temperature.

THERMAL CHARACTERISTICS

Symbol Parameter Value Max. Unit

R

(IGBT) Thermal Resistance, Junction to Case − 0.33 _C/W

R

Thermal Resistance, Junction to Ambient − 40 _C/W

PACKAGE MARKING AND ORDERING INFORMATION

Part Number Top Mark Package

Packing

Method Reel Size Tape Width Quantity

FGH60N60SFTU FGH60N60SF TO−247 Tube N/A N/A 30

ELECTRICAL CHARACTERISTICS OF THE IGBT (T

= 25°C unless otherwise noted)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

OFF CHARACTERISTICS

BV

Collector to Emitter Breakdown Voltage V

= 0 V, I

= 250 mA 600 − − V DBV

/ DT

Temperature Coefficient of Breakdown Voltage V

= 0 V, I

= 250 mA − 0.4 − V/°C

I

Collector Cut−Off Current V

= V

, V

= 0 V − − 250 m A

I

G−E Leakage Current V

= V

, V

= 0 V − − ±400 nA

ON CHARACTERISTICS

V

G−E Threshold Voltage I

= 250 mA, V

= V

4.0 5.0 6.5 V

V

Collector to Emitter Saturation Voltage I

= 60 A, V

= 15 V, − 2.3 2.9 V I

= 60 A, V

= 15 V,

T

= 125 ° C − 2.5 − V

DYNAMIC CHARACTERISTICS

C

Input Capacitance V

= 30 V, V

= 0 V,

f = 1 MHz − 2820 − pF

C

Output Capacitance − 350 − pF

C

Reverse Transfer Capacitance − 140 − pF

ELECTRICAL CHARACTERISTICS OF THE IGBT (T

= 25°C unless otherwise noted) (continued)

Symbol Parameter Test Conditions Min. Typ. Max. Unit

SWITCHING CHARACTERISTICS

T

Turn−On Delay Time V

= 400 V, I

= 60 A,

R

= 5 W , V

= 15 V, Inductive Load, T

= 25°C

− 22 − ns

T

Rise Time − 42 − ns

T

Turn−Off Delay Time − 134 − ns

T

Fall Time − 31 62 ns

E

Turn−On Switching Loss − 1.79 − mJ

E

Turn−Off Switching Loss − 0.67 − mJ

E

Total Switching Loss − 2.46 − mJ

T

Turn−On Delay Time V

= 400 V, I

= 60 A,

R

= 5 W, V

= 15 V, Inductive Load, T

= 125°C

− 22 − ns

T

Rise Time − 44 − ns

T

Turn−Off Delay Time − 144 − ns

T

Fall Time − 43 − ns

E

Turn−On Switching Loss − 1.88 − mJ

E

Turn−Off Switching Loss − 1.0 − mJ

E

Total Switching Loss − 2.88 − mJ

Q

Total Gate Charge V

= 400 V, I

= 60 A,

V

= 15 V − 198 − nC

Q

Gate to Emitter Charge − 22 − nC

Q

Gate to Collector Charge − 106 − nC

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product

performance may not be indicated by the Electrical Characteristics if operated under different conditions.

www.onsemi.com 4

TYPICAL PERFORMANCE CHARACTERISTICS

Figure 1. Typical Output Characteristics Figure 2. Typical Output Characteristics

Figure 3. Typical Saturation

Voltage Characteristics Figure 4. Transfer Characteristics

Figure 5. Saturation Voltage vs. Case

Temperature at Variant Current Level Figure 6. Saturation Voltage vs. V

Collector−Emitter Voltage, V

(V) Collector Current, I

(A)

Collector−Emitter Voltage, V

(V) Collector Current, I

(A)

Gate−Emitter Voltage,V

(V) Collector Current, I

(A)

Collector−Emitter Case Temperature, T

( 5 C) Collector − Emitter V oltage, V

(V)

Gate−Emitter Voltage, V

(V) Collector − Emitter V oltage, V

(V)

Collector−Emitter Voltage, V

(V) Collector Current, I

(A)

TC = 25^oC 20V

15V 12V

10V

VGE = 8V

0 2 4 6 8

0 30 60 90 120 150 180

TC = 125^oC 20V

15V 12V 10V

VGE = 8V

0 2 4 6 8

0 30 60 90 120 150 180

0 1 2 3 4 5

0 30 60 90 120 150 180

Common Emitter VGE = 15V TC = 25^oC TC = 125^oC

0 1 2 3 4 5

0 30 60 90 120 150 180

Common Emitter VCE = 20V TC = 25^oC TC = 125^oC

25 50 75 100 125

1.0 1.5 2.0 2.5 3.0 3.5 4.0

120A

60A

IC = 30A Common Emitter

VGE = 15V

IC = 30A 60A

120A

Common Emitter T_C = −40^oC

0 4 8 12 16 20

0

4

8

12

16

20

TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

Figure 7. Saturation Voltage vs. V

Figure 8. Saturation Voltage vs. V

Figure 9. Capacitance Characteristics Figure 10. Gate Charge Characteristics Gate−Emitter Voltage, V

(V)

Collector − Emitter V oltage, V

(V)

Gate−Emitter Voltage, V

(V) Collector − Emitter V oltage, V

(V)

Collector−Emitter Voltage, V

(V)

Capacitance (pF)

Gate Charge, Qg(nC) Gate − Emitter V oltage, V

(V)

Collector Current, I

(A)

Collector−Emitter Voltage, V

(V) Collector Current, I

(A)

Collector−Emitter Voltage, V

(V)

1 10

1000 2000 3000 4000 5000 6000

Common Emitter VGE = 0V, f = 1MHz TC = 25^oC

C_res C_oes C_ies

30

0 0 50 100 150 200

3 6 9 12 15

Common Emitter TC = 25^oC

300V

200V V_CC = 100V

1 10 100 1000

0.01 0.1 1 10 100 500

Curves must be derated linearly with increase in temperature

1ms 10 ms DC

10 100

ms ms

1 10 100 1000

1 10 100 300

Safe Operating Area V_GE = 15V, T_C = 125^oC Single Nonrepetitive

Pulse TC = 255C IC = 30A 60A

120A

Common Emitter T_C = 25^oC

0 4 8 12 16 20

0 4 8 12 16 20

120A IC = 30A

60A

Common Emitter TC = 125^oC

0 4 8 12 16 20

0

4

8

12

16

20

www.onsemi.com 6

TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

Figure 13. Turn−on Characteristics vs. Gate Resistance

Figure 14. Turn−off Characteristics vs. Gate Resistance

Figure 15. Turn−on Characteristics vs.

Collector Current

Figure 16. Turn−off Characteristics vs. Collector Current

Figure 17. Switching Loss vs. Gate Resistance Figure 18. Switching Loss vs. Collector Current

Switching T ime (ns)

Gate Resistance, R

( W )

Switching T ime (ns)

Gate Resistance,R

( W )

Switching T ime (ns)

Collector Current, I

(A)

Switching T ime (ns)

Collector Current, I

(A)

Switching Loss (mJ)

Gate Resistance, R

( W )

Switching Loss, (mJ)

Collector Current, I

(A)

Common Emitter VCC = 400V, VGE = 15V IC = 60A

TC = 25^oC TC = 125^oC

t_d(off)

t_f 6000

0 10 20 30 40 50

10 100 1000

0 20 40 60 80 100 120

10 100 500

Common Emitter VGE = 15V, RG = 5 T_C = 25^oC T_C = 125^oC

t_r

t_d(on)

Common Emitter VGE = 15V, RG = 5 T_C = 25^oC T_C = 125^oC

t_d(off)

t_f

0 20 40 60 80 100 120

10 100 1000

0 10 20 30 40 50

1 20

0.5

Common Emitter V_CC = 400V, V_GE = 15V I_C = 60A

T_C = 25^oC T_C = 125^oC

E_on

E_off

10 Common Emitter

V_GE = 15V, R_G = 5 T_C = 25^oC

T_C = 125^oC E_on

E_off

0 20 40 60 80 100 120

0.1 1 10 30

W W

W

0 10 20 30 40 50

10 100 300

Common Emitter VCC = 400V, VGE = 15V IC = 60A

TC = 25^oC TC = 125^oC t_d(on)

t_r

TYPICAL PERFORMANCE CHARACTERISTICS (Continued)

Thermal Response (Zthjc)

Rectangular Pulse Duration (sec)

Figure 19. Transient Thermal Impedance of IGBT

1E−5 1E−4 1E−3 0.01 0.1 1

1E−3 0.01

0.1 1

0.2 0.5

0.1 0.05 0.01 0.02 single pulse

Duty Factor, D = t1/t2 Peak T_j = Pdm x Zthjc + T_C

t1

PDM

t2

TO−247−3LD SHORT LEAD CASE 340CK

ISSUE A

DATE 31 JAN 2019

XXXX = Specific Device Code A = Assembly Location Y = Year

WW = Work Week ZZ = Assembly Lot Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

AYWWZZ XXXXXXX XXXXXXX

E

D

L1 E2

(3X) b (2X) b2

b4

(2X) e

Q

L

0.25 ^M B A ^M A

A1 A2 A

c

B

D1 P1

S P

E1

D2

1 2 3 2

DIM MILLIMETERS MIN NOM MAX A 4.58 4.70 4.82 A1 2.20 2.40 2.60 A2 1.40 1.50 1.60 b 1.17 1.26 1.35 b2 1.53 1.65 1.77 b4 2.42 2.54 2.66 c 0.51 0.61 0.71 D 20.32 20.57 20.82

D1 13.08 ~ ~

D2 0.51 0.93 1.35 E 15.37 15.62 15.87

E1 12.81 ~ ~

E2 4.96 5.08 5.20

e ~ 5.56 ~

L 15.75 16.00 16.25 L1 3.69 3.81 3.93

P 3.51 3.58 3.65 P1 6.60 6.80 7.00 Q 5.34 5.46 5.58 S 5.34 5.46 5.58
