Vascular wall components in thrombi obtained by acute stroke thrombectomy: Clinical significance and related factors

Naoko Funatsu, MD1,2; Mikito Hayakawa, MD1; Tetsuya Hashimoto, MD1; Hiroshi Yamagami, MD, PhD3; Tetsu Satow, MD, PhD4; Jun C. Takahashi, MD, PhD4; Masatoshi Koga, MD, PhD1; Kazuyuki Nagatsuka, MD, PhD3; Hatsue Ishibashi-Ueda, MD, PhD5; Toru Iwama, MD, PhD2; Kazunori Toyoda, MD, PhD1

1 Department of Cerebrovascular Medicine, National Cerebral and Cardiovascular Center, Suita, Osaka, Japan

2 Department of Neurosurgery, Gifu University Graduate School of Medicine, Gifu, Japan 3 Department of Neurology, National Cerebral and Cardiovascular Center, Suita, Osaka, Japan 4 Department of Neurosurgery, National Cerebral and Cardiovascular Center, Suita, Osaka, Japan

5 Department of Pathology, National Cerebral and Cardiovascular Center, Suita, Osaka, Japan

Correspondence to: Dr. Mikito Hayakawa

(3)

Tsukuba, Japan

1-1-1, Tennodai, Tsukuba, Ibaraki, 305-8575, Japan TEL: +81-29-853-3220; FAX: +81-29-853-3214 E-mail: [email protected]

Total number of tables and figures: Tables 2; Figures 2. Word count: 2930

(4)

Abstract

Background and Purpose

Vascular wall components (VWCs) are sometimes identified as collagen fibers in specimens retrieved by thrombectomy from acute stroke patients. However, their clinical significance and associated factors remain unclear. The purpose of this study was to clarify the factors associated with VWCs in retrieved thrombi.

Methods

Consecutive acute stroke patients treated endovascularly using the Penumbra aspiration catheter or stent retrievers (SRs) at our institute from November 2013 to April 2016 were retrospectively reviewed, and the retrieved thrombi were evaluated histopathologically. VWCs were defined as banded collagen fibers with a distinct boundary observed at the rim or outside of the retrieved thrombi. Factors associated with the presence of VWCs were studied.

Results

A total of 150 specimens (76 specimens retrieved by the Penumbra, 74 by SRs) from 101 patients (47 women, 74.9±11.1 years old) were investigated. Applied thrombectomy devices were aspiration catheters in 42 patients, SRs in 21 patients, and both in 38 patients. VWCs were observed in 24 specimens (16%) from 22 patients. A low proportion of erythrocyte components (41.7%±24.8% versus 55.0%±26.3%, p=.01), a high frequency of the devices reaching the M2/P2

(5)

(75% versus 50%, p=.02), and a high number of device passages (p for trend=.02) were associated with VWC-positive thrombi. Successful recanalization (TICI ≥2b) tended to be less frequent in patients with VWC-positive thrombi than in those without (73% versus 89%, p=.06). Conclusions

The histopathology of occlusive thrombi, arterial sites where devices reached, and number of device passages might affect the presence of VWCs in retrieved thrombi.

(6)

INTRODUCTION

The effectiveness and safety of stent retriever thrombectomy devices (SRs) and a direct aspiration first pass technique (ADAPT) using a large-bore aspiration catheter, such as the Penumbra Reperfusion Catheter (Penumbra Inc., Alameda, CA, USA) have been fully established for acute stroke patients with large vessel occlusion.[1-9] However, device-related vessel damage such as vasospasm, perforation, and dissection sometimes occurs.[1-9] In addition to the injury of the vessel wall resulting in apparent vessel rupture or dissection, it was thought that angiographically occult vessel ruptures caused by mechanical stretch on retrieval could be associated with vessel wall permeability impairment and blood-cerebrospinal fluid barrier disruption after stent-retriever thrombectomy.[10, 11] It has been reported that the Solitaire FR (Medtronic, Irvine, CA, USA) and the Penumbra aspiration system caused vascular injury extending into the medial layer in swine models, suggesting that histological vascular injury caused by the second-generation thrombectomy devices could occur at a certain frequency in real clinical settings.[12] Vascular injury has also been reported to differ by degree among types, diameters, and lengths of the thrombectomy devices in animal models and in an in vitro live cell platform.[12-14] However, the histological changes occurring in the arterial wall following mechanical thrombectomy (MT) in human cerebral arteries are difficult to evaluate.

(7)

vessels in contact with the thrombi or thrombectomy devices.[15] We considered that the presence of collagen fibers derived from vascular wall retrieved with thrombi would be a surrogate marker of histological vascular injury. The purpose of the present study was to investigate the frequency, clinical significance, and factors related to the presence of the retrieved vascular wall components (VWCs).

METHODS

Patients Consecutive acute stroke patients treated endovascularly with ADAPT or SR (including combined stent-aspiration technique, such as “Solumbra” and others) extracted from a prospectively maintained database at our institute (the National Cerebral and Cardiovascular Center Stroke Registry [Clinical Trials.gov: NCT02251665]) from November 2013 to April 2016 were retrospectively reviewed, and the retrieved thrombi were evaluated histopathologically. As previously described,[16] expert stroke neurologists in our institute determined the patients’ stroke subtypes according to the ASCOD phenotyping scheme. Patients with extracranial carotid occlusion alone were excluded from the analysis. All patients or their legally authorized representatives provided written, informed consent for endovascular therapy. Consent to participate in this clinicopathological study was obtained using an opt-out approach. The Research Ethics Committee of our institute approved the study.

(8)

Clinical InformationThe following clinical information was collected for each patient: age, sex, cerebrovascular risk factors, baseline National Institutes of Health Stroke Scale (NIHSS) score, intravenous (IV) recombinant tissue plasminogen activator (rt-PA) administration, occluded vessels, stroke subtypes, endovascular procedures, onset to reperfusion time (in cases whose onset times were not evident, the time last known well was treated as the onset time), degrees of reperfusion after mechanical thrombectomy (MT), and the presence of any intracranial hemorrhage (ICH) and subarachnoid hemorrhage (SAH). ICH was defined as an intracranial hyperdense lesion on a 24- to 36-hour follow-up noncontrast CT scan or a hypointense lesion on gradient-echo MRI. SAH was defined as a subarachnoidal hyperdense lesion on a noncontrast CT scan immediately after the procedure. The clinical outcome was measured using the modified Rankin Scale (mRS) score at 3 months, and a good clinical outcome was defined as a score of 0 to 2.

Endovascular Treatment As previously described,[16] endovascular reperfusion therapy in patients with acute major cerebral arterial occlusion was performed according to the domestic guidelines. The first-line thrombectomy procedure was ADAPT[2] using the Penumbra aspiration catheters, including 4MAX, 5MAX (from November 2013 to February 2014), and 5MAX ACE

(9)

(from November 2014 to April 2016) or SRs (from March 2014 to October 2014). If the first-line procedure was unsuccessful, additional devices were used at the first operator’s discretion. In the study period, one of three interventional neurologists performed thrombectomy as the first operator, of whom experience of SR thrombectomy and ADAPT were from 12 to 27, 21 to 31 procedures at the end of the study period, respectively. The number of device passages was counted consistently during the procedure, regardless of the type of the device. If the patient was eligible, IV rt-PA was given using 0.6 mg/kg of alteplase prior to MT within a 4.5-hour window according to the standard protocol approved in Japan.[17] The degree of reperfusion was blindly evaluated on post-procedural angiograms using the modified Treatment in Cerebral Ischemia (mTICI) scale.[18] Successful reperfusion was defined as mTICI grade of 2b to 3.

Histopathological Analysis The specimens retrieved by MT were analyzed histopathologically. Whenever thrombus was retrieved, it was submitted as a separate specimen. Obtained specimens were fixed in 10% phosphate-buffered formalin solution for 1 day. Formalin-fixed specimens were embedded in paraffin, cut at a thickness of 5 μm, and stained with hematoxylin-eosin and Masson’s trichrome. Histopathological evaluation was performed without knowledge of the clinical findings. Specimens were analyzed for the presence of collagen fibers derived from vascular walls. The banded collagen fibers with distinct boundary existing at the margin or

(10)

outside of the thrombus were defined as pieces of vascular wall (vascular wall components [VWCs]). Organized thrombus was defined as having an unclear boundary and complicated fibrosis seen in part of the thrombus (Figure II in the online-only Data Supplement). When there were VWCs that could be confirmed at 100× magnification, the specimen was considered VWC-positive, even if very small. When the VWCs existed, Elastica van Gieson (EVG) staining was added to verify the presence of the internal elastic lamina (IEL), meaning extension of the vascular injury to the tunica media. Additionally, their thickness and area were measured with an optical microscope at 12.5× to 400× magnification, depending on the size of the VWCs. The area of the VWC was measured by plotting the margin of the VWCs manually in a slice stained with Masson’s trichrome. If the collagen fiber was one layer, the short diameter of the VWC was measured as the thickness, and in the case of folded multiple layers, the thickness of one layer was measured (Figure II in the online-only Data Supplement). Then, the ratios of erythrocyte components and of fibrin/platelet components were quantified in a manner previously reported.[16]The histological analysis was performed using an Olympus BX51 microscope and image analysis software, cellSens Standard (Olympus, Tokyo, Japan).

Statistical Analysis The patients’ clinical information and the characteristics of specimens were compared between the groups whose specimens were VWC-positive and VWC-negative. In

(11)

addition, the characteristics of VWCs obtained by ADAPT were compared with those obtained by SRs. Variables were analyzed using Fisher’s exact test or Pearson’s chi-squared test for categorical data, the Wilcoxon rank-sum test or the Kruskal-Wallis test for continuous data, and the Cochran Armitage Trend test for trend, as appropriate. For all statistical analyses, p<.05 was considered significant. Statistical analysis was conducted using JMP 12 software (SAS Institute, Cary, NC, USA).

RESULTS

Patient Data In total, 131 consecutive patients with acute ischemic stroke were treated with endovascular therapy at our institute from 1 November 2013 to 30 April 2016. Of these patients, 101 (47 women, 74.9±11.1 years old) were enrolled in this study (Figure I in the online-only Data Supplement). The clinical characteristics of the study population are shown in Table 1.

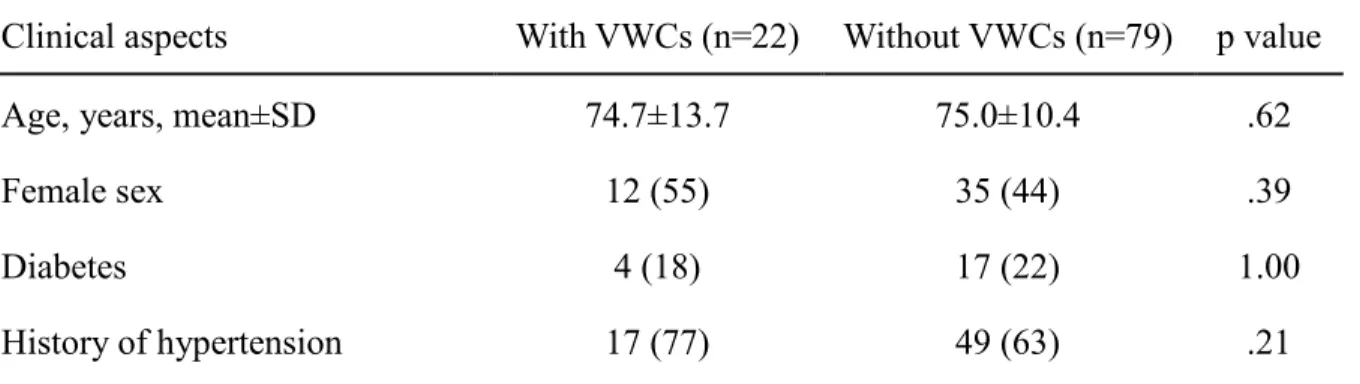

Table 1. Clinical characteristics and therapeutic process of the study population

Clinical aspects With VWCs (n=22) Without VWCs (n=79) p value

Age, years, mean±SD 74.7±13.7 75.0±10.4 .62

Female sex 12 (55) 35 (44) .39

Diabetes 4 (18) 17 (22) 1.00

(12)

Atrial fibrillation 14 (64) 53 (68) .70

Current smoking 6 (30) 34 (53) .07

Baseline NIHSS score 15.5 (10.8-22.3) 20.0 (14.0-26.0) .14

Intravenous rt-PA 7 (32) 34 (43) .34

Location of occlusion .54

ICA 10 (45) 28 (35)

MCA M1 6 (27) 28 (35)

MCA M2 or more distal 5 (23) 13 (16)

VA/BA 1 (5) 10 (13)

Stroke subtype .38

Large artery atherosclerosis 3 (14) 8 (10)

Cardioembolic 15 (68) 64 (81)

Others/Unknown 4 (18) 7 (9)

The device reaching distally* 17(77) 44 (56) .07

Number of device passages 2 (1-5) 2 (1-3) .08

mTICI≥2b reperfusion 16 (73) 70 (89) .06

Intracranial hemorrhage 10 (45) 27 (35) .35

Subarachnoid hemorrhage 5 (23) 12 (15) .40

Good clinical outcome 7 (32) 37 (47) .21

n (%) or median (interquartile range)

VWCs = vascular wall components. SD = standard deviation. NIHSS = National Institutes of Health Stroke Scale. rt-PA = recombinant tissue plasminogen activator. ICA = internal carotid artery. MCA = middle cerebral artery. BA = basilar artery. VA = vertebral artery. mTICI = modified Treatment in Cerebral Ischemia.

(13)

*Distal sites where devices reached were defined as the M2 portion of the middle cerebral artery, the P2 portion of the posterior cerebral artery, or more distal.

P value calculated by Fisher’s exact test for categorical data and the Mann-Whitney U test for continuous data.

Endovascular Treatment Of a total of 101 patients, 42 were treated with ADAPT, 31 with unsuccessful ADAPT followed by thrombectomy with SRs, 21 with SRs, and 7 with unsuccessful thrombectomy with SRs followed by ADAPT. The following SRs were used: Solitaire FR (Covidien/ev3, Dublin, Ireland) (49 patients), Trevo XP ProVue Retriever (Stryker Neurovascular, Mountain View, CA, USA) (2 patients), Trevo ProVue Retriever (Stryker Neurovascular) (13 patients), and REVIVE SE (Codman Neuro/DePuy Synthes, Johnson and Johnson, Raynham, MA, USA) (3 patients). Thrombectomy with SRs was performed with the Penumbra aspiration catheters as combined stent-aspiration technique in 44 patients.

Histopathological Outcomes VWCs were present in 24 specimens from 22 of 101 patients (22%). The proportion of current smokers tended to be lower (30% vs. 53%, p=.07), the frequency of device reaching distally (the M2 portion of the middle cerebral artery, the P2 portion of the posterior cerebral artery or more distal) tended to be higher (77% vs. 56%, p=.07), and the

(14)

number of device passages tended to be greater (median, 2 [IQR, 1-5] vs. 2 [1-3], p=.08) in the VWC-positive group than in the VWC-negative group (Table 1).

In the analysis of each specimen, VWCs were present in 24 (16%) of a total of 150 specimens. EVG staining was added for VWC-positive specimens; of these, 12 specimens (50%) from 11 patients included IEL in the VWCs (Figure 1), 7 other specimens did not include the IEL, and VWCs could be no longer identified in additional sections in the remaining 5 specimens. The proportion of erythrocyte components was lower (41.7%±24.8% vs. 55.0%±26.3%, p=.01), and the proportion of fibrin/platelet components was higher (57.9%±24.8% vs. 44.3%±25.7%, p=.01) in VWC-positive thrombi than in those without. The rate of VWCs increased in proportion to the number of device passages (Figure 2A). When the device reached distally, VWCs were frequently observed (Table 2).

Table 2. Histopathologic analysis of each specimen

With VWCs (n=24)

Without VWCs (n=126)

P value

The device reaching distally* 18 (75) 63 (50) .02

(15)

Ratio of fibrin/platelet components, % 57.9±24.8 (n=23) 44.3±25.7 (n=125) .01 n (%) or mean (standard deviation)

VWCs = vascular wall components.

Thickness (59.0 [13.8-244.3] µm vs. 18.0 [8.8-34.3] µm, p=.17) and area (57,659 [6,206-318,623] µm2_{vs. 5,441 [2,075-75,360] µm}2_{, p=.11) of VWCs tended to be larger in}

specimens retrieved by SRs than in those retrieved by ADAPT (Figure 2B, Table I in the online-only Data Supplement).

Angiographic and Clinical Outcomes Successful reperfusion tended to be obtained less frequently (73% vs. 89%, p=.06) in the VWC-positive group than in the VWC-negative group. In the present study, a higher proportion of erythrocyte components (58.4%±24.3% vs. 42.4%±25.3%, p=.02), less frequent multiple MT device usage (31% vs. 73%, p=.003), and less frequent device passages (2 [1-3] vs. 3 [2-6], p=.005) were associated with successful reperfusion

(16)

on univariate analysis.(Table II in the online-only Data Supplement) After multivariate adjustment, a higher proportion of erythrocyte components was the sole independent predictor of successful reperfusion.(OR 1.03, 95%CI 1.00-1.05) The occurrence of ICH was not statistically different between the groups, and the same applied to SAH alone (Table 1).

DISCUSSION

SR and ADAPT using the Penumbra aspiration catheter have achieved higher recanalization rates, lower complication rates, and better clinical outcomes.[1-9] However, there are some reports of vascular injury caused by SR and ADAPT.[2-9] The incidences of SR-related complications in the pivotal randomized, controlled trials were as follows: SAH 0.6–4.9%, intraventricular hemorrhage 1%, vessel dissection 1.7–3.9%, vessel perforation 0.6–4.9%, and vasospasm 3.9– 4%.[3-8] In the ASTER study, the rates of procedure-related adverse events caused by ADAPT were as follows: SAH, 6.9%; vasospasm, 2.6%; arterial perforation, 2.6%; and arterial dissection, 2.6%, and no significant differences were found compared with patients treated with SR.[9]

The rates of any ICH and SAH in the present study, 36.6% and 16.8%, respectively, seemed high. Since ICH on MRI was included, the proportion of ICH would have been higher. The rate of any ICH at 24 hours was, however, approximately 46% in the ASTER study[9], being equivalent to or higher than that of the present study. The rate of SAH in the present study was

(17)

higher than inthe pivotal randomized, controlled trials[3-8], but almost equal to the rate in a Korean observational study reported by Yoon et al (16.2%). [10]

In animal studies, Gory et al.[12] reported that Merci, Catch Thromboembolectomy System, Solitaire™ FR, and Penumbra all caused endothelial denudation, medial layer edema, and mural thrombus in swine superficial femoral artery models. It has also been reported that arterial wall damage decreased in vessels with clots when using SR, indicating that the length of the device should be close to the length of the clot to reduce the surface area in contact with the vessel wall.[12] Among the thrombectomy devices, Penumbra created less endothelial denudation and mural thrombus than the other wall-contact device samples in animal models and in an in vitro live cell platform.[12-14] Teng et al.[13] reported that the degree of vascular endothelial cell injury was related to the vessel diameter, suggesting the importance of applying devices that properly match the dimensions of the vessels.

To assess the histological changes occurring in the arterial wall following MT in human cerebral arteries directly is difficult, but analyzing the specimens retrieved by MT helps to guess the histological changes occurring in the arterial wall.

Singh et al. found CD34-positive endothelial cells derived from blood vessels in 11 of 48 thrombi retrieved by SRs, without any attached subendothelial connective tissue.[19] On the other hand, half of the VWC-positive specimens (8% of total thrombi obtained) included the IEL

(18)

in this study. Higher age (mean age, 74.9 years vs. 67 years) and higher proportion of East Asian patients, who are more likely to be affected by intracranial atherosclerosis than patients of other races[20], in the present study may be causal factors responsible for the difference in the detection rate of subendothelial connective tissue between the studies. Furthermore, arterial tortuosity and a small-sized artery are thought to be caused by intracranial atherosclerosis, and a Japanese study showed that the horizontal segment of the middle cerebral artery tended to be angulated sharply in acute stroke patients who underwent MT.[21] Excessive tortuosity constrains effective delivery of the device and exertion of retraction force.[21, 22] In addition, atherosclerotic change and tortuousness could extend the frequency and depth of vascular injury during MT.[23, 24] East Asian patients, including Japanese, with acute large vessel occlusion may be more vulnerable to MT than patients of other races in the light of vessel wall injury.

From the present results, vascular injury caused by MT in human cerebral arteries seemed to expand deeper than reported in animal models.[12, 14] There are some reasons that can be inferred. One of the reasons is the structural characteristics of human intracranial arteries. Intracranial arteries have a lower wall-to-lumen ratio than extracranial arteries, as the vessel wall of human cerebral arteries is thinner than that of animal models with similar vessel diameters. In addition, they have no external elastic lamina between the media and adventitia, and the adventitia is very thin compared with vessels of similar luminal diameter in other parts of the

(19)

body.[25] There are essential structural differences between human cerebral arteries and animal extracranial arteries, and human cerebral arteries are more delicate. Second, the arteries in animal models do not have atherosclerotic changes and tortuousness, whereas there may be atherosclerotic change in patients’ cerebral arteries, especially in East Asian patients, as mentioned above.[20] In fact, VWCs observed in the present study included fibrous caps of plaque.

Histopathology of occlusive thrombi, number of device passages, and arterial sites where devices reached were associated with the presence of VWCs in retrieved thrombi. As confirmed in the present study, we previously reported that erythrocyte-rich thrombi were positively associated with successful reperfusion after thrombectomy.[16] An increased number of device passages against distal fibrin/platelet-rich thrombi could lead to vascular injury.

There may be a way for a clinician to estimate the presence of VWC before thrombectomy. It has been reported that absence of the hyperdense middle cerebral artery sign (HMCAS) on CT or the susceptibility vessel sign (SVS) on gradient-echo MRI may indicate fibrin-predominant occlusive thrombi or atherothrombotic in situ occlusion.[26, 27] When treating occlusion of the distal part of M1/P1 with absence of HMCAS or SVS, there would be a risk of vessel injury. In that situation, it may be important to select the proper thrombectomy device in length and dimension or the proper reperfusion strategy, not thrombectomy but angioplasty with or without

(20)

stenting.

The thickness and area of the VWCs tended to be larger in specimens retrieved by SRs. As demonstrated previously using animal models,[12-14] the extent of vascular damage seemed different between thrombectomy devices in the real clinical setting. These differences are probably explained by variations in the designs and mechanisms of the devices. The aspiration catheter applies aspiration force to the proximal base of the thrombus. On the other hand, wall-contact devices (SRs) capture the clot by exerting continuous radial force against the arterial wall, having more surface area in contact with the vascular wall. Furthermore, they require repositioning and passing procedures. The aspiration devices appeared to reduce irritation in the arterial wall, thus lowering the risk and severity of vascular injury.[12, 28] There was, however, an important bias in the present study. The results of the SR group might reflect a higher number of passages and higher complexity of retrieval procedures, because ADAPT was the first-line procedure, and SRs were frequently used as a bail-out procedure in the majority of the study period.

In addition to the above-mentioned issues, there are several limitations of the present study. This was a single-center, retrospective study with self-assessed data. There would be inherent selection bias. The thrombi retrieved from intracranial vessels in many cases are friable and decompose before being sampled in formalin. Therefore, the observed specimens are not always

(21)

representative of the entire thrombus. In particular, thrombi are often stuck within the SRs and need to be mobilized and tend to fragment during this process, which may be a potential procedure-specific bias. VWCs obtained with thrombus were so small that there would be false-negatives in this study, and it was difficult to obtain enough specimens for several kinds of stains. It was also difficult to evaluate the quantity of VWCs accurately.

SUMMARY/CONCLUSIONS

In this study of retrieved specimens with MT, both ADAPT and SR devices caused various vascular injuries. The ratio of erythrocytes of occlusive thrombi, arterial sites where devices reached, and the number of device passages might affect the presence of VWCs in retrieved thrombi from acute stroke patients. Further studies are essential to confirm the clinical effects of these findings.

Funding Statement: This work was supported by Japan Society for the Promotion of Science, Grant in Aid for Scientific Research (C) 15K10381, and by Japanese Society for Neuroendovascular Therapy.

Competing Interests Statement: There are no competing interests for any author. Contributorship Statement:

(22)

Study conception and design;N Funatsu, M Hayakawa. Drafting the article; N Funatsu. Revising the manuscript critically for important intellectual content; M Hayakawa, H Ishibashi-Ueda, K Toyoda. Acquisition of data; all authors. Technical/material support; T Hashimoto, H Yamagami, T Satow, JC Takahashi, K Nagatsuka, H Ishibashi-Ueda. Analysis and interpretation of data; all authors. Study supervision; H Yamagami, T Iwama, K Toyoda. Final approval of the version to be published; all authors.

(23)

References

1. Turk AS, Spiotta A, Frei D, et al. Initial clinical experience with the ADAPT technique: a direct aspiration first pass technique for stroke thrombectomy. J Neurointerv Surg 2014;6:231– 237.

2. Turk AS, Frei D, Fiorella D, et al. ADAPT FAST study: a direct aspiration first pass technique for acute stroke thrombectomy. J Neurointerv Surg 2014;6:260–264.

3. Berkhemer OA, Fransen PS, Beumer D, et al. A randomized trial of intraarterial treatment for acute ischemic stroke. N Engl J Med 2015;372:11-20.

4. Goyal M, Demchuk AM, Menon BK, et al. Randomized assessment of rapid endovascular treatment of ischemic stroke. N Engl J Med 2015;372:1019-1030.

5. Campbell BC, Mitchell PJ, Kleinig TJ, et al. Endovascular therapy for ischemic stroke with perfusion-imaging selection. N Engl J Med 2015;372:1009-1018.

6. Saver JL, Goyal M, Bonafe A, et al. Stent-retriever thrombectomy after intravenous t-PA vs. t-PA alone in stroke. N Engl J Med 2015;372:2285-2295.

7. Jovin TG, Chamorro A, Cobo E, et al. Thrombectomy within 8 hours after symptom onset in ischemic stroke. N Engl J Med 2015;372:2296-2306.

8. Goyal M, Menon BK, van Zwam WH, et al. Endovascular thrombectomy after large-vessel ischaemic stroke: A meta-analysis of individual patient data from five randomised trials. Lancet

(24)

2016;387:1723-1731

9. Lapergue B, Blanc R, Gory B, et al. Effect of Endovascular Contact Aspiration vs Stent Retriever on Revascularization in Patients With Acute Ischemic Stroke and Large Vessel Occlusion: The ASTER Randomized Clinical Trial. JAMA 2017;318:443-452.

10. Yoon W, Jung MY, Jung SH, et al. Subarachnoid hemorrhage in a multimodal approach heavily weighted toward mechanical thrombectomy with solitaire stent in acute stroke. Stroke 2013;44:414-419.

11. Renu A, Laredo C, Lopez-Rueda A, et al. Vessel wall enhancement and blood-cerebrospinal fluid barrier disruption after mechanical thrombectomy in acute ischemic stroke. Stroke 2017;48:651-657.

12. Gory B, Bresson D, Kessler I, et al. Histopathologic evaluation of arterial wall response to 5 neurovascular mechanical thrombectomy devices in a swine model. AJNR Am J Neuroradiol 2013;34:2192-2198.

13. Teng D, Pannell JS, Rennert RC, et al. Endothelial trauma from mechanical thrombectomy in acute stroke: in vitro live-cell platform with animal validation. Stroke 2015;46:1099-1106.

14. Peschillo S, Diana F, Berge J, et al. A comparison of acute vascular damage caused by ADAPT versus a stent retriever device after thrombectomy in acute ischemic stroke: a histological and ultrastructural study in an animal model. J Neurointerv Surg 2017;9:743-749.

(25)

15. Marder VJ, Chute DJ, Starkman S, et al. Analysis of thrombi retrieved from cerebral arteries of patients with acute ischemic stroke. Stroke 2006;37:2086-2093.

16. Hashimoto T, Hayakawa M, Funatsu N, et al. Histopathologic Analysis of Retrieved Thrombi Associated With Successful Reperfusion After Acute Stroke Thrombectomy. Stroke 2016;47:3035-3037.

17. Minematsu K, Toyoda K, Hirano T, et al. Guidelines for the intravenous application of recombinant tissue-type plasminogen activator (alteplase), the second edition, October 2012: a guideline from the Japan Stroke Society. J Stroke Cerebrovasc Dis 2013;22:571-600.

18. Zaidat OO, Yoo AJ, Khatri P, et al. Recommendations on angiographic revascularization grading standards for acute ischemic stroke: a consensus statement. Stroke 2013;44:2650-2663. 19. Singh P, Doostkam S, Reinhard M, et al. Immunohistochemical analysis of thrombi retrieved during treatment of acute ischemic stroke: Does stent-retriever cause intimal damage? Stroke 2013;44:1720-1722

20. Toyoda K, Koga M, Hayakawa M, et al. Acute reperfusion therapy and stroke care in Asia after successful endovascular trials. Stroke 2015;46:1474-1481.

21. Yamamoto S, Yamagami H, Todo K, et al. Correlation of middle cerebral artery tortuosity with successful recanalization using the Merci retrieval system with or without adjunctive treatments. Neurol Med Chir (Tokyo) 2014;54:113–119.

(26)

22. Zhu L, Liebeskind DS, Jahan R, et al. Thrombus branching and vessel curvature are important determinants of middle cerebral artery trunk recanalization with Merci thrombectomy devices. Stroke 2012;43:787–792.

23. Gascou G, Lobotesis K, Machi P, et al. Stent retrievers in acute ischemic stroke: complications and failures during the perioperative period. AJNR Am J Neuroradiol 2014;35:734-740.

24. Matias-Guiu JA, Serna-Candel C, Matias-Guiu J. Stroke etiology determines effectiveness of retrievable stents. J Neurointerv Surg 2014;6:e11.

25. Krings T, Mandell DM, Kiehl TR, et al. Intracranial aneurysms: from vessel wall pathology to therapeutic approach. Nat Rev Neurol 2011;7:547-559.

26. Liebeskind DS, Sanossian N, Yong WH, et al. CT and MRI early vessel signs reflect clot composition in acute stroke. Stroke 2011;42:1237-1243.

27. Kim SK, Yoon W, Kim TS, et al. Histologic analysis of retrieved clots in acute ischemic stroke: Correlation with stroke etiology and gradient-echo MRI. AJNR Am J Neuroradiol 2015;36:1756-1762

28. Gralla J, Schroth G, Remonda L, et al. Mechanical thrombectomy for acute ischemic stroke: thrombus-device interaction, efficiency, and complications in vivo. Stroke 2006;37:3019–3024.

(27)

Figure legends

Figure 1. Photomicrograph of the vascular wall component retrieved with thrombus (A) A piece of collagen fiber attached at the edge of thrombus (ellipse). Hematoxylin-eosin, original magnification ×12.5.

(B) Magnified image of a piece of collagen fiber at the edge of thrombus. Masson’s trichrome, original magnification ×40.

(C) A piece of collagen fiber including the internal elastic lamina. Elastica van Gieson, original magnification ×100.

(D) A piece of collagen fiber including smooth muscle cells. Immunohistochemical staining for α-smooth muscle actin, original magnification ×40.

Figure 2.

(A) The relationship between the number of device passages and the proportion of retrieved thrombi with vascular wall components

The rate of VWCs increases in proportion to the number of device passages. The number of device passages was counted consistently during the procedure regardless of the type of the device. VWCs = vascular wall components.

(28)

(B) Associations between thickness, area of vascular wall components, and mechanical thrombectomy devices

Area and thickness of vascular wall components tend to be larger in specimens retrieved by SR than in those retrieved by Penumbra (ADAPT). SR indicates stent retriever.

(29)

)LJXUH

(30)

)LJXUH

(31)

ONLINE SUPPLEMENT

Vascular wall components in thrombi obtained by acute stroke thrombectomy: Clinical significance and related factors

Supplemental Appendix

Supplemental Figure I. Flow diagram of patients screened, enrolled, and analyzed Supplemental Figure II. Photomicrograph of the vascular wall component retrieved with thrombus and organized thrombus

Supplemental Table I. Associations between VWCs and mechanical thrombectomy devices Supplemental Table II. Factors related to successful reperfusion

(32)

(33)

6XSSOHPHQWDO)LJXUH,,3KRWRPLFURJUDSKRIWKHYDVFXODUZDOOFRPSRQHQWUHWULHYHGZLWK WKURPEXVDQGRUJDQL]HGWKURPEXV $2UJDQL]HGWKURPEXVZLWKXQFOHDUERXQGDU\DQGFRPSOLFDWHGILEURVLVVHHQLQDSDUWRIWKH WKURPEXV0DVVRQ¶VWULFKURPHRULJLQDOPDJQLILFDWLRQî %9DVFXODUZDOOFRPSRQHQWDVEDQGHGFROODJHQILEHUVZLWKGLVWLQFWERXQGDU\H[LVWLQJPDLQO\DW WKHPDUJLQRURXWVLGHRIWKHWKURPEXV0DVVRQ¶VWULFKURPHRULJLQDOPDJQLILFDWLRQî &7KHDUHDRIWKHYDVFXODUZDOOFRPSRQHQWZDVPHDVXUHGE\SORWWLQJWKHPDUJLQPDQXDOO\LQD VOLFHVWDLQHGZLWK0DVVRQ¶VWULFKURPH,IWKHFROODJHQILEHUZDVRQHOD\HUWKHVKRUWGLDPHWHURI WKHYDVFXODUZDOOFRPSRQHQWZDVPHDVXUHGDVWKHWKLFNQHVV0DVVRQ¶VWULFKURPHRULJLQDO PDJQLILFDWLRQî

(34)

Supplemental Table I. Associations between VWCs and mechanical thrombectomy devices ADAPT n=76 Stent retriever n=74 p value WithVWCs 10 (13) 14 (19) .34 With IEL 4/8 (50) 8/11 (73) .38 Thickness, µm, 18.0 (8.8-34.3) (n=10) 59.0 (13.8-244.3) (n=14) .17 Area, µm2 _{5441 (2075-75360) (n=10)} _{57659 (6202-318623) (n=14) .11}

ADAPT = a direct aspiration first pass technique using the Penumbra reperfusion catheter. VWCs = vascular wall components. IEL = internal elastic lamina.

(35)

Supplemental Table II. Factors related to successful reperfusion

VWCs = vascular wall components. SD = standard deviation. NIHSS = National Institutes of Health Stroke Scale. rt-PA = recombinant tissue plasminogen activator. ICA = internal carotid artery. MCA = middle cerebral artery. BA = basilar artery. VA = vertebral artery. mTICI = modified Treatment in Cerebral Ischemia.

Clinical aspects mTICI≥2b (n=86) mTICI≤2a (n=15) P value

Age, years, mean±SD 75.5±10.5 71.7±14.4 .50

Female sex 38 (44) 9 (60) .26

Diabetes 18 (21) 3 (20) .99

History of hypertension 57 (67) 9 (60) .59

Atrial fibrillation 57 (67) 10 (67) .98

Current smoking 35 (50) 5 (36) .33

Baseline NIHSS score 19.0 (13.5-25.3) 16.0 (9.0-25.0) .60

Intravenous rt-PA 34 (40) 7 (47) .60

Location of occlusion .39

ICA 33 (38) 5 (33)

MCA M1 28 (33) 6 (40)

MCA M2 or more distal 14 (16) 4 (27)

VA/BA 11 (13) 0 (0)

Stroke subtype .69

Large artery atherosclerosis 10 (12) 1 (7)

Cardioembolic 66 (77) 13 (87)

Others/Unknown 10 (12) 1 (7)

VWC-positive thrombi 16 (19) 6 (40) .06

Ratio of erythrocyte components, % 58.4±24.3 42.4±25.3 .02

Multiple devices 27 (31) 11 (73) .003

Number of device passages 2 (1-3) 3 (2-6) .005
