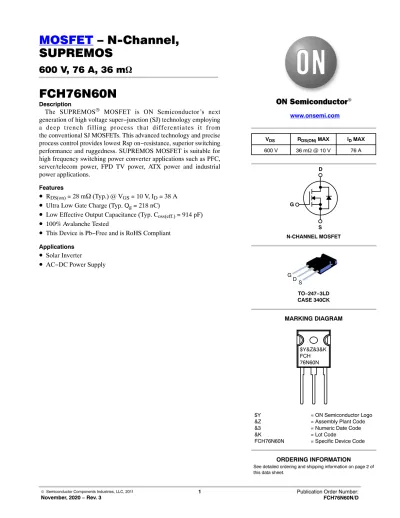

MOSFET – N-Channel, SUPREMOS

© Semiconductor Components Industries, LLC, 2011

November, 2020 − Rev. 3 1 Publication Order Number:

FCH76N60N/D

SUPREMOS

600 V, 76 A, 36 mW

FCH76N60N

Description

The SUPREMOS

MOSFET is ON Semiconductor’s next generation of high voltage super−junction (SJ) technology employing a deep trench filling process that differentiates it from the conventional SJ MOSFETs. This advanced technology and precise process control provides lowest Rsp on−resistance, superior switching performance and ruggedness. SUPREMOS MOSFET is suitable for high frequency switching power converter applications such as PFC, server/telecom power, FPD TV power, ATX power and industrial power applications.

Features

• ^R

= 28 m (Typ.) @ V

= 10 V, I

= 38 A

• Ultra Low Gate Charge (Typ. Q

= 218 nC)

• Low Effective Output Capacitance (Typ. C

= 914 pF)

• 100% Avalanche Tested

• This Device is Pb−Free and is RoHS Compliant

• Solar Inverter

• AC−DC Power Supply

www.onsemi.com

See detailed ordering and shipping information on page 2 of this data sheet.

ORDERING INFORMATION N-CHANNEL MOSFET

MARKING DIAGRAM

V_DS R_DS(ON) MAX I_D MAX

600 V 36 m @ 10 V 76 A

TO−247−3LD CASE 340CK

$Y = ON Semiconductor Logo

&Z = Assembly Plant Code

&3 = Numeric Date Code

&K = Lot Code

FCH76N60N = Specific Device Code

$Y&Z&3&K FCH 76N60N GDS

G

S D

MOSFET MAXIMUM RATINGS (T_C = 25°C unless otherwise noted)

Symbol Parameter FCH76N60N Unit

VDSS Drain to Source Voltage 600 V

VGSS Gate to Source Voltage ±30 V

I_D Drain Current − Continuous (TC = 25°C) 76 A

− Continuous (TC = 100°C) 48.1

IDM Drain Current − Pulsed (Note 1) 228 A

EAS Single Pulsed Avalanche Energy (Note 2) 8022 mJ

IAR Avalanche Current (Note 1) 25.3 A

EAR Repetitive Avalanche Energy (Note 1) 5.43 mJ

dv/dt MOSFET dv/dt 100 V/ns

Peak Diode Recovery dv/dt (Note 3) 20

PD Power Dissipation (TC = 25°C) 543 W

− Derate above 25°C 4.34 W/°C

T_J, T_STG Operating and Storage Temperature Range −55 to + 150 °C

T_L Maximum Lead Temperature for Soldering, 1/8″ from Case for 5 Second 300 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Repetitive Rating: pulse−width limited by maximum junction temperature.

2. I_AS = 25.3 A, R_G = 25 , starting TJ = 25 °C

3. ISD ≤76 A, di/dt ≤ 200 A/s, VDD ≤ 380 V, starting TJ = 25 °C

THERMAL CHARACTERISTICS

Symbol Parameter FCH76N60N Unit

R_JC Thermal Resistance, Junction to Case, Max. 0.23 °C/W

R_JA Thermal Resistance, Junction to Ambient, Max. 40

PACKAGE MARKING AND ORDERING INFORMATION

Part Number Top Mark Package Package Method Reel Size Tape Width Quantity

FCH76N60N FCH76N60N TO−247−3LD Tube N/A N/A 30 Units

www.onsemi.com 3

ELECTRICAL CHARACTERISTICS (T_C = 25°C unless otherwise noted)

Symbol Parameter Test Condition Min. Typ. Max. Unit

OFF CHARACTERISTICS

BVDSS Drain to Source Breakdown Voltage ID = 250 A, VGS = 0 V, TC = 25°C 600 − − V BVDSS

/ TJ

Breakdown Voltage Temperature

Coefficient I_D = 250 A, Referenced to 25°C − 0.73 − V/°C

I_DSS Zero Gate Voltage Drain Current V_DS = 480 V, V_GS = 0 V − − 10 A

V_DS = 480 V, V_GS = 0 V, T_C = 125°C − − 100

I_GSS Gate to Body Leakage Current V_GS = ±30 V, VDS = 0 V − − ±100 nA

ON CHARACTERISTICS

V_GS(th) Gate Threshold Voltage V_GS = V_DS, I_D = 250 A 2.0 − 4.0 V

R_DS(on) Static Drain to Source On Resistance V_GS = 10 V, I_D = 38 A − 28 36 m

g_FS Forward Transconductance V_DS = 20 V, I_D = 38 A − 90 − S

DYNAMIC CHARACTERISTICS

C_iss Input Capacitance V_DS = 100 V, V_GS = 0 V,

f = 1 MHz − 9310 12385 pF

C_oss Output Capacitance − 370 495 pF

C_rss Reverse Transfer Capacitance − 3.1 5 pF

C_oss Output Capacitance V_DS = 380 V, V_GS = 0 V, f = 1 MHz − 195 − pF

C_oss(eff.) Effective Output Capacitance V_DS = 0 V to 380 V, V_GS = 0 V − 914 − pF Q_g(tot) Total Gate Charge at 10 V V_DS = 380 V, I_D = 38 A,

V_GS = 10 V (Note 4)

− 218 285 nC

Q_gs Gate to Source Gate Charge − 39 − nC

Q_gd Gate to Drain “Miller” Charge − 66 − nC

ESR Equivalent Series Resistance (G−S) f = 1 MHz − 1.0 −

SWITCHING CHARACTERISTICS

t_d(on) Turn-On Delay Time V_DD = 380 V, I_D = 38 A, RG = 25

(Note 4)

− 34 78 ns

t_r Turn−On Rise Time − 24 58 ns

t_d(off) Turn-Off Delay Time − 235 480 ns

tf Turn−Off Fall Time − 32 74 ns

DRAIN-SOURCE DIODE CHARACTERISTICS

IS Maximum Continuous Drain to Source Diode Forward Current − − 76 A

ISM Maximum Pulsed Drain to Source Diode Forward Current − − 228 A

VSD Drain to Source Diode Forward Voltage VGS = 0 V, ISD = 38 A − − 1.2 V

trr Reverse Recovery Time V_GS = 0 V, I_SD = 38 A,

dI_F/dt = 100 A/s − 612 − ns

Qrr Reverse Recovery Charge − 16 − C

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Essentially Independent of Operating Temperature Typical Characteristics.

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. Transfer Characteristics

Figure 3. On−Resistance Variation vs. Drain Current and Gate Voltage

ID, Drain Current [A]

V_DS, Drain−Source Voltage [V] V_GS, Gate−Source Voltage [V]

ID, Drain Current [A]

I_D, Drain Current [A]

RDS(ON) [], Drain−Source On−Resistance

V_SD, Body Diode Forward Voltage [V]

IS, Reverse Drain Current [A]

Figure 4. Body Diode Forward Voltage Variation vs. Source Current and Temperature

Capacitance [pF] VGS, Gate−Source Voltage [V]

2 4 6

0.1 1 10 8

0 50 100 250

600 00 60 120 180 240

2 4 6 8 10

20 1

10 100 500

150 1

10 100 400

0.0 0.5 1.0 1.5

10¹ 10² 10³ 10⁴ 10⁵ 2 10 100

300 V_GS = 15.0 V 10.0 V 8.0 V 6.0 V 5.5 V 5.0 V 4.5 V

*Notes:

1. 250 s Pulse Test 2. T_C = 25°C

150°C

−55°C 25°C

*Notes:

1. V_DS = 20 V 2. 250 s Pulse Test

25 30 35 40 45 50

200

*Note: T_C = 25°C VGS = 20 V VGS = 10 V

*Notes:

1. V_GS = 0 V 2. 250 s Pulse Test 150°C

25°C

C_iss = C_gs + C_gd (C_ds = shorted) C_oss = C_ds + C_gd

Crss = Cgd

*Notes:

1. VGS = 0 V 2. f = 1 MHz

C_oss C_iss Crss

100 10

1 0.1 10⁰0.01

V_DS = 120 V V_DS = 300 V VDS = 480 V

*Note: I_D = 38 A

www.onsemi.com 5

TYPICAL CHARACTERISTICS

Figure 7. Breakdown Voltage Variation vs. Temperature

Figure 8. On−Resistance Variation vs. Temperature

Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current vs. Case Temperature

T_J, Junction Temperature [°C]

BVDSS, (Normalized) Drain−Source Breakdown Voltage

TJ, Junction Temperature [°C]

RDS(ON), (Normalized) Drain−Source On−Resistance

V_DS, Drain−Source Voltage [V]

ID, Drain Current [A]

TC, Case Temperature [°C]

ID, Drain Current [A]

−100 −50 0 50 100 150 200 −100 −50 0 50 100 150 200

25 50 75 100 125 150

0.8 0.9 1.0 1.1 1.2

0.0 0.5 1.0 1.5 2.0 2.5 3.0

1 10 100 1000

*Notes:

1. V_GS = 0 V 2. ID = 250 A

*Notes:

1. V_GS = 10 V 2. ID = 38 A

0.01 0.1 1 10 100 1000

1 ms 10 ms

DC 100 s

10 s

Operation in This Area is Limited by R_DS(on)

*Notes:

1. T_C = 25°C 2. T_J = 150°C 3. Single Pulse

0 20 40 60 80

Figure 11. Transient Thermal Response Curve

10−⁵ 10−⁴ 10−³ 10−² 10−¹ 10⁰ 10¹

t₁, Rectangular Pulse Duration [sec]

ZJC(t), Thermal Response [°C/W]

0.001 0.01 0.1 0.3

0.01 0.1 0.2

0.05 0.02 0.5

Single Pulse

*Notes:

1. Z_JC(t) = 0.21°C/W Max.

2. Duty Factor, D = t₁/t₂ 3. T_JM − T_C = P_DM * Z_JC(t)

t₂ t₁ PDM

Figure 12. Gate Charge Test Circuit & Waveform

Charge DUT

V_DS

DUT

V_DS

IG = const.

Qg

Qgd

Qgs

R_L V_GS

VGS

Figure 13. Resistive Switching Test Circuit & Waveforms

Figure 14. Unclamped Inductive Switching Test Circuit & Waveforms R_L

VDS

V_GS

V_GS

R_G

DUT

V_DD

VDS

V_GS10%

90%

t_on t_off

tr tf

t_d(on) t_d(off)

V_DD V_DS

R_G V_GS DUT

L

I_D

t_p

V_DD

t_p Time

I_AS BV_DSS

I_D(t)

V_DS(t) E_AS+1

2LI_AS²

www.onsemi.com 7

Figure 15. Peak Diode Recovery dv/dt Test Circuit & Waveforms DUT

L

VDD

RG

I_SD

V_DS +

−

VGS

Same Type as DUT

− dv/dt controlled by R_G

− I_SD controlled by pulse period Driver

V_GS (Driver)

ISD

(DUT)

V_DS

(DUT) V_SD

I_RM

10 V

di/dt

V_DD I_FM, Body Diode Forward Current

Body Diode Reverse Current Body Diode Recovery dv/dt

Body Diode Forward Voltage Drop D+ Gate Pulse Width

Gate Pulse Period

SUPREMOS is a registered trademark of Semiconductor Components Industries, LLC (SCILLC) or its subsidiaries in the United States and/or other countries.

TO−247−3LD SHORT LEAD CASE 340CK

ISSUE A

DATE 31 JAN 2019

XXXX = Specific Device Code A = Assembly Location Y = Year

WW = Work Week ZZ = Assembly Lot Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

AYWWZZ XXXXXXX XXXXXXX

E

D

L1 E2

(3X) b (2X) b2

b4

(2X) e

Q

L

0.25 ^M B A ^M A

A1 A2 A

c

B

D1 P1

S P

E1

D2

1 2 3 2

DIM MILLIMETERS MIN NOM MAX A 4.58 4.70 4.82 A1 2.20 2.40 2.60 A2 1.40 1.50 1.60 b 1.17 1.26 1.35 b2 1.53 1.65 1.77 b4 2.42 2.54 2.66 c 0.51 0.61 0.71 D 20.32 20.57 20.82

D1 13.08 ~ ~

D2 0.51 0.93 1.35 E 15.37 15.62 15.87

E1 12.81 ~ ~

E2 4.96 5.08 5.20

e ~ 5.56 ~

L 15.75 16.00 16.25 L1 3.69 3.81 3.93

P 3.51 3.58 3.65 P1 6.60 6.80 7.00 Q 5.34 5.46 5.58 S 5.34 5.46 5.58
