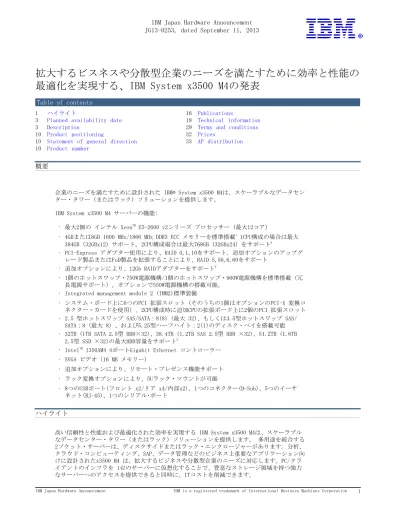

IBM�Japan�Hardware�Announcement JG13-0253,�dated�September�11,�2013

拡大するビスネスや分散型企業のニーズを満たすために効率と性能の 最適化を実現する、IBM�System�x3500�M4の発表

Table�of�contents

1 ハイライト� 16 Publications�

3 Planned� availability� date� 18 Technical� information�

3 Description� 29 Terms� and� conditions�

10 Product� positioning� 32 Prices�

10 Statement�of�general�direction� 33 AP� distribution�

10 Product� number�

概要



企業のニーズを満たすために設計された�IBM®�System�x3500�M4は、スケーラブルなデータセン ター・タワー(またはラック)ソリューションを提供します。

IBM�System�x3500�M4�サーバーの機能:

• 最大2個の�インテル�XeonTM�E5-2600�v2シリーズ�プロセッサー(最大12コア)

• 4GBまたは8GB�1600�MHz/1866�MHz�DDR3�ECC�メモリーを標準搭載1�1CPU構成の場合は最大 384GB(32GBx12)サポート。2CPU構成場合は最大768GB(32GBx24)をサポート8

• PCI-Express�アダプター使用により、RAID�0,1,10をサポート。追加オプションのアップグ レード製品またはFoD製品を拡張することにより、RAID�5,50,6,60をサポート

• 追加オプションにより、12Gb�RAIDアダプターをサポート9

• 1個のホットスワップ・750W電源機構/1個のホットスワップ・900W電源機構を標準搭載(冗 長電源サポート)。オプションで550W電源機構の搭載可能。

• Integrated�management�module�2�(IMM2)標準装備

• システム・ボード上に6つのPCI�拡張スロット(そのうちの1個はオプションのPCI-X�変換コ ネクター・カードを使用)、2CPU構成時に追加CPUの拡張ボード上に2個のPCI�拡張スロット

• 2.5�型ホットスワップ�SAS/SATA:8(8)�(最大�32)、もしくは3.5型ホットスワップ�SAS/

SATA:8(最大�8)、および5.25型ハーフハイト:2(1)のディスク・ベイを搭載可能

• 32TB�(1TB�SATA�2.5型�HDD×32)、38.4TB�(1.2TB�SAS�2.5型�HDD�×32)、51.2TB�(1.6TB 2.5型�SSD�×32)の最大HDD容量をサポート2

• IntelTM�I350AM4�4ポートGigabit�Ethernet�コントローラー

• SVGA�ビデオ(16�MB�メモリー)

• 追加オプションにより、リモート・プレゼンス機能サポート

• ラック変換オプションにより、5Uラック・マウントが可能

• 8つのUSBポート(フロント�x2/リア�x4/内部x2)、1つのコネクター(D-Sub)、5つのイーサ ネット(RJ-45)、1つのシリアル・ポート

ハイライト

高い信頼性と性能および最適化された効率を実現する�IBM�System�x3500�M4は、スケーラブル なデータセンター・タワー(またはラック)ソリューションを提供します。�多用途を統合する 2ソケット・サーバーは、ディスクサイドまたはラック・エンクロージャーがあります。分析、

クラウド・コンピューティング、SAP、データ管理などのビジネス上重要なアプリケーション向 けに設計されたx3500�M4�は、拡大するビジネスや分散型企業のニーズに対応します。PC/クラ イアントのインフラを�1台のサーバーに仮想化することで、豊富なストレージ領域を持つ強力 なサーバーへのアクセスを提供できると同時に、ITコストを削減できます。

(2)

ビジネスの成長に対応する堅牢な製品

• 最大2個の�インテル�Xeon�E5-2600�v2シリーズ�プロセッサー(最大12コア)

• 4GBまたは8GB�high-speed�MHz/1866�MHz�DDR3�ECC�メモリーを標準搭載1�1CPU構成の場合は 最大384GB(32GBx12)サポート。2CPU構成場合は最大768GB(32GBx24)をサポート8

• システム・ボード上に6つのPCI�拡張スロット(そのうちの1個はオプションのPCI-X�変換コ ネクター・カードを使用)、2CPU構成時に追加CPUの拡張ボード上に2個のPCI�拡張スロット

• PCI-Express�アダプター使用により、RAID�0,1,10をサポート。追加オプションのアップグ レード製品またはFoD製品を拡張することにより、RAID�5,50,6,60をサポート

• 追加オプションにより、12Gb�RAIDアダプターをサポート9

• 1個のホットスワップ・750W電源機構/1個のホットスワップ・900W電源機構を標準搭載(冗 長電源サポート)。オプションで550W電源機構の搭載可能。

• Intel�I350AM4�4ポートGigabit�Ethernet�コントローラー、SAS/SATAサポート

• SATA�DVD-ROM標準搭載、また、テープ装置用ベイ(5.25型ハーフ・ハイト)

• 2.5�型ホットスワップ�SAS/SATA:8(8)�(最大�32)、もしくは3.5型ホットスワップ�SAS/

SATA:8(最大�8)、および5.25型ハーフハイト:2(1)のディスク・ベイを搭載可能。

最大HDD容量として、32TB�(1TB�SATA�2.5型�HDD×32)、38.4TB�(1.2TB�SAS�2.5型�HDD

×32)、51.2TB�(1.6TB�2.5型�SSD�×32) ビジネス需要を満たす高可用性

• Integrated�management�module�2�(IMM2)標準装備、オプションによりリモート・プレゼン ス機能サポート

• フロントにて確認ができるLight�Path�診断

• 1CPUの場合2個のシンプルスワップ・ファンが標準搭載、2CPUに増設した場合3個のシンプル スワップ・ファンを搭載

• オプションにより、シンプルスワップファン/電源ユニットを追加可能

• Wake�on�LAN

• ECCメモリーによりエラーの検出

• 統合メモリー・ミラーリングおよびスペアリング ビジネス・ニーズを満たすサービスとサポート

• ServerGuide�と�IBM�Director

• IBM�サーバーとWeb�サポート3

• 3年間保証CRU対応のオンサイト・サービス4�限定保証5�オプションでサービスのアップグ

レードが可能

重要:�RAIDバッテリーは構成上サポートされますが、バッテリーがインストールされた日から 有効となります。(RAIDバッテリーは消耗品製品です)システム装置の保証条件に変更はあり ません。

1 DDR3�1600/1866�RDIMM�メモリー、DDR3�メモリーは二重のデータ・レートを表し、同じクロックサイクル でSDRAMと比較して、2倍のデータ転送を意味します。

2 ハードドライブとテープ装置容量に関しては、GBは10億バイトを表し、TBは1兆バイトを表します。ユー

ザーがアクセスできる総容量は作業環境によって変化します。

3 一部のプログラムがすべての国で使用できるわけではありません。

4 電話受付にて故障内容を確認後、必要に応じて技術員がお客様の機械設置場所にお伺いして修理いたしま

す。

5 IBMの保証条件については、弊社営業担当員またはリセラーにお問い合わせください。要請いただければ

印刷物としてもご用意できます。

8 2CPU構成で32GB�LRDIMMを24枚装着した場合

9 サポートされるHDDの最新情報はこちらをご参照ください。

http://www-03.ibm.com/systems/info/x86servers/serverproven/compat/us/

(3)

Planned�availability�date

October�11,�2013:�System�x3500�M4�-�7383�CPU,�Memory,�and�HDD�products

Description

Related�options IBM�memory�options

• 32GB�(1x32GB,�4Rx4,�1.5V)�PC3-14900�CL13�ECC�DDR3�1866MHz�LP�LRDIMM�(46W0761)8

• 16GB�(1x16GB,�2Rx4,�1.5V)�PC3-14900�CL13�ECC�DDR3�1866MHz�LP�RDIMM�(00D5048)

• 4GB�(1x4GB,�2Rx8,�1.5V)�PC3-14900�CL13�ECC�DDR3�1866MHz�LP�RDIMM�(00D5028)

• 8GB�(1x8GB,�1Rx4,�1.35V)�PC3-12800�CL11�ECC�DDR3�1600MHz�LP�RDIMM�(00D5036)

• 8GB�(1x8GB,�2Rx8,�1.35V)�PC3-12800�CL11�ECC�DDR3�1600MHz�LP�RDIMM�(00D5016)

• 8GB�(1x8GB,�2Rx8,�1.35V)�PC3-12800�CL11�ECC�DDR3�1600MHz�LP�UDIMM�(00D4968)

• 4GB�(1x4GB,�1Rx4,�1.35V)�PC3-12800�CL11�ECC�DDR3�1600MHz�LP�RDIMM�(00D5024)

• 4GB�(1x4GB,�2Rx8,�1.35V)�PC3-12800�CL11�ECC�DDR3�1600MHz�LP�UDIMM�(00D5012) IBM�processor�options

• Intel�Xeon�E5-2603�v2�1.8GHz/6.4GTS-10MB�1333MHz�4C�(Ivy�Bridge-EP�80W)�(40X7385)

• Intel�Xeon�E5-2609�v2�2.5GHz/6.4GTS-10MB�1333MHz�4C�(Ivy�Bridge-EP�80W)�(40X7386)

• Intel�Xeon�E5-2620�v2�2.1GHz/7.2GTS-15MB�1600MHz�6C�(Ivy�Bridge-EP�80W)�(40X7387)

• Intel�Xeon�E5-2630�v2�2.6GHz/7.2GTS-15MB�1600MHz�6C�(Ivy�Bridge-EP�80W)�(EMB) (40X7388)

• Intel�Xeon�E5-2640�v2�2.0GHz/7.2GTS-20MB�1600MHz�8C�(Ivy�Bridge-EP�95W)�(40X7389)

• Intel�Xeon�E5-2650�v2�2.6GHz/8.0GTS-20MB�1866MHz�8C�(Ivy�Bridge-EP�95W)�(40X7390)

• Intel�Xeon�E5-2670�v2�2.5GHz/8.0GTS-25MB�1866MHz�10C�(Ivy�Bridge-EP�115W) (40X7392)

• Intel�Xeon�E5-2680�v2�2.8GHz/8.0GTS-25MB�1866MHz�10C�(Ivy�Bridge-EP�115W)�(EMB) (40X7393)

These�4C,�6C,�8C,�10C,�and�12C�processors�are�ideal�for�data-intensive�applications that�range�from�data�mining�to�evolving�web�services.�Innovative�technologies deliver�processing�speeds�of�up�to�3.5�GHz/8.0�GTS�with�performance�headroom�for unpredictable�server�workloads�and�escalating�computing�needs.

Intel�Xeon�processors�with�10�MB,�15�MB,�20�MB,�25�MB,�or�30�MB�cache�feature�Intel Turbo�Boost�2.0�Technology�that�provides�maximum�turbo�mode�duration�and�speed�to improved�power�and�thermal�management.�The�new�intelligent�performance�processors adapt�to�software�workload�environment,�delivering�more�computing�power�when�needed.

The�new�Intel-integrated�I/O�integrates�PCIe�adaptors�into�the�processor�for�lower latency�and�power�while�growing�total�capacity�and�bandwidth.

These�enhancements�add�up�to�faster�response�times,�support�for�more�simultaneous users,�and�increased�transaction�workloads.

The�Intel�DP�processors�with�Quickpath�Interconnect�(QPI),�with�two�links,�support SMP�applications�when�installed�in�the�second�processor�slot�of�all�System�x3500�M4 models�with�similar�processors.

Note:�DDR3�ECC�DIMMs,�combined�with�an�integrated�ECC�memory�controller,�correct many�soft�and�hard�single-bit�memory�errors,�and�minimize�disruption�of�service�to LAN�clients.�Chipkill�distributes�information�covered�by�error�correction�coding across�separate�memory�chips,�so�if�any�of�the�chips�fail,�the�data�can�still�be reconstructed�from�the�remaining�chips,�and�the�system�can�continue�running.

(4)

Increased�processor�performance�coupled�with�DDR�memory�enables�you�to�retrieve�and process�information�faster�and�more�efficiently.�DDR�memory�executes�twice�the�number of�operations�per�cycle�than�traditional�SDRAM�memory,�effectively�doubling�the�data exchange�rate�between�memory�and�processors.

8 768�GB�maximum�memory�with�32�GB�LRDIMMs,�when�available.

ServeRAID�controllers�supported

• IBM�6Gb�SAS�HBA�Controller�(46M0907)

• ServeRAID�M1115�SAS/SATA�Controller�for�System�x®�(81Y4448)

• ServeRAID�M5110�SAS/SATA�Controller�for�IBM�System�x�(81Y4481)

• ServeRAID�M5100�Series�512MB�Cache/RAID�5�Upgrade�for�IBM�System�x�(81Y4484)

• ServeRAID�M5100�Series�512MB�Flash/RAID�5�Upgrade�for�IBM�System�x�(81Y4487)

• ServeRAID�M5100�Series�Battery�Kit�for�IBM�System�x�(81Y4508)

• ServeRAID�M1100�Series�Zero�Cache/RAID�5�Upgrade�for�IBM�System�x�(81Y4542)

• ServeRAID�M5100�Series�Zero�Cache/RAID�5�Upgrade�for�IBM�System�x�(81Y4544)

• ServeRAID�M5100�Series�RAID�6�Upgrade�for�IBM�System�x�(81Y4546)

• ServeRAID�M5100�Series�1GB�Flash/RAID�Upgrade�for�IBM�System�x�(81Y4559) IBM�support�options

• Tower�to�Rack�Conversion�Kit�(81Y7006)

• PCI-X�interposer�conversion�kit�(81Y7012)

• Additional�8�x�2.5"�Hot-Swap�SAS/SATA�Upgrade�Kit�for�16�(94Y5978)�or�24�HDDs

• Add'l�8x�2.5"�Hot-Swap�SAS/SATA�Upgrade�Kit�for�32�HDDs�(46W9243)�(12Gb)

• 550W�HS�redundant�PSU�option�(94Y5975)

• Additional�8�x�2.5"�Hot-Swap�SAS/SATA�Upgrade�Kit�for�32�(81Y7010)HDDs

• Add'l�8x�2.5"�Hot-Swap�SAS/SATA�Upgrade�Kit�for�16�or�24�(46W9242)�HDDs�(12Gb)

• SAS�cable�option�for�Two�12Gb�RAID�cards�(RAID�adapter�(46W9244)�not�included) (46W9244)

• Redundant�Cooling�Upgrade�Kit�(81Y7007)

• IBM�System�x�900W�High�Efficiency�Platinum�AC�Power�Supply�(94Y5973)

• IBM�System�x�750W�High�Efficiency�Platinum�AC�Power�Supply�(94Y5974)

• SAS�cable�option�for�Two�RAID�array�(RAID�adapter�not�(00D2607)�included)

• 146GB�15K�SAS�HS�2.5"�PI�SED�(90Y8944)

• 300GB�10K�SAS�HS�2.5"�PI�SED�(90Y8913)

• 250GB�7.2K�SATA�2.5"�HS�(81Y9722)

• 500GB�7.2K�SATA�2.5"�HS�(81Y9726) IBM�redundant�power�and�cooling�option

The�redundant�power�supplies�are�designed�to�supply�power�for�all�systems.

High-performance�server�subsystems

System�x3500�M4�servers�are�high-throughput,�two-way,�SMP-capable�network servers�with�excellent�performance�scalability�when�you�add�memory�and�a�second processor.�They�incorporate�powerful�Intel�Xeon�processors�with�10�MB,�15�MB, 20�MB,�25�MB,�or�30�MB�cache,�model�dependent.�These�flip-chip,�land�grid�array 2011(LGA2011)processors�feature�advanced�transfer�caches�integrated�onto�the processor�core�and�run�at�the�same�clock�speed�as�the�processor�core.

Two�processor�connectors�are�standard�on�the�system�board�to�support�installation�of a�second�processor.�High-speed,�1600/1866�MHz�DDR3�RDIMMs�are�optimized�for�1600/1866

(5)

MHz�processor-to-memory�subsystem�performance.�The�System�x3500�M4�server�uses�the Intel�Patsburg�chipset�to�maximize�throughput�from�processor�to�memory�and�system�I/O buses.

Standard�System�3500�M4�configurations

��

���Model����Processor��������Cache��Memory���SAS�Interface��Mechanical�

��7383-A5x���1.8�GHz/6.4�GTS��10�MB���4�GB����HS�SFF�SAS/SATA��Tower���

��7383-B5x���2.5�GHz/6.4�GTS��10�MB���4�GB����HS�SFF�SAS/SATA��Tower���

��7383-C5x���2.1�GHz/7.2�GTS��15�MB���8�GB����HS�SFF�SAS/SATA��Tower���

��7383-C7x���2.1�GHz/7.2�GTS��15�MB���8�GB����HS�LFF�SAS/SATA��Tower���

��7383-C9x���2.1�GHz/7.2�GTS��15�MB���8�GB����HS�LFF�SAS/SATA��Rack����

��7383-D5x���2.6�GHz/7.2�GTS��15�MB���8�GB����HS�SFF�SAS/SATA��Tower���

��7383-F5x���2.0�GHZ/7.2�GTS��20�MB���8�GB����HS�SFF�SAS/SATA��Tower���

��7383-G5x���2.6�GHz/8.0�GTS��20�MB���8�GB����HS�SFF�SAS/SATA��Tower���

��7383-G9x���2.6�GHz/8.0�GTS��20�MB���8�GB����HS�SFF�SAS/SATA��Rack����

��7383-H5x���2.5�GHz/8.0�GTS��25�MB���8�GB����HS�SFF�SAS/SATA��Tower���

��7383-J5x���2.8�GHz/8.0�GTS��25�MB���8�GB����HS�SFF�SAS/SATA��Tower���

��

Note:��For�EMEA�x=G

(6)

Additional�features:

• Ability�to�upgrade�to�two-way�processing�by�adding�a�second�processor�of�the�same speed�and�processor�type

• System�board�that�contains�12�DIMM�connectors�and�CPU�expansion�board�contains 12�DIMM�connectors�supporting�4�GB�and�8�GB�1600�MHz�DDR3�memory,�or�4�GB,�8�GB, 16GB,�32�GB�1866�MHz�DDR3�memory,�model�dependent

– System�memory�expansion�to�384�GB�with�16�GB�memory�RDIMMs�installed�in�24�DIMM slots�or�768�GB�system�memory�with�32�GB�memory�LR�DIMMs�installed.

• High-speed,�wide-bandwidth,�PCI-E�and�PCI�bus�slots�support – Slot�1�:�PCIe2�x8�:�PCI-E�x8�slot�with�x4�lanes�(Gen2,�from�PCH)

– Slot�2�:�PCIe3�x8�:�PCI-E�x8�slot�with�x8�lanes�(Gen3,�from�Processor�1) – Slot�3�:�PCIe3�x8�:�PCI-E�x8�slot�with�x8�lanes�(Gen3,�from�Processor�1) – Slot�4�:�PCIe3�x8�:�PCI-E�x8�slot�with�x4�lanes�(Gen3,�from�Processor�1) – Slot�5�:�PCIe3�x16�:�PCI-E�x16�slot�with�x16�lanes�(Gen3,�from�Processor�1) – Slot�6�:�PCIe3�x8�:�PCI-E�x8�slot�with�x4�lanes�(Gen3,�from�Processor�1) – Slot�7�:�PCIe3�x16�:�PCI-E�x16�slot�with�x16�lanes�(Gen3,�from�Processor�1) – Slot�8�:�PCIe3�x16�:�PCI-E�x16�slot�with�x16�lanes�(Gen3,�from�Processor�1)

• Eight-port�SAS/SATA�RAID�controller�that�supports�high-speed�internal�storage solutions

• Quad-port�Gigabit�Ethernet�controllers�that�speed�network�communications�to�LAN clients

The�x3500�M4�subsystems�are�tuned�to�provide�solid�system�throughput�from�processor, to�memory,�to�bus,�to�disk-intensive�I/O.�These�features,�combined�with�SMP

capability,�make�the�System�x3500�M4�server�an�excellent�choice�for�a�stand-alone�or clustered�business-critical�application,�storage,�file,�and�print�server.

High-availability�and�serviceability�features

• Redundant�cooling�includes:

– Three�simple-swap�fans�(single�replaceable�unit)

• One�hot-swap�power�supply�standard,�and�one�optional�redundant�power�supply�to support�robust�high-availability�applications

• Hot-swap�HDD�bays�with�SAS/SATA�backplane

• Standard�SAS�controller�to�support�up�to�eight�internal�hot-swap�SATA�or�SAS�HDD devices

• DDR3�ECC�RDIMMs,�combined�with�an�integrated�ECC�memory�controller�in�core�logic, to�correct�many�soft�and�hard�single-bit�memory�errors�(using�memory�mirroring), while�minimizing�disruption�of�services�to�LAN�clients

• Memory�hardware�scrubbing�to�correct�soft�memory�errors�automatically�without software�intervention

• 10�MB,�15�MB,�20�MB,�25�MB,�or�30�MB�cache�processors�to�improve�data�integrity and�help�reduce�downtime

• PFA�on�processors�and�memory�to�help�alert�the�system�administrator�of�an�imminent component�failure

• Up�to�six�simple-swap�redundant�system�cooling�fans�to�cool�system

• Integrated�management�module�(IMM2)�that�supports:

– Fan�monitoring�and�control – Power�supply�monitoring – Temperature�monitoring – Voltage�monitoring

– Power�on/off,�reset�sequencing

– LED�controls�(light�path�diagnostics�support)

(7)

– IPMI�capability�that�allows�you�to�accept�commands�and�send�status – Remote�firmware�update

– Automatic�server�restart�(ASR)6 – Numeric�error�logging

• Information�LED�panel�to�give�visual�indications�of�system�health

• Light�path�diagnostics�and�onboard�diagnostics�for�an�LED�map�that�provides�error codes�(which�are�explained�in�the�hardware�maintenance�manual)

• Easy�access�to�system�board,�adapter�cards,�processor,�and�memory

• CPU�failure�recovery�in�SMP�configurations – Generates�alerts�error�logs

6 The�ASR�function�is�currently�supported�on�MicrosoftTM�WindowsTM�2000�and�Windows�2003.

Expandability�and�growth

The�System�x3500�M4�server�is�a�5U�tower�configuration�engineered�to�meet�the compactness�of�a�5U�rack�drawer.�SVGA�video,�SAS/SATA,�and�full-duplex�Gigabit Ethernet�are�integrated�on�the�system�board.

Features�include:

• System�memory�expansion�to�384�GB�with�16�GB�memory�RDIMMs�installed�in�24�DIMM slots�or�768�GB�with�32�GB�Memory�LRDIMMs�installed�in�24�DIMM�slots9

• Six�PCI-E�slots�with�single�processor,�two�more�PCI-Express�slots�with�dual processors�and�one�optional�PCI-X�card�slot�when�using�interposer�card

• Up�to�32�drive�bays�plus�two�5.25-inch,�half-high�device�bays:

– Eight�2.5-inch,�hot-swap�drive�bays;�two�5.25-inch,�half-high�device�bays standard�on�the�C4x�model

– Optional�HDD�upgrade�kits�available�to�increase�the�number�of�storage�devices from�eight�to�sixteen,�to�twenty-four,�or�to�thirty-two�2.5-inch�hot-swap�drive bays

– Internal�support�for�high�performance�for�up�to�eight�SAS�HDDs�and�a�high- capacity�half-height�tape�backup�device

– Up�to�51.2�TB,�using�1.6�TB�HS�SAS�SSD�storage2

These�servers�can�handle�applications�for�today�and�expand�for�future�growth.

2 When�referring�to�HDD�or�tape�backup�capacity,�GB�stands�for�1,000,000,000�bytes�and�TB�stands for�1,000,000,000,000�bytes.�User�capacity�may�vary�depending�on�operating�environments.

9 When�available�For�the�latest�information�on�supported�HDD�options,�visit http://www-03.ibm.com/systems/info/x86servers/serverproven/compat/us/

Systems�management

Integrated�management�module�controller�(IMM2)

The�System�x3500�M4�server�includes�an�integrated�management�module�controller�that provides�industry-standard�Intelligent�Platform�Management�Interface�(IPMI)�2.0- compliant�systems�management.�The�IMM2�comes�standard,�and�has�a�dedicated�onboard Ethernet�port�for�access.�IMM2�can�be�accessed�using�software�that�is�compatible�with IPMI�2.0�(such�as�xCAT).

• Features�and�benefits

– Monitoring�of�system�and�CMOS�battery�voltages.

– Monitoring�of�system�temperatures.

– Fan�speed�control.

– Fan�tachometer�monitor.

– Power�good�signal�monitor.

(8)

– System�ID�and�planar�version�detection.

– System�power�control.

– System�reset�control.

– NMI�and�SMI�detection�and�generation�(System�Interrupts).

– Serial�port�text�console�redirection.

– System�LED�control�(power,�HDD,�activity,�alerts,�and�heartbeat).

– An�embedded�web�server�gives�you�remote�control�from�any�standard�web�browser.

No�additional�software�is�required�on�the�remote�administrator's�workstation.

– For�users�who�are�accustomed�to�a�command-line�interface�(CLI),�the�ability�for the�administrator�to�use�the�CLI�from�a�Telnet�session�to�perform�some�of�the functions�that�can�be�performed�from�the�web�server.

– Secure�Sockets�Layer�(SSL)�and�Lightweight�Directory�Access�Protocol�(LDAP).

– Built-in�LAN�and�serial�connectivity�that�supports�virtually�any�network infrastructure.

– Multiple�alerting�functions�that�warn�systems�administrators�of�potential problems�through�email,�IPMI�PETs,�and�SNMP.

IBM�Director

x3500�M4�servers�feature�IBM�Director,�a�powerful,�highly�integrated�systems management�software�solution�built�on�industry�standards�and�designed�for�ease�of use.�Exploit�your�existing�enterprise�or�workgroup�management�environments�and�use rich�security�features�to�access�and�manage�physically�dispersed�IT�assets�more efficiently�over�the�Internet.

Potentially�reduce�costs�through:

• Reduced�downtime

• Increased�productivity�of�IT�personnel�and�users

• Reduced�service�and�support�costs

IBM�Director�provides�integration�into�leading�workgroup�and�enterprise�systems management�environments,�through�the�use�of�upward�integration�modules.�The�advanced management�capabilities�built�into�System�x�servers�can�be�accessed�from:

• Tivoli®�Enterprise�and�Tivoli�NetView®

• Computer�Associates�CA�Unicenter�TNG�Framework

• NetIQ

• IMM�Patrol

• Microsoft�SMS

• Intel�LANDesk�Management�Suite

• HP�OpenView�Network�Node�Manager

IT�administrators�can�view�the�hardware�configuration�of�remote�systems�in�detail�and monitor�the�usage�and�performance�of�critical�components�such�as�processors,�HDDs, and�memory.

IBM�Director�includes�IBM�Director�Extensions,�a�portfolio�of�server�tools�that integrate�into�the�Director�framework�and�work�with�the�integrated�systems�management processor�to�access�environmental�system�information.

The�processor�supervises�the�operating�system�status�and�the�following�system components,�and�alerts�the�IT�administrator�to�critical�errors:

• Fan�monitoring�and�control;�status�and�presence�are�monitored.�Fan�speed�is controlled�and�automatically�increased�to�maintain�system�cooling�if�temperature thresholds�are�exceeded.�An�alert�is�generated�if:

– Failure�occurs�or�is�predicted.

– Installation�or�removal�occurs.

(9)

• Power�supply�condition�changes�for�the�power�supply.

– CPU�temperatures�are�monitored.�An�alert�is�generated�if�(preset)�temperature warning�thresholds�are�exceeded�or�restored,�and�if�critical�temperature thresholds�are�exceeded.�Soft�and�hard�system�shutdowns�are�automatically initiated�if�critical�temperature�thresholds�are�exceeded.

– CPU�and�power�subsystem�voltage�thresholds�are�monitored.

– Light�path�diagnostics�LEDs�are�illuminated�in�case�of�key�component�errors�or failures�to�enable�quick�local�diagnostics�and�servicing.

– Flash�update�enables�updates�to�the�integrated�systems�management�processor firmware.

The�IT�administrator�has�comprehensive,�virtual�on-site�control�of�System�x�servers and�can�remotely:

• Access�the�server�regardless�of�the�status

• Inventory�and�often�display�detailed�system�and�component�information

• View�server�bootup�during�POST

• Browse�and�delete�logs�of�events�and�errors

• Reset�or�power�cycle�the�server

• Run�diagnostics,�SAS/SATA�setup,�and�RAID�setup�during�POST

• Monitor�thresholds�on�server�health,�including:

– Operating�system�load – POST�time-out

– Voltage – Temperature

• Set�proactive�alerts�for�critical�server�events,�including�PFA�on:

– Processors – Memory

• Define�automated�actions,�such�as:

– Send�email�or�a�page�to�an�administrator – Run�a�command�or�program

– Deliver�an�error�message�to�the�Director�console

• Monitor�flash�BIOS

• Monitor�and�graph�the�utilization�of�server�resources,�such�as:

– Memory – Processor – HDDs

• Identify�potential�performance�bottlenecks�and�react�to�prevent�down�time

• Monitor,�manage,�and�configure�RAID�subsystems�without�taking�them�offline Advanced�Configuration�and�Power�Interface�(ACPI)

This�open�industry�specification�defines�a�flexible�and�extensible�hardware�interface for�the�system�board.�Software�designers�use�this�specification�to�integrate�power management�features�throughout�a�computer�system,�including�hardware,�the�operating system,�and�application�software.�This�integration�enables�Windows�to�determine which�applications�are�active,�and�handles�all�of�the�power�management�resources�for computer�subsystems�and�peripherals.

World-class�support�tools�and�programs

The�System�x3500�M4�server�includes�tools�and�programs�designed�to�make�ownership a�positive�experience.�From�the�start,�IBM�programs�help�you�purchase�servers,�get

(10)

them�running,�and�keep�them�running.�IBM�can�help�your�company�maintain�ownership�of technology�leadership�network�servers.

• Warranty:�Three�years,�customer�replaceable�unit�(CRU)�and�on-site�service, limited�warranty;�optional�warranty�service�upgrades�available.

• The�ServerProven®�7�program�enables�you�to�configure�your�server�confidently with�various�devices�and�operating�systems.�This�web-based�program�provides compatibility�information�from�actual�testing�of�the�System�x3500�M4�servers�with various�adapters�and�devices.

• The�ServerGuide�CD�includes�utilities�and�drivers�for�assisted�installation�of popular�network�operating�systems.�Also�included�is�a�Broadcom�Ethernet�CD.

• Electronic�support�on�the�web�provides�additional�support�in�an�easy-to-use format.

7 IBM�makes�no�warranties,�expressed�or�implied,�regarding�non-IBM�products�and�services�that are�ServerProven�,�including�but�not�limited�to�implied�warranties�of�merchantability�and fitness�for�a�particular�purpose.�These�products�are�offered�and�warranted�solely�by�third parties.

Product�positioning

The�System�x3500�M4�server�is�positioned�above�the�entry,�two-way�x3500�M3.�These servers�contain�additional�fault�tolerance�through�PCI-Express,�and�support�for�PCI- X.�They�also�feature�enhanced�systems�management�control.�As�universal�servers,�they are�offered�in�flexible�tower�models�and�can�be�rack-mounted�using�a�tower-to-rack conversion�kit.

With�these�servers,�two�segments�can�be�combined�into�one�departmental�and�mission- critical�space.�The�System�x3500�M4�server�is�a�compact�5U�two-way,�SMP-capable�Xeon processor-based�platform�designed�with�integrated�high-availability�features�for mainstream�network�and�storage�server�applications.

These�servers�are�ideal�for�clients�who�require�up�to�two-way�3.5�GHz/�8.0�GTS processing�power,�significant�memory,�high�availability,�and�large�data�storage scalability.�High-speed�memory,�up�to�thirty-two�SAS/SATA�hot-swap�drive�bays,�and a�device�bay�for�high-capacity�tape�drives�make�these�servers�ideal�for�mainstream network�and�storage�computing.

Statement�of�general�direction

Statement�of�Direction�-�IBM�Security�Key�Lifecycle�Manager�(ISKLM)

IBM�intends�to�update�select�System�x�servers�by�providing�a�new�optional�for-charge feature�to�enable�management�of�self�encrypting�hard�drive�hardware�options�within the�IBM�Security�Key�Lifecycle�Manager�product.

IBM's�statements�regarding�its�plans,�directions,�and�intent�are�subject�to�change�or withdrawal�without�notice�at�IBM's�sole�discretion.�Information�regarding�potential future�products�is�intended�to�outline�our�general�product�direction�and�it�should not�be�relied�on�in�making�a�purchasing�decision.�The�information�mentioned�regarding potential�future�products�is�not�a�commitment,�promise,�or�legal�obligation�to deliver�any�material,�code�or�functionality.�Information�about�potential�future products�may�not�be�incorporated�into�any�contract.�The�development,�release,�and timing�of�any�future�features�or�functionality�described�for�our�products�remains�at our�sole�discretion.

Information�being�released�in�this�Statement�of�Direction�represents�IBM's�current intent,�is�subject�to�change�or�withdrawal,�and�represents�only�goals�and�objectives

Product�number

(11)

Single�Entity�Offerings�(SEOs)

Description��������������������������������������������SEO

�������������������������������������������������������number

��

IBM�System�x3500�M4������������������������������������7383A5J

�������������������������������������������������������7383B5J

�������������������������������������������������������7383C5J

�������������������������������������������������������7383C7J

�������������������������������������������������������7383C9J

�������������������������������������������������������7383D5J

�������������������������������������������������������7383F5J

�������������������������������������������������������7383G5J

�������������������������������������������������������7383G9J

�������������������������������������������������������7383H5J

�������������������������������������������������������7383J5J

Options�Offerings

������������������������������������Machine�������������������Part Description�������������������������Type��Model�Feature��SEO��number

SAS�cable�option�for�two�12Gb�RAID��3331��HC1���A478��46W9244�46W9244 cards9

Add'l�8x�2.5"�Hot-Swap�SAS/SATA�����3331��HC1���A47A��46W9243�46W9243 Upgrade�Kit�for�32�HDDs�(12Gb)9

Add'l�8x�2.5"�Hot-Swap�SAS/SATA�����3331��HC1���A47B��46W9242�46W9242 Upgrade�Kit�for�16�or�24�HDDs�(12Gb)9

4GB�(1x4GB,�2Rx8,�1.35V)�PC3L-12800�3331��HC1���A3QB��00D5012�00D5012 CL11�ECC�DDR3�1600MHz�LP�UDIMM

4GB�(1x4GB,�2Rx8,�1.5V)�PC3-14900���3331��HC1���A3QF��00D5028�00D5028 CL13�ECC�DDR3�1866MHz�LP�UDIMM

Intel�Xeon�Processor�E5-2695�v2�12C�3331��HC1���A3Y9��46W9126�46W9126 2.4GHz�30MB�Cache�1866MHz�115W

Intel�Xeon�Processor�E5-2697�v2�12C�3331��HC1���A3YA��46W9127�46W9127 2.7GHz�30MB�Cache�1866MHz�130W

Intel�Xeon�Processor�E5-2603�v2�4C��3331��HC1���A3YB��46W9128�46W9128 1.8GHz�10MB�Cache�1333MHz�80W

Intel�Xeon�Processor�E5-2609�v2�4C��3331��HC1���A3YC��46W9129�46W9129 2.5GHz�10MB�Cache�1333MHz�80W

Intel�Xeon�Processor�E5-2620�v2�6C��3331��HC1���A3YD��46W9130�46W9130 2.1GHz�15MB�Cache�1600MHz�80W

Intel�Xeon�Processor�E5-2630�v2�6C��3331��HC1���A3YE��46W9131�46W9131 2.6GHz�15�MB�Cache�1600MHz�80W

Intel�Xeon�Processor�E5-2640�v2�8C��3331��HC1���A3YF��46W9132�46W9132 2.0GHz�20MB�Cache�1600MHz�95W

Intel�Xeon�Processor�E5-2650�v2�8C��3331��HC1���A3YG��46W9133�46W9133 2.6GHz�20MB�Cache�1866MHz�95W

Intel�Xeon�Processor�E5-2660�v2�10C�3331��HC1���A3YH��46W9134�46W9134 2.2GHz�25MB�Cache�1866MHz�95W

Intel�Xeon�Processor�E5-2670�v2�10C�3331��HC1���A3YJ��46W9135�46W9135 2.5GHz�25MB�Cache�1866MHz�115W

Intel�Xeon�Processor�E5-2680�v2�10C�3331��HC1���A3YK��46W9136�46W9136 2.8Ghz�25MB�Cache�1866MHz�115W

Intel�Xeon�Processor�E5-2690�v2�10C�3331��HC1���A3YL��46W9137�46W9137 3.0GHz�25MB�Cache�1866MHz�130W

Intel�Xeon�Processor�E5-2637�v2�4C��3331��HC1���A3YN��46W9139�46W9139 3.5GHz�15MB�Cache�1866MHz�130W

Intel�Xeon�Processor�E5-2643�v2�6C��3331��HC1���A3YP��46W9140�46W9140 3.5GHz�25MB�Cache�1866MHz�130W

Intel�Xeon�Processor�E5-2667�v2�8C��3331��HC1���A3YQ��46W9141�46W9141 3.3GHz�25MB�Cache�1866MHz�130W

Intel�Xeon�Processor�E5-2630L�v2����3331��HC1���A3YR��46W9142�46W9142 6C�2.4GHz�15MB�Cache�1600MHz�60W

Intel�Xeon�Processor�E5-2650L�v2����3331��HC1���A3YS��46W9143�46W9143 10C�1.7GHz�25MB�Cache�1600MHz�70W

(12)

Intel�Xeon�Processor�E5-2628L�v2�8C�3331��HC1���A476��00Y8265�00Y8265 1.9GHz�20MB�Cache�1600MHz�70W

Intel�Xeon�Processor�E5-2648L�v2����3331��HC1���A477��00Y8266�00Y8266 10C�1.9GHz�25MB�Cache�1866MHz�70W

The�following�are�features�already�announced�for�the�3331,�7383�machine�types:

Description�����������������������������������������MT��Model�Feature�

4GB�(1x4GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3

1600MHz�LP�UDIMM�����������������������������������3331��HC1�����A3QB 4GB�(1x4GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3

1600MHz�LP�UDIMM�����������������������������������7383��AC1

���������������������������������������������������������MC1 8GB�(1x8GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3

1600MHz�LP�UDIMM�����������������������������������7383��AC1�����A3QC

���������������������������������������������������������MC1 4GB�(1x4GB,�1Rx4,�1.35V)�PC3L-12800�CL11�ECC�DDR3

1600MHz�LP�RDIMM�����������������������������������7383��AC1�����A3QE

���������������������������������������������������������MC1 4GB�(1x4GB,�2Rx8,�1.5V)�PC3-14900�CL13�ECC�DDR3

1866MHz�LP�RDIMM�����������������������������������3331��HC1�����A3QF 4GB�(1x4GB,�2Rx8,�1.5V)�PC3-14900�CL13�ECC�DDR3

1866MHz�LP�RDIMM�����������������������������������7383��AC1

���������������������������������������������������������MC1 8GB�(1x8GB,�1Rx4,�1.35V)�PC3L-12800�CL11�ECC�DDR3

1600MHz�LP�RDIMM�����������������������������������7383��AC1�����A3QH

���������������������������������������������������������MC1 8GB�(1x8GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3

1600MHz�LP�RDIMM�����������������������������������7383��AC1�����A3QK

���������������������������������������������������������MC1 16GB�(1x16GB,�2Rx4,�1.5V)�PC3-14900�CL13�ECC�DDR3

1866MHz�LP�RDIMM�����������������������������������7383��AC1�����A3QL

���������������������������������������������������������MC1

NVIDIA�Quadro�K600���������������������������������7383��AC1�����A3WH

���������������������������������������������������������MC1

NVIDIA�Quadro�K2000��������������������������������7383��AC1�����A3WJ

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2695�v2�12C�2.4GHz�30MB

Cache�1866MHz�115W���������������������������������7383��AC1�����A3XR

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2697�v2�12C�2.7GHz�30MB

Cache�1866MHz�130W���������������������������������7383��AC1�����A3XS

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2603�v2�4C�1.8GHz�10MB

Cache�1333MHz�80W����������������������������������7383��AC1�����A3XT

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2609�v2�4C�2.5GHz�10MB

Cache�1333MHz�80W����������������������������������7383��AC1�����A3XU

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2620�v2�6C�2.1GHz�15MB

Cache�1600MHz�80W����������������������������������7383��AC1�����A3XV

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2630�v2�6C�2.6GHz�15MB

Cache�1600MHz�80W����������������������������������7383��AC1�����A3XW

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2640�v2�8C�2.0GHz�20MB

Cache�1600MHz�95W����������������������������������7383��AC1�����A3XX

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2650�v2�8C�2.6GHz�20MB

Cache�1866MHz�95W����������������������������������7383��AC1�����A3XY

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2660�v2�10C�2.2GHz�25MB

Cache�1866MHz�95W����������������������������������7383��AC1�����A3XZ

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2670�v2�10C�2.5GHz�25MB

Cache�1866MHz�115W���������������������������������7383��AC1�����A3Y0

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2680�v2�10C�2.8GHz�25MB

Cache�1866MHz�115W���������������������������������7383��AC1�����A3Y1

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2690�v2�10C�3.0GHz�25MB

(13)

Cache�1866MHz�130W���������������������������������7383��AC1�����A3Y2

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2637�v2�4C�3.5GHz�15MB

Cache�1866MHz�130W���������������������������������7383��AC1�����A3Y4

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2643�v2�6C�3.5GHz�25MB

Cache�1866MHz�130W���������������������������������7383��AC1�����A3Y5

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2667�v2�8C�3.3GHz�25MB

Cache�1866MHz�130W���������������������������������7383��AC1�����A3Y6

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2630L�v2�6C�2.4GHz�15MB

Cache�1600MHz�60W����������������������������������7383��AC1�����A3Y7

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2650L�v2�10C�1.7GHz�25MB

Cache�1600MHz�70W����������������������������������7383��AC1�����A3Y8

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2695�v2�12C�2.4GHz

30MB�115W�Upgrade�Kit������������������������������3331��HC1�����A3Y9 Addl�Intel�Xeon�Processor�E5-2695�v2�12C�2.4GHz

30MB�115W�Upgrade�Kit������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2697�v2�12C�2.7GHz

30MB�130W�Upgrade�Kit������������������������������3331��HC1�����A3YA Addl�Intel�Xeon�Processor�E5-2697�v2�12C�2.7GHz

30MB�130W�Upgrade�Kit������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2603�v2�4C�1.8GHz�10MB

80W�Upgrade�Kit������������������������������������3331��HC1�����A3YB Addl�Intel�Xeon�Processor�E5-2603�v2�4C�1.8GHz�10MB

80W�Upgrade�Kit������������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2609�v2�4C�2.5GHz�10MB

80W�Upgrade�Kit������������������������������������3331��HC1�����A3YC Addl�Intel�Xeon�Processor�E5-2609�v2�4C�2.5GHz�10MB

80W�Upgrade�Kit������������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2620�v2�6C�2.1GHz�15MB

80W�Upgrade�Kit������������������������������������3331��HC1�����A3YD Addl�Intel�Xeon�Processor�E5-2620�v2�6C�2.1GHz�15MB

80W�Upgrade�Kit������������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2630�v2�6C�2.6GHz�15MB

80W�Upgrade�Kit������������������������������������3331��HC1�����A3YE Addl�Intel�Xeon�Processor�E5-2630�v2�6C�2.6GHz�15MB

80W�Upgrade�Kit������������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2640�v2�8C�2.0GHz�20MB

95W�Upgrade�Kit������������������������������������3331��HC1�����A3YF Addl�Intel�Xeon�Processor�E5-2640�v2�8C�2.0GHz�20MB

95W�Upgrade�Kit������������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2650�v2�8C�2.6GHz�20MB

95W�Upgrade�Kit������������������������������������3331��HC1�����A3YG Addl�Intel�Xeon�Processor�E5-2650�v2�8C�2.6GHz�20MB

95W�Upgrade�Kit������������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2660�v2�10C�2.5GHz

25MB�95W�Upgrade�Kit�������������������������������3331��HC1�����A3YH Addl�Intel�Xeon�Processor�E5-2660�v2�10C�2.5GHz

25MB�95W�Upgrade�Kit�������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2670�v2�10C�2.5GHz

25MB�115W�Upgrade�Kit������������������������������3331��HC1�����A3YJ Addl�Intel�Xeon�Processor�E5-2670�v2�10C�2.5GHz

25MB�115W�Upgrade�Kit������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2680�v2�10C�2.8GHz

25MB�115W�Upgrade�Kit������������������������������3331��HC1�����A3YK Addl�Intel�Xeon�Processor�E5-2680�v2�10C�2.8GHz

25MB�115W�Upgrade�Kit������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2690�v2�10C�3.0GHz

25MB�130W�Upgrade�Kit������������������������������3331��HC1�����A3YL

(14)

Addl�Intel�Xeon�Processor�E5-2690�v2�10C�3.0GHz

25MB�130W�Upgrade�Kit������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2637�v2�4C�3.5GHz�15MB

130W�Upgrade�Kit�����������������������������������3331��HC1�����A3YN Addl�Intel�Xeon�Processor�E5-2637�v2�4C�3.5GHz�15MB

130W�Upgrade�Kit�����������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2643�v2�6C�3.5GHz�25MB

130W�Upgrade�Kit�����������������������������������3331��HC1�����A3YP Addl�Intel�Xeon�Processor�E5-2643�v2�6C�3.5GHz�25MB

130W�Upgrade�Kit�����������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2667�v2�8C�3.3GHz�25MB

130W�Upgrade�Kit�����������������������������������3331��HC1�����A3YQ Addl�Intel�Xeon�Processor�E5-2667�v2�8C�3.3GHz�25MB

130W�Upgrade�Kit�����������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2630L�v2�6C�2.4GHz

15MB�60W�Upgrade�Kit�������������������������������3331��HC1�����A3YR Addl�Intel�Xeon�Processor�E5-2630L�v2�6C�2.4GHz

15MB�60W�Upgrade�Kit�������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2650L�v2�10C�1.7GHz

25MB�70W�Upgrade�Kit�������������������������������3331��HC1�����A3YS Addl�Intel�Xeon�Processor�E5-2650L�v2�10C�1.7GHz

25MB�70W�Upgrade�Kit�������������������������������7383��AC1

���������������������������������������������������������MC1

x3500�M4�Planar�(Refresh)��������������������������7383��AC1�����A3YT

���������������������������������������������������������MC1

NVIDIA�Quadro�K4000��������������������������������7383��AC1�����A3YU

���������������������������������������������������������MC1

NVIDIA�Quadro�K5000��������������������������������7383��AC1�����A3YW

���������������������������������������������������������MC1

N2215�SAS/SATA�HBA�for�IBM�System�x����������������7383��AC1�����A3YY

���������������������������������������������������������MC1 ServeRAID�M5210�SAS/SATA�Controller�for�IBM�System

x��������������������������������������������������7383��AC1�����A3YZ

���������������������������������������������������������MC1 ServeRAID�M5200�Series�1GB�Cache/RAID�5�Upgrade�for

IBM�Systems����������������������������������������7383��AC1�����A3Z0

���������������������������������������������������������MC1 ServeRAID�M5200�Series�1GB�Flash/RAID�5�Upgrade

for�IBM�Systems������������������������������������7383��AC1�����A3Z1

���������������������������������������������������������MC1 ServeRAID�M5200�Series�2GB�Flash/RAID�5�Upgrade

for�IBM�Systems������������������������������������7383��AC1�����A3Z2

���������������������������������������������������������MC1 ServeRAID�M5200�Series�RAID�6�Upgrade�for�IBM�Systems-FoD

���������������������������������������������������7383��AC1�����A3Z5

���������������������������������������������������������MC1 ServeRAID�M5200�Series�Zero�Cache/RAID�5�Upgrade

for�IBM�Systems-FoD��������������������������������7383��AC1�����A3Z6

���������������������������������������������������������MC1 ServeRAID�M5200�Series�Performance�Accelerator�for

IBM�Systems-FoD����������������������������������7383��AC1�����A3Z7

���������������������������������������������������������MC1 ServeRAID�M5200�Series�SSD�Caching�Enabler�for�IBM�Systems-FoD

���������������������������������������������������7383��AC1�����A3Z8

���������������������������������������������������������MC1

NVIDIA�Tesla�K20�(Actively�Cooled)�����������������7383��AC1�����A471

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2628L�v2�8C�1.9GHz�20MB

Cache�1600MHz�70W����������������������������������7383��AC1�����A474

���������������������������������������������������������MC1 Intel�Xeon�Processor�E5-2648L�v2�10C�1.9GHz�25MB

Cache�1866MHz�70W����������������������������������7383��AC1�����A475

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2628L�v2�8C�1.9GHz

20MB�1600MHz�70W�����������������������������������3331��HC1�����A476 Addl�Intel�Xeon�Processor�E5-2628L�v2�8C�1.9GHz

20MB�1600MHz�70W�����������������������������������7383��AC1

���������������������������������������������������������MC1 Addl�Intel�Xeon�Processor�E5-2648L�v2�10C�1.9GHz

(15)

25MB�1866MHz�70W�����������������������������������3331��HC1�����A477 Addl�Intel�Xeon�Processor�E5-2648L�v2�10C�1.9GHz

25MB�1866MHz�70W�����������������������������������7383��AC1

���������������������������������������������������������MC1

SAS�cable�option�for�two�12Gb�RAID�cards�����������3331��HC1�����A478 SAS�cable�option�for�two�12Gb�RAID�cards�����������7383��AC1

���������������������������������������������������������MC1

SAS�cable�option�for�two�12Gb�RAID�cards�����������7383��AC1�����A479

���������������������������������������������������������MC1

2.5"�Hot�Swap�SAS/SATA�for�8�and�32�HDDs�(12G)�����3331��HC1�����A47A 2.5"�Hot�Swap�SAS/SATA�for�8�and�32�HDDs�(12G)�����7383��AC1

���������������������������������������������������������MC1

2.5"�Hot�Swap�SAS/SATA�for�16�and�24�HDDs�(12G)����3331��HC1�����A47B 2.5"�Hot�Swap�SAS/SATA�for�16�and�24�HDDs�(12G)����7383��AC1

���������������������������������������������������������MC1

short�cable�-�425mm��������������������������������7383��AC1�����A47G

���������������������������������������������������������MC1 32GB�(1x32GB,�4Rx4,�1.5V)�PC3-14900�CL13�ECC�DDR3

1866MHz�LP�LRDIMM8��������������������������������7383��AC1�����A47K

���������������������������������������������������������MC1

��

Note:�The�following�Pseudo�part�numbers�cannot�be�ordered�as�stand-alone�parts�and can�only�be�ordered�using�configurator.

The�following�are�Pseudo�Options

Description�����������������������������������������Part�number

x3500�M4�Planar�(Refresh)����������������������������������46W9178 Intel�Xeon�Processor�E5-2695�v2�12C�2.4GHz�30MB�Cache������46W9144 1866MHz�115W

Intel�Xeon�Processor�E5-2697�v2�12C�2.7GHz�30MB�Cache������46W9145 1866MHz�130W

Intel�Xeon�Processor�E5-2603�v2�4C�1.8GHz�10MB�Cache�������46W9146 1333MHz�80W

Intel�Xeon�Processor�E5-2609�v2�4C�2.5GHz�10MB�Cache�������46W9147 1333MHz�80W

Intel�Xeon�Processor�E5-2620�v2�6C�2.1GHz�15MB�Cache�������46W9148 1600MHz�80W

Intel�Xeon�Processor�E5-2630�v2�6C�2.6GHz�15MB�Cache�������46W9149 1600MHz�80W

Intel�Xeon�Processor�E5-2640�v2�8C�2.0GHz�20MB�Cache�������46W9150 1600MHz�95W

Intel�Xeon�Processor�E5-2650�v2�8C�2.6GHz�20MB�Cache�������46W9151 1866MHz�95W

Intel�Xeon�Processor�E5-2660�v2�10C�2.2GHz�25MB�Cache������46W9152 1866MHz�95W

Intel�Xeon�Processor�E5-2670�v2�10C�2.5GHz�25MB�Cache������46W9153 1866MHz�115W

Intel�Xeon�Processor�E5-2680�v2�10C�2.8GHz�25MB�Cache������46W9154 1866MHz�115W

Intel�Xeon�Processor�E5-2690�v2�10C�3.0GHz�25MB�Cache������46W9155 1866MHz�130W

Intel�Xeon�Processor�E5-2637�v2�4C�3.5GHz�15MB�Cache�������46W9157 1866MHz�130W

Intel�Xeon�Processor�E5-2643�v2�6C�3.5GHz�25MB�Cache�������46W9158 1866MHz�130W

Intel�Xeon�Processor�E5-2667�v2�8C�3.3GHz�25MB�Cache�������46W9159 1866MHz�130W

Intel�Xeon�Processor�E5-2630L�v2�6C�2.4GHz�15MB�Cache������46W9160 1600MHz�60W

Intel�Xeon�Processor�E5-2650L�v2�10C�1.7GHz�25MB�Cache�����46W9161 1600MHz�70W

2.5"�Hot�Swap�SAS/SATA�for�8�and�32�HDDs�(12G)�������������00Y8220 2.5"�Hot�Swap�SAS/SATA�for�16�and�24�HDDs�(12G)������������00Y8221 NVIDIA�Quadro�K4000����������������������������������������46W9201 4GB�(1x4GB,�2Rx8,�1.35V)�PC3L-12800�CL11�ECC�DDR3����������00D5013 1600MHz�LP�UDIMM

4GB�(1x4GB,�2Rx8,�1.5V)�PC3-14900�CL13�ECC�DDR3�1866MHz����00D5029

参照

関連したドキュメント

JAIST Repository https://dspace.jaist.ac.jp/ Title 研究開発者の拡張的学習を支援するマネジメント(<ホ ットイシュー>

論文 水分の内部拡散を考慮した体積変化メカニズムに関する研究 横山 隼佑*1・大下 英吉*2

一 番寄与率 の大きいのは珪素鉄の粒径である。鼓室項 には秒時湘定訳丑,点火王 事 E L tの′ (ラツキによる鼓薮 ここに取上げなかった多

PowerCenter Real Time は、 JMS (例: Informatica 、 Oracle 、 Sun 、 TIBCO 、 IBM 、 JBoss )、 webMethods X-Broker 、 IBM WebSphere MQ 、 Microsoft MQ

印刷結果がおかしい

Thepurposewastocl ari fyarel ati onshi pbetweenmaxi mum bodysurfacepressureand arthrogryposi s,andanareawhereshowedmaxi mum bodysurfacepressure.Threegroups werecompared,si

[r]

IBM WebSphere WebSphere WebSphere WebSphere MQ MQ MQ MQ Apache Active MQ Apache Active MQ Apache Active MQ Apache Active MQ Microsoft MQ Microsoft MQ Microsoft MQ Microsoft
