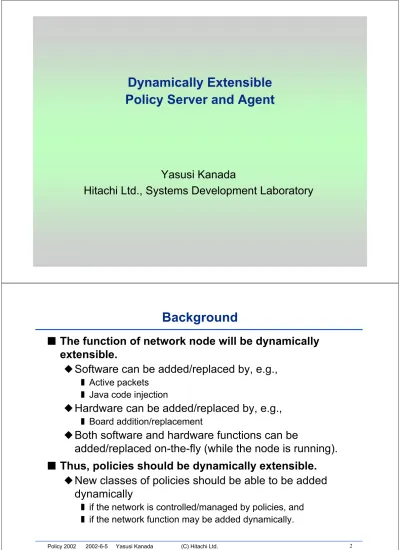

Dynamically Extensible Policy Server and Agent Background

(1)

Dynamically Extensible Policy Server and Agent

Yasusi Kanada

Hitachi Ltd., Systems Development Laboratory

Background

■ The function of network node will be dynamically extensible.

◆Software can be added/replaced by, e.g.,

❚ Active packets

❚ Java code injection

◆Hardware can be added/replaced by, e.g.,

❚ Board addition/replacement

◆Both software and hardware functions can be

added/replaced on-the-fly (while the node is running).

■ Thus, policies should be dynamically extensible.

◆New classes of policies should be able to be added dynamically

❚ if the network is controlled/managed by policies, and

(2)

Policy 2002 2002-6-5 Yasusi Kanada (C) Hitachi Ltd. 3

Problem

■ Conventional policy-based systems do not allow dynamic extension.

◆E.g., in COPS-PR, policies are stored in statically- specified PIBs.

❚ New classes of policies require new PIB specification.

❚ If starndard-based, vendors must wait for PIB standardization.

❚ No dynamic extension, even if non-standard PIB is used.

4

Solution

■ The policy-extension-by-policy (PXP) method has been developed.

◆A new policy class is defined by predefined PD/PE policies in the PXP method.

❚ A PD (policy definition) policy contains device-independent definitions of user-defined policy classes, and

❚ A PE (policy embedding) policy contains device-dependent methods for translation of user-defined policies into device configurations.

❚ PD/PE policies are meta policies.

(3)

An Architecture for the PXP Method

■ Software components

◆User/Application interface

◆Policy manager

(Policy server, PDP)

◆Policy database

◆Policy agents

■ Policy agents may be embedded in network nodes.

User/Application interface

Policy manager

Policy agent Policy

DB

Network node

Policy agent

Network

node Network

node Network node

… …

configu-

rations configu-

rations policies

policies

Policy Deployment Process of the PXP Method

User/Application interface

Policy manager

Policy agent Policy

DB

Policy agent Administrator

PD policy PE policies

Then, policy manager can handle new classes of user-defined policies.

PE1 PE2

Then, policy agent can translate new classes of user-defined policies.

deploy

(4)

Basic Policy Information-model

■ A policy is a sequence of policy rules: P = {r1, r2, …, rn}.

■ A policy rule consists of

◆A list of conditions: c1, c2, …, cm

◆A list of actions: a1, a2, …, al

■ A condition / an action consists of a variable and a value:

variable = value.

■ A policy (instance) belongs to a policy class.

◆Class examples: Diffserv-edge, Access-control.

◆All the rules in a policy must have the same type of functionality.

■ Example (a Diffserv-edge policy rule)

◆if (source_address = 192.168.1.1, protocol = 'tcp') { DSCP = 46; }

8

Prototype Development

■ Three policy classes were predefined.

◆PolicyToTelnet (an amalgame of PD & PE policies)

❚ Most important

◆PolicyVariableDefinition

(a PD policy)

◆PolicyValueTranslation ^(an

amalgame of PD & PE policies)

■ A PolicyToTelnet policy rule defines

◆a user-defined policy class, and

◆the method of translating a policy of this class into CLI commands.

(5)

PE Policy

■ Two essential elements of PE policy rules are

◆Command template

◆Template fillers

■ A command is generated from the pattern by filling the unfinished portions by using template fillers.

■ Example

◆Command template: access-list %s permit %s %s %s.

◆Fillers: ^{N + 1},

protocol || 'ip',

source_address || 'any',

destination_address || 'any'

◆Command generation

❚ Variable values: N = 2, protocol = 'tcp', source_address = '192.168.1.1', and destination_adress = ''

❚ access-list 3 permit tcp 192.168.1.1 any

similar to printf in C

PolicyToTelnet Policy and Policy Deployment

# Condition part:

if (name = policy_class_name) {

# Action part 1/3: Policy variable declarations condition_variables =

{variable_name options, …}, action_variables =

{variable_name options, …},

# Action part 2/3: Policy prologue/epilogue translators policy_initialization =

{work_variable = initial_value, …}, policy_pre_deploy_commands =

[[template, filler, filler, …], …], policy_post_deploy_commands =

[[template, filler, filler, …], …], policy_pre_undeploy_commands =

[[template, filler, filler, …], …], policy_post_undeploy_commands =

[[template, filler, filler, …], …],

# Action part 3/3: Policy rule translators rule_initialization =

{work_variable = policy_bytecode_program, …},

Generation order

Prologue

Epilogue Commands Commands

… Commands

Policy initialization

Rule initialization Rule initialization

Rule initialization

(6)

PolicyToTelnet Policy and Policy Undeployment
