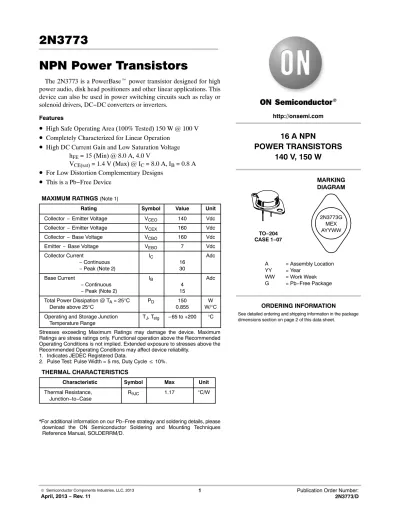

2N3773 NPN Power Transistors

(1)

NPN Power Transistors

The 2N3773 is a PowerBase t power transistor designed for high power audio, disk head positioners and other linear applications. This device can also be used in power switching circuits such as relay or solenoid drivers, DC−DC converters or inverters.

Features

• High Safe Operating Area (100% Tested) 150 W @ 100 V

• Completely Characterized for Linear Operation

• High DC Current Gain and Low Saturation Voltage h FE = 15 (Min) @ 8.0 A, 4.0 V

V _CE(sat) = 1.4 V (Max) @ I _C = 8.0 A, I _B = 0.8 A

• For Low Distortion Complementary Designs

• This is a Pb−Free Device MAXIMUM RATINGS (Note 1)

Rating Symbol Value Unit

Collector − Emitter Voltage V

CEO

140 Vdc

Collector − Emitter Voltage V

_CEX

160 Vdc

Collector − Base Voltage V

_CBO

160 Vdc

Emitter − Base Voltage V

_EBO

7 Vdc

Collector Current

− Continuous

− Peak (Note 2)

I

C

16 30

Adc

Base Current

− Continuous

− Peak (Note 2)

I

_B

4 15

Adc

Total Power Dissipation @ T

A

= 25°C

Derate above 25°C P

D

150 0.855 W

W/°C Operating and Storage Junction

Temperature Range T

J

, T

stg

−65 to +200 °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. Indicates JEDEC Registered Data.

2. Pulse Test: Pulse Width = 5 ms, Duty Cycle v 10%.

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Thermal Resistance,

Junction−to−Case R

_qJC

1.17 °C/W

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

TO−204 CASE 1−07

See detailed ordering and shipping information in the package dimensions section on page 2 of this data sheet.

ORDERING INFORMATION http://onsemi.com

MARKING DIAGRAM

16 A NPN

POWER TRANSISTORS 140 V, 150 W

2N3773G MEX AYYWW

A = Assembly Location

YY = Year

WW = Work Week

G = Pb−Free Package

(2)

http://onsemi.com 2

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ELECTRICAL CHARACTERISTICS (T

C

= 25_C unless otherwise noted)

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Characteristic

^ÎÎÎÎ

ÎÎÎÎ

Symbol

^ÎÎÎÎ

ÎÎÎÎ

Min

^ÎÎÎ

ÎÎÎ

Max

^ÎÎÎ

ÎÎÎ

Unit

OFF CHARACTERISTICS (Note 3)

Collector−Emitter Breakdown Voltage (Note 4) (I

_C

= 0.2 Adc, I

_B

= 0)

ÎÎÎÎ

V

_CEO(sus)

ÎÎÎÎ

140

ÎÎÎ

−

ÎÎÎ

Vdc

Collector−Emitter Sustaining Voltage (Note 4) (I

_C

= 0.1 Adc, V

_BE(off)

= 1.5 Vdc, R

_BE

= 100 Ohms)

ÎÎÎÎ

V

_CEX(sus)^ÎÎÎÎ

ÎÎÎÎ

160

^ÎÎÎ

ÎÎÎ

−

^ÎÎÎ

ÎÎÎ

Vdc

Collector−Emitter Sustaining Voltage (I

C

= 0.2 Adc, R

BE

= 100 Ohms)

ÎÎÎÎ

V

CER(sus)^ÎÎÎÎ

ÎÎÎÎ

150

^ÎÎÎ

ÎÎÎ

−

^ÎÎÎ

ÎÎÎ

Vdc

Collector Cutoff Current (Note 4) (V

_CE

= 120 Vdc, I

_B

= 0)

ÎÎÎÎ

I

_CEO ÎÎÎÎ

ÎÎÎÎ

−

ÎÎÎ

10

ÎÎÎ

mAdc

Collector Cutoff Current (Note 4) (V

_CE

= 140 Vdc, V

_BE(off)

= 1.5 Vdc)

(V

_CE

= 140 Vdc, V

_BE(off)

= 1.5 Vdc, T

_C

= 150_C)

ÎÎÎÎ

I

_CEX

ÎÎÎÎ

−

ÎÎÎ

2 10

ÎÎÎ

mAdc

Collector Cutoff Current (V

_CB

= 140 Vdc, I

_E

= 0)

ÎÎÎÎ

I

_CBO ^ÎÎÎÎ

ÎÎÎÎ

−

^ÎÎÎ

ÎÎÎ

2

^ÎÎÎ

ÎÎÎ

mAdc

Emitter Cutoff Current (Note 4) (V

_BE

= 7 Vdc, I

_C

= 0)

ÎÎÎÎ

I

_EBO ÎÎÎÎ

ÎÎÎÎ

−

ÎÎÎ

5

ÎÎÎ

mAdc

ON CHARACTERISTICS (Note 3)

DC Current Gain

(I

C

= 8 Adc, V

CE

= 4 Vdc) (Note 4) (I

_C

= 16 Adc, V

_CE

= 4 Vdc)

ÎÎÎÎ

h

FE ÎÎÎÎ

ÎÎÎÎ

15 5

ÎÎÎ

60 −

ÎÎÎ

−

Collector−Emitter Saturation Voltage (I

_C

= 8 Adc, I

_B

= 800 mAdc) (Note 4)

(I

_C

= 16 Adc, I

_B

= 3.2 Adc)

ÎÎÎÎ

V

_CE(sat)^ÎÎÎÎ

ÎÎÎÎ

−

ÎÎÎ

1.4 4

ÎÎÎ

Vdc

Base−Emitter On Voltage (Note 4)

(I

_C

= 8 Adc, V

_CE

= 4 Vdc)

^ÎÎÎÎ

ÎÎÎÎ

V

_BE(on)

ÎÎÎÎ

−

ÎÎÎ

2.2

ÎÎÎ

Vdc

DYNAMIC CHARACTERISTICS

Magnitude of Common−Emitter

Small−Signal, Short−Circuit, Forward Current Transfer Ratio (I

_C

= 1 A, f = 50 kHz)

ÎÎÎÎ

|h

_fe

|

ÎÎÎÎ

4

ÎÎÎ

−

ÎÎÎ

−

Small−Signal Current Gain (Note 4) (I

_C

= 1 Adc, V

_CE

= 4 Vdc, f = 1 kHz)

ÎÎÎÎ

h

_fe ^ÎÎÎÎ

ÎÎÎÎ

40

^ÎÎÎ

ÎÎÎ

−

^ÎÎÎ

ÎÎÎ

−

SECOND BREAKDOWN CHARACTERISTICS

Second Breakdown Collector Current with Base Forward Biased t = 1 s (non−repetitive), V

_CE

= 100 V, See Figure 12

ÎÎÎÎ

I

_S/b ÎÎÎÎ

ÎÎÎÎ

1.5

ÎÎÎ

−

ÎÎÎ

Adc 3. Pulse Test: Pulse Width = 300 ms, Duty Cycle v 2%.

4. Indicates JEDEC Registered Data.

ORDERING INFORMATION

Device Package Shipping

^†

2N3773G TO−204

(Pb−Free) 100 Unit / Tray

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifi-

cations Brochure, BRD8011/D.

(3)

V CE , COLLECT OR-EMITTER VOL TAGE (VOL TS)

300

0.2 Figure 1. DC Current Gain I

_C

, COLLECTOR CURRENT (AMPS) 5.0

0.3 0.5 0.7 1.0 2.0 3.0 5.0 20

50 30 20 100 70

h FE , DC CURRENT GAIN

150 ° C

25 ° C -55 ° C

V

_CE

= 4 V

NPN PNP

I

_C

, COLLECTOR CURRENT (AMPS)

h FE , DC CURRENT GAIN

7.0 10 200

7.0 10

Figure 2. DC Current Gain 150 ° C

25 ° C -55 ° C

Figure 3. Collector Saturation Region 2.0

0.05 I

_B

, BASE CURRENT (AMPS)

0 0.07 0.1 0.2 0.3 0.5 0.7 1.0 2.0 3.0 1.6

1.2

0.8

0.4 T

_C

= 25 ° C I

_C

= 4 A

I

_C

= 16 A

Figure 4. Collector Saturation Region 2.0

I

_B

, BASE CURRENT (AMPS) 0

1.6 1.2

0.8

0.4 T

_C

= 25 ° C

2.0 0.2 0.3 0.5 0.7 1.0 2.0 3.0 5.0 7.0 20

1.2 0.4 0

I

_C

/I

_B

= 10

V

_BE(sat)

V , VOL TAGE (VOL TS)

1.6

0.8 10 150 ° C

25 ° C V

_CE(sat)

25 ° C

2.0

1.2

0.4 I

_C

/I

_B

= 10

V

_BE(sat)

V , VOL TAGE (VOL TS)

1.6

0.8 150 ° C 25 ° C V

_CE(sat)

150 ° C

25 ° C

V

_CE

= 4 V

I

_C

= 4 A

I

_C

= 8 A

0.2 0.3 0.5 0.7 1.0 2.0 3.0 5.0 7.0 10 20 300

5.0 50 30 20 100 70

7.0 10 200

I

_C

= 8 A

0.05 0.07 0.1 0.2 0.3 0.5 0.7 1.0 2.0 3.0 5.0 I

_C

= 16 A

0.2 0.3 0.5 0.7 1.0 2.0 3.0 5.0 7.0 10 20

150 ° C

(4)

http://onsemi.com 4

Figure 7. Output Capacitance Figure 8. Input Capacitance

V

_CB

, COLLECTOR−BASE VOLTAGE (V) V

_EB

, EMITTER−BASE VOLTAGE (V)

200 150

100 50

10 0 100 1000

7 6 5 4 3 2 1 100 0 1000 10,000

C

OB

, OUTPUT CAP ACIT ANCE (pF) C

IB

, INPUT CAP ACIT ANCE (pF)

f = 1 MHz

T

_A

= 25°C f = 1 MHz

T

_A

= 25°C

8

30

3.0 Figure 9. Forward Bias Safe Operating Area V

_CE

, COLLECTOR-EMITTER VOLTAGE (VOLTS) 20

10 5.0 3.0 2.0 1.0 0.5

0.03 5.0 7.0 10 20 30 50 300

BONDING WIRE LIMIT THERMAL LIMIT

@ T

_C

= 25 ° C, SINGLE PULSE SECOND BREAKDOWN LIMIT

70 0.3

0.2 I C , COLLECT OR CURRENT (AMP)

dc

10 m s 100 m s

100 ms

0.1 0.05

100 200

40 m s 200 m s 1.0 ms

500 ms

There are two limitations on the power handling ability of a transistor: average junction temperature and second breakdown. Safe operating area curves indicate I C − V CE

limits of the transistor that must be observed for reliable operation: i.e., the transistor must not be subjected to greater dissipation than the curves indicate.

The data of Figure 9 is based on T _J(pk) = 200 _ C; T _C is variable depending on conditions. Second breakdown pulse limits are valid for duty cycles to 10% provided T J(pk)

< 200 _ C. At high case temperatures, thermal limitations

will reduce the power that can be handled to values less than

the limitations imposed by second breakdown.

(5)

100

80

60

40 0 20

0 40 80 120 160 200

Figure 10. Power Derating T

_C

, CASE TEMPERATURE ( ° C)

POWER DERA TING F ACT OR (%)

THERMAL

DERATING

(6)

January, 2000 − Rev. 07Z

1 Case Outline Number:

1 SCALE 1:1

CASE 1−07

ISSUE Z DATE 05/18/1988

TO−204 (TO−3)

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. ALL RULES AND NOTES ASSOCIATED WITH REFERENCED TO-204AA OUTLINE SHALL APPLY.

STYLE 1:

PIN 1. BASE 2. EMITTER CASE: COLLECTOR

STYLE 2:

PIN 1. BASE 2. COLLECTOR CASE: EMITTER

STYLE 3:

PIN 1. GATE 2. SOURCE CASE: DRAIN

STYLE 4:

PIN 1. GROUND 2. INPUT CASE: OUTPUT

STYLE 5:

PIN 1. CATHODE 2. EXTERNAL TRIP/DELAY CASE: ANODE

STYLE 6:

PIN 1. GATE 2. EMITTER CASE: COLLECTOR

STYLE 7:

PIN 1. ANODE 2. OPEN CASE: CATHODE

STYLE 8:

PIN 1. CATHODE #1 2. CATHODE #2 CASE: ANODE

STYLE 9:

PIN 1. ANODE #1 2. ANODE #2 CASE: CATHODE

DIM MIN MAX MIN MAX MILLIMETERS INCHES

A 1.550 REF 39.37 REF B --- 1.050 --- 26.67 C 0.250 0.335 6.35 8.51 D 0.038 0.043 0.97 1.09 E 0.055 0.070 1.40 1.77 G 0.430 BSC 10.92 BSC H 0.215 BSC 5.46 BSC K 0.440 0.480 11.18 12.19 L 0.665 BSC 16.89 BSC N --- 0.830 --- 21.08 Q 0.151 0.165 3.84 4.19 U 1.187 BSC 30.15 BSC V 0.131 0.188 3.33 4.77

A N

E

C

K

−T−

^SEATING

PLANE

D

2 PL

Q

M

0.13 (0.005)

M

T Y

^M

Y

M

0.13 (0.005)

M

T

−Q−

−Y−

2 1

U L

G B

V

H
