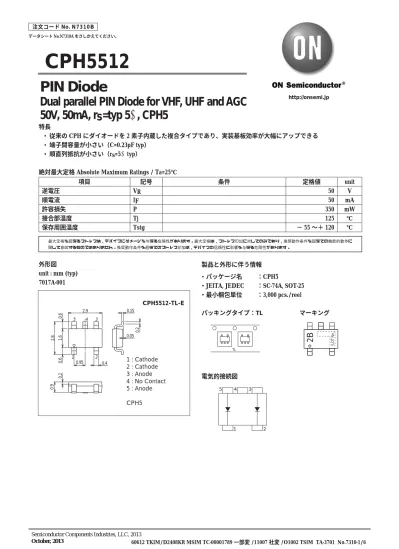

PIN Diode
Dual parallel PIN Diode for VHF, UHF and AGC 50V, 50mA, rs=typ 5Ω , CPH5
CPH5512
最大定格を超えるストレスは、デバイスにダメージを与える危険性があります。最大定格は、ストレス印加に対してのみであり、推奨動作条件を超えての機能的動作に 関して意図するものではありません。推奨動作条件を超えてのストレス印加は、デバイスの信頼性に影響を与える危険性があります。
特長
・ 従来の CPH にダイオードを 2 素子内蔵した複合タイプであり、実装基板効率が大幅にアップできる ・ 端子間容量が小さい(C=0.23pF typ)
・ 順直列抵抗が小さい(rs=5Ω typ)
絶対最大定格 Absolute Maximum Ratings / Ta=25℃
項目 記号 条件 定格値 unit
逆電圧 VR 50 V
順電流 IF 50 mA
許容損失 P 350 mW
接合部温度 Tj 125 ℃
保存周囲温度 Tstg − 55 〜+ 120 ℃
外形図 unit : mm (typ) 7017A-001
製品と外形に伴う情報
・パッケージ名 :CPH5
・JEITA, JEDEC :SC-74A, SOT-25
・最小梱包単位 :3,000 pcs./reel
パッキングタイプ:TL マーキング
電気的接続図 CPH5512-TL-E
TL
2B
LOT No.4 3
5
2 1
1 : Cathode 2 : Cathode 3 : Anode 4 : No Contact 5 : Anode CPH5
2 1
4
5 3
2.9
0.05
0.4
2.8 1.6 0.2
0.60.6
0.9 0.2
0.15
0.95
http://onsemi.jp
Semiconductor Components Industries, LLC, 2013 October, 2013
電気的特性 Electrical Characteristics / Ta=25℃
項目 記号 条件 定格値
min typ max unit
逆電圧 VR IR=10 μA 50 V
逆電流 IR VR=50V 0.1 μA
順電圧 VF IF=50mA 0.95 V
端子間容量 C VR=50V, f=1MHz 0.23 pF
直列抵抗 rs IF=10mA, f=100MHz 5 Ω
注)各規格は個々のダイオードに対しての特性を表している。
Ordering Information
Device パッケージ名 最小梱包単位 memo
CPH5512-TL-E CPH5 3,000pcs./reel Pb Free
IF -- VF
100 2
C -- VR
IR -- VR
rs -- IF
逆電流, I R -- nA 直列抵抗, r s --
Ωrs -- f
直列抵抗, r s --
Ω逆電圧, VR -- V
順電流, IF -- mA
3 5 7
2
0.01
3 3
5 5
2
7 7
10 2 3 5 7
100 2 1000 0.1 3 5 7
2 1.0 3 5 7
2 10 3 5 7
2 100
30 10
0
0.01 2 3 5 70.1 2 3 5 71.0 2 3 5 7 10
20 40 50
ID00034
1.0
1.0 2 3 5 7 10 2 3 5 7 100 2 3 5 71000
周波数, f -- MHz
2 3 5 7 10
2 3 5 7 100
2 3 5 7 1k 10k
2 3 5 7
ID00035
ID00036
Ta=25°C f=100MHz
Ta=100°C50°C
25°C 75°C
Ta=25°C
100μA
10mA
1mA IF=10μAエンボステーピングの情報
CPH5512-TL-E
Outline Drawing Land Pattern Example CPH5512-TL-E
Mass (g) Unit
* For reference0.02 mm
Unit: mm
0.6
2.41.4
0.95 0.95
