These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.

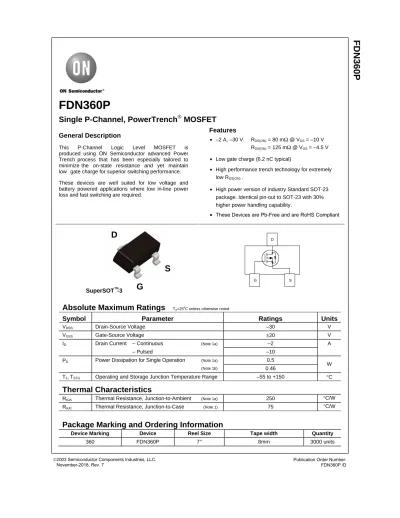

FDN360P

Single P-Channel, PowerTrench ^ MOSFET

General Description

This P-Channel Logic Level MOSFET is produced using ON Semiconductor advanced Power Trench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

These devices are well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.

Features

• –2 A, –30 V. R

= 80 mΩ @ V

= –10 V R

= 125 m Ω @ V

= –4.5 V

• High power version of industry Standard SOT-23 package. Identical pin-out to SOT-23 with 30%

higher power handling capability.

G D

S

SuperSOT -3

D

S G

Absolute Maximum Ratings

Symbol Parameter Ratings Units

V

Drain-Source Voltage –30 V

V

Gate-Source Voltage ± 20 V

I

Drain Current – Continuous

–2 A

– Pulsed –10

Power Dissipation for Single Operation

0.5 P

(Note 1b)

0.46 W

T

, T

Operating and Storage Junction Temperature Range –55 to +150 °C

Thermal Characteristics

R

Thermal Resistance, Junction-to-Ambient

250 °C/W

R

Thermal Resistance, Junction-to-Case

75 °C/W

Package Marking and Ordering Information

Device Marking Device Reel Size Tape width Quantity

360 FDN360P 7’’ 8mm 3000 units

• Low gate charge (6.2 nC typical)

• High performance trench technology for extremely low R

.

• These Devices are Pb-Free and are RoHS Compliant

www.onsemi.com 2

Electrical Characteristics

Symbol Parameter Test Conditions Min Typ Max Units Off Characteristics

BV

Drain–Source Breakdown Voltage V

= 0 V, I

= –250 µ A –30 V

∆BV

∆ T

Breakdown Voltage Temperature

Coefficient I

= –250 µA, Referenced to 25°C –22 mV/°C

V

= –24V, V

= 0 V –1 µA

I

Zero Gate Voltage Drain Current

V

= –24V, V

= 0 V, T

=55°C –10 I

Gate–Body Leakage, Forward V

= 20 V, V

= 0 V 100 nA I

Gate–Body Leakage, Reverse V

= –20 V, V

= 0 V –100 nA On Characteristics

V

Gate Threshold Voltage V

= V

, I

= –250 µA –1 –1.9 –3 V

∆V

∆T

Gate Threshold Voltage Temperature Coefficient

I

= –250 µA, Referenced to 25°C 4 mV/ ° C R

Static Drain–Source

On–Resistance

V

= –10 V, I

= –2 A V

= –10 V, I

= –2 A, T

=125°C V

= –4.5 V, I

= –1.5A

63 90 100

80 136 125

m Ω

I

On–State Drain Current V

= –10 V, V

= –5 V –10 A

g

Forward Transconductance V

= –5 V, I

= –2 A 5 S

Dynamic Characteristics

C

Input Capacitance 298 pF

C

Output Capacitance 83 pF

C

Reverse Transfer Capacitance

V

= –15 V, V

= 0 V, f = 1.0 MHz

39 pF

Switching Characteristics

t

Turn–On Delay Time 6 12 ns

t

Turn–On Rise Time 13 23 ns

t

Turn–Off Delay Time 11 20 ns

t

Turn–Off Fall Time

V

= –15 V, I

= –1 A, V

= –10 V, R

= 6 Ω

6 12 ns

Q

Total Gate Charge 6.2 9 nC

Q

Gate–Source Charge 1 nC

Q

Gate–Drain Charge

V

= –15V, I

= –3.6 A, V

= –10 V

1.2 nC

Drain–Source Diode Characteristics and Maximum Ratings

I

Maximum Continuous Drain–Source Diode Forward Current –0.42 A

V

Drain–Source Diode Forward

Voltage V

= 0 V, I

= –0.42 A

–0.8 –1.2 V

Notes:

1. R_θJA is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. R_θJC is guaranteed by design while R_θCA is determined by the user's board design.

a) 250°C/W when mounted on a 0.02 in² pad of 2 oz. copper.

b) 270°C/W when mounted on a minimum pad.

Scale 1 : 1 on letter size paper

2. Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%

FDN360P

Typical Characteristics

0 3 6 9 12 15

0 1 2 3 4 5

-V_DS, DRAIN TO SOURCE VOLTAGE (V) -ID, DRAIN CURRENT (A)

VGS = -10V

-3.5V

-3.0V -4.5V

-4.0V -5.0V

-6.0V V

0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

0 3 6 9 12 15

-I_D, DRAIN CURRENT (A) RDS(ON), NORMALIZED DRAIN-SOURCE ON-RESISTANCE

VGS = -3.5V

-6.0V -5.0V -4.0V

-10V -4.5V

-7.0V

Figure 1. On-Region Characteristics. Figure 2. On-Resistance Variation with Drain Current and Gate Voltage.

0.6 0.8 1 1.2 1.4 1.6

-50 -25 0 25 50 75 100 125 150

T_J, JUNCTION TEMPERATURE (^oC) RDS(ON), NORMALIZED DRAIN-SOURCE ON-RESISTANCE

ID = -2A VGS = -10V

0.05 0.1 0.15 0.2 0.25 0.3

2 4 6 8 10

-VGS, GATE TO SOURCE VOLTAGE (V) RDS(ON), ON-RESISTANCE (OHM)

ID = -1A

TA = 125^oC

TA = 25^oC

Figure 3. On-Resistance Variation with Temperature.

Figure 4. On-Resistance Variation with Gate-to-Source Voltage.

0 2 4 6 8 10

1 2 3 4 5

-VGS, GATE TO SOURCE VOLTAGE (V) -ID, DRAIN CURRENT (A)

TA = -55^oC 25^oC

125^oC VDS = -5.0V

0.0001 0.001 0.01 0.1 1 10

0 0.2 0.4 0.6 0.8 1 1.2

-VSD, BODY DIODE FORWARD VOLTAGE (V) -IS, REVERSE DRAIN CURRENT (A)

VGS = 0V

TA = 125^oC

25^oC -55^oC

Figure 5. Transfer Characteristics. Figure 6. Body Diode Forward Voltage Variation

with Source Current and Temperature.

Typical Characteristics

0 2 4 6 8 10

0 1 2 3 4 5 6 7

Qg, GATE CHARGE (nC) -VGS, GATE-SOURCE VOLTAGE (V)

I_D = -3.6A VDS = -5V -10V

-15V

0 100 200 300 400

0 6 12 18 24 30

-VDS, DRAIN TO SOURCE VOLTAGE (V)

CAPACITANCE (pF)

CISS

COSS

CRSS

f = 1 MHz VGS = 0 V

Figure 7. Gate Charge Characteristics. Figure 8. Capacitance Characteristics.

0.01 0.1 1 10 100

0.1 1 10 100

-VDS, DRAIN-SOURCE VOLTAGE (V) -ID, DRAIN CURRENT (A)

DC 1s

100ms 100µs RDS(ON) LIMIT

VGS = -10V SINGLE PULSE

RθJA =270^oC/W TA = 25^oC

10ms 1ms

10µs

0 5 10 15 20

0.001 0.01 0.1 1 10 100 1000

t1, TIME (sec)

P(pk), PEAK TRANSIENT POWER (W)

SINGLE PULSE RθJA = 270°C/W TA = 25°C

Figure 9. Maximum Safe Operating Area. Figure 10. Single Pulse Maximum Power Dissipation.

0.001 0.01 0.1 1

0.0001 0.001 0.01 0.1 1 10 100 1000

t₁, TIME (sec) r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE

RθJA(t) = r(t) + RθJA

RθJA = 270 °C/W

TJ - TA = P * RθJA(t) Duty Cycle, D = t1 / t2

P(pk) t1

t2

SINGLE PULSE 0.01

0.02 0.05 0.1 0.2 D = 0.5

Figure 11. Transient Thermal Response Curve.

Thermal characterization performed using the conditions described in Note 1b.

Transient thermal response will change depending on the circuit board design.

FDN360P

www.onsemi.com 4

SOT−23/SUPERSOT t −23, 3 LEAD, 1.4x2.9 CASE 527AG

ISSUE A

DATE 09 DEC 2019

XXX = Specific Device Code M = Month Code G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

XXXMG

G (Note: Microdot may be in either location)

MECHANICAL CASE OUTLINE

PACKAGE DIMENSIONS
