※掲載の製品写真は3DCGで作成したもので、 実際とは多少異なるものが御座います。 ご不明の点等はお気軽にお問い合せ下さい。
The inserted product photograph is made by 3DCG, and there are little differ things actually.
Please refer us without reserve if you have any questions.
溶接式ロングヘルール Long Ferrule for Welding
エキスパンド式ヘルール Ferrule for Expanding
溶接式異径ヘルール Reducing Ferrule for Welding
溶接式異径偏心ヘルール
Reducing Ferrule (Eccentric) for Welding
ヘルールキャップ Ferrule Cap 3K クランプ Clamp Type 3K 2K クランプ Clamp Type 2K 2D クランプ Clamp Type 2D Kalrez®サニタリーへルールガスケット Kalrez® Sanitary Ferrule Gasket
ヘルールガスケット A 型 Ferrule Gasket Type A
ヘルールガスケット B 型 Ferrule Gasket Type B
ヘルールエルボ Elbow both ends Ferrule
ヘルール × 溶接エルボ Elbow ends Ferrule/Weld
ヘルール 45°エルボ 45 Elbow both ends Ferrule
ヘルール × 溶接 45°エルボ 45 Elbow ends Ferrule/Weld
ヘルール 180°ベンド 180 Bend both ends Ferrule
ヘルール × 溶接 180°ベンド 180 Bend ends Ferrule/Weld
ヘルールチーズ Tee ends Ferrule
2 方ヘルール溶接チーズ
Tee ends Ferrule/Ferrule/Weld & Tee ends Ferrule/Weld/Ferrule
ヘルール異径チーズ Reducing Tee end Ferrule
1 方へルールローネックチーズ Tee ends Weld/Ferrule/Weld
1方へルール異径ローネックチーズ Reducing Tee ends Weld/Ferrule/Weld(Low Neck)
へルールローネックチーズ Tee ends Ferrule(Low Neck)
ヘルール異径ローネックチーズ Reducing Tee ends Ferrule(Low Neck)
ヘルールクロス Cross ends Ferrule
ヘルールレジューサ
Reducer (Concentric) both end Ferrule
ヘルール偏心レジューサ Reducer (Eccentric) both end Ferrule
溶接 × ヘルールレジューサ Reducer (Concentric)ends Weld/Ferrule
溶接 × ヘルール偏心レジューサ Reducer (Eccentric)ends Weld/Ferrule
ヘルール × 溶接レジューサ Reducer (Concentric) end Ferrule/Weld
ヘルール × 溶接偏心レジューサ Reducer (Eccentric)end Ferrule/Weld
ヘルールホースアダプタ Hose Adapter end Ferrule
ヘルール異径ホースアダプタ Reducing Hose Adapter ends Ferrule ヘルールキャップ(Rc ネジ付) Ferrule cap
ヘルール管用ネジアダプタ Taper Pipe Threads/Ferrule Adapter
ヘルール管用ネジソケット Taper Pipe Threads/Ferrule Socket
ヘルールフランジアダプタ JIS-Flange/Ferrule Adapter
ISO ネジユニオン継手 ISO Screwed Union Fittings
溶接式ネジユニオン Weld Male Union
エキスパンド式ネジユニオン
Expanded Male Union
溶接式ネジスリーブ Male for Welding
溶接式ロングネジスリーブ Long Male for Welding
溶接式ライナ Liner for Welding
溶接式ロングライナ Long Liner for Welding
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-12 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-12 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-13 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-13 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-13 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-14 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-14 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-14 ・・・・・・・・・・・・・・・ 2-15 ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-16 ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-16 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-17 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-17 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-17 ・・・・・・・・・・・・・・・・・・・・・・・ 2-18 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-18 ・・・・・・・・・・・・・・・・・・・・・ 2-18 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-18 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-19 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-19 ・・・・・・・・・・・・・・・・・・・・・ 2-19 ・・・・・・・・・・・・・・・・・・ 2-20 ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-20 ・・・・・・・・・・・・・・・・・・・・・ 2-21 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-21 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-22 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-22 ・・・・・・・・・・・・・・・・・・・・・・・・ 2-23 ・・・・・・・・・・・・・・・・・・・・・ 2-23 ・・・・・・・・・・・・・・・・・・・・・・・・ 2-23 ・・・・・・・・・・・・・・・・・・・・・ 2-23 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-24 ・・・・・・・・・・・・・・・・・・・・・・・ 2-24 ・・・・・・・・・・・・・・・・・・・・・・ 2-24 ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-25 ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-26 ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-26 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-29 ・・・・・・・・・・・・・・・・・・・・・・・・ 2-29 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-30 ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-30 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-30 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-30 パイプ、溶接配管用継手 Pipes,Fittings for Welding end
標準仕様
Standard Specification
サニタリーパイプ Sanitary Pipe
溶接式エルボ 90゜Elbow both end Weld
溶接式 45°エルボ 45゜Elbow both end Weld
溶接式 180°ベンド 180゜Bend both end Weld
溶接式チーズ Tee ends Weld
溶接式ローネックチーズ Tee ends Weld(LowNeck)
溶接式異径チーズ Reducing Tee ends Weld
溶接式異径ローネックチーズ Reducing Tee ends Weld(LowNeck)
溶接式異径偏心チーズ
Reducing Tee eccentric ends Weld(LowNeck)
溶接式ティーベンド
T-Bend ends Weld
溶接式クロス Cross ends Weld
溶接式ホースアダプタ Hose Adapter ends Weld
溶接式レジューサ
Reducer (Concentric) both end Weld
溶接式偏心レジューサ Reducer (Eccentric) both ends Weld
溶接式管用ネジアダプタ Taper Pipe Threads Adapter end Weld
溶接式フランジアダプタ
JIS Flange/Weld ends Adapter
ISO ヘルールユニオン継手 ISO Ferrule Union Fittings
溶接式クランプユニオン Welded Clamp Union
エキスパンド式クランプユニオン
Expanded Clamp Union
溶接式ヘルール Ferrule for Welding
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-1 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-3 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-3 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-3 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-5 ・・・・・・・・・・・・・・・・・・・・・・・・ 2-5 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-6 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-6 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-6 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-6 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-7 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-7 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-8 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-8 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-11 ・・・・・・・・・・・・・・・・・・・・ 2-11 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-12
大阪サニタリーの製品は、食品・飲料・医薬・化学・
バイオテクノロジーの各種分野でご愛顧いただいております。
“Sanitary”を基本コンセプトに揚げる大阪サニタリー
の製品づくりの目的は、サニタリープラントの性能を最
大限に引き出すことにあります。
さらに、
安全性・合理性・
省力化を追求するべく、日々お客様のニーズにあった製
品づくりに取り組んでいくことが私達の使命であると考
えています。
The products of Osaka Sanitary are being used not only
in the food processing and pharmaceutical industries,
but also throughout the chemical and biotechnology
industries. Our key word is
“sanitary”. Our aim is to
create the finest possible products for sanitary
applica-tions.
Our commitment is to satisfy the needs of our
custom-ers for products that assure safe, economical, and
energy-conserving operation.
※製品改良のため、予告なしに一部仕様変更することがあります。
The contents of this catalog are subject to change without notice for technical improvement.
Male for Expanding
エキスパンド式ライナ Liner for Expanding
L 形ガスケット L-Gasket
六角ナット Hexagon Nut
六角ナットキャップ Hexagon Nat cap
溝付丸ナット Round Nut "A"
丸ナット Round Nut "B" ライナキャップ Liner cap ネジキャップ Male cap ネジエルボ Elbow both ends Male
両ナットエルボ Elbow both ends Nut
片ナットエルボ Elbow ends Male/Nut
ネジ × 溶接エルボ Elbow ends Male/weld
ライナ × 溶接エルボ Elbow ends Liner/weld
ネジ 45°エルボ 45 Elbow both ends Male
両ナット 45°エルボ 45 Elbow both ends Nut
片ナット 45°エルボ 45 Elbow ends Nut/Male
ネジ × 溶接 45°エルボ 45 Elbow ends Male/weld
ライナ × 溶接 45°エルボ 45 Elbow ends Liner/weld
両ネジ 180°ベンド 180 Bend both end Male
両ナット 180°ベンド 180 Bend both end Nut
片ナット 180°ベンド 180 Bend ends Nut/Male
ネジ × 溶接 180°ベンド 180 Bend ends Male/Weld
ライナ × 溶接 180°ベンド 180 Bend ends Liner/Weld
ネジチーズ Tee ends Male 1 方ナットチーズ Tee, Nut/Male/Male
2 方ナットチーズ Tee, Nut/Nut/Male
3 方ナットチーズ Long Male for Welding
ネジクロス Cross ends Male
ナットクロス Cross ends Nut
片ライナレジューサ
Reducer (Concentric) ends Liner/Male
片ライナ偏心レジューサ Reducer (Eccentric) ends Liner/Male
ネジレジューサ
Reducer (Concentric) both end Male
ネジ偏心レジューサ Reducer (Eccentric) ends Male
ネジホースアダプタ Hose Adapter end Male
ライナホースアダプタ Hose Adapter end Liner
ネジ管用ネジアダプタ Taper Pipe Threads/Male Adapter
ナット管用ネジアダプタ Taper Pipe Threads/Nut Adapter
ネジフランジアダプタ JIS-Flange/Male Adapter
ナットフランジアダプタ JIS-Flange/Nut Adaper
フランジユニオン継手 Flange Union Fittings
サニタリーフランジユニオン Sanitary Flange Union
サニタリーフランジ(組立寸法) Sanitary Flange Union
サニタリーフランジ(固定フランジ) Sanitary Flange Union
・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-31 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-31 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-31 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-31 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-32 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-32 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-32 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-32 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-33 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-33 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-33 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-33 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-33 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-34 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-34 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-34 ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-34 ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-34 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-35 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-35 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-35 ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-35 ・・・・・・・・・・・・・・・・・・・・・・・ 2-35 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-36 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-36 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-36 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-37 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-37 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-37 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-37 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-38 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-38 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-38 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-39 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-39 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-39 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-40 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-40 ・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-40 ・・・・・・・・・・・・・・・・・・・・・・・ 2-43 ・・・・・・・・・・・・・・・・・・・・・ 2-44 ・・・・・・・・・・・・・・・・・ 2-44
Sanitary Flange Union
サニタリーフランジ(ラップジョイント) Lap joint サニタリーフランジ用 L 形ガスケット (SF 用 L 形ガスケット ) L-Gasket for “VSF” サニタリーフランジ用ボルト・ナット・座金 (SF 用ボルトセット) Bolt,Nut,Washer for “VSF”
特殊継手 Fittings for Special Use
エキスパンションジョイント Expansion Joint
3A 規格ユニオン /JIS サニタリーパイプアダプタ 3-A Union/JIS Sanitary Pipes Adapter
DIN 規格ユニオン /JIS サニタリーパイプアダプタ DIN Union/JIS Sanitary Pipes Adapter
継手付パイプ Pipes With Fittings 各種製作品
A Wide Variety of Manufactured Product
ヘルール × ヘルールパイプ Pipe with Ferrule/Ferrule
JIS フランジ ×JIS フランジパイプ Pipe with JFAD/JFAD
ネジ × ネジパイプ Pipe with Male/Male
サニタリーフランジ ルーズ × ルーズパイプ Pipe with VSF-L/VSF-L
六角ナット × ネジパイプ Pipe with Nut/Male
サニタリーフランジ 固定 × 固定パイプ Pipe with VSF-T/VSF-T
六角ナット × 六角ナットパイプ Pipe with Nut/Nut
サニタリーフランジ 固定 × ルーズパイプ Pipe with VSF-L/VSF-T
パイプハンガ Pipe Hanger
小口径パイプハンガ Small Dia. Pipe Hanger
シリンダサポート Cylinder Support スタンド Stand (S) (L) ハンガーピン Hanger Pin 支持パイプ Stand Pipe 引掛スパナ Round Nut Spanner
チューブエキスパンダ Tube Expander エキスパンド治具 Expander Block スパナ Spanners (S), (L) アジャスタ Adjuster 参考資料 Technical Information パイプ寸法の比較表
Comparative Table Pipe Dimensions
サニタリーパイプデータ JIS-G 3447-1994 Sanitary Pipe Data JIS-G 3447-1994
配管用ステンレス鋼鋼管データ JIS-G 3459 Stainless Steel Pipes Data JIS-G 3459

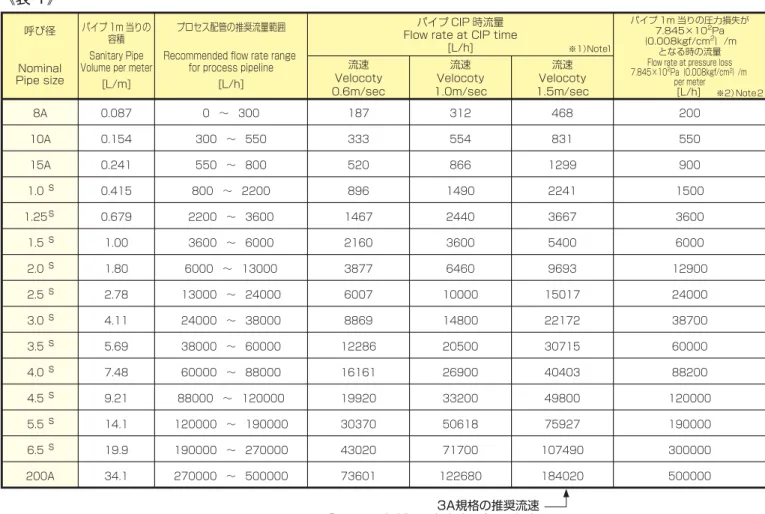

適正流量 ( パイプサイズの選定 ) Optimum Flow Rate and Pipe Size Selection
圧力損失データ ( サニタリー継手 ) Pressure Loss Data (for Sanitary Fittings)
配管の勾配、支持間隔、熱伸縮
Piping Gradient, Support Pitch Thermal Expansion/Shrinkage of Pipes
配管のピッチ Piping Pitch
クランプの耐圧力表 ( 計算値 ) Clamp Withstanding Pressure (Calculation)
管フランジの基準寸法 JIS-B2210 Pipe Flange Standard Dimensions JIS-B2210
SI( 国際単位系 ) 単位の換算率表 SI Unit Conversion Table
・・・・・・・・・・・・・・ 2-44 ・・・・・・・・・・・・・・ 2-45 ・・・・・・・・・・・・・・ 2-45 ・・・・・・・・・・・・・・・・・・・・・・・ 2-47 ・・・・・・ 2-48 ・・・・・・ 2-48 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-51 ・・・・・・・・・・・・・・・・・・・・・・・・ 2-52 ・・・・・・・・・・・・・・・・・・ 2-52 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-52 ・・・・・・・・・・ 2-52 ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-53 ・・・・・・・・・・・・・・ 2-53 ・・・・・・・・・・・・・・・・・・・・・ 2-53 ・・・・・・・・・・・・ 2-53 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-55 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-55 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-55 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-56 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-56 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-56 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-56 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-57 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-57 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-57 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-58 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-61 ・・・・・・・・・ 2-62 ・・・・・・・・・・ 2-63 ・・・・・・・・・・・・・・・・・・・・・ 2-64 ・・・・・・・・・・・・・・・・・・・ 2-65 ・・・・・・・・・・・・・・・・・・・・・・・ 2-66 ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-67 ・・・・・・・・・・・・・・・・・・・・・・ 2-68 ・・・・・・・・・・・・・・・・・・ 2-70 ・・・・・・・・・・・・・・・・・・・・・ 2-71
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
Technical Information
パイプ・溶接配管用継手
Pipes, Fittings for Welding end
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料 Technical Information
TEE-W
TEEV-W
TEEX-W
TEEVX-W
CLF-W
CLF2-W
CLF-E
CLF-WX
CLF-WXE
CLF-B
CP3K
CP2K
CP2D
GS-LC
GS-C
EL-2C
EL-C-W
45EL-2C
45EL-C-W
18BND-2C
18BND-C-W
TEE-3C
TEE-CCW
TEE-CWC
TEEX-3C
TEEV-WCW
TEEVX-WCW
TEEV-3C
TEEVX-3C
CROS-4C
RDC-2C
RDE-2C
RDC-W-C
RDE-W-C
RDC-C-W
RDE-C-W
HSAD-C
HSAD-CX
CLF-BRC
THAD-C
THSC-C
JFAD-C
MAL-W MAL2-W LNR-W LNR2-W MAL-E LNR-E GS-L NH-S(L) NHB-S(L) NRAVSF-KUMITATE
VSF-T
VSF-LS
VSF-LP
GS-L-VSF
BLT-VSF
EXPJ2
3A-AD-UN
DIN-AD-UN
PR-2C
PR-2JFAD
PR-2M
PR-VSF-2L
PR-NO
PR-VSF-2T
PR-2NH
PR-VSF-LT
PHG-M
PHG-L
PHG-S
CSP
STD-S
SD3
PN-M10/M12
PSP
SP-R
TBEX
BLCK-M
BLCK-L
BLCK-C
SP-H-S
SP-H-L
AJ-12
AJ-16
AJ-20
AJ-24
NRB LNRB MALB EL-2M EL-2NH-S(L) EL-1NH-S(L) EL-M-W EL-L-W 45EL-2M 45EL-2NH-S(L) 45EL-1NH-S(L) 45EL-M-W 45EL-L-W 18BND-2M 18BND-2NH-S(L) 18BND-1NH-S(L) 18BND-M-W 18BND-L-W TEE-3M TEE-NOO-S(L) TEE-ONO-S(L) TEE-NNO-S(L) TEE-NON-S(L) TEE-3NH-S(L) CROS-4M CROS-4NH-S(L) RDC-L-M RDE-L-M RDC-2M RDE-2M HSAD-M HSAD-L THAD-M THAD-NH-S(L) JFAD-M JFAD-NH-S(L)RDE-W
THAD-W
JFAD-W
FOR WEL
DING END
パイプ、溶接配管用継手
■
共通仕様
材質
表面仕上
SUS304, SUS316, SUS316L
(但し8A∼15AはSUS316Lのみ)
●
標準
内面 #320∼#400 バフ研磨仕上 (Ra 1.0µm)
外面 #320∼#400 バフ研磨仕上 (Ra 2.5µm)
●
オプション
内面 酸洗仕上
電解研磨仕上
外面 酸洗仕上
ヘアーライン仕上
ショット仕上
サニタリーパイプは JIS-G3447のステンレス鋼サニタ
リー管に準じ、ユニオン類はISO規格を基本として製作
しています。
The Sanitary Pipes apply to JIS-G3447 Stainless Steel Sanitary
Pipes. The Union fittings are based on ISO standard.
■
Specifications
Materials : SUS304, SUS316, SUS316L
(but,8A∼15A is only SUS316L.)
Surface finish
●
Standard
●
Option
: baff finish (#320 to #400) for internal surface (Ra 1.0μm)
baff finish (#320 to #400) for external surface (Ra 2.5μm)
: Pickling finish
Electro polishing
Pickling finish
Electro polishing
Stainless beads shot
Internal surface finish
External surface finish
■
適用規格一覧
Applicable Standards
サニタリーパイプ
小口径パイプ、その他のパイプ
エルボ・チーズ
クランプユニオン継手
ネジユニオン継手
フランジ継手
特殊継手
配管サポート及び工具
JIS-G3447
1994JIS-G3459
1994OSS
ISO/OSS
ISO/OSS
OSS / JIS-B2210
1984OSS
OSS
JIS-G3447 ISO OSS JIS-G3459 JIS-B2210JIS-G3447
1994JIS-G3459
1994OSS
ISO/OSS
ISO/OSS
OSS / JIS-B2210
OSS
—
Sanitary Pipes
Small Dia. Sanitary Pipes
Elbows, Tees
Clamp Union Fittings
Screwed Union Fittings
Flange Union Fittings
Other Special Fittings
Piping Supports and Tools
ステンレス鋼サニタリー管1994 国際標準化機構 大阪サニタリー規格 配管用ステンレス鋼鋼管 ー 1994 鉄鋼製管フランジ規格準用細部形状寸法
Detail form dimensions面間寸法
Face-to-Face dimensions (Center-to-Face dimensions) JIS-G3447 ISO OSS JIS-G3459 JIS-B2210Stainless Steel Sanitary Pipes
International organaization for Standardization Osaka Sanitary Standards
Stainless Steel Pipes - 1994
Basic Dimensions of Ferrous Material Pipe Flanges
■
ガスケット(ヘルール、L形)の種類
サニタリー継手用ガスケットの材質は、NBR、シリコンゴ
ム、EPDM、フッ素ゴム(FKM)、PTFE、サニクリーン
ガスケット等があります。これらの概略特性を次に示しま
す、材質選択の目安としてください。
●
NBR(黒)ニトリルゴム
食品の全般にわたり、広く使用されている。ただし、高濃
度酢酸、エステル類、耐スチーム用としては使用しないほ
うがよい。80℃までの液温で使用されるのが望ましい。動
植物油など、耐油性に優れている。
●
シリコンゴム(白)
材質そのものは耐熱性に優れているが耐スチーム性に劣
る。(水100℃以上は、使用不可)一般に機械的強度に劣
るため、JISフランジ用のガスケット等は使用に際して注
意を要する。弱酸性、アルカリ性溶液に比較的耐性に優れ
ている。
■ Gasket (Ferrule,L-type)kinds
Gaskets for Sanitary Fittings are available in a number of alternative
materials : NBR, silicone rubber, EPDM, fluoro-rubber, (FKM)PTFE,
and "Sani Clean" (PTFE + EPDM). The characteristics of each
gasket material are briefly described in the following paragraphs to
help you select the gasket material optimum for your application.
●
NBR (black) Nitryl rubber
NBR gaskets are used widely for flood processing in general.
However, they should not be used in a pipeline that feeds
high-concentration acetic acid or an ester compound or in any
environment where it can be exposed to steam. The fluid
temperature should preferably be not higher than 80˚C. NBR gaskets
are execllent in oil resistance and thus suitable for pipelines that feed
animal/vegetable oil.
●
Silicone rubber (white)
Silicone rubber is exellent in heat resistance but poor in steam
resistance. Generaly since silicone rubber gaskets are poor in
mechanical strength, they require particular attention when used in
conjunction with JIS flanges. Silicone rubber gaskets exhibit relatively
high resistance to weak acid and alkali solutions.
2-1
標準仕様
Standard Specification
I
S
Oヘルールユニオン継手
ISO Ferrule Union Fittings
I
S
Oネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特
殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
●
EPDM (black) — ethylene propylene rubber
EPDM gaskets are exellent in heat resistance and exhibit high
resistance to water, hot water, acid and alkali solutions, but remarkably
poor in oil resistance. Therefore, they should not be used in a pipeline
that feeds food containing oil/fat. The fluid temperature should
preferably be not higher than 120˚C.
●
FKM (black) — fluoro-rubber
FKM exhibits high resistance to heat, oil, and chemicals, but is poor in
resistance to steam and acetic acid. The fluid temperature should
preferably be not higher than 140˚C.
●
Kalrez (black) perfluoroelastomer
Kalrez is a unique elastomer with a chemical resistance equal to Teflon. with higher heat resistance than that of conventional silicone and fluororubber and with elasticity equal to that of rubber.(There is only ferrule type gasket.)
●
PTFEの種類
下記のガスケットは、接液面PTFEで耐薬品性、耐熱性に優れます。
●
EPDM(黒)エチレンプロピレンゴム
耐熱性に優れ、水、熱水、酸性、アルカリ性溶液に強い。しか
し、耐油性に著しく劣るため、各種油脂分を含む食品には使用
を控えたほうがよい。120℃までの液温で使用されることが望
ましい。
●
FKM(黒)フッ素ゴム
耐熱、耐油、耐薬品性に優れる。しかし、スチーム、酢酸(エ
ステル)類に劣る。液体温度は140℃までの温度で使用される
ことが望ましい。
●
カルレッツ (黒)
PTFEと同等の耐薬品性を持ち、従来のシリコンゴムやフッ素
ゴムを上回る耐熱性を有し、さらにゴムの持つ弾力性を兼ね備
えています。詳細は、個別カタログを参照下さい。
(ヘルールガスケットのみ)
スチーム等高温での使用はガスケット の変形(クリープ)が生じるので、温度 変化の大きい用途には注意を要する。 PTFE一体形にクッション性をもたせシ ール性が向上したガスケットである。 継手の締付荷重や配管荷重により変形 を生じ易い。 推奨使用温度:100℃ 最高使用温度:150℃ 100℃以上で使用される場合は、定期的 な継手の増し締めが必要。 また高温では低温に比べて寿命も短くなる。名 称
構 造
特 徴
耐 熱
PTFE シリコンサンド形PTFE (ヘルールガスケットのみ) PTFE一体形にスリットを入れ厚さ1mmの シリコンゴムをはさんだ形状(8A∼200A) EPDMゴムの表面(接液面)にPTFEを接 着した形状(8A∼4.0s、但し3.5sを除く) サニクリーンガスケット テフレックスガスケット PTFE一体形(8A∼4.0s)これらのガスケット材質は、食品衛生法・食品、添加物等の規
格基準(昭和34年厚生省告示第370号)の第3のDの2合成樹
脂製の器具または容器包装及び、第3のDの3の(1)ゴム製の器
具または容器包装による材質試験、溶出試験に合格しておりま
す。
Note that, as the adoption criteria for each of these gasket materials,
Osaka Sanitary uses materials tests and elution tests specified in Food
and Additives Standards (Notice No.370 of 1959 issued by the Ministry
of Health and Welfare of Japan), Article 3-D-2"Instruments, Containers
and Packages Made of Synthetic Resin" and 3-D-3(1)
■
ご注文の際は
(1)品名または型式
(2)材質
(3)呼び径
(4)内面及び外面の仕上
(5)数量
をお聞かせください。
■For ordering
Please Inform us these items below.
(1)Type
(2)Material
(3)Nominal size
(4)Internal and External surface finish
(5)Quantity
上記継手用ガスケット使用温度範囲は、クランプ締付トルク=3[N・m]にて使用した場合での参考値です。
クランプバンドでの過剰締付、配管の温度変化から生じる配管伸縮によるガスケットの異常圧縮等があります
と、性能が著しく低下(ガスケットの早期劣化、内径の縮み、漏れ等)しますので、ご注意ください。
※8A∼15Aガスケットを使用される際は必ず、本カタログ2−70頁「クランプ推奨締付トルクについてのご注意」をお読みください。注意
2-2
ISOヘルールユニオン継手ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特
殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
サニタリーパイプ
Sanitary Pipe
Nom.size OD t Mass kg /4m 25.4 31.8 38.1 50.8 63.5 76.3 89.1 101.6 114.3 139.8 165.2 13.8 17.3 21.7 1.2 1.2 1.2 1.5 2 2 2 2 3 3 3 1.65 1.65 2.1 2.86 3.62 4.37 7.29 12.1 14.7 17.2 19.6 32.9 40.5 48 2 2.57 4.12Type TBS / Type TPS
1.0s 1.25s 1.5s 2.0s 2 .5s 3.0s 3 .5s 4.0s 4 .5s 5.5s 6.5s 8A 10A 15A溶接式エルボ
90゜
Elbow both end Weld
Nom.size OD A Mass kg 1.0s 1.25s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 8A 10A 15A ※ ※ ※ ※ ※ ※ 25.4 31.8 38.1 50.8 63.5 76.3 89.1 101.6 114.3 139.8 165.2 13.8 17.3 21.7 t 1.2 1.2 1.2 1.5 2 2 2 2 3 3 3 1.65 1.65 2.1 33.5 38 48.5 60.5 83.5 88.5 103.5 127 152.4 190.5 228.6 38 38 38 0.04 0.05 0.09 0.18 0.41 0.47 0.66 1.1 2.02 3.08 3.94 0.03 0.036 0.062
Type 90EL-W
溶接式 45°エルボ
45゜
Elbow both end Weld
Nom.size OD A Mass kg 1.0s 1.25s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 8A 10A 15A ※ ※ ※ 25.4 31.8 38.1 50.8 63.5 76.3 89.1 101.6 114.3 139.8 165.2 13.8 17.3 21.7 13.9 15.7 20.1 25.1 34.6 36.7 42.9 52.6 63.1 78.9 94.7 15.7 15.7 15.7 0.02 0.03 0.05 0.09 0.21 0.24 0.33 0.55 1.01 1.54 1.97 0.015 0.018 0.031
Type 45EL-W
t 1.2 1.2 1.2 1.5 2 2 2 2 3 3 3 1.65 1.65 2.1※8A∼15A: Bright annealed (BA) finish for internal surface (Ra≦0.5μm) #320∼#400 buff abrasive finish for external surface (Ra≦2.5μm)
※Only SUS316L
※SUS316L のみ ※8A∼15A ; 内面 BA( 光輝焼鈍 )(Ra≦0.5μm) 外面 ♯320∼♯400 バフ研磨 (Ra≦2.5μm) ※SUS316Lのみ Only SUS316L ※SUS316Lのみ Only SUS316L OD 4000 t OD A t A OD t A A
2-3
写真は3DCGです。パイプ、溶接配管用継手
Pipes,Fitting for Welding end
サニタリーパイプ/溶接式エルボ/溶接式45° エルボSanitary Pipe/90° Elbow both end Weld/45° Elbow both end Weld
I
S
Oヘルールユニオン継手
ISO Ferrule Union Fittings
I
S
Oネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
溶接式 180°ベンド
180゜
Bend both end Weld
Nom.size OD A B Mass kg 1.5s 2.0s 2.5s 3.0s 4.0s 38.1 50.8 63.5 76.3 101.6 152.4 152.4 190.6 254 254 t 1.2 1.5 2 2 2 76.2 76.2 95.3 127 127 0.28 0.47 1.05 1.65 1.98Type 18BND-W
溶接式チーズ
Tee ends Weld
Nom.size OD A Mass kg 1.0s 1.25s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 8A 10A 15A ※ ※ ※ 25.4 31.8 38.1 50.8 63.5 76.3 89.1 101.6 114.3 139.8 165.2 13.8 17.3 21.7 t 1.2 1.2 1.2 1.5 2 2 2 2 3 3 3 1.65 1.65 2.1 33.5 38 48.5 60.5 83.5 88.5 103.5 127 115 140 165 38 38 38 0.06 0.09 0.13 0.25 0.61 0.77 1.04 1.49 2.74 4.69 6.71 0.05 0.061 0.095
Type TEE-W
溶接式ローネックチーズ
Tee ends Weld(LowNeck)
Nom.size OD t A B 1.0s 1.5s 2.0s 2.5s 3.0s 8A 10A 15A ※ ※ ※ 25.4 38.1 50.8 63.5 76.3 13.8 17.3 21.7 1.2 1.2 1.5 2 2 1.65 1.65 2.1 33.5 48.5 60.5 83.5 88.5 38 38 38 14 21 28 34 40.5 13 15 17
Type TEEV-W
※SUS316Lのみ Only SUS316L ※SUS316Lのみ Only SUS316L B A OD t A t t OD t t A A A OD A A OD t B t OD A A2-4
Photo is 3DCG. 溶接式180°ベンド/溶接式チーズ/溶接式ローネックチーズ 180 Bend both end Weld/Type TEE-W/Type TEEV-WISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
溶接式異径チーズ
Reducing Tee ends Weld
Nom.size OD1 25.4 25.4 25.4 38.1 38.1 38.1 38.1 50.8 50.8 63.5 63.5 63.5 76.3 76.3 76.3 76.3 89.1 89.1 89.1 89.1 101.6 101.6 101.6 101.6 101.6 101.6 17.3 21.7 21.7 OD2 13.8 17.3 21.7 13.8 17.3 21.7 25.4 38.1 25.4 50.8 38.1 25.4 63.5 50.8 38.1 25.4 76.3 63.5 50.8 38.1 89.1 76.3 63.5 50.8 38.1 25.4 13.8 13.8 17.3 t1 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.5 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1.65 2.1 2.1 t2 1.65 1.65 2.1 1.65 1.65 2.1 1.2 1.2 1.2 1.5 1.2 1.2 2 1.5 1.2 1.2 2 2 1.5 1.2 2 2 2 1.5 1.2 1.2 1.65 1.65 1.65 A 33.5 33.5 33.5 48.5 48.5 48.5 48.5 60.5 60.5 83.5 83.5 83.5 88.5 88.5 88.5 88.5 103.5 103.5 103.5 103.5 127 127 127 127 127 127 38 38 38 B 38 38 38 38 38 38 44.5 64 51 82 70 57 88.5 88.5 76.5 63.5 95 95 95 83 101 101 101 101 89 76 38 38 38 Mass kg ー ー ー ー ー ー 0.13 0.24 0.22 0.53 0.51 0.51 0.74 0.66 0.65 0.66 0.98 0.96 0.89 0.89 1.38 1.32 1.3 1.28 1.27 1.26 ー ー ーType TEEX-W
溶接式異径ローネックチーズ
Reducing Tee ends Weld(LowNeck)
Nom.size OD2 25.4 25.4 38.1 25.4 38.1 50.8 25.4 38.1 50.8 63.5 13.8 13.8 17.3 17.3 21.7 13.8 17.3 21.7 t1 1.2 1.5 1.5 2 2 2 2 2 2 2 1.65 2.1 2.1 1.2 1.2 1.2 1.2 1.2 t2 1.2 1.2 1.2 1.2 1.2 1.5 1.2 1.2 1.5 2 1.65 1.65 1.65 1.65 2.1 1.65 1.65 1.65 A 48.5 60.5 60.5 83.5 83.5 83.5 88.5 88.5 88.5 88.5 38 38 38 33.5 33.5 48.5 48.5 48.5 B 20.5 28.5 27.5 36 36.5 36.5 43 44.5 43.5 41 15 17 17 14 13.5 21 20.5 20.5 OD1 38.1 50.8 50.8 63.5 63.5 63.5 76.3 76.3 76.3 76.3 17.3 21.7 21.7 25.4 25.4 38.1 38.1 38.1
Type TEEVX-W
×1.0s ×1.0s ×1.5s ×1.0s ×1.5s ×2.0s ×1.0s ×1.5s ×2.0s ×2.5s ×8A ×8A ×10A ×10A ×15A ×8A ×10A ×15A 1.5s 2.0s 2.0s 2.5s 2.5s 2.5s 3.0s 3.0s 3.0s 3.0s 10A 15A 15A 1.0s 1.0s 1.5s 1.5s 1.5s ×8A ×10A ×15A ×8A ×10A ×15A ×1.0s ×1.5s ×1.0s ×2.0s ×1.5s ×1.0s ×2.5s ×2.0s ×1.5s ×1.0s ×3.0s ×2.5s ×2.0s ×1.5s ×3.5s ×3.0s ×2.5s ×2.0s ×1.5s ×1.0s ×8A ×8A ×10A 1.0s 1.0s 1.0s 1.5s 1.5s 1.5s 1.5s 2.0s 2.0s 2.5s 2.5s 2.5s 3.0s 3.0s 3.0s 3.0s 3.5s 3.5s 3.5s 3.5s 4.0s 4.0s 4.0s 4.0s 4.0s 4.0s 10A 15A 15A ※ ※ ※ ※ ※ ※ ※ ※ ※ ※SUS316Lのみ Only SUS316L ※SUS316Lのみ Only SUS316L ※ ※ ※ ※ ※ ※ ※ ※ B OD1 t2 OD2 t1 A A A A B OD1 t1 t2 OD22-5
写真は3DCGです。パイプ、溶接配管用継手
Pipes,Fitting for Welding end
溶接式異径チーズ/溶接式異径ローネックチーズ
Reducing Tee ends Weld/Reducing Tee ends Weld(LowNeck)
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
溶接式ティーベンド
T-Bend ends Weld
Type TBND-W
Nom.size OD A Mass kg 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 38.1 50.8 63.5 76.3 89.1 101.6 t 1.2 1.5 2 2 2 2 48.5 60.5 83.5 88.5 103.5 127 0.16 0.31 0.70 0.80 1.13 1.87溶接式クロス
Cross ends Weld
Type CROS-W
Nom.size OD t A Mass kg 1.0s 1.25s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 8A 10A 15A ※ ※ ※ 25.4 31.8 38.1 50.8 63.5 76.3 89.1 101.6 114.3 139.8 165.2 38 38 38 33.5 38 48.5 60.5 83.5 88.5 103.5 127 115 140 165 13.8 17.3 21.7 1.2 1.2 1.2 1.5 2 2 2 2 3 3 3 1.65 1.65 2.1 0.07 0.1 0.15 0.28 0.72 0.88 1.18 1.74 2.98 5.52 7.94 0.06 0.08 0.12溶接式ホースアダプタ
Hose Adapter end Weld
Type HSAD-W
Nom.size OD1 ID1 L Mass kg
1.0s 1.25s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 8A 10A 15A ※ ※ ※ 25.4 31.8 38.1 50.8 63.5 76.3 89.1 101.6 13.8 17.3 21.7 OD2 23.7 30.1 36.4 49.1 61.8 74.6 87.4 99.9 12.8 16.3 20.7 23 29.4 35.7 47.8 59.5 72.3 85.1 97.6 10.5 14.0 17.5 ID2 21.4 27.8 34.1 44.8 57.5 70.3 82.1 94.6 10.5 14.0 17.5 63.5 73 78.5 103.5 118.5 138.5 138.5 142 38 38 38 0.07 0.09 0.13 0.28 0.45 0.64 0.89 1.04 ー ー ー 1.5s×1.0s 2.0s×1.0s 2.0s×1.5s 2.5s×1.5s 2.5s×2.0s 3.0s×1.5s 3.0s×2.0s 3.0s×2.5s
溶接式異径偏心チーズ
Reducing Tee eccentric ends Weld(LowNeck)
Type TEEH-W
Nom.size OD1 OD2 Mass kg
38.1 50.8 50.8 63.5 63.5 63.5 76.3 76.3 25.4 25.4 38.1 38.1 50.8 38.1 50.8 63.5 t1 1.2 1.5 1.5 2 2 2 2 2 t2 1.2 1.2 1.2 1.2 1.5 1.2 1.5 2 A 48.5 60.5 60.5 83.5 83.5 88.5 88.5 88.5 B 44.5 51 64 70 82 76.5 88.5 88.5 C 6.35 12.7 6.35 12.7 6.35 19.1 12.75 6.4 0.13 0.22 0.24 0.51 0.53 0.65 0.66 0.74
※SUS316Lのみ Only SUS316L
※SUS316Lのみ Only SUS316L ※SUS316Lのみ Only SUS316L t1 A A OD1 E B E矢視図 OD2 t2 C A A A OD t A A A t A OD L
OD1 ID1 ID2OD2
2-6
Photo is 3DCG.
溶接式異径ローネックチーズ/溶接式ティーベンド/溶接式クロス/溶接式ホースアダプタ
Reducing Tee eccentric ends Weld(LowNeck)/T-Bend ends Weld/Cross ends Weld/Hose Adapter end Weld
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
溶接式レジューサ
Reducer (Concentric) both end Weld
Nom.size OD2 Mass kg
25.4 31.8 25.4 38.1 31.8 25.4 50.8 38.1 31.8 25.4 63.5 50.8 38.1 76.3 63.5 50.8 89.1 76.3 63.5 50.8 13.8 13.8 17.3 13.8 17.3 21.7 13.8 17.3 21.7 t1 1.2 1.2 1.2 1.5 1.5 1.5 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1.65 2.1 2.1 1.2 1.2 1.2 1.2 1.2 1.2 t2 1.2 1.2 1.2 1.2 1.2 1.2 1.5 1.2 1.2 1.2 2 1.5 1.2 2 2 1.5 2 2 2 1.5 1.65 1.65 1.65 1.65 1.65 2.1 1.65 1.65 2.1 L 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 67 102 102 102 102 38.1 38.1 38.1 38.1 38.1 38.1 38.1 38.1 38.1 OD1 31.8 38.1 38.1 50.8 50.8 50.8 63.5 63.5 63.5 63.5 76.3 76.3 76.3 89.1 89.1 89.1 101.6 101.6 101.6 101.6 17.3 21.7 21.7 25.4 25.4 25.4 38.1 38.1 38.1 0.06 0.08 0.07 0.11 0.10 0.10 0.19 0.14 0.19 0.17 0.21 0.17 0.22 0.23 0.24 0.28 0.39 0.46 0.60 0.49 ー ー ー ー ー ー ー ー ー
Type RDC-W
溶接式偏心レジューサ
Reducer (Eccentric) both end Weld
Type RDE-W
1.0s 1.25s 1.0s 1.5s 1.25s 1.0s 2.0s 1.5s 1.25s 1.0s 2.5s 2.0s 1.5s 3.0s 2.5s 2.0s 3.5s 3.0s 2.5s 2.0s 8A 8A 10A 8A 10A 15A 8A 10A 15A × × × × × × × × × × × × × × × × × × × × × × × × × × × × × 1.25s 1.5s 1.5s 2.0s 2.0s 2.0s 2.5s 2.5s 2.5s 2.5s 3.0s 3.0s 3.0s 3.5s 3.5s 3.5s 4.0s 4.0s 4.0s 4.0s 10A 15A 15A 1.0s 1.0s 1.0s 1.5s 1.5s 1.5s ※寸法は下表に同じ Size is same to the below chart※ ※ ※ ※ ※ ※ ※ ※ ※ ※SUS316Lのみ Only SUS316L OD1 t1 t 2 OD2 L t2 t 1 L OD1 OD2
2-7
写真は3DCGです。パイプ、溶接配管用継手
Pipes,Fitting for Welding end
溶接式レジューサ/溶接式偏心レジューサ
Reducer (Concentric) both end Weld/Reducer (Eccentric) both end Weld
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
Nom.size ID1 L 23 23 29.4 35.7 35.7 47.8 47.8 59.5 59.5 72.3 85.1 97.6 23 28.4 29.4 35.7 43 47.8 54.9 59.5 70.3 72.3 85.1 97.6 OD 25.4 25.4 31.8 38.1 38.1 50.8 50.8 63.5 63.5 76.3 89.1 101.6 100 125 125 135 140 140 155 155 175 175 185 195 58.5 58.5 63 58.5 58.5 58.5 58.5 58.5 58.5 78.5 78.5 72 ボルト穴 Clearance Holes 数 Quantity 4 4 4 4 4 4 4 4 4 4 8 8 ×20A ×25A ×25A ×32A ×40A ×40A ×50A ×50A ×65A ×65A ×80A ×90A 1.0s 1.0s 1.25s 1.5s 1.5s 2.0s 2.0s 2.5s 2.5s 3.0s 3.5s 4.0s
溶接式管用ネジアダプタ
Taper Pipe Threads Adapter end Weld
Type THAD-W
Nom.size OD ID1 L ※ ※ ※ 25.4 25.4 31.8 31.8 38.1 38.1 50.8 50.8 63.5 63.5 76.3 13.8 17.3 21.7 23 23 29.4 29.4 35.7 35.7 47.8 47.8 59.5 59.5 72.3 10.5 14 17.5 38.5 38.5 43 43 43.5 43.5 43.5 48.5 53.5 53.5 53.5 28 28 33 A 29 36 36 46 46 51 51 61 65 76 76 14 17 22溶接式フランジアダプタ
JIS Flange/Weld end Adapter
Type JFAD-W
×R ×R1 ×R1 ×R1 ×R1 ×R1 ×R1 ×R2 ×R2 ×R2 ×R2 ×R ×R ×R 1.0s 1.0s 1.25s 1.25s 1.5s 1.5s 2.0s 2.0s 2.5s 2.5s 3.0s 8A 10A 15A / / / / / / / / / / 3 1 1 1 1 1 1 1 3 1 4 4 4 2 2 2 2 4 8 2 ID2 A ID2 21 26 26 35.7 35.7 40 40 51.5 51.5 67.3 67.3 8.8 12.3 17.5 ※SUS316Lのみ Only SUS316L ID1 ID2 L A OD L A ID2 ID1 OD JIS10Kフランジ Flange2-8
Photo is 3DCG. 溶接式管用ネジアダプタ/溶接式フランジアダプタTaper Pipe Threads Adapter end Weld/JIS Flange/Weld end Adapter
I
S
Oヘルールユニオン継手
ISO Ferrule Union Fittings
I
S
Oネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
2-9
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
Technical Information
UNION
FITTINGS
ISOヘルールユニオン継手
■
溶接式クランプユニオン
Welded Clamp Union
■
エキスパンド式クランプユニオン
Expanded Clamp Union
クランプ Clamp Band ガスケット Gasket 溶接式ヘルール Ferrule for Weldingエキスパンド式ヘルール Ferrule for Expanding
ISO規格クランプユニオン継手は、ガスケットをヘルールで はさみ込み、クランプで締め付けて組み立てられるユニオン です。ユニオンは締め付けたときにパイプ内面とシール面が 一致する構造になっています。 溶接式クランプユニオンは、アルゴンアークTIG溶接にてサ ニタリーパイプと接合されます。なお、溶接される部分の内 外径寸法は、JIS-G-3447ステンレス鋼サニタリー管寸法 に準ずる寸法になっています。 エキスパンド式クランプユニオンは、チューブエキスパンダ にてパイプを押し拡げ、継手を接合するものです。 使用圧力 溶接式・・・・・・・・1.0MPa以下 エキスパンド式・・・・0.2MPa以下 ● ● ● ● クランプ Clamp Band ガスケット Gasket
ISO standard clamped union joints are assembled by sand- wiching and clamping the gasket between the ferrule. When tightened, the union joints makes the inner surface of pipe and the seal surface come closely into contact.
The welded clamped union is joined to the sanitary pipe by argon arc TIG welding. Inside and outside diameters of the portion to be welded conform to the inside and outside diameters of the JIS-G344 stainless steel sanitary pipe.
The expanded clamped union is used to expand a pipe by a tube expander for subsequent joining of the joint.
Working Pressure
welded type :1.0MPa or less Expanded type :0.2MPa or less
●
●
●
●
2-11
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
溶接式クランプユニオン/エキスパンド式クランプユニオン Welded Clamp Union/Expanded Clamp Union
I
S
Oヘルールユニオン継手
ISO Ferrule Union Fittings
I
S
Oネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
A Mass kg 50.5 50.5 50.5 64 77.5 91 106 119 130 155 183 50.5 50.5 50.5 64 77.5 91 106 119 233.5 34 34 34 B 43.5 43.5 43.5 56.5 70.5 83.5 97 110 122 146 174 43.5 43.5 43.5 56,5 70.5 83.5 97 110 225 27.5 27.5 27.5 ID 23 29.4 35.7 47.8 59.5 72.3 85.1 97.6 108.3 133.8 159.2 23 28 36.7 42.6 54.5 70.3 83.1 95.6 208.3 10.5 14 17.5 OD 25.4 31.8 38.1 50.8 63.5 76.3 89.1 101.6 114.3 139.8 165.2 27.2 34 42.7 48.6 60.5 76.3 89.1 101.6 216.3 13.8 17.3 21.7 0.07 0.06 0.05 0.08 0.11 0.14 0.18 0.24 0.34 0.48 0.63 0.95 0.034 0.030 0.032 ※ ※ ※ ※ ※ ※ ※ ※
溶接式ヘルール
Ferrule for Welding
Type CLF-W
Nom.size 1.0s 1.25s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 20A 25A 32A 40A 50A 65A 80A 90A 200A 8A 10A 15A L 21.5 17 21.5 21.5 21.5 21.5 21.5 28 28 28 28 21.5 21.5 21.5 21.5 21.5 21.5 21.5 28 28 17 17 17 クランプサイズ 1.5s 1.5s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 1.5s 1.5s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 200A 15A 15A 15A A Mass kg 50.5 50.5 50.5 64 77.5 91 106 119 130 155 183 B 43.5 43.5 43.5 56.5 70.5 83.5 97 110 122 146 174 ID 23 29.4 35.7 47.8 59.5 72.3 85.1 97.6 108.3 133.8 159.2 OD 25.4 31.8 38.1 50.8 63.5 76.3 89.1 101.6 114.3 139.8 165.2 0.09 0.08 0.07 0.12 0.18 0.24 0.26 0.3 0.63 0.82 1.04溶接式ロングヘルール
Long Ferrule for Welding
Type CLF2-W
Nom.size 1.0s 1.25s 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s L 42 42 42 42 42 42 42 42 62 62 62 ※ ※ B Mass kg 43.5 43.5 43.5 56.5 70.5 83.5 C 29.5 36 42.5 56 69 82 A 50.5 50.5 50.5 64 77.5 91 D 25.7 32.1 38.4 51.1 63.8 76.6 0.07 0.06 0.05 0.08 0.12 0.18エキスパンド式ヘルール
Ferrule for Expanding
Type CLF-E
Nom.size 1.0s 1.25s 1.5s 2.0s 2.5s 3.0s L 20 20 20 20 25 30 注:内側の溝はネジ用の溝ではありません。 ※SUS316Lのみ Only SUS316L ※SUS304 のみ Only SUS304L ※ガス管サイズは OSU 規格です ※ ※ ※ A B ID OD L L A B ID OD L A B D C エキスパンド溝2-12
写真は3DCGです。Photo is 3DCG. 溶接式ヘルール/溶接式ロングヘルール/エキスパンド式ヘルールFerrule for Welding/Long Ferrule for Welding/Ferrule for Expanding
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
A 50.5 50.5 50.5 50.5 50.5 50.5 50.5 50.5 64 64 64 64 77.5 77.5 91 91 91 119 119 119 119 ID2 23 23 23 35.7 35.7 35.7 35.7 35.7 47.8 47.8 47.8 47.8 59.5 59.5 72.3 72.3 72.3 97.6 97.6 97.6 97.6 OD 13.8 17.3 21.7 13.8 17.3 21.7 25.4 31.8 21.7 25.4 31.8 38.1 38.1 50.8 38.1 50.8 63.5 38.1 50.8 63.5 76.3 ID1 10.5 14 17.5 10.5 14 17.5 23 29.4 17.5 23 29.4 35.7 35.7 47.8 35.7 47.8 59.5 35.7 47.8 59.5 72.3 ※ ※ ※ ※ ※ ※ ※ ※※ ※※ ※※ ※※
溶接式異径ヘルール
Reducing Ferrule for Welding
Type CLF-WX
L 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 21.5 28 28 28 28※SUS316LのみOnly SUS316L
※※SUS304 のみ Only SUS304
Nom.size ×8A ×10A ×15A ×8A ×10A ×15A ×1.0s ×1.25s ×15A ×1.0s ×1.25s ×1.5s ×1.5s ×2.0s ×1.5s ×2.0s ×2.5s ×1.5s ×2.0s ×2.5s ×3.0s 1.0s 1.0s 1.0s 1.5s 1.5s 1.5s 1.5s 1.5s 2.0s 2.0s 2.0s 2.0s 2.5s 2.5s 3.0s 3.0s 3.0s 4.0s 4.0s 4.0s 4.0s
溶接式異径偏心ヘルール
Reducing Ferrule for Welding
Type CLF-WXE
※※ ※ Mass kg A 34 50.5 64 77.5 91 106 119 130 155 183 233.5 OD 21.7 38.1 50.8 63.5 76.3 89.1 101.6 114.3 139.8 165.2 216.3 0.053 0.13 0.2 0.33 0.46 0.64 0.82 1 1.53 2.16 3.52ヘルールキャップ
Ferrule Cap
Type CLF-B
Nom.size 15A 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 200A ID2 35.7 47.8 47.8 59.5 59.5 72.3 72.3 ID1 23 23 35.7 35.7 47.8 47.8 59.5 OD 25.4 25.4 38.1 38.1 50.8 50.8 63.5 Nom.size 1.5s×1.0s 2.0s×1.0s 2.0s×1.5s 2.5s×1.5s 2.5s×2.0s 3.0s×2.0s 3.0s×2.5s L 21.5 21.5 21.5 21.5 21.5 21.5 21.5 A 50.5 64 64 77.5 77.5 91 91 ※SUS316Lのみ Only SUS316L ※8A∼15A 共有 ※1.0s∼1.5s 共有 A ID2 ID1 L OD ID2 A OD ID1 L 11 A OD2-13
写真は3DCGです。ISOヘルールユニオン継手
ISO Ferrule Union Fittings
溶接式異径ヘルール/溶接式異径偏心ヘルール/ヘルールキャップReducing Ferrule for Welding/Reducing Ferrule (Eccentric) for Welding/Ferrule Cap
I
S
Oヘルールユニオン継手
ISO Ferrule Union Fittings
I
S
Oネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
3K クランプ
Clamp Type 3K
Type CP3K
Mass kg C 16 16 16 16 17 17 17 26 26 26 16 A 86 100 115 130 144 158 170 200 228 278 64 D1 63 76.5 90 103.5 119 132 143 174 202 253 46 0.22 0.25 0.29 0.33 0.4 0.46 0.49 1.2 1.3 1.6 0.132D クランプ
Clamp Type 2D
Type CP2D
Nom.size 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 200A 15A Mass kg B 60 60 60 60 60 60 60 65 65 65 C 18 18 18 18 18 18 18 26 26 26 A 87.3 102 115.8 130.5 146 159.5 171 198 226 277.3 D1 65.5 79 92.5 106 121 134 145 173 201 251.5 0.28 0.33 0.4 0.44 0.52 0.57 0.61 1 1.2 1.6 Nom.size 1.5s 2.0s 2.5s 3.0s 3.5s 4.0s 4.5s 5.5s 6.5s 200A2K クランプ
Clamp Type 2K
Type CP2K
※1.0s∼1.5s共用 ※1.0s∼1.5s共用 ※ Mass kg B 52 52 52 52 45 C 16 16 16 16 16 A 92 105 119.5 134 71.5 D1 64 77.5 91 105 46 0.4 0.27 0.31 0.35 0.16 Nom.size 1.5s 2.0s 2.5s 3.0s 15A ※1.0s∼1.5s共用 ※ ※ ※ ※ ※8A∼15A 共有 ※8A∼15A 共有 C A B D1 D1 A C C B A D12-14
Photo is 3DCG. 3Kクランプ/2Kクランプ/2Dクランプ/クランプClamp Type 3K/Clamp Type 2K/Clamp Type 2D/Clamp Type 2L
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
ISOネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
高温においてもゴムの特性を
保ちます。
Assuring rubber properties
even high temperature
耐熱性
High heat resistance
Kalrez
®
Kalrez
®
■
カルレッツ
®とは?(Kalrez
®)
■
主な特徴
Major feafures
テフロンと同等の耐薬品性を持ち、従来のシリコンゴムやフッ素ゴ
ムを上回る耐熱性を有し、さらにゴムの持つ弾力性を兼ね備えた画
期的な製品です。
Kalrez is a unique elastomer with a chemical resistance equal to that of the Teflon. with higher heat resistance than that of conven-tional silicone and fluororubber and with elasticity equal to that of rubber.
■
What is the Kalrez
®?
液体の浸透が極めて少なく、ガスケット への着香が著しく減少します。 Liquid penetration is very little, thus
considerably preventing the gasket from being
aromatized.
低着香性
Low aromatizing
NASDA
C 蒸気ラインにおいても十分な シールが可能です。 (使用温度145℃以下)Usable in steam lines with
sufficient sealing
capacity
( max145。C)
スチーム
Steam
従来のゴムでは、使用が難しかったほと んどの薬液に対し使用可能です。下記の 様な薬液に対しても問題なく使用できます。 ex.水酸化ナトリウム、次亜塩素酸ナトリウム、 過酸化水素水、過酢酸、硝酸等々 Usable in almost all chemicals which have notbeen used in conventional rubbers. Usable with the chemicals below,
without trouble. e.g. : Sodium hydroxide, Sodium
hypochlorite,Hydrogen peroxide, Peracetic
acid, Nitric acid
耐薬品性
High chemical resistance
高温でのシール性に優れており、 アセプティックライン・無菌システ
ムにも使用できます。 Excellent in sealing ability at
high temperature, suitable for aseptic lines and
axenic systems
アセプティック
Aseptic
材料からの抽出物が極めて少なく、 ウルトラクリーンプロセスにも 最適です。Optimum in ultra clean process, with extremely low extraction
from materials
低抽出物特性
Little extract
■
他エラストマーとの比較
Comparison with other elastoners
■
カルレッツ
®の抽出物特性
Kalrez Extract Properties
食品衛生法・添加物等の規格基準(昭
和34年厚生省告示第370号)に適合し
ていますので、安全に使用できます。
Conforming to the Food Sanitation Act and the requirements of food, additives, etc. (Notification No.370 the Ministry of Health and Welfare made in 1959), it can safely be used.
*Kalrez® is a trademark of Dupont Dow Elastomers.
*Kalrez® ferrule gasket are the properties of the sanitary special blending.
*Each value is for reference and not guaranteed.
*For the improvement of performance, specifications are subjct to change without prior notice.
*カルレッツ® はデュポンダウエラストマーの商標です。 *カルレッツ® へルールガスケットは、サニタリー用特殊配合の特性です。 *各値は参考値であり、保証値ではありません。 *又、性能改善のために予告なく仕様を変更する場合があります。 優れた耐熱性と優れた耐薬品性 Excellent heat resistance and chemicar resistance
耐 熱 性 耐薬品性 →優 れ ている 優れている→ EPDM シリコン ゴム フッ素ゴム パーフロロ 一般 ゴム ニトリル ゴム Kalrez® Superior Superior Heat resistance Chemical resistance
Silicone rubber Fluororubber
Nitrile rubber
General bar perfluoroelastomer ヘキサン/Hexane シクロヘキサン/Cyclohexane ベンゼン/Benzene トルエン/Toluene 酢酸エチル/Ethyl acetate 四塩化炭素/Carbon tetrachloride パークロロエチレン/Parchloroethylene クロロベンゼン/Chrorobenzene アセトン/Asetone
メチルエチルケトン/Methyl ethyl ketone テトラヒドロフラン/Tetrahydrofuran エタノール/Ethanol ニトロベンゼン/Nitrobenzene 1 4 22 8 280 1 1 8 200 240 200 6 24 <1 <1 3 <1 3 4 2 <1 2 <1 <1 0 <1 フッ素ゴム カルレッツ Fluororubber Kalrez R R
■
フッ素ゴムとカルレッツ
®耐溶剤性
Solvent Resistance of Fluororubber and Kalrez
※温室で7日間浸漬後の体積増加率(%) *Volumetric increase in dipping at room temperature for 7 days(%)
カルレッツ® 一般パーフロロゴム
80℃の超純水に1ヶ月浸漬後の各種エラストマーの抽出物特性 Extract properties of various elastomers in dipping to 80℃ extra qure water for 1 month
0 1,000 2,000 3,000 抽 出 物イオン PP b Extract ion PPb 有機物(TOC) 陰イオン(F-) 無機物 金属
Organics Anion Inorganics Metal
HACCP導入の際に最適です。 Optimum in introducing HACCP
HACCP
HACCP
2-15
ISOヘルールユニオン継手
ISO Ferrule Union Fittings
Kalrez®
サニタリーへルールガスケット
Kalrez®
Sanitary Ferrule Gasket
I
S
Oヘルールユニオン継手
ISO Ferrule Union Fittings
I
S
Oネジユニオン継手
ISO Screwed Union Fittings
フランジユニオン継手
Flange Union Fittings
特
殊継手
Fittings for Special Use
継手付パイプ
Pipes with Fittings
配管サポート及び工具
Piping Support and Tools
参考資料
