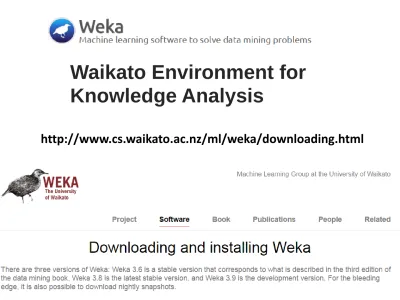

Waikato Environment for

Knowledge Analysis

○ Weka (Waikato Environment for Knowledge Analysis

) は、ニュー

ジーランドのワイカト大学で開発した機械学習ソフトウェアで、Javaで書かれ

ている。GNU General Public License でライセンスされているフリーソフト

ウェアである。

○

データ解析と予測モデリング

のための視覚化ツールとアルゴリズムの集

合体であり、その機能を容易に扱えるグラフィカルユーザインタフェース GUI

を備えている。Wekaには次のような利点がある。

・ GNU General Public License でライセンスされたフリーソフトウェア

・ 完全にJavaで実装されているので、ほとんどのプラットフォームで動作

・ データプリプロセッサとモデリング技法を包括的に取り揃えている

○ データプリプロセッシング、クラスタリング、統計

分類、回帰分析、視覚化、特徴選択といった

標準的

データマイニングタスク

をサポートしている。

Weka supports standard data mining tasks

such as preprocessing, regression analysis,

visualization, and feature selection.

○ データマイニング

_{data mining}

machine learning

pattern recognition

supervised / unsupervised

learning

ground truth data

○ 強化学習

reinforcement learning

最適な結果を得た場合に「報酬」として教師信号を与える。 ○ 深層学習

deep learning

RGBカラー

合成画像

(True

Color)

=== BMP file header === [0] B 66 [1] M 77 [2] 6 54 [3] 140 [4] 10 [5] 0 [6] 0 [7] 0 [8] 0 [9] 0 [10] 6 54 [11] 0 [12] 0 [13] 0 [14] ( 40 [←Windows] [15] 0 [16] 0 [17] 0 [18] 224 [19] 1 [<Width/3] [20] 0 [21] 0 [22] 224 [23] 1 [<- Height] [24] 0 [25] 0 [26] 1 [27] 0 [28] 24 [<- Color bit] [29] 0 [30] 0 [31] 0 [32] 0 [33] 0 [34] 0 [35] 0 [36] 0 [37] 0 [38] 196 [39] 14 [40] 0 [41] 0 [42] 196 [43] 14 [44] 0 [45] 0 [46] 0 [47] 0 [48] 0 [49] 0 [50] 0 [51] 0 [52] 0 [53] 0 (0) 0[54] ] 93 *** width = 1440 (=480*3 ： RGBの分で3倍になっている) *** height = 480 *** pixel = 691200 (1) 104 [左下B] (2) 104 [G] (3) 124 [R] (4) 100 (5) 113 (6) 129 (7) 85 (8) 100 (9) 109 (10) 72 (11) 90 (12) 91 (13) 76 (14) 100 (15) 90 (16) 66 (17) 92 (18) 74 (19) 51 (20) 79 (21) 56 (22) 56 (23) 85 (24) 60 (25) 76 (26) 105 (27) 82 (28) 91 (29) 117 (30) 103 (31) 94 (32) 117 (33) 113 (34) 90 (35) 109 (36) 117 (37) 91 (38) 107 (39) 130 (40) 91 (41) 103 (42) 137 (43) 93 (44) 101 (45) 148 (46) 109 (47) 113 (48) 154 (49) 131 (50) 131 (51) 155 (52) 98 (53) 95 (54) 110 ...

BMPファイル

Today’s questions

1.

What is “machine learning” and what is

“neural network”?

2. Describe how machine learning is

related to the analysis of remote

sensing data (or can be related to your

own research topic).

フリーソフトではじめる機械学習入門

荒木雅弘 著 森北出版

○クラス判別用の手法。学習データをベクトル空間上にプロットしておき、未知 のデータが得られたら、そこから距離が近い順に任意のK個を取得し、多数決 でデータが属するクラスを推定する。

K近傍法 KNN (K Nearest Neighbor)

Typically k is odd when the number of classes is 2. Lets say k = 3 and there are 1 instance of C1 and 2 instances of C2. In this case , KNN says that new point has to labeled as C2 as it forms the majority.

主成分分析 Principal Component Analysis (PCA)

(a) Read

iris.arff

at the Preprocess tab.

(b) Choose

PrincipalComponents

in the Filter range.

(filters → unsupervised → attribute → PrincipalComponents)

(c) Push Apply button.

PC1 = -0.581petallength -0.566petalwidth -0.522sepallength + 0.263sepalwidth PC2 = +0.926petallength +0.372petalwidth +0.065sepallength + 0.021sepalwidth

-3.298 2.765 PC1

-2.649 2.713 PC2

○ 概念学習

concept learning

「概念の例」からその概念を表す「一般的な規則」を導き

カテゴリー化

(categorization)すること。その概念に当てはまる事例を

正事例

といい、

当てはまらない事例を

負事例

という。すべての正事例に当てはまり、負

事例には当てはまらないような概念を見つけることで、新しい事例があ

る概念に当てはまるかどうかを判定できるようになる。

➢ A concept is the way in which

a category

or

class

of

objects is represented mentally. Concepts allow individuals

to discern class

membership or non-membership

, relate

different classes of objects, and provide context for learning

new information about classes and class membership.

➢ Often the problem faced by a learning agent is expressed

as a

concept learning

problem, whereby the agent must learn

a concept which achieves the correct categorization. Usually,

to get a machine learning agent to learn a concept, both

positive and negative examples

of the concept must be

supplied.

https://ja.wikipedia.org/wiki/決定木

http://www.saedsayad.com/decision_tree.htm

➢ Decision tree builds classification or regression models in the form of a tree structure. It breaks down a dataset into smaller and smaller subsets while at the same time an associated decision tree is incrementally

developed.

➢ The final result is a tree with decision nodes and leaf nodes. A decision node (e.g., Outlook) has two or more branches (e.g., Sunny, Overcast and Rainy). Leaf node (e.g., Play) represents a classification or decision.

➢ The topmost decision node in a tree which corresponds to the best

predictor called root node. Decision trees can handle both categorical and numerical data.

J48 pruned tree --- outlook = sunny

| humidity = high: no (3.0) | humidity = normal: yes (2.0)

outlook = overcast: yes (4.0) outlook = rainy

| windy = TRUE: no (2.0) | windy = FALSE: yes (3.0) Number of Leaves : 5 Size of the tree : 8

決定木 Decision Tree

(a) Read

weather.nominal.arff

at the Preprocess tab.

(b) Choose

trees → J48

in the Classifier range.

(c) Choose “Use training set” in the Test options range.

○ 3 ビットあれば、2

_{=8 通りの状態を区別できる：}

(000, 001, 010, 011, 100, 101, 110, 111)

S = log

W = log

8 = 3

Eight different events can be described using 3 bits.

○ 複数の事象の内のどれか一つだけが実現し、そのいずれもが等し

い確率 P で起こるとする。実際にどれが実現したかを知ったときに得ら

れる情報量 I は、次式で表される。

I = log

(1 / P) = −log

P

This is the information quantity that can be obtained after

knowing that an event has occurred if the probability that any

one of the events should occur is p.

○それぞれの事象が実現する確率が P

で、それが実現したときに

−log

P

の情報が得られるとすれば、

平均情報エントロピー

は次式で

与えられる。

S = −∑

P

log

P

Average information entropy

➢

Shannon's entropy

can be thought of as a way to quantify

the potential reduction in our uncertainty once we have learnt

the outcome of the probabilistic process.

識別 Classification と 回帰 Regression

<5,1, 3.5, 1.4, 0.2> -> <Iris-setosa>

<sunny, 85.0, 90, true> -> <no>

In Classification, the

answer is a

label

識別の方法 Classification methods

・決定木

Decision tree

・ベイジアンネットワーク Bayesian network

・ロジスティック識別 Logistic classification

・ニューラルネットワーク Neural network

・サポートベクトルマシン Support vector machine

In Regression, the

answer is a

number

事象A、Bに関する

同時確率

の定義

Joint Probability

𝑷(𝐀, 𝐁) = 𝑷 𝐁 𝐀 𝑷 𝐀 = 𝑷(𝐀|𝐁)𝑷 𝐁

𝑷 𝐁 𝐀 =

𝑷(𝐀|𝐁)𝑷 𝐁

𝑷 𝐀

Rain

Wet grass

𝑷 𝐑 = 𝟎. 𝟒

node

arc

node

prior probability

𝑷 𝐖|𝐑 = 𝟎. 𝟗

𝑷 𝐖|¬𝐑 = 𝟎. 𝟐

conditional prob.

The probability that the

grass is wet:

𝑷 𝐖 = 𝑷 𝐖|𝐑 𝑷 𝐑

+𝑷 𝐖|¬𝐑 𝑷 ¬𝐑

= 0.9×0.4 + 0.2×0.6

= 0.48

When it is observed that the grass is wet, what is the

probability that it has rained?

𝑷 𝐑 𝐖 =

𝑷(𝐖|𝐑)𝑷 𝐑

𝑷 𝐖

p.86 Weka Explorer/ BayesNet Algorithm

(1) Preprocessor: read weather.nominal.arff (2) Classify: classifier -> bayes -> BayesNet (3) Test options: use training set -> Start

(4) Result list region: (right crick) visualize graph (5) (Floppy disc button) ->XML Bif files

sunny, hot, high, FALSE, no sunny, hot, high, TRUE, no overcast, hot, high, FALSE, yes rainy, mild, high, FALSE, yes rainy, cool, normal, FALSE, yes rainy, cool, normal, TRUE, no overcast, cool, normal, TRUE, yes sunny, mild, high, FALSE, no

sunny, cool, normal, FALSE, yes rainy, mild, normal, FALSE, yes sunny, mild, normal, TRUE, yes overcast, mild, high, TRUE, yes overcast, hot, normal, FALSE, yes rainy, mild, high, TRUE, no

P(yes)=0.63 P(no) =0.37

0.24, 0.43, 0.33 0.54, 0.08, 0.38 sun over rain

0.35 0.65 0.75 0.25 high norm 0.35 0.65 0.58 0.42 True False === Confusion Matrix === a b <-- classified as 9 0 | a = yes 1 4 | b = no

Right Crick -> Show Properties

Crick

Maximum Num. of parents = 2

_{=== Confusion Matrix ===}

a b <-- classified as

9 0 | a = yes

0 5 | b = no

(high normal)

(0.5 0.5) (0.5 0.5) (0.125 0.875) play (0.83 0.17) (0.83 0.17) (0.25 0.75) no play hot mild cool

(True False) (0.5 0.5) (0.5 0.5) (0.125 0.875) play (0.375 0.625) (0.5 0.5) (0.83 0.17) no play sun overcast rain

p.89 第5章 生成モデルと識別モデル Logistic classification

第5章 ~第7章

数値

で表される

特徴ベクトル x

の識別（回帰）

○

ニューラルネットワーク

非線形の複雑なモデルのパラメータを調

整して、学習データを再現できるようにする。

In

neural network

, parameters in a non-linear, complex

model are adjusted so as to reproduce the learning data.

○

サポートベクトルマシン

学習データをより高次元の空間に移し、

線形モデルを使ってなるべく単純に識別面を決定する。

simple, linear model is employed to determine the classification plain by moving the learning data to a space with higher dimension.

p.91 ナイーブベイズ識別 Naive Bayes classifier

○ 数値データに対して

正規分布

N(m, s) を仮定する。

Normal distribution is assumed for numerical data.

p(x)

=

exp −

Posterior probability P(w_i | x) : when input x is observed, the probability that it belongs to class w_i

○ 各特長 x_j がそれぞれ独立に正規分布に従うと仮定 （Naive Bayes) Each attribute x_j is assumed to follow the normal distribution. ナイーブベイズ識別の結果は、下記で与えられる：

𝐶

= arg max

𝑖

p.92 Weka Explorer/ diabetes.arff

(1) Preprocessor: read diabetes.arff

(2) Classify: classifier -> bayes -> NaiveBayes

(3) Test options: use training set

% 5. Number of Instances: 768

% 6. Number of Attributes: 8 plus class

% 7. For Each Attribute: (all numeric-valued) % 1. Number of times pregnant

% 2. Plasma glucose concentration a 2 hours in an oral glucose tolerance test

% 3. Diastolic blood pressure (mm Hg) % 4. Triceps skin fold thickness (mm) % 5. 2-Hour serum insulin (mu U/ml)

% 6. Body mass index (weight in kg/(height in m)^2)

% 7. Diabetes pedigree function % 8. Age (years) % 9. Class variable (0 or 1) 6,148,72,35,0,33.6,0.627,50,tested_positive 1,85,66,29,0,26.6,0.351,31,tested_negative 8,183,64,0,0,23.3,0.672,32,tested_positive 1,89,66,23,94,28.1,0.167,21,tested_negative 0,137,40,35,168,43.1,2.288,33,tested_positive 5,116,74,0,0,25.6,0.201,30,tested_negative 3,78,50,32,88,31,0.248,26,tested_positive 10,115,0,0,0,35.3,0.134,29,tested_negative 2,197,70,45,543,30.5,0.158,53,tested_positive x_j (j=1 – 8) class w_i

Attribute tested_negative tested_positive (0.65) (0.35) ================================ preg 妊娠回数 mean 3.4234 4.9795 std. dev. 3.0166 3.6827 plas 血糖値 mean 109.9541 141.2581 std. dev. 26.1114 31.8728 pres 最低血圧 mmHg mean 68.1397 70.718 std. dev. 17.9834 21.4094 skin 上腕皮膚厚 mean 19.8356 22.2824 std. dev. 14.8974 17.6992 insu 血中インスリン濃度 mean 68.8507 100.2812 std. dev. 98.828 138.4883 mass BMI mean 30.3009 35.1475 std. dev. 7.6833 7.2537 pedi 糖尿病家系の度合 mean 0.4297 0.5504 std. dev. 0.2986 0.3715 age 年齢 mean 31.2494 37.0808 std. dev. 11.6059 10.9146 === Summary ===

Correctly Classified Instances

586 76.3 %

Incorrectly Classified Instances

182 23.7 %

=== Confusion Matrix === a b <-- classified as

421 79 | a = tested_negative 103 165 | b = tested_positive

ロジスティック識別 Logistic classifier

シグモイド関数 sigmoid function

𝑦 =

1

1 + 𝑒

𝑝(⊕ |𝒙

) =

1

1 + exp − 𝑤

+ 𝒘 ∙ 𝒙

𝑝 ⊝ 𝒙 = 1 − 𝑝(⊕ |𝒙)

Probability of negative class

識別面 classifying plain ← the position has to be optimized

https://ece.uwaterloo.ca/~dwharder/Numerical Analysis/11Optimization/gradient/

最急降下法 Steepest descent method

Minimize the following error (cost) function

𝐸 𝒘 = − 𝑦

log 𝑝(⊕ |𝒙

) + (1 − 𝑦

) log 𝑝(⊖ |𝒙

)

𝒙_𝑖∈𝐷

𝑝(⊕ |𝒙

) =

1

1 + exp − 𝑤

+ 𝒘 ∙ 𝒙

D: Learning data 学習データ y_i=1 for positive class 正例

y_i=0 for negative class 負例

Weight w (i.e. classifying line) is revised as follows: 𝑤_𝑗 ← 𝑤_𝑗 − 𝜂 𝜕𝐸 𝒘 𝜕𝑤_𝑗 𝑤_𝑗 ← 𝑤_𝑗 + 𝜂 [𝑦_𝑖 − 𝑝(⊕ |𝒙_𝑖)](𝒙_𝑖)_𝑗 𝒙_𝑖∈𝐷

h

: learning rate 学習係数

p.100 Weka Explorer/ diabetes.arff

(1

(2) Classify: classifier -> functions -> Simple Logistic (3) Test options: use training set -> Start

=== Confusion Matrix === a b <-- classified as

446 54 | a = tested_negative 111 157 | b = tested_positive === Summary ===

Correctly Classified Instances 603 78.5 % Incorrectly Classified Instances 165 21.5 %

Class 1 : -4.18 + [preg] * 0.06 + [plas] * 0.02 + [pres] * -0.01 + [insu] * -0 + [mass] * 0.04 + [pedi] * 0.47 + [age] * 0.01

w·x

+w

=(0.06, 0.02, -0.01, 0, 0, 0.04, 0.47, 0.01) ·

(6, 148, 72, 35,0, 0, 33.6, 0.672, 50) - 4.18 = 0.559

𝑝 ⊕ 𝒙

=

1

1 + exp −0.559

= 0.636

=== Confusion Matrix === a b <-- classified as

446 54 | a = tested_negative 111 157 | b = tested_positive

ニューラルネットワーク Neural Network

Σ

x

x

x

o = sigmoid(h)

Simple perceptron is a calculation model when the sigmoid function of this figure is replaced by a step function.

○ 誤差逆伝搬法は、機械学習において、ニューラルネットワークを学習させるた めの教師付き学習のアルゴリズムである。シグモイド関数が微分可能であるた め、誤差逆伝搬法が利用できる。

Since a sigmoid function is differentiable, it can be used to establish the back- propagation algorithm exploited for neural network.

p.111 Learning process in neural network

𝐸(𝒘) =

(𝒚

− 𝒐

)

=

𝒚

−

𝑤

← 𝑤

− 𝜂

𝜕𝐸 𝒘

𝜕𝑤

The system should learn how to minimize the following error function.

D: Learning data

学習データ

h

学習係数

最急降下法 Steepest descent method

𝑤

← 𝑤

− 𝜂 (𝑦

−𝑜

)𝑜

(1 − 𝑜

)𝑎

a

The gradient a_ij is calculated for a training data in the stochastic gradient descent (SGD) approach. The training data is selected randomly, and the calculation is repeated many times until the convergence of w_i.

p.113 Weka Explorer/ Multi Layer Perception

(1) Preprocessor: read iris.arff

(2) Classify: classifier -> functions -> MultiLayerPercepction

(3) Crick “MultiLayerPercepction” -> Property -> GUI true; hidenLayers a (auto) ; OK (4) Test options: use training set -> Start (5) Controls: start -> accept

=== Confusion Matrix === a b c <-- classified as 50 0 0 | a = Iris-setosa 0 49 1 | b = Iris-versicolor 0 1 49 | c = Iris-virginica

Neural Network

p.112 Back-propagation algorithm

Input: Learning data D with class Output: Weight w

Assume small values for initial link w’s repeat

for all

𝒙 ∈ 𝑫 do

𝒐 ← 𝒏𝒏(𝒘, 𝒙)

/* error

𝜹

𝜹

← 𝒐

𝟏 − 𝒐

𝒚

− 𝒐

/* error

𝜹

𝜹

← 𝒐

𝟏 − 𝒐

𝒘

𝜹

/* output layer

𝒘

← 𝒘

+ 𝜼𝜹

𝒂

𝒘

← 𝒘

+ 𝜼𝜹

𝒙

Report: deadline November 9 (Wed) (no lecture on Nov. 2)

1. Explain how the consideration on “information entropy” is related to the formation of “decision tree”. Explain the advantage and

disadvantage of decision tree classifier.

2. Discuss how the probability is considered in the “naive Bayesian” and “Bayesian network” classifiers.

3. Explain the mathematical background of “logistic classifier”.

4. Explain the mathematical background of “neural network”.

Today’s questions

Q1 What are the important aspects of logistic classifier and

neural network?

Fiji – ImageJ Trainable Weka Segmentation

○ https://fiji.sc/

○ Fiji is licensed under the GNU General Public License. It builds on top of the ImageJ2 core, which is licensed under the permissive BSD 2-clause license. Plugins and other components have their own licenses.

○ Fiji is developed by contributors around the world. It is maintained by Curtis Rueden and the ImageJ development team at the Laboratory for Optical and Computational Instrumentation (LOCI) at the University of Wisconsin-Madison.

○ The Fiji project is driven by a strong desire to

improve the tools available for life sciences to process and analyze data. To this end, Fiji
