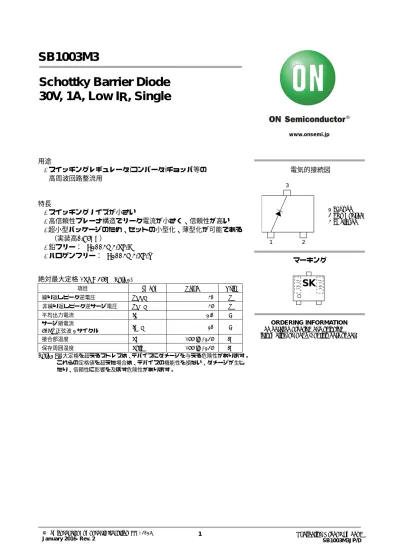

www.onsemi.jp
SB1003M3
用途
• スイッチングレギュレータ,コンバータ,チョッパ等の
高周波回路整流用
特長
• スイッチングノイズが小さい
• 高信頼性プレーナ構造でリーク電流が小さく、信頼性が高い
• 超小型パッケージのため、セットの小型化、薄型化が可能である
（実装高0.85
mm）
• 鉛フリー：SB1003M3-TL-E
• ハロゲンフリー：SB1003M3-TL-W
絶対最大定格 / Ta = 25 ° C (Note 1)
項目
Symbol Value Unit繰り返しピーク逆電圧
VRRM 30 V非繰り返しピーク逆サージ電圧
VRSM 35 V平均出力電流
IO 1.0 Aサージ順電流
50Hz
正弦波
1サイクル
IFSM 10 A接合部温度
Tj −55 to +125 °C保存周囲温度
Tstg −55 to +125 °C Note 1 : 最大定格を超えるストレスは、デバイスにダメージを与える危険性があります。これらの定格値を超えた場合は、デバイスの機能性を損ない、ダメージが生じ たり、信頼性に影響を及ぼす危険性があります。
Schottky Barrier Diode 30V, 1A, Low IR, Single
電気的接続図
ORDERING INFORMATION
See detailed ordering and shipping information on page 4 of this data sheet.3
2 1
1 : Anode 2 : No Contact 3 : Cathode
マーキング
SK
LOTNo. LOTNo.
逆回復時間
trr IF=IR=100mA,指定回路において
10 ns熱抵抗
Rth(j-a)1
ガラスエポキシ基板銅箔
(0.72mm2
×0.03mm)装着時
94.7 °C/W Rth(j-a)2セラミック基板
(500mm2
×0.8mm)装着時
67.7 °C/W Note 2: 製品パラメータは、特別な記述が無い限り、記載されたテスト条件に対する電気的特性で示しています。異なる条件下で製品動作を行った時には、電気的特性で示している特性を得られない場合があります。
trr
指定回路図
Duty≦10%
50Ω 100Ω 10Ω
--5V
trr 10μs
100mA100mA 10mA
ORDERING INFORMATION
Device Marking Package Shipping (Qty / Packing)
SB1003M3-TL-E
SK
SC-70FL / MCPH3 (Pb-Free)
3,000 / Tape & Reel
SB1003M3-TL-W SC-70FL / MCPH3
(Pb-Free / Halogen Free)
† For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. http://www.onsemi.com/pub_link/Collateral/BRD8011-D.PDF
1 : Anode 2 : No Contact 3 : Cathode
