金属と多孔質シリコンの複合ナノ微粒子の作製と評価

ಟኈᏛ఩ㄽᩥ

㔠ᒓ࡜ከᏍ㉁ࢩࣜࢥࣥࡢ」ྜࢼࣀᚤ⢏Ꮚࡢస〇࡜ホ౯

ᣦᑟᩍဨ



Ᏻ㐩

ᐃ㞝

ᩍᤵ

⩌㤿኱Ꮫ኱Ꮫ㝔ᕤᏛ◊✲⛉

㟁Ẽ㟁ᏊᕤᏛᑓᨷ

⣽㇂

┤㈗

➨1❶ ᗎㄽ ... 1 1.1 ◊✲⫼ᬒཬࡧ┠ⓗ ... 1 1.2 ᮏㄽᩥࡢᵓᡂ ... 2 ➨2❶ ホ౯᪉ἲཬࡧ ᐃཎ⌮ ... 3 2.1 ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫ(PL) ᐃ ... 3 2.1.1 ࡣࡌࡵ࡟ ... 3 2.1.2 ཎ⌮ ... 3 2.1.3 ᐇ㦂⣔ ... 6 2.2 ㉮ᰝᆺ㟁Ꮚ㢧ᚤ㙾 ... 7 2.2.1 ࡣࡌࡵ࡟ ... 7 2.2.2 ཎ⌮ ... 8 2.3 X⥺ග㟁Ꮚศගἲ ... 10 2.3.1 ཎ⌮ ... 10 2.4 ග྾཰ ᐃ ... 12 2.4.1 ྾཰ಀᩘࡢ ᐃ ... 12 2.4.2 ᐇ㦂⣔ ... 15 2.4.3 ᣑᩓ཯ᑕἲ ... 16

2.5 Rapid Thermal Anneal (RTA) ⿦⨨ ... 17

2.5.1 ㉥እ⥺ࣛࣥࣉຍ⇕⅔ ... 17 2.5.2 ຍ⇕ヨᩱ⣔ ... 17 2.5.3  ᗘไᚚ⣔ ... 18 ➨3❶ HF/AgNO₃ΰྜᾮ୰࡛ࡢࢫࢸ࢖࢚ࣥࢵࢳࣥࢢ࡟ࡼࡿከᏍ㉁Si⢊ᮎࡢస〇 ... 20 3.1 ᗎㄽ ... 20 3.2 ᐇ㦂 ... 20 3.2.1 PSi/Ag」ྜᚤ⢏Ꮚࡢస〇᮲௳ ... 21 3.2.2 ౑⏝ࡋࡓヨᩱ࡜⁐ᾮ ... 211 3.2.3 ᐇ㦂ᡭ㡰 ... 221 3.2.4 ໬Ꮫ཯ᛂࣔࢹࣝ ... 222 3.3 ホ౯᪉ἲ ... 23 3.3.1 X⥺ග㟁Ꮚศගἲ(XPS) ᐃ ... 23 3.3.2 ㉮ᰝᆺ㟁Ꮚ㢧ᚤ㙾(SEM) ᐃ ... 23 3.3.3 ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫ(PL) ᐃ ... 23 3.3.4 ᣑᩓ཯ᑕ ᐃ ... 23 3.4 ᐇ㦂⤖ᯝ ... 23 3.4.1 XPS ᐃ⤖ᯝ ... 24 3.4.2 SEM ᐃ⤖ᯝ ... 26

3.4.3 ⁐፹࡟ᑐࡍࡿぶ࿴ᛶ ... 27 3.4.4 PL ᐃ⤖ᯝ ... 28 3.4.5 PL ᐃ⤖ᯝ㸦 ᗘ౫Ꮡᛶ㸧 ... 30 3.4.6 PL ᐃ⤖ᯝ㸦Ag㝖ཤ㸧 ... 32 3.4.7 PL ᐃ⤖ᯝ㸦⣸እග↷ᑕ᫬㛫౫Ꮡᛶ㸧 ... 33 3.4.8 ᣑᩓ཯ᑕ ᐃ⤖ᯝ ... 34 3.5 ⤖ㄽ ... 36 ➨ 4 ❶ HF/HNO₃ΰྜᾮ୰࡛స〇ࡉࢀࡓከᏍ㉁ Si⢊ᮎࡢᵝࠎ࡞᭷ᶵ⁐፹୰࡛ࡢⓎග≉ᛶ ... 37 4.1 ᗎㄽ ... 37 4.2 ᐇ㦂 ... 37 4.2.1 ౑⏝ࡋࡓヨᩱ࡜⁐ᾮ ... 38 4.2.2 ㉸㡢Ἴ⬺⬡Ὑί ... 38 4.2.3 స〇᪉ἲ ... 38 4.2.4 ᐇ㦂ᡭ㡰ձ㸦Si⢊ᮎ㸧 ... 38 4.2.5 ᐇ㦂ᡭ㡰ղ㸦Siᇶᯈ㸧 ... 39 4.2.6 ໬Ꮫ཯ᛂࣔࢹࣝ ... 41 4.3 ホ౯᪉ἲ ... 41 4.3.1 ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫ(PL) ᐃ ... 41 4.4 ᐇ㦂⤖ᯝ ... 42 4.4.1 PL ᐃ⤖ᯝ ... 42 4.5 ⤖ㄽ ... 45 ➨㸳❶ HF/HNO₃ΰྜᾮ୰࡛స〇ࡉࢀࡓከᏍ㉁ Si ⢊ᮎࡢⓎග≉ᛶ࡟ᑐࡍࡿ஝⇱᪉ἲࡢᙳ 㡪 ... 46 5.1 ᗎㄽ ... 46 5.2 ᐇ㦂 ... 46 5.2.1 ౑⏝ࡋࡓヨᩱ࡜⁐ᾮ ... 46 5.2.2 స〇᪉ἲ ... 46 5.2.3 ᐇ㦂ᡭ㡰 ... 46 5.3 ホ౯᪉ἲ ... 47 5.3.1 ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫ(PL) ᐃ ... 47 5.4 ᐇ㦂⤖ᯝ ... 48 5.4.1 PL ᐃ⤖ᯝ ... 48

➨6❶ ࣏࣮ࣛࢫࢩࣜࢥࣥᇶᯈ࡟ᑐࡍࡿ࢔ࢽ࣮ࣝฎ⌮ຠᯝ... 52 6.1 ᗎㄽ ... 52 6.2 ᐇ㦂 ... 52 6.2.1 ౑⏝ࡋࡓヨᩱ࡜⁐ᾮ ... 52 6.2.2 ㉸㡢Ἴ⬺⬡Ὑί ... 52 6.2.3 స〇᪉ἲ ... 52 6.2.4 ᐇ㦂ᡭ㡰 ... 54 6.3 ホ౯᪉ἲ ... 54 6.3.1 ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫ(PL) ᐃ ... 54 6.3.2 FTIR ᐃ ... 54 6.4 ᐇ㦂⤖ᯝ ... 55 6.4.1 PL ᐃ⤖ᯝ ... 55 6.4.2 FTIR ᐃ⤖ᯝ ... 56 6.5 ⤖ㄽ ... 57 ➨7❶ ⤖ㄽ ... 58 ㅰ㎡ ... 60

➨

1

❶

ᗎㄽ

1.1 ◊✲⫼ᬒཬࡧ┠ⓗ   ࡇࡢᆅୖ࡛㓟⣲࡟ḟ࠸࡛㇏ᐩ࡟Ꮡᅾࡍࡿඖ⣲࡛࠶ࡿSiࡣࡑࡢ㇏ᐩࡉ࠿ࡽࠊ㠀ᖖ࡟Ᏻ౯ ࡛ྲྀࡾᘬࡁࡉࢀ࡚࠸ࡿࠋࡲࡓࠊSi ཎᏊࡣ᭱኱Ẇ࡟㟁Ꮚࢆ 8 ಶࡶࡘᏳᐃࡋࡓ༙ᑟయᮦᩱ࡛࠶ ࡿࡓࡵࠊ⌧ᅾ༙ᑟయࢹࣂ࢖ࢫࡢᮦᩱ࡜ࡋ࡚ከࡃ౑ࢃࢀ࡚࠸ࡿࠋࡋ࠿ࡋࠊᚑ᮶ࠊSi ࡣ㛫᥋㑄 ⛣ᆺࣂࣥࢻࢠࣕࢵࣉࢆࡶࡘࡇ࡜࠿ࡽⓎගᮦᩱ࡟ᛂ⏝࡛ࡁ࡞࠸࡜⪃࠼ࡽࢀ࡚ࡁࡓࠋ࡜ࡇࢁࡀࠊ ࡇࡢᐃㄝࢆࡺࡿࡀࡍᐇ㦂஦ᐇࡀࡇࡢᩘᖺ㛫࡟ḟࠎ࡜ሗ࿌ࡉࢀࠊSi ࡟࠾ࡅࡿ᭱኱ࡢᮦᩱᏛⓗ ไ⣙ࡀඞ᭹ࡉࢀࡿྍ⬟ᛶࡀ࡛࡚ࡁࡓࠋ 1, 2) ࡑࡢඛ㥑ࡅ࡜ࡋ࡚ࠊ1956 ᖺ࡟࣋ࣝ◊✲ᡤࡢUlhir ࡟ࡼࡾࠊ㝧ᴟ໬ᡂࡋࡓ Si ᇶᯈ⾲㠃࡛࣏࣮ࣛࢫᵓ㐀ࡢ☜ㄆࡀሗ࿌ࡉࢀࡓࠋ 3) ࣏࣮ࣛࢫᵓ㐀࡜ ࡣࠊᇶᯈୖ࡟↓ᩘࡢᏍࡢ㛤࠸ࡓᵓ㐀ࢆᣢࡘࠊከᏍయࡢࡇ࡜ࢆ♧ࡍࠋ  ࡉࡽ࡟ࠊ1990ᖺ࡟ࡣCanham࡟ࡼࡾ㔞Ꮚࢧ࢖ࢬຠᯝࡢྍ⬟ᛶࡀᥦၐࡉࢀࠊ࣏࣮ࣛࢫSi (PSi) ࡀᮏ᱁ⓗ࡟◊✲ࡉࢀ࡚࠸ࡃࡼ࠺࡟࡞ࡗࡓࠋ 4)

⤖ᬗSi (c-Si)ࡣࠊMOSFETࡸLSI࡜࠸ࡗࡓ༙ᑟ

య⏘ᴗࡢ௦⾲ⓗ࡞ᮦᩱ࡛࠶ࡾࠊࡑࡢࣂࣥࢻᵓ㐀ࡣࠊ㛫᥋㑄⛣ᆺࢆ᭷ࡋࠊࣂࣥࢻࢠࣕࢵࣉ(E_g)

ࡣᐊ ࡛1.11 eV࡛࠶ࡿࠋ

5)

ࡇࡢ≀ᛶ࠿ࡽࠊc-Siࢆ࣮࣋ࢫ࡜ࡋࡓⓎග⣲Ꮚࡢ◊✲࣭㛤Ⓨࡣࠊ PSi ࡢᐊ ࡛ࡢ㉥ⰍⓎගࡀ☜ㄆࡉࢀࡿ࡜ࠊPSi ࢆᛂ⏝ࡋࡓⓎගࢲ࢖࣮࢜ࢻ (Light Emission Diode : LED)ࡸගᏛ⣲Ꮚࡢ◊✲࣭㛤Ⓨࡀ㐍ࡴࡼ࠺࡟࡞ࡗࡓࠋ 6,7 ) PSiࡣᗈ࠸⠊ᅖ࡛㧗࠸ᒅᢡ⋡ ไᚚࢆࡶࡗࡓගᏛ፹㉁࡛࠶ࡾࠊග㞟✚ࡢᇶᮏせ⣲࡜ࡋ࡚᭷ຠ࡟ാࡃࡇ࡜࠿ࡽ௒ᚋࡣࠊࣔࣀ ࢩࣜࢵࢡග㞟✚࡬ࡢᒎ㛤࡜࡜ࡶ࡟ࠊPSiඹ᣺ჾ࡟࠾ࡅࡿ⮬↛ᨺฟගࡢไᚚ 8) ࠊ㠀⥺ᙧගᏛຠ ᯝ 9) ࠊගቑᖜ࡞࡝ࡢ◊✲ࡀ↔Ⅼ࡟࡞ࡿ࡜⪃࠼ࡽࢀ࡚࠸ࡿࠋ Si ࡢ࣏࣮ࣛࢫᵓ㐀ࢆస〇ࡍࡿ࠺࠼࡛ࠊᚑ᮶ࡢࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲ࡛ࡣฟⓎᮦᩱ࡜ࡋ࡚ Si ᇶᯈࡀ⏝࠸ࡽࢀ࡚ࡁࡓࠋࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲࡢ〇ἲࡣࠊSi ᇶᯈࢆ࢚ࢵࢳࣥࢢᾮ࡟ᾐࡍ ࡔࡅࡢࠊᇶᮏⓗ࡟ࡣ⡆༢࡞〇ἲ࡛࠶ࡿࡀࠊస〇ࡉࢀࡓPSiᒙࡢᆒ୍ᛶࡀᝏࡃࠊ෌⌧ᛶࡢၥ㢟 ࡶྵࢇ࡛࠸ࡿࠋࡇࢀࡽࡢၥ㢟Ⅼࢆ㍍ῶࡋࡓ〇ἲࡀࠊᚋ࡟ Goller ࡽ࡟ࡼࡗ࡚ᥦ᱌ࡉࢀࡓࠋࡇ ࡢ〇ἲ࡛ࡣヨᩱ࡟࣏ࣜSi⢊ᮎࢆ⏝࠸࡚PSi⢊ᮎࢆస〇ࡍࡿࠋ 10, 11) ࡇࡢ〇ἲࡢ฼Ⅼࡣࠊ⢊ᮎ ヨᩱࢆ⏝࠸ࡿࡇ࡜࡛ࠊᚑ᮶ࡢᇶᯈ࡟ẚ࡭࢚ࢵࢳࣥࢢࡉࢀࡿ⾲㠃✚ࡀ኱ࡁࡃࠊ୍ᗘ࡟኱㔞ࡢ PSiࢆస〇ࡍࡿࡇ࡜ࡀྍ⬟࡜࡞ࡿⅬ࡛࠶ࡿࠋࡋ࠿ࡋࠊከ⤖ᬗSi⢊ᮎࢆ⏝࠸ࡓ◊✲౛ࡣᑡ࡞ࡃࠊ ࡲࡓࠊస〇ࡉࢀࡓヨᩱࡢගᏛ≀ᛶ࡟ࡘ࠸࡚ࡶᮍ▱࡞㒊ศࡀከ࠸ࠋ ࡋࡓࡀࡗ࡚ᮏ◊✲࡛ࡣከ⤖ᬗࢩࣜࢥࣥ⢊ᮎࢆ⏝࠸࡚ PSi ⢊ᮎࢆస〇ࡋᵝࠎ࡞ගᏛホ౯ࢆ ┠ⓗ࡜ࡋ⾜ࡗࡓࠋ

1.2 ᮏㄽᩥࡢᵓᡂ ᮏㄽᩥࡣࠊ඲7❶࠿ࡽ࡞ࡿࠋ ➨1❶࡛ࡣࠊᗎㄽ࡛࠶ࡾࠊᮏ◊✲ࡢ⫼ᬒ࠾ࡼࡧ┠ⓗࢆ㏙࡭ࡓࠋ ➨2❶࡛ࡣࠊᮏ◊✲࡛⏝࠸ࡓࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫ(PL)ࠊX ⥺ග㟁Ꮚศග(XPS)ࠊ㉮ᰝᆺ㟁 Ꮚ㢧ᚤ㙾(SEM)ࠊ㏱㐣 ᐃࠊᣑᩓ཯ᑕ ᐃࡢᐇ㦂ཎ⌮ཬࡧࠊゎᯒ⌮ㄽࡢヲ⣽ࢆ㏙࡭ࡿࠋ ➨ 3❶࡛ࡣࠊHF/AgNO₃ΰྜᾮ୰࡛ࡢࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲ࡟ࡼࡿከᏍ㉁Si ⢊ᮎࡢస〇᪉ ἲࡢㄝ᫂ཬࡧPL ᐃࠊXPS ᐃࠊᣑᩓ཯ᑕ ᐃࠊSEMほ ࡢゎᯒ⤖ᯝࢆ㏙࡭ࡿࠋ ➨ 4❶࡛ࡣࠊHF/HNO₃ΰྜᾮ୰࡛ࡢࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲ࡟ࡼࡾస〇ࡋࡓ PSi⢊ᮎࡢ᭷ᶵ ⁐፹୰࡛ࡢ⃰ᗘ౫ᏑᛶࢆࠊPL ᐃࡢゎᯒ⤖ᯝࡼࡾ㏙࡭ࡿࠋ ➨ 5❶࡛ࡣࠊHF/HNO₃ΰྜᾮ୰࡛ࡢࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲ࡟ࡼࡾస〇ࡋࡓ PSi⢊ᮎࡢ஝⇱ ᪉ἲ࡟ࡼࡿ㐪࠸ࢆࠊPL ᐃࡢゎᯒ⤖ᯝࡼࡾ㏙࡭ࡿࠋ ➨6❶࡛ࡣࠊࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲ࡛స〇ࡋࡓPSiᇶᯈࡢ⇕࢔ࢽ࣮ࣝฎ⌮ຠᯝࢆࠊPL ᐃ ࡸFTIR ᐃࡢゎᯒ⤖ᯝࡼࡾ㏙࡭ࡿࠋ ➨7❶࡛ࡣࠊᮏ◊✲ࡢ⤖ㄽࢆ㏙࡭ࡿࠋ ཧ⪃ᩥ⊩

1. L. Brus, J. Phys. Chem. 98 (1994) 3575.

2. D. J. Lockwood, Solid State Comm. 92 (1994) 101. 3. A.Ulhir, Bell Syst.Tech.J., 35 (1956) 333.

4. L. T. Canham, Appl. Phys.Lett., 57 (1990) 1046.

5. S. Adachi, Handbook on Physical Properties of Semiconductors Volume 1: Group ϫ

Semiconductors (Kluwer Academic, Boston, 2004).

6. M. A. Green, J. Zhao, A.Wang, P. J. Reece, and M. Gal, Nature, 412 (2001) 805.

7. W. L. Ng, M. A. Lourenço, R. M. Gwilliam, S. Ledain, G. Shao, and K. P. Homewood, Nature,

410 (2001) 192.

8. V. Vittorio, A. Tredicucci, C. Mazzoleni, and L. Pavesi, Phys. Rev. B 52 (1995) R14328.

9. T. Matumoto, M. Daimon, H. Mimura, Y. Kanemitsu, and N. Koshida, J. Electrochem Soc. 142 (1995) 3528.

10. B. Goller, S. Polisski, and D. Kovalev, Phys. Rev. B 75 (2007) 073403.

11. S. Limaye, S. Subramanian, B. Goller, J. Diener, and D. Koyaley, Phys. Status Solidi A 204 (2007) 1297.

➨

2

❶

ホ౯᪉ἲཬࡧ ᐃཎ⌮

2.1 ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫ(PL) ᐃ 2.1.1 ࡣࡌࡵ࡟ ୍⯡࡟ࠊ≀㉁࡟࢚ࢿࣝࢠ࣮ࢆ୚࠼ࡿ࡜ࡑࡢ࢚ࢿࣝࢠ࣮ࡣ྾཰ࡉࢀࡿࠋࡑࡋ࡚ࡑࡢ྾཰ࡉ ࢀࡓ࢚ࢿࣝࢠ࣮ࡣࠊᵝࠎ࡞ᙧ࡛ᨺฟࡉࢀࡿࠋࡇࡢ࢚ࢿࣝࢠ࣮ࡢᨺฟࢆⓎග࡜࠸࠺ᙧ࡛⾜࠺ ⌧㇟ࡀ࣑ࣝࢿࢵࢭࣥࢫ㸦Luminescence㸧࡛࠶ࡿࠋࡇࡢ࣑ࣝࢿࢵࢭࣥࢫࡣ࢚ࢿࣝࢠ࣮ࡢ୚࠼᪉ ࡟ ࡼ ࡗ ࡚ ศ 㢮 ࡉ ࢀ ࠊ ග ࡟ ࡼ ࡾ ࢚ ࢿ ࣝ ࢠ ࣮ ࢆ ୚ ࠼ ࡓ ሙ ྜ ࡢ Ⓨ ග ࢆ ࣇ ࢛ ࢺ ࣝ ࣑ ࢿ ࢵ ࢭ ࣥ ࢫ 㸦Photoluminescence㸧࡜ゝ࠺ࠋ  ༙ᑟయ⤖ᬗ࡟࠾ࡅࡿࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫࡣࠊගࢆ↷ᑕࡍࡿࡇ࡜࡟ࡼࡗ࡚⏕ࡌࡓ㟁Ꮚ࡜ ṇᏍࡀ෌⤖ྜࡍࡿ㝿࡟ᨺฟࡉࢀࡿࠋࡇࡢ෌⤖ྜࡣ༙ᑟయ⤖ᬗ୰࡟Ꮡᅾࡍࡿ᱁ᏊḞ㝗ࡸ୙⣧ ≀ࡢᙳ㡪ࢆཷࡅࡸࡍ࠸ࡓࡵࠊᗈ࠸ព࿡࡛ࡢ”⤖ᬗ୰ࡢḞ㝗”ࢆ㧗ឤᗘ࡟᳨ฟࡍࡿࡇ࡜ࡀྍ⬟࡜ ࡞ࡿࠋࡲࡓࡇࡢᡭἲࡣ ᐃ࡟࠾࠸࡚ヨᩱࢆ◚ቯࡍࡿࡇ࡜ࡀ࡞ࡃࠊࡲࡓ≉Ṧ࡞ヨᩱ๓ฎ⌮ࡸ 㟁ᴟ௜ࡅࢆᚲせ࡜ࡋ࡞࠸࡜࠸࠺≉ᚩࡀ࠶ࡿࠋࡲࡓ୙⣧≀ࡸḞ㝗࡟㉳ᅉࡋࡓⓎගࡢᙉᗘศᕸ ࢆ ᐃࡍࡿࡇ࡜࡟ࡼࡾࠊ⤖ᬗࡢᆒ୍ᛶࡸḞ㝗ࡢศᕸ≧ἣࢆ㧗࠸ศゎ⬟࡛ホ౯ࡍࡿࡇ࡜ࡀྍ ⬟࡛࠶ࡿࠋ 2.1.2 ཎ⌮  Fig. 2.1 ࡟௦⾲ⓗ࡞ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫࡢ㐣⛬ࢆᶍᘧⓗ࡟♧ࡍࠋ (a) 㟁Ꮚ-ṇᏍ┤᥋෌⤖ྜ

E

C

D

0

D

0

D

+

D

0

A

0

E

V

(a)

(b)

(c)

(d)

(e)

(f)

Figure 2.1㻌 ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫࡢ✀㢮

ບ㉳Ꮚ(free exciton:FE)࡛࠶ࡾࠊࡑࡢ෌⤖ྜࡀ⮬⏤ບ㉳ᏊⓎගࠋ (c) ᮰⦡ບ㉳Ꮚ(BE)Ⓨග ୙⣧≀࣭Ḟ㝗‽఩࡟ບ㉳Ꮚࡀᤕࡽ࠼ࡽࢀࡓ≧ែ(᮰⦡ບ㉳Ꮚ㸸bound exciton:BE)࡟࠾࠸࡚ࠊ ບ㉳Ꮚࡀ෌⤖ྜࡍࡿ㝿ࡢⓎගࠋ (d) ࢻࢼ࣮-౯㟁Ꮚᖏ㑄⛣Ⓨග ࢻࢼ࣮࡟ᤕࡽ࠼ࡽࢀࡓ㟁Ꮚ࡜౯㟁ᏊᖏࡢṇᏍࡢⓎගࠋ (e) ఏᑟᖏ-ࢻࢼ࣮㑄⛣Ⓨග ఏᑟᖏࡢ㟁Ꮚࡀ✵ࡢࢻࢼ࣮‽఩࡟ᤕࡽ࠼ࡽࢀࡿ㝿ࡢⓎගࠋ (f) ࢻࢼ࣮-࢔ࢡࢭࣉࢱ࣌࢔(DAP)Ⓨග ࢻࢼ࣮࡟ᤕࡽ࠼ࡽࢀࡓ㟁Ꮚ࡜࢔ࢡࢭࣉࢱ࣮࡟ᤕࡽ࠼ࡽࢀࡓṇᏍ࡜ࡢ෌⤖ྜ㐣⛬࡛ࡢⓎ ගࠋ ࡑࢀࡒࢀࡢⓎග㐣⛬࡟ࡘ࠸࡚ヲࡋࡃㄝ᫂ࡍࡿࠋ  ఏᑟᖏࡢ㟁Ꮚ࡜౯㟁ᏊᖏࡢṇᏍࡢ┤᥋෌⤖ྜ࡟ࡼࡿ(a)࡜ࠊࡇࢀࡽࡢ㟁Ꮚ࡜ṇᏍࡀ⮬⏤ບ ㉳Ꮚ࡜࡞ࡗࡓ≧ែ࡛ࡢ෌⤖ྜ㐣⛬ࡢ(b)࡛ࡣࠊບ㉳Ꮚᙧᡂ࢚ࢿࣝࢠ࣮ศ(E_x)ࡔࡅ(b)ࡢⓎග࢚ࢿ ࣝࢠ࣮ࡢ᪉ࡀᑠࡉ࠸ࠋࡇࢀࡽࡢⓎග࡛ࡣࠊ㟁ᏊࠊṇᏍࠊບ㉳Ꮚࡀ㐠ື࢚ࢿࣝࢠ࣮ࢆᣢࡘࡢ ࡛ࠊࡑࢀࢆ཯ᫎࡋ࡚Ⓨගᖏᙧ≧I(hν)ࡣ㧗࢚ࢿࣝࢠ࣮ഃ࡟〈ࢆᘬࡃMaxwell-Boltzmanᆺศᕸ

( ) (

h

ν

h

ν

E

)

{

(

h

ν

E

kT

)

}

I

=

-

₀ 12

exp

-

-

₀ (2-1) ࡛୚࠼ࡽࢀࡿࠋE₀ࡣ㐠ື࢚ࢿࣝࢠ࣮ࡀ0ࡢሙྜࡢⓎග㑄⛣࢚ࢿࣝࢠ࣮࡛࠶ࡿࠋ(a)࡜(b)ࡢⓎ ගࡣࣂࣥࢻ➃Ⓨග࡜࿧ࡤࢀࠊ⤖ᬗᅛ᭷ࡢⓎග࡛࠶ࡾࠊⓎග࢚ࢿࣝࢠ࣮࠿ࡽ⤖ᬗࡢ⤌ᡂࢆồ ࡵࡿࡇ࡜ࡀ࡛ࡁࡿࠋࡲࡓࠊࣂࣥࢻ㛫Ⓨගࡣ⤖ᬗࡢࣛ࢖ࣇࢱ࢖࣒ࢆ཯ᫎࡋ࡚࠸ࡿࡢ࡛ࠊࡑࡢ ゎᯒ࠿ࡽࣛ࢖ࣇࢱ࢖࣒࡟ᙳ㡪ࢆ୚࠼࡚࠸ࡿ⤖ᬗ୰ࡢ㠀Ⓨගࢭࣥࢧ࣮ࡸ⾲㠃≧ែ࡞࡝ࢆホ౯ ࡛ࡁࡿࠋ (c)~(f)ࡣ୙⣧≀࣭Ḟ㝗‽఩ࡢ㛵୚ࡋࡓⓎග࡛࠶ࡿࠋ (c)࡛ࡣ୰ᛶࡢࢻࢼ࣮‽఩࡟ບ㉳Ꮚࡀ᮰⦡ࡉࢀ࡚࠸ࡿሙྜࢆ♧ࡋࡓࡀࠊ୰ᛶ࢔ࢡࢭࣉࢱ࣮‽ ఩ࠊ࢖࢜ࣥ໬ࢻࢼ࣮㸦࢔ࢡࢭࣉࢱ࣮)‽఩ࠊࡑࡋ࡚ࡉࡽ࡟GaP୰ࡢ❅⣲୙⣧≀ࡢࡼ࠺࡟ࢻࢼ ࣮ࡸ࢔ࢡࢭࣉࢱ࣮࡟ࡣ࡞ࡽ࡞࠸➼㟁Ꮚⓗࢺࣛࢵࣉࡢሙྜࡶ࠶ࡿࠋࡲࡓࠊ」ᩘࡢບ㉳Ꮚࡀᤊ ࠼ࡽࢀࡿࡇ࡜ࡶ࠶ࡿࠋ(c)࡛ࡣⓎග࢚ࢿࣝࢠ࣮ࡀ(b)࡜ẚ࡭ࠊບ㉳Ꮚ᮰⦡࢚ࢿࣝࢠ࣮E_BXࡔࡅᑠ ࡉࡃ࡞ࡿࠋE_BXࡣ୙⣧≀࣭Ḟ㝗ࡢ✀㢮ࠊⲴ㟁≧ែ࡟ࡼࡾ␗࡞ࡿࠋ࢖࢜ࣥ໬࢚ࢿࣝࢠ࣮ࡢ⣙1/10 ⛬ᗘ࡛࠶ࡿࡇ࡜ࡀ▱ࡽࢀ࡚࠸ࡿ(Haynes’s rule)ࠋBEⓎග࡛ࡣࠊບ㉳Ꮚࡀ୙⣧≀࡟ᒁᅾ໬ࡉࢀ ࡿࡓࡵ㐠ື࢚ࢿࣝࢠ࣮ࡣ࡞ࡃࠊⓎග⥺ࡣࢩ࣮ࣕࣉ࡟࡞ࡿࠋ(≉࡟ὸ࠸୙⣧≀࡟ࡼࡿ BE Ⓨග ࡣప ࡛㠀ᖖ࡟㗦࠸Ⓨග⥺࡜࡞ࡿࡢ࡛ࠊ୙⣧≀ࡢ༊ูࡀᐜ᫆࡟⾜࠼ࡿࡓࡵࠊ୙⣧≀ศᯒ࡟ ࡼࡃ฼⏝ࡉࢀࡿࠋ)  (d)࡛ࡢⓎග࢚ࢿࣝࢠ࣮ࡣ⚗ไᖏᖜࡼࡾࡶࢻࢼ࣮ࡢ࢖࢜ࣥ໬࢚ࢿࣝࢠ࣮ศࡔࡅᑠࡉࡃ࡞ࡿࠋ ῝࠸ࢻࢼ࣮‽఩ࡢሙྜ࡟ࡣ(e)࡟♧ࡍࡼ࠺࡟ࠊఏᑟᖏࡢ㟁Ꮚࡀ✵ࡢࢻࢼ࣮‽఩࡟ᤕࡽ࠼ࡽࢀ ࡿ㝿ࡢⓎගࡶほ ࡉࢀࡿ㸦ఏᑟᖏ㟁Ꮚ-࢔ࢡࢭࣉࢱ-ṇᏍ෌⤖ྜࠊ࢔ࢡࢭࣉࢱ-㟁Ꮚ-౯㟁Ꮚᖏ

ṇᏍ෌⤖ྜࡶᏑᅾࡍࡿ㸧ࠋࡇࢀࡽࡢⓎග࡟ࡣ⮬⏤࢟ࣕࣜ࢔ࡀྵࡲࢀࡿࡢ࡛ࠊⓎගᖏᙧ≧ࡣ (2-1)ᘧࡢMaxwell-Boltzmanᆺ࡜࡞ࡿࠋࡓࡔࡋࠊ῝࠸‽఩ࡢሙྜ࡟ࡣࠊ㟁Ꮚ-᱁Ꮚ┦஫స⏝ࡢ ࡓࡵࣇ࢛ࣀࣥࢧ࢖ࢻࣂࣥࢻ඲య࡜ࡋ࡚࢞࢘ࢫᆺࡢⓎගᖏᙧ≧࡜࡞ࡿࠋ (f)ࡢࢻࢼ࣮-࢔ࢡࢭࣉࢱ࣌࢔(DAP)Ⓨග࡟࠾࠸࡚ࠊ✵㛫ⓗ࡟㊥㞳rࡔࡅ㞳ࢀࡓࢻࢼ࣮࡜࢔ࢡࢭ ࣉࢱࢆ⪃࠼ࡿ࡜ࠊࢻࢼ࣮࡟㟁Ꮚࡀࠊ࢔ࢡࢭࣉࢱ࡟ṇᏍࡀ࠶ࡿບ㉳≧ែ࠿ࡽࠊࡇࢀࡽ㟁Ꮚ࡜ ṇᏍࡀ෌⤖ྜࡋᇶᗏ≧ែ࡟⛣ࡿ㝿࡟ᨺฟࡍࡿගࡢ࢚ࢿࣝࢠ࣮ࡣ

(

)

r

ε

e

E

E

E

ν

h

_{G D A} 2

+

+

-=

(2-2) ࡛୚࠼ࡽࢀࡿࠋࡇࡇ࡛ࠊE_GࠊE_AࠊE_Dࡣࡑࢀࡒࢀࠊ⚗ไᖏ࢚ࢿࣝࢠ࣮ࠊ࢔ࢡࢭࣉࢱ࢖࢜ࣥ໬ 㸦άᛶ໬㸧࢚ࢿࣝࢠ࣮ࠊࢻࢼ࣮࢖࢜ࣥ໬㸦άᛶ໬㸧࢚ࢿࣝࢠ࣮࡛࠶ࡾࠊεࡣ㟼ⓗㄏ㟁⋡࡛࠶ ࡿࠋྑ㎶➨ 3 㡯ࡣᇶᗏ≧ែࡢ࢖࢜ࣥ໬ࡋࡓࢻࢼ࣮ཬࡧ࢔ࢡࢭࣉࢱ㛫࡟ാࡃࢡ࣮ࣟࣥຊࢆ⾲ ࡍࠋ㊥㞳ࡢ኱ࡁ࠸ࢻࢼ࣮-࢔ࢡࢭࣉࢱ࣌࢔࡟ࡘ࠸࡚ࡣࠊࣇ࢓ࣥࢹ࣮ࣝ࣡ࣝࢫຊࡣ᏶඲࡟↓ど ࡛ࡁࡿࡶࡢ࡜ࡍࡿࠋࡲࡓࠊ㞄ࡾྜ࠺࣌࢔ࡢሙྜ࡛ࡶࠊࡇࡢ┦஫స⏝ࡣࡲࡔ࠿࡞ࡾᙅࡃࠊ(2-2) ᘧ࡛ࡣ⪃៖ࡋ࡚࠸࡞࠸ࠋࢻࢼ࣮࡜࢔ࢡࢭࣉࢱࡢ⤖ᬗ᱁Ꮚࡢ୰࡛༨ࡵࡿ఩⨨ࡀỴࡲࡗ࡚࠸ࡿ ࡜ࡍࡿ࡜ࠊrࡣ㐃⥆ࡋࡓ್ࢆྲྀࡾᚓࡎࠊ᱁Ꮚᐃᩘ࡟㛵㐃ࡋࡓ࡜ࡧ࡜ࡧࡢ್ࢆ࡜ࡿࡇ࡜࡟࡞ࡿ ࡓࡵࠊᨺฟࡉࢀࡿග࢚ࢿࣝࢠ࣮ࡶ୙㐃⥆࡜࡞ࡾࠊࢫ࣌ࢡࢺࣝࡣከࡃࡢ㍤⥺࠿ࡽᵓᡂࡉࢀࡿࠋ

(GaP, ZnSe, SiC, AlSb, BP࡞࡝࡛ࡇࡢࡼ࠺࡞Ⓨගࡀほ ࡉࢀ࡚࠸ࡿ)ࠋ

ࢻࢼ࣮-࢔ࢡࢭࣉࢱ࣌࢔Ⓨගࡣࠊᚲࡎ୍㐃ࡢ㍤⥺ࢫ࣌ࢡࢺࣝ࡜ࡋ࡚ฟ⌧ࡍࡿࢃࡅ࡛ࡣ࡞ࡃࠊ ㏻ᖖࡢ࣌࢔Ⓨග࡛ࡣrࡀ኱ࡁࡃࠊ࢚ࢿࣝࢠ࣮ᕪࡀศゎ࡛ࡁࡎ࡟୍ᮏࡢᗈ࠸್༙ᖜࢆᣢࡘⓎග ࣂࣥࢻ࡜ࡋ࡚ほ ࡉࢀࡿࡇ࡜ࡶ࠶ࡿࠋࡋ࠿ࡋࠊࡇࡢⓎගࣂࣥࢻࡶࢻࢼ࣮-࢔ࢡࢭࣉࢱ࣌࢔Ⓨ ගࡢ࠸ࡃࡘ࠿ࡢ≉ᚩࢆᣢࡕࠊ௚ࡢ㑄⛣ᶵᵓ࡟ࡼࡿⓎගࣂࣥࢻ࡜༊ูࡍࡿࡇ࡜ࡀ࡛ࡁࡿࠋ ࢻࢼ࣮-࢔ࢡࢭࣉࢱ࣌࢔Ⓨග㸦ࣈ࣮ࣟࢻࣂࣥࢻ㸧ࡢ≉ᚩࢆࡲ࡜ࡵࡿࠋ 1) ບ㉳ගᙉᗘࢆቑࡍ࡜㧗࢚ࢿࣝࢠ࣮ഃ࡬ࢫ࣌ࢡࢺࣝࡀࢩࣇࢺࡍࡿࠋ஫࠸ࡢ㊥㞳rࡀ኱ࡁ࠸ ࣌࢔ࡣ㑄⛣☜⋡ࡀᑠࡉࡃࠊບ㉳ගᙉᗘࢆୖࡆ࡚㟁ᏊࠊṇᏍ⃰ᗘࢆቑࡋ࡚ࡶ㑄⛣㢖ᗘࡣቑ ࠼ࡎ࡟㣬࿴ࡍࡿࠋᑐࡋ࡚rࡢᑠࡉ࠸࣌࢔ࡣࠊ㟁ᏊࠊṇᏍ⃰ᗘࡢቑຍ࡜࡜ࡶ࡟㑄⛣㢖ᗘࡀ ୖࡀࡾࠊ㧗࢚ࢿࣝࢠ࣮ഃࡢⓎගࡀ┦ᑐⓗ࡟ࡑࡢᙉᗘࢆୖࡆࡿࠋ 2)  ᗘୖ᪼࡟ࡼࡾࠊὸ࠸‽఩࠿ࡽࡢ㟁ᏊࠊṇᏍࡢࣂࣥࢻ࡬ࡢ⇕ⓗບ㉳ࡀ⏕ࡌ࡚ࠊⓎගᙉᗘ ࡀୗࡀࡿࠋ 3) ⃰ᗘࡢቑຍ࡜࡜ࡶ࡟Ⓨගࣂࣥࢻࡣ㧗࢚ࢿࣝࢠ࣮ഃ࡟⛣ືࡍࡿࠋ࣌࢔ࢆᙧᡂࡍࡿ୙⣧≀⃰ ᗘࡀቑࡍ࡜ᖹᆒ࣌࢔㛫㊥㞳rࡀῶᑡࡍࡿࡓࡵࠊ(2-2)ᘧࡼࡾࣂࣥࢻࡣ㧗࢚ࢿࣝࢠ࣮ഃ࡬࡜ ືࡃࠋࡇࡢ࢚ࢿࣝࢠ࣮ࢩࣇࢺࡣẚ㍑ⓗ኱ࡁࡃࠊ୙⣧≀‽఩ࡢ࢚ࢿࣝࢠ࣮ᕪࡀ᥋㏆ࡋ࡚࠸ ࡿࢻࢼ࣮࡞࠸ࡋ࢔ࢡࢭࣉࢱࡢ໬Ꮫ✀ࡢ㐨⛬ࢆࡋࡤࡋࡤㄗࡽࡏࡿࠋ ࢻࢼ࣮-࢔ࢡࢭࣉࢱ࣌࢔Ⓨගࡣࠊࣃࣝࢫບ㉳ࡋࡓᚋࡢⓎගᙉᗘࡢῶ⾶㐣⛬࡟≉ᚩࢆᣢࡗ࡚

2.1.3 ᐇ㦂⣔

Table 2.1 PL ᐃ᮲௳

ບ㉳ග※ 㔠㛛㟁Ẽᰴᘧ఍♫ He-Cd LASER IK3302R-E Ἴ㛗 : 325 nm㸦3.81 eV㸧ࠊฟຊ : 30 mW

ࣇ࢕ࣝࢱ࣮ UTVAF-34U㸦࣮ࣞࢨ࣮┤ᚋ㸧ࠊUTF-37L㸦ศගჾ┤๓㸧 ༙ᑟయ࣮ࣞࢨ࣮ SUWTECH LASER SUWTECH LDC-2500

ศගჾ ⡿ᅜ࣮ࣟࣃ࣮ࢧ࢖࢚ࣥࢸ࢕ࣇ࢕ࢵࢡ♫〇 15 cm↔Ⅼ㊥㞳ศගჾ SP-2156-2 ࢫࣜࢵࢺᖜ input : 1 mmࠊoutput : 2 mm ᳨ฟჾ ⡿ᅜ࣮ࣟࣃ࣮ࢧ࢖࢚ࣥࢸ࢕ࣇ࢕ࢵࢡ♫〇 㧗ឤᗘ෭༷CCD᳨ฟჾ PIXIS 100B-2 He-Cd LASER 䝣䜱䝹䝍䞊 EL⣲Ꮚ 䝺䞁䝈 PC ศගჾ ᳨ฟჾ ༙ᑟయ䝺䞊䝄䞊 Figure 2.2㻌 PL ᐃᶵჾ䛾㓄⨨ᅗ

ධᑕ㟁Ꮚ⥺ ཯ᑕ㟁Ꮚ 2ḟ㟁Ꮚ 䜸䞊䝆䜵㟁Ꮚ ≉ᛶX⥺ 䜹䝋䞊䝗䝹䝭䝛䝉䞁䝇 ㏱㐣㟁Ꮚ ᩓ஘㟁Ꮚ ྾཰㟁Ꮚ ヨᩱ 2.2 ㉮ᰝᆺ㟁Ꮚ㢧ᚤ㙾 2.2.1 ࡣࡌࡵ࡟

㉮ᰝᆺ㟁Ꮚ㢧ᚤ㙾 (Scanning Electron Spectroscopy ; SEM )ࡣࠊ≀య࡟⣽࠸㟁Ꮚ⥺㸦㟁Ꮚࣉࣟ ࣮ࣈ㸧ࢆ↷ᑕࡋࡓ᫬࡟Ⓨ⏕ࡍࡿ஧ḟ㟁Ꮚࡸ཯ᑕ㟁Ꮚࢆࡑࢀࡒࢀ᳨ฟჾࢆ㏻ࡋ࡚ྲྀࡾฟࡋࠊ ࣈࣛ࢘ࣥ⟶ୖ࡟ീࢆᙧᡂࡋ࡚ࠊ୺࡜ࡋ࡚ヨᩱࡢ⾲㠃ᙧయࢆほᐹࡍࡿ⿦⨨࡛࠶ࡿࠋFig. 2.3࡟ 㟁Ꮚ⥺ࢆ↷ᑕࡋࡓ᫬ࡢヨᩱ≧ែࢆ♧ࡍࠋࡇࡢ࡜ࡁࡢ≉ᚩࢆ௨ୗ࡟㏙࡭ࡿࠋ (1) ㏱㐣㟁Ꮚ ≀㉁ࢆ㏱㐣ࡋࡓ㟁Ꮚ࡛ࠊ㏱㐣㟁Ꮚ㢧ᚤ㙾࡟⏝࠸ࡽࢀࡿࠋ↷ᑕ㟁Ꮚࡀ㏱㐣࡛ ࡁࡿࡲ࡛ヨᩱࢆⷧࡃࡍࡿ࡜ࡇ࡜࡛ࠊ≀㉁ࡢෆ㒊ᵓ㐀ࡢ▱ぢࢆᚓࡿࠋࡲࡓࠊ㟁Ꮚ⥺ᅇᢡ ࢆే⏝ࡍࡿࡇ࡜࡛ࠊ⤖ᬗᵓ㐀ࡢゎᯒࡶྍ⬟࡜࡞ࡿࠋヨᩱࢆ㏱㐣ࡍࡿ㐣⛬࡛ᦆኻࡋࡓ㟁 Ꮚ⥺ࡢ࢚ࢿࣝࢠ࣮ࢫ࣌ࢡࢺࣝࡣࠊヨᩱࡢᵓᡂඖ⣲࡟౫Ꮡࡍࡿࡓࡵ࡟ࠊELLS ࡜࿧ࡤࢀ ࡿ࢚ࢿࣝࢠ࣮࢔ࢼࣛ࢖ࢨ࣮࡟ࡼࡾ⤌ᡂ࡟㛵ࡍࡿ᝟ሗࡀᚓࡽࢀࡿࠋ≉࡟ࠊ㍍ඖ⣲࡟ᑐࡋ ࡚᭷ຠ࡛࠶ࡾࠊ≉ᛶX⥺ศᯒࡢ⿵㛫ⓗ࡞ᙺ๭ࢆᢸ࠺ࠋ (2) 2ḟ㟁Ꮚ ≀㉁࠿ࡽ஧ḟⓗ࡟ᨺฟࡉࢀࡓ㟁Ꮚ࡛ࠊ⾲㠃ࡢᗄఱᏛⓗᙧ≧ࢆ཯ᫎࡍࡿࠋ (3) ཯ᑕ㟁Ꮚ ↷ᑕ㟁Ꮚ⥺ࡀ≀㉁࡟࠶ࡓࡗ࡚ᚋ᪉࡟ᩓ஘ࡉࢀࡓ㟁Ꮚ⥺࡛ࠊཎᏊ␒ྕຠᯝ࡟ ࡼࡿ⤌ᡂ᝟ሗࢆ཯ᫎࡍࡿࠋ⾲㠃ᙧయࡢ᝟ሗࡣ2ḟ㟁Ꮚ࡟ຎࡿࡀࠊ2ḟ㟁Ꮚ࡛ࡣศ࠿ࡾ ࡟ࡃ࠸ᖹᆠ࡞ヨᩱ⾲㠃ࡢพฝࢆ཯ᫎࡍࡿࠋ (4) ≉ᛶX⥺ ≀㉁࡟㟁Ꮚ⥺ࡀ↷ᑕࡉࢀࡿ࡜ࠊᵓᡂཎᏊࡢ㟁Ꮚࡀࡣࡌࡁฟࡉࢀ࡚ࠊ㟁㞳ࡍ ࡿࠋࡇࡢཎᏊࡢ㑄⛣㐣⛬࡟࠾࠸࡚X⥺ࡀⓎ⏕ࡍࡿࠋࡇࢀࡣඖ⣲≉᭷ࡢࡶࡢ࡛࠶ࡾ≉ᛶ X⥺࡜࿧ࡤࢀࠊ≀㉁ᵓᡂඖ⣲ࡢᐃ㔞ศᯒࡸᐃᛶศᯒ࡟⏝࠸ࡽࢀࡿࠋ (5) ࣮࢜ࢪ࢙㟁Ꮚ 㟁Ꮚ⥺↷ᑕ࡟ࡼࡗ࡚ບ㉳ࡉࢀࡓ㟁Ꮚࡢ㑄⛣㐣⛬࡛ࠊ≉ᛶX⥺ࡢ௦ࢃࡾ ࡟ᨺฟࡉࢀࡿࠋ࢚ࢿࣝࢠ࣮ࡀඖ⣲≉᭷ࡢࡶࡢ࡛࠶ࡾࠊୟࡘࠊᖹᆒ࢚ࢫࢣ࣮ࣉ㛗ࡀᑠࡉ ࠸ࡓࡵࠊ⾲㠃ᩘཎᏊᒙཬࡧ㍍ඖ⣲ࡢศᯒ࡟᭷ຠ࡛࠶ࡿࠋ (6) ࢝ࢯ࣮ࢻ࣑ࣝࢿࢵࢭࣥࢫ 㟁Ꮚ⥺↷ᑕ࡟ࡼࡾⓎගࡍࡿ⌧㇟ (7) ྾཰㟁Ꮚ ヨᩱ୰࡟྾཰ࡉࢀࡿ㟁Ꮚ࡛཯ᑕ㟁Ꮚ࡜⿵㛫ⓗ࡞㛵ಀ࡟࠶ࡿࠋ

2.2.2 ཎ⌮  Fig. 2.4࡟SEMࡢᴫせᅗࢆ♧ࡍࠋ㟁ᏊගᏛ⣔ࡣຍ㏿㟁ᏊࢆⓎ⏕ࡍࡿ㟁Ꮚ㖠ࠊຍ㏿㟁Ꮚࡢ᮰ ࢆ⤠ࡾ㎸ࢇ࡛⣽᮰໬ࡍࡿࣞࣥࢬ⣔ࠊヨᩱ࠿ࡽⓎ⏕ࡍࡿ 2 ḟ㟁Ꮚ࡞࡝ࢆ᳨ฟࡍࡿ᳨ฟჾ࠿ࡽ ᵓᡂࡉࢀ࡚࠸ࡿࠋ 1)  ࡲࡎࠊ㟁Ꮚ㖠ࡣࠊ࠶ࡿ࢚ࢿࣝࢠ࣮ࢆࡶࡗࡓຍ㏿㟁ᏊࢆⓎ⏕ࡉࡏࡿ※࡜࡞ࡿ㒊ศ࡛ࠊࢱࣥ ࢢࢫࢸࣥࣇ࢕࣓ࣛࣥࢺࡸ LaB₆ࣇ࢕࣓ࣛࣥࢺࢆຍ⇕ࡋ࡚㟁Ꮚࢆᨺฟࡉࡏࡿ⇕㟁Ꮚ㖠࡜ࠊᑤ≧ ࢱࣥࢢࢫࢸࣥඛ➃࡟ᙉ㟁⏺ࢆ࠿ࡅ࡚㟁Ꮚᨺฟࡉࡏࡿ㟁⏺ᨺᑕ㟁Ꮚ㖠࡜ࡀ࠶ࡿࠋࣞࣥࢬ⣔࡟ ࡣࠊ㞟᮰ࣞࣥࢬࠊᑐ≀ࣞࣥࢬࠊ㉮ᰝࢥ࢖ࣝࠊ㠀Ⅼ⿵ṇ⿦⨨࡞࡝ࡀᐇ⿦ࡉࢀ࡚࠸ࡿࠋ㞟᮰ࣞ ࣥࢬࡣ㟁Ꮚ㖠࡛Ⓨ⏕ࡋࡓ㟁Ꮚࡢ᮰ࢆ᭦࡟⣽ࡃࡍࡿࡓࡵ࡟࠶ࡿࠋᑐ≀ࣞࣥࢬࡣࠊ཰ᕪࢆᑠࡉ ࡃࡍࡿࡓࡵ࡟⏝࠸ࡿࠋ᳨ฟჾࡣ2ḟ㟁Ꮚ࡜཯ᑕ㟁Ꮚࡢ᳨ฟჾࡀ࠶ࡾࠊ2ḟ㟁Ꮚࡣ࢚ࢿࣝࢠ࣮ ࡀప࠸ࡢ࡛ࢥࣞࢡࢱ࡟ࡼࡗ࡚ᤕ⋓ࡉࢀࠊࢩࣥࢳ࣮ࣞࢱ࣮࡟ࡼࡾග㟁Ꮚ࡟ኚ᥮ࡉࢀ࡚ࠊග㟁 Ꮚቑಸ⟶࡛ಙྕቑᖜࡉࢀࡿࠋ཯ᑕ㟁Ꮚࡢ᳨ฟ࡟ࡣࠊࢩࣥࢳ࣮ࣞࢱ࠶ࡿ࠸ࡣ༙ᑟయᆺࡀ⏝࠸ ࡽࢀࡿࠋ᤼Ẽ⣔ࡣຍ㏿㟁ᏊࡀẼయᡂศ㏻㐣୰ࡢ࢚ࢿࣝࢠ࣮ᦆኻࢆᑠࡉࡃࡍࡿࡓࡵ࡟ᚲせ࡛ࠊ ࣮ࣟࢱ࣮࣏ࣜࣥࣉࠊἜᣑᩓ࣏ࣥࣉࡀ⏝࠸ࡽࢀ࡚࠸ࡿࠋ  ௨ୗ࡟SEMࡢ≉ᚩࢆࡲ࡜ࡵࡿࠋ (1) ヨᩱࡢ⾲㠃ᙧែࢆࡑࡢࡲࡲほ ࡍࡿࡇ࡜ࡀ࡛ࡁࡿࠋ (2) ⤖ീࢥࣥࢺࣛࢫࢺࡢᡂᅉࡀ༢⣧࡛࠶ࡾࠊほᐹീࡢゎ㔘ࡀᐜ࡛᫆࠶ࡿࠋගࢆ⏝࠸࡚≀㉁ ࢆほ ࡋࡓሙྜ࡟㏆࠸ࡓࡵࠊ⌮ゎࡋࡸࡍ࠸ࠋ (3) ගᏛ㢧ᚤ㙾࡟ẚ࡭ࡿ࡜ࠊ↔Ⅼ῝ᗘࡀ100ಸ⛬ᗘ῝࠸ࡓࡵࠊพฝࡢ⃭ࡋ࠸ヨᩱࡢほᐹ࡟ 㐺ࡋࠊ❧యീࢆᚓࡿࡇ࡜ࡀ࡛ࡁࡿࠋ (4) ほᐹᑐ㇟ࡢヨᩱࡀ TEMࡢࡼ࠺࡟ⷧ⭷࡛࠶ࡿᚲせࡀ࡞࠸ࡓࡵࠊࣂࣝࢡ࣭⧄⥔㉁ࡢᙧ≧ ࢆᣢࡘヨᩱࢆほᐹࡍࡿࡇ࡜ࡀ࡛ࡁࡿࠋ (5) TEM ࡟ẚ࡭࡚ࠊ኱ࡁ࡞ヨᩱࢆᢅ࠺ࡇ࡜ࡀ࡛ࡁࡿࡓࡵࠊᗈ࠸㡿ᇦ࠿ࡽࡢ▱ぢࢆᚓࡿࡇ ࡜ࡀ࡛ࡁࡿࠋ (6) ཯ᑕ㟁Ꮚࢆ⏝࠸ࢀࡤࠊ⤌ᡂࡢ㐪࠸ࢆീ࡜ࡋ࡚ᤊ࠼ࡿ஦ࡀ࡛ࡁࡿࡔࡅ࡛࡞ࡃࠊヨᩱ࠿ࡽ Ⓨ⏕ࡋࡓ✀ࠎࡢග㔞Ꮚࢆ⏝࠸࡚ࠊᵝࠎ࡞᝟ሗࢆᚓࡿࡇ࡜ࡀ࡛ࡁࡿࠋ (7) TEM࡜ẚ㍑ࡍࡿ࡜ศゎ⬟ࡀపࡃࠊ⤖ᬗᏛⓗ࡞᝟ሗࡀᚓࡽࢀ㞴࠸ࠋ

ࢹ࢕ࢫࣉࣞ࢖ 㟁Ꮚ㖠 ㉮ᰝࢥ࢖ࣝ ᑐ≀ࣞࣥࢬ 㠀Ⅼ⿵ṇ⿦⨨ ࣇ࢕࣓ࣛࣥࢺ ࢙࣮࢘ࢿࣝࢺ ࢔ࣀ࣮ࢻ 㞟᮰ࣞࣥࢬ ஧ḟ㟁Ꮚ᳨ฟჾ ཯ᑕ㟁Ꮚ᳨ฟჾ ヨᩱ ┿✵࣏ࣥࣉ Figure 2.4㻌 SEM⿦⨨ᴫせᅗ

2.3 X⥺ග㟁Ꮚศගἲ 2.3.1 ཎ⌮ ௨ୗ࡟X⥺ග㟁Ꮚศගἲࡢཎ⌮ࢆ⡆༢࡟ㄝ᫂ࡍࡿࠋ 2) ༢Ⰽගࢆ≀㉁࡟↷ᑕࡍࡿ࡜ග㟁ຠᯝ ࡟ࡼࡾ㟁Ꮚࡀᨺฟࡉࢀࡿࠋࡇࡢ࡜ࡁ࡟Ⓨ⏕ࡍࡿ㟁Ꮚࢆග㟁Ꮚ࡜ ࠸࠺ࠋࡇࡢ㟁Ꮚࡢ࢚ࢿࣝࢠ ࣮࠾ࡼࡧᙉᗘศᕸࢆ ᐃࡍࡿ᪉ἲࡀග㟁Ꮚศගἲ࡛ࠊࣉ࣮ࣟࣈ࡟ X ⥺ࡀ⏝࠸ࡽࢀࡿ᫬ࢆX ⥺ග㟁Ꮚศගἲ࡜࠸࠺ࠋᚑࡗ࡚ࠊヨᩱࡣẼయ࣭ᾮయ࣭ᅛయࡢูࢆၥࢃ࡞࠸ࠋࡇࡢ⌧㇟ࡣḟ ᘧ࡛⾲ࡍࡇ࡜ࡀ࡛ࡁࡿࠋ a b

E

=

hv

-

E

-

f

              (2.3) ࡇࡇ࡛ࠊE_aࡣⓎ⏕ࡋࡓග㟁Ꮚࡢ㐠ື࢚ࢿࣝࢠ࣮ࠊhvࡣධᑕࡋࡓX⥺ࡢ࢚ࢿࣝࢠ࣮ࠊE_bࡣᨺ ฟࡋࡓ㟁Ꮚࡢヨᩱ୰࡟࠾ࡅࡿ⤖ྜ㸦᮰⦡㸧࢚ࢿࣝࢠ࣮ࠊfࡣヨᩱࡢ௙஦㛵ᩘ࡛࠶ࡿࠋ㟁Ꮚࡢ 㐠ື࢚ࢿࣝࢠ࣮ࡣࣇ࢙࣑ࣝ‽఩࠿ࡽ ᐃࡍࡿ࡜≀㉁㛫ࡢẚ㍑ࡀࡋࡸࡍ࠸ࡢ࡛ࡇࡢሙྜࡣࠊ a b

E

=

hv

-

E

               (2.4) ࡜࡞ࡿࠋࡇࡢᶍᘧᅗࢆFig. 2.5࡟ ♧ࡍࠋFig. 2.5࠿ࡽࡶศ࠿ࡿࡼ࠺ ࡟ ほ   ࡉࢀ ࡓ 㟁Ꮚ ࡢ ࢚ࢿ ࣝ ࢠ࣮ ศ ᕸ ࡣ ≀㉁ ࡢ ෆẆ ࡸ ౯㟁 Ꮚ ᖏࡢ ᝟ሗࢆࡶࡗ࡚࠸ࡿࠋhv ࡀ୍ᐃ࡛ ࠶ࢀࡤ⤖ྜ࢚ࢿࣝࢠ࣮E_b ࡀồࡵ ࡽࢀࡿࠋྛ㌶㐨㟁Ꮚࡢ⤖ྜ࢚ࢿࣝ ࢠ ࣮ ࡣ ඖ⣲ ࡈ ࡜࡟ ␗ ࡞ࡿ ࠿ ࡽࠊ Ea ࢆ ᐃࡍࡿࡇ࡜࡟ࡼࡾࠊᐜ᫆ ࡟ඖ⣲ࡢྠᐃࡀྍ⬟࡜࡞ࡿࠋࡲࡓࠊ ྠ ୍ ඖ ⣲ࡢ ྠ ୍㌶ 㐨 ࡢ⤖ ྜ ࢚ࢿ ࣝࢠ࣮ࡣࠊὀ┠ࡍࡿཎᏊࡢࡲࢃࡾ ࡢ≧ែ࣭⎔ቃ࡟ࡼࡾࡑࡢ್ࡣᚤጁ ࡟ኚ໬ࡍࡿࠋࡇࡢኚ໬㔞㸦໬Ꮫࢩࣇࢺ㸧ࢆ ᐃࡍࡿࡇ࡜࡛ࠊඖ⣲ࡢ≧ែศᕸࡢྠᐃࡀྍ⬟ ࡜࡞ࡿࠋ

 XPS ᐃ࡟⏝࠸ࡽࢀࡿX⥺⟶ࡣX⥺ᅇᢡ㸦X-Ray Diffraction : XRD㸧ࡸ⺯ගX⥺ศᯒ㸦X-Ray Fluorscence : XRF㸧࡟⏝࠸ࡽࢀࡿࡑࢀ࡜ཎ⌮ⓗ࡟ࡣኚࢃࡾࡀ࡞࠸ࠋXRDࡸXRF࡛ࡣ≉ᛶX ⥺࢚ࢿࣝࢠ࣮ࡣᩘ༑ keV࡜㧗࠸ࡇ࡜ࡀせồࡉࢀࡿࡀࠊXPS ࡛ࡣᚓࡼ࠺࡜ࡍࡿ᝟ሗࡀ⾲㠃࡟ 㝈ᐃࡉࢀࡿࡓࡵᩘkeV௨ୗࡢ≉ᛶX⥺ࡀ౑⏝ࡉࢀ࡚࠸ࡿࠋ㏻ᖖࡢ⿦⨨࡛ࡣࠊᗈ࠸࢚ࢿࣝࢠ ࣮⠊ᅖ࡛ୟࡘ㧗ศゎ⬟࡛ ᐃࢆ⾜࠺ࡇ࡜ࡀせồࡉࢀࡿࡓࡵࠊAlKa࡜MgKa⥺ࡀ୍⯡ᡭ㔠࡟౑ ⏝ࡉࢀ࡚࠸ࡿࠋග※࡜ࡋ࡚MgKa࠶ࡿ࠸ࡣAlKaࡢ≉ᛶX⥺ࢆ฼⏝ࡍࡿሙྜࠊⓎ⏕ࡍࡿග㟁 Ꮚࡢ㐠ື࢚ࢿࣝࢠ࣮ࡣࡓ࠿ࡔ࠿ 1000 eV࠿ࡑࢀ௨ୗ࡜ᑠࡉ࠸ࠋᚑࡗ࡚ࠊXPS ࡛ᚓࡽࢀࡿ᝟ ሗࡢ῝ࡉࡣὸࡃࠊ10~ᩘ10Å࡛࠶ࡿࠋ  ࡲࡓࠊXPSࢆ⏝࠸࡚ヨᩱ୰ࡢྛඖ⣲ᡂศIࡢ⤌ᡂẚࢆồࡵࡿࡇ࡜ࡀྍ⬟࡛࠶ࡿࠋྛඖ⣲ࡀ ෆẆ‽఩ 䝣䜵䝹䝭‽఩ ┿✵‽఩ ග㟁Ꮚ䝇䝨䜽䝖䝹 E_b f hv hv 䩠 䩉 䩶 䨺 䩦 䩮 䨫 䩐 䩮 䨱 䩻 N(E) hv Figure 2.5 ග㟁Ꮚᨺฟ䛾ᶍᘧᅗ

῝ࡉ᪉ྥ࡟ᆒ୍࡟ศᕸࡋ࡚࠸ࡿሙྜࠊXPS ᐃ࡛ࡢࣆ࣮ࢡᙉᗘ I_iࡣࠊග࢖࢜ࣥ໬᩿㠃✚s_iࠊ ග㟁Ꮚࡢ⬺ฟ῝ࡉl_iࠊ⃰ᗘN_iࠊ⿦⨨࡟ࡼࡗ࡚ỴࡲࡿಀᩘK࡟ࡼࡾࠊ 0 i i i i i

I

=

I

s

N

l

K

(2-5) ࡛୚࠼ࡽࢀࡿࠋࡑࡇ࡛ࠊྠ୍ヨᩱࡢ␗࡞ࡗࡓᡂศI_jࡢࣆ࣮ࢡᙉᗘࡢ⤌ᡂẚ࠿ࡽࠊ i j j i i j j i i j

I

K

N

N

I

K

s l

s l

=

(2-6) ࡟ࡼࡾồࡵࡽࢀࡿࠋᐇ㦂࡟ࡼࡾࢫ࣌ࢡࢺࣝ୰ࡢྛࣆ࣮ࢡࡢ㠃✚ᙉᗘIࢆồࡵࡿࡇ࡜ࡀ࡛ࡁࡿࠋ ྑ㎶ࡢࡑࡢ௚ࡢᅉᏊࡣࠊィ⟬್࠶ࡿ࠸ࡣᶆ‽ヨᩱࡢ฼⏝࡞࡝࡟ࡼࡗ࡚⤌ᡂẚࢆỴࡵࡿࡇ࡜ ࡀ࡛ࡁࡿࠋ

2.4 ග྾཰ ᐃ 2.4.1 ྾཰ಀᩘࡢ ᐃ  ࠶ࡿ≉ᐃࡢἼ㛗㸦࢚ࢿࣝࢠ࣮㸧ࡢග࡟ᑐࡋ࡚ࠊ༙ᑟయࡀ࡝ࡢࡼ࠺࡞྾཰ಀᩘ㸦absorption coefficient㸧࠶ࡿ࠸ࡣ཯ᑕ⋡㸦reflectivity㸧ࢆᣢࡘ࠿ࢆ ᐃࡍࡿࡇ࡜ࡣࠊࡑࡢ༙ᑟయࢆ⏝࠸ࡓ ගᏛ⣔ࡢタィ࡞࡝࡟ᇶᮏࢹ࣮ࢱࢆᥦ౪ࡍࡿࠋ୍᪉ࠊගࡢ྾཰ࢫ࣌ࢡࢺࣝࡸ཯ᑕࢫ࣌ࢡࢺࣝ ࡟ࡣࠊ༙ᑟయࡢ࢚ࢿࣝࢠ࣮ᖏᵓ㐀ࡀᙉࡃ཯ᫎࡉࢀ࡚࠾ࡾࠊࡑࡢ ᐃ࡟ࡼࡾ࢚ࢿࣝࢠ࣮ᖏ࡟ ᑐࡍࡿከࡃࡢᇶᮏ᝟ሗࢆᚓࡿࡇ࡜ࡀฟ᮶ࡿࠋ᪂ࡋ࠸༙ᑟయࡀ〇సࡉࢀࡓሙྜࠊ᭱ึ࡟ࠊX⥺ ᅇᢡ࡞࡝ࡢ⤖ᬗᵓ㐀ゎᯒࢆ⾜࠺࡜࡜ࡶ࡟ග྾཰ࢫ࣌ࢡࢺࣝࡢゎᯒࢆ㐍ࡵࠊࡑࡢ኱ࡲ࠿࡞࢚ ࢿࣝࢠ࣮ᵓ㐀ࢆ▱ࡿࡇ࡜ࡀ㔜せ࡛࠶ࡿࠋࡇࡢព࿡࡛ࠊ྾཰ࢫ࣌ࢡࢺࣝཬࡧ཯ᑕࢫ࣌ࢡࢺࣝ ࡢ ᐃ࡜ࡑࡢゎᯒࡣࠊගᏛ≉ᛶホ౯ࡢ୰࡛᭱ࡶᇶᮏⓗ࡞ᢏ⾡࡛࠶ࡿࠋ 3)  ༙ᑟయࡢග྾཰ࡢᶵᵓ࡟ࡣࠊ࠸ࢁ࠸ࢁ࡞ሙྜࡀ࠶ࡿࡀࠊ୺࡞ග྾཰ࡣ౯㟁Ꮚᖏ࠿ࡽఏᑟ ᖏ࡬㟁Ꮚࢆບ㉳ࡍࡿ࡜ࡁࡢᇶ♏྾཰࡛࠶ࡿࠋᇶ♏྾཰࡟ࡣࡑࢀࡀ㉳ࡇࡾጞࡵࡿ㝈⏺ගᏊ࢚ ࢿࣝࢠ࣮ࠊ㝈⏺ගἼ㛗ࡀ࠶ࡿࡀࠊࡇࡢ್ࢆ ᐃࡍࡿࡇ࡜࡟ࡼࡾࠊᇶ♏྾཰➃࢚ࢿࣝࢠ࣮࡞ ࡝ࢆồࡵࡿࡇ࡜ࡀ࡛ࡁࡿࠋ 4)  ගࡀ፹㉁୰ࢆ㐍⾜ࡋࡓ࡜ࡁࠊගࡢ࢚ࢿࣝࢠ࣮ࡀ྾཰ࡉࢀ࡚ගࡢᙉࡉࡀῶᑡࡋ࡚࠸ࡃ๭ྜ ࢆ྾཰ಀᩘ࡜࠸࠺ࠋ≀㉁୰ࡢ࠶ࡿⅬ࡟࠾ࡅࡿගࡢᙉᗘࢆ I₀࡜ࡋࠊගࡀ㊥㞳x ࡔࡅ㐍ࢇࡔᚋ ࡢගᙉᗘI(x)࡜ࡍࡿ࡜

( )

x

I

(

α

x

)

I

=

₀

exp

-

(2-7) ࡜᭩ࡅࡿࠋࡇࡢಀᩘαࡀ྾཰ಀᩘ࡛࠶ࡾࠊcm -1 ࡜࠸࠺༢఩࡛⾲ࡍࠋ྾཰ಀᩘࡣࠊ≀ᛶ◊✲ࡢ ሙྜࠊගࡢἼ㛗㸦࢚ࢿࣝࢠ࣮㸧ࡢ㛵ᩘ࡜ࡋ࡚ ᐃࡉࢀࠊࡇࡢ྾཰ಀᩘࡢἼ㛗㸦࢚ࢿࣝࢠ࣮㸧 ౫Ꮡᛶࢆ྾཰ࢫ࣌ࢡࢺࣝ࡜࿧ࡪࠋ  ගࡀ┿✵୰࠿ࡽ≀㉁࡟ධᑕࡍࡿሙྜࠊගࡢ୍㒊ࡣ≀㉁୰࡟౵ධࡍࡿࡀࠊṧࡾࡣ≀㉁⾲㠃 ࡛཯ᑕࡉࢀࡿࠋ཯ᑕ⋡RࡣࠊධᑕගᙉᗘI_i࡜཯ᑕගᙉᗘI_rࢆ⏝࠸࡚༢⣧࡟ i r

I

I

R =

(2-8) ࡜ᐃ⩏ࡉࢀࡿࠋ  ග㸦㟁☢Ἴ㸧ࡣࠊ≀㉁ࡢෆ㒊ࠊእ㒊ࢆၥࢃࡎ㟁☢ἼࡢMaxwell᪉⛬ᘧ࡟ࡼࡾグ㏙ࡉࢀࡿࠋ 㟁ሙࠊ☢ሙࠊ㟁ὶ࡞࡝ࡢほ ࡟࠿࠿ࡿᕧどⓗ≀⌮㔞࡜ࠊᅛయࡢᚤどⓗ㸦ཎᏊⓗ㸧ᛶ㉁ࡢᶫ Ώࡋࢆࡍࡿࡢࡀ“ㄏ㟁⋡”࡜“ఏᑟ⋡”࡛࠶ࡿࠋ༙ᑟయࡢගᏛ≉ᛶࡢᢕᥱ࡟ࡣࠊࡇࢀࡽࡢ㔞࡜྾ ཰ಀᩘࠊ཯ᑕ⋡࡜ࡢ㛵㐃ࢆ⌮ゎࡍࡿࡇ࡜ࡀ㔜せ࡜࡞ࡿࠋ  ☢Ẽⓗຠᯝࢆᢅࢃ࡞࠸࡜ࡍࡿ࡜ࠊMaxwellࡢ᪉⛬ᘧࡣ 㼞㼛㼠

H

=

J

+

¶

D

¶

t

(2-9) 㻌 㼞㼛㼠

H

=

J

+

¶

D

/

¶

t

(2-10) 㼐㼕㼢

B

=

0

(2-11) 㻌 㼐㼕㼢 e D=r (2-12)  ࡛୚࠼ࡽࢀࡿࠋࡇࡇ࡛ࠊE㸪D㸪H㸪Bࡣࡑࢀࡒࢀࠊ㟁ሙࠊ㟁᮰ᐦᗘࠊ☢ሙࠊ☢᮰ᐦᗘ࡛࠶ ࡾࠊρ_e㸪Jࡣࠊ㟁Ⲵᐦᗘࠊ㟁ὶᐦᗘࢆ⾲ࡍࠋࡲࡓࠊ࣮࣒࢜ࡢἲ๎ࢆ௬ᐃࡍࡿ࡜

E

σ

J =

(2-13) ࡀᡂ❧ࡍࡿࠋࡇࡇ࡛ࠊσࡣ㟁Ẽఏᑟᗘ࡛࠶ࡿࠋ(2-9)-(2-12)ᘧ࠿ࡽE࡟㛵ࡍࡿἼື᪉⛬ᘧ

0

0 2 2 2 2

₌

¶

¶

-¶

¶

-Ñ

t

E

σ

μ

t

E

c

k

E

e (2-14) ࡀᑟࡁ࠿ࢀࡿࠋࡇࡇ࡛ࠊk_eࡣ≀㉁ࡢẚㄏ㟁⋡ࠊμ₀ࡣ┿✵ࡢ㏱☢⋡࡛࠶ࡿࠋࡲࡓcࡣࠊ 0 0

μ

ε

c =

(2-15) ε0ࡣ┿✵ࡢㄏ㟁⋡࡛࠶ࡾࠊ┿✵୰ࡢග㏿࡟➼ࡋ࠸ࠋ྾཰ಀᩘࠊ཯ᑕ⋡࡟ᑐࡍࡿ࢚ࢿࣝࢠ࣮ศ ᩓࢆồࡵࡿࡓࡵ࡟ࠊἼື࣋ࢡࢺࣝkࠊ᣺ືᩘωࢆᣢࡘ㟁ゎ࣋ࢡࢺࣝἼEࢆ⪃࠼ࡿࠋ

{

ik

r

ω

t

}

E

E

=

₀

exp

×

-

(2-16) ࡇࢀࢆἼື᪉⛬ᘧ㸦2-14㸧࡟ධࢀࡿ࡜ࠊ

( )

2 1 0

÷÷

ø

ö

çç

è

æ

+

=

ωε

σ

i

k

c

ω

ω

k

_e (2-17) ࡀᚓࡽࢀࠊࡇࡇ࡛」⣲ᒅᢡ⋡Nࢆ 2 1 0

÷÷

ø

ö

çç

è

æ

+

=

ωε

σ

i

k

N

_e (2-18) ࡟ࡼࡾᑟධࡍࡿࠋ  ᕧどⓗ࡞ ᐃ࡟ࡼࡾほ ࡉࢀࡿගᏛⓗᛶ㉁ࡣࠊ」⣲ᒅᢡ⋡ N ࢆ౑ࡗ࡚⾲ࡉࢀࡿࠋ」⣲ㄏ 㟁⋡ࡣࠊ」⣲ᒅᢡ⋡࡜ྠࡌࡃᢅࢃࢀࡿ㔞࡛࠶ࡾࠊ 2

N

ε º

(2-19) ࡛⾲ࡉࢀࡿࠋ 」⣲ᒅᢡ⋡ࢆᐇᩘ㒊n࡜⹫ᩘ㒊k࡟ศࡅࠊz᪉ྥ࡟ఏ᧛ࡍࡿἼࢆ⪃࠼ࠊ

ik

n

N

=

+

(2-20) ࡜࠾ࡃ࡜㸦2-16㸧ࡣ

÷

ø

ö

ç

è

æ-×

þ

ý

ü

î

í

ì

÷

ø

ö

ç

è

æ

-=

c

z

ω

k

t

c

nz

ω

i

E

E

₀

exp

exp

(2-21) ࡜᭩ࡃࡇ࡜ࡀ࡛ࡁࡿࠋࡇࢀ࡜(2-7)ࡢẚ㍑࠿ࡽ

c

ω

k

α

=

2

(2-22) ࡜ࠊ྾཰ಀᩘࡣkࢆ⏝࠸࡚⾲ࡍࡇ࡜ࡀ࡛ࡁࡿࠋNࢆᒅᢡ⋡ࠊkࢆᾘ⾶ಀᩘ࡜࿧ࡪࠋ

 ཯ᑕ⋡ࡶn࡜kࢆ⏝࠸࡚⾲ࡍࡇ࡜ࡀ࡛ࡁࠊFig. 2.6ࡢࡼ࠺࡟z᪉ྥ࡟㐍ࡴἼࡀz=0࡟⾲㠃 ࢆᣢࡕࠊz>0࡟Ꮡᅾࡍࡿ≀㉁࡟ᆶ┤࡟ධᑕࡋࡓ࡜ࡍࡿ࡜ࠊ㏱㐣ἼE_t࡜཯ᑕἼE_rࡢz=0࡟࠾ ࡅࡿቃ⏺᮲௳ r i t

E

E

E

=

+

(2-23)

dz

dE

dz

dE

dz

dE

_{t i r}

+

=

(2-24) ࡼࡾࠊ

ik

n

ik

n

N

N

E

E

i r

+

+

+

-=

+

-=

1

1

1

1

(2-25) ࢆᚓࡿࡇ࡜ࡀ࡛ࡁࡿࠋගᙉᗘࡣ㟁ሙ᣺ືࡢ஧஌࡛࠶ࡿ࠿ࡽࠊ཯ᑕ⋡Rࡣ

(

)

(

)

2 2 2 2 2

1

1

1

1

k

n

k

n

N

N

R

+

+

+

-=

+

-=

(2-26) ࡜ࠊ」⣲ᒅᢡ⋡ࢆ⏝࠸࡚᭩ࡃࡇ࡜ࡀ࡛ࡁࡿࠋ  ༙ᑟయࡢ྾཰ಀᩘࢆồࡵࡿ᭱ࡶ୍⯡ⓗ࡞᪉ἲࡣࠊⷧ⭷ࡲࡓࡣ㠀ᖖ࡟ⷧࡃࡋࡓᮦᩱࢆ㏱㐣 ࡍࡿගࡢᙉࡉࠊ⾲㠃࡛཯ᑕࡍࡿගࡢᙉࡉࢆ┤᥋ ᐃࡍࡿ᪉ἲ࡛࠶ࡿࠋ྾཰ಀᩘαࠊཌࡉdࢆ ᣢࡘᖹ⾜∧⤖ᬗ࡟ගࡀᆶ┤ධᑕࡋࡓሙྜࡢ㏱㐣⋡T_mࠊ཯ᑕ⋡R_mࡣࠊᖸ΅ࢆ↓どࡋ࡚

(

)

(

)

(

α

d

)

R

d

α

R

T

_m

2

exp

1

exp

1

2 2

-=

(2-27) ㏱㐣Ἴ ධᑕἼ

E

_i

=

E

_i0

exp

{

iω

(

z/c

-

t

)

}

཯ᑕἼ

E

r

=

E

r0

exp

{

-iω

(

z/c

+

t

)}

0 = Z Z

)}

/

{exp(

exp

z 0

N

c-t

E

E

t

=

i Figure 2.6㻌ᆶ┤ධᑕගࡢ㏱㐣࡜཯ᑕ

(

)

{

T

α

d

}

R

R

_m

=

1

+

_m

exp

-

(2-28) ࡛ࠊ୚࠼ࡽࢀࡿࠋࡇࡇ࡛ࠊR ࡣᘧ(2-27)࡛୚࠼ࡽࢀࡿ༙↓㝈ࡢཌࡉࢆᣢࡘヨᩱࡢ཯ᑕ⋡࡛࠶ ࡿࠋ ᐃࡋࡓ㏱㐣⋡T_mࠊ཯ᑕ⋡R_m࠿ࡽ྾཰ಀᩘࢆồࡵࡿ࡟ࡣࠊᘧ(2-27)㸪(2-28)ࢆ⏝࠸࡚ィ ⟬ᘧ࡛㏫⟬ࡍࡿ᪉ἲࡀ࡜ࡽࢀ࡚࠸ࡿࡀࠊR ࡀ཯ᑕ⋡ ᐃ࡞࡝࡟ࡼࡾồࡵࡽࢀࡿሙྜ࡟ࡣᘧ (2-27)ࡼࡾゎᯒⓗ࡟ᐜ᫆࡟ồࡵࡿࡇ࡜ࡀ࡛ࡁࡿࠋ  ౯㟁Ꮚᖏࡢ᭱኱࡜ఏᑟᖏࡢ᭱ᑠࡢ㛫ࡢ㑄⛣ࡀጞࡲࡾࠊᇶ♏྾཰➃ࡢᙉᗘࡣ౯㟁Ꮚᖏࡢ᭱ ኱ཬࡧఏᑟᖏࡢ᭱ᑠࡀࣈࣜࣘ࢔ࣥࢰ࣮ࣥࡢྠࡌⅬ࡛⏕ࡌࡿ࠿࡝࠺࠿࡟ࡼࡾࠊྠࡌἼᩘ࣋ࢡ ࢺࣝࡢࣂࣥࢻ㛫㑄⛣ࡣ┤᥋࡜ྡ࡙ࡅࡽࢀ࡚࠾ࡾࠊᇶ♏྾཰➃ࡀ┤᥋㑄⛣࡛ྜ࠺ࡶࡢࡣ┤᥋ ྾཰➃ࢆᣢࡘ࡜ゝࢃࢀࡿࠋ 2.4.2 ᐇ㦂⣔  ග྾཰ ᐃ㸦 ᗘ౫Ꮡ≉ᛶ㸧࡟⏝࠸ࡓ ᐃ⿦⨨ࡢᴫ␎ᅗࢆFig. 2.7࡟♧ࡍࠋග※࡟ࣁࣟࢤ ࣥࣛࣥࣉࢆ⏝࠸ࠊගࢆࣞࣥࢬ࡟㏻ࡋ࡚ヨᩱ఩⨨࡛᭱ࡶ 㞟ගࡍࡿࡼ࠺࡟⣔ࢆ㓄⨨ࡋࡓࠋヨᩱ ࢆ㏱㐣ࡋࡓගࢆࣇ࢛ࢺ࣐࡛ࣝཷගࡋࡓࠋගࡢ㏱㐣⋡ Tࢆ ᐃࡍࡿࡇ࡜࡛ࠊ཯ᑕ⋡R࡜ヨᩱ ࡢཌࡉ dࢆ⏝࠸࡚ᘧࡢィ⟬࠿ࡽ྾཰ಀᩘ α ࢆồࡵࡓࠋヨᩱࡣࢡࣛ࢖࢜ࢫࢱࢵࢺෆ࡟ࢭࢵࢺ ࡋ ᗘኚ໬ࢆ࠿ࡅࡓࠋ

Harogen lamp

Pin hole

Cryostat

Lens

Sample

Chopper

Photomultiplier

Monochromator

Lock-in

Amplifier

Computer

Figure 2.7㻌ග྾཰ ᐃ⿦⨨

2.4.3 ᣑᩓ཯ᑕἲ ⢊ᮎࡸ㠃ࡢ⢒࠸ヨᩱࡢ྾཰ࢫ࣌ࢡࢺࣝࢆ ᐃࡍࡿ㝿࡟ࡣᣑᩓ཯ᑕἲࡀ⏝࠸ࡽࢀࡿࠋගࡀ ⢊ᮎヨᩱ࡟ධᑕࡍࡿ࡜ෆ㒊࡛཯ᑕࠊᒅᢡࠊ྾཰ࢆ⧞ࡾ㏉ࡋࡓᚋ࡟ᣑᩓ཯ᑕග࡜࡞ࡗ࡚ࡶ࡝ ࡗ࡚ࡃࡿࠋ ࡑࡢ㝿ࠊᐇ㦂ⓗ࡟ᚓࡽࢀࡿᣑᩓ཯ᑕ⋡R_dࡼࡾ྾཰ಀᩘα࡟㛵ࡍࡿ᝟ሗࢆᚓࡽࢀࡿࡓࡵ࡟ ࡣࢡ࣮࣒࣋ࣝ࢝ࣥࢡࡢᘧࡀ⏝࠸ࡽࢀࡿࠋࡇࡇ࡛ࠊ㹱ࡣᩓ஘ಀᩘ࡛࠶ࡿࠋᬑ㏻log f(R_d)㹼 logα ࡜࠾࠸࡚ゎᯒࡉࢀࡿࠋ

)

(

2

)

1

(

2

Rd

f

s

R

R

=

=

-

a

ᣑᩓ཯ᑕࢆ ᐃࡍࡿ࡟ࡣ✚ศ⌫ࢆࡶࡘ MgO ࡲࡓࡣBa₂SO₄ࡢ⢊ᮎࡀ඲㠃࡟୍ᵝ࡟ሬᕸࡉ ࢀ࡚࠾ࡾࠊෆ㒊࡛ධᑕගࡀ᏶඲ᣑᩓ≧ែ࡟࡞ࡿࡼ࠺࡟࡞ࡗ࡚࠸ࡿࠋ

ᣑᩓ཯ᑕ㠃

ධᑕ❆

ヨᩱ

ග᳨▱ჾ

Figure 2.8 ✚ศ⌫

2.5 Rapid Thermal Anneal (RTA) ⿦⨨  ᐇ㦂࡟⏝࠸ࡓ࢔ࢽ࣮ࣝ⿦⨨ࡢཎ⌮࡟ࡘ࠸࡚㏙࡭ࡿࠋ 2.5.1 ㉥እ⥺ࣛࣥࣉຍ⇕⅔ ຍ⇕⅔ࡣࠊ㉥እ⥺ࣛࣥࣉࢆᨺ≀཯ᑕ㠃ࣜࣇࣞࢡࢱ࣮ࡢ↔Ⅼ࡟ᅛᐃࡋ࡚㉥እ⥺ගࢆ୪⾜࡟ ཯ᑕࡉࡏࡿຍ⇕᪉ᘧ࡛࠶ࡿࠋࣛࣥࣉࡣ㏆㉥እ⥺ࣛࣥࣉ (100 V-1kW / ᮏ)ࢆ౑⏝ࡋ࡚࠸ࡿࠋ㉥ እ⥺ࣛࣥࣉࡣࠊ▼ⱥ࢞ࣛࢫࢳ࣮ࣗࣈ࡟ᑒධࡉࢀ࡚࠸ࡿࡓࡵࠊⓎ⇕య࠿ࡽࡢ࢞ࢫⓎ⏕ࡀ࡞ࡃࠊ ࢡ࣮ࣜࣥ࡞ຍ⇕ࡀฟ᮶ࡿࠋࡲࡓࠊ⅔యࡣ࢔࣑ࣝࢽ࣒࢘〇࡛ࠊ㧗 ࡲ࡛ࡢຍ⇕࡟⪏࠼ࡽࢀࡿ ࡼ࠺࡟Ỉ෭༷ࡋ࡚࠸ࡿࠋ 2.5.2 ຍ⇕ヨᩱ⣔ ヨᩱ⣔ࡣ㏱᫂▼ⱥ〇࢞ࣛࢫ⟶ࡢ୧➃ࡢ“O ࣜࣥࢢ”ࡼࡾẼᐦࢩ࣮ࣝࡋ࡚Ỉ෭࢔࣑ࣝࢽ࣒࢘ ྜ㔠〇ࣇࣛ ࣥࢪ࡟ᅛᐃࡍࡿࠋヨᩱࡣࠊ⛣ືࣇࣛࣥࢪࡢ㏱᫂▼ⱥ〇࢞ࣛࢫ࣍ࣝࢲ࣮ୖ࡟ࢭࢵ ࢺࡋࠊ㏱᫂▼ⱥ〇࢞ࣛࢫ⟶ෆ࡟཰⣡ࡉࢀࠊ㏱᫂▼ⱥ〇࢞ࣛࢫ⟶ࡢእഃࡢ㉥እ⥺ࣛࣥࣉ࡟ࡼ ࡾ㍽ᑕຍ⇕ࡉࢀࡿࠋ

ヨ ᩱ Ỉ ෭ 䝏 䜵 䞁 䝞

䞊

෭༷Ỉධཱྀ

┿✵ᘬ䛝ཱྀ

㐽

⇕

ᯈ

ヨᩱ⣔ほᐹ❆

䝃 䞁 䝥 䝹 䝩 䝹 䝎

䞊

෭༷Ỉฟཱྀ

ヨᩱ⛣ື䝣䝷䞁䝆

⇕ 㟁 ᑐ ᤄ ධ

ཱྀ

㉥ እ ⥺ 䝷 䞁 䝥 ຍ ⇕

⅔

ຍ

⇕

ヨ

ᩱ

⣔

O

䝸䞁䜾

ヨ ᩱ ⛣ ື 䝣 䝷 䞁

䝆

㍈䝇䝑䝖䝟䞊

Figure 2.9 ヨᩱ⣔䛾ᵓ㐀

2.5.3  ᗘไᚚ⣔ PIDไᚚࢆ⏝࠸࡚ ᗘࢥࣥࢺ࣮ࣟࣝࡋ࡚࠸ࡿࠋࡑࡢPIDไᚚ࡟ࡘ࠸࡚ㄝ᫂ࡍࡿࠋ ㄪ⠇⣔ࡣFig. 2.9࡟♧ࡍࡼ࠺࡟ධฟຊࡢᕪࢆྲྀࡾฟࡍാࡁࢆࡍࡿࠋㄪ⠇⣔ࡢఏ㐩㛵ᩘࡣᅗ࠿ ࡽࠊ

)

1

1

(

)

(

_DS IS p PID

T

T

K

s

G

=

+

+

࡛⾲ࡏࡿࠋࡇࡇ࡛ࠊTI ࡣ✚ศ᫬㛫ࠊTD ࡣᚤศ᫬㛫࡛࠶ࡿࠋࡇࡢఏ㐩㛵ᩘࢆぢࡿ࡜ࠊධฟ ຊࡢᕪࠊࡘࡲࡾ೫ᕪ࡟ẚ౛ࡍࡿ㡯ࠊ೫ᕪࡢ✚ศ࡟ẚ౛ࡍࡿ㡯ࠊ೫ᕪࡢᚤศ࡟ẚ౛ࡍࡿ㡯ࡢ ୕ࡘࡢ࿴࠿ࡽ࡞ࡿࠋࡑࡇ࡛ࡑࢀࡒࢀࡢ㡯ࢆẚ౛ (Proportional) ືసࠊ✚ศ (Integral) ືసࠊ ᚤศ (Derivative) ືస࡜࠸࠺ࠋࡇࡢㄪ⠇⣔ࡣࡋࡓࡀࡗ࡚ࠊPIDືసࢆ⾜࠺ࠋࡲࡓࡇࡢㄪ⠇⣔ ࢆPIDㄪ⠇⣔࡜࠸࠺ࠋ  ḟ࡟ࠊྛືసࡢㄝ᫂ࢆࡍࡿࠋ 㸦1㸧ẚ౛せ⣲ ⌧ᅾࡢ೫ᕪ࡟ᛂࡌ࡚ࠊಟṇືసࢆ⾜࠺ࡀ࢜ࣇࢭࢵࢺࡀṧࡿࠋ 㸦2㸧✚ศせ⣲ 㐣ཤࡢ೫ᕪࢆ✚ศࡋ࡚࢜ࣇࢭࢵࢺࢆྲྀࡾ㝖ࡁࠊࢮࣟ࡟࡞ࡿࠋ 㸦3㸧ᚤศせ⣲ ᛂ⟅ࡀ㏿ࡃ࡞ࡿࡀࣀ࢖ࢬ࡟ᙅ࠸ࡢ࡛࠶ࡲࡾࣃ࣓࣮ࣛࢱࢆᙉࡵ࡞࠸ࠋ

G

_c

(s)

G

_p

(s)

C(s)

R(s)

+

-G

_PID

(s)

ㄪ⠇⣔

G

_c

(s)

G

_p

(s)

C(s)

R(s)

+

-G

_PID

(s)

ㄪ⠇⣔

Figure 2.10㻌  ᗘไᚚ⣔

ཧ⪃ᩥ⊩ 1. ᳃⏣Ύ୕㸸㉮ᰝᆺࣉ࣮ࣟࣈ㢧ᚤ㙾ࡢࡍ࡭࡚㸦ᕤᴗㄪᰝ఍ࠊ1992㸧 2. ⃝⏣Ⴙ㑻㸸X⥺ග㟁Ꮚศගἲ㸦୸ၿᰴᘧ఍♫ࠊ1998㸧 3. Ἑᮾ⏣ 㝯㸸༙ᑟయホ౯ᢏ⾡ ⏘ᴗᅗ᭩㸦1989㸧. 4. P.Y.࣮ࣘ㸪M.࢝ࣝࢻࢼ㸦ⴭ㸧 ᮎඖ ᚭ㸪຾ᮏ ಙ࿃㸪ᒸ Ὀኵ㸪኱ᡂ ㄔஅຓ㸦ヂ㸧㸸 ༙ᑟయࡢᇶ♏ ࢩࣗࣉ࣮࣭ࣜࣥ࢞ࣇ࢙࢔࣮ࣛࢡᮾி

➨

3

❶

HF/AgNO

₃

ΰྜᾮ୰࡛ࡢࢫࢸ࢖࢚ࣥࢵࢳࣥࢢ࡟ࡼࡿ

ከᏍ㉁

Si

⢊ᮎࡢస〇

3.1 ᗎㄽ ᮏ❶࡛ࡣࠊከ⤖ᬗࢩࣜࢥࣥ⢊ᮎࢆฟⓎᮦᩱ࡜ࡋ࡚⏝࠸ࠊ㓟໬๣࡟◪㓟㖟ࢆ౑⏝ࡍࡿࡇ࡜ ࡛ࠊ㖟࡜ࢩࣜࢥࣥ(Si)ࡢ」ྜᚤ⢏Ꮚࡢ⡆ ౽࡞〇ἲ࡟ࡘ࠸࡚ሗ࿌ࡍࡿࠋSi ᇶᯈࡣࠊHF/HNO₃ ΰྜᾮ୰࡛ࢫࢸ࢖࢚ࣥࢵࢳࣥࢢࢆࡍࡿࡇ࡜࡛㛫౽࡟࣏࣮ࣛࢫࢩࣜࢥࣥ㸦PSi㸧ࡢస〇ࡀྍ⬟ ࡛࠶ࡿࡇ࡜ࢆSarathyࡽࡣሗ࿌ࡋࡓࠋ 1) Suemuneࡽࡶࠊࣇ࢛ࢺ࢚ࢵࢳࣥࢢἲ㸦He - Ne laser ↷ᑕୗ࡟࠾ࡅࡿHF⁐ᾮ୰࡛ࡢ࢚ࢵࢳࣥࢢ㸧࡟ࡼࡾࠊⓎගࡍࡿPSiࡢᙧᡂࢆ♧ࡋࡓࠋ 2) ࡲࡓࠊ ㏆ᖺࠊMetal Assissted Electroless Etching࡜࿧ࡤࢀࡿ㔠ᒓ࢖࢜ࣥࢆྵࡴᵝࠎ࡞㓟໬๣࡛࢚ࢵࢳ ࣥࢢࢆ⾜࠺ᡭἲ࡟ࡼࡾࠊSiࢼࣀ࣡࢖࣮ࣖࡸPSi࡞࡝ࡢࢼࣀᵓ㐀ࢆస〇ࡍࡿ◊✲ࡀ┒ࢇ࡟⾜ࢃ ࢀ࡚࠸ࡿࠋ 3~10) ᮏ◊✲࡛ࡣࠊࣇࢵ㓟࡜◪㓟㖟ࡢΰྜᾮࢆ⏝࠸ࡓࠊࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲ࡟ ࡼࡿࠊከ⤖ᬗSi⢊ᮎ࠿ࡽPSi࡜㖟ࡢ」ྜᚤ⢏Ꮚ㸦PSi/Ag」ྜᚤ⢏Ꮚ㸧ࡢస〇ࢆヨࡳࠊࡑࡢ ≀ᛶホ౯ࢆ⾜࠺ࡇ࡜ࢆ┠ⓗ࡜ࡋࡓࠋ 3.2 ᐇ㦂 3.2.1 PSi/Ag」ྜᚤ⢏Ꮚࡢస〇᮲௳ PSi࡜㖟ࡢ」ྜᚤ⢏Ꮚࢆస〇ࡍࡿ࡟࠶ࡓࡾᵝࠎ࡞᮲௳࡛ヨᩱస〇ࢆ⾜ࡗࡓࠋTable 3.1࡟స 〇᮲௳ࢆ♧ࡍࠋ™ࡣⓎගࡢ☜ㄆࡀ࡛ࡁ࡞࠿ࡗࡓࡶࡢࠊ ڹࡣ࡜ࡇࢁ࡝ࡇࢁᚤᙅ࡞Ⓨගࡢ☜ㄆ ࡀ࡛ࡁࡓࡶࡢࠊۑࡣᆒ୍࡞Ⓨගࡢ☜ㄆࡀ࡛ࡁࡓࡶࡢࢆ⾲ࡍࠋ࢚ࢵࢳࣥࢢ⤊஢ᚋࡢ஝⇱᪉ἲ ࡛⮬↛஝⇱࡛ࡣࠊⓎගࡢ☜ㄆࡀ࡜ࢀࡓࡶࡢ࡛ࡶ ࠊ┿✵஝⇱ࢆ⾜࠺࡜Ⓨගࡋ࡞࠸ヨᩱࡀぢࡽ ࢀࡓࠋࡇࢀࡣࠊ⮬↛஝⇱࡛ࡣࠊ┿✵஝⇱࡜ࡣ㐪࠸ࠊ஝⇱㐣⛬࡟࠾࠸࡚ࡶ Siෆ㒊࡛ࡣࠊ࢚ࢵ ࢳࣥࢢࡀ㐍ࢇ࡛࠾ࡾࠊࡑࢀࡀヨᩱ⾲㠃࡟ᙳ㡪ࢆ࠶ࡓ࠼࡚࠸ࡿࡢ ࡛ࡣ࡞࠸࠿࡜⪃࠼ࡽࢀࡿࠋ ᮏ◊✲࡛ࡣࠊࡇࡢ୰࡛ࡶࡶࡗ࡜ࡶᏳᐃࡋࡓⓎගࡢ෌⌧ᛶࡀ࡜ࢀࡿࡇSi 1.0 gࡢ᮲௳࡛స〇ࡋ ࡓヨᩱ࡟ࡘ࠸࡚ヲࡋࡃㄪ࡭ࡓࠋ Table 3.1 PSi/Ag」ྜᚤ⢏Ꮚࡢస〇᮲௳ Si⢊ᮎ (g) 0.3 0.5 1.0 1.5 ࢚ࢵࢳࣥࢢ᫬㛫 (min) 180 180 ~ 360 60 10 ~ 50 AgNO3 (g/L) 3 ~ 12 12 ~ 33 3 ~ 37 12 ~ 40 ⮬↛஝⇱ ڹ ™ ۑ ڹ ┿✵஝⇱ ™ ™ ™ ™

3.2.2 ౑⏝ࡋࡓヨᩱ࡜⁐ᾮ  ౑⏝ࡋࡓヨᩱࡣࠊከ⤖ᬗSi⢊ᮎ㸦VESTACERAMC♫〇㸧࡛ࠊ⢏Ꮚࡢᖹᆒ⢏ᚄࡣ4 μm࡛ ࠶ࡿࠋᐇ㦂ࡣࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲࢆ⏝࠸ࠊ⁐ᾮ࡟ࡣࠊ◪㓟㖟࡜ᘮ໬Ỉ⣲㓟㸦50 %㸧࡜⬺ ࢖࢜ࣥỈࡢΰྜᾮࢆ⏝࠸ࡓࠋస〇᮲௳ࡣTable 3.2࡟♧ࡋࡓࠋ 3.2.3 ᐇ㦂ᡭ㡰  ௨ୗࡢࡼ࠺࡞ᐇ㦂ᡭ㡰࡛⾜ࡗࡓࠋ 㸦1㸧HF㸦50 %㸧࡜⬺࢖࢜ࣥỈࡢయ✚ẚ3㸸7㸦24ml㸸56 ml㸧ࡢΰྜᾮࢆࢸࣇࣟࣥ〇ࡢᐜ ჾ࡟ධࢀΰࡐࡿࠋ 㸦2㸧◪㓟㖟5 gࢆ⬺࢖࢜ࣥỈ20 mlࡢ๭ྜ࡛⁐࠿ࡋ◪㓟㖟Ỉ⁐ᾮࢆస〇ࡍࡿࠋ 㸦2㸧ΰྜᾮࡢධࡗࡓᐜჾ࡟Si⢊ᮎࢆ1.0 gධࢀࡿࠋ 㸦3㸧◪㓟㖟Ỉ⁐ᾮࢆࣆ࣌ࢵࢺࢆ⏝࠸࡚ΰྜᾮ࡟⁲ୗࡍࡿࠋ10 min࡛ࡑࢀࡒࢀࡢ⃰ᗘ࡟㐩 ࡍࡿࡼ࠺࡟⁲ୗࡍࡿࠋ㔞ࢆ᫬㛫࡟ᑐࡋ࡚➼ศࡋ࡚ᑡ㔞ࡎࡘධࢀࡓࠋ 㸦4㸧◪㓟㖟ࡢ⃰ᗘࡣࠊ3㹼37 g/Lࡢ⠊ᅖ࡛ኚ໬ࡉࡏࡓࠋ㸦◪㓟㖟Ỉ⁐ᾮࡢ㔞ࠊ1 ml㹼14 ml㸧 㸦5㸧࢚ࢵࢳࣥࢢ᫬㛫ࡣ60 min࡜ࡋ࢚ࢵࢳࣥࢢ᏶஢ᚋࠊ⢊ᮎࢆℐ⣬ୖ࡟ྲྀࡾࠊࢻࣛࣇࢺෆ ࡛⮬↛஝⇱ࡉࡏࡿࠋ஝⇱᫬㛫ࡣ⣙㸯᪥࡜ࡋࡓࠋ Table 3.2 స〇᮲௳ ヨᩱ ከ⤖ᬗࢩࣜࢥࣥ⢊ᮎ(1.0 g) ࢚ࢵࢳࣥࢢᾮ HF(50 %)㸸(AgNO₃)㸸H₂O㸻3㸸7 AgNO3⃰ᗘ 3~37 g/L ࢚ࢵࢳࣥࢢ᫬㛫 60 min ᐇ㦂 ᗘ 30 Υ  ࢚ࢵࢳࣥࢢࢆ⾜࠺㐣⛬࡛ὀពࡋ࡞ࡅࢀࡤ࠸ࡅ࡞࠸Ⅼ࡜ࡋ࡚ࠊࢩࣜࢥࣥ⢊ᮎࢆ⁐ᾮ࡟ධࢀ ࡓ┤ᚋࡣࠊࢩࣜࢥࣥ⢊ᮎࡀ␯Ỉᛶࡢࡓࡵࣅ࣮࣮࢝⾲㠃࡟ᾋࡁୖࡀࡗ࡚ࡃࡿࠋࡑࡇ࡟ࠊ㓟໬ ๣࡛࠶ࡿ◪㓟㖟Ỉ⁐ᾮࢆᚎࠎ࡟ຍ࠼࡚ࢩࣜࢥࣥ࡜཯ᛂࡉࡏࡿࡇ࡜࡛ࠊࢩࣜࢥࣥ࡟㖟ࡀ௜╔ ࡋぶỈᛶ࡟࡞ࡾࣅ࣮࣮࢝ࡢᗏ࡟ỿẊࡋ࡚࠸ࡃࠋࡑࡢ㝿ࠊࢩࣜࢥࣥࢆ‶㐢࡞ࡃ࢚ࢵࢳࣥࢢᾮ ࡜཯ᛂࡉࡏࡿࡓࡵࠊ࢚ࢵࢳࣥࢢࡢ᭱୰ࡣᖖ࡟⢊ᮎ࡜࢚ࢵࢳࣥࢢᾮࢆΰࡐ⥆ࡅࡿᚲせࡀ࠶ࡿࠋ ࡲࡓࠊࢩࣜࢥࣥࡀ࢚ࢵࢳࣥࢢࡉࢀ ỿẊࡋጞࡵࡿ࡜ሢࡢࡼ࠺࡟⢊ᮎࡀᐦ࡟࡞ࡗ࡚ࡃࡿࡢ࡛₽ ࡍࡼ࠺࡟ࡋ࡚࠿ࡁΰࡐࡓࠋࡇࡢసᴗࡀࠊస〇᫬㛫ࡸPSiࡢᆒ୍ᛶ࡞࡝࡟ᙳ㡪ࡋ࡚ࡁ࡚ࡋࡲ࠺ ࡢ࡛ࠊ୍ᐃࡢ࣮࣌ࢫࢆᏲࡿᚲせࡀ࠶ࡿࠋ ᮏ◊✲ࡢࢫࢸ࢖࢚ࣥࢵࢳࣥࢢἲࡢᐇ㦂ᴫ␎ᅗࢆFig. 3.1࡟♧ࡋࡓࠋ࠶ࡿ⛬ᗘࡢ᫬㛫ΰࡐ⥆

䝦䝷

HF/H

2

O/AgNO

3

, Si

Si

⢊ᮎ

AgNO3

AgNO3

䜢ᑡ㔞䛪䛴㏣ຍ

Figure 3.1 ᐇ㦂ᴫ␎ᅗ

ℐ㐣

 3.2.4 ໬Ꮫ཯ᛂࣔࢹࣝ  ࢚ࢵࢳࣥࢢ୰ࡢ໬Ꮫ཯ᛂࢆ௨ୗ࡟♧ࡍࠋFig. 3.2࡟໬Ꮫ཯ᛂࣔࢹࣝࢆ♧ࡍࠋ Si + 2H2O 㸩 nh + → SiO2 + 4H + (4㸫n) e − , SiO2 + 6HF → H2 SiF6 + 2H2O, Ag+ + e- → Ag0 h+࡜e -ࡣࠊࡑࢀࡒࢀ࣮࣍ࣝ࡜㟁Ꮚ࡛࠶ࡿࠋSiཎᏊࡀ࣮࣍ࣝࡢᤕ⋓ࠊ㟁ᏊࡢὀධࠊỈ⣲ࡢᨺ ฟࡢ཯ᛂ㐣⛬ࢆ㎺ࡿ࡜⪃࠼ࡽࢀࡿࠋ࢚ࢵࢳࣥࢢᾮ୰࡟ྵࡲࢀࡿ㖟࢖࢜ࣥࡀ㑏ඖࡋࠊࢩࣜࢥ ࣥ⤖ᬗࡢ⾲㠃ࡀ໬Ꮫ㓟໬ࡉࢀࡿࠋࡑࢀ࡜ྠ᫬࡟ ࠊ㖟ࡀᯒฟࡋࢩࣜࢥࣥ⢊ᮎ࡟௜╔ࡍࡿࠋḟ ࡟ࠊࡇࡢ⤖ᬗ⾲㠃ࡢ㓟໬⭷ (SiO₂) ࡀ࢚ࢵࢳࣥࢢᾮ୰ࡢHF ᡂศ࡛㝖ཤࡉࢀࡿࠋࡇࡢ㐣⛬ࡀ ⧞ࡾ㏉ࡋ࡚㐍⾜ࡍࡿࡇ࡜࡛ࠊ⤖ᬗ⾲㠃ࡀพฝ࡜ࡋࡓ㖟࡜ࢩࣜࢥࣥࡢ」ྜయࡀฟ᮶ࡿ࡜⪃࠼ ࡽࢀࡿࠋ

Ag

+

Si

e

-Si

Ag

+

Si

Ag

0

HF

Si

O

Ag

0

Si

h

+

H

2

SiF

6

Ag

+

_Ag

+ Figure 3.2 ໬Ꮫ཯ᛂࣔࢹࣝ

3.3 ホ౯᪉ἲ

3.3.1 X⥺ග㟁Ꮚศගἲ(XPS) ᐃ

XPS (ULVAC-PHI Model 5600 spectrometer) ᐃࡣࠊX⥺ග※ࢆMg Ka (1253.6 eV)࡜ࡋࠊヨ ᩱ࡟ᑐࡋ࡚ࠊSi2p㌶㐨ࢫ࣌ࢡࢺࣝ࡜Ag3d㌶㐨ࢫ࣌ࢡࢺࣝࢆ ᐃࡋࡓࠋ  3.3.2 ㉮ᰝᆺ㟁Ꮚ㢧ᚤ㙾(SEM) ᐃ  ⾲㠃≧ែࢆぢࡿࡓࡵ࡟ࠊྛಸ⋡࡛SEMほ ࢆ⾜ࡗࡓࠋ ᐃࡣࠊJSM6330F㸦᪥ᮏ㟁Ꮚ㸧ࢆ ⏝࠸ࡓࠋ          3000 ಸ 10000 ಸ 15000 ಸ 30000 ಸ 3.3.3 ࣇ࢛ࢺ࣑ࣝࢿࢵࢭࣥࢫ(PL) ᐃ  స〇ࡋࡓヨᩱ࡟ࡘ࠸࡚ࠊḟࡢ᮲௳࡛PL ᐃࢆ⾜ࡗࡓࠋ ບ㉳ග※     㸸He-Cd Laser (

l

=

325 nm )

Laser๓ࡢFilter 㸸UTVAF-34 U (㏱㐣㡿ᇦ 280 ~ 380 nm ) ศගჾ๓ࡢFilter 㸸UTF-37 L (㐽᩿㡿ᇦ370 nm ௨ୗ) ศගჾࢫࣜࢵࢺ 㸸0.025 mm  ᐃ ᗘ 㸸ᐊ ࠊ20㹼300 K CCD detector ᗘ 㸸㸫75 Υ 3.3.4 ᣑᩓ཯ᑕ ᐃ స〇ࡋࡓヨᩱ࡟ࡘ࠸࡚ࠊḟࡢ᮲௳࡛ᣑᩓ཯ᑕ ᐃࢆ⾜ࡗࡓࠋ ഃග࣮ࣔࢻ    㸸%R ࣞࢫ࣏ࣥࢫ    㸸Fast  ᐃ⠊ᅖࡣ    㸸250㹼1500 nm ࢹ࣮ࢱྲྀࡾ㎸ࡳ㛫㝸㸸2.0 nm  ᐃࡍࡿ㝿࡟Fig. 3.3 ࡢࡼ࠺࡟ࠊヨᩱࢆ▼ⱥᇶᯈ࡛ ᣳࡴࡼ࠺࡟ࡋࠊ࿘ࡾࢆ࢝ࣉࢺࣥࢸ࣮ࣉ࡛そ࠸⟽≧࡟㛢 ࡌ㎸ࡵ࡚ ᐃࢆ⾜ࡗࡓࠋ

0

5

10

15

20

25

30

35

40

0

1

2

3

4

5

In

te

n

s

it

y

(a

rb

.

u

n

it

s)

(g/L)

114

112

110

108

106

0

1

2

3

4

In

te

n

s

it

y

(a

rb

.

u

n

it

s)

Binding energy (eV)

3.4 ᐇ㦂⤖ᯝ

3.4.1 XPS ᐃ⤖ᯝ

Fig. 3.4ࡣࠊస〇ࡋࡓヨᩱࡢSi2pࡢXPSࢫ࣌ࢡࢺ࡛ࣝ࠶ࡿࠋFig. 3.5ࡣࢫ࣌ࢡࢺࣝࡢ࣓࢖ ࣥࡢࣆ࣮ࢡᙉᗘࢆ◪㓟㖟ࡢ⃰ᗘ࡟ᑐࡋ࡚ࣉࣟࢵࢺࡋࡓࢢࣛࣇ࡛࠶ࡿࠋ

ᅗࡼࡾࠊከᑡࡢࡤࡽࡘࡁࡣ࠶ࡿࡀࠊ◪㓟㖟⃰ᗘࡀቑຍࡍࡿ࡟ࡘࢀࠊࢩࣜࢥࣥ࠿ࡽࡢࢩࢢࢼ ࣝࡀῶᑡࡋ࡚࠸ࡃᵝᏊࡀࢃ࠿ࡿࠋ

Figure 3.5 ࣆ࣮ࢡᙉᗘࡢኚ໬ Figure 3.4 ;36  ᐃ⤖ᯝ㸦Si2P㸧

0

1

2

3

4

5

In

te

n

s

it

y

(a

rb

.

u

n

it

s)

385

380

375

370

365

360

355

0

1

2

3

4

5

In

te

n

s

it

y

(a

rb

.

u

n

it

s)

Binding energy (eV)

Fig. 3.6ࡣࠊస〇ࡋࡓヨᩱࡢAg3dࡢXPSࢫ࣌ࢡࢺ࡛ࣝ࠶ࡿࠋᕥഃࡢࣆ࣮ࢡࡣ3d_3/2ࠊྑഃ ࡢࣆ࣮ࢡࡣ3d_5/2࠿ࡽࡢࢩࢢࢼࣝࢆ♧ࡍࠋFig. 3.7ࡣࠊ3d_5/2ࣆ࣮ࢡࡢᙉᗘࢆ◪㓟㖟ࡢ⃰ᗘ࡟ᑐ ࡋ࡚ࣉࣟࢵࢺࡋࡓࢢࣛࣇ࡛࠶ࡿࠋᅗࡼࡾࠊ◪㓟㖟⃰ᗘࡀቑຍࡍࡿ࡟ࡘࢀࠊ࠶ࡿ⛬ᗘࡲ࡛ࡣ ẚ౛ࡋ࡚㖟࠿ࡽࡢࢩࢢࢼࣝࡀቑຍࡋࠊ35 g/Lࢆ㐣ࡂࡓ࠶ࡓࡾ࠿ࡽࠊᛴ⃭࡟㖟ࡢࣆ࣮ࢡࡀቑຍ ࡋ࡚࠸ࡿᵝᏊࡀࢃ࠿ࡿࠋ ௨ୖࡢ⤖ᯝ࠿ࡽࠊ࢚ࢵࢳࣥࢢᾮࡢቑຍ࡟ᚑࡗ࡚ࠊSiࡀ࢚ࢵࢳࣥࢢࡉࢀࠊAgࡀᯒฟࡋ࡚࠸ ࡿࡇ࡜ࡀ☜ㄆ࡛ࡁࡿࠋࡲࡓࠊࢫ࣌ࢡࢺࣝࡢࣆ࣮ࢡ఩⨨ࡢࢩࣇࢺࡣࠊXPS ࡢග㟁Ꮚᨺฟ࡟క ࠺ヨᩱ⾲㠃ࡢࢳ࣮ࣕࢪ࢔ࢵࣉࡢᙳ㡪࡛࠶ࡿ࡜⪃࠼ࡽࢀࡿࠋ Figure 3.6 XPS ᐃ⤖ᯝ㸦Ag3d㸧

3.4.2 SEM ᐃ⤖ᯝ

0.5 μ m

(a)

(b)

(c)

(d)

(e)

(f)

(g)

(h)

Figure 3.8㻌SEM⏬ീ

Fig. 3.8ࡣࠊHF࡜AgNO₃ࡢΰྜ⁐ᾮ࡛స〇ࡋࡓヨᩱࡢSEM⏬ീ࡛࠶ࡿࠋ(a)ࠊ(e)ࡣSi⢊ ᮎࡢSEM⏬ീࠊ(b)ࠊ(f)ࡣ◪㓟㖟⃰ᗘ17 g/L࡛ࢫࢸ࢖࢚ࣥࢵࢳࣥࢢࡋࡓPSi⢊ᮎࡢSEM⏬ ീࠊ(c)ࠊ(g)ࡣ33 g/Lࠊ(d)ࠊ(h)ࡣ37 g/L࡛స〇ࡉࢀࡓヨᩱ࡛࠶ࡿࠋࡑࢀࡒࢀᕥഃࡢᅗࡀపಸ ⋡ࠊྑഃࡢᅗࡀ㧗ಸ⋡ࢆ♧ࡍࠋ ࡲࡎࠊ(b)ࠊ(f)ࡢヨᩱ࡛ࡣࠊ⾲㠃࡟ᚤ⢏Ꮚ≧ࡢࡶࡢࡀ௜╔ࡋ࡚࠸ࡿᵝᏊࡀ☜ㄆ࡛ࡁࡿࠋ(c)ࠊ (g)ࡢヨᩱ࡛ࡣࠊᚤ⢏Ꮚ≧ࡢࡶࡢࡀࠊࡉࡽ࡟ᐦᗘࡀ㧗ࡃ௜╔ࡋ࡚࠸ࡿᵝᏊࡀ☜ㄆ࡛ࡁࡿࠋ(d)ࠊ (h)ࡢヨᩱ࡛ࡣࠊฝพ࡜ࡋࡓ⭷ࡢࡼ࠺࡞ࡶࡢࡀᙧᡂࡋ࡚࠸ࡿᵝᏊࡀ☜ㄆ࡛ࡁࡿࠋ 11) 3.4.1 ࡢXPS  ᐃ⤖ᯝ࡜↷ࡽࡋྜࢃࡏࡿ࡜ࠊ⾲㠃࡟௜╔ࡋ࡚࠸ࡿࡶࡢࡣࠊAg࡛࠶ࡿ࡜⪃ ࠼ࡽࢀࡿࠋࡲࡓࠊࡇࢀࡽࡢSEM⏬ീ࠿ࡽ௜╔ࡋ࡚࠸ࡿ㖟ᚤ⢏Ꮚࡢࢧ࢖ࢬࡣࠊ◪㓟㖟ࡢ⃰ᗘ ࡟ᙉࡃ౫Ꮡࡋ࡚࠸ࡿࡇ࡜ࡀࢃ࠿ࡿࠋ 3.4.3 ⁐፹࡟ᑐࡍࡿぶ࿴ᛶ Fig. 3.9ࡣࠊSi⢊ᮎࢆ◪㓟㖟ࢆྵࡴHFỈ⁐ᾮ࡛ࢫࢸ࢖࢚ࣥࢵࢳࣥࢢࡋࡓヨᩱ࡜◪㓟ࢆྵ ࡴHFỈ⁐ᾮ࡛࢚ࢵࢳࣥࢢࡋࡓヨᩱࡢ⁐፹࡜ࡢぶ࿴ᛶࢆẚ㍑ࡋࡓ෗┿࡛࠶ࡿࠋᕥ࠿ࡽ◪㓟㖟 ࡛స〇ࡋࡓヨᩱࢆỈࠊ࢔ࢭࢺࣥࠊ࣓ࢱࣀ࣮ࣝࠊ ࢺࣜࢡ࢚ࣟࣟࢳࣞࣥ࡟ ศᩓࡉࡏࡓࡶࡢࠊ◪ 㓟࡛స〇ࡋࡓヨᩱࢆࠊࡑࢀࡒࢀࡢ⁐፹࡟ศᩓࡉࡏࡓࡶࡢ࡟࡞ࡿࠋ  ◪㓟࡛స〇ࡋࡓヨᩱࡣࠊ↓ᴟᛶ⁐፹࡛࠶ࡿࢺࣜࢡ࢚ࣟࣟࢳࣞࣥ࡟ࡣࡼࡃศᩓࡍࡿࡀࠊᴟ ᛶࢆᣢࡘ࢔ࢭࢺࣥ࡜࣓ࢱࣀ࣮࡛ࣝࡣⱝᖸ ศᩓ࡟೫ࡾࡀ࠶ࡿࡼ࠺࡟ぢ࠼ࡿࠋࡉࡽ࡟ᴟᛶࡢᙉ ࠸Ỉ࡛ࡣศᩓࡋ࡞࠸ࡇ࡜ࡀࢃ࠿ࡿ ࠋ୍᪉ࠊ◪㓟㖟࡛స〇ࡋࡓヨᩱࡣ࡝ࡢ⁐፹࡟ᑐࡋ࡚ࡶࡼ ࡃศᩓࡋ࡚࠸ࡿࡇ࡜ࡀࢃ࠿ࡿࠋ  ࡇࢀࡽࡢ⁐፹࡟ᑐࡍࡿぶ࿴ᛶࡢ㐪࠸ࡣࠊPSi⢊ᮎࡢ⾲㠃≧ែࡀస〇᪉ἲ࡟ࡼࡗ࡚␗࡞ࡗ࡚ ࠸ࡿࡓࡵ࡟⏕ࡌ࡚࠸ࡿ࡜⪃࠼ࡽࢀࡿࠋ  Figure 3.9

HNO

䠏

㻌

Ỉ㻌

䜰䝉䝖䞁㻌

䝯䝍䝜䞊䝹㻌

䝖䝸䜽䝻

AgNO

䠏

㻌

Ỉ㻌

䜰䝉䝖䞁㻌

䝯䝍䝜䞊䝹㻌

䝖䝸䜽䝻

3.4.4 PL ᐃ⤖ᯝ

Fig. 3.10ࡣࠊHF࡜AgNO₃ΰྜᾮ࡟࠾ࡅࡿᵝࠎ࡞◪㓟㖟⃰ᗘ࡛స〇ࡋࡓPSi⢊ᮎࡢPL 

ᐃ⤖ᯝ࡛࠶ࡿࠋᅗࡼࡾࠊ◪㓟㖟⃰ᗘࡀቑຍࡍࡿ࡟ࡘࢀ࡚Ⓨගᙉᗘࡀቑຍࡋࠊ9 g/L࡛᭱኱್ ࢆᣢࡘࡇ࡜ࢆ☜ㄆࡋࡓࠋࡲࡓࠊ◪㓟㖟ࡢ⃰ᗘࡀቑຍࡍࡿ࡟ࡘࢀ࡚ࠊⓎගࣆ࣮ࢡࡢࣈ࣮ࣝࢩ ࣇࢺࡀ☜ㄆ࡛ࡁࡿࠋ Fig. 3.11ࡣࠊFig. 3.10ࡢPLࢫ࣌ࢡࢺࣝࡢࣆ࣮ࢡᙉᗘࢆ◪㓟㖟ࡢ⃰ᗘ࡟ᑐࡋ࡚ࣉࣟࢵࢺࡋ ࡓࢢࣛࣇ࡛ࠊFig. 3.12ࡣࢫ࣌ࢡࢺࣝࡢࣆ࣮ࢡἼ㛗ࢆ◪㓟㖟ࡢ⃰ᗘ࡟ᑐࡋ࡚ࣉࣟࢵࢺࡋࡓࢢࣛ ࣇ࡛࠶ࡿࠋ Fig. 3.11࠿ࡽࠊ◪㓟㖟ࡢ⃰ᗘࡀ9 g/Lࢆ㐣ࡂࡓ࠶ࡓࡾ࠿ࡽⓎගᙉᗘࡀῶᑡࡋ࡚࠸ࡁ37g/L ࡛᏶඲࡟ᾘගࡍࡿᵝᏊࡀ☜ㄆ࡛ࡁࡿࠋࡋ࠿ࡋ࡞ࡀࡽࠊ ࡇࢀࡽࡢ ᙉᗘࡢ᭱኱್࡟࡞ࡿ◪㓟㖟 ࡢ⃰ᗘࡣࠊస〇᪥࡟ࡼࡗ࡚ࠊࡤࡽࡘࡁࢆぢࡏࡿࡇ࡜ࡀࢃ࠿ࡗࡓࠋࡇࢀࡣࠊస〇᪥ࡢ‵ᗘࡸ Ẽ ࡟ᙳ㡪ࡉࢀࡿ࡜⪃࠼ࡽࢀࡿࠋ ࡓࡔࡋࠊ᏶඲࡟ᾘගࡍࡿヨᩱࡣࠊస〇᪥࡟ࡼࡽࡎྠࡌ⃰ ᗘ࡜࡞ࡗࡓ ࠋࡇࡢࡇ࡜ࡣࠊస〇ࡉࢀࡓヨᩱࡢ≧ែࡣྠࡌ࡛࠶ࡿࡀࠊヨᩱࡢ཰⋡ࡀ␗࡞ࡿࡢ ࡛ࡣ࡞࠸࠿࡜⪃࠼ࡽࢀࡿࠋ Fig. 3.12࠿ࡽࡣࠊ◪㓟㖟ࡢ⃰ᗘࡀቑຍࡍࡿ࡟ࡘࢀ࡚Ⓨගࣆ࣮ࢡࡢࣈ࣮ࣝࢩࣇࢺࡀ☜ㄆ࡛ࡁ ࡿࠋ ࡇࢀࡽࡢ⤖ᯝࡣࠊᐃᛶⓗ࡟ࡣࠊ࣏࣮ࣛࢫࢩࣜࢥࣥࡢᏍࡢࢧ࢖ࢬࡢቑຍ࡟ࡼࡿࠊෆ㒊ࡢᚤ ⣽ᵓ㐀ࡢࢧ࢖ࢬࡢῶᑡࢆ཯ᫎࡋ࡚࠸ࡿ࡜⪃࠼ࡽࢀࡿࠋ

400

500

600

700

800

900

0

500

1000

1500

2000

2500

AgNO₃ concentration [g/L]

P

L

i

n

te

n

s

it

y

(

a

rb

.u

n

it

s

)

Wavelength (nm)

3 6 9 12 15 17 20 23 25 28 30 33 35 37

(a)

(b)

(

a

Figure 3.10 PL ᐃ⤖ᯝ Figure 3.11 ࣆ࣮ࢡᙉᗘࡢኚ໬

0

5

10

15

20

25

30

35

40

600

630

660

690

720

750

780

810

W

a

v

e

le

n

g

th

(

n

m

)

(g/L)

0

5

10

15

20

25

30

35

40

0

500

1000

1500

2000

2500

P

L

i

n

te

n

s

it

y

(

a

rb

.u

n

it

s

)

(g/L)

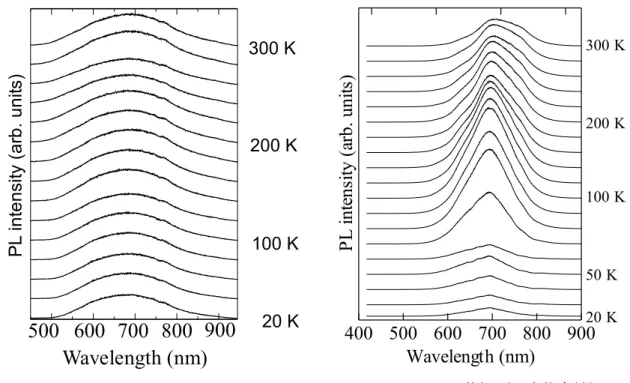

3.4.5 PL ᐃ⤖ᯝ㸦 ᗘ౫Ꮡᛶ㸧 Fig. 3.13ࡣ◪㓟㖟⃰ᗘ28 g/L࡛స〇ࡉࢀࡓPSi࡟࠾࠸࡚ࠊ ᗘࢆ20㹼300 K࡛ኚ໬ࡉࡏࡓ ࡜ࡁࡢPL ᐃ⤖ᯝࢆ♧ࡍࠋFig. 3.14ࡣࠊ௨๓ᙜ◊✲ᐊ࡛ሗ࿌ࡉࢀࡓ㝧ᴟ໬ᡂἲ࡛స〇ࡋࡓ PSiᇶᯈࡢ ᗘ౫Ꮡࡢࢫ࣌ࢡࢺࣝࢆ♧ࡍࠋヨᩱ࠿ࡽ50 K௨ୗ࡛≉ᚩⓗ࡞Ἴᙧࡀぢࡽࢀࡓࠋ Fig. 3.15ࡣࠊFig. 3.14ࡢ50 K௨ୗࡢࢫ࣌ࢡࢺࣝࢆᣑ኱ࡋࡓࡶࡢࢆ♧ࡍࠋ㝧ᴟ໬ᡂ࡛స〇ࡉ ࢀࡓヨᩱ࡛ࡣప ࡟࡞ࡿ࡟ࡘࢀ」ᩘࡢࢹ࢕ࢵࣉࢆ☜ㄆࡋࡓࠋࡇࢀࡣࠊPSi⭷࡟ࡼࡿගࡢᖸ΅ ࡸࠊPSi⾲㠃ࡢ྾╔≀㉁ࡀᙳ㡪ࡋ࡚࠸ࡿ࡜⪃࠼ࡽࢀࡿࠋࡋ࠿ࡋ࡞ࡀࡽࠊPSi⢊ᮎ࡛ࡣ ᗘኚ ໬࡟ࡼࡿ≉ᚩⓗ࡞ኚ໬ࡣ☜ㄆࡉࢀ࡞࠿ࡗࡓࠋࡇࡢཎᅉ࡟ࡘ࠸࡚ࡣ୙᫂࡞ࡓࡵࠊࡼࡾヲ⣽࡞ ᐇ㦂ࡀᚲせ࡛࠶ࡿࠋFig. 3.16ࡣࠊࣆ࣮ࢡᙉᗘࢆ ᗘ࡟ᑐࡋ࡚ࣉࣟࢵࢺࡋࡓᅗ࡛࠶ࡿࠋFig. 3.17 ࡣࠊࣆ࣮ࢡἼ㛗ࢆ ᗘ࡟ᑐࡋ࡚ࣉࣟࢵࢺࡋࡓᅗ࡛࠶ࡿࠋFig. 3.16࠿ࡽ ᗘࡀప ࡟࡞ࡿ࡟ࡘ ࢀࠊⓎගᙉᗘࡀቑຍࡋ࡚࠸ࡿᵝᏊࡀ☜ㄆ࡛ࡁࡿࠋ Figure 3.13 PSi⢊ᮎ㸦 ᗘ౫Ꮡᛶ㸧

Wavelength (nm)

20 K

300 K

100 K

900

800

700

600

500

P

L

i

n

te

n

si

ty

(a

rb

.

u

n

it

s)

200 K

400 500 600 700 800 900

300 K 200 K 100 K 20 K

Wavelength (nm)

P

L

i

nt

ens

it

y (

ar

b

. uni

ts

)

50 K Figure 3.14 PSiᇶᯈ㸦 ᗘ౫Ꮡᛶ㸧

0 50 100 150 200 250 300 670 675 680 685 690 695 700

W

a

v

e

le

n

g

th

(

n

m

)

0 50 100 150 200 250 300 1600 1800 2000 2200 2400 2600 2800 3000

P

L

i

n

te

n

s

it

y

(

a

rb

.u

n

it

s

)

Temperature (K)

Figure 3.16 ࣆ࣮ࢡᙉᗘ

115 110 105 100 95 AgNO₃ HNO₃

In

te

n

si

ty

(a

rb

.

u

n

its)

Binding energy (eV)

9 g/L

20 g/L

30 g/L

SiO2 Si Si-Ag 400 500 600 700 800 900 AgNO₃ HNO 3

P

L

i

n

te

n

s

it

y

(

n

o

rm

a

li

z

e

d

)

Wavelength (nm)

9 g/L

20 g/L

30 g/L

㽢

1.4

㽢

1.6

㽢

1.6

3.4.6 PL ᐃ⤖ᯝ㸦Ag㝖ཤ㸧  Fig. 3.18ࡣࠊ㓟໬๣ࡢ◪㓟㖟⃰ᗘࢆࡑࢀࡒࢀ9 g/L, 20 g/L, 30 g/L, ࡜ࡋ࡚స〇ࡋࡓࡶࡢ࡜ࠊ స〇ᚋ◪㓟࡟ₕࡅ㖟ࢆ㝖ཤࡋࡓࡶࡢࡢPLࢫ࣌ࢡࢺࣝࢆẚ㍑ࡋࡓᅗ࡟࡞ࡿࠋᅗࡼࡾ㖟ࢆ㝖ཤ ࡋࡓᚋࡢヨᩱࡢ᪉ࡀࠊⓎගᙉᗘࡀᙉࡃࢫ࣌ࢡࢺࣝࡀࣈ࣮ࣝࢩࣇࢺࡋ࡚࠸ࡿࡢࡀ☜ㄆ࡛ࡁࡿࠋ  Fig. 3.19ࡣࠊFig. 3.18ࡢヨᩱࡢXPS ᐃ⤖ᯝ࡟࡞ࡿࠋᅗ࠿ࡽࠊSiO₂ࡢ㔞ࡀ㖟㝖ཤ๓࡜㝖

ཤᚋ࡛ࠊቑຍࡋ࡚࠸ࡿࡢࡀ☜ㄆ࡛ࡁࡿࠋࡇࡢ⤖ᯝࡼࡾPLࢫ࣌ࢡࢺࣝࡢࣈ࣮ࣝࢩࣇࢺࡣࠊ㓟 ໬⭷ࡢቑຍࡀࠊᐤ୚ࡋ࡚࠸ࡿ࡜⪃࠼ࡽࢀࡿࠋࡲࡓࠊFig. 3.19࡟ぢࡽࢀࡿ99 eV௜㏆ࡢࣆ࣮ࢡ ࡣᩥ⊩ࡼࡾSi-Ag࡛࠶ࡿ࡜⪃࠼ࡽࢀࡿࠋ 12) Figure 3.18 PL ᐃẚ㍑ Figure 3.19 XPS ᐃẚ㍑

3.4.7 PL ᐃ⤖ᯝ㸦⣸እග↷ᑕ᫬㛫౫Ꮡᛶ㸧

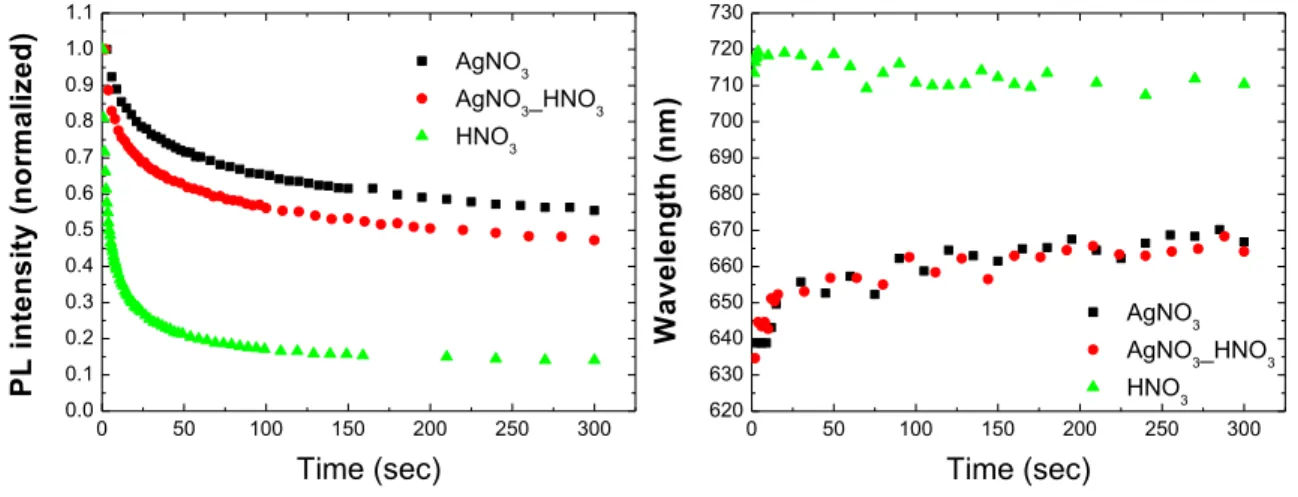

Fig. 3.20ࡣࠊస〇ࡋࡓヨᩱ࡟⣸እග㸦He-Cd࣮ࣞࢨ࣮㸧325 nmࢆ↷ᑕࡋࠊPLࢫ࣌ࢡࢺࣝ ࡢࣆ࣮ࢡᙉᗘࢆᶓ㍈᫬㛫࡟ᑐࡋ࡚ࣉࣟࢵࢺࡋࡓࢢࣛࣇ࡛࠶ࡿࠋ ࡓࡔࡋࠊගࢆ↷ᑕࡋ࡚࠸࡞ ࠸≧ែࡢᙉᗘ࡛つ᱁໬ࢆ⾜ࡗࡓࠋFig. 3.21ࡣࠊࣆ࣮ࢡἼ㛗ࢆᶓ㍈᫬㛫࡟ᑐࡋ࡚ࣉࣟࢵࢺࡋࡓ ࢢࣛࣇ࡛࠶ࡿࠋ

Fig. 3.20ࡢHe-Cd࣮ࣞࢨ࣮ࢆ↷ᑕࡋ࡚࠿ࡽ25 secࡲ࡛ࡢࢢࣛࣇ࡟ὀ┠ࡍࡿ࡜ࠊ◪㓟㖟࡛ స〇ࡋࡓヨᩱࡣࠊ◪㓟࡛స〇ࡋࡓヨᩱ࡟ẚ࡭ᙉᗘࡢῶᑡࡀ⦆ࡸ࠿࡞ࡢࡀࢃ࠿ࡿࠋࡲࡓࠊ25 sec ࠿ࡽ300 secࡲ࡛ࡢ⤒㐣᫬㛫ࢆẚ㍑ࡍࡿ࡜ࠊ඲࡚ࡢヨᩱࡀྠࡌࡼ࠺࡟ῶᑡࡋ㣬࿴࡟ྥ࠿ࡗ࡚ ࠸ࡿᵝᏊࡀ☜ㄆ࡛ࡁࡿࠋ⣸እග↷ᑕ᫬㛫ࡢቑຍ࡟క࠸ࠊPLᙉᗘࡀῶᑡࡍࡿࡢࡣࠊගࢆ↷ᑕ ࡍࡿࡇ࡜࡟ࡼࡗ࡚ࠊ⾲㠃ࡢỈ⣲ཎᏊࡀኻࢃࢀࠊ 13) ྠ᫬࡟⾲㠃ࡢ㓟໬ࡀಁ㐍ࡉࢀࡿࡇ࡜࡟ࡼࡿ PSi ⾲㠃࡜㓟໬⭷ࡢ⏺㠃࡟㠀Ⓨග୰ᚰࡀ⏕ᡂࡉࢀ࡚࠸ࡿࡓࡵ࡛࠶ࡿ࡜⪃࠼ࡽࢀࡿࠋ 14) ࡲࡓࠊ ◪㓟㖟࡛స〇ࡋࡓヨᩱࡀࠊ◪㓟࡛స〇ࡋࡓヨᩱࡼࡾࡶ࣮ࣞࢨ࣮࡟ࡼࡿຎ໬ࡀᑡ࡞࠸ࡢࡣࠊ ◪㓟㖟࡛స〇ࡋࡓヨᩱ࡟ࡣࠊከᏍ㉁ࢩࣜࢥࣥ⾲㠃࡟Si-H࡟㍑࡭࡚Ᏻᐃ࡞Si-Ag⤖ྜࡀᏑᅾ ࡋ࡚࠸ࡿࡓࡵ࡜⪃࠼ࡽࢀࡿࠋ 15) Fig.3.21ࡼࡾࠊ◪㓟࡛స〇ࡋࡓヨᩱࡣⱝᖸࡢࣈ࣮ࣝࢩࣇࢺࡋ ࡚࠸ࡿࡢ࡟ᑐࡋࠊ◪㓟㖟࡛స〇ࡋࡓヨᩱࡣ஧ࡘ࡜ࡶࣞࢵࢻࢩࣇࢺࡋ࡚࠸ࡿ⤖ᯝ࡟࡞ࡗࡓࠋ Figure 3.20 PLࣆ࣮ࢡᙉᗘẚ㍑ Figure 3.21 PLࣆ࣮ࢡἼ㛗ẚ㍑ 0 50 100 150 200 250 300 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 AgNO₃ AgNO 3_HNO3 HNO₃ P L i n te n s it y ( n o rm a li z e d ) Time (sec) 0 50 100 150 200 250 300 620 630 640 650 660 670 680 690 700 710 720 730 AgNO₃ AgNO₃_HNO₃ HNO₃ W a v e le n g th ( n m ) Time (sec)

3.4.8 ᣑᩓ཯ᑕ ᐃ⤖ᯝ Fig. 3.22 ࡣࠊ཯ᑕ⋡ ᐃ⤖ᯝࡢࢫ࣌ࢡࢺࣝࢆ♧ࡍࠋ୍␒ୖࡢࢫ࣌ࢡࢺࣝࡣࠊ◪㓟㖟⃰ᗘ 37 g/Lࡢヨᩱࢆ✵Ẽ୰࡛ ᐃࡋࡓࢫ࣌ࢡࢺ࡛ࣝ࠶ࡿࠋ400 nm௜㏆࡟ࠊ཯ᑕ⋡ࡢพࡳࡀぢࡽ ࢀࡿࠋ Fig. 3.23ࡣࠊᩥ⊩࡟ሗ࿌ࡉࢀࡓ⾲㠃ࡀࢫ࣒࣮ࢫ࡞㖟ⷧ⭷࡜ࣛࣇࢿࢫࡢ࠶ࡿ㖟ࡢ཯ᑕࢫ࣌ࢡ ࢺ࡛ࣝ࠶ࡿࠋ 16) ࣛࣇࢿࢫࡢ࠶ࡿ㖟ⷧ⭷࡟ࡣࠊ400 nm௜㏆࡟཯ᑕ⋡ࡢพࡳࡀぢࡽࢀࠊࡇࢀࡣ 㖟ⷧ⭷ࡢ⾲㠃ࣉࣛࢬࣔࣥඹ㬆࡟ࡼࡿ྾཰࡜⪃࠼ࡽࢀ࡚࠸ࡿࠋᮏ◊✲࡛ࠊ37 g/Lࡢヨᩱ࡟ほ  ࡉࢀࡓพࡳࡀࠊ⾲㠃ࣉࣛࢬࣔࣥ࡟ࡼࡿ྾཰࠿࡝࠺࠿ࢆ☜࠿ࡵࡿࡓࡵࠊỈ୰࡛ࡢ཯ᑕ⋡ࢆ  ᐃࡋࡓࠋୖ࠿ࡽ஧␒┠ࡢࢫ࣌ࢡࢺࣝࡀࠊỈ୰࡛ࡢ཯ᑕ⋡ࡢࢫ࣌ࢡࢺࣝࢆ♧ࡍࠋᅗࡼࡾࠊ✵ Ẽ୰࡜ẚ㍑ࡋ࡚ࠊพࡳࡀ㛗Ἴ㛗ഃ࡟ࢩࣇࢺࡋ࡚࠸ࡿࡇ࡜ࡀ☜ㄆ࡛ࡁࡿࠋ ⾲㠃ࣉࣛࢬࣔࣥ࡟ࡼࡿ྾཰ࡢࠊඹ㬆Ἴ㛗ࡣࠊ௨ୗࡢᘧ࡛୚࠼ࡽࢀࡿࠋ 17)                                      (3-1) ࡇࡇ࡛ࠊ sp w ࡣ⾲㠃ࣉࣛࢬࣔࣥࡢඹ㬆࿘Ἴᩘࠊ p w ࡣࣉࣛࢬ࣐࿘Ἴᩘࠊemࡣ፹㉁ࡢㄏ㟁⋡࡛ ࠶ࡿࠋࡇࡢᘧ࡛⾲ࡉࢀࡿࡼ࠺࡟ࠊ࿘ࡾࡢ፹㉁ࡢㄏ㟁⋡࡟౫Ꮡࡋࠊㄏ㟁⋡ࡀ㧗ࡃ࡞ࡿ࡜ࠊ ⾲ 㠃ࣉࣛࢬࣔࣥࡢඹ㬆୍ࡣࠊప࢚ࢿࣝࢠ࣮ഃ࡟ࢩࣇࢺࡍࡿࠋࡇࢀࡣࠊほ ࡉࢀࡓพࡳࡢἼ㛗 ࡢኚ໬࡜୍⮴ࡋ࡚࠸ࡿࡢ࡛ࠊࡇࡢพࡳࡣࠊ⾲㠃࡟ᯒฟࡋࡓ㖟ᚤ⢏Ꮚࡢ⾲㠃ࣉࣛࢬࣔࣥ࡟ࡼ ࡿ྾཰࡜⪃࠼ࡽࢀࡿࠋࡲࡓࠊ⾲㠃ࣉࣛࢬࣔࣥࡢ྾཰ࡀ㉳ࡁࡿἼ㛗ࡣ௨ୗࡢᘧ sp R D ࡛୚࠼ࡽ ࢀࡿࠋ 16) (3-2) ࡇࡇ࡛ࠊ

d

ࡣࣛࣇࢿࢫࡢ஧஌್ࠊ 1

e

ࡣ㔠ᒓࡢㄏ㟁⋡ࠊg(k)ࡣࠊ⾲㠃ࣛࣇࢿࢫࡢ⮬ᕫ┦㛵㛵 ᩘࡢ஧ḟඖࣇ࣮࢚ࣜኚ᥮࡛࠶ࡿࠋ 16) (3-3) ◪㓟㖟ࡢ⃰ᗘࡀቑຍࡍࡿ࡟ࡘࢀ࡚ࠊพࡳࡢἼ㛗ࡀࠊ㛗Ἴ㛗ഃ࡟ࢩࣇࢺࡋ࡚࠸ࡿࠋࡇࢀࡣࠊ ᘧ㸦3-2㸧࡛⾲ࢃࡉࢀࡿࡼ࠺࡟⾲㠃࡟௜╔ࡋࡓ㖟ᚤ⢏Ꮚࡢࢧ࢖ࢬࡢኚ໬ࡀᙳ㡪ࡋ࡚࠸ࡿࡢ࡛ ࡣ࡞࠸࠿࡜⪃࠼ࡽࢀࡿࠋ m p sp

e

w

w

+

=

1

(

)

[

]

_ú

ú

ú

û

ù

ê

ê

ê

ë

é

÷÷

ø

ö

çç

è

æ

+

+

-÷

ø

ö

ç

è

æ

=

D

2 1 1 2 5 1 2 1 4 2

1

1

1

e

w

e

e

w

d

c

g

c

R

_sp

ú

ú

ú

û

ù

ê

ê

ê

ë

é

÷÷

ø

ö

çç

è

æ

+

=

2 1 1

1

1

)

(

e

w

c

g

k

g

300

400

500

600

700

800

0

10

20

30

40

50

Si powder 37 (g/L) in air 37 (g/L) in water 33 (g/L) 17 (g/L) 6 (g/L)

R

e

fl

e

c

ta

n

c

e

(%

)

Wavelength (nm)

Figure 3.22 ྾཰ ᐃ⤖ᯝ
