Title

Efficient low-order scaling method for

large-scale electronic structure calculations with

localized basis functions

Author(s)

Ozaki, Taisuke

Citation

Physical Review B, 82(7): 075131-1-075131-17

Issue Date

2010-08-20

Type

Journal Article

Text version

publisher

URL

http://hdl.handle.net/10119/10833

Rights

Taisuke Ozaki, Physical Review B, 82(7), 2010,

075131. Copyright 2010 by the American Physical

Society.

http://dx.doi.org/10.1103/PhysRevB.82.075131

Description

Efficient low-order scaling method for large-scale electronic structure calculations

with localized basis functions

Taisuke Ozaki

Research Center for Integrated Science (RCIS), Japan Advanced Institute of Science and Technology (JAIST), 1-1 Asahidai, Nomi, Ishikawa 923-1292, Japan

共Received 9 May 2010; revised manuscript received 5 July 2010; published 20 August 2010兲 An efficient low-order scaling method is presented for large-scale electronic structure calculations based on the density-functional theory using localized basis functions, which directly computes selected elements of the density matrix by a contour integration of the Green’s function evaluated with a nested dissection approach for resultant sparse matrices. The computational effort of the method scales as O关N共log2N兲2兴, O共N2兲, and O共N7/3兲

for one-, two-, and three-dimensional systems, respectively, where N is the number of basis functions. Unlike O共N兲 methods developed so far the approach is a numerically exact alternative to conventional O共N3_兲

diago-nalization schemes in spite of the low-order scaling, and can be applicable to not only insulating but also metallic systems in a single framework. It is also demonstrated that the well separated data structure is suitable for the massively parallel computation, which enables us to extend the applicability of density-functional calculations for large-scale systems together with the low-order scaling.

DOI:10.1103/PhysRevB.82.075131 PACS number共s兲: 71.15.Mb, 71.15.Nc

I. INTRODUCTION

During the last three decades continuous efforts1–29 _have

been devoted to extend applicability of the density-functional theory共DFT兲 共Refs.30and31兲 to large-scale systems, which

leads to realization of more realistic simulations being close to experimental conditions. In fact, lots of large-scale DFT calculations have already contributed for comprehensive un-derstanding of a vast range of materials,32–37_{although widely}

used functionals such as local-density approximation共LDA兲 共Ref. 38兲 and generalized gradient approximation 共GGA兲

共Ref. 39兲 have limitation in describing strong correlation in

transition-metal oxides and van der Waals interaction in biological systems.

The efficient methods developed so far within the conven-tional DFT can be classified into two categories in terms of computational complexity1–26 _{while the other methods,}

which deviate from the classification, have been also proposed.27–29 _{The first category consists of O共N}3_兲 methods,1–10 _{where N is the number of basis functions, as}

typified by the Householder-QR method,9,10 _{the conjugate}

gradient method,2,6,7 _{and the Pulay method,}4,5 _{which have}

currently become standard methods. The methods can be re-garded as numerically exact methods, and the computational cost scales as O共N3_{兲 even if only valence states are} calcu-lated because of the orthonormalization process. On the other hand, the second category involves approximate O共N兲 meth-ods such as the density-matrix methmeth-ods,19–21 _{the orbital}

minimization methods,18,23 _{and the Krylov subspace}

methods14–17,25 of which computational cost is proportional to the number of basis functions N. The linear scaling of the computational effort in the O共N兲 methods can be achieved by introducing various approximations like the truncation of the density matrix19 _{or Wannier functions}18,23 _{in real space.}

Al-though the O共N兲 methods have been proven to be very effi-cient, the applications must be performed with careful con-sideration due to the introduction of the approximations, which might be one of reasons that the O共N兲 methods have

not been widely used compared to the O共N3_{兲 methods. From} the above reason one may think of whether a numerically exact but low-order scaling method can be developed by utilizing the resultant sparse structure of the Hamiltonian and overlap matrices expressed by localized basis functions. Re-cently, a direction toward the development of O共N2⬃兲 meth-ods has been suggested by Lin et al.40 _{in which diagonal}

elements of the density matrix is computed by a contour integration of the Green’s function calculated by making full use of the sparse structure of the matrix. Also, efficient schemes have been developed to calculate certain elements of the Green’s function for electronic transport calculations,41,42_{which are based on the algorithm by}

Taka-hashi et al.43_{and Erisman and Tinney.}44_{However, except for}

the methods mentioned above the development of numeri-cally exact O共N2⬃_{兲 methods, which are positioned in} be-tween the O共N兲 and O共N3_{兲 methods, has been rarely} explored yet for large-scale DFT calculations.45

In this paper we present a numerically exact but low-order scaling method for large-scale DFT calculations of insulators and metals using localized basis functions such as pseudo-atomic orbital 共PAO兲,46 _{finite element 共FE兲,}47 _{and wavelet}

basis functions.48 _{The computational effort of the method}

scales as O关N共log₂N兲2_{兴, O共N}2_{兲, and O共N}7/3_{兲 for one-, two-,} and three-dimensional 共1D, 2D, and 3D兲 systems, respec-tively. In spite of the low-order scaling, the method is a nu-merically exact alternative to the conventional O共N3_兲 meth-ods. The key idea of the method is to directly compute selected elements of the density matrix by a contour integra-tion of the Green’s funcintegra-tion evaluated with a set of recur-rence formulas. It is shown that a contour integration method based on a continued fraction representation of the Fermi-Dirac function49 _{can be successfully employed for the}

pur-pose, and that the number of poles used in the contour inte-gration does not depend on the size of the system. We also derive a set of recurrence formulas based on the nested dissection50_{of the sparse matrix and a block LDL}T

factoriza-tion using the Schur complement10_{to calculate selected}

ments of the Green’s function. The computational complex-ity is governed by the calculation of the Green’s function. In addition to the low-order scaling, the method can be particu-larly advantageous to the massively parallel computation be-cause of the well separated data structure.

This paper is organized as follows: in Sec.IIthe theory of the proposed method is presented together with detailed analysis of the computational complexity. In Sec.IIIseveral numerical calculations are shown to illustrate practical as-pects of the method within a model Hamiltonian and DFT calculations using the PAO basis functions. In Sec. IV we summarize the theory and applicability of the numerically exact but low-order scaling method.

II. THEORY A. Density-matrix approach

Let us assume that the Kohn-Sham 共KS兲 orbital ␾_␯ is expressed by a linear combination of localized basis func-tions兵␹其 such as PAO,46_FE,47_{and wavelet basis functions}48

as

␾␯共r兲 =

兺

i=1 N

c_␯i␹i共r兲, 共1兲

where N is the number of basis functions. Throughout the paper, we consider the spin restricted and k-independent KS orbitals for simplicity of notation. However, the generaliza-tion of our discussion for these cases is straightforward. By introducing LDA or GGA for the exchange-correlation func-tional, the KS equation is written in a sparse matrix form

Hc_␯=␧_␯Sc_␯, 共2兲

where␧_␯is the eigenvalue of state␯, c_␯a vector consisting of coefficients 兵c_␯i其, and H and S are the Hamiltonian and overlap matrices, respectively. Due to both the locality of basis functions and LDA or GGA for the exchange-correlation functional, both the matrices possess the same sparse structure. It is also noted that the charge density n共r兲 can be calculated by the density matrix␳,

n共r兲 =

兺

i,j

␳ij␹j共r兲␹i共r兲. 共3兲

By remembering that ␹ is localized in real space, one may notice that the product ␹i␹j is nonzero only if they are

closely located each other. Thus, the number of elements in the density matrix required to calculate the charge-density scales as O共N兲. As well as the calculation of the charge den-sity, the total energy is computed by only the corresponding elements of the density matrix within the conventional DFT as

Etot关n,␳兴 = Tr共␳Hkin兲 +

冕

drn共r兲vext共r兲 +

冕冕

drdr

⬘

n共r兲n共r

⬘

兲

兩r − r

⬘

兩 + Exc关n兴, 共4兲 where Hkin is the matrix for the kinetic operator,vextan

ex-ternal potential, and E_xcan exchange-correlation functional. Since the matrix Hkinpossesses the same sparse structure as that of S, one may find an alternative way that the selected elements of the density matrix, corresponding to the nonzero products ␹i␹j, are directly computed without evaluating the

KS orbitals. The alternative way enables us to avoid an or-thogonalization process such as Gram-Schmidt method for the KS orbitals, of which computational effort scales as O共N3_{兲 even if only the occupied states are taken into} ac-count. The direct evaluation of the selected elements in the density matrix is the starting point of the method proposed in the paper. In this sense, the low-order scaling method is simi-lar to O共N兲 Green’s-function methods such as recursion and bond-order potential methods14–16_{while the Green’s function}

is approximately evaluated in these O共N兲 methods. The den-sity matrix ␳can be calculated through the Green’s function

G as follows: ␳= − 2 ␲Im

冕

−⬁ ⬁ dEG共E + i0+兲f

冉

E −␮ kBT

冊

, 共5兲

where the factor 2 is due to the spin degeneracy, f the Fermi-Dirac function, ␮ chemical potential, T electronic tempera-ture, k_Bthe Boltzmann factor, and 0+_{a positive infinitesimal.} Also the matrix expression of the Green’s function is given by

G共Z兲 = 共ZS − H兲−1, 共6兲 where Z is a complex number. Therefore, from Eqs. 共5兲 and

共6兲, our problem is cast to two issues: 共i兲 how the integration

of the Green’s function can be efficiently performed and共ii兲 how the selected elements of the Green’s function in the matrix form can be efficiently evaluated. In the subsequent sections we discuss the two issues in detail.

B. Contour integration of the Green’s function We perform the integration of the Green’s function, Eq. 共5兲, by a contour integration method using a continued

frac-tion representafrac-tion of the Fermi-Dirac funcfrac-tion.49_{In the}

con-tour integration the Fermi-Dirac function is expressed by

1 1 + exp共x兲= 1 2− x 4 1 +

冉

x 2

冊

2 3 +

冉

x 2

冊

2 5 +

冉

x 2

冊

2 ¯ 共2M − 1兲+
=1 2+_p=1

兺

⬁ Rp x − izp +

兺

p=1 ⬁ Rp x + izp , 共7兲 where x =␤共Z−␮兲 with ␤=_k1

BT, zp, and Rp are poles of the

respectively. The representation of the Fermi-Dirac function is derived from a hypergeometric function and can be re-garded as a Padé approximant when terminated at the finite continued fraction. The poles zpand residues Rpcan be

eas-ily obtained by solving an eigenvalue problem as shown in Ref.49. By making use of the expression of Eq.共7兲 for Eq.

共5兲 and considering the contour integration, one obtain the

following expression for the integration of Eq.共5兲: ␳= M共0兲+ Im

冋

−4i ␤

兺

p=1 ⬁ G共␣p兲Rp

册

, 共8兲 where␣p=␮+ i zp

␤ and M共0兲is the zeroth-order moment of the Green’s function which can be computed by iRdG共iRd兲 with

a large real number Rdof 1010 hartree. The structure of the

poles distribution, that all the poles are located on the imagi-nary axis like the Matsubara pole but the density of the poles becomes smaller as the poles go away from the real axis, has been found to be very effective for the efficient integration of Eq.共5兲. It has been shown that only the use of the 100 poles

at 600 K gives numerically exact results within double precision.49_{Thus, the contour integration method can be}

re-garded as a numerically exact method even if the summation is terminated at a practically modest number of poles.

Moreover, it should be noted that the number of poles to achieve convergence is independent of the size of system. Giving the Green’s function in the Lehmann representation, Eq. 共8兲 can be rewritten by

␳= M共0兲+ Im

冉

−4i ␤

兺

p=1 ⬁

兺

␯ 兩␾␯典具␾␯兩 ␣p−␧␯ Rp

冊

= M共0兲+

兺

␯ Im

冉

−4i ␤p=1

兺

⬁ _兩 ␾␯典具␾␯兩 ␣p−␧␯ Rp

冊

. 共9兲

Although the expression in the second line is obtained by just exchanging the order of the two summations, the expres-sion clearly shows that the number of poles for convergence does not depend on the size of system if the spectrum radius is independent of the size of system. Since the independence of the spectrum radius can be found in general cases, it can be concluded that the computational effort is determined by that for the calculation of the Green’s function.

The energy density matrix e, which is needed to calculate forces on atoms within nonorthogonal localized basis func-tions, can also be calculated by the contour integration method49 _{as follows:} e = − 2 ␲Im

冕

−⬁ ⬁ dEEG共E + i0+兲f

冉

E −␮ kBT

冊

, = M共1兲+␬M共0兲+ Im

冋

−4i ␤

兺

p=1 ⬁ G共␣p兲Rp␣p

册

共10兲 with␬defined by ␬= 4 ␤

兺

p=1 ⬁ Rp, 共11兲

where M共0兲and M共1兲are the zeroth- and first-order moments of the Green’s function, and can be computed by solving the following simultaneous linear equation:

冉

1 z₀−1 1 z₁−1

冊冉

M共0兲 M共1兲

冊

=

冉

z0G共z0兲 z₁G共z₁兲

冊

. 共12兲

The equation is derived by terminating the summation over the order of the moments in the moment representation of the Green’s function. By letting z0 and z1 be iRe

2

and iRe,51 re-spectively, M共0兲and M共1兲are explicitly given by

M共0兲= iRe Re− 1 关Re 2 G共iR_e2兲 − G共iRe兲兴, 共13兲 M共1兲= Re 3 R_e− 1关ReG共iRe 2_{兲 − G共iR} e兲兴, 共14兲 where R_e should be a large real number and 107 _{hartree is} used in this study so that the higher order terms can be neg-ligible in terminating the summation in the moment repre-sentation of the Green’s function. Inserting Eqs. 共13兲 and

共14兲 into Eq. 共10兲, we obtain the following expression which

is suitable for the efficient implementation in terms of memory consumption: e =␭G共iR_e2兲 +␥G共iRe兲 + Im

冋

− 4i ␤

兺

p=1 ⬁ G共␣p兲Rp␣p

册

共15兲 with␭ and␥ defined by

␭ = Re 3 Re− 1 共Re+ i␬兲, 共16兲 ␥= − Re R_e− 1共Re 2_{+ i␬兲. 共17兲} One may notice that the number of poles for convergence does not depend on the size of system even for the calcula-tion of the energy density matrix because of the same reason as for the density matrix.

C. Calculation of the Green’s function

It is found from the above discussion that the computa-tional effort to compute the density matrix is governed by that for the calculation of the Green’s function, consisting of an inversion of the sparse matrix of which computational effort by conventional schemes such as the Gauss elimina-tion or LU factorizaelimina-tion-based methods scales as O共N3_兲. Thus, the development of an efficient method of inverting a sparse matrix is crucial for efficiency of the proposed method.

Here we present an efficient low-order scaling method, based on a nested dissection approach,50 of computing only

selected elements in the inverse of a sparse matrix. The low-order scaling method proposed here consists of two steps:共1兲

nested dissection: by noting that a matrix X⬅共ZS−H兲 is

sparse, a structured matrix is constructed by a nested dissec-tion approach. In practice, just reordering the column and row indices of the matrix X yields the structured matrix.共2兲

Inverse by recurrence formulas: by recursively applying a

block LDLT_{factorization}10_{to the structured matrix, a set of}

recurrence formulas is derived. Using the recurrence formu-las, only the selected elements of the inverse matrix X−1 ⬅G共Z兲 are directly computed. The computational effort to calculate the selected elements in the inverse matrix using the steps 共i兲 and 共ii兲 scales as O关N共log2N兲2兴, O共N2兲, and O共N7/3_{兲 for 1D, 2D, and 3D systems, respectively, as shown} later. First, we discuss the nested dissection of a sparse ma-trix, and then derive a set of recurrence formulas of calculat-ing the selected elements of the inverse matrix.

1. Nested dissection

As an example the right panel of Fig.1共c兲shows a struc-tured matrix obtained by the nested dissection approach for a finite chain model consisting of ten atoms, where we con-sider a s-valent nearest-neighbor tight-binding 共NNTB兲 model. When one assigns the number to the ten atoms as shown in the left panel of Fig.1共a兲, then X is a tridiagonal matrix, of which diagonal and off-diagonal terms are as-sumed to be a and b, respectively, as shown in the right panel of Fig.1共a兲. As the first step to generate the structured matrix shown in the right panel of Fig.1共c兲, we make a dissection of the system into the left and right domains52_{by renumbering}

for the ten atoms, and obtain a dissected matrix shown in the right panel of Fig. 1共b兲. The left and right domains interact with each other through only a separator consisting of an atom 10. As the second step we apply a similar dissection for each domain generated by the first step, and arrive at a

nested-dissected matrix given by the right panel of Fig.1共c兲. The subdomains, which consist of atoms 1 and 2 and atoms 3 and 4, respectively, in the left domain interact with each other through only a separator consisting of an atom 5. The similar structure is also found in the right domain consisting of atoms 6, 7, 9, and 8. It is worth mentioning that the re-sultant nested structure of the sparse matrix can be mapped to a binary tree structure which indicates hierarchical inter-actions between共sub兲domains as shown in Fig.1共d兲. By ap-plying the above procedure to a sparse matrix, one can con-vert any sparse matrix into a nested and dissected matrix in general. However in practice there is no obvious way to per-form the nested dissection for general sparse matrices while a lot of efficient and effective methods have been already developed for the purpose.53,54 Here we propose a rather simple but effective way for the nested dissection by taking account of a fact that the basis function we are interested in is localized in real space, and that the sparse structure of the resultant matrix is very closely related to the position of basis functions in real space. The method bisects a system into two domains interacting through only a separator, and recursively applies to the resultant subdomains, leading to a binary tree structure for the interaction. Our algorithm for the

nested dissection of a general sparse matrix is summarized as follows.

共i兲 Ordering. Let us assume that there are Nd basis

func-tions in a domain we are interested in. We order the basis functions in the domain by using the fractional coordinate for the central position of localized basis functions along aiaxis,

where i = 1, 2, and 3. As a result of the ordering, each basis function can be specified by the ordering number, which runs from 1 to Ndin the domain of the central unit cell. The

ordering number in the periodic cells specified by lai, where

l = 0 ,⫾1, ⫾2,..., is given by lNd+ q, where q is the

corre-sponding ordering number in the central cell. In isolated sys-tems, one can use the Cartesian coordinate instead of the fractional coordinate without losing any generality.

共ii兲 Screening of basis functions with a long tail. The basis functions with a long tail tend to make an efficient dissection

1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 10 6 7 8 9 1 2 5 3 4 10 6 7 9 8 a a a a a a a a a a a a a a a a a a a a b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b b (a) (c) (b)

1

3 4

6 7

8

5

9

10

(d) a a a a a a a a a a b b b b b b b b b b b b b b b b b b

2

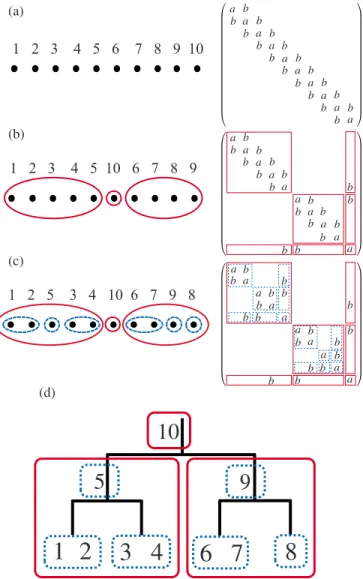

FIG. 1. 共Color online兲 共a兲 The initial numbering for atoms in a linear-chain molecule consisting of ten atoms described by the

s-valent NNTB and its corresponding matrix, 共b兲 the renumbering

for atoms by the first step in the nested dissection and its corre-sponding matrix,共c兲 the renumbering for atoms by the second step in the nested dissection and its corresponding matrix, and 共d兲 the binary tree structure representing hierarchical interactions between domains in the structured matrix by the numbering shown in共c兲.

difficult. The sparse structure formed by the other basis func-tions with a short tail hides behind the dense structure caused by the basis functions with a long tail. Thus, we classify the basis functions with a long tail in the domain as members in the separator before performing the dissection process. By the screening of the basis functions with a long tail, it is possible to expose concealed sparse structure when atomic basis functions with a variety of tails are used while a sys-tematic basis set such as the FE basis functions may not require the screening.

共iii兲 Finding of a starting nucleus. Among the localized basis functions in the domain, we search a basis function which has the smallest number of nonzero overlap with the other basis functions. Once the basis function is found, we set it as a starting nucleus of a subdomain.

共iv兲 Growth of the nucleus. Staring from a subdomain 共nucleus兲 given by the procedure 共iii兲, we grow the subdo-main by increasing the size of nucleus step by step. The growth of the nucleus can be easily performed by managing the minimum and maximum ordering numbers, mmin and

mmax, which ranges from 1 to Nd, and the grown subdomain

is defined by basis functions with the successive ordering numbers between the minimum and maximum ordering numbers mmin and mmax. At each step in the growth of the subdomain, we search two basis functions which have the minimum ordering number nmin and maximum ordering number n_max among basis functions overlapping with the subdomain defined at the growth step. In the periodic bound-ary condition, nmincan be smaller than zero and nmaxcan be larger than the number of basis functions Nd. Then, the

num-ber of basis functions in the subdomain, the separator, and the other subdomain can be calculated by N₀⬅m_max− m_min + 1, Ns⬅nmax− nmin+ 1 − N0, and N1⬅Nd− N0− Ns, respec-tively, at each growth step. By the growth process one can minimize共兩N0− N1兩+Ns兲 being a measure for quality of the dissection, where the measure共兩N0− N1兩+Ns兲 takes equal bi-section size of the subdomains and minimization of the size of the separator into account. Also if共nmax− nmin+ 1兲 is larger than Nd, then this situation implies that the proper dissection

can be difficult along the axis.

共v兲 Dissection. By applying the above procedures 共i兲–共iv兲 to each aiaxis, where i = 1, 2, and 3, and we can find an axis

which gives the minimum 共兩N0− N1兩+Ns兲. Then, the dissec-tion along the axis is performed by renumbering for basis functions in the domain, and two subdomains and one sepa-rator are obtained. Evidently, the same procedures can be applied to each subdomain, and recursively continued until the size of domain reaches a threshold. As a result of the recursive dissection, a structured matrix specified by a binary tree is obtained.

As an illustration we apply the method for the nested dissection to the finite chain molecule shown in Fig.1. We first set all the system as domain and start to apply the series of procedures to the domain. The procedure 共i兲 is trivial for the case, and we obtain the numbering of atoms and the corresponding matrix shown in Fig.1共a兲. Also it is noted that the screening of the basis functions with a long tail is unnec-essary and that we only have to search the chain direction. In the procedure 共iii兲, atoms 1 and 10 in Fig. 1共a兲 satisfy the condition. Choosing the atom 1 as a starting nucleus of the

domain, and we gradually increase the size of the domain according to the procedure 共iv兲. Then, it is found that the division shown in Fig. 1共b兲 gives the minimum 共兩N0− N1兩 + Ns兲. Renumbering for the basis functions based on the analysis yields the dissected matrix shown in the right panel of Fig. 1共b兲. By applying the similar procedures to the left and right subdomains, one will immediately find the result of Fig.1共c兲. In addition to the finite chain molecule, as an ex-ample of more general cases, the above algorithm for the nested dissection is applied to a s-valent NNTB square lattice model of which unit cell contains 1024 atoms with periodic boundary condition. At the first step in the nested dissection, the separator is found to be red atoms as shown in Fig.2共a兲. Due to the periodic boundary condition, the separator con-sists of two lines. At the final step, the system is dissected by the recursive algorithm as shown in Fig.2共b兲. The separator at the innermost and the outermost levels are labeled as sepa-rators 0 and 5, respectively, and each subdomain at the in-nermost level includes nine atoms. As demonstrated for the square lattice model, the algorithm can be applied for sys-tems with any dimensionality, and provides a well structured matrix for our purpose in a single framework.

2. Inverse by recurrence formulas

We directly compute the selected elements of the inverse matrix using a set of recurrence formulas which can be de-rived by recursively applying a block LDLT_{factorization to}

the structured matrix obtained by the nested dissection method as shown below. To derive the recurrence formulas, we first introduce the block LDLTfactorization10 _{for a}

sym-metric square matrix X,

X =

冉

A B T B C

冊

(a) (b) 5 5 5 5 4 4 3 3 2 2 1 1 1 1 0 0 0 0

FIG. 2.共Color online兲 共a兲 The square lattice model, described by the s-valent NNTB, of which unit cell contains 1024 atoms with periodic boundary condition. The right blue and red circles corre-spond to atoms in two domains and a separator, respectively, at the first step in the nested dissection.共b兲 The square lattice model at the final step in the nested dissection. The separator at the innermost and the outermost levels are labeled as separators 0 and 5, respec-tively, and the separators at each level are constructed by atoms with a same color.

=

冉

I 0 L I

冊冉

A 0 0 S

冊冉

I LT 0 I

冊

, 共18兲

where A and C are diagonal block matrices, and B and BTan off-diagonal block matrix and its transposition, and L is given by

L = BA−1_{. 共19兲}

Also the Schur complement S of the block element C is defined by

S⬅ C − BA−1BT= C − BLT. 共20兲 Then, it is verified that the inverse matrix of X is given by

X−1₌

冉

A −1_{+ L}T

S−1L − LTS−1

− S−1L S−1

冊

. 共21兲 We now consider calculating the selected elements of the inverse of the structured matrix given in Fig. 1共c兲using Eq. 共21兲, and rewrite the matrix in Fig. 1共c兲in a block form as follows: X =

冢

A0,0 B0,0 T A0,1 B0,1 T B_1,0T B0,0 B0,1 C0,0 A0,2 B0,2 T A_0,3 B_0,3T B_1,1T B_0,2 B_0,3 C_0,1 B1,0 B1,1 C1,0

冣

, 共22兲

where A0,0 and B0,0 correspond to 共 a b

b a兲 and 共0,b兲,

respec-tively, and the other block elements can be deduced. Also the blank indicates a block zero element. Using Eq. 共20兲 the

Schur complement of C_1,0is given by

S1,0= C1,0− B1,0L1,0 T

− B1,1L1,1 T

, 共23兲

where L_1,0T is calculated by Eq.共19兲 and can be transformed

using Eq.共21兲 to a recurrence formula as follows:

L_1,0T =

冢

A0,0 B0,0 T A_0,1 B0,1 T B_0,0 B_0,1 C_0,0

冣

−1 B_1,0T =

冢

A_0,0−1 A_0,1−1 0

冣

B_1,0T +

冢

L_0,0T S_0,0−1L0,0 L0,0 T S_0,0−1L0,1 − L0,0 T S_0,0−1 L0,1 T S_0,0−1L0,0 L0,1 T S_0,0−1L0,1 − L0,1 T S_0,0−1 − S_0,0−1L0,0 − S0,0 −1 L0,1 S0,0 −1

冣

B_1,0T =

冢

V_1,0,0T V_1,0,1T 0

冣

+

冢

L_0,0T L_0,1T − I

冣

Q_1,1,0T ⬅ V_1,1,0T 共24兲

with the definitions,

V_1,0,0T = A_0,0−1共B1,0关B0,0兴兲T, 共25兲 V_1,0,1T = A_0,1−1共B1,0关B0,1兴兲T, 共26兲 and Q_1,1,0T = S_0,0−1兵B0,0V1,0,0 T + B0,1V1,0,1 T −关B1,0共C0,0兲兴T其. 共27兲 In Eqs. 共25兲–共27兲, we used a bra-ket notation 关 兴 which

stands for a part of the block element. For example,

B1,0关B0,0兴 means a part of B1,0which has the same columns as those of B_0,0. It is noted that one can obtain a similar expression for L_1,1T as well as Eq.共24兲 for L_1,0T .

To address a more general case where the dissection for the sparse matrix is further nested, we suppose that the ma-trix A_0,0has the same inner structure as

冢

A0,0 B0,0 T A0,1 B0,1 T B0,0 B0,1 C0,0

冣

,

then one may notice the recursive structure in Eq. 共24兲 and

can derive the following set of recurrence relations for gen-eral cases: Q_p,m+1,nT = S_m,n−1 ⫻ 兵Bm,2nVp,m,2n T + Bm,2n+1Vp,m,2n+1 T −关Bp,q共Cm,n兲兴T其, 共28兲 Vp,m+1,n T =

冢

V_p,m,2nT VT_p,m,2n+1 0

冣

+

冢

L_m,2nT L_m,2n+1T − I

冣

Qp,m+1,n T . 共29兲

Equation共29兲 is the central recurrence formula coupled with

Eq. 共28兲, where the initial block elements are given by Vp,0,n

T

=共A0,n兲−1共Bp,q关B0,n兴兲T. 共30兲 Also Lp,nand Sp,ncan be calculated by

Lp,n= Vp,p,n, 共31兲

Sp,n= Cp,n−共Bp,2n,Bp,2n+1兲

冉

L_p,2nT

L_p,2n+1T

冊

. 共32兲

A set of Eqs. 共28兲–共32兲 enables us to calculate all the

in-verses of the Schur complements S and L. In the recurrence formulas Eqs.共28兲 and 共29兲, three indices of p, m, and n are

involved, and they run as follows:

p = 0, . . . , P, 共33兲

m = 0, . . . , p − 1, 共34兲

n = 0, . . . ,2P−m− 1. 共35兲

The index p denotes the level of hierarchy in the nested dissection and the innermost and outermost levels are set to 0 and P, respectively. Then, it is noted that the total system is divided into 2P+1_{domains at the innermost level. As well as}

p the index m is also related to the level of hierarchy in the

rather intermediate one, being dependent on m. The indices n in Eq.共30兲 is dependent on p and q and they run as follows:

n = q共2p兲, ... ,共q + 1兲共2p兲 − 1, 共36兲

q = 0, . . . ,2P+1−p− 1. 共37兲

Since the set of the recurrence formulas Eqs.共28兲–共32兲

pro-ceed according to Eqs.共33兲–共35兲, the development of

recur-rence can be illustrated as in Fig. 3. The recurrence starts from Eq. 共30兲 with p=0, and Eqs. 共31兲 and 共32兲 follow.

Then, p is incremented by one, and m + 1 climbs up to 1. The increment of p and the climbing of m + 1 are repeated until

p = P and m + 1 = P. At m + 1 = p for each p, L and S are

evalu-ated by Eqs.共31兲 and 共32兲, and the inverse of S is calculated

by a conventional method such as LU factorization, which are used in the next recurrence for the higher level of hier-archy. The numbers on the right-hand side of Fig.3give the multiplicity for similar calculations by Eq.共29兲 coming from

the index n at each m + 1 since n runs from 0 to 2P−m_{− 1 as}

given in Eq. 共35兲. The computational complexity can be

es-timated by Fig.3, and we will discuss its details later. We are now ready to calculate the selected elements of the Green’s function using the inverses of the Schur comple-ments S and L calculated by the recurrence formulas of Eqs. 共28兲–共32兲. By noting that Eq. 共21兲 has a recursive structure

and the matrix X is structured by the nested dissection, one can derive the following recurrence formula:

X_p+1,n−1 =

冢

X_p,2n−1 X_p,2n+1−1 0

冣

+

冢

Y_p,2nT Lp,2n − Yp,2n T YT_p,2n+1L_p,2n+1 − Y_p,2n+1T − Yp,2n − Yp,2n+1 Sp,n −1

冣

, 共38兲 where Y_p,2nT = LT_p,2nS_p,n−1, Yp,2n+1 T = Lp,2n+1 T S_p,n−1. 共39兲

The recurrence formula, Eq. 共38兲, starts with X_0,n−1=共A0,n兲−1, adds contributions at m + 1 = p for every p, and at last yields the inverse of the matrix X as X−1_{= G共Z兲=X}

P+1,0

−1 _{. Since the} calculation of each element for the inverse of X can be inde-pendently performed, only the selected elements can be com-puted without calculating all the elements. The selected ele-ments to be calculated are eleele-ments in the block matrices A,

B, and C, each of which corresponds to a nonzero overlap

matrix as discussed before. Thus, we can easily compute only the selected elements using a table function which stores the position for the nonzero elements in the block matrices A, B, and C.

A simple but nontrivial example is given in Appendix A to illustrate how the inverse of matrix is computed by the recurrence formulas, and also a similar way is presented to calculate a few eigenstates around a selected energy in Ap-pendix B while the proposed method can calculate the total energy of system without calculating the eigenstates.

3. Finding chemical potential

As well as the conventional DFT calculations, in the pro-posed method the chemical potential has to be adjusted so that the number of electrons can be conserved. However, there is no simpler way to know the number of electrons under a certain chemical potential before the contour integra-tion by Eq.共8兲 with the chemical potential. Thus, we search

the chemical potential by iterative methods for the charge conservation. Since the contour integration is the time-consuming step in the method, a smaller number of the itera-tive step directly leads to the faster calculation. Therefore, we develop a careful combination of several iterative meth-ods to minimize the number of the iterative step for sufficient convergence. In general, the procedure for searching the chemical potential can be performed by a sequence共1兲-共2兲 or 共5兲-共1兲-共3兲-共1兲-共4兲-共1兲-共4兲-共1兲… in terms of the following procedures. As shown later, the procedure enables us to ob-tain the chemical potential conserving the number of elec-trons within 10−8electron/system by less than five iterations on an average.

共1兲 Calculation of the difference ⌬Ni in the total number

of electrons. The difference⌬Niin the total number of

elec-trons is defined with ␳共␮i兲 calculated using Eq. 共8兲 at a

chemical potential ␮iby

p

m+1

3

4

P

0

1

2

3

4

P

1

2

P 2 P-2 2 P-3 2 2 P-1 2

FIG. 3. 共Color online兲 The development of recurrence formulas, Eqs. 共28兲–共32兲, which implies that the recurrence starts from p

= m + 1 = 0 and ends at p = m + 1 = P. The number on the right-hand side is the multiplicity for similar calculations by Eq. 共29兲 due to

⌬Ni= Tr关␳共␮i兲S兴 − Nideal, 共40兲 where N_idealis the number of electrons that the system should possess for the charge conservation. If ⌬Ni is zero, the

chemical potential ␮iis the desired one of the system.

共2兲 Using the retarded Green’s function. If the difference ⌬Niis large enough so that the interpolation schemes共3兲 and

共4兲 can fail to guess a good chemical potential, the next trial chemical potential is estimated by using the retarded Green’s function. When the chemical potential of␮triis considered, the correction ␦Ntri estimated by the retarded Green’s func-tion to⌬Niis given by

␦N_tri=

冕

E_min E_max

dE␦␳共E兲⌬f共E,␮_tri兲, 共41兲

where␦␳共E兲 and ⌬f共E,␮tri兲 are defined by

␦␳共E兲 = − 2

␲Im Tr关G共E + i␩兲S兴 共42兲 with a small number ␩共0.01 eV in this study兲 and

⌬f共E,␮tri兲 = f

冉

E −␮tri kBT

冊

− f

冉

E −␮i kBT

冊

. 共43兲

The integration in Eq. 共41兲 is numerically evaluated by a

simple quadrature scheme such as trapezoidal rule with a similar number of points as for that of poles in Eq. 共8兲, and

the integration range can be determined by considering the surviving range of⌬f共E,␮_tri兲. The search of␮_triis performed by a bisection method until⌬Ncri⬎共⌬Ni+␦Ntri兲, where ⌬Ncri is a criterion for the convergence and 10−8electron/system is used in this study. It should be noted that the evaluation of Green’s function being the time-consuming part can be per-formed before the bisection method and a set of ␦␳共E兲 is stored for computational efficiency.

共3兲 Linear interpolation/extrapolation. In searching the chemical potential ␮, if two previous results 共␮i,⌬Ni兲 and

共␮j,⌬Nj兲 are available, a trial chemical potential␮triis esti-mated by a linear interpolation/extrapolation method as

␮tri=

␮j⌬Ni−␮i⌬Nj

␮i−␮j

. 共44兲

共4兲 Muller method.55,56_{In searching the chemical potential}

␮, if tree previous results共␮i,⌬Ni兲, 共␮j,⌬Nj兲, and 共␮k,⌬Nk兲

are available, they can be fitted to a quadratic equation, ⌬N = a␮2_{+ b␮+ c, 共45兲} where a, b, and c are found by solving a simultaneous linear equation of 3⫻3 in size.57_{Then, ␮}

tri giving⌬N=0 is a so-lution of Eq.共45兲 and given by

␮tri=

冦

− 2c b +

冑

b2_{− 4ac} bⱖ 0, − b +

冑

b2− 4ac 2a b⬍ 0.

冧

共46兲

The selection of sign is unique because of the condition that the gradient at the solution must be positive, and the

branch-ing is taken into account to avoid the round-off error. As the iteration proceeds in search of the chemical potential, we have a situation that the number of available previous results is more than three. For the case, it is important to select three chemical potentials having smaller⌬N and the different sign of⌬N among three chemical potentials since the guess of␮tri can be performed as the interpolation rather than the extrapolation.

共5兲 Extrapolation of chemical potential for the second

step. During the self-consistent field 共SCF兲 iteration, the

chemical potential obtained at the last SCF step is used as the initial guess ␮1 in the current SCF step. In addition, we es-timate the second trial chemical potential by fitting a set of results 共␮₁共i兲,⌬N₁共i兲,␮₂共i兲,⌬N₂共i兲兲, 共␮₁共j兲,⌬N₁共j兲,␮₂共j兲,⌬N₂共j兲兲, and 共␮1共k兲,⌬N1共k兲,␮2共k兲,⌬N2共k兲兲, where the subscript and the super-script in ␮₀共i兲 and ⌬N₀共i兲 mean the iteration step in search of the chemical potential and the SCF step, respectively, at three previous SCF steps to the following equation:

⌬N2= a1⌬N1+ a2共␮2−␮1兲 + a3⌬N1共␮2−␮1兲, 共47兲 where a1, a2, and a3 are found by solving a simultaneous linear equation of 3⫻3 in size. Then, the chemical potential ␮2giving⌬N2= 0 can be estimated by solving Eq.共47兲 with respect to␮2as follows:

␮tri⬅␮2=␮1−

a₁⌬N₁ a2+ a3⌬N1

. 共48兲

It is found from numerical calculations that Eq.共48兲 provides

a very accurate guess in most cases as the SCF calculation converges.

D. Computational complexity

We analyze the computational complexity of the proposed method. As discussed in Sec. II B, the number of poles for the contour integration is independent of the size of system. Thus, we focus on the computational complexity of the cal-culation of the Green’s function. For simplicity of the analy-sis we consider a finite chain, a finite square lattice, and a finite cubic lattice as representatives of 1D, 2D, and 3D sys-tems, respectively, which are described by the s-valent NNTB models as in the explanation of the nested dissection. Note that the results in the analysis might be valid for more general cases with periodic boundary conditions. Since the computational cost is governed by Eq. 共29兲, let us first

ana-lyze the computational cost of Eq. 共29兲 while those of the

other equations will be discussed later. Considering that the recurrence formula of Eq.共29兲 develops as shown in Fig.3, and that the calculation of Eq. 共29兲 corresponds to the open

circle in the figure, the computational cost t can be estimated by t⬀

兺

p=1 P

兺

m=0 p−1

兺

n=0 2P−m−1 Nm共1兲Nm共2兲Np共3兲, 共49兲

where N_m共1兲and N_m共2兲are the dimension of row and column in the matrix,

冢

L_m,2nT L_m,2n+1T

− I

冣

and N_p共3兲is the dimension of column in the matrix Q_p,m+1,nT . Since Eq. 共29兲 consists of a matrix product, the

computa-tional cost is simply given by Nm共1兲Nm共2兲N共3兲p . Also it is noted

that Nm共1兲and Nm共2兲depend on only m, and Np共3兲has dependency

on only p because of the simplicity of the systems we consider.

For the finite 1D chain system, we see that N_m共1兲 = N/共2P−m兲 and Nm共2兲= Np共2兲= 1 as listed in Table I. Thus, the

computational cost t1D for the 1D system is estimated as

t1D⬀

兺

p=1 P

兺

m=0 p−1

兺

n=0 2P−m−1 N 2P−m =1 2NP共P + 1兲. 共50兲

Noting N⬀2P, we see that the computational cost for the 1D system scales as O兵N关log2共N兲兴2其.

For the finite 2D square lattice system, we see N_m共1兲 = N/共2P−m_{兲, and N}

m 共2兲 _{and N}

p

共3兲 _{depend on m and p,} respec-tively as shown in TableI. To estimate the order of the com-putational cost we approximate Nm共2兲 and Np共3兲 as Nm共2兲

⬇N1/2_/21/2共P−m−1兲 _{and N} p

共3兲_⬇N1/2_/2共1/2兲共P−p兲_{which are equal} to or more than the corresponding exact number. Then, the computational cost t_2Dfor the 2D system can be estimated as follows: t_2D⬀

兺

p=1 P

兺

m=0 p−1

兺

n=0 2P−m−1 N 2P−mNp,m,n共2兲 Np,m,n共3兲 ⬍

兺

p=1 P

兺

m=0 p−1

兺

n=0 2P−m−1 N 2P−m N1/2 2共1/2兲共P−m−1兲 N1/2 2共1/2兲共P−p兲 = 2N 2 共

冑

2 − 1兲2

冉

2 −

冑

2 +

冑

2 2P − 1 2P− 1 2P/2

冊

. 共51兲 Since the first two terms in parenthesis of the last line are the leading term, we see that the computational cost for the 2D system scales as O共N2_兲.

For the finite 3D cubic lattice system we have Nm共1兲

= N/共2P−m_{兲 as well as the 1D and 2D systems. As shown in}

the analysis of the 2D systems, by approximating N_m共2兲 and

Np共3兲 as Nm共2兲⬇N2/3/2共2/3兲共P−m−1兲 and Np共3兲⬇N2/3/2共2/3兲共P−p兲,

which are equal to or more than the corresponding exact number, we can estimate the computational cost t3Dfor the 3D system as follows: t3D⬀

兺

p=1 P

兺

m=0 p−1

兺

n=0 2P−m−1 N 2P−mN共2兲p,m,nNp,m,n共3兲 ⬍

兺

p=1 P

兺

m=0 p−1

兺

n=0 2P−m−1 N 2P−m N2/3 2共2/3兲共P−m−1兲 N2/3 2共2/3兲共P−p兲 = 4N 7/3 22/36 – 9

冉

− 1 + 2 2/3₋ 1 22/324P/3 + 1 22/322P/3− 22/3 22P/3+ 1 24P/3

冊

. 共52兲 Since we see that the first two terms in parenthesis of the last line are the leading term, it is concluded that the computa-tional cost for the 3D system scales as O共N7/3_兲.

We further analyze the computational cost of the other Eqs. 共28兲, 共30兲, 共32兲, 共38兲, and 共39兲 which are the primary

equations for the calculation of the Green’s function. Al-though the detailed derivations are not shown here, they can be derived in the same way as for Eq. 共29兲. TableIIshows the order of the computational cost for each equation. It is found that the computational cost is governed by Eq. 共29兲

while the computational cost of Eq.共39兲 is similar to that of

Eq. 共29兲.

In addition to the analysis of the computational cost for the inverse calculations by Eq.共28兲–共32兲, 共38兲, and 共39兲, we

TABLE I. Some of N_m共2兲and N_p共3兲in Eq.共49兲 for a finite 1D chain, a finite 2D square lattice, and a finite 3D cubic lattice described by the

s-valent NNTB model. They depends on m or p for the 2D and 3D systems in a rather complicated way, while N_p,m,n共1兲 = N

2P−m for all the cases.

The unit for each case is given in parenthesis.

m + 1 or p P P − 1 P − 2 P − 3 P − 4 P − 5 P − 6 P − 7 P − 8 P − 9 P − 10

1D共1兲 1 1 1 1 1 1 1 1 1 1 1

2D共N1/2兲 1 1₂ 1₂ 1_{4 4}1 1₈ 1_{8 16}1 ₁₆1 ₃₂1 ₃₂1

3D共N2/3兲 1 1₂ 1₄ 1_{4 8}1 ₁₆1 ₁₆1 ₃₂1 ₆₄1 ₆₄1 ₁₂₈1

TABLE II. Computational order of Eqs. 共28兲–共30兲, 共32兲, 共38兲,

and共39兲, where the calculation of the inverse of the matrix S is also

included in estimating the computational cost of Eq.共32兲, and the

sparse structure in the matrix B is taken into account for Eqs.共28兲

and共32兲.

1D 2D 3D

Equation共28兲 共log₂N兲2 _N3/2_log

2N N2 Equation共29兲 N共log2N兲2 N2 N7/3 Equation共30兲 N log₂N N3/2 _N5/3 Equation共32兲 log2N N N4/3 Equation共38兲 N N3/2 _N5/3 Equation共39兲 N log2N N2 N7/3

examine that for the nested dissection. The step 共i兲 in the nested dissection involves a sorting procedure by the quick-sort algorithm of which computational cost scales as N

2plog2 N 2p for a sequence with length of ₂Np, and thereby the computa-tional cost for d-dimensional system can be estimated by

d

兺

p=0 P

冉

N 2plog2 N 2p

冊

2 p₌d 2N共log2N兲 2_{. 共53兲} Also, considering that the steps共iii兲 and 共iv兲 consist of search for the sequence with length of ₂Np, the computational cost is found to be d

兺

p=0 P N 2p2 p_{= dN log} 2N. 共54兲

The analysis indicates that the computational cost for the nested dissection scales as O关N共log₂N兲2_{兴 for systems with} any dimensionality. Thus, it is concluded that as a whole the proposed method scales as O关N共log2N兲2兴, O共N2兲, and O共N7/3_{兲 for 1D, 2D, and 3D systems, respectively.}58

III. NUMERICAL RESULTS

In this section several numerical calculations for the

s-valent NNTB model and DFT are presented to illustrate

practical aspects of the low-order scaling method. All the DFT calculations in this study were performed by the DFT codeOPENMX.59_{The PAO basis functions}46_{used in the DFT}

calculations are specified by H4.5-s1, C5.0-s1p1, N4.5-s1p1, O4.5-s1p1, and P6.0-s1p1d1 for deoxyribo-nucleic acid 共DNA兲, C4.0-s1p1 for a single C60 molecule, and Pt7.0-s2p2d1 for a single Pt63 cluster, respectively, where the abbreviation of basis function such as C5.0-s1p1 represents that C stands for the atomic symbol, 5.0 the cutoff radius共bohr兲 in the generation by the confinement scheme,

s1p1 means the employment of one primitive orbitals for

each of s and p orbitals.46_{Since the PAO basis functions are}

pseudoatomic orbitals with different cutoff radii depending on atomic species, the resultant Hamiltonian and overlap ma-trices have a disordered sparse structure, reflecting the geo-metrical structure of the system. Norm-conserving pseudopo-tentials are used in a separable form with multiple projectors to replace the deep core potential into a shallow potential.60

Also a LDA to the exchange-correlation potential is employed.38

A. Scaling
