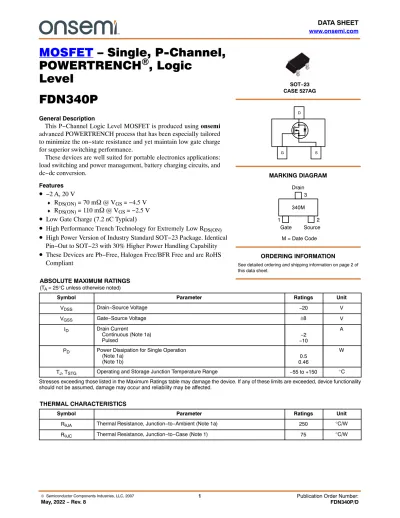

MOSFET – Single, P-Channel, POWERTRENCH), Logic Level FDN340P

MOSFET – Single, P-Channel, POWERTRENCH ⁾ , Logic

Level

FDN340P

General Description

This P−Channel Logic Level MOSFET is produced using onsemi advanced POWERTRENCH process that has been especially tailored to minimize the on−state resistance and yet maintain low gate charge for superior switching performance.

These devices are well suited for portable electronics applications:

load switching and power management, battery charging circuits, and dc−dc conversion.

Features

• ^{−2 A, 20 V}

♦

R

= 70 m W @ V

= −4.5 V

♦

R

= 110 m W @ V

= −2.5 V

• Low Gate Charge (7.2 nC Typical)

• High Performance Trench Technology for Extremely Low R

• High Power Version of Industry Standard SOT−23 Package. Identical Pin−Out to SOT−23 with 30% Higher Power Handling Capability

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

ABSOLUTE MAXIMUM RATINGS (T_A = 25°C unless otherwise noted)

Symbol Parameter Ratings Unit

VDSS Drain−Source Voltage −20 V

V_GSS Gate−Source Voltage ±8 V

I_D Drain Current

Continuous (Note 1a)

Pulsed −2

−10

A

P_D Power Dissipation for Single Operation (Note 1a)

(Note 1b) 0.5

0.46

W

TJ, TSTG Operating and Storage Junction Temperature Range −55 to +150 _C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Symbol Parameter Ratings Unit

R_θJA Thermal Resistance, Junction−to−Ambient (Note 1a) 250 °C/W

R_θJC Thermal Resistance, Junction−to−Case (Note 1) 75 °C/W

See detailed ordering and shipping information on page 2 of this data sheet.

ORDERING INFORMATION MARKING DIAGRAM

SOT−23 CASE 527AG

M = Date Code

D

S G

340M Drain

Gate Source

1 2

3

FDN340P

www.onsemi.com 2

ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted)

Symbol Parameter Test Conditions Min Typ Max Unit

OFF CHARACTERISTICS

BV_DSS Drain−Source Breakdown Voltage VGS= 0 V, ID= −250 mA −20 − − V

DBV_DSS DT_J

Breakdown Voltage Temperature Coefficient I_D= −250 mA, Referenced to 25_C − −12 − mV/_C

I_DSS Zero Gate Voltage Drain Current V_DS= −16 V, V_GS= 0 V − − −1 mA

V_DS= −16 V, V_GS= 0 V, T_J= 55_C − − −10

I_GSSF Gate−Body Leakage, Forward V_GS= 8 V, V_DS= 0 V − − 100 nA

IGSSR Gate−Body Leakage, Reverse VGS= −8 V, VDS= 0 V − − −100 nA

ON CHARACTERISTICS (Note 2)

V_GS(th) Gate Threshold Voltage V_DS= V_GS, I_D= −250 mA −0.4 −0.8 −1.5 V

DVGS(th)

DT_J

Gate Threshold Voltage Temperature Coefficient I_D= −250 mA, Referenced to 25_C − 3 − mV/_C

R_DS(on) Static Drain−Source On−Resistance V_GS= −4.5 V, I_D= −2 A − 60 70 mW

VGS= −4.5 V, ID= −2 A, TJ= 125_C − 77 120

VGS= −2.5 V, ID= −1.7 A − 82 110

ID(on) On−State Drain Current VGS= −4.5 V, VDS= −5 V −5 − − A

gFS Forward Transconductance VDS= −4.5 V, ID= −2 A − 9 − S

DYNAMIC CHARACTERISTICS

600 Input Capacitance VDS= −10 V, VGS= 0 V, f = 1.0 MHz − 779 − pF

175 Output Capacitance − 121 − pF

80 Reverse Transfer Capacitance − 56 − pF

SWITCHING CHARACTERISTICS (Note 2)

t_d(on) Turn−On Delay Time V_DD= −10 V, I_D= −1 A,

V_GS= −4.5 V, R_GEN= 6 W − 10 20 ns

t_r Turn−On Rise Time − 9 10 ns

t_d(off) Turn−Off Delay Time − 27 43 ns

tf Turn−Off Fall Time − 11 20 ns

Qg Total Gate Charge VDS= −10 V, ID= −3.5 A, VGS= −4.5 V − 7.2 10 nC

Q_gs Gate−Source Charge − 1.7 − nC

Q_gd Gate−Drain Charge − 1.5 − nC

DRAIN−SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS

I_S Maximum Continuous Drain−Source Diode Forward Current − − −0.42 A

VSD Drain−Source Diode Forward Voltage VGS = 0 V, IS= −0.42 A (Note 2) − −0.7 −1.2 V Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

NOTES:

1. R_θJA is the sum of the junction−to−case and case−to−ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. R_θJC is guaranteed by design while R_θCA is determined by the user’s board design.

a) 250°C/W when mounted on

a 0.02 in² pad of 2 oz copper b) 270°C/W when mounted on

a 001 in² pad of 2 oz copper Scale 1:1 on letter size paper

2. Pulse Test: Pulse Width < 300 μs, Duty Cycle < 2.0%.

PACKAGE MARKING AND ORDERING INFORMATION

Device Device Marking Package Reel Size Tape Width Shipping^†

FDN340P 340 SOT−23 (Pb−Free) 7″ 8 mm 3000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

POWERTRENCH is a registered trademark of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries.

TYPICAL CHARACTERISTICS

Figure 1. On−Region Characteristics Figure 2. On−Resistance Variation with Drain Current and Gate Voltage

−I_D, Drain Current (A) RDS(ON) Normalized Drain−Source On−Resistance

0 1 2 3 4

0 3 6 9 12 15

−V_DS, Drain to Source Voltage (V)

−ID, Drain Current (A)

−4.5 V

V_GS = −1.5 V

−2.0 V

−2.5 V

−3.5 V

−3.0 V

Figure 3. On−Resistance Variation with

Temperature Figure 4. On−Resistance Variation with Gate−to−Source Voltage 0.7

0.8 0.9 1 1.1 1.2 1.3 1.4

−50 −25 0 25 50 75 100 125 150

RDS(ON), Normalized Drain−Source On−Resistance (W) I_D = −2 A

V_GS = −4.5 V

0 3 6 9 12 15

0.8 1 1.2 1.4 1.6 1.8 2

−2.5 V

− 3 V

− 3.5 V

− 4.5 V

Figure 5. Transfer Characteristics

0.02 0.06 0.1 0.14 0.18 0.22

1 2 3 4 5

−V_GS, Gate to Source Voltage (V) T_J, Junction temperature (5C)

RDS(ON) On−Resistance (W)

TA = 125°C

T_A = 25°C

0 2 4 6 8 10

0.5 1 1.5 2 2.5

Figure 6. Body Diode Forward Voltage Variation with Source Current and Temperature

−V_GS, Gate to Source Voltage (V) ID, Drain Current (A)

T_A = −55°C

125°C 25°C

−V_SD, Body Diode Forward Voltage (V) 0.0001

0.001 0.01 0.1 1 10

−IS , Reserve Drain Current (A)

0 0.2 0.4 0.6 0.8 1 1.2

−55°C T_A = 125°C

25°C VGS = 0 V

I_D = −1 A

V_DS = −5 V

V_GS = −2.0 V

FDN340P

www.onsemi.com 4

TYPICAL CHARACTERISTICS

Figure 7. Gate Charge Characteristics Figure 8. Capacitance Characteristics

−V_DS, Drain to Source Voltage (V)

Capacitance (pF)

Q_g,Gate Charge (nC)

−VDS, Drain to Source Voltage (V)

Figure 9. Maximum Safe Operating Area Figure 10. Single Pulse Maximum Power Dissipation

−ID, Drain Current (A)

Figure 11. Transient Thermal Response Curve

Single Pulse Time (SEC)

−V_DS, Drain−Source Voltage (V)

Power (W)

t₁, Time (sec) r(t), Normalized Effective Transient Thermal Resistance

0 1 2 3 4 5 6 7 8 9

0 1 2 3 4 5

−10 V

−15 V

0 5 10 15 20

0 200 400 600 800

I_D = −3.5 A V_DS = −5 V 1000 f = 1 MHz

VGS = 0 V CISS

C_OSS

C_RSS

0 10 20 30 40 50

0.001 0.01 0.1 1 10 100

Single Pulse R_θJA = 270°C/W

T_A = 25°C

0.01 0.1 1 10 100

0.1 1 10 100

V_GS = −10 V Single Pulse R_θJA = 270°C/W

TA = 25°C R_DS(ON) LIMIT

DS 1 s

100 ms 10 ms

1 ms 1 s

0.001 0.002 0.005 0.01 0.02 0.05 0.1 0.2 0.5 1

0.0001 0.001 0.01 0.1 1 10

0.02 0.01 0.05

0.1 R_qJA(t) = r(t) * R_qJA

R_qJA = 270°C/W

T_J − T_A = P * R_qJA (t) Duty Cycle, D = t1 / t2

t₂ t1

P(pk)

D = 0.5 0.2

Single Pulse

Thermal characterization performed using the conditions described in Note 1b.

Transient thermal response will change depending on the circuit board design.

100 300

SOT−23/SUPERSOTt−23, 3 LEAD, 1.4x2.9 CASE 527AG

ISSUE A

DATE 09 DEC 2019

XXX = Specific Device Code M = Month Code G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

XXXMG

G (Note: Microdot may be in either location)
