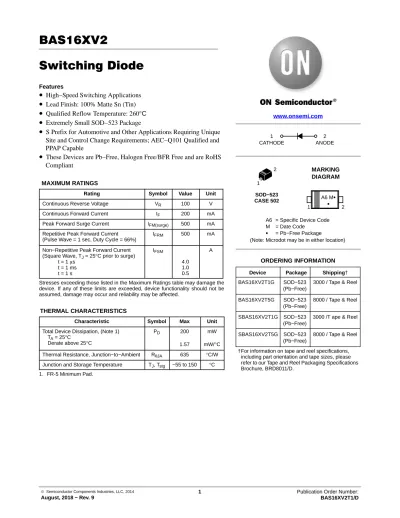

BAS16XV2 Switching Diode

© Semiconductor Components Industries, LLC, 2014

August, 2018 − Rev. 9

1 Publication Order Number:

BAS16XV2T1/D

BAS16XV2

Switching Diode

Features

• High−Speed Switching Applications

• Lead Finish: 100% Matte Sn (Tin)

• Qualified Reflow Temperature: 260 ° C

• Extremely Small SOD−523 Package

• S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

MAXIMUM RATINGS

Rating Symbol Value Unit

Continuous Reverse Voltage V

100 V

Continuous Forward Current I

200 mA

Peak Forward Surge Current I

500 mA Repetitive Peak Forward Current

(Pulse Wave = 1 sec, Duty Cycle = 66%)

I

500 mA

Non−Repetitive Peak Forward Current (Square Wave, T

= 25 ° C prior to surge)

t = 1 m s t = 1 ms t = 1 s

I

4.0 1.0 0.5

A

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Total Device Dissipation, (Note 1) T

= 25 ° C

Derate above 25 ° C

P

200

1.57

mW mW/ ° C Thermal Resistance, Junction−to−Ambient R

635 ° C/W Junction and Storage Temperature T

, T

−55 to 150 ° C 1. FR-5 Minimum Pad.

www.onsemi.com

1 CATHODE

2 ANODE

Device Package Shipping†

ORDERING INFORMATION

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

SOD−523 CASE 502

A6 = Specific Device Code M = Date Code

G = Pb−Free Package MARKING DIAGRAM 1

2

A6 M G

1 G 2

BAS16XV2T1G SOD−523 (Pb−Free)

3000 / Tape & Reel

BAS16XV2T5G SOD−523 (Pb−Free)

8000 / Tape & Reel (Note: Microdot may be in either location)

SBAS16XV2T1G SOD−523 (Pb−Free)

3000 /T ape & Reel

SBAS16XV2T5G SOD−523 (Pb−Free)

8000 / Tape & Reel

BAS16XV2

www.onsemi.com 2

ELECTRICAL CHARACTERISTICS (T

= 25 ° C unless otherwise noted)

Characteristic Symbol Min Max Unit

OFF CHARACTERISTICS Reverse Voltage Leakage Current

(V

= 100 V)

(V

= 75 V, T

= 150 ° C) (V

= 25 V, T

= 150 ° C)

I

−

−

−

1.0 50 30

m A

Reverse Breakdown Voltage (I

= 100 m A)

V

100 − V

Forward Voltage (I

= 1.0 mA) (I

= 10 mA) (I

= 50 mA) (I

= 150 mA)

V

−

−

−

−

715 855 1000 1250

mV

Diode Capacitance (V

= 0, f = 1.0 MHz) C

− 2.0 pF

Forward Recovery Voltage (I

= 10 mA, t

= 20 ns)

V

− 1.75 V

Reverse Recovery Time (I

= I

= 10 mA, R

= 50 Ω )

t

− 6.0 ns

Stored Charge

(I

= 10mA to V

= 5.0V, R

= 500 Ω )

Q

− 45 pC

Notes: 1. A 2.0 k Ω variable resistor adjusted for a Forward Current (I

) of 10 mA.

Notes: 2. Input pulse is adjusted so I

is equal to 10 mA.

Notes: 3. t

» t

+10 V 2.0 k

820 Ω

0.1 μ F

D.U.T.

V

100 μ H

0.1 μ F

50 Ω OUTPUT PULSE GENERATOR

50 Ω INPUT SAMPLING OSCILLOSCOPE

t

t

t

10%

90%

I

I

t

t

i

= 1.0 mA OUTPUT PULSE (I

= I

= 10 mA; MEASURED

at i

= 1.0 mA) I

INPUT SIGNAL

Figure 1. Recovery Time Equivalent Test Circuit

BAS16XV2

www.onsemi.com 3

100

0.2 0.4

V

, FORWARD VOLTAGE (VOLTS)

0.6 0.8 1.0 1.2

10

1.0

0.1

T

= 85 ° C

10

0

V

, REVERSE VOLTAGE (VOLTS) 1.0

0.1

0.01

0.001

10 20 30 40 50

0.68

0

V

, REVERSE VOLTAGE (VOLTS) 0.64

0.60

0.56

0.52 C D , DIODE CAP ACIT ANCE (pF)

2 4 6 8

I F , FOR W ARD CURRENT (mA)

Figure 2. Forward Voltage Figure 3. Leakage Current

Figure 4. Capacitance T

= -40 ° C

T

= 25 ° C

T

= 150 ° C T

= 125 ° C

T

= 85 ° C

T

= 55 ° C

T

= 25 ° C I R

, REVERSE CURRENT ( μ A)

SOD−523 CASE 502−01

ISSUE E

DATE 28 SEP 2010

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH.

MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PRO- TRUSIONS, OR GATE BURRS.

XX = Specific Device Code M Date Code

E D

−X−

−Y−

b

2X

0.08

X Y

A

c H

DIM MIN NOM MAX MILLIMETERS

D 1.10 1.20 1.30 E 0.70 0.80 0.90 A 0.50 0.60 0.70 b 0.25 0.30 0.35 c 0.07 0.14 0.20

L 0.30 REF

H 1.50 1.60 1.70

1 2

XX

1 2

1 2

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

SCALE 4:1

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

GENERIC MARKING DIAGRAM*

M

STYLE 1:

PIN 1. CATHODE (POLARITY BAND) 2. ANODE

STYLE 2:

NO POLARITY

STYLE 1 STYLE 2

STYLE 1 STYLE 2

XX

1 2

M

1 2

E

E

RECOMMENDED TOP VIEW

SIDE VIEW

2X

BOTTOM VIEW L2

L

2X

0.48

0.40

1.80

DIMENSION: MILLIMETERS PACKAGE

OUTLINE

L2 0.15 0.20 0.25

MECHANICAL CASE OUTLINE

PACKAGE DIMENSIONS

ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.

ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others.
