Establishment of an Immortalized Porcine Liver Cell Line JSNK-1 with Retroviral Transduction of SV40T

全文

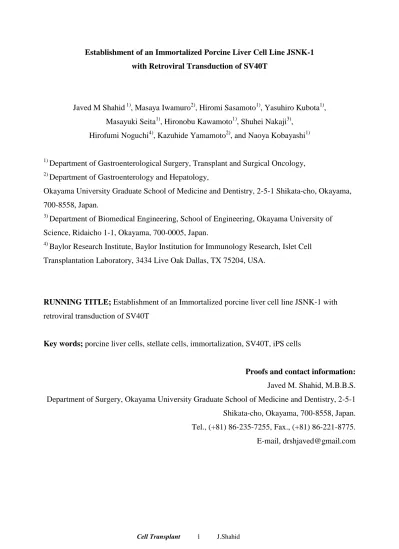

(1)Establishment of an Immortalized Porcine Liver Cell Line JSNK-1 with Retroviral Transduction of SV40T. Javed M Shahid 1), Masaya Iwamuro2), Hiromi Sasamoto1), Yasuhiro Kubota1), Masayuki Seita1), Hironobu Kawamoto1), Shuhei Nakaji3), Hirofumi Noguchi4), Kazuhide Yamamoto2), and Naoya Kobayashi1) 1). Department of Gastroenterological Surgery, Transplant and Surgical Oncology,. 2). Department of Gastroenterology and Hepatology,. Okayama University Graduate School of Medicine and Dentistry, 2-5-1 Shikata-cho, Okayama, 700-8558, Japan. 3). Department of Biomedical Engineering, School of Engineering, Okayama University of. Science, Ridaicho 1-1, Okayama, 700-0005, Japan. 4). Baylor Research Institute, Baylor Institution for Immunology Research, Islet Cell. Transplantation Laboratory, 3434 Live Oak Dallas, TX 75204, USA.. RUNNING TITLE; Establishment of an Immortalized porcine liver cell line JSNK-1 with retroviral transduction of SV40T. Key words; porcine liver cells, stellate cells, immortalization, SV40T, iPS cells. Proofs and contact information: Javed M. Shahid, M.B.B.S. Department of Surgery, Okayama University Graduate School of Medicine and Dentistry, 2-5-1 Shikata-cho, Okayama, 700-8558, Japan. Tel., (+81) 86-235-7255, Fax., (+81) 86-221-8775. E-mail, [email protected]. Cell Transplant. 1. J.Shahid.

(2) ABSTRACT Maintenance of freshly isolated porcine liver cells in vitro is limited for a short period of time. Therefore, establishment of easy-handling cell lines is extremely important for in vitro study for liver cells and their possible utilization for cell differentiation and growth of stem cells. Porcine liver cells were transduced with a retroviral vector SSR#69 expressing SV40T, one of SSR#69-immortalized porcine liver cell lines, JSNK-1, was established and characterized. Morphology of JSNK-1 cells was spindle-shaped. When the cells become confluent, JSNK-1 cells revealed hills-and-valleys pattern. In the presence of vitamin A, JSNK-1 cells showed big droplets inside the cytoplasm, which were positive with PAS staining. JSNK-1 cells showed the gene expression of collagen type11, collagen type12, FLT-1, -actin and SV40T. Immunostaining study revealed that JSNK-1 cells produced collagen, Vimentin and  smooth muscle actin. JSNK-1 cells possessed the characteristics of the liver stellate cells. JSNK-1 cells produced hepatocyte growth factor (HGF) in the time-dependent manner. When co-cultured with iPS cells towards the hepatic differentiation, JSNK-1 cells facilitated their hepatic differentiation in terms of albumin production. In conclusions, JSNK-1 cells would be valuable in the study of liver stellate cell pathophysiology and contribute to the optimization of hepatic differentiation of iPS cells.. Cell Transplant. 2. J.Shahid.

(3) INTRODUCTION Hepatic stellate cells (HSCs) constitute a mesenchymal cell type and display unique features as morphology and function. HSCs store more than 80% of total body vitamin A and maintain a blood homeostasis of vitamin A. HSCs are located between parenchymal cell plates and sinusoidal endothelial cells and extend well-developed long processes surrounding sinusoids in vivo as pericytes and are responsible for microcirculation in the liver and scavenger functions (18). They are also the predominant cell types producing extra-cellular matrices (ECM) components as well as ECM-degrading metalloproteases, indicating their prime role in ECM remodeling in both normal and pathologic liver conditions (7). The isolation of porcine liver cells allows us in vitro studies, but the procedure needs time and is laborious, and sometimes results only small cell yields. Moreover, terminally differentiated liver cells have a limited proliferating potential and eventually enter senescence, thereby limiting their use for the basic study. One solution is the construction of cell lines, produced by an immortilization technique. One approach to get a clonal liver cell line is the transduction of primary liver cells with genes from DNA tumor virus, such as simian virus 40 large T antigen (SV40T) (6). Therefore, we used a retroviral vector expressing SV40T to immortalize the freshly isolated porcine liver cells. In the present study, we successfully established a porcine hepatic stellate cell line JSNK-1. In both the developing and mature adult liver, cell-cell interactions are imperative for coordination of sophisticated liver functions (1). Co-culture of hepatocytes with HSCs has been shown to help maintain differentiated phenotype of hepatocytes in vitro, such as albumin and cytochrome P-450-assosited proteins (1,17). Thus, we evaluated the effect of our newly developed cell line JSNK-1 on the enhancement of hepatic differentiation of mouse induced pluripotent stem (iPS) cells in vitro. Co-culture of JSNK-1 cells increased functionality of iPS cells in terms of albumin production.. Cell Transplant. 3. J.Shahid.

(4) MATERIALS AND METHODS. Structure of a recombinant retroviral vector SSR#69 The retroviral vector SSR#69 has been previously described (24) in detail. SSR#69-producing  Crip cells were cultured with Dulbecco's modified Eagle medium (DMEM) (GIBCO, Invitrogen, CA) containing 10% newborn calf serum, 100 U/ml penicillin-G and 100 µg/ml streptomycin sulfate.. Isolation and transduction of porcine liver cells with SSR#69 All the animal procedure was approved by Okayama University Institutional Animal Care and Use Committee, and thus within the guidelines for human care of laboratory animals. Porcine liver cells were isolated using a modified four-step retrograde perfusion method with dispase and collagenase digestion, as previously reported (11). Briefly liver samples were first cannulated into the main blood vessels on the cut surface and flushed with EDTA in buffer solution at 37C. The tissue is then continuously perfused with a pre-warmed digestion buffer solution (collagenase IV and dispase II). Upon sufficient digestion, the liver capsule was mechanically disrupted and emerging cell suspension was filtered through a 250 m-mesh and then centrifuged at low speed (50g, 2min., 4C). We had regularly employed a cell incubation step of 10 minutes using the DNAse 1 containing buffer solution, during which cell clumps break up and damaged cells digested. Then the resulted cell suspension was filtered through 75m nylon mesh and cells were harvested by low speed centrifugation (50g, 75 sec., 4C). This was followed by washes using cold buffer solutions and filtered through 75m mesh and another centrifugation (50g, 75 sec., 4C). Finally resulting cell clumps were suspended in Williams medium E. Viability was assessed by a trypan blue exclusion test. The freshly isolated porcine liver cells were cultured in Williams medium E (GIBCO, Invitrogen, CA) containing 10% Foetal Bovine Serum (FBS) (Hyclone, New Zealand), 1%Penicillin-Streptomycin solution (Sigma-Aldrich, Irvine, UK) and 1% l-glutamine (MP Biomedicals, OH) and subjected to the transduction with SSR#69 three times. One week after the final transduction, the cells were cultured with the medium containing 100 ug/ml Hygromycin. One of the emerging clones, referred as to JSNK-1, was investigated in the present study.. Cell Transplant. 4. J.Shahid.

(5) Growth of JSNK-1 cells JSNK-1 cells were cultured with Williams medium E medium supplemented with 10% FBS and 100 U/ml penicillin-G and 100 µg/ml streptomycin sulfate. The cells grew steadily in vitro for more than 60 passages without showing any morphological changes. JSNK-1cells (passage 30) were examined using an inverted phase contrast microscope Olympus IX51 (Olympus, Tokyo, Japan). To examine cellular proliferation of JSNK-1 cells (passage 30), a growth curve was obtained by an MTS assay, as previously reported (14). Immunofluorescent study for SV40T, -smooth muscle actin (-SMA), collagen type 1 and type IV, and Vimentin in JSNK-1 cells JSNK-1 cells were subjected to the immunostaining study for SV40T, -smooth muscle actin (-SMA), collagen type 1, collagen type IV and vimentin. After JSNK-1 cells attached to slides well, the cells were fixed in 4% paraformaldehyde solution for 10 minutes at 37C. After fixation, the cells were washed twice with PBS containing 0.1% Triton X-100 (EMD Chemicals, NJ), and then blocked with blocking solution (PBS containing 0.02% rabbit serum and 0.1% Triton X-100) for 10 minutes at 37C. Cells were then labeled with a mouse monoclonal IgG -SMA antibody (Upstate Biotechnology, NY), or mouse monoclonal IgG collagen type I antibody (Genetex Inc., CA), or rabbit collagen type IV antibody (LSL, Tokyo, Japan), or mouse monoclonal IgG vimentin antibody (Genetex Inc., CA), as previously reported (13,15). Tetramethylrhodamine isothiocyanate-conjugated goat-poly anti-mouse IgG (Sigma-Aldrich, Irvine, UK), HRP conjugated goat-poly anti-mouse IgG antibody (Bethyl Laboratories Inc., MI), or HRP conjugated goat-poly anti-rabbit IgG antibody (Stressgen Bioreagents, MI), or FITC cojugated goat-poly anti-mouse IgG antibody (Bethyl Laboratories Inc., MI), were used as the secondary antibodies, respectively. The fluorescence microscope (Model Axiophot FL, Carl Zeiss, Inc., Oberkochen, Germany) was used to visualize the localization of these examined molecules. The Hoechst nuclear staining was performed to identify the nuclear fluorescence of JSNK-1 cells.. Electron-microscopic examination JSNK-1 cells cultured with Willams medium E in the presence of retinol of 0-10 M (Sigma-Aldrich, Irvine, UK) were subjected to transmission electron microscopy (TEM). Ultra. Cell Transplant. 5. J.Shahid.

(6) thin sections of the samples were stained with uranyl and observed under Hitachi H-7100, as previously reported (23).. Gene expression of SV40T and HSC markers in JSNK-1 cell Reverse-transcription polymerase chain reaction (RT-PCR) was carried out for the gene expression analysis for SV40T and HSC markers (collagen type 11, collagen type 12 and FlT-1) in JSNK-1 cells at passages 30 and 50. A porcine -actin gene was served as internal control. Total RNA was extracted from JSNK-1 cells using TRIzol (Invitrogen, CA) reagent according to manufacture’s instructions and served as templates, as previously reported (19). Reverse transcription (RT) was performed at 22C for 10 minutes, followed by 42C for 20 minutes, using the specific primers. RT-PCR was performed with AmpliTaq gold DNA polymerase, Gene Amp PCR gold buffer, and MgCl2 solution (Applied Biosystems, CA). PCR products were resolved on 2.5% agarose gels and visualized by ethidium bromide staining. Normal porcine liver cells were used as a positive control and SSR#69-immortalized human hepatocyte NKNT-3 cells (9) were used as a negative control, respectively. Primers used were as follows: SV40T (422 base pair (bp)): sense, 5'-CAGGCATAGAGTGTCTGCA- 3', anti-sense, 5'-CAACAGCCTGTTGGCATATG- 3'. FLT-1 (331 bp): sense, 5'-ACTACCAGATGGACAACGGC- 3', anti-sense, 5'-ATACACACGTGGTGCTGGAA- 3'. Collagen type 11 (243 bp): sense, 5'-CCTGGACGCCATCAAAGTCTTC- 3', anti-sense, 5'-TGGGAAGCCTCAGTGGACATC- 3'. Collagen type 12 (297 bp): sense, 5'-GCCTAGCAACATGCCAATCT- 3', anti-sense, 5'-CAGGTCCTTGGAAACCTTGA- 3'. -actin (218 bp): sense, 5'-TGGACTTCGAGCAGGAGATG- 3', anti-sense, 5'-GTGTTGGCGTAGAGGTCCTT- 3'.. Measurement of hepatocyte growth factor (HGF) production of JSNK-1 cells To measure the production of hepatocyte growth factor (HGF), 1106 of JSNK-1 cells were plated in T75 flasks. Two days after plating, the cells were cultured with Willams medium E without FBS for 48 hours. The production of HGF in the culture medium of JSNK-1 cells was measured by porcine hepatocyte growth factor ELISA kit (Cusabio Biotech, Wuhan, China) according to the manufacturer’s instructions.. Cell Transplant. 6. J.Shahid.

(7) Co-culture of mouse iPS cells and JSNK-1 Mouse iPS cells were kindly provided by Riken Cell Bank (cell No.APS0001, Cell name iPS-MEF-Ng-20D-17, Lot No.006) (16). The culture of iPS cells was performed, as previously reported (5). Knockout DMEM-based embryoid body (EB) formation medium, consisting of Knockout DMEM (GIBCO, Invtrogen, CA), 15% knock out serum replacement (KSR)(GIBCO, Invtrogen, CA), 1 % non essential amino acids, 1% 2-mercaptoethanol (GIBCO, Invtrogen, CA), 1% pencillin/streptpmycin, and 1% l- glutamic acid was used for EB formation of iPS cells. The cells were cultured in free floating with ultra low attachment 6-well plates (Corning, NY) at a density of 1105cells /ml. EBs at Day 5 were then re-suspended in Knockout DMEM medium consisting of 1% penicillin/streptomycin, 1% l-glutamic acid, 100 ng/ml activin A (R&D systems, MN), 100 ng/ml basic fibroblast growth factor (FGF) (Peprotech, NJ) to induce definitive endoderm (DE) for additional 3 days. KSR was supplemented at Days 6-7 and the concentrations were varied: 0.2% for day 6 and 2.0% for day 7. Half of the medium was replaced daily. At Day 8 the medium was replaced by Knockout DMEM supplemented with 10% KSR, 1% non-essential amino acids, 1% l-glutamic acid, penicillin/streptomycin, 1% dimethyl sulfoxide (DMSO) (Sigma-Aldrich, Irvine, UK) and co-culture of JSNK-1 cells started using cell inserts (Fig. 4-B). The co-culture was conducted for 8 days (Days 8-15) and iPS cells were cultured with dexamethasone (40 ng/ml) for additional 3 days (Days16-18). At Day 19, the culture medium was collected and analyzed for albumin production by an Assay Max Mouse Albumin ELISA kit (Assay Pro, MO) according to the manufacturer’s protocol.. Assay for oncogenecity of JSNK-1 cells To evaluate the tumorigenicity of JSNK-1 cells, 1 x 107 cells were inoculated into the thighs of three different severe combined immunodeficiency (SCID) mice. As a control, 1 x 106 human liver cancer PLC/PRF/5 cells were transplanted at the opposite side. The mice were observed for at lest 3 months after transplantation.. Statistical analyses Mean values are presented with standard deviations (SDs). Differences between groups were estimated by Student’s t-test analysis. All differences were deemed significant at the level of p < 0.05.. Cell Transplant. 7. J.Shahid.

(8) RESULTS Morphology of JSNK-1 cells One of SSR#69-transduced immortalized porcine liver cell lines, JSNK-1, was longitudinally spindle-shaped (Fig. 1-A). When the cells became confluent, JSNK-1 cells displayed hills-and-valleys pattern (Fig. 1-B), which is one of the in vitro characteristics of HSCs. The cells grew steadily in vitro (Fig. 1-C). JSNK-1 cells cultured in the medium containing retinol (5 M) showed many fat droplets in their cytoplasm (Fig.1-D) and when the concentration of retinol increased at 10 M big fat droplets appeared in the cytoplasm of JSNK-1 cells (Fig.1-E). These fat droplets were positively stained with an Oil Red O reagent (Fig.1-F). These findings indicate that JSNK-1 cells possessed HSC characteristics. JSNK-1 cells showed the protein expression of SV40T, -SMA, collagen type 1 and type IV and vimentin Immunofluorescence study for SV40T revealed that JSNK-1 cells uniformly expressed SV40T in the nuclei. Normal human fibroblasts, used as a control, were uniformly negative for SV40T expression. These data indicated that the emerging JSNK-1 cells were not derived from spontaneous long-surviving subpopulations in the parental cultures, but an SSR#69-immortalized cell clone. The presence of -SMA, collagen type 1 and type IV and vimentin was confirmed in JSNK-1 cells (Fig.2).. Gene expression of SV40T and HSC markers in JSNK-1 cell HSC markers were examined in JSNK-1 cells at two different time points (passage 30 and passage 50). JSNK-1 cells showed the stable gene expression profile of collagen type 11 and type 12 and FLT-1. The gene expression of SV40T was also confirmed in JSNK-1 cells (Fig.3).. JSNK-1 cells produced HGF Production of HGF was analyzed in JSNK-1 cells. The cells produced HGF into the culture medium and the amount increased in the time-dependent manner (Fig.4-A). The amount of HGF produced was 71.95pg/ml 23.86 for 24 hour-culture and 156.33 pg/ml  28.53 for 48 hour-culture, respectively.. Cell Transplant. 8. J.Shahid.

(9) Morphology and albumin production capacity of iPS-derived hepaocyte-like cells in the co-culture of JSNK-1 cells iPS-derived hepaocyte-like cells, when co-cultured with JSNK-1 cells showed hepatocytic morphology, such as polygonal shape, well defined margins and showing abundant cytoplasmic granules, under phase contrast microscope (Fig.4-C). iPS-derived hepatocyte-like cells significantly increased albumin production when co-cultured with JSNK-1 cells. The production of albumin of iPS cells was 29.0  3.2 pg/ml for a single culture of iPS cells and 256.934.2 pg/ml for co-culture with JSNK-1 cells, respectively (Fig.4-D).. Oncogenetic assay of JSNK-1 cells For oncogenetic study, JSNK-1 cells (1 x 107) were transplanted into 3 SCID mice. No tumor developed at the injection site of JSNK-1 for at least 3 months after transplantation, whereas PLC/PRF/5 cells (1 x 106) formed tumors around 3 weeks after inoculation. These results demonstrated that JSNK-1 was not a tumorigenic clone.. Cell Transplant. 9. J.Shahid.

(10) DISCUSSION Liver is one of the largest organ in the body that performs various functions in the body including synthesis of serum proteins, regulation of nutrients, production of bile, and the metabolism and conjugation of toxic compounds for excretion in the bile or urine. Although hepatocytes are the predominant cells in the liver, but other cell types, such as sinusoidal endothelial cells, cholangiocytes, Kupffer cells and HSCs, are equally important in coordinating liver functions. HSCs, being the nearest neighbor of hepatocytes play vital role in microcirculation in the liver, proliferation and maintenance of differentiation of hepatocytes, vitamin A homeostasis and scavenger functions. So the role of HSCs cannot be elucidated when considering the differentiation of stem cells to hepatocytes and prospective clinical cell therapies for liver disorders. The recent decades, due to advancement in regenerative medicine, cell therapies are becoming the attractive choice for various liver disorders. For such therapies, we will need the continuous supply of cells on an extremely large scale. Unfortunately there is severe shortage of human donor livers for liver cell isolation; thus, porcine liver cells may be an alternative for cell therapies, such as hepatocyte transplantation and extracorporeal bioartificial liver support (12). As primary porcine liver cells are very difficult to maintain for a long term, especially to induce proliferation in vitro culture, there is compelling need of easy handling cell lines (8). Therefore, we tried to retrovirally transduce primary porcine liver cells with SV40T and successfully established a clonal cell line JSNK-1. JSNK-1 cells showed a hills-and-valleys pattern at confluence in culture (Fig.1 B) and TEM revealed big fat droplets (Fig.1 D, E) in their cytoplasm, which was confirmed by PAS staining (Fig.1 F). JSNK-1 cells were positive for the protein expression of SMA, collagen, and vimentin (Fig. 2). JSNK-1 cells posses HSC characteristics. We believe that JSNK-1 may be a very useful tool for the study of HSCs.. Recently, iPS cells had been successfully established from mouse and human fibroblasts (10, 20). iPS cells are pluripotent and are able to proliferate unlimitedly in vitro. This technical breakthrough in creating iPS cells from somatic cells has noteworthy implications for overcoming the immunological rejection and the ethical issues associated with the derivation of embryonic stem cells from embryos. In the near future scientists will be interested in the use of hepatocytes derived from iPS cells to treat liver diseases. Towards the goal, it is extremely important to establish a reliable and reproducible hepatic differentiation-inducing method for iPS cells. Therefore, we investigated the effect of JSNK-1 cells on the hepatic differentiation of iPS cells in vitro. As shown in Fig. 4 C and D, co-culture of JSNK-1 cells maintained the Cell Transplant. 10. J.Shahid.

(11) favorable morphology of iPS-derived hepatocyte-like cells and increased the production of albumin at 10-fold. The exact mechanism of co-culture of JSNK-1 cells is now under investigation. One explanation is that enhanced hepatic differentiation of iPS cells was due to the presence of HGF produced by JSNK-1 cells. HGF is a mesenchymally derived potent mitogen for hepatocytes and acts as a growth factor for a broad spectrum of tissues and cell types (2,4,19). We also speculate that lipid droplets in JSNK-1 cells may contribute to hepatic differentiation for iPS cells. Lipid droplets in HSC contain not only vitamin A, but they also contain triglycerides, cholesterol, and phosopholipids (25). The differentiation-inducing action of vitamin A has been well investigated (3), more recently unsaturated fatty acids have been recognized as important signals in diverse processes such as differentiation, development and proliferation (21). Moreover HSC express another protein molecule named as epimorphine, which induces in vitro differentiation of hepatocytes (22). Hence, JSNK-1 cells can be useful for iPS cells towards their hepatic differentiation.. Further evaluation including identification of cytokines and growth factors that are produced by JSNK-1 cells is really essential before applying the cells for human iPS cells for the clinical use. JSNK-1 cells were not tumorigenic when injected into SCID mice for at least 3 months. However, unexpected malignant transformation of JSNK-1 cells for long-term culture in vitro cannot be completely denied. Accumulation of the redundant data on the safety issues will be needed for JSNK-1 cells, even though the cells are used for co-culture.. In conclusion, we have established a porcine hepatic stellate cell line and observed the enhanced hepatic differentiation of iPS cells when JSNK-1 cells were co-cultured.. ACKNOWLEDGMENTS This work was supported in part by Grants-in-Aid for Scientific Research from the Ministry of Education, Science, and Culture (to N.K), Japan.. DISCLOSURE OF POTENTIAL CONFLICTS OF INTEREST The authors declare that there are no potential conflicts of interest relevant to this publication.. Cell Transplant. 11. J.Shahid.

(12) REFERENCES 1. Bhatia, S. N.; Balis, U. J.; Yarmush, M. L.; Toner, M. Effect of cell-cell interactions in preservation of cellular phenotype: Cocultivation of hepatocytes and non parenchymal cells. FASEB J. 13:1883-1900; 1999. 2. Chen, Y.; Soto-Gutierrez, A.; Navarro-Alvarez, N.; Rivas-Carrillo, J. D.; Yamatsuji, T.; Shirakawa, Y.; Tanaka, N.; Basma, H.; Fox, I. J.; Kobayashi, N. Instant hepatic differentiation of human embryonic stem cells using activin A and a deleted variant of HGF. Cell Transplant. 15 (10):865-871; 2006. 3. Fields, A. L.; Soprono, D. R.; Soprono, K. J. Retinoids in biological control and cancer. J. Cell. Biochem. 102:886-898; 2007. 4. Hasuike, S.; Ido, A.; Uto, H.; Moriuchi, A.; Tahara, Y.; Numata, M.; Nagata, K.; Hori, T.; Hayashi, K.; Tsubouchi, H. Hepatocyte growth factor accelerates the proliferation of hepatic oval cells and possibly promotes the differentiation in a 2-acetylaminofluorene/partial hepatectomy model in rats. J. Cell Biol. 171(2):337-348; 2005. 5. Iwamuro, M.; Komaki, T.; Kubota, Y.; Seita, M.; Kawamoto, H.; Yuasa, Y.; Shahid, M. J.; Reham, A. H.; Wael, A. H.; Nakaji, S.; Nishikawa, Y.; Kondo, K.; Yamamoto, K.; Kobayashi, N. Comparative analysis of endoderm formation efficiency between mouse ES cells and iPS Cells. Cell Transplant. (In press). 6. Jha, K. K.; Banga, S.; Palejwala, V.; Ozer, H. L. SV 40 mediated immortalization. Exp. Cell Res. 245:1-7; 1998. 7. Kmiec, Z. Cooperation of liver cells in health and disease. Adv. Anat. Embryol. Cell. Biol. 161 III-XIII:1-151; 2001. 8. Kobayashi N. Artificial cells for the development of cell therapy. Cell Transplant. 17(1-2):3-9; 2008.. Cell Transplant. 12. J.Shahid.

(13) 9. Kobayashi, N.; Fujiwara, T.; Westerman, K. A.; Inoue, Y.; Sakaguchi, M.; Noguchi, H.; Miyazaki, M.; Cai, J.; Tanaka, N.; Fox, I. J.; Leboulch, P. Prevention of acute liver failure in rats with reversibly immortalized human hepatocytes. Science 287:1258-1862; 2000. 10. Lowry, W. E.; Richter, L.; Yachechko, R.; Pyle, A. D.; Tchieu, J.; Sridharan, R.; Clark, A. T.; Plath, K. Generation of human induced pluripotent stem cells from dermal fibroblasts. Proc. Natl. Acad. Sci. U. S. A. 105:2883-2888; 2008.. 11. Maruyama, M.; Totsugawa, T.; Kunieda, T.; Okitsu, T.; Shibata, N.; Takesue, M.; Kurabayashi, Y.; Oshita, M.; Nakaji, S.; Kodama, M.; Tanaka, N.; Kobayashi, N. Hepatocytes isolation and transplantation in the pig. Cell Transplant. 12:593-598; 2003.. 12. Mei, J.; Sgroi, A.; Mai, G.; Baertschiger, R.; Gonelle-Gispert, C.; Serre-Beinier, V.; Morel, P.; Bühler, L.H. Improved survival of fulminant liver failure by transplantation of microencapsulated cryopreserved porcine hepatocytes in mice. Cell Transplant. 18(1):101-110; 2009.. 13. Miki, A.; Narushima, M.; Okitsu, T.; Takeno, Y.; Soto-Gutierrez, A.; Rivas-Carrillo, J. D.; Navarro-Alvarez, N.; Chen, Y.; Tanaka, K.; Noguchi, H.; Matsumoto, S.; Kohara, M.; Lakey, J. R.; Kobayashi, E.; Tanaka, N.; Kobayashi, N. Maintenance of mouse, rat, and pig pancreatic islet functions by co-culture with human islet-derived fibroblasts. Cell Transplant. 15 (4):325-334; 2006.. 14. Nakahara, H.; Misawa H.; Hayashi, T.; Kondo, E.; Yuasa, T.; Kubota, Y.; Seita, M.; Kawamoto, H.; Hassan, W.A.; Hassan, R.A.; Javed, S.M.; Tanaka, M.; Endo, H.; Noguchi, H.; Matsumoto, S.; Takata, K.; Tashiro, Y.; Nakaji, S.; Ozaki, T.; Kobayashi N. Bone repair by transplantation of hTERT-immortalized human mesenchymal stem cells in mice.Transplantation 88 (3):346-353; 2009.. Cell Transplant. 13. J.Shahid.

(14) 15. Noguchi, H.; Kobayashi, N.; Westerman, K.A.; Sakaguchi, M.; Okitsu, T.; Totsugawa, T.; Watanabe, T.; Matsumura, T.; Fujiwara, T.; Ueda, T.; Miyazaki, M.; Tanaka, N.; Leboulch, P. Controlled expansion of human endothelial cell populations by Cre/loxP-based reversible immortalization. Hum. Gene. Ther. 13:321-334; 2002. 16. Okita, K.; Ichisaka, T.; Yamanaka, S. Generation of germline-competent induced pluripotent stem cells. Nature 448:313-317; 2007. 17. Rojkind, M.; Novikoff, P. M.; Greenwel, P.; Rubin, J.; Rojas-Valencia, L.; de Carvalho, A.C.; Stockert, R.; Spray, D.; Hertzberg, E.L.; Wolkoff, A.W. Characterization and functional studies of rat liver fat-storing cell line and freshly isolated hepatocyte coculture system. Am. J. Pathol. 146:1508-1520; 1995. 18. Seeno, H. Structure and function of hepatic stellate cells. Med. Electron Microsc. 37:3-15; 2004. 19. Soto-Gutierrez, A.; Kobayashi, N.; Rivas-Carillo, J.D.; Navarro-Alvarez, N.; Zhao, D.; Okitsu, T.; Noguchi, H.; Basma, H.; Tabata, Y.; Chen, Y.; Tanaka, K.; Narushima, M.; Miki, A.; Ueda, T.; Jun, H.S.; Yoon, J.W.; Lebkowski, J.; Tanaka, N.; Fox, I.J. Reversal of mouse hepatic failure using an implanted liver-assist device containing ES cell-derived hepatocytes. Nat. Biotechnol. 24(11):1412-1419; 2006.. 20. Takahashi, K.; Tanabe, K.; Ohnuki, M.; Narita, M.; Ichisaka, T.; Tomoda, K.; Yamanaka, S. Induction of pluripotent stem cells from adult human fibroblasts by defined factors. Cell 131:861-872; 2007.. 21. Tontonoz, P.; Spiegelman, B.M. Fat and beyond: the diverse biology of PPARgamma. Annu. Rev. Biochem. 77:289-213; 2008.. 22. Watanabe, S.; Hirose, M.; Wang, X. E.; Ikejima, K.; Sato, A. A novel hepatic stellate (Ito) cell-derived protein, epimorphine, plays a key role in the late stages of liver regeneration. Biochem. Biophys. Res. Commun. 250:486-490; 1998.. Cell Transplant. 14. J.Shahid.

(15) 23. Watanabe, T.; Shibata, N.; Westerman, K.A.; Okitsu, T.; Allain, J.E.; Sakaguchi, M.; Totsugawa, T.; Maruyama, M.; Matsumura, T.; Noguchi, H.; Yamamoto, S.; Hikida, M.; Ohmori, A.; Reth, M.; Weber, A.; Tanaka, N.; Leboulch, P.; Kobayashi, N. Establishment of immortalized human hepatic stellate scavenger cells to develop bioartificial livers. Transplantation 75 (11):1873-80; 2003.. 24. Westerman, K. A.; Leboulch, P. Reversible immortalization of mammalian cells mediated by retroviral transfer and site-specific recombination. Proc. Natl. Acad. Sci. U. S. A. 93:8971-8976; 1996.. 25.Yamada, M.; Blaner, W. S.; Soprano, D. R.; Dixon, J. L.; Kjeldbye, H. M.; Goodman, D. S. Biochemical characteristics of isolated rat liver stellate cells. Hepatology 7:1224-1229; 1987.. Cell Transplant. 15. J.Shahid.

(16) FIGURE LEGENDS Figure 1. Morphology and growth of JSNK-1 cells. (A) JSNK-1 cells were longitudinally spindle-shaped. Scale bar=200m. (B) At confluence, the cells display hills-and-valleys formations, which is typical of HSCs under phase-contrast microscopy. Scale bar=200m. (C) JSNK-1 cells grew steadily in vitro and proliferated at more than passage 60. (D) TEM revealed abundant cytoplasmic inclusions, resembling fat droplets, in JSNK-1 cells. Scale bar= 250 m. (E) Bigger fat droplets appeared in the cytoplasm when the concentration of retinol increased at 10 uM. Scale bar= 250 m. (F) These cytoplasmic inclusions were positive for Oil Red O staining, and confirmed to be fat droplets (original magnification x 400). Figure 2. Immunofluorescent study for - SMA, collagen type 1 and type IV, and vimentin in JSNK-1 cells. JSNK-1 cells produced - SMA (A), collagen type 1 (B), collagen type IV (C), and vimentin (D) in their cytoplasm. Scale bar=50m.. Figure 3. The gene expression of HSC markers and SV40T in JSNK-1 cells. RT-PCR was performed to determine the gene expression of HSC markers, collagen type 11 and collagen type 12, FLT-1, and SV40T at passages 30 and 50. Equal loading of PCR product was verified by detecting the -actin gene mRNA. JSNK-1 cells stably expressed these HSC markers and SV40T. The data is the representative at passage 50.. Figure 4. HGF production of JSNK- 1 cells and the effect of co-culture of iPS cells with JSNK-1 cells. (A) HGF production of JSNK-1 cells. JSNK-1 cells produced HGF in time-dependent manner. (B) Schematic drawings of co-culture of iPS and JSNK-1 cells. The gelatin-coated 12-well plates and cell culture inserts were used for co-culture of iPS and JSNK-1 cells. (C) When co-cultured with JSNK-1 cells, iPS cells showed maintenance of polygonal shape and abundant cytoplasmic granules under a phase contrast microscope. Scale bar=200m. (D) Albumin production of iPS cells significantly increased when co-cultured with JSNK-1 cells in comparison of a single culture of iPS cells.. Cell Transplant. 16. J.Shahid.

(17) Fig.1. B. Relative cell number. A. C 4 3 2 1 0 0 1 2 3 4 5 6 7 (Days). D. E. F. 20 mm.

(18) Fig. 2. A. B. -SMA. collagen typeⅠ. C. collagen type Ⅳ. 50 mm. D. 50 mm. vimentin. 50 mm.

(19) Fig. 3. A. 500 bp 400 bp 300 bp 200 bp. 100 bp.

(20) Fig. 4. B. pg/ml. A. JSNK+. 200 150 100. iPS cells. 50 0. JSNK-1 cells. 48h. D. pg/ml. 24h. C. JSNK-. P<0.005. 350 300 250 200 150 100 50 0. with co-culture. without coculture.
