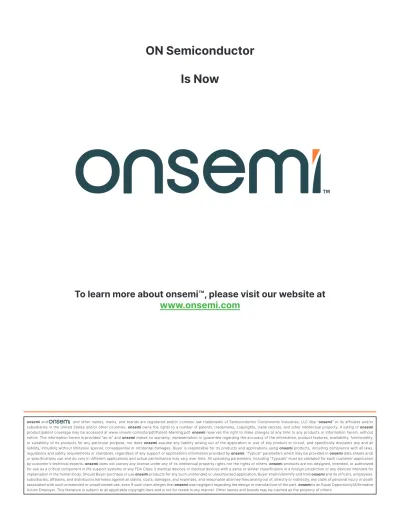

ON Semiconductor Is Now

To learn more about onsemi™, please visit our website at www.onsemi.com

ON Semiconductor Is Now

onsemi and       and other names, marks, and brands are registered and/or common law trademarks of Semiconductor Components Industries, LLC dba “onsemi” or its affiliates and/or subsidiaries in the United States and/or other countries. onsemi owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of onsemi product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. onsemi reserves the right to make changes at any time to any products or information herein, without notice. The information herein is provided “as-is” and onsemi makes no warranty, representation or guarantee regarding the accuracy of the information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/

or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. Other names and brands may be claimed as the property of others.

To learn more about ON Semiconductor, please visit our website at www.onsemi.com

Please note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor’s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclature that utilizes an underscore (_), the underscore (_) in the Fairchild part numbers will be changed to a dash (-). This document may contain device numbers with an underscore (_). Please check the ON Semiconductor website to verify the updated device numbers. The most current and up-to-date ordering information can be found at www.onsemi.com. Please email any questions regarding the system integration to [email protected].

Is Now Part of

ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

Tape and Reel 2500 BRAND PACKING TYPE QUANTITY

1

2018

©2009 Fairchild Semiconductor Corporation 1 RURD4120S9A_F085 Rev.

RURD4120S9A_F085

4A, 1200V Ultrafast Diodes

The RURD4120 S9A_F085 are ultrafast diodes with soft recovery characteristics (t _rr < 70ns). They have low forward voltage drop and are silicon nitride passivated ion-implanted epitaxial planar construction.

These devices are intended for use as freewheeling/

clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Their low stored charge and ultrafast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.

Formerly developmental type TA49036.

Symbol

Features

• Ultrafast with Soft Recovery . . . <70ns

• Operating Temperature . . . 175 ^o C

• Reverse Voltage . . . 1200V

• Avalanche Energy Rated

• Planar Construction

Applications

• Switching Power Supplies

• Power Switching Circuits

• General Purpose

Packaging

JEDEC STYLE TO-252

Ordering Information

PART NUMBER PACKAGE

RURD

TO UR

K

A

ANODE CATHODE

CATHODE (FLANGE)

Absolute Maximum Ratings T

= 25

C, Unless Otherwise Specified

RURD

S

UNITS Peak Repetitive Reverse Voltage . . . V

1200 V Working Peak Reverse Voltage . . . V

1200 V DC Blocking Voltage . . . V

1200 V Average Rectified Forward Current . . . I

(T

= 152

C)

4 A

Repetitive Peak Surge Current . . . I

(Square Wave, 20kHz)

8 A

Nonrepetitive Peak Surge Current . . . I

(Halfwave, 1 Phase, 60Hz)

40 A

Maximum Power Dissipation . . . P

50 W Avalanche Energy (See Figures 10 and 11). . . E

10 mJ Operating and Storage Temperature . . . T

, T

-65 to 175

C

Data Sheet

• Qualified to ACE Q101

• RoHS Compliant

October 2018

1

©2009 Fairchild Semiconductor Corporation 2 RURD4120S9A_F085 Rev.

Electrical Specifications T

= 25

C, Unless Otherwise Specified

SYMBOL TEST CONDITION MIN TYP MAX UNITS

V

I

= 4A - - 2.1 V

I

= 4A, T

= 150

C - - 1.9 V

I

V

= 1200V - - 100

A

V

= 1200V, T

= 150

C - - 500

A

t

I

= 1A, dI

/dt = 200A/

s - - 70 ns

I

= 4A, dI

/dt = 200A/

s - - 90 ns

t

I

= 4A, dI

/dt = 200A/

s - 40 - ns

t

I

= 4A, dI

/dt = 200A/

s - 28 - ns

Q

I

= 4A, dI

/dt = 200A/

s - 335 - nC

C

V

= 10V, I

= 0A - 15 - pF

R

- - 3

C/W

DEFINITIONS

V

= Instantaneous forward voltage (pw = 300

s, D = 2%).

I

= Instantaneous reverse current.

t

= Reverse recovery time (See Figure 9), summation of t

+ t

. t

= Time to reach peak reverse current (See Figure 9).

t

= Time from peak I

to projected zero crossing of I

based on a straight line from peak I

through 25% of I

(See Figure 9).

Q

= Reverse recovery time.

C

= Junction capacitance.

R

= Thermal resistance junction to case.

pw = Pulse width.

D = Duty cycle.

Typical Performance Curves

FIGURE 1. FORWARD CURRENT vs FORWARD VOLTAGE FIGURE 2. REVERSE CURRENT vs REVERSE VOLTAGE

IF, FORWARD CURRENT (A) 1 20

0.5 10

0 0.5 1 1.5 2 2.5 3

25^oC 175^oC

100^oC

V_R, REVERSE VOLTAGE (V)

0 400 600 800 1000 1200

100

0.01 0.1 1 10

IR, REVERSE CURRENT (µA)

200 0.001

25^oC 100^oC 175^oC

RURD4120S9A_F085

1

©2009 Fairchild Semiconductor Corporation 3 RURD4120S9A_F085 Rev.

FIGURE 3. t

, t

AND t

CURVES vs FORWARD CURRENT FIGURE 4. t

, t

AND t

CURVES vs FORWARD CURRENT

FIGURE 5. t

, t

AND t

CURVES vs FORWARD CURRENT FIGURE 6. CURRENT DERATING CURVE

FIGURE 7. JUNCTION CAPACITANCE vs REVERSE VOLTAGE

Typical Performance Curves (Continued)

I_F, FORWARD CURRENT (A) 0.5

0 45

30

15 75

4 1

t

t, RECOVERY TIMES (ns)

t

t

T_C = 25^oC, dI_F/dt = 200A/µs

0.5 0 60 100

4 1

t, RECOVERY TIMES (ns)

I_F, FORWARD CURRENT (A)

t

20

t

t

T_C = 100^oC, dI_F/dt = 200A/µs

0.5 0 25 125

4 1

t

t

t

t, RECOVERY TIMES (ns)

I_F, FORWARD CURRENT (A) 50

75

T_C = 175^oC, dI_F/dt = 200A/µs

5

1

0

125 135 155 165 175

2 3 4

T_C, CASE TEMPERATURE (^oC) IF(AV), AVERAGE FORWARD CURRENT (A)

145

DC

SQ. WAVE

V_R, REVERSE VOLTAGE (V) 30

15

00 50 100 150 200

75

CJ, JUNCTION CAPACITANCE (pF) 60

45

RURD4120S9A_F085

1

©2009 Fairchild Semiconductor Corporation 4 RURD4120S9A_F085 Rev.

Test Circuits and Waveforms

FIGURE 8. t

TEST CIRCUIT FIGURE 9. t

WAVEFORMS AND DEFINITIONS

FIGURE 10. AVALANCHE ENERGY TEST CIRCUIT FIGURE 11. AVALANCHE CURRENT AND VOLTAGE WAVEFORMS

R_G L

V_DD IGBT

CURRENT SENSE DUT

V_GE t₁

t₂ V_GE AMPLITUDE AND t_{1 AND} t₂ CONTROL I_F R_G CONTROL dI_F/dt

+

-

dt dI_F

I_F trr

ta tb

0

I_RM 0.25 I_RM

DUT CURRENT

SENSE

+

L R

V_DD R < 0.1Ω

E_AVL = 1/2LI² [V_R(AVL)/(V_R(AVL) - V_DD)]

Q₁ = IGBT (BV_CES > DUT V_R(AVL))

-

V_DD Q₁

I = 1A L = 20mH

I V

t₀ t₁ t₂

I_L V_AVL

t I_L

RURD4120S9A_F085

I_L

RURD4120S9A_F085

I_L

RURD4120S9A_F085

I_L

RURD4120S9A_F085
