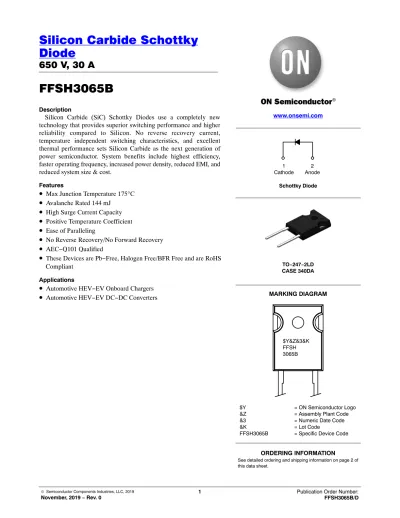

Silicon Carbide Schottky Diode

Diode

650 V, 30 A

FFSH3065B

Description

Silicon Carbide (SiC) Schottky Diodes use a completely new technology that provides superior switching performance and higher reliability compared to Silicon. No reverse recovery current, temperature independent switching characteristics, and excellent thermal performance sets Silicon Carbide as the next generation of power semiconductor. System benefits include highest efficiency, faster operating frequency, increased power density, reduced EMI, and reduced system size & cost.

Features

• Max Junction Temperature 175 ° C

• Avalanche Rated 144 mJ

• High Surge Current Capacity

• Positive Temperature Coefficient

• Ease of Paralleling

• No Reverse Recovery/No Forward Recovery

• AEC−Q101 Qualified

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Applications

• Automotive HEV−EV Onboard Chargers

• Automotive HEV−EV DC−DC Converters

www.onsemi.com

TO−247−2LD CASE 340DA Schottky Diode

MARKING DIAGRAM

$Y&Z&3&K FFSH 3065B

$Y = ON Semiconductor Logo

&Z = Assembly Plant Code

&3 = Numeric Date Code

&K = Lot Code

FFSH3065B = Specific Device Code 1

Cathode 2

Anode

FFSH3065B

www.onsemi.com 2

ABSOLUTE MAXIMUM RATINGS (T

= 25°C unless otherwise noted)

Symbol Parameter Value Unit

V

Peak Repetitive Reverse Voltage 650 V

E

Single Pulse Avalanche Energy (Note 1) 144 mJ

I

Continuous Rectified Forward Current @ T

< 146°C 30 A

Continuous Rectified Forward Current @ T

< 135°C 37

I

Non-Repetitive Peak Forward Surge Current T

= 25°C, 10 ms 1100 A

T

= 150°C, 10 ms 1000 A

I

Non-Repetitive Forward Surge Current

T

= 25°C Half-Sine Pulse, t

= 8.3 ms 110 A

Ptot Power Dissipation T

= 25°C 268 W

T

= 150 ° C 45 W

T

, T

Operating and Storage Temperature Range −55 to +175 ° C

TO247 Mounting Torque, M3 Screw 60 Ncm

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. E

of 144 mJ is based on starting T

= 25°C, L = 0.5 mH, I

= 24 A, V = 50 V.

THERMAL CHARACTERISTICS

Symbol Parameter Value Unit

R

Thermal Resistance, Junction to Case, Max 0.56 °C/W

ELECTRICAL CHARACTERISTICS (T

= 25 ° C unless otherwise noted)

Symbol Parameter Test Condition Min Typ Max Unit

V

Forward Voltage I

= 30 A, T

= 25°C − 1.38 1.7 V

I

= 30 A, T

= 125°C − 1.6 2.0

I

= 30 A, T

= 175°C − 1.72 2.4

I

Reverse Current V

= 650 V, T

= 25°C − 0.5 40 mA

V

= 650 V, T

= 125°C − 1 80

V

= 650 V, T

= 175°C − 2 160

Q

Total Capacitive Charge V = 400 V − 73 − nC

C Total Capacitance V

= 1 V, f = 100 kHz − 1260 − pF

V

= 300 V, f = 100 kHz − 115 −

V

= 600 V, f = 100 kHz − 104 −

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

PACKAGE MARKING AND ORDERING INFORMATION

Part Number Top Marking Package Shipping

FFSH3065B FFSH3065B TO−247−2LD

(Pb−Free / Halogen Free) 30 Units / Tube

TYPICAL CHARACTERISTICS

(T

= 25°C unless otherwise noted)

700 750 800 850

0.0 0.2 0.4 0.6 0.8

1.0 T_J = 175^oC TJ = 125^oC TJ = 75^oC TJ = 25^oC T_J = −55^oC

IR, REVERSE CURRENT (mA)

V_R, REVERSE VOLTAGE (V)

Figure 1. Forward Characteristics Figure 2. Reverse Characteristics

Figure 3. Reverse Characteristics Figure 4. Current Derating

Figure 5. Power Derating Figure 6. Capacitive Charge vs. Reverse Voltage

0 10 20 30

T_J = 175^oC TJ = 125^oC

TJ = 75^oC

TJ = 25^oC TJ = −55^oC IF, FORWARD CURRENT (A)

V_F, FORWARD VOLTAGE (V)

10⁻⁷ 10⁻⁶ 10⁻⁵ 10⁻⁴ 10⁻³

IR, REVERSE CURRENT (

V_R, REVERSE VOLTAGE (V) TJ = 175^oC TJ = 125^oC

TJ = −55^oC TJ = 25^oC TJ = 75^oC

0 70 140 210 280 350

D = 0.1

D = 0.2

D = 0.3 D = 0.5

D = 0.7 D = 1 IF, PEAK FORWARD CURRENT (A)

T_C, CASE TEMPERATURE

(

)

0 50 100 150 200 250 300

PTOT, POWER DISSIPATION (W)

T_C, CASE TEMPERATURE ^o

(

)

0 30 60 90 120

QC, CAPACITIVE CHARGE (nC)

V_R, REVERSE VOLTAGE (V)

mA)

0.0 0.5 1.0 1.5 2.0 100 200 300 400 500 600 650

25 50 75 100 125 150 175

25 50 75 100 125 150 175 0 100 200 300 400 500 600 650

FFSH3065B

www.onsemi.com 4

TYPICAL CHARACTERISTICS

(T

= 25°C unless otherwise noted)

10 100 1000

CAPACITANCE (pF)

V_R, REVERSE VOLTAGE (V)

0.1 1 10 100 650

Figure 7. Capacitance vs. Reverse Voltage

DUTY CYCLE−DESCENDING ORDER

EC, CAPACITIVE ENERGY (J)

V_R, REVERSE VOLTAGE (V)

10⁻⁶ 10⁻⁵ 10⁻⁴ 10⁻³ 10⁻² 10⁻¹

0.001 0.01 0.1 1

r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE

SINGLE PULSE D=0.01

D=0.02D=0.05D=0.1D=0.2 D=0.5

t, RECTANGULAR PULSE DURATION (sec) NOTES:

Z_qJC(t) = r(t) x R_qJC R_qJC = 0.56^oC/W Duty Cycle, D = t₁ / t₂ Peak T_J = P_DM x Z_qJC(t) + T_C

P_DM

t1 t₂

100 200 300 400 500 600 650 0

30

20

10

m

1

2

10⁰

Figure 8. Capacitance Stored Energy

Figure 9. Junction-to-Case Transient Thermal Response Curve

TEST CIRCUIT AND WAVEFORMS

Figure 10. Unclamped Inductive Switching Test Circuit & Waveform

L R

+

DUT − CURRENT

SENSE V

V

Q1

I V

V

t

t

t

t

I

I

L = 0.5 mH R < 0.1 W V

= 50 V

EAVL = 1/2LI2 [V

/ (V

− V

)]

Q1 = IGBT (BV

> DUT V

)

TO−247−2LD CASE 340DA

ISSUE A

DATE 27 FEB 2019

GENERIC MARKING DIAGRAM*

XXXXX = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week ZZ = Assembly Lot Code

*This information is generic. Please refer to de- vice data sheet for actual part marking. Pb−

Free indicator, “G” or microdot “ G”, may or may not be present. Some products may not follow the Generic Marking.

AYWWZZ

XXXXXXX

XXXXXXX
