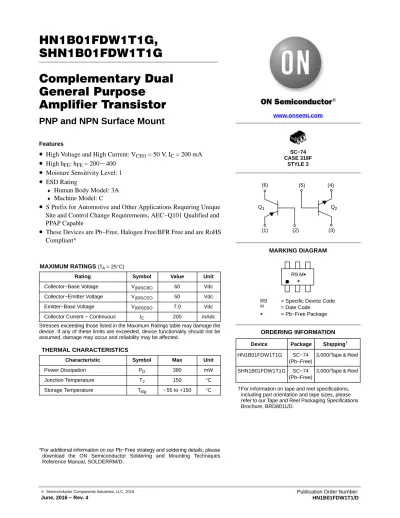

HN1B01FDW1T1G, SHN1B01FDW1T1G Complementary Dual General Purpose Amplifier Transistor

(1)

HN1B01FDW1T1G, SHN1B01FDW1T1G Complementary Dual General Purpose

Amplifier Transistor

PNP and NPN Surface Mount

Features

• High Voltage and High Current: V

_CEO

= 50 V, I

_C

= 200 mA

• ^{High h}

FE

: h

FE

= 200 X 400

• Moisture Sensitivity Level: 1

• ^{ESD Rating}

♦

Human Body Model: 3A

♦

Machine Model: C

• S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant*

MAXIMUM RATINGS (T_A = 25°C)

Rating Symbol Value Unit

Collector−Base Voltage V_(BR)CBO 60 Vdc

Collector−Emitter Voltage V_(BR)CEO 50 Vdc

Emitter−Base Voltage V_(BR)EBO 7.0 Vdc

Collector Current − Continuous I_C 200 mAdc Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Power Dissipation P_D 380 mW

Junction Temperature T_J 150 °C

Storage Temperature T_stg − 55 to +150 °C

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

MARKING DIAGRAM www.onsemi.com

Q₁

(4) (5)

(6)

(1) (2) (3)

Q₂ SC−74

CASE 318F STYLE 3

Device Package Shipping^† ORDERING INFORMATION

HN1B01FDW1T1G SC−74 (Pb−Free)

3,000/Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

SHN1B01FDW1T1G SC−74 (Pb−Free)

3,000/Tape & Reel R9 MG

G

R9 = Specific Device Code

M = Date Code G = Pb−Free Package

(2)

Q1: PNP

ELECTRICAL CHARACTERISTICS(T_A = 25°C unless otherwise noted)

Characteristic Symbol Min Max Unit

Collector−Emitter Breakdown Voltage (I_C = 2.0 mAdc, I_B = 0)

V_(BR)CEO

−50 −

Vdc Collector−Base Breakdown Voltage

(I_C = 10 mAdc, I_E = 0)

V_(BR)CBO

−60 −

Vdc Emitter−Base Breakdown Voltage

(I_E = 10 mAdc, I_C = 0)

V_(BR)EBO

−7.0 −

Vdc Collector−Base Cutoff Current

(V_CB = 45 Vdc, I_E = 0)

I_CBO

− −0.1

mAdc Collector−Emitter Cutoff Current

(V_CE = 10 Vdc, I_B = 0) (V_CE = 30 Vdc, I_B = 0)

(V_CE = 30 Vdc, I_B = 0, T_A = 80°C)

I_CEO

−

−0.1

−2.0

−1.0

mAdc mAdc mAdc DC Current Gain (Note 1)

(V_CE = 6.0 Vdc, I_C = 2.0 mAdc)

h_FE

−200 −400

− Collector−Emitter Saturation Voltage

(I_C = 100 mAdc, I_B = 10 mAdc)

V_CE(sat)

− −0.3

Vdc

Q2: NPN

ELECTRICAL CHARACTERISTICS(T_A = 25°C unless otherwise noted)

Characteristic Symbol Min Max Unit

Collector−Emitter Breakdown Voltage (I_C = 2.0 mAdc, I_B = 0)

V_(BR)CEO

50 −

Vdc Collector−Base Breakdown Voltage

(I_C = 10 mAdc, I_E = 0)

V_(BR)CBO

60 −

Vdc Emitter−Base Breakdown Voltage

(I_E = 10 mAdc, I_C = 0)

V_(BR)EBO

7.0 −

Vdc Collector−Base Cutoff Current

(V_CB = 45 Vdc, I_E = 0)

I_CBO

− 0.1

mAdc Collector−Emitter Cutoff Current

(V_CE = 10 Vdc, I_B = 0) (V_CE = 30 Vdc, I_B = 0)

(V_CE = 30 Vdc, I_B = 0, T_A = 80°C)

I_CEO

−

0.1 2.0 1.0

mAdc mAdc mAdc DC Current Gain (Note 1)

(V_CE = 6.0 Vdc, I_C = 2.0 mAdc)

h_FE

200 400

− Collector−Emitter Saturation Voltage

(I_C = 100 mAdc, I_B = 10 mAdc)

V_CE(sat)

− 0.25

Vdc 1. Pulse Test: Pulse Width ≤ 300 ms, D.C. ≤ 2%.

(3)

TYPICAL ELECTRICAL CHARACTERISTICS: PNP Transistor

Figure 1. Collector Saturation Region

0 −1 −2 −3 −4 −5 −6

−200

0

−40 IC, COLLECTOR CURRENT (mA)

V_CE, COLLECTOR−EMITTER VOLTAGE (V)

−80

−120

−160

Figure 2. DC Current Gain

−1 −10 −100 −1000

1000

10 hFE, DC CURRENT GAIN

I_C, COLLECTOR CURRENT (mA) 100

T_A = 25°C

−2.0 mA −1.5 mA

−1.0 mA

−0.5 mA

I_B = −0.2 mA

V_CE = −1.0 V

T_A = 100°C

−25°C 25°C

−1 −10 −100 −1000

1000

Figure 4. V_CE(sat) versus I_C

−1 −10 −100 −1000

−1

−0.01 VCE(sat), MAXIMUM COLLECTOR VOLTAGE (V)

I_C, COLLECTOR CURRENT (mA)

−0.1

I_C/I_B = 10

T_A = 100°C

−25°C 25°C

T_A = 100°C

−25°C 25°C

Figure 5. V_BE(sat) versus I_C

−1 −10 −100 −1000

−10

−0.1 BASE−EMITTER SATURATION VOLTAGE (V)

I_C, COLLECTOR CURRENT (mA)

−1

Figure 6. Base−Emitter Voltage 0 −0.1

−10,000

IB, BASE CURRENT (mA)

V_BE, BASE−EMITTER VOLTAGE (V)

−0.1

COMMON EMITTER

V_CE = 6 V T_A = 100°C

−25°C 25°C

T_A = 25°C I_C/I_B = 10

−1

−10

−100

−1000

−0.2 −0.3 −0.4 −0.5 −0.6 −0.7 −0.8 −0.9 −1 V_CE = −6.0 V

(4)

TYPICAL ELECTRICAL CHARACTERISTICS: NPN Transistor

Figure 7. Collector Saturation Voltage

0 1 2 3 4 5 6

280

0 I, COLLECTOR CURRENT (mA)C 40

V_CE, COLLECTOR−EMITTER VOLTAGE (V) 80

120 160

1 10 100 1000

1000

T_A = 25°C 6.0 mA

1.0 mA

I_B = 0.2 mA

V_CE = 1.0 V T_A = 100°C

−25°C 25°C

1 10 100 1000

1000

Figure 10. V_CE(sat) versus I_C

1 10 100 1000

1

0.01 VCE(sat), MAXIMUM COLLECTOR VOLTAGE (V)

I_C, COLLECTOR CURRENT (mA) 0.1

I_C/I_B = 10

T_A = 100°C

−25°C 25°C

T_A = 100°C

−25°C 25°C

Figure 11. V_BE(sat) versus I_C

1 10 100 1000

10

0.1 BASE−EMITTER SATURATION VOLTAGE (V)

Figure 12. Base−Emitter Voltage 0 0.1

10,000

IB, BASE CURRENT (mA)

V_BE, BASE−EMITTER VOLTAGE (V) 0.1

COMMON EMITTER

V_CE = 6 V T_A = 100°C

−25°C 25°C

T_A = 25°C I_C/I_B = 10

1 10 100 1000

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 5.0 mA

3.0 mA

200 240

2.0 mA

0.5 mA

V_CE = 6.0 V

(5)

TYPICAL ELECTRICAL CHARACTERISTICS

0.001 0.01 0.1 10

0.1 1 10 100

Figure 13. PNP Safe Operating Area V_CE, COLLECTOR−EMITTER VOLTAGE (V) IC, COLLECTOR CURRENT (A)

PNP

100 ms

1 ms

Thermal Limit

10 ms 1

Figure 14. NPN Safe Operating Area Single Pulse Test at T_A = 25°C

0.001 0.01 0.1 10

0.1 1 10 100

V_CE, COLLECTOR−EMITTER VOLTAGE (V) IC, COLLECTOR CURRENT (A)

NPN

100 ms 1 ms

Thermal Limit

10 ms 1

Single Pulse Test at T_A = 25°C

(6)

SC−74 CASE 318F

ISSUE P

DATE 07 OCT 2021 SCALE 2:1

STYLE 1:

PIN 1. CATHODE 2. ANODE 3. CATHODE 4. CATHODE 5. ANODE 6. CATHODE

STYLE 2:

PIN 1. NO CONNECTION 2. COLLECTOR 3. EMITTER 4. NO CONNECTION 5. COLLECTOR 6. BASE

XXX MG G

XXX = Specific Device Code M = Date Code

G = Pb−Free Package GENERIC MARKING DIAGRAM*

STYLE 3:

PIN 1. EMITTER 1 2. BASE 1 3. COLLECTOR 2 4. EMITTER 2 5. BASE 2 6. COLLECTOR 1

STYLE 4:

PIN 1. COLLECTOR 2 2. EMITTER 1/EMITTER 2 3. COLLECTOR 1 4. EMITTER 3

5. BASE 1/BASE 2/COLLECTOR 3 6. BASE 3

STYLE 5:

PIN 1. CHANNEL 1 2. ANODE 3. CHANNEL 2 4. CHANNEL 3 5. CATHODE 6. CHANNEL 4

STYLE 6:

PIN 1. CATHODE 2. ANODE 3. CATHODE 4. CATHODE 5. CATHODE 6. CATHODE

1 6

STYLE 7:

PIN 1. SOURCE 1 2. GATE 1 3. DRAIN 2 4. SOURCE 2 5. GATE 2 6. DRAIN 1

STYLE 8:

STYLE 9:

(Note: Microdot may be in either location)

STYLE 10:

PIN 1. ANODE/CATHODE 2. BASE

3. EMITTER 4. COLLECTOR 5. ANODE 6. CATHODE

STYLE 11:

PIN 1. EMITTER 2. BASE

3. ANODE/CATHODE 4. ANODE 5. CATHODE 6. COLLECTOR

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

PACKAGE DIMENSIONS

98ASB42973B DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 SC−74
