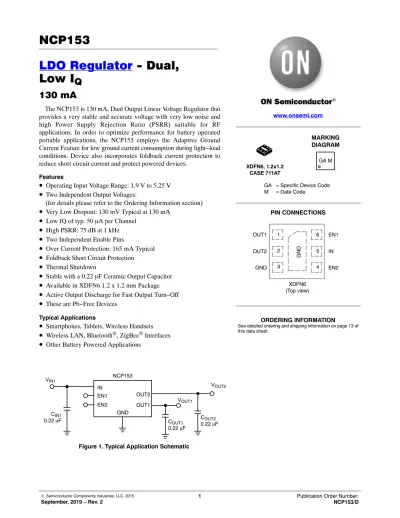

NCP153 LDO Regulator - Dual, Low I

LDO Regulator - Dual, Low I _Q

130 mA

The NCP153 is 130 mA, Dual Output Linear Voltage Regulator that provides a very stable and accurate voltage with very low noise and high Power Supply Rejection Ratio (PSRR) suitable for RF applications. In order to optimize performance for battery operated portable applications, the NCP153 employs the Adaptive Ground Current Feature for low ground current consumption during light−load conditions. Device also incorporates foldback current protection to reduce short circuit current and protect powered devices.

Features

• Operating Input Voltage Range: 1.9 V to 5.25 V

• Two Independent Output Voltages:

(for details please refer to the Ordering Information section)

• Very Low Dropout: 130 mV Typical at 130 mA

• Low IQ of typ. 50 mA per Channel

• High PSRR: 75 dB at 1 kHz

• Two Independent Enable Pins

• Over Current Protection: 165 mA Typical

• Foldback Short Circuit Protection

• Thermal Shutdown

• Stable with a 0.22 mF Ceramic Output Capacitor

• Available in XDFN6 1.2 x 1.2 mm Package

• Active Output Discharge for Fast Output Turn−Off

• These are Pb−Free Devices

• Smartphones, Tablets, Wireless Handsets

• Wireless LAN, Bluetooth

, ZigBee

Interfaces

• Other Battery Powered Applications

IN EN1 EN2

OUT2 OUT1 GND NCP153

V_OUT2 VOUT1

COUT2

0.22 mF C_OUT1

0.22 mF C_IN1

0.22 mF V_IN1

Figure 1. Typical Application Schematic

XDFN6, 1.2x1.2 CASE 711AT

MARKING DIAGRAM www.onsemi.com

See detailed ordering and shipping information on page 13 of this data sheet.

ORDERING INFORMATION XDFN6

(Top view) 6 5 4 1

2 3

OUT1 EN1

PIN CONNECTIONS

OUT2 GND

IN EN2

GND

GA = Specific Device Code M = Date Code

GA M

Figure 2. Simplified Schematic Block Diagram

GND

EN2

THERMAL SHUTDOWN

MOSFET DRIVER WITH CURRENT LIMIT

ACTIVE DISCHARGE EN1

ENABLE LOGIC EN1

OUT1

IN DISCHARGEACTIVE

EN2

ENABLE

LOGIC THERMAL

SHUTDOWN MOSFET DRIVER WITH CURRENT LIMIT

OUT2 BANDGAP

REFERENCE

PIN FUNCTION DESCRIPTION Pin No.

XDFN6

Pin

Name Description

1 OUT1 Regulated output voltage of the first channel. A small 0.22 mF ceramic capacitor is needed from this pin to ground to assure stability.

2 OUT2 Regulated output voltage of the second channel. A small 0.22 mF ceramic capacitor is needed from this pin to ground to assure stability.

3 GND Power supply ground. Soldered to the copper plane allows for effective heat dissipation.

4 EN2 DrivingEN2 over 0.9 V turns−on OUT2. Driving EN below 0.4 V turns−off the OUT2 and activates the active discharge.

5 IN Input pin common for both channels. It is recommended to connect 0.22 mF ceramic capacitor close to the device pin.

6 EN1 DrivingEN1 over 0.9 V turns−on OUT1. Driving EN below 0.4 V turns−off the OUT1 and activates the active discharge.

− EP Exposed pad must be tied to ground. Soldered to the copper plane allows for effective thermal dissipation.

ABSOLUTE MAXIMUM RATINGS

Rating Symbol Value Unit

Input Voltage (Note 1) VIN −0.3 V to 6 V V

Output Voltage VOUT1,

V_OUT2 −0.3 V to VIN + 0.3 V or 6 V V

Enable Inputs V_EN1,

V_EN2 −0.3 V to 6 V V

Output Short Circuit Duration t_SC Indefinite s

Maximum Junction Temperature T_J(MAX) 150 °C

Storage Temperature T_STG −55 to 150 °C

ESD Capability, Human Body Model (Note 2) ESD_HBM 2000 V

ESD Capability, Machine Model (Note 2) ESD_MM 200 V

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Refer to ELECTRICAL CHARACTERISTICS and APPLICATION INFORMATION for Safe Operating Area.

2. This device series incorporates ESD protection and is tested by the following methods:

ESD Human Body Model tested per EIA/JESD22−A114 ESD Machine Model tested per EIA/JESD22−A115

Latchup Current Maximum Rating tested per JEDEC standard: JESD78.

THERMAL CHARACTERISTICS (Note 3)

Rating Symbol Value Unit

Thermal Characteristics, XDFN6 1.2 x 1.2 mm, Thermal Resistance, Junction−to−Air

Thermal Characterization Parameter, Junction−to−Lead (Pin 2) qJA

qJL

170 °C/W

3. Single component mounted on 1 oz, FR4 PCB with 645mm2 Cu area.

ELECTRICAL CHARACTERISTIC

−40°C ≤ TJ ≤ 85°C; VIN = V_OUT(NOM) + 1 V or 2.5 V, whichever is greater; V_EN = 0.9 V, I_OUT = 1 mA, C_IN = C_OUT = 0.22 mF. Typical values are at T_J = +25°C. Min/Max values are specified for TJ = −40°C and TJ = 85°C respectively. (Note 4)

Parameter Test Conditions Symbol Min Typ Max Unit

Operating Input Voltage V_IN 1.9 5.25 V

Output Voltage Accuracy

−40°C ≤ TJ ≤ 85°C V_OUT > 2 V VOUT −2 +2 %

V_OUT ≤ 2 V −60 +60 mV

Line Regulation V_OUT + 0.5 V or 2.5 V ≤ VIN ≤ 5 V Reg_LINE 0.02 0.1 %/V

Load Regulation I_OUT = 1 mA to 130 mA, T_J = +25°C Reg_LOAD 15 50 mV

Dropout Voltage (Note 5) IOUT = 130 mA, TJ = +25°C V_OUT(nom) = 1.8 V

VDO

265 280

V_OUT(nom) = 3.3 V 130 150 mV

Output Current T_J = +25°C I_OUT 130 mA

OCP Level V_OUT = 90% V_OUT(nom), T_J = +25°C I_OCP 135 165 195 mA

Short Circuit Current V_OUT = 0 V, T_J = +25°C I_SC 55 mA

Quiescent Current I_OUT = 0 mA, EN1 = V_IN, EN2 = 0 V or EN2 = V_IN,

EN1 = 0 V I_Q 50 100 mA

I_OUT1 = I_OUT2 = 0 mA, V_EN1 = V_EN2 = V_IN I_Q 85 200 mA

Shutdown Current (Note 6) VEN ≤ 0.4 V, VIN = 5.25 V IDIS 0.1 1 mA

EN Pin Threshold Voltage High Threshold

Low Threshold V_EN Voltage increasing

V_EN Voltage decreasing V_{EN_HI}

V_{EN_LO} 0.9

0.4 V

EN Pin Input Current V_EN = V_IN = 5.25 V I_EN 0.3 1.0 mA

Power Supply Rejection Ratio V_IN = V_OUT+1 V for V_OUT > 2 V, V_IN =

2.5 V, for V_OUT ≤ 2 V, IOUT = 10 mA f = 1 kHz PSRR 75 dB

Output Noise Voltage f = 10 Hz to 100 kHz V_N 75 mVrms

Active Discharge Resistance V_IN = 4 V, V_EN < 0.4 V R_DIS 50 W

Thermal Shutdown Temperature Temperature increasing from T_J = +25°C T_SD 160 °C

Thermal Shutdown Hysteresis Temperature falling from T_SD T_SDH − 20 − °C

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

4. Performance guaranteed over the indicated operating temperature range by design and/or characterization. Production tested at T_J = T_A

= 25°C. Low duty cycle pulse techniques are used during testing to maintain the junction temperature as close to ambient as possible.

5. Characterized when V_OUT falls 100 mV below the regulated voltage at V_IN = V_OUT(NOM) + 1 V.

6. Shutdown Current is the current flowing into the IN pin when the device is in the disable state.

TYPICAL CHARACTERISTICS

Figure 3. Output Voltage vs. Temperature – V_OUT = 1.8 V

Figure 4. Output Voltage vs. Temperature – V_OUT = 3.3 V

T_J, JUNCTION TEMPERATURE (°C) T_J, JUNCTION TEMPERATURE (°C)

80 65 50 20

5

−10

−25 1.75−40 1.76 1.78 1.80 1.81 1.82 1.84 1.85

80 65 50 20

5

−10

−25 3.25−40 3.26 3.28 3.29 3.31 3.32 3.34 3.35

Figure 5. Ground Current vs. Output Current – One Output Load

Figure 6. Ground Current vs. Output Current – Different Load Combinations

I_OUT, OUTPUT CURRENT (mA) I_OUT, OUTPUT CURRENT (mA)

100 10

1

0.1 1000

0.01 0.001 0 50 100 200 250 300 400 450

117 104 78

65 39

26 13 00 75 150 300 450 525 675 750

Figure 7. Quiescent Current vs. Input Voltage – Both Outputs ON

Figure 8. Line Regulation vs. Temperature − V_OUT = 1.8 V

V_IN, INPUT VOLTAGE (V) T_J, JUNCTION TEMPERATURE (°C)

5.0 4.0

3.5 3.0 2.0

1.0 0.5 00 10 30 40 60 70 90 100

80 65 50 20

5

−10

−25

−0.05−40

−0.04

−0.01 0 0.01 0.02 0.03 0.05

VOUT, OUTPUT VOLTAGE (V) VOUT, OUTPUT VOLTAGE (V)

IGND, GROUND CURRENT (mA) IGND, GROUND CURRENT (mA)

IQ, QUIESCENT CURRENT (mA) REGLINE, LINE REGULATION (%/V)

35 95

1.77 1.79 1.83

I_OUT = 1 mA I_OUT = 130 mA

VIN = 2.8 V VOUT = 1.8 V CIN = 0.22 mF C_OUT = 0.22 mF

I_OUT = 1 mA I_OUT = 130 mA

V_IN = 4.3 V V_OUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF 35

3.27 3.30 3.33

95

150 350

V_IN = 4.3 V V_OUT = 3.3 V V_EN1 = V_EN2 = V_IN C_IN = 0.22 mF COUT = 0.22 mF

T_J = 85°C TJ = 25°C

T_J = −40°C

225 375 600

52 91 130

V_IN = 2.5 V to 5.25 V V_OUT = 1.8 V I_OUT = 1 mA C_IN = 0.22 mF COUT = 0.22 mF VIN = 4.3 V

VOUT = 3.3 V CIN = 0.22 mF C_OUT = 0.22 mF

V_IN = 4.3 V V_OUT = 3.3 V C_IN = 0.22 mF COUT = 0.22 mF

VEN1 = VEN2 = VIN, OUT1−LOAD OUT2−LOAD

V_EN1 = V_EN2 = V_IN, OUT1−LOAD

V_EN1 = 0 V, V_EN2 = V_IN, OUT1−LOAD

1.5 2.5 4.5 5.5

20 50

80 −40°C

85°C

25°C

35 95

−0.02

−0.03 0.04

TYPICAL CHARACTERISTICS

Figure 9. Line Regulation vs. Temperature − V_OUT = 3.3 V

Figure 10. Load Regulation vs. Temperature − V_OUT = 1.8 V

T_J, JUNCTION TEMPERATURE (°C) T_J, JUNCTION TEMPERATURE (°C)

80 65 50 35 5

−10

−25

−0.05−40

−0.04

−0.02

−0.01 0 0.01 0.02 0.05

80 65 50 35 5

−10

−25 0−40 1 2 4 5 7 9 10

Figure 11. Load Regulation vs. Temperature − V_OUT = 3.3 V

Figure 12. Dropout Voltage vs. Output Current – V_OUT = 1.8 V

T_J, JUNCTION TEMPERATURE (°C) I_OUT, OUTPUT CURRENT (mA)

80 65 50 35 5

−10

−25 0−40 1 3 4 5 7 8 10

117 104 78

52 39 26 13 00 30 60 120 180 210 270 300

Figure 13. Dropout Voltage vs. Output Current – V_OUT = 3.3 V

Figure 14. Dropout Voltage vs. Temperature – V_OUT = 1.8 V

I_OUT, OUTPUT CURRENT (mA) T_J, JUNCTION TEMPERATURE (°C)

130 117 78

65 52 26

13 00 20 60 80 120 140 180 200

80 65 50 35 20

−10

−25 0−40 35 105 140 210 280 315 350

REGLINE, LINE REGULATION (%/V) REGLOAD, LOAD REGULATION (mV)

REGLOAD, LOAD REGULATION (mV) VDROP, DROPOUT VOLTAGE (mV)

VDROP, DROPOUT VOLTAGE (mV) VDROP, DROPOUT VOLTAGE (mV)

V_IN = 4.3 V to 5.25 V V_OUT = 3.3 V I_OUT = 1 mA C_IN = 0.22 mF C_OUT = 0.22 mF 20

0.03 0.04

−0.03

95

3 6 8

20 95

V_IN = 2.5 V VOUT = 3.3 V

IOUT = 1 mA to 130 mA C_IN = 0.22 mF

C_OUT = 0.22 mF

2 6 9

20 95

V_IN = 4.3 V V_OUT = 3.3 V

I_OUT = 1 mA to 130 mA C_IN = 0.22 mF

C_OUT = 0.22 mF

TJ = 85°C T_J = 25°C

T_J = −40°C VIN = 2.8 V

V_OUT = 1.8 V CIN = 0.22 mF COUT = 0.22 mF

65 91

90 150 240

130

V_IN = 4.3 V V_OUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF

T_J = 85°C TJ = 25°C

T_J = −40°C 40

100 160

39 91 104

IOUT = 0 mA I_OUT = 75 mA VIN = 2.8 V

VOUT = 1.8 V CIN = 0.22 mF C_OUT = 0.22 mF 245

70 175

I_OUT = 130 mA

5 95

TYPICAL CHARACTERISTICS

Figure 15. Dropout Voltage vs. Temperature – V_OUT = 3.3 V

Figure 16. Current Limit vs. Temperature

T_J, JUNCTION TEMPERATURE (°C) T_J, JUNCTION TEMPERATURE (°C)

80 65 50 35 20

−10

−25 0−40 20 60 80 100 140 160 200

80 65 50 35 5

−10

−25 0−40 30 90 120 180 210 270 300

Figure 17. Short Circuit Current vs.

Temperature

Figure 18. Current Foldback Protection − 3.3 V

T_J, JUNCTION TEMPERATURE (°C) I_OUT, OUTPUT CURRENT (mA)

80 65 50 20

5

−10

−25 0−40 10 30 40 60 70 90 100

180 160 120

100 80 40

20 00 0.4 0.8 1.6 2.4 2.8 3.6 4.0

Figure 19. Current Foldback Protection − 1.8 V

T_J, JUNCTION TEMPERATURE (°C) 80 65 50 20

5

−10

−25 0−40 20 60 80 120 140 180 200

VDROP, DROPOUT VOLTAGE (mV) ICL, CURRENT LIMIT (mA)

ISC, SHORT CIRCUIT CURRENT (mA) VOUT, OUTPUT VOLTAGE (V)IDIS, DISABLE CURRENT (nA)

I_OUT = 0 mA IOUT = 75 mA VIN = 4.3 V

V_OUT = 3.3 V CIN = 0.22 mF COUT = 0.22 mF

I_OUT = 130 mA

5 40

120 180

95 20 95

60 150 240

V_IN = 4.3 V VOUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF

VIN = 4.3 V VOUT = 0 V C_IN = 0.22 mF C_OUT = 0.22 mF

35 95

20 50 80

T_J = 85°C T_J = −40°C

V_IN = 4.3 V V_OUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF 1.2

2.0 3.2

60 140 200

V_IN = 5.5 V V_OUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF

35 95

40 100 160

TJ = 25°C

Figure 20. Disable Current vs. Temperature IOUT, OUTPUT CURRENT (mA)

180 160 120

100 80 40

20 00 0.2 0.4 0.8 1.2 1.4 1.8 2.0

VOUT, OUTPUT VOLTAGE (V)

TJ = 85°C T_J = −40°C

V_IN = 2.8 V V_OUT = 1.8 V C_IN = 0.22 mF C_OUT = 0.22 mF 0.6

1.0 1.6

60 140 200

T_J = 25°C

TYPICAL CHARACTERISTICS

I_OUT, OUTPUT CURRENT (mA) 117 91

78 65 52 26

13 0.010

0.1 1 10 100

ESR (W)

39 104 130

Unstable Operation

Stable Operation V_OUT = 3.3 V

V_OUT = 1.8 V

T_J, JUNCTION TEMPERATURE (°C) T_J, JUNCTION TEMPERATURE (°C)

80 65 50 20

5

−10

−25 0−40 50 150 200 300 350 450 500

80 65 50 20

5

−10

−25 0−40 5 10 20 30 35 40 50

FREQUENCY (Hz) FREQUENCY (Hz)

10M 1M

100K 10K

1K 0100

10 20 40 60 70 80 100

10M 1M

100K 10K

1K 0100

10 30 40 50 70 80 100

IEN, CURRENT TO ENABLE PIN (nA) RDIS, DISCHARGE RESISTANCE (W)

RR, RIPPLE REJECTION (dB) RR, RIPPLE REJECTION (dB)

V_IN = 4.3 V V_OUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF

35 95

100 250 400

V_IN = 4.3 V V_OUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF 15

25 45

35 95

30 50 90

V_IN = 2.8 V VOUT = 1.8 V CIN = none C_OUT = 0.22 mF

1 mA 10 mA

100 mA

V_IN = 4.3 V VOUT = 3.3 V CIN = none C_OUT = 0.22 mF

1 mA 10 mA

100 mA 20

60 90 Figure 21. Enable Voltage Threshold vs.

Temperature

T_J, JUNCTION TEMPERATURE (°C) 80 65 50 20

5

−10

−25 0−40 0.1 0.2 0.4 0.6 0.7 0.9 1.0

VEN, ENABLE VOLTAGE (V) 0.3 0.5 0.8

35 95

ON −> OFF

V_IN = 4.3 V V_OUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF

OFF −> ON

Figure 22. Stability vs. ESR

Figure 23. Current To Enable Pin vs.

Temperature Figure 24. Discharge Resistance vs.

Temperature

Figure 25. Power Supply Rejection Ratio, V_OUT = 1.8 V, C_OUT = 0.22 mF

Figure 26. Power Supply Rejection Ratio, V_OUT = 3.3 V, C_OUT=0.22 mF

TYPICAL CHARACTERISTICS

Figure 27. Output Voltage Noise Spectral Density for V_OUT = 1.8 V, C_OUT = 220 nF

FREQUENCY (Hz)

1M 100K

10K 1K

100 110

10 100 1K 10K

Figure 28. Output Voltage Noise Spectral Density for V_OUT = 3.3 V, C_OUT = 220 nF

FREQUENCY (Hz)

1M 100K

10K 1K

100 110

10 100 1K 10K

OUTPUT VOLTAGE NOISE (nV/√Hz)OUTPUT VOLTAGE NOISE (nV/√Hz)

V_IN = 2.8 V VOUT = 1.8 V C_IN = 0.22 mF C_OUT = 0.22 mF MLCC, X7R, 1206 size

1 mA 10 mA 100 mA

V_IN = 4.3 V V_OUT = 3.3 V C_IN = 0.22 mF C_OUT = 0.22 mF MLCC, X7R, 1206 size

1 mA 10 mA 100 mA

10 Hz − 100 kHz 100 Hz − 100 kHz

1 mA 68.07 67.07

10 mA 67.30 66.31

100 mA 68.31 67.35

I_OUT

RMS Output Noise (mV)

10 Hz − 100 kHz 100 Hz − 100 kHz

1 mA 108.34 106.75

10 mA 107.18 105.56

100 mA 109.12 107.54

I_OUT

RMS Output Noise (mV)

TYPICAL CHARACTERISTICS

Figure 29. Enable Turn−on Response – VR1 = 10 mA, VR2 = Off

Figure 30. Enable Turn−on Response – VR1 = 10 mA, VR2 = 1 mA

40 ms/div 40 ms/div

Figure 31. Line Transient Response – Rising Edge, V_EN1 = V_EN2 = V_IN, V_OUT1 = 3.3 V,

I_OUT1 = 10 mA

Figure 32. Line Transient Response – Falling Edge, V_EN1 = V_EN2 = V_IN, V_OUT1 = 3.3 V,

I_OUT1 = 10 mA

2 ms/div 2 ms/div

Figure 33. Load Transient Response – Rising Edge, I_OUT = 1 mA to 130 mA – 3.3 V

Figure 34. Load Transient Response– Falling Edge, I_OUT = 130 mA to 1 mA – 3.3 V

4 ms/div 4 ms/div

500 mV/div 50 mA/div

V_IN = 3.8 V V_OUT1 = 3.3 V V_OUT2 = disable I_OUT1 = 10 mA C_OUT1 = C_OUT2 = 1 mF

1 V/div1 V/div500 mV/div 20 mV/div

20 mV/div

VEN

IIN

V_OUT1 VOUT2

VIN

V_OUT1 VOUT2

VOUT1

VOUT2

I_OUT1

50 mA/div50 mV/div20 mV/div

t_RISE = 1 ms

V_IN = 3.8 V to 4.8 V I_OUT2 = 10 mA

t_RISE = 1 ms

C_OUT1 = 220 nF C_OUT2 = 220 nF

V_IN = 4.3 V V_OUT1 = 3.3 V

COUT1 = 220 nF C_OUT2 = 220 nF V_OUT2 = 1.8 V IOUT2 = 0 mA

50 mA/div50 mV/div20 mV/div500 mV/div20 mV/div

V_OUT1 V_OUT2 I_OUT1

t_FALL = 1 ms

V_IN = 4.3 V V_OUT1 = 3.3 V

COUT1 = 220 nF C_OUT2 = 220 nF V_OUT2 = 1.8 V IOUT2 = 0 mA

500 mV/div1 V/div1 V/div 50 mA/div20 mV/div

V_EN

I_IN

V_OUT1 VOUT2

VIN = 4.3 V V_OUT1 = 3.3 V

I_OUT2 = 1 mA C_OUT1 = C_OUT2 = 1 mF V_OUT2 = 1.8 V I_OUT1 = 10 mA

V_IN

V_OUT1 VOUT2

t_FALL = 1 ms

VIN = 4.8 V to 3.8 V IOUT2 = 10 mA C_OUT1 = 220 nF C_OUT2 = 220 nF

TYPICAL CHARACTERISTICS

Figure 35. Load Transient Response – Rising

Edge, I_OUT = 1 mA to 130 mA – 1.8 V Figure 36. Load Transient Response – Falling Edge, I_OUT = 130 mA to 1 mA – 1.8 V

4 ms/div 4 ms/div

Figure 37. Load Transient Response – Rising

Edge, I_OUT = 0.1 mA to 130 mA Figure 38. Load Transient Response – Falling Edge, I_OUT = 130 mA to 0.1 mA

4 ms/div 4 ms/div

Figure 39. Turn−on/off − Slow Rising V_IN Figure 40. Enable Turn−off

20 ms/div 200 ms/div

50 mA/div

V_OUT1 VOUT2

I_OUT2 t_RISE = 1 ms

V_IN = 4.3 V V_OUT1 = 3.3 V

COUT1 = 220 nF COUT2 = 220 nF V_OUT2 = 1.8 V I_OUT1 = 0 mA

20 mV/div50 mV/div50 mA/div20 mV/div50 mV/div500 mV/div

VIN = 4.3 V VOUT1 = 3.3 V

COUT1 = 220 nF C_OUT2 = 220 nF V_OUT2 = 1.8 V IOUT1 = 0 mA V_OUT1

V_OUT2

I_OUT2 t_RISE = 1 ms

V_OUT1 VOUT2

VIN V_IN = 4.3 V V_OUT1 = 3.3 V V_OUT2 = 1.8 V

I_OUT1 = 10 mA I_OUT2 = 10 mA C_IN = C_OUT1 = C_OUT1 = 220 nF

V_OUT1

VOUT2

I_OUT2

t_FALL = 1 ms

V_IN = 4.3 V V_OUT1 = 3.3 V

C_OUT1 = 220 nF C_OUT2 = 220 nF V_OUT2 = 1.8 V I_OUT1 = 0 mA

50 mA/div20 mV/div50 mV/div

V_OUT1 V_OUT2 IOUT2

t_FALL = 1 ms

V_IN = 4.3 V V_OUT1 = 3.3 V

C_OUT1 = 220 nF C_OUT2 = 220 nF VOUT2 = 1.8 V IOUT1 = 0 mA

50 mA/div20 mV/div50 mV/div

V_IN = 4.3 V V_OUT1 = 3.3 V V_OUT2 = 1.8 V

500 mV/div1 V/div

V_OUT1

VEN tFALL = 1 ms

C_OUT = 4.7 mF C_OUT = 1 mF

APPLICATIONS INFORMATION

The NCP153 is a dual output high performance 130 mA Low Dropout Linear Regulator. This device delivers very high PSRR (75 dB at 1 kHz) and excellent dynamic performance as load/line transients. In connection with low quiescent current this device is very suitable for various battery powered applications such as tablets, cellular phones, wireless and many others. Each output is fully protected in case of output overload, output short circuit condition and overheating, assuring a very robust design.

The NCP153 device is housed in XDFN−6 1.2 mm x 1.2 mm package which is useful for space constrains application.

Input Capacitor Selection (C_IN)

It is recommended to connect at least a 0.22 m F Ceramic X5R or X7R capacitor as close as possible to the IN pin of the device. This capacitor will provide a low impedance path for unwanted AC signals or noise modulated onto constant input voltage. There is no requirement for the min. or max.

ESR of the input capacitor but it is recommended to use ceramic capacitors for their low ESR and ESL. A good input capacitor will limit the influence of input trace inductance and source resistance during sudden load current changes.

Larger input capacitor may be necessary if fast and large load transients are encountered in the application.

Output Decoupling (C_OUT)

The NCP153 requires an output capacitor for each output connected as close as possible to the output pin of the regulator. The recommended capacitor value is 0.22 m F and X7R or X5R dielectric due to its low capacitance variations over the specified temperature range. The NCP153 is designed to remain stable with minimum effective capacitance of 0.15 m F to account for changes with temperature, DC bias and package size. Especially for small package size capacitors such as 0201 the effective capacitance drops rapidly with the applied DC bias.

There is no requirement for the minimum value of Equivalent Series Resistance (ESR) for the C

but the maximum value of ESR should be less than 2 W . Larger output capacitors and lower ESR could improve the load transient response or high frequency PSRR. It is not recommended to use tantalum capacitors on the output due to their large ESR. The equivalent series resistance of tantalum capacitors is also strongly dependent on the temperature, increasing at low temperature.

Enable Operation

The NCP153 uses the dedicated EN pin for each output channel. This feature allows driving outputs separately.

If the EN pin voltage is <0.4 V the device is guaranteed to be disabled. The pass transistor is turned−off so that there is virtually no current flow between the IN and OUT. The active discharge transistor is active so that the output voltage

disable state the device consumes as low as typ. 10 nA from the V

.

If the EN pin voltage >0.9 V the device is guaranteed to be enabled. The NCP153 regulates the output voltage and the active discharge transistor is turned−off.

The both EN pin has internal pull−down current source with typ. value of 300 nA which assures that the device is turned−off when the EN pin is not connected. In the case where the EN function isn’t required the EN should be tied directly to IN.

Foldback Short Circuit Protection

The internal foldback limits short circuit current to typical 55 mA and protects powered device against overheating.

Maximum output current is internaly limited to 165 mA (typ). The current limit and short circuit protection will work properly over whole temperature range and also input voltage range. There is no limitation for the short circuit duration. Thess protections are independent for each channel. Short circuit on the one channel do not influence second channel which will work according to specification.

Thermal Shutdown

When the die temperature exceeds the Thermal Shutdown threshold (T

− 160°C typical), Thermal Shutdown event is detected and the affected channel is turn−off. Second channel still working. The channel which is overheated will remain in this state until the die temperature decreases below the Thermal Shutdown Reset threshold (T

− 140°C typical). Once the device temperature falls below the 140 ° C the appropriate channel is enabled again. The thermal shutdown feature provides the protection from a catastrophic device failure due to accidental overheating.

This protection is not intended to be used as a substitute for proper heat sinking. The long duration of the short circuit condition to some output channel could cause turn−off other output when heat sinking is not enough and temperature of the other output reach T

temperature.

Power Dissipation

As power dissipated in the NCP153 increases, it might become necessary to provide some thermal relief. The maximum power dissipation supported by the device is dependent upon board design and layout. Mounting pad configuration on the PCB, the board material, and the ambient temperature affect the rate of junction temperature rise for the part.

The maximum power dissipation the NCP153 can handle is given by:

P_D(MAX)+

ƪ

ƫ

q_JA ^{(eq. 1)}

The power dissipated by the NCP153 for given

application conditions can be calculated from the following

equations:

P_D[V_IN I_GND)I_OUT1

ǒ

Ǔ

(eq. 2) )I_OUT2

ǒ

Ǔ

Figure 41. qJA vs. Copper Area (XDFN−6)

0.25 0.50 0.75 1.00 1.25

60 80 100 120 140 160 180 200 220 240

0 100 200 300 400 500 600 700

COPPER HEAT SPREADER AREA (mm²)

qJA, JUNCTION−TO−AMBIENT THERMAL RESISTANCE (°C/W) PD(MAX), MAXIMUM POWER DISSIPATION (W)

P_D(MAX), T_A = 25°C, 2 oz Cu

P_D(MAX), T_A = 25°C, 1 oz Cu qJA, 1 oz Cu qJA, 2 oz Cu

Reverse Current

The PMOS pass transistor has an inherent body diode which will be forward biased in the case that V

> V

. Due to this fact in cases, where the extended reverse current condition can be anticipated the device may require additional external protection.

Power Supply Rejection Ratio

The NCP153 features very good Power Supply Rejection ratio. If desired the PSRR at higher frequencies in the range 100 kHz − 10 MHz can be tuned by the selection of C

capacitor and proper PCB layout.

Turn−On Time

The turn−on time is defined as the time period from EN assertion to the point in which V

will reach 98% of its

nominal value. This time is dependent on various application conditions such as V

, C

, T

.

To obtain good transient performance and good regulation characteristics place input and output capacitors close to the device pins and make the PCB traces wide. In order to minimize the solution size, use 0402 capacitors. Larger copper area connected to the pins will also improve the device thermal resistance. The actual power dissipation can be calculated from the equation above (Equation 2). Expose pad should be tied the shortest path to the GND pin.

ORDERING INFORMATION Device

Voltage Option*

(OUT1/OUT2) Marking

Marking

Rotation Package Shipping^†

NCP153MX330180TCG 3.3 V/1.8 V GA 0° XDFN-6

(Pb-Free) 5000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

*Contact factory for other voltage options. Output voltage range 1.0 V to 3.3 V with step 50 mV.

ÍÍÍ

ÍÍÍ

ÍÍÍ

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. DIMENSION b APPLIES TO THE PLATED TERMINALS.

4. COPLANARITY APPLIES TO THE PAD AS WELL AS THE TERMINALS.

A

SEATING PLANE

A A1

XDFN6 1.20x1.20, 0.40P CASE 711AT

ISSUE C

DATE 04 DEC 2015 SCALE 4:1

DIM A

MIN TYP MILLIMETERS 0.30 0.37 A1 0.00 0.03 b 0.13 0.18 D

E e L PIN ONE

REFERENCE

0.05 C 0.05 C

NOTE 3

L

e b

3

6

6X 1

4

MOUNTING FOOTPRINT*

0.15 0.20

BOTTOM VIEW

E2

DIMENSIONS: MILLIMETERS

0.37

0.246X 6X

1.40

0.40PITCH

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

E2 0.20 0.30

TOP VIEW

B

SIDE VIEW

NOTE 4

RECOMMENDED C

6X

A 0.10 M C B

PACKAGE OUTLINE

D2 0.84 0.94

L1

1.20 1.20 0.40 BSC

0.05

D2

1.08

0.40 D

E

DETAIL A

GENERIC MARKING DIAGRAM*

XX = Specific Device Code M = Date Code

*This information is generic. Please refer to device data sheet for actual part mark- ing. Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

XX M

1 L1

6X

MAX 0.45 0.05 0.23

0.25 0.40 1.04

1.15 1.25

1.15 1.25

0.00 0.10

DETAIL A

OPTIONAL CONSTRUCTION

L

ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.

98AON76141F DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 XDFN6, 1.20 X 1.20, 0.40P

information, product features, availability, functionality, or suitability of its products for any particular purpose, nor does onsemi assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using onsemi products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by onsemi. “Typical” parameters which may be provided in onsemi data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. onsemi does not convey any license under any of its intellectual property rights nor the rights of others. onsemi products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use onsemi products for any such unintended or unauthorized application, Buyer shall indemnify and hold onsemi and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that onsemi was negligent regarding the design or manufacture of the part. onsemi is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.

PUBLICATION ORDERING INFORMATION

TECHNICAL SUPPORT LITERATURE FULFILLMENT:
