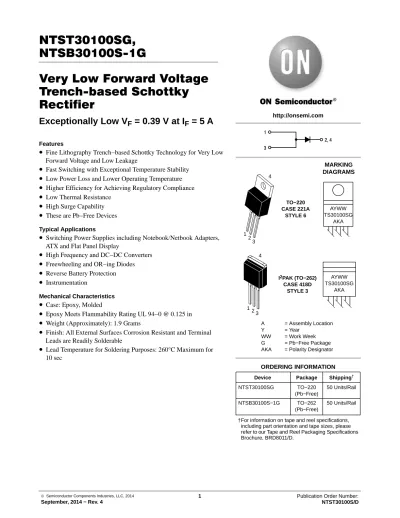

NTST30100SG, NTSB30100S-1G Very Low Forward Voltage Trench-based Schottky Rectifier

© Semiconductor Components Industries, LLC, 2014

September, 2014 − Rev. 4

1 Publication Order Number:

NTST30100S/D

NTSB30100S-1G

Very Low Forward Voltage Trench-based Schottky Rectifier

Exceptionally Low V _F = 0.39 V at I _F = 5 A

Features

• Fine Lithography Trench−based Schottky Technology for Very Low Forward Voltage and Low Leakage

• Fast Switching with Exceptional Temperature Stability

• Low Power Loss and Lower Operating Temperature

• Higher Efficiency for Achieving Regulatory Compliance

• Low Thermal Resistance

• High Surge Capability

• These are Pb−Free Devices Typical Applications

• Switching Power Supplies including Notebook/Netbook Adapters, ATX and Flat Panel Display

• High Frequency and DC−DC Converters

• Freewheeling and OR−ing Diodes

• Reverse Battery Protection

• Instrumentation

Mechanical Characteristics

• Case: Epoxy, Molded

• Epoxy Meets Flammability Rating UL 94−0 @ 0.125 in

• Weight (Approximately): 1.9 Grams

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead Temperature for Soldering Purposes: 260 ° C Maximum for 10 sec

1 3

2, 4 http://onsemi.com

TO−220 CASE 221A

STYLE 6

3 4

1 2

MARKING DIAGRAMS

AYWW TS30100SG

AKA

A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package AKA = Polarity Designator

Device Package Shipping

ORDERING INFORMATION

NTST30100SG TO−220

(Pb−Free)

50 Units/Rail NTSB30100S−1G TO−262

(Pb−Free)

50 Units/Rail I

PAK (TO−262)

CASE 418D STYLE 3

AYWW TS30100SG

AKA

3 4

1 2

†For information on tape and reel specifications,

including part orientation and tape sizes, please

refer to our Tape and Reel Packaging Specifications

Brochure, BRD8011/D.

NTST30100SG, NTSB30100S−1G

http://onsemi.com 2

MAXIMUM RATINGS

Rating Symbol Value Unit

Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage

V

V

V

100 V

Average Rectified Forward Current (Rated V

, T

= 105 ° C)

I

30 A

Peak Repetitive Forward Current

(Rated V

, Square Wave, 20 kHz, T

= 95 ° C)

I

60 A

Nonrepetitive Peak Surge Current

(Surge applied at rated load conditions halfwave, single phase, 60 Hz)

I

250 A

Operating Junction Temperature T

−40 to +150 ° C

Storage Temperature T

−65 to +175 ° C

Voltage Rate of Change (Rated V

) dv/dt 10,000 V/ m s

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Rating Symbol Value Unit

Maximum Thermal Resistance Junction−to−Case

Junction−to−Ambient

R

R

2.0 70

° C/W

ELECTRICAL CHARACTERISTICS

Rating Symbol Typ Max Unit

Maximum Instantaneous Forward Voltage (Note 1) (I

= 5 A, T

= 25 ° C)

(I

= 10 A, T

= 25 ° C) (I

= 30 A, T

= 25 ° C) (I

= 5 A, T

= 125 ° C) (I

= 10 A, T

= 125 ° C) (I

= 30 A, T

= 125 ° C)

v

0.47 0.55 0.84 0.39 0.51 0.7

−

− 0.95

−

− 0.78

V

Maximum Instantaneous Reverse Current (Note 1) (V

= 70 V, T

= 25 ° C)

(V

= 70 V, T

= 125 ° C) (Rated dc Voltage, T

= 25 ° C) (Rated dc Voltage, T

= 125 ° C)

I

27 11 70 23

1000 45

m A mA m A mA Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

1. Pulse Test: Pulse Width = 300 m s, Duty Cycle ≤ 2.0%

http://onsemi.com 3

TYPICAL CHARACTERISTICS

Figure 1. Typical Instantaneous Forward Characteristics

0.1 1 10 100

0.0 0.2 0.4 0.6 0.8 1.0 1.2

I

, INST ANT ANEOUS FOR W ARD CURRENT (A)

V

, INSTANTANEOUS FORWARD VOLTAGE (V) T

= 150 ° C

T

= 25 ° C

T

= 125 ° C

Figure 2. Typical Reverse Characteristics 0.001

0.01 0.1 1 10 100 1000

20 30 40 50 60 70 80 90 100

V

, INSTANTANEOUS REVERSE VOLTAGE (V) I

, INST ANT ANEOUS REVERSE CURRENT (mA)

T

= 150 ° C

T

= 25 ° C T

= 125 ° C

Figure 3. Typical Junction Capacitance 100

1000 10000

0.1 1 10 100

V

, REVERSE VOLTAGE (V)

C, JUNCTION CAP ACIT ANCE (pF)

T

= 25 ° C

Figure 4. Current Derating, Case 0

5 10 15 20 25 30 35 40 45 50 55 60

0 20 40 60 80 100 120 140

T

, CASE TEMPERATURE ( ° C) SQUARE WAVE

dc

R

= 2.0 ° C/W

I

, A VERAGE FOR W ARD CUR- RENT (A)

Figure 5. Forward Power Dissipation 0

5 10 15 20 25 30 35 40 45

0 5 10 15 20 25 30

I

, AVERAGE FORWARD CURRENT (A) P

, A VERAGE FOR W ARD POW- ER DISSIP A TION (W)

SQUARE WAVE

dc T

= 150 ° C

I

/I

= 5

I

/I

= 10

I

/I

= 20

NTST30100SG, NTSB30100S−1G

http://onsemi.com 4

0.01 0.1 1 10

0.000001 0.00001 0.0001 0.001 0.01 0.1 1 10 100 1000

10%

5%

2%

20%

1%

50% Duty Cycle

Single Pulse

t, Pulse Time (sec) R(t), TYPICAL TRANSIENT THERMAL RESIST ANCE ( ° C/W)

Figure 6. Typical Transient Thermal Response, Junction−to−Case

TO−220 CASE 221A

ISSUE AK

DATE 13 JAN 2022

SCALE 1:1

STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 2:

PIN 1. BASE 2. EMITTER 3. COLLECTOR 4. EMITTER

STYLE 3:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE

STYLE 4:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. MAIN TERMINAL 2 STYLE 7:

PIN 1. CATHODE 2. ANODE 3. CATHODE 4. ANODE STYLE 10:

PIN 1. GATE 2. SOURCE 3. DRAIN 4. SOURCE STYLE 5:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN

STYLE 8:

PIN 1. CATHODE 2. ANODE

3. EXTERNAL TRIP/DELAY 4. ANODE

STYLE 6:

PIN 1. ANODE 2. CATHODE 3. ANODE 4. CATHODE STYLE 9:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 11:

PIN 1. DRAIN 2. SOURCE 3. GATE 4. SOURCE

STYLE 12:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. NOT CONNECTED

PACKAGE DIMENSIONS

98ASB42148B DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 TO−220
