Semiconductor Components Industries, LLC, 2010
October, 2010 -- Rev. 2 1 Publication Order Number:
MSD42SWT1/D

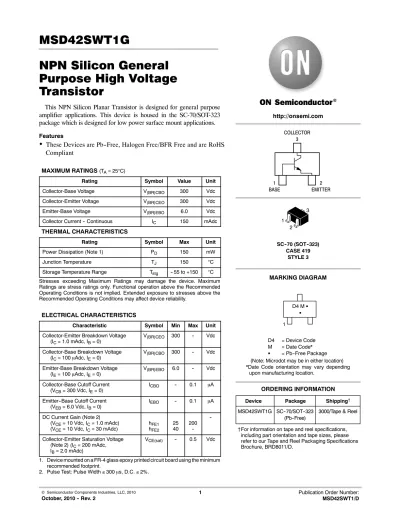

MSD42SWT1G
NPN Silicon General Purpose High Voltage Transistor
This NPN Silicon Planar Transistor is designed for general purpose amplifier applications. This device is housed in the SC-70/SOT-323 package which is designed for low power surface mount applications.
Features
These Devices are Pb--Free, Halogen Free/BFR Free and are RoHS Compliant
MAXIMUM RATINGS (T
A= 25C)
Rating Symbol Value Unit
Collector-Base Voltage V
(BR)CBO300 Vdc
Collector-Emitter Voltage V
(BR)CEO300 Vdc
Emitter-Base Voltage V
(BR)EBO6.0 Vdc
Collector Current -- Continuous I
C150 mAdc
THERMAL CHARACTERISTICS
Rating Symbol Max Unit
Power Dissipation (Note 1) P
D150 mW
Junction Temperature T
J150
CStorage Temperature Range T
stg-- 55 to +150
CStresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
ELECTRICAL CHARACTERISTICS
Characteristic Symbol Min Max Unit Collector-Emitter Breakdown Voltage
(I
C= 1.0 mAdc, I
B= 0) V
(BR)CEO300 -- Vdc Collector-Base Breakdown Voltage
(I
C= 100
mAdc, IE= 0) V
(BR)CBO300 -- Vdc Emitter-Base Breakdown Voltage
(I
E= 100
mAdc, IE= 0) V
(BR)EBO6.0 -- Vdc Collector-Base Cutoff Current
(V
CB= 300 Vdc, I
E= 0) I
CBO-- 0.1
mAEmitter--Base Cutoff Current
(V
EB= 6.0 Vdc, I
B= 0) I
EBO-- 0.1
mADC Current Gain (Note 2) (V
CE= 10 Vdc, I
C= 1.0 mAdc)
(V
CE= 10 Vdc, I
C= 30 mAdc) h
FE1h
FE225
40 200
-- --
Collector-Emitter Saturation Voltage (Note 2) (I
C= 200 mAdc, I
B= 2.0 mAdc)
V
CE(sat)-- 0.5 Vdc
1. Device mounted on a FR-4 glass epoxy printed circuit board using the minimum recommended footprint.
2. Pulse Test: Pulse Width
300
ms, D.C.2%.
SC--70 (SOT--323) CASE 419
STYLE 3 MARKING DIAGRAM
3 1
2
Device Package Shipping
†ORDERING INFORMATION
D4 = Device Code M = Date Code*
G
= Pb--Free Package
COLLECTOR3
1
BASE 2
EMITTER
http://onsemi.com
MSD42SWT1G SC--70/SOT--323 (Pb--Free)
3000/Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
D4 M
G G1
(Note: Microdot may be in either location)
*Date Code orientation may vary depending
upon manufacturing location.
SC−70 (SOT−323) CASE 419
ISSUE R
DATE 11 OCT 2022 SCALE 4:1
STYLE 3:
PIN 1. BASE 2. EMITTER 3. COLLECTOR
STYLE 4:
PIN 1. CATHODE 2. CATHODE 3. ANODE STYLE 2:
PIN 1. ANODE 2. N.C.
3. CATHODE STYLE 1:
CANCELLED
STYLE 5:
PIN 1. ANODE 2. ANODE 3. CATHODE
STYLE 6:
PIN 1. EMITTER 2. BASE 3. COLLECTOR
STYLE 7:
PIN 1. BASE 2. EMITTER 3. COLLECTOR
STYLE 8:
PIN 1. GATE 2. SOURCE 3. DRAIN
STYLE 9:
PIN 1. ANODE 2. CATHODE 3. CATHODE-ANODE
STYLE 10:
PIN 1. CATHODE 2. ANODE 3. ANODE-CATHODE
XX MG G
XX = Specific Device Code M = Date Code
G = Pb−Free Package GENERIC MARKING DIAGRAM
1
STYLE 11:
PIN 1. CATHODE 2. CATHODE 3. CATHODE
*This information is generic. Please refer to device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
98ASB42819B DOCUMENT NUMBER:
DESCRIPTION:
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 1 SC−70 (SOT−323)
