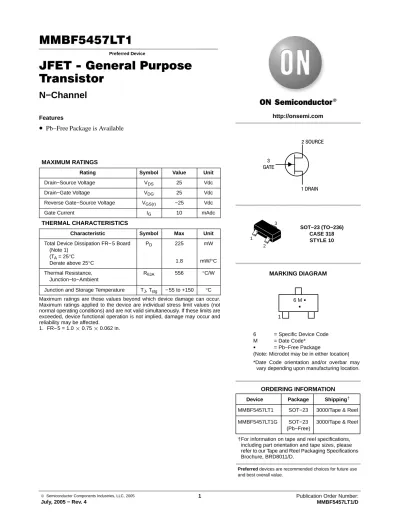

MMBF5457LT1 Preferred Device JFET − General Purpose Transistor

© Semiconductor Components Industries, LLC, 2005

July, 2005 − Rev. 4

1 Publication Order Number:

MMBF5457LT1/D

MMBF5457LT1

Preferred Device

JFET − General Purpose Transistor

N−Channel

Features

• Pb−Free Package is Available

MAXIMUM RATINGS

Rating Symbol Value Unit

Drain−Source Voltage V

25 Vdc

Drain−Gate Voltage V

25 Vdc

Reverse Gate−Source Voltage V

−25 Vdc

Gate Current I

10 mAdc

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Total Device Dissipation FR− 5 Board (Note 1)

(T

= 25 ° C Derate above 25 ° C

P

225

1.8

mW

mW/ ° C Thermal Resistance,

Junction−to−Ambient

R

556 ° C/W

Junction and Storage Temperature T

, T

−55 to +150 ° C Maximum ratings are those values beyond which device damage can occur.

Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

1. FR− 5 = 1.0 0.75 0.062 in.

http://onsemi.com

Preferred devices are recommended choices for future use and best overall value.

Device Package Shipping

ORDERING INFORMATION

MMBF5457LT1 SOT−23 3000/Tape & Reel SOT−23 (TO−236)

CASE 318 STYLE 10

MARKING DIAGRAM

1 2

3

2 SOURCE

3 GATE

1 DRAIN

1

6 M G G

MMBF5457LT1G SOT−23 (Pb−Free)

3000/Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

6 = Specific Device Code M = Date Code*

G = Pb−Free Package

(Note: Microdot may be in either location)

*Date Code orientation and/or overbar may

vary depending upon manufacturing location.

MMBF5457LT1

http://onsemi.com 2

ELECTRICAL CHARACTERISTICS (T

= 25 ° C unless otherwise noted)

Characteristic Symbol Min Typ Max Unit

OFF CHARACTERISTICS Gate−Source Breakdown Voltage

(I

= 10 m Adc, V

= 0)

V

−25 − − Vdc

Gate Reverse Current (V

= 15 Vdc, V

= 0)

(V

= 15 Vdc, V

= 0, T

= 100 ° C)

I

−

−

−

−

−1.0

−200

nAdc

Gate Source Cutoff Voltage (V

= 15 Vdc, I

= 10 nAdc)

V

−0.5 − −6.0 Vdc

Gate Source Voltage

(V

= 15 Vdc, I

= 100 m Adc)

V

− −2.5 − Vdc

ON CHARACTERISTICS

Zero−Gate−Voltage Drain Current (Note 2) (V

= 15 Vdc, V

= 0)

I

1.0 − 5.0 mAdc

SMALL−SIGNAL CHARACTERISTICS Forward Transfer Admittance (Note 2)

(V

= 15 Vdc, V

= 0, f = 1.0 kHz)

|Y

| 1000 − 5000 m mhos

Output Common Source Admittance (V

= 15 Vdc, V

= 0, f = 1.0 kHz)

|y

| − 10 50 m mhos

Input Capacitance

(V

= 15 Vdc, V

= 0, f = 1.0 MHz)

C

− 4.5 7.0 pF

Reverse Transfer Capacitance (V

= 15 Vdc, V

= 0, f = 1.0 MHz)

C

− 1.5 3.0 pF

2. Pulse Test: Pulse Width ≤ 630 ms, Duty Cycle ≤ 10%.

http://onsemi.com 3

TYPICAL CHARACTERISTICS

Figure 1. Noise Figure versus Source Resistance

V

, DRAIN−SOURCE VOLTAGE (VOLTS) Figure 2. Typical Drain Characteristics

V

, GATE−SOURCE VOLTAGE (VOLTS) Figure 3. Common Source Transfer

Characteristics 1.0

0.4 0.2 0

−1.2 0.8 0.6

0 5 10 15 20 25

0 0.6 0.4 0.2 0.8 1.2 1.0

−0.8 −0.4 0

1.2

, DRAIN CURRENT (mA) DI , DRAIN CURRENT (mA) DI

V

= 15 V V

= 0 V

−0.2 V

−0.4 V

−0.6 V

−0.8 V

−1.0 V

V

^ −1.2 V V

^ −1.2 V

R

, SOURCE RESISTANCE (Megohms) 14

12 10 8 6 4 2 0

NF , NOISE FIGURE (dB)

0.001 0.01 0.1 1.0 10

V

= 15 V V

= 0

f = 1 kHz

MMBF5457LT1

http://onsemi.com 4

TYPICAL CHARACTERISTICS

V

, DRAIN−SOURCE VOLTAGE (VOLTS) Figure 4. Typical Drain Characteristics

V

, GATE−SOURCE VOLTAGE (VOLTS) Figure 5. Common Source Transfer

Characteristics

V

, DRAIN−SOURCE VOLTAGE (VOLTS) Figure 6. Typical Drain Characteristics

V

, GATE − SOURCE VOLTAGE (VOLTS) Figure 7. Common Source Transfer

Characteristics

0 0

4

3 2

1

0

10

4

2 0

−4 5

5 10 15 20 25

5

4

3

2

1 0

−7 8

6

−6 −5 −4 −3 −2 −1

−5 −3 −2 −1 0

, DRAIN CURRENT (mA) DI

V

= 15 V V

^ −5.8 V

, DRAIN CURRENT (mA) DI , DRAIN CURRENT (mA) DI , DRAIN CURRENT (mA) DI

V

= 15 V

10

4

2 0 8

6

0 5 10 15 20 25

V

^ −5.8 V

V

= 0 V

V

= 0 V

−2 V

−1 V

−3 V

−1 V

−2 V

−3 V

−4 V

−5 V V

^ −3.5 V

V

^ −3.5 V

Note: Graphical data is presented for dc conditions. Tabular

data is given for pulsed conditions (Pulse Width = 630

ms, Duty Cycle = 10%). Under dc conditions, self heat-

ing in higher I

units reduces I

.

SOT−23 (TO−236) CASE 318−08

ISSUE AS

DATE 30 JAN 2018 SCALE 4:1

D

A1

3

1 2

1

XXXMG G

XXX = Specific Device Code M = Date Code

G = Pb−Free Package

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

GENERIC MARKING DIAGRAM*

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH.

MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF THE BASE MATERIAL.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PROTRUSIONS, OR GATE BURRS.

SOLDERING FOOTPRINT

VIEW C L

0.25

e L1

E E

b

A

SEE VIEW C

DIM

A MIN NOM MAX MIN

MILLIMETERS

0.89 1.00 1.11 0.035 INCHES

A1 0.01 0.06 0.10 0.000

b 0.37 0.44 0.50 0.015

c 0.08 0.14 0.20 0.003

D 2.80 2.90 3.04 0.110

E 1.20 1.30 1.40 0.047

e 1.78 1.90 2.04 0.070

L 0.30 0.43 0.55 0.012

0.039 0.044 0.002 0.004 0.017 0.020 0.006 0.008 0.114 0.120 0.051 0.055 0.075 0.080 0.017 0.022 NOM MAX

L1

H

STYLE 22:

PIN 1. RETURN 2. OUTPUT 3. INPUT STYLE 6:

PIN 1. BASE 2. EMITTER 3. COLLECTOR

STYLE 7:

PIN 1. EMITTER 2. BASE 3. COLLECTOR

STYLE 8:

PIN 1. ANODE 2. NO CONNECTION 3. CATHODE STYLE 9:

PIN 1. ANODE 2. ANODE 3. CATHODE

STYLE 10:

PIN 1. DRAIN 2. SOURCE 3. GATE

STYLE 11:

PIN 1. ANODE 2. CATHODE 3. CATHODE−ANODE

STYLE 12:

PIN 1. CATHODE 2. CATHODE 3. ANODE

STYLE 13:

PIN 1. SOURCE 2. DRAIN 3. GATE

STYLE 14:

PIN 1. CATHODE 2. GATE 3. ANODE STYLE 15:

PIN 1. GATE 2. CATHODE 3. ANODE

STYLE 16:

PIN 1. ANODE 2. CATHODE 3. CATHODE

STYLE 17:

PIN 1. NO CONNECTION 2. ANODE 3. CATHODE

STYLE 18:

PIN 1. NO CONNECTION 2. CATHODE 3. ANODE

STYLE 19:

PIN 1. CATHODE 2. ANODE 3. CATHODE−ANODE STYLE 23:

PIN 1. ANODE 2. ANODE 3. CATHODE

STYLE 20:

PIN 1. CATHODE 2. ANODE 3. GATE STYLE 21:

PIN 1. GATE 2. SOURCE 3. DRAIN STYLE 1 THRU 5:

CANCELLED

STYLE 24:

PIN 1. GATE 2. DRAIN 3. SOURCE

STYLE 25:

PIN 1. ANODE 2. CATHODE 3. GATE

STYLE 26:

PIN 1. CATHODE 2. ANODE 3. NO CONNECTION STYLE 27:

PIN 1. CATHODE 2. CATHODE 3. CATHODE

2.10 2.40 2.64 0.083 0.094 0.104 HE

0.35 0.54 0.69 0.014 0.021 0.027

c

T

3X

TOP VIEW

SIDE VIEW

END VIEW

2.90

0.80

DIMENSIONS: MILLIMETERS

0.90

PITCH

3X

3X

0.95

RECOMMENDED

STYLE 28:

PIN 1. ANODE 2. ANODE 3. ANODE

PACKAGE DIMENSIONS
