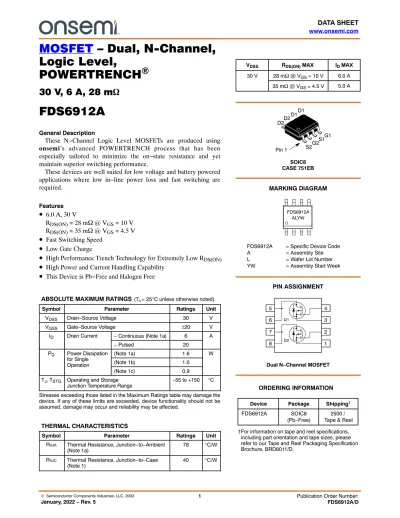

MOSFET – Dual, N-Channel, Logic Level,
POWERTRENCH )
30 V, 6 A, 28 m W
FDS6912A
General Description
These N−Channel Logic Level MOSFETs are produced using onsemi’s advanced POWERTRENCH process that has been especially tailored to minimize the on−state resistance and yet maintain superior switching performance.
These devices are well suited for low voltage and battery powered applications where low in−line power loss and fast switching are required.
Features
• 6.0 A, 30 V
R
DS(ON)= 28 m W @ V
GS= 10 V R
DS(ON)= 35 m W @ V
GS= 4.5 V
• Fast Switching Speed
• Low Gate Charge
• High Performance Trench Technology for Extremely Low R
DS(ON)• High Power and Current Handling Capability
• This Device is Pb−Free and Halogen Free
ABSOLUTE MAXIMUM RATINGS(TA = 25°C unless otherwise noted)
Symbol Parameter Ratings Unit
VDSS Drain−Source Voltage 30 V
VGSS Gate−Source Voltage ±20 V
ID Drain Current − Continuous (Note 1a) 6 A
− Pulsed 20
PD Power Dissipation for Single Operation
(Note 1a) 1.6 W
(Note 1b) 1.0
(Note 1c) 0.9
TJ, TSTG Operating and Storage
Junction Temperature Range −55 to +150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
THERMAL CHARACTERISTICS
Symbol Parameter Ratings Unit
RqJA Thermal Resistance, Junction−to−Ambient
(Note 1a) 78 °C/W
RqJC Thermal Resistance, Junction−to−Case
(Note 1) 40 °C/W
MARKING DIAGRAM
PIN ASSIGNMENT D1D1
G2 D2
S2 D2
FDS6912A = Specific Device Code
A = Assembly Site
L = Wafer Lot Number
YW = Assembly Start Week
VDSS RDS(ON) MAX ID MAX 30 V 28 mW @ VGS = 10 V 6.0 A
35 mW @ VGS = 4.5 V
FDS6912A ALYW SOIC8 CASE 751EB
S1G1 Pin 1
4 3 2 1 5
6 7 8
Q1
Q2
Dual N−Channel MOSFET
Device Package Shipping† ORDERING INFORMATION
FDS6912A SOIC8
(Pb−Free) 2500 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.
5.0 A
FDS6912A
www.onsemi.com 2
ELECTRICAL CHARACTERISTICS(TA = 25°C unless otherwise noted)
Symbol Parameter Test Conditions Min Typ Max Unit
OFF CHARACTERISTICS
BVDSS Drain–Source Breakdown Voltage VGS = 0 V, ID = 250 mA 30 − − V
DBVDSS
DTJ
Breakdown Voltage Temperature
Coefficient ID = 250 mA, Referenced to 25°C − 25 − mV/°C
IDSS Zero Gate Voltage Drain Current VDS = 24 V, VGS = 0 V
VDS = 24 V, VGS = 0 V, TJ = 55°C −
− −
− 1
10 mA
IGSS Gate–Source Leakage VGS = ±20 V, VDS = 0 V − − ±100 nA
ON CHARACTERISTICS (Note 2)
VGS(th) Gate Threshold Voltage VDS = VGS, ID = 250 mA 1 1.9 3 V
DVGS(th) DTJ
Gate Threshold Voltage Temperature
Coefficient ID = 250 mA, Referenced to 25°C − −4.5 − mV/°C
RDS(on) Static Drain–Source On–Resistance VGS = 10 V, ID = 6 A VGS = 4.5 V, ID = 5 A
VGS = 10 V, ID = 6 A, TJ = 125°C
−−
−
1924 27
2835 44
mW
ID(on) On−State Drain Current VGS = 10 V, VDS = 5 V 20 − − A
gFS Forward Transconductance VDS = 10 V, ID = 6 A − 25 − S
DYNAMIC CHARACTERISTICS
Ciss Input Capacitance VDS = 15 V, VGS = 0 V, f = 1.0 MHz − 575 − pF
Coss Output Capacitance − 145 − pF
Crss Reverse Transfer Capacitance − 65 − pF
RG Gate Resistance VGS = 15 mV, f = 1.0 MHz − 2.1 − W
SWITCHING CHARACTERISTICS (Note 2)
td(on) Turn–On Delay Time VDD = 15 V, ID = 1 A,
VGS = 10 V, RGEN = 6 W − 8 16 ns
tr Turn–On Rise Time − 5 10 ns
td(off) Turn–Off Delay Time − 23 37 ns
tf Turn–Off Fall Time − 3 6 ns
Qg Total Gate Charge VDS = 15 V, ID = 6 A, VGS = 5 V − 5.8 8.1 nC
Qgs Gate–Source Charge − 1.7 − nC
Qgd Gate–Drain Charge − 2.1 − nC
DRAIN−SOURCE DIODE CHARACTERISTICS
IS Maximum Continuous Drain–Source Diode Forward Current − − 1.3 A
VSD Drain–Source Diode Forward Voltage VGS = 0 V, IS = 1.3 A (Note 2) − 0.75 1.2 V
trr Diode Reverse Recovery Time IF = 6 A, diF/dt = 100 A/ms − 20 − ns
Qrr Diode Reverse Recovery Charge − 10 − nC
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
NOTES:
1. RqJA is the sum of the junction−to−case and case−to−ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of the drain pins. RqJC is guaranteed by design while RqCA is determined by the user’s board design.
a. 78°C/W when mounted on a 0.5 in2 pad of 2 oz copper
b. 125°C/W when mounted on a 0.02 in2 pad of 2 oz copper
c. 135°C/W when mounted on a minimum mounting pad.
Scale 1 : 1 on letter size paper 2. Pulse Test: Pulse Width < 300 ms, Duty Cycle < 2.0%.
TYPICAL ELECTRICAL CHARACTERISTICS
Figure 1. On−Region Characteristics ID, DRAIN CURRENT (A)
0 0.5 1 1.5 2
0 4 8 12 16 20
VDS, DRAIN TO SOURCE VOLTAGE (V)
0 4 8 12 16 20
0.6 1.0 1.4 1.8 2.2
RDS(ON) NORMALIZED DRAIN TO SOURCE ON−RESISTANCE
−50 −25 0 25 50 75 100 125 150 TJ, JUNCTION TEMPERATURE (°C)
2 4 10
VGS, GATE TO SOURCE VOLTAGE (V) RDS(ON), ON−RESISTANCE (W)
1.5 2 2.5 3 3.5 4
4 8 12 16 20
VGS, GATE TO SOURCE VOLTAGE (V)
0 0.2 0.4 0.6 0.8 1
0.0001 0.01 0.1 10 100
ID, DRAIN CURRENT (A)
6 8
RDS(ON) NORMALIZED DRAIN TO SOURCE ON−RESISTANCE
ID = 6 A VGS = 10 V
TA = 125°C
TA = 25°C
ID, DRAIN CURRENT (A) IS, REVERSE DRAIN CURRENT (A)
TA = 125°C
TA = 25°C
TA = −55°C VGS = 0 V
VSD, BODY DIODE FORWARD VOLTAGE (V) 0.001
Figure 2. On−Resistance Variation with Drain Current and Gate Voltage
Figure 3. On−Resistance Variation with
Temperature Figure 4. On−Resistance Variation with Gate to Source Voltage
Figure 5. Transfer Characteristics Figure 6. Body Diode Forward Voltage Variation with Source Current and Temperature
TA = 125°C
TA = 25°C
TA = −55°C VDS = 5 V
0.02 0.03 0.04 0.05 0.06 0.07
0.01
0
1
ID = 3 A
1.2 VGS = 10.0 V
VGS = 3.5 V
0.6 0.8 1 1.2 1.4
1.6 0.08
VGS = 6.0 V VGS = 4.5 V VGS = 4.0 V VGS = 3.5 V
VGS = 3.0 V
4.0 V
4.5 V 5.0 V
6.0 V
10.0 V
FDS6912A
www.onsemi.com 4
TYPICAL ELECTRICAL CHARACTERISTICS
(continued)t1, TIME (s) 0
10 20 30 40 50
0.001 0.01 0.1 1 10 100 1000
0.1 1 10 100
0.010.1 1 10 100
VDS, DRAIN TO SOURCE VOLTAGE (V) 100 ms
VGS = 10 V SINGLE PULSE RqJA = 135°C/W TA = 25°C
1 ms 10 ms 100 ms
1 s 10 s DC RDS(ON) LIMIT
Figure 7. Gate Charge Characteristics
t1 t2
P(pk)
0.001 0.01 0.1 1 10 1000
t1, TIME (s) r(t), NORMALIZED EFFECTIVE TRANSIENT THERMAL RESISTANCE
0.001 0.01
100 RqJA(t) = r(t) * RqJA RqJA = 135°C/W
TJ − TA = P * RqJA(t) Duty Cycle, D = t1 / t2 D = 0.5
0.2 0.1
0.05 0.02
0.01
SINGLE PULSE
0.0001 0.1
1
P(pk), PEAK TRANSIENT POWER (W) ID, DRAIN CURRENT (A)
0 2 4 6 8
0 2 4 6 8 10
VGS, GATE TO SOURCE VOLTAGE (V)
Qg, GATE CHARGE (nC)
CAPACITANCE (pF)
VDS, DRAIN TO SOURCE VOLTAGE (V) VDS = 10 V
ID = 6 A f = 1 MHz
VGS = 0 V
Figure 8. Capacitance Characteristics VDS = 20 V
VDS = 15 V
Ciss
Coss
Crss
0 5 10 15 20
0 200 400 600 800
SINGLE PULSE RqJA = 135°C/W TA = 25°C
Figure 9. Maximum Safe Operating Area Figure 10. Single Pulse Maximum Power Dissipation
Figure 11. Transient Thermal Response Curve
(Thermal characterization performed using the conditions described in Note 1c. Transient thermal response will change depending on the circuit board design.)
10 12
