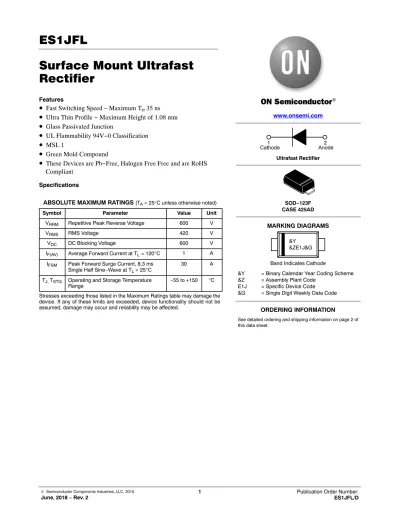

ES1JFL
Surface Mount Ultrafast Rectifier
Features
• Fast Switching Speed – Maximum T rr 35 ns
• Ultra Thin Profile − Maximum Height of 1.08 mm
• Glass Passivated Junction
• UL Flammability 94V−0 Classification
• MSL 1
• Green Mold Compound
• These Devices are Pb−Free, Halogen Free Free and are RoHS Compliant
Specifications
ABSOLUTE MAXIMUM RATINGS (T
A= 25°C unless otherwise noted)
Symbol Parameter Value Unit
V
RRMRepetitive Peak Reverse Voltage 600 V
V
RMSRMS Voltage 420 V
V
DCDC Blocking Voltage 600 V
I
F(AV)Average Forward Current at T
L= 120°C 1 A I
FSMPeak Forward Surge Current, 8.3 ms
Single Half Sine−Wave at T
L= 25 °C 30 A T
J,T
STGOperating and Storage Temperature
Range −55 to +150 °C
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
SOD−123F CASE 425AD www.onsemi.com
MARKING DIAGRAMS
&Y = Binary Calendar Year Coding Scheme
&Z = Assembly Plant Code E1J = Specific Device Code
&G = Single Digit Weekly Data Code Band Indicates Cathode
ORDERING INFORMATION
See detailed ordering and shipping information on page 2 of this data sheet.
Ultrafast Rectifier
1 2
Cathode Anode
&Y
&ZE1J&G
ES1JFL
www.onsemi.com 2
THERMAL CHARACTERISTICS (T
A= 25°C unless otherwise noted)
Symbol Characteristic Value Unit
R
qJATypical Thermal Resistance, Junction−to−Ambient (Note 1) 200 °C/W
R
qJCTypical Thermal Resistance, Junction−to−Case (Note 2) 30 °C/W
1. Mounted on an FR4 PCB, single−sided copper, mini pad.
2. Mounted on an FR4 PCB, single−sided copper, with 10 cm x 10 cm copper pad area.
ELECTRICAL CHARACTERISTICS (T
A= 25°C unless otherwise noted)
Symbol Parameter Conditions Min Typ Max Unit
V
FForward Voltage I
F= 1 A − − 1.7 V
I
RReverse Current V
R= 600 V − − 0.5 mA
V
R= 600 V, T
A= 100 ° C − − 10
C
JCapacitance V
R= 4 V, f = 1.0 MHz − 7 − pF
T
rrReverse Recovery Time I
F= 0.5 A, I
R= 1 A, I
rr= 0.25 A − 22.55 35.00 ns Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
ORDERING INFORMATION
Part Number Top Mark Package Shipping
†ES1JFL E1J SOD−123F
(Pb−Free/Halogen Free) 3000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
TYPICAL PERFORMANCE CHARACTERISTICS
ES1JFL
www.onsemi.com 3
100
10
1
0.1
0.01 20 40 60 80 100
V
R= 600 V
0 120 140 160
1.0 .001
.01 .1 1.0
0.4 0.6 0.8 0
2.0 4.0
1 10
Reverse Voltage (V)
Capacitance (pF)
T
J, Junction Temperature ( 5 C) I
R, Reverse Leakage Current ( m A)
Figure 1. Typical Junction Capacitance 100 6.0
8.0 10 12 14 16
18 T
J= 25°C
f = 1.0 MHz Vsig = 50 mVp−p
0 0.2 0.4 0.6 0.8 1.0
0 25 50 75 100 125 150
Figure 2. Forward Current Derating Curve T
C, Case Temperature ( 5 C)
I
F, Forward Current (A)
Instantaneous Forward Voltage (V) Instantaneous Forward Current (A)
Figure 3. Typical Forward Characteristics
1.2
Figure 4. Typical Leakage Current vs. Junction Temperature 1.8
1.2 1.4 1.6
10 T
J= 25°C
SOD−123FL CASE 425AD
ISSUE A
DATE 04 AUG 2017 SCALE 4:1
MECHANICAL CASE OUTLINE
PACKAGE DIMENSIONS
