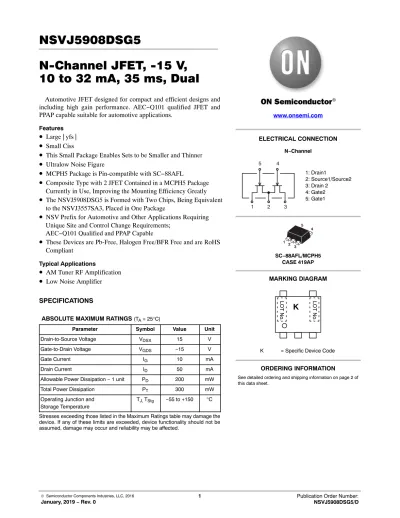

NSVJ5908DSG5 N-Channel JFET, -15 V, 10 to 32 mA, 35 ms, Dual

N-Channel JFET, -15 V, 10 to 32 mA, 35 ms, Dual

Automotive JFET designed for compact and efficient designs and including high gain performance. AEC−Q101 qualified JFET and PPAP capable suitable for automotive applications.

Features

• Large | yfs |

• ^{Small Ciss}

• This Small Package Enables Sets to be Smaller and Thinner

• Ultralow Noise Figure

• MCPH5 Package is Pin-compatible with SC−88AFL

• Composite Type with 2 JFET Contained in a MCPH5 Package Currently in Use, Improving the Mounting Efficiency Greatly

• The NSVJ5908DSG5 is Formed with Two Chips, Being Equivalent to the NSVJ3557SA3, Placed in One Package

• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements;

AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant

Typical Applications

• AM Tuner RF Amplification

• Low Noise Amplifier SPECIFICATIONS

ABSOLUTE MAXIMUM RATINGS (T

= 25°C)

Parameter Symbol Value Unit

Drain-to-Source Voltage V

15 V

Gate-to-Drain Voltage V

−15 V

Gate Current I

10 mA

Drain Current I

50 mA

Allowable Power Dissipation − 1 unit P

200 mW

Total Power Dissipation P

300 mW

Operating Junction and Storage Temperature

T

T

−55 to +150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

www.onsemi.com

SC−88AFL/MCPH5 CASE 419AP

See detailed ordering and shipping information on page 2 of this data sheet.

ORDERING INFORMATION MARKING DIAGRAM ELECTRICAL CONNECTION

2

5 4

3 1

1 2 3

5 4

1: Drain1

2: Source1/Source2 3: Drain 2

4: Gate2 5: Gate1 N−Channel

LOT No. LOT No.

K = Specific Device Code

K

NSVJ5908DSG5

www.onsemi.com 2

Table 1. ELECTRICAL CHARACTERISTICS (T

= 25°C)

Parameter Symbol Conditions Min Typ Max Unit

Gate-to-Drain Breakdown

Voltage V

I

= −10 mA, V

= 0 V −15 − − V

Gate-to-Source Leakage

Current I

V

= −10 V, V

= 0 V − − −1.0 nA

Cutoff Voltage V

V

= 5 V, I

= 100 mA −0.3 −0.7 −1.5 V

Zero-Gate Voltage Drain Current I

V

= 5 V, V

= 0 V 10 − 32 mA

Forward Transfer Admittance | yfs | V

= 5 V, V

= 0 V, f = 1 kHz 24 35 − mS

Input Capacitance Ciss V

= 5 V, V

= 0 V, f = 1 MHz − 10.5 − pF

Reverse Transfer Capacitance Crss − 3.5 − pF

Noise Figure NF V

= 5 V, Rg = 1 kW, I

= 1 mA, f = 1 kHz − 1.0 − dB

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

NOTE: The specifications shown above are for each individual JFET.

ORDERING INFORMATION

Device Marking Package Type Shipping

NSVJ5908DSG5T1G K SC−88AFL / MCPH5

(Pb−Free / Halogen Free) 3,000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging

Specifications Brochure, BRD8011/D.

TYPICAL CHARACTERISTICS

Figure 1. I

vs. V

Figure 2. I

vs. V

00 20

16

12

8

4

0.4 0.8 1.2 1.6 2.0 2.4

Drain-to-Source Voltage, V

(V) Drain Current, I

(mA)

VGS = 0 V

−0.1 V

−0.2 V

−0.3 V

−0.4 V −0.5 V

−0.6 V

−0.7 V

00 20

16

12

8

4

2 4 6 8 10 12

Drain-to-Source Voltage, V

(V) Drain Current, I

(mA)

V_GS = 0 V

−0.1 V

−0.2 V

−0.3 V

−0.4 V

−0.5 V −0.6 V

−0.7 V

0 0.2

0 22 20 18 16 14 12 10 8 6 4 2

Drain Current, I

(mA)

Figure 3. I

vs. V

Gate-to-Source Voltage, V

(V)

−0.4 −0.2

−0.8 −0.6

−1.2 −1.0

−1.4

IDSS = 30 mA VDS = 5 V

20 mA

15 mA

10 mA

Figure 4. I

vs. V

0 4 2 6 8 12 10 14 16

0 0.2

−0.4 −0.2

−0.8 −0.6

−1.2 −1.0

Drain Current, I

(mA)

Gate-to-Source Voltage, V

(V)

IDSS = 15 mA

TA = −25°C

25°C

75°C

10

5 3 7 2 3 5 7

3 5 7 1.0 2 3 5 7 10 2 3 5

2

Forward T ransfer Amplitude, |yfs| (ms)

Figure 5. |yfs| vs. I

Drain Current, I

(mA)

f = 1 kHz

IDSS = 15 mA 30 mA

7 10 2 3 5

10 2 3 5 7 100

Forward T ransfer Amplitude, |yfs| (ms)

Figure 6. |yfs| vs. I

Drain Current, I

(mA)

VGS = 0 V f = 1 kHz

NSVJ5908DSG5

www.onsemi.com 4

TYPICAL CHARACTERISTICS

Figure 7. V

vs. I

Figure 8. Ciss vs. V

Figure 9. Crss vs. V

Figure 10. NF vs. f

Figure 11. NF vs. R

Figure 12. P

, P

vs. T

7 10 2 3 5

3 3

2

1.0

7 5

Cutoff V oltage, V

(mA)

Drain Current, I

(mA)

ID = 100 mA

2 3 5 7 2 3

3 3

1.0 10

10

5 7 2

Input Capacitance, Ciss (pF)

Drain-to-Source Voltage, V

(V)

f = 1 MHz

3 10

1.0 2 3 5 7 10 2

7 5

3

2

1.0

Reverse T ransfer Capacitance, Crss (pF)

Drain-to-Source Voltage, V

(V)

f = 1 MHz

10

8

6

4

2

0.01 2 0.1 1.0 10 100

0

3 5 7 2 3 5 7 2 3 5 7 2 3 5 7

Noise Figure, NF (dB)

Frequency, f (kHz)

ID = 1 mA RG = 1 kW

10

8

6

4

2

0.1 2 1.0 10 100 1000

0

3 5 7 2 3 5 7 2 3 5 7 2 3 5 7

Noise Figure, NF (dB)

Signal Source Resistance, R

(k W )

I_D = 1 mA f = 1 kHz

0 20 40 60 80 100 120 140 160

0 350 300 250 200 150

50 100

Allowable Power Dissipation, P

, P

(mW)

Ambient Temperature, T

( 5 C)

PD 1 uint

SC−88AFL/ MCPH5 CASE 419AP

ISSUE O

DATE 30 NOV 2011
