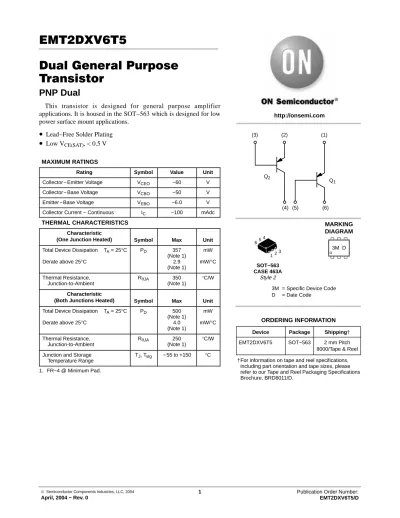

Dual General Purpose Transistor

 Semiconductor Components Industries, LLC, 2004

April, 2004 − Rev. 0

1 Publication Order Number:

EMT2DXV6T5/D

EMT2DXV6T5

Dual General Purpose Transistor

PNP Dual

This transistor is designed for general purpose amplifier applications. It is housed in the SOT−563 which is designed for low power surface mount applications.

• Lead−Free Solder Plating

• Low V CE(SAT) , < 0.5 V

MAXIMUM RATINGS

Rating Symbol Value Unit

Collector − Emitter Voltage V

−60 V

Collector − Base Voltage V

−50 V

Emitter − Base Voltage V

−6.0 V

Collector Current − Continuous I

−100 mAdc

THERMAL CHARACTERISTICS Characteristic

(One Junction Heated) Symbol Max Unit Total Device Dissipation T

= 25°C

Derate above 25°C

P

357

(Note 1) 2.9 (Note 1)

mW mW/°C

Thermal Resistance, Junction-to-Ambient

R

350

(Note 1)

° C/W

Characteristic

(Both Junctions Heated) Symbol Max Unit

Total Device Dissipation T

= 25°C Derate above 25 ° C

P

500

(Note 1) 4.0 (Note 1)

mW mW/ ° C

Thermal Resistance, Junction-to-Ambient

R

250

(Note 1)

°C/W Junction and Storage

Temperature Range

T

, T

− 55 to +150 ° C

1. FR−4 @ Minimum Pad.

SOT−563 CASE 463A

Style 2

http://onsemi.com

3M = Specific Device Code D = Date Code

MARKING DIAGRAM

3M D

Device Package Shipping†

ORDERING INFORMATION

EMT2DXV6T5 SOT−563 2 mm Pitch

8000/Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

Q

Q

(3) (2)

(4) (5) (6)

(1)

EMT2DXV6T5

http://onsemi.com 2

ELECTRICAL CHARACTERISTICS (T

= 25°C)

Characteristic Symbol Min Typ Max Unit

Collector−Base Breakdown Voltage (I

= −50 Adc, I

= 0) V

−60 − − Vdc Collector−Emitter Breakdown Voltage (I

= −1.0 mAdc, I

= 0) V

−50 − − Vdc Emitter−Base Breakdown Voltage (I

= −50 Adc, I

= 0) V

−6.0 − − Vdc

Collector−Base Cutoff Current (V

= −30 Vdc, I

= 0) I

− − −0.5 nA

Emitter−Base Cutoff Current (V

= −5.0 Vdc, I

= 0) I

− − −0.5 A

Collector−Emitter Saturation Voltage (Note 2) (I

= −50 mAdc, I

= −5.0 mAdc)

V

− − −0.5

Vdc

DC Current Gain (Note 2)

(V

= −6.0 Vdc, I

= −1.0 mAdc)

h

120 − 560

−

Transition Frequency

(V

= −12 Vdc, I

= −2.0 mAdc, f = 30 MHz)

f

− 140 −

MHz

Output Capacitance (V

= −12 Vdc, I

= 0 Adc, f = 1 MHz) C

− 3.5 − pF

2. Pulse Test: Pulse Width ≤ 300 s, D.C. ≤ 2%.

EMT2DXV6T5

http://onsemi.com 3

TYPICAL ELECTRICAL CHARACTERISTICS

Figure 1. I

− V

V

, COLLECTOR VOLTAGE (V)

Figure 2. DC Current Gain I

, COLLECTOR CURRENT (mA)

Figure 3. Collector Saturation Region I

, BASE CURRENT (mA)

Figure 4. On Voltage I

, COLLECTOR CURRENT (mA) I C , COLLECT OR CURRENT (mA)

0 120

90

60

30

0 3 6 9 15

DC CURRENT GAIN

1000

0.1 100

10 1 10 100

T

= 25°C

T

= −25°C T

= 75°C

V

= 10 V

V CE

, COLLECT OR-EMITTER VOL TAGE (V)

2

0.01 1.5

1

0.5

0 0.1 1 10 100

T

= 25°C

COLLECT OR VOL TAGE (mV)

900

0.2 800 700 600 500 400 300 200 100

0.5 1 5 10 20 40 60 80 100 150 200

T

= 25°C V

= 5 V 12

0 T

= 25°C

300 A

I

= 50 A 100 150 200 250

Figure 5. Capacitance

V

(V)

Figure 6. Capacitance V

(V)

13

0 12 11 10 9

6 1 2 3 4

14

0

C ib , INPUT CAP ACIT ANCE (p F) 12

10 8 6 4

0 10 20 30 40

C ob

, CAP ACIT ANCE (pF)

8

7 2

SOT−563, 6 LEAD CASE 463A

ISSUE H

DATE 26 JAN 2021 SCALE 4:1

1 6

MECHANICAL CASE OUTLINE

PACKAGE DIMENSIONS

ON Semiconductor and are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.

ON Semiconductor reserves the right to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. ON Semiconductor does not convey any license under its patent rights nor the rights of others.

98AON11126D DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 2 SOT−563, 6 LEAD

© Semiconductor Components Industries, LLC, 2019

www.onsemi.com

SOT−563, 6 LEAD CASE 463A

ISSUE H

DATE 26 JAN 2021

XX = Specific Device Code M = Month Code G = Pb−Free Package

XX M G GENERIC MARKING DIAGRAM*

1

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
