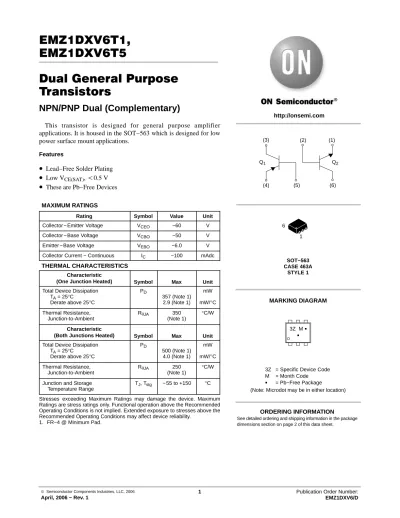

EMZ1DXV6T1, EMZ1DXV6T5 Dual General Purpose Transistors

EMZ1DXV6T1, EMZ1DXV6T5

Dual General Purpose Transistors

NPN/PNP Dual (Complementary)

This transistor is designed for general purpose amplifier applications. It is housed in the SOT−563 which is designed for low power surface mount applications.

Features

• Lead−Free Solder Plating

• ^{Low V} CE(SAT) , t 0.5 V

• These are Pb−Free Devices

MAXIMUM RATINGS

Rating Symbol Value Unit

Collector −Emitter Voltage V

−60 V

Collector −Base Voltage V

−50 V

Emitter −Base Voltage V

−6.0 V

Collector Current − Continuous I

−100 mAdc

THERMAL CHARACTERISTICS Characteristic

(One Junction Heated) Symbol Max Unit Total Device Dissipation

T

= 25 ° C Derate above 25 ° C

P

357 (Note 1) 2.9 (Note 1)

mW mW/ ° C Thermal Resistance,

Junction-to-Ambient

R

350

(Note 1) ° C/W Characteristic

(Both Junctions Heated) Symbol Max Unit Total Device Dissipation

T

= 25 ° C Derate above 25 ° C

P

500 (Note 1) 4.0 (Note 1)

mW mW/ ° C Thermal Resistance,

Junction-to-Ambient

R

250

(Note 1) ° C/W Junction and Storage

Temperature Range

T

, T

−55 to +150 ° C

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. FR−4 @ Minimum Pad.

Q

(1) (3) (2)

(4) (5) (6)

Q

http://onsemi.com

MARKING DIAGRAM

3Z M G G

3Z = Specific Device Code M = Month Code G = Pb−Free Package

(Note: Microdot may be in either location) SOT−563

CASE 463A STYLE 1

1 6

See detailed ordering and shipping information in the package dimensions section on page 2 of this data sheet.

ORDERING INFORMATION

EMZ1DXV6T1, EMZ1DXV6T5

http://onsemi.com 2

ELECTRICAL CHARACTERISTICS (T

= 25 ° C)

Characteristic Symbol Min Typ Max Unit

Q1: PNP

Collector−Base Breakdown Voltage (I

= −50 m Adc, I

= 0)

V

−60 − − Vdc

Collector−Emitter Breakdown Voltage (I

= −1.0 mAdc, I

= 0)

V

−50 − − Vdc

Emitter−Base Breakdown Voltage (I

= −50 m Adc, I

= 0)

V

−6.0 − − Vdc

Collector−Base Cutoff Current (V

= −30 Vdc, I

= 0)

I

− − −0.5 nA

Emitter−Base Cutoff Current (V

= −5.0 Vdc, I

= 0)

I

− − −0.5 m A

Collector−Emitter Saturation Voltage (Note 2) (I

= −50 mAdc, I

= −5.0 mAdc)

V

− − −0.5

Vdc

DC Current Gain (Note 2)

(V

= −6.0 Vdc, I

= −1.0 mAdc)

h

120 − 560

−

Transition Frequency

(V

= −12 Vdc, I

= −2.0 mAdc, f = 30 MHz)

f

− 140 −

MHz

Output Capacitance

(V

= −12 Vdc, I

= 0 Adc, f = 1 MHz)

C

− 3.5 − pF

Q2: NPN

Collector-Base Breakdown Voltage (I

= 50 m Adc, I

= 0)

V

60 − − Vdc

Collector-Emitter Breakdown Voltage (I

= 1.0 mAdc, I

= 0)

V

50 − − Vdc

Emitter-Base Breakdown Voltage (I

= 50 m Adc, I

= 0)

V

7.0 − − Vdc

Collector-Base Cutoff Current (V

= 60 Vdc, I

= 0)

I

− − 0.5 m A

Emitter-Base Cutoff Current (V

= 7.0 Vdc, I

= 0)

I

− − 0.5 m A

Collector-Emitter Saturation Voltage (Note 3) (I

= 50 mAdc, I

= 5.0 mAdc)

V

− − 0.4

Vdc

DC Current Gain (Note 3)

(V

= 6.0 Vdc, I

= 1.0 mAdc)

h

120 − 560

−

Transition Frequency

(V

= 12 Vdc, I

= 2.0 mAdc, f = 30 MHz)

f

− 180 − MHz

Output Capacitance

(V

= 12 Vdc, I

= 0 Adc, f = 1 MHz)

C

− 2.0 − pF

2. Pulse Test: Pulse Width ≤ 300 m s, D.C. ≤ 2%.

3. Device mounted on a FR-4 glass epoxy printed circuit board using the minimum recommended footprint.

ORDERING INFORMATION

Device Package Shipping

EMZ1DXV6T1 SOT−563* 4000 Units / Tape & Reel

EMZ1DXV6T1G SOT−563* 4000 Units / Tape & Reel

EMZ1DXV6T5 SOT−563* 8000 Units / Tape & Reel

EMZ1DXV6T5G SOT−563* 8000 Units / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

*This package is inherently Pb−Free.

TYPICAL ELECTRICAL CHARACTERISTICS − Q1, PNP

Figure 1. I

− V

V

, COLLECTOR VOLTAGE (V)

Figure 2. DC Current Gain I

, COLLECTOR CURRENT (mA)

Figure 3. Collector Saturation Region I

, BASE CURRENT (mA)

Figure 4. On Voltage I

, COLLECTOR CURRENT (mA) I C , COLLECT OR CURRENT (mA)

0 120

90

60

30

0 3 6 9 15

DC CURRENT GAIN

1000

0.1 100

10 1 10 100

T

= 25°C

T

= −25°C T

= 75°C

V

= 10 V

V CE

, COLLECT OR-EMITTER VOL TAGE (V) 2

0.01 1.5

1

0.5

0 0.1 1 10 100

T

= 25°C

COLLECT OR VOL TAGE (mV)

900

0.2 800 700 600 500 400 300 200 100

0.5 1 5 10 20 40 60 80 100 150 200

T

= 25°C V

= 5 V 12

0 T

= 25°C

300 mA

I

= 50 mA 100 150 200 250

Figure 5. Capacitance

V

(V)

Figure 6. Capacitance V

(V)

13

0 12 11 10 9

6 1 2 3 4

14

0

C ib , INPUT CAP ACIT ANCE (p F) 12

10 8 6 4

0 10 20 30 40

C ob

, CAP ACIT ANCE (pF)

8

7 2

EMZ1DXV6T1, EMZ1DXV6T5

http://onsemi.com 4

TYPICAL ELECTRICAL CHARACTERISTICS − Q2, NPN

Figure 1. I

− V

V

, COLLECTOR VOLTAGE (V)

Figure 2. DC Current Gain I

, COLLECTOR CURRENT (mA)

Figure 3. Collector Saturation Region I

, BASE CURRENT (mA)

Figure 4. On Voltage I

, COLLECTOR CURRENT (mA) I C , COLLECT OR CURRENT (mA)

60

0 50 40 30 20 10

0 2 4 6 8

T

= 25°C 160 mA

140 mA 120 mA 100 mA

80 mA 60 mA 40 mA I

= 20 mA

DC CURRENT GAIN

1000

0.1 100

10 1 10 100

T

= 25°C

T

= −25°C T

= 75°C

V

= 10 V

V CE

, COLLECT OR-EMITTER VOL TAGE (V) 2

0.01 1.5

1

0.5

0 0.1 1 10 100

T

= 25°C

COLLECT OR VOL TAGE (mV)

900

0.2 800 700 600 500 400 300 200 100

0.5 1 5 10 20 40 60 80 100 150 200

T

= 25°C V

= 5 V

0

Figure 5. Capacitance

V

(V)

Figure 6. Capacitance V

(V)

20

0 18 16

14

12

10 1 2 3 4

7

0

C ib , INPUT CAP ACIT ANCE (pF) 6

5 4 3 2

1 10 20 30 40

C ob

, CAP ACIT ANCE (pF)

SOT−563, 6 LEAD CASE 463A

ISSUE H

DATE 26 JAN 2021 SCALE 4:1

1 6

PACKAGE DIMENSIONS
