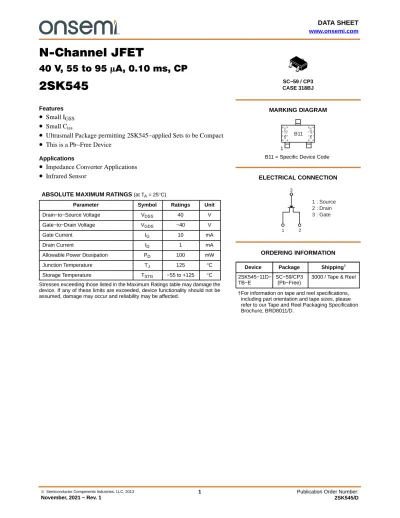

N-Channel JFET 40 V, 55 to 95

DATA SHEET www.onsemi.com

© Semiconductor Components Industries, LLC, 2013

November, 2021 − Rev. 1

1 Publication Order Number:

2SK545/D

N-Channel JFET

40 V, 55 to 95 mA, 0.10 ms, CP

2SK545

Features

• ^{Small I} GSS

• ^{Small C} iss

• Ultrasmall Package permitting 2SK545−applied Sets to be Compact

• This is a Pb−Free Device Applications

• Impedance Converter Applications

• Infrared Sensor

ABSOLUTE MAXIMUM RATINGS (at T

= 25 ° C)

Parameter Symbol Ratings Unit

Drain−to−Source Voltage V

40 V

Gate−to−Drain Voltage V

−40 V

Gate Current I

10 mA

Drain Current I

1 mA

Allowable Power Dissipation P

100 mW

Junction Temperature T

125 ° C

Storage Temperature T

−55 to +125 ° C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

MARKING DIAGRAM SC−59 / CP3 CASE 318BJ

B11 = Specific Device Code

ELECTRICAL CONNECTION

Device Package Shipping

ORDERING INFORMATION

2SK545−11D−

TB−E

SC−59/CP3 (Pb−Free)

3000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.

1 2

3

1 : Source 2 : Drain 3 : Gate B11

LOT No.

LOT No.

1

2SK545

www.onsemi.com 2

Table 1. ELECTRICAL CHARACTERISTICS (at T

= 25 ° C)

Parameter Symbol Conditions Min Typ Max Unit

Gate−to−Drain Breakdown Voltage V

I

= −10 m A, V

= 0 V −40 V

Gate Cutoff Current I

V

= −20 V, V

= 0 V −500 pA

Drain Current I

V

= 10 V, V

= 0 V 55 95 m A

Cutoff Voltage V

V

= 10 V, I

= 1 m A −1.2 −4.0 V

Forward Transfer Admittance |yfs| V

= 10 V, V

= 0 V, f = 1 kHz 0.05 0.10 ms

Input Capacitance C

V

= 10 V, V

= 0 V, f = 1 MHz 1.7 pF

Reverse Transfer Capacitance C

V

= 10 V, V

= 0 V, f = 1 MHz 0.7 pF

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

TYPICAL CHARACTERISTICS

Figure 1. Drain Current vs. Drain−to−Source Voltage

Figure 2. Drain Current vs. Gate−to−Source Voltage

Figure 3. Cutoff Voltage vs. Drain Current Figure 4. Forward Transfer Admittance vs. Drain Current

V

, Drain−to−Source Voltage (V) I

, Drain Current ( m A)

V

, Gate−to−Source Voltage (V) I

, Drain Current ( m A)

I

, Drain Current ( m A)

|yfs|, Forward T ransfer Admittance (ms)

I

, Drain Current ( m A) V

, Cutoff V oltage (V)

0 2 4 6 8 10 12 14 16 18 20

0 10 20 30 40 100

60 80

50 70 90

−0.2 V

−0.4 V

−0.6 V

−0.8 V

−1.0 V −1.2 V V

= 0 V

−1.60 30 20 10 40 50 60 70 80 90 100

−1.4 −1.2 −1.0 −0.8 −0.6 −0.4 −0.2 0

V

= 10 V I

= 75 m A

T

= 25 ° C

−25 ° C

75 ° C

70 80 90

50 60 100

1.1 1.5

1.0 1.4

0.9 1.3

1.2

V

= 10 V I

= 1 m A

100 90

60

50 70 80

0.14

0.13

0.12

0.11 0.10

0.09

0.07 0.06 0.08

V

= 10 V

V

= 0 V

f = 1 kHz

2SK545

www.onsemi.com 3

TYPICAL CHARACTERISTICS

Figure 5. Power Dissipation vs. Ambient Temperature

Figure 6. Input Capacitance vs. Drain−to−Source Voltage

Figure 7. Reverse Transfer Capacitance vs.

Drain−to−Source Voltage T

, Ambient Temperature ( 5 C) P

, Power Dissipation (mW)

V

, Drain−to−Source Voltage (V) C

, Input Capacitance (pF)

V

, Drain−to−Source Voltage (V) C

, Reverse T ransfer Capacitance (pF)

0 20 40 60 80 100 120 140

0 20 40 80 100

60 120

1.0 2 3 5 7 10 2 3 5 7 100

2

7 5 7 5

3 3

1.0

10

V

= 0 V

f = 1 MHz

1.0 2 3 5 7 10 23 57 100

1.0

0.1 2

7 5

3

2 5 3

V

= 0 V

f = 1 MHz

SC−59 / CP3 CASE 318BJ ISSUE O

DATE 09 JAN 2015 SCALE 2:1

XXX MG G

XXX = Specific Device Code M = Date Code

G = Pb−Free Package GENERIC MARKING DIAGRAM

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

1

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

(Note: Microdot may be in either location)

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. DIMENSIONS D AND E1 DO NOT INCLUDE MOLD FLASH, PRO- TRUSIONS, OR GATE BURRS. MOLD FLASH, PROTRUSIONS, OR GATE BURRS SHALL NOT EXCEED 0.20 PER SIDE.

4. DIMENSIONS D AND E1 ARE MEASURED AT THE OUTERMOST EXTREME OF THE PLASTIC BODY.

5. DIMENSIONS b AND c APPLY TO THE FLAT SECTION OF THE LEAD BETWEEN 0.10 AND 0.20 FROM THE TIP.

DIM

A MIN MAX

0.95 MILLIMETERS

A1

e 0.95 BSC

A2 0.20 0.40 1.35 0.00 0.10 b 0.35 c

D 2.75 3.05 0.50 0.10 0.20 E 2.30 E1

L 0.35 0.75 2.70 1.35 1.65

b E D

2 3

1

A1 A

SEATING PLANE

SIDE VIEW C

A 0.10

C TOP VIEW

A

3X

E1

e

L

3X

A2

c

END VIEW

1.00

DIMENSIONS: MILLIMETERS

SOLDERING FOOTPRINT*

0.95

RECOMMENDED

PITCH

3.40 0.80

MECHANICAL CASE OUTLINE

PACKAGE DIMENSIONS
