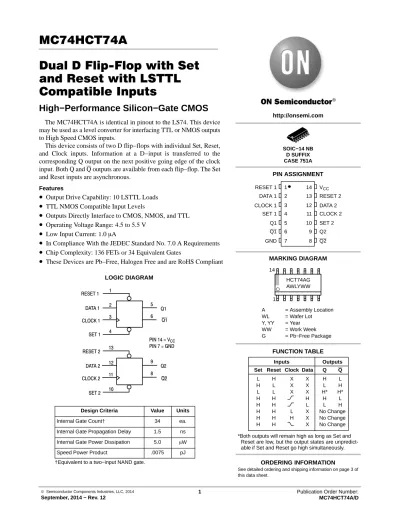

MC74HCT74A Dual D Flip-Flop with Set and Reset with LSTTL Compatible Inputs

(1)

Dual D Flip-Flop with Set and Reset with LSTTL Compatible Inputs

High−Performance Silicon−Gate CMOS

The MC74HCT74A is identical in pinout to the LS74. This device may be used as a level converter for interfacing TTL or NMOS outputs to High Speed CMOS inputs.

This device consists of two D flip−flops with individual Set, Reset, and Clock inputs. Information at a D−input is transferred to the corresponding Q output on the next positive going edge of the clock input. Both Q and Q outputs are available from each flip−flop. The Set and Reset inputs are asynchronous.

Features

• Output Drive Capability: 10 LSTTL Loads

• TTL NMOS Compatible Input Levels

• Outputs Directly Interface to CMOS, NMOS, and TTL

• Operating Voltage Range: 4.5 to 5.5 V

• Low Input Current: 1.0 m A

• In Compliance With the JEDEC Standard No. 7.0 A Requirements

• Chip Complexity: 136 FETs or 34 Equivalent Gates

• These Devices are Pb−Free, Halogen Free and are RoHS Compliant

LOGIC DIAGRAM

RESET 1 DATA 1 CLOCK 1 SET 1

RESET 2 DATA 2 CLOCK 2 SET 2

1 2 3 4

13 12 11 10

5 6

9 8

Q1 Q1

Q2 Q2 PIN 14 = V_CC PIN 7 = GND

Design Criteria Value Units

Internal Gate Count† 34 ea.

Internal Gate Propagation Delay 1.5 ns Internal Gate Power Dissipation 5.0 mW

Speed Power Product .0075 pJ

http://onsemi.com

PIN ASSIGNMENT

SET 1 CLOCK 1 DATA 1 RESET 1

11 12 13 14

8 9 10 5

4 3 2 1

7 6

SET 2 CLOCK 2 DATA 2 RESET 2 V_CC

Q2 Q2 GND

Q1 Q1

FUNCTION TABLE

Inputs Outputs

Set Reset Clock Data Q Q

L H X X H L

H L X X L H

L L X X H* H*

H H H H L

H H L L H

H H L X No Change

H H H X No Change

H H X No Change

*Both outputs will remain high as long as Set and Reset are low, but the output states are unpredict- able if Set and Reset go high simultaneously.

MARKING DIAGRAM

A = Assembly Location WL = Wafer Lot Y, YY = Year

WW = Work Week

G = Pb−Free Package SOIC−14 NB

D SUFFIX CASE 751A

HCT74AG AWLYWW 1

14

(2)

MC74HCT74A

http://onsemi.com 2

MAXIMUM RATINGS

Symbol Parameter Value Unit

V_CC DC Supply Voltage (Referenced to GND) –0.5 to +7.0 V V_in DC Input Voltage (Referenced to GND) –0.5 to V_CC + 0.5 V V_out DC Output Voltage (Referenced to GND) –0.5 to V_CC + 0.5 V

I_in DC Input Current, per Pin ±20 mA

I_out DC Output Current, per Pin ±25 mA

I_CC DC Supply Current, V_CC and GND Pins ±50 mA

P_D Power Dissipation in Still Air SOIC Package† 500 mW

T_stg Storage Temperature – 65 to + 150 _C

T_L Lead Temperature, 1 mm from Case for 10 Seconds 260 _C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

†Derating: SOIC Package: –7 mW/_C from 65_ to 125_C RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Min Max Unit

V_CC DC Supply Voltage (Referenced to GND) 4.5 5.5 V

V_in, V_out DC Input Voltage, Output Voltage (Referenced to GND) 0 V_CC V

T_A Operating Temperature, All Package Types –55 +125 _C

t_r, t_f Input Rise and Fall Time (Figure 1) 0 500 ns

Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond the Recommended Operating Ranges limits may affect device reliability.

DC ELECTRICAL CHARACTERISTICS (Voltages Referenced to GND)

Symbol Parameter Test Conditions

V_CC V

Guaranteed Limit

Unit –55 to

25_C ≤ 85_C ≤ 125_C V_IH Minimum High−Level Input

Voltage

V_out = 0.1 V or V_CC – 0.1 V

|I_out| ≤ 20 mA

4.5 5.5

2.0 2.0

V

V_IL Maximum Low−Level Input Voltage

V_out = 0.1 V or V_CC – 0.1 V

|I_out| ≤ 20 mA

4.5 5.5

0.8 0.8

V

V_OH Minimum High−Level Output Voltage

V_in = V_IH or V_IL

|I_out| ≤ 20 mA

4.5 5.5

4.4 5.4

V

V_in = V_IH or V_IL

|I_out| ≤ 4.0 mA 4.5 3.98 3.84 3.7

V_OL Maximum Low−Level Output Voltage

V_in = V_IH or V_IL

|I_out| ≤ 20 mA

4.5 5.5

0.1 0.1

V

V_in = V_IH or V_IL

|I_out| ≤ 4.0 mA 4.5 0.26 0.33 0.4

I_in Maximum Input Leakage Current V_in = V_CC or GND 5.5 ±0.1 ±1.0 ±1.0 mA I_CC Maximum Quiescent Supply

Current (per Package)

V_in = V_CC or GND I_out = 0 mA

5.5 2.0 20 80 mA

DI_CC Additional Quiescent Supply Current

V_in = 2.4 V, Any One Input V_in = V_CC or GND, Other Inputs

l_out = 0 mA 5.5

≥− 55_C 25_C to 125_C

2.9 2.4 mA

This device contains protection circuitry to guard against damage due to high static voltages or electric fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high−impedance circuit. For proper operation, V_in and V_out should be constrained to the range GND ≤ (V_in or V_out) ≤ V_CC.

Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V_CC).

Unused outputs must be left open.

(3)

AC ELECTRICAL CHARACTERISTICS (V_CC = 5.0 V ± 10%, C_L = 50 pF, Input t_r = t_f = 6.0 ns)

Symbol Parameter

Unit –55 to

25_C ≤ 85_C ≤ 125_C f_max Maximum Clock Frequency (50% Duty Cycle)

(Figures 1 and 4)

30 24 20 MHz

t_PLH, t_PHL

Maximum Propagation Delay, Clock to Q or Q (Figures 1 and 4)

24 30 36 ns

t_PLH, t_PHL

Maximum Propagation Delay, Set or Reset to Q orQ (Figures 2 and 4)

24 30 36 ns

t_TLH, t_THL

Maximum Output Transition Time, Any Output (Figures 1 and 4)

15 19 22 ns

C_in Maximum Input Capacitance 10 10 10 pF

C_PD Power Dissipation Capacitance (Per Enabled Output)*

Typical @ 25°C, V_CC = 5.0 V 32 pF

1. Used to determine the no−load dynamic power consumption: P_D = C_PD V_CC²f + I_CC V_CC.

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

TIMING REQUIREMENTS (V_CC = 5.0 V ± 10%, C_L = 50 pF, Input t_r = t_f = 6.0 ns)

ÎÎÎÎ

Symbol

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Parameter

ÎÎÎ

Fig.

ÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎ

Units

ÎÎÎÎ

–55 to 25_C

ÎÎÎÎÎ

≤ 85_C

ÎÎÎÎÎ

≤ 125_C

ÎÎÎ

Min

ÎÎ

Max

ÎÎÎ

Min

ÎÎÎ

Max

ÎÎÎ

Min

ÎÎÎ

Max

ÎÎÎÎ

t_su

Minimum Setup Time, Data to Clock

ÎÎÎ

3

ÎÎÎ

15

ÎÎ

ÎÎ ÎÎÎ

ÎÎÎ

19

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

22

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

ns

ÎÎÎÎ

t_h

Minimum Hold Time, Clock to Data

ÎÎÎ

3

ÎÎÎ

3

ÎÎ

ÎÎ ÎÎÎ

ÎÎÎ

3

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

3

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

ns

ÎÎÎÎ

t_rec

Minimum Recovery Time, Set or Reset Inactive to Clock

ÎÎÎ

2

ÎÎÎ

6

ÎÎ

ÎÎ ÎÎÎ

ÎÎÎ

8

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

9

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

ns

ÎÎÎÎ

t_w

Minimum Pulse Width, Clock

ÎÎÎ

1

ÎÎÎ

15

ÎÎ

ÎÎ ÎÎÎ

ÎÎÎ

19

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

22

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

ns

ÎÎÎÎ

t_w

Minimum Pulse Width, Set or Reset

ÎÎÎ

2

ÎÎÎ

15

ÎÎ

ÎÎ ÎÎÎ

ÎÎÎ

19

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

22

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

ns

ÎÎÎÎ

t_r, t_f

Maximum Input Rise and Fall Times

ÎÎÎ

1

ÎÎÎ

ÎÎÎ ÎÎ

ÎÎ

500

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

500

ÎÎÎ

ÎÎÎ ÎÎÎ

ÎÎÎ

500

ÎÎÎ

ns

ORDERING INFORMATION

Device Package Shipping^†

MC74HCT74ADG SOIC−14 NB

(Pb−Free) 55 Units / Rail

MC74HCT74ADR2G SOIC−14 NB

(Pb−Free) 2500 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

(4)

MC74HCT74A

http://onsemi.com 4

SWITCHING WAVEFORMS

1/f_max

Figure 1.

CLOCK

Q OR Q

t_f t_r

3 V GND 2.7 V

1.3 V 0.3 V

90%

1.3 V 10%

t_PLH t_PHL

t_TLH t_THL t_w

Figure 2.

GND SET OR

RESET

Q OR Q

CLOCK

t_PLH t_PHL

DATA

CLOCK

Figure 3.

VALID

t_su t_h

t_rec t_w

Figure 4. Expanded Logic Diagram SET

DATA

RESET 4, 10

2, 12

1, 13

CLOCK3, 11

5, 9

6, 8 Q

Q

*Includes all probe and jig capacitance C_L* TEST POINT

DEVICE UNDER TEST

OUTPUT

Figure 5.

3 V

GND 3 V 1.3 V

1.3 V

GND 3 V

GND 3 V 1.3 V

1.3 V

(5)

SOIC−14 NB CASE 751A−03

ISSUE L

DATE 03 FEB 2016 SCALE 1:1

1 14

GENERIC MARKING DIAGRAM*

XXXXXXXXXG AWLYWW 1

14

XXXXX = Specific Device Code A = Assembly Location WL = Wafer Lot

Y = Year

WW = Work Week G = Pb−Free Package

STYLES ON PAGE 2

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. DIMENSION b DOES NOT INCLUDE DAMBAR PROTRUSION. ALLOWABLE PROTRUSION SHALL BE 0.13 TOTAL IN EXCESS OF AT MAXIMUM MATERIAL CONDITION.

4. DIMENSIONS D AND E DO NOT INCLUDE MOLD PROTRUSIONS.

5. MAXIMUM MOLD PROTRUSION 0.15 PER SIDE.

H

14 8

7 1

0.25 M B ^M

C

h

X 45

SEATING PLANE

A1 A

M _ A S

0.25 M C B ^S

b

13X

B A

E D

e

DETAIL A

L A3

DETAIL A

DIM MIN MAX MIN MAX INCHES MILLIMETERS

D 8.55 8.75 0.337 0.344 E 3.80 4.00 0.150 0.157 A 1.35 1.75 0.054 0.068

b 0.35 0.49 0.014 0.019

L 0.40 1.25 0.016 0.049 e 1.27 BSC 0.050 BSC A3 0.19 0.25 0.008 0.010 A1 0.10 0.25 0.004 0.010

M 0 7 0 7 H 5.80 6.20 0.228 0.244 h 0.25 0.50 0.010 0.019

_ _ _ _

6.50

0.5814X

14X

1.18

1.27

DIMENSIONS: MILLIMETERS

1

PITCH SOLDERING FOOTPRINT*

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

0.10

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

PACKAGE DIMENSIONS

98ASB42565B DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 2 SOIC−14 NB

(6)
