• 検索結果がありません。

トップページ - 横浜国立大学学術情報リポジトリ

N/A
N/A
Info
ダウンロード
Protected

Academic year: 2021

シェア "トップページ - 横浜国立大学学術情報リポジトリ"

Copied!
4
0
0

読み込み中.... (全文を見る)

今ダウンロードする ( 4 ページ )

全文

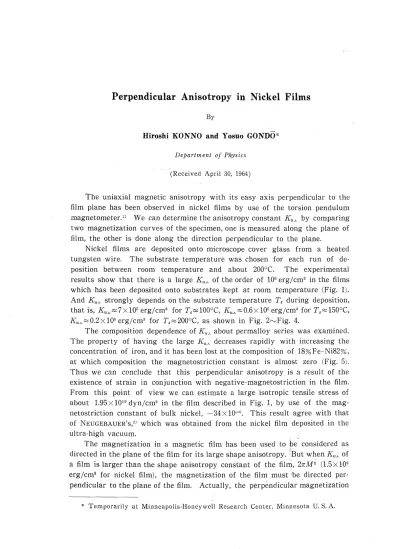

(1)Perpendicular Anisotropy in Nickel Films By. Hiroshi KONNO and Yosuo GONDO" DePartment of Pdysics. ttttt tttttt (Received April 30, 1964) ' t tt The uniaxial magnetic anisotropy with its easy axis perpendicular to the film plane has been observed in, nickel films by use of the torsion pendulum magnetometer.i) We can determinetheanisotropy constant Kh,. by comparing two magnetization curves of the specimen, one is measured along the plane of film, the other is -done along the direction perpendicular to the plane.. Nickel films are deposited onto microscope cover glass from a heated tungsten wire. The substrate temperature was chosen for each run of de-. position between room temperature and about 2000C. The experimental results show that there is a large Kh,. of the order of 106 erg/cm3 in the films which has been deposited onto substrates kept ' at room temperature (Fig. 1). And Kh,. strongly depends on the substrate temperature T, during deposition, that is, K,.fu7×105 erg/cm3 for T, :1000C, Kh,."-'-O.6×105 erg/cm3 for T,"-'-1500C,. 1<h,. :02×105 erg/cm3 for T,f:2000C, as shown in Fig. 2t-vFig. 4.. The composition dependence of Kl,. about permalloy series was examined, The property of having the large Kl,.. decreases rapidly with increasing the concentration of iron, and it has been lost at the composition of 18%Fe-Ni829/o,. at which composition the magnetostriction constant is almost zero (Fig. 5). Thus we can conclude that this perpendicular anisotropy is a result of the existence of strain in conjunction with negative-magnetostriction in the film. From this point of view we can estimate a large isotropic tensile stress of about 1.95×10iOdyn/cm2 in th.e film described in Fig. 1, by use of the magnetostriction constant of bulk nickel, -34×10-". This result agree with that of NEuGEBAuER's,2' which was obtained from the nickel film deposited in the. ultra-high vacuum. ,/,.. The magnetization in a magnetic film has been used to be considered as. directed in the plane of the film for its large shape anisotropy. ii ;;But when Kh,.. of. a film is larger than the shape anisotropy constant of the fi1th, 2zM2 (1.5×106. erg/cm3 for nickel film), the magnetization of the fiim must'-'be.directed per- .ttt magnetization pendicular to the plane of the film. Actually, the perpendicular. tt t'. '. " Temporarily at Minneapolis-Honeywell Research Center, Minnesota U,S,A..

(2) H. KoNNo and Y. GoNDO. J2. x...->Ge,.x'Sr'g'i9￡.-s?-O' reCM-×.-xO"?ScTKK>,t... 1,O. /,･yO/ ''Nk',V,'N'i56orsk., ij･･. Ms '. n -1soc. O.5. /. o/gl16oi. /. 24 H KOe. x. 8. 6. 10. Fig, 1,. ' o M. fpt-kcr-6. -ni. 1.0. 2tKX. tz th. ,. o :--e-"v.ptac-. 4rcMs. ,a /. e Ni 605A. as. Ku,--- 7× 1o52tqi6ms. Tls -- Iooac. k. o H`f2fiLm. ,x Hxfum. x. o. 8 10 Q 2 4 HKo,6 Fig. 2. , '. ' 1.0. M Ns O,5. o. pt.' 'W..' 4'Xig-xFNi Xe 715A ･ if/ ' ･･ ./ 'Ku:--O.6×1052tZkm5 ,>Z' -Ils･-1500C .. /･ ･-･ ,･ ><fx '' ' '' .1, , ･,.. ' '. tt. '. irO '="2 4 6･'8 10 -' ' H KOe. Fiig. 3..

(3) PerpendicuSar Anisotropy in Nickel Films. 1,O. Q. ..". '. o . --pTo0. e. 7ctpa･--t. O ft,,, .,￡--9t--o-ot-E-zrt-. be. M. Ni 89 2,Z,. .,,･g'. rk----･ --. /. x/. x'. KuL--O,Zxl05erskms 1'S --2000C. xlx. O.5. '13. / x. /. o. 2468 10. x. o. H KOe. ×. Fig. 4.. 1.0. O-v-OTOOD.Ov"O-"tr-7or-or.-CX--O--O.-.O-.CF-orO--O-ruwh-CleP.nt. isthfe-Ni tosoA sc.g /. ll Ms. zz -v1ooOd. /. O.5. o. -. !. y4(. vSs! :. "yt. xZ. "e!. x-! x.K"! . DH4fiL'm xH.LfiLm. x/!O2468 ' 11 KOe. Fig. 5.. 10-. must be divided into domains, so that the demagnetizing factor of the perpen-. dicular direction AiL become lower than 4T. Assuming that the domain width is approximately equal to the film thickness, A71,. is less than 2z. Then we can consider that the perpendicularly magnetized domain must exist in the film whose K,. and film thickness are larger than some adequate ones. The films presented in Fig. 1 and Fig. 2 are considered to have such domains 'because of their large Kh,-,, and the fact that the remanence magnetization in. the film plane is almost zero also suggests the existence of them,. We can see in another investigation by use of a magnetic-torque meter that the films expected to have such a domain structure are also the films possessing the effect of the rotatable anisotropy.3). The authors are grateful for helpful encouragement of the late Prof. Z,. FuNAToGAwA. This investigation was partly supported by the Scientific Research Funds from the Ministry of Education.. L.

(4) 14.. H. KoNNo and Y. GoND6. References 1). 2) 3). Y. GoND6 and H. KoNNo: Sci. Rep. Yokohama Nat. Univ. Sec. I No. 8 C･ A･ NEuGEBAuER: Phys. Rev. 116 (1959) 1441. H. KoNNo: in this issue of Sci. Rep. Yokohama [Nat. Univ.. (1961) 23..

(5)

参照

今ダウンロードする ( PDF - 4 ページ - 134.82 KB )

関連したドキュメント

UNIFORM CO-LIPSCHITZ MAPPINGS OF THE PLANE

We show that for a uniform co-Lipschitz mapping of the plane, the cardinality of the preimage of a point may be estimated in terms of the characteristic constants of the mapping,

We cannot use LAN in the hall

“Breuil-M´ezard conjecture and modularity lifting for potentially semistable deformations after

(3.) In the statement of the criterion

Then it follows immediately from a suitable version of “Hensel’s Lemma” [cf., e.g., the argument of [4], Lemma 2.1] that S may be obtained, as the notation suggests, as the m A

The problem of the oscillations caused by the deviating arguments (delays or advanced arguments) has been the subject of intensive investiga- tions

Some new oscillation and nonoscillation criteria are given for linear delay or advanced differential equations with variable coef- ficients and not (necessarily) constant delays

Moreover, we study the use of the unsymmetric Lanczos process that, to the best of our knowledge, has just marginally been considered in this setting

discrete ill-posed problems, Krylov projection methods, Tikhonov regularization, Lanczos bidiago- nalization, nonsymmetric Lanczos process, Arnoldi algorithm, discrepancy

The Analysis of the Artifacts due to

While conducting an experiment regarding fetal move- ments as a result of Pulsed Wave Doppler (PWD) ultrasound, [8] we encountered the severe artifacts in the acquired image2.

Boundary curves of surfaces with the 4{plane property

One important application of the the- orem of Floyd and Oertel is the proof of a theorem of Hatcher [15], which says that incompressible surfaces in an orientable and

with the Polynomials of the Askey Scheme

Hence, for these classes of orthogonal polynomials analogous results to those reported above hold, namely an additional three-term recursion relation involving shifts in the
