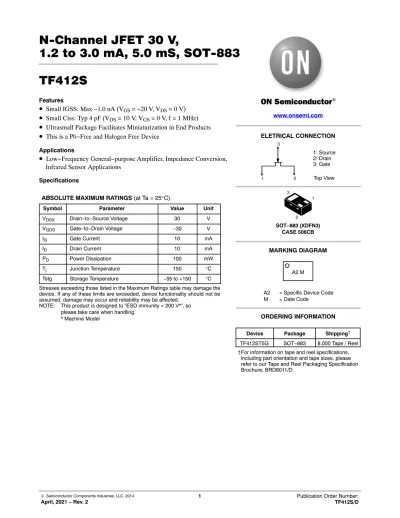

N-Channel JFET 30 V, 1.2 to 3.0 mA, 5.0 mS, SOT-883 TF412S

© Semiconductor Components Industries, LLC, 2014

April, 2021 − Rev. 2 1 Publication Order Number:

TF412S/D

1.2 to 3.0 mA, 5.0 mS, SOT-883 TF412S

Features

• Small IGSS: Max −1.0 nA (V GS = −20 V, V DS = 0 V)

• Small Ciss: Typ 4 pF (V DS = 10 V, V GS = 0 V, f = 1 MHz)

• Ultrasmall Package Facilitates Miniaturization in End Products

• This is a Pb−Free and Halogen Free Device Applications

• Low−Frequency General−purpose Amplifier, Impedance Conversion, Infrared Sensor Applications

Specifications

ABSOLUTE MAXIMUM RATINGS (at Ta = 25 ° C)

Symbol Parameter Value Unit

V

Drain−to−Source Voltage 30 V

V

Gate−to−Drain Voltage −30 V

I

Gate Current 10 mA

I

Drain Current 10 mA

P

Power Dissipation 100 mW

T

Junction Temperature 150 °C

Tstg Storage Temperature −55 to +150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

NOTE: This product is designed to “ESD immunity < 200 V*”, so please take care when handling.

* Machine Model

www.onsemi.com ELETRICAL CONNECTION

1 2 3

1: Source 2: Drain 3: Gate Top View

SOT−883 (XDFN3) CASE 506CB MARKING DIAGRAM

A2 M

A2 = Specific Device Code M = Date Code

1

2 3

Device Package Shipping

ORDERING INFORMATION

TF412ST5G SOT−883 8.000 Tape / Reel

†For information on tape and reel specifications,

including part orientation and tape sizes, please

refer to our Tape and Reel Packaging Specification

Brochure, BRD8011/D.

TF412S

www.onsemi.com 2

ELECTRICAL CHARACTERISTICS (at T

= 25°C)

Symbol Parameter Conditions Min Typ Max Unit

V

Gate−to−Drain Breakdown Voltage I

= −10 mA, V

= 0 V −30 V

I

Gate−to−Source Leakage Current V

= −20 V, V

= 0 V −1.0 nA

V

(off) Cutoff Voltage V

= 10 V, I

= 1 mA −0.18 −0.80 −1.5 V

I

Drain Current V

= 10 V, V

= 0 V 1.2 3.0 mA

| yfs | Forward Transfer Admittance V

= 10 V, V

= 0 V, f = 1 kHz 3.0 5.0 mS

Ciss Input Capacitance V

= 10 V, V

= 0 V, f = 1 MHz 4 pF

Crss Reverse Transfer Capacitance 1.1 pF

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product

performance may not be indicated by the Electrical Characteristics if operated under different conditions.

www.onsemi.com 3

TYPICAL CHARACTERISTICS

Figure 1. I

− V

V

, Drain−to−Source Voltage (V) I

, Drain Current (mA)

Figure 2. I

− V

V

, Gate−to−Source Voltage (V) I

, Drain Current (mA)

Figure 3. I

− V

Figure 4. I

− V

I

, Drain Current (mA) V

(of f), Cutof f V oltage (V)

Figure 5. V

(off) − I

Figure 6. J yfs J − I

⎪ yfs ⎪ , Forward T ransfer Admittance (mS)

0 1.0 0.5 1.5 2.0 2.5 3.0

0 1 2 3 4 5

V

= 0 V

−0.1 V

−0.2 V

−0.3 V

−0.4 V

0 1.0 2.0 1.5

0.5 2.5 3.0

0 5 10 15 20 25 30

V

= 0 V

−0.1 V

−0.2 V

−0.3 V

−0.4 V

V

, Drain−to−Source Voltage (V) I

, Drain Current (mA)

0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

−1.0 −0.8 −0.6 −0.4 −0.2 0

V

= 10 V

I

= 3.0 mA

2.0 mA

0 2.5 2.0 1.5

0.5 1.0 3.0 3.5

−1.0 −0.8 −0.6 −0.4 −0.2 0

V

= 10 V

T

= 75°C

−25°C 25 ° C

V

, Gate−to−Source Voltage (V) I

, Drain Current (mA)

−0.4

−0.2

−1.2

0

−1.4

−0.8

−0.6

−1.0

0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

V

= 10 V I

= 1.0 mA

7

0 5 6

2 1 3 4

0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

I

, Drain Current (mA) V

= 10 V

V

= 0 V

f = 1 kHz

TF412S

www.onsemi.com 4

TYPICAL CHARACTERISTICS (continued)

Figure 7. Ciss − V

V

, Drain−to−Source Voltage (V)

Figure 8. Crss − V

Figure 9. P

− Ta 10

1.0 5 7

2 3

0.1 2 3 5 7 1.0 2 3 5 7 10 2 3 5 7 100

Ciss, Input Capacitance (pF)

V

= 0 V f = 1 MHz

1.0

0.1 5 7

2 2

3 10 5 7 3

0.1 2 3 5 7 1.0 2 3 5 7 10 2 3 5 7 100 V

, Drain−to−Source Voltage (V)

Crss, Reverse T ransfer Capacitance (pF)

V

= 0 V f = 1 MHz

0 20 40 60 80 100 120 140 160

0 20 40 60 80 100 120

Ta, Ambient Temperature (°C)

P

, Allowable Power Dissipation (mW)

ÉÉ

ÉÉ

SOT−883 (XDFN3), 1.0x0.6, 0.35P CASE 506CB

ISSUE A

DATE 30 MAR 2012 SCALE 8:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. EXPOSED COPPER ALLOWED AS SHOWN.

A B

E D

BOTTOM VIEW b

0.10 C

TOP VIEW 0.10 C

A

0.10 C A1 0.10 C

C

SIDE VIEW

DIM MIN MAX MILLIMETERS A 0.340 0.440 A1 0.000 0.030 b 0.075 0.200 D2 0.620 BSC

e 0.350 BSC

L 0.170 0.300

SOLDER FOOTPRINT*

DIMENSIONS: MILLIMETERS

1.10

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

1

GENERIC MARKING DIAGRAM*

*This information is generic. Please refer to device data sheet for actual part marking. Pb−Free indicator, “G”, may or not be present.

XX = Specific Device Code M = Date Code

XX M

L

0.43

RECOMMENDED

D 0.950 1.075

E 0.550 0.675 E2 0.425 0.550

A 0.10

C B 0.05

C

e e/2

2X 3X

D2

E2

2X

0.41

0.55 0.20

2X PACKAGE

OUTLINE PIN ONE

REFERENCE

NOTE 3

3X
