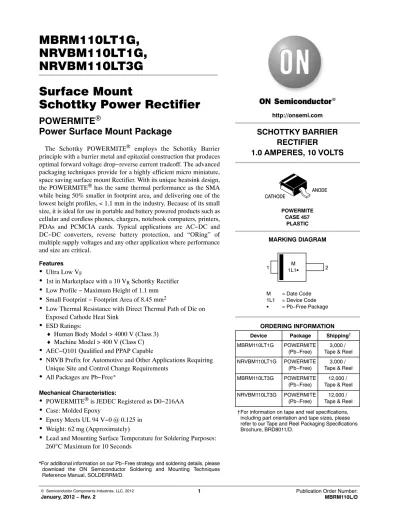

MBRM110LT1G, NRVBM110LT1G, NRVBM110LT3G Surface Mount Schottky Power Rectifier

NRVBM110LT1G, NRVBM110LT3G Surface Mount

Schottky Power Rectifier

POWERMITE ^

Power Surface Mount Package

The Schottky POWERMITE ^ employs the Schottky Barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop−reverse current tradeoff. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface mount Rectifier. With its unique heatsink design, the POWERMITE ^ has the same thermal performance as the SMA while being 50% smaller in footprint area, and delivering one of the lowest height profiles,  1.1 mm in the industry. Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards. Typical applications are AC−DC and DC−DC converters, reverse battery protection, and “ORing” of multiple supply voltages and any other application where performance and size are critical.

Features

 Ultra Low V F

 1st in Marketplace with a 10 V R Schottky Rectifier

 Low Profile − Maximum Height of 1.1 mm

 Small Footprint − Footprint Area of 8.45 mm ²

 Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat Sink

 ESD Ratings:

 Human Body Model > 4000 V (Class 3)

 Machine Model > 400 V (Class C)

 AEC−Q101 Qualified and PPAP Capable

 NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

 All Packages are Pb−Free*

Mechanical Characteristics:

 POWERMITE ^ is JEDEC Registered as D0−216AA

 Case: Molded Epoxy

 Epoxy Meets UL 94 V−0 @ 0.125 in

 Weight: 62 mg (Approximately)

 Lead and Mounting Surface Temperature for Soldering Purposes:

260C Maximum for 10 Seconds

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SCHOTTKY BARRIER RECTIFIER

1.0 AMPERES, 10 VOLTS

Device Package Shipping

ORDERING INFORMATION

MBRM110LT1G POWERMITE

(Pb−Free) 3,000 / Tape & Reel

MBRM110LT3G POWERMITE

(Pb−Free) 12,000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

POWERMITE CASE 457

PLASTIC CATHODE

ANODE

MARKING DIAGRAM

M = Date Code 1L1 = Device Code G = Pb−Free Package

http://onsemi.com

NRVBM110LT1G POWERMITE

(Pb−Free) 3,000 / Tape & Reel

NRVBM110LT3G POWERMITE

(Pb−Free) 12,000 / Tape & Reel M

1L1 G

1 2

MBRM110LT1G, NRVBM110LT1G, NRVBM110LT3G

http://onsemi.com 2

MAXIMUM RATINGS

Rating Symbol Value Unit

Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage

V

V

V

10 V

Average Rectified Forward Current

(T

= 115C, R

= 35C/W) I

1.0 A

Non−Repetitive Peak Surge Current

(Non−Repetitive peak surge current, halfwave, single phase, 60 Hz) I

50 A

Storage Temperature T

−55 to 125 C

Operating Junction Temperature T

−55 to 125 C

Voltage Rate of Change

(Rated V

, T

= 25C) dv/dt

10,000 V/ms

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

THERMAL CHARACTERISTICS

Characteristic Symbol Value Unit

Thermal Resistance, Junction−to−Lead (Anode) (Note 1) Thermal Resistance, Junction−to−Tab (Cathode) (Note 1) Thermal Resistance, Junction−to−Ambient (Note 1)

R

R

R

35 23 277

C/W

1. Mounted with minimum recommended pad size, PC Board FR4, See Figures 8 and 9.

ELECTRICAL CHARACTERISTICS

Characteristic Symbol Value Unit

Maximum Instantaneous Forward Voltage (Note 2) V

T

= 25  C T

= 100  C V (I

= 0.1 A)

(I

= 1.0 A) (I

= 2.0 A)

0.280 0.365 0.415

0.175 0.275 0.325

Maximum Instantaneous Reverse Current (Note 2) I

T

= 25C T

= 100C mA (V

= 5.0 V)

(V

= 10 V) 0.2

0.5 30

60 2. Pulse Test: Pulse Width  250 ms, Duty Cycle  2%.

Figure 1. Typical Forward Voltage Figure 2. Maximum Forward Voltage V

, INSTANTANEOUS FORWARD VOLTAGE (VOLTS)

10

1

I F , INST ANT ANEOUS FOR W ARD CURRENT (AMPS)

0.1

0.3

0.1 0.2 0.4 0.5 0.6 0.7

100C

T

= 125C

75C 25C

−55C

V

, INSTANTANEOUS FORWARD VOLTAGE (VOLTS) 10

1

I F , INST ANT ANEOUS FOR W ARD CURRENT (AMPS)

0.1

0.3

0.1 0.2 0.4 0.5 0.6 0.7

100C

T

= 125C

75C

25C −55C

Figure 3. Typical Reverse Current Figure 4. Maximum Reverse Current 0

V

, REVERSE VOLTAGE (VOLTS) 1E−5

1E−6

2

1 3 4 5 6 7 8 9 10

1E−3

1E−4 1E−1

1E−2 100C

T

= 125C

75C

25C

0

V

, REVERSE VOLTAGE (VOLTS)

1E−5 1 2 3 4 5 6 7 8 9 10

1E−3

1E−4 1E−1

1E−2

100C T

= 125C

75C

25C

I

, INST ANT ANEOUS REVERSE VOL TAGE (VOL TS) I

, INST ANT ANEOUS REVERSE VOL TAGE (VOL TS)

1E+0

Figure 5. Current Derating − Junction to Lead 20

0

T

, LEAD TEMPERATURE (C) 1.8

1.2 1.0 0.8

0.2

0 40

, A VERAGE FOR W ARD CURRENT (AMPS)

I F 1.4 1.6

SQUARE WAVE dc

0.6 0.4

60 80 100 120 140

Figure 6. Typical Capacitance Figure 7. Forward Power Dissipation 0

V

, REVERSE VOLTAGE (VOLTS) 300

100

I

, AVERAGE FORWARD CURRENT (AMPS) 0.6

0 0.1 0.05 0

C, CAP ACIT ANCE (pF)

2

1 3 4 5 6 0.2 0.4 0.8

0.15 0.2

7 8 9 10

150 200 250 500

350 400 450

T

= 25C f = 1 MHz

1.4 1.6

1.0 1.2 1.8

0.3 0.25 0.35 0.4 0.45

P

, A VERAGE POWER DISSIP ATION (W ATTS)

SQUARE WAVE

dc

MBRM110LT1G, NRVBM110LT1G, NRVBM110LT3G

http://onsemi.com 4

T, TIME (s) 1.0

0.1

0.01

0.001

100 0.1

0.00001 0.0001 0.001 0.01 1.0 10 1,000

Rtjl(t) = Rtjl*r(t) 50%

20%

10%

5.0%

2.0%

1.0%

Figure 8. Thermal Response Junction to Lead

100 0.1

0.00001

T, TIME (s) 1.0

0.1

0.01

R

0.0001 0.001 0.01 1.0 10

0.001 , TRANSIENT THERMAL RESIST ANCE (NORMALIZED) (T)

Rtjl(t) = Rtjl*r(t) 50%

20%

10%

5.0%

2.0%

1.0%

R , TRANSIENT THERMAL RESIST ANCE (NORMALIZED) (T)

Figure 9. Thermal Response Junction to Ambient

POWERMITE is a registered trademark of and used under a license from Microsemi Corporation.

POWERMITE CASE 457

ISSUE G

DATE 12 JAN 2022 SCALE 4:1

M

XXXG XXX = Specific Device Code M = Date Code

G = Pb−Free Package GENERIC

MARKING DIAGRAMS*

STYLE 3

1 2

STYLE 1:

PIN 1. CATHODE 2. ANODE

STYLE 2:

PIN 1. ANODE OR CATHODE 2. CATHODE OR ANODE

(BI−DIRECTIONAL)

STYLE 3:

PIN 1. ANODE 2. CATHODE

M XXXG STYLE 2

1 2

M XXXG STYLE 1

1 2

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

98ASB14853C DOCUMENT NUMBER:

DESCRIPTION:

Electronic versions are uncontrolled except when accessed directly from the Document Repository.

Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.

PAGE 1 OF 1 POWERMITE
