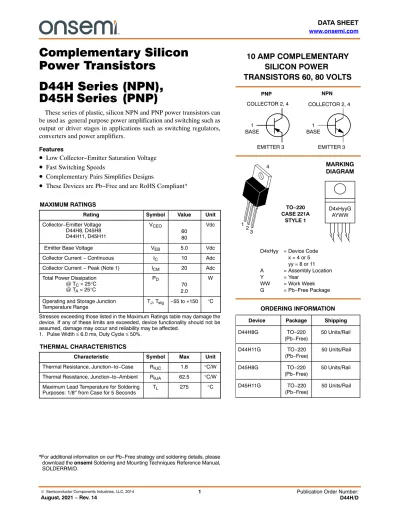

Complementary Silicon Power Transistors D44H Series (NPN), D45H Series (PNP)

Complementary Silicon Power Transistors

D44H Series (NPN), D45HSeries (PNP)

These series of plastic, silicon NPN and PNP power transistors can be used as general purpose power amplification and switching such as output or driver stages in applications such as switching regulators, converters and power amplifiers.

Features

• Low Collector−Emitter Saturation Voltage

• Fast Switching Speeds

• Complementary Pairs Simplifies Designs

• These Devices are Pb−Free and are RoHS Compliant*

MAXIMUM RATINGS

Rating Symbol Value Unit

Collector−Emitter Voltage D44H8, D45H8 D44H11, D45H11

VCEO

60 80

Vdc

Emitter Base Voltage V_EB 5.0 Vdc

Collector Current − Continuous I_C 10 Adc

Collector Current − Peak (Note 1) I_CM 20 Adc Total Power Dissipation

@ T_C = 25°C

@ TA = 25°C

P_D

70 2.0

W

Operating and Storage Junction

Temperature Range T_J, T_stg −55 to +150 °C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. Pulse Width ≤ 6.0 ms, Duty Cycle ≤ 50%.

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Thermal Resistance, Junction−to−Case R_qJC 1.8 °C/W Thermal Resistance, Junction−to−Ambient R_qJA 62.5 °C/W Maximum Lead Temperature for Soldering

Purposes: 1/8″ from Case for 5 Seconds TL 275 °C

Device Package Shipping TO−220

CASE 221A STYLE 1 3

4

1

10 AMP COMPLEMENTARY SILICON POWER TRANSISTORS 60, 80 VOLTS

2

MARKING DIAGRAM

D4xHyyG AYWW

D45H8G TO−220

(Pb−Free) 50 Units/Rail ORDERING INFORMATION D4xHyy = Device Code

x = 4 or 5 yy = 8 or 11 A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

D45H11G TO−220

(Pb−Free) 50 Units/Rail

D44H11G TO−220

(Pb−Free) 50 Units/Rail

D44H8G TO−220

(Pb−Free) 50 Units/Rail 1

BASE

EMITTER 3 COLLECTOR 2, 4

1 BASE

EMITTER 3 COLLECTOR 2, 4

PNP NPN

D44H Series (NPN), D45H Series (PNP)

www.onsemi.com 2

ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted)

Characteristic Symbol Min Typ Max Unit

OFF CHARACTERISTICS

Collector−Emitter Sustaining Voltage D44H8, D45H8

(I_C = 30 mAdc, I_B = 0 Adc) D44H11, D45H11 V_CEO(sus) 60

80 −

− −

− Vdc

Collector Cutoff Current (V_CE = Rated V_CEO, V_BE = 0) I_CES − − 10 mA

Emitter Cutoff Current (V_EB = 5.0 Vdc) I_EBO − − 10 mA

ON CHARACTERISTICS DC Current Gain

(V_CE = 1.0 Vdc, I_C = 2.0 Adc) (V_CE = 1.0 Vdc, I_C = 4.0 Adc)

h_FE

60

40 −

− −

−

−

Collector−Emitter Saturation Voltage

(I_C = 8.0 Adc, I_B = 0.4 Adc) V_CE(sat)

− − 1.0

Vdc

Base−Emitter Saturation Voltage

(I_C = 8.0 Adc, I_B = 0.8 Adc) VBE(sat) − − 1.5 Vdc

DYNAMIC CHARACTERISTICS Collector Capacitance

(VCB = 10 Vdc, ftest = 1.0 MHz) D44H Series D45H Series

C_cb

−

−

90

160 −

−

pF

Gain Bandwidth Product

(I_C = 0.5 Adc, V_CE = 10 Vdc, f = 20 MHz) D44H Series D45H Series

f_T

−

− 50

40 −

−

MHz

SWITCHING TIMES Delay and Rise Times

(I_C = 5.0 Adc, I_B1 = 0.5 Adc) D44H Series D45H Series

t_d + t_r

−

− 300

135 −

−

ns

Storage Time

(I_C = 5.0 Adc, I_B1 = I_B2 = 0.5 Adc) D44H Series D45H Series

ts

−

− 500

500 −

−

ns

Fall Time

(I_C = 5.0 Adc, I_B1 = 102 = 0.5 Adc) D44H Series D45H Series

t_f

−

− 140

100 −

−

ns

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

Figure 1. D44H11 DC Current Gain Figure 2. D45H11 DC Current Gain

I_C, COLLECTOR CURRENT (AMPS) I_C, COLLECTOR CURRENT (AMPS)

10 1

0.1 100.01

100 1000

10 1

0.1 100.01

100 1000

hFE, DC CURRENT GAIN

V_CE = 1 V

125°C

hFE, DC CURRENT GAIN

Figure 3. D44H11 DC Current Gain Figure 4. D45H11 DC Current Gain

IC, COLLECTOR CURRENT (AMPS) IC, COLLECTOR CURRENT (AMPS)

10 1

0.1 100.01

100 1000

10 1

0.1 100.01

100 1000

hFE, DC CURRENT GAIN

V_CE = 5 V

hFE, DC CURRENT GAIN

IC, COLLECTOR CURRENT (AMPS) IC, COLLECTOR CURRENT (AMPS)

10 1

00.1 0.05 0.40

10 1

00.1 0.1 0.3 0.6

SATURATION VOLTAGE (VOLTS)

VCE(sat) @ IC/IB = 10

SATURATION VOLTAGE (VOLTS)

−40°C

25°C

V_CE = 1 V

125°C

−40°C 25°C

125°C

−40°C

25°C

V_CE = 5 V

125°C

−40°C 25°C

125°C

−40°C

25°C 0.10

0.15 0.20 0.25 0.30 0.35

0.2 0.5 0.4

V_CE(sat) @ I_C/I_B = 10

125°C

−40°C 25°C

D44H Series (NPN), D45H Series (PNP)

www.onsemi.com 4

Figure 7. D44H11 ON−Voltage Figure 8. D45H11 ON−Voltage

I_C, COLLECTOR CURRENT (AMPS) I_C, COLLECTOR CURRENT (AMPS)

10 1

00.1 0.2 1.2

10 1

00.1 0.2 0.6 1.4

SATURATION VOLTAGE (VOLTS) V_BE(sat) @ I_C/I_B = 10

SATURATION VOLTAGE (VOLTS)

125°C

−40°C

25°C 0.4

0.6 0.8 1.0

0.4 1.0 0.8

V_BE(sat) @ I_C/I_B = 10

125°C

−40°C

25°C 1.2

100

1.0

V_CE, COLLECTOR−EMITTER VOLTAGE (VOLTS)

5.0 10

TC ≤ 70° C

DUTY CYCLE ≤ 50%

2.0 3.0 20 30 50 100

1.0

7.0

D44H/45H8 D44H/45H10,11

Figure 9. Maximum Rated Forward Bias Safe Operating Area

70 1.0 ms dc

0.1 0.20.3 0.5 2.03.0 5.0 10 2030 50

10 ms 100 ms 1.0 ms

IC, COLLECTOR CURRENT (AMPS)

0

Figure 10. Power Derating T, TEMPERATURE (°C)

0 40 60 100 120 160

40 T_C

20 60

0 2.0 T_A

1.0 3.0

80 140

T_C T_A

20 PD, POWER DISSIPATION (WATTS)

t, TIME (ms)

0.010.01 0.05 0.1 0.2 0.5 1.0 2.0 5.0 10 20 50 500 1.0 k

1.0

0.2 0.1 0.05

r(t), TRANSIENT THERMAL

Z_qJC(t) = r(t) R_qJC R_qJC = 1.56°C/W MAX D CURVES APPLY FOR POWER PULSE TRAIN SHOWN READ TIME AT t₁ T_J(pk) - T_C = P_(pk) Z_qJC(t)

P_(pk)

t₁ t₂

DUTY CYCLE, D = t₁/t₂ 0.2

SINGLE PULSE

RESISTANCE (NORMALIZED)

Figure 11. Thermal Response 0.5 D = 0.5

0.05 0.3

0.7

0.07 0.03 0.02

0.02 100 200

0.1

0.02 0.01

TO−220 CASE 221A

ISSUE AK

DATE 13 JAN 2022

SCALE 1:1

STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 2:

PIN 1. BASE 2. EMITTER 3. COLLECTOR 4. EMITTER

STYLE 3:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE

STYLE 4:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. MAIN TERMINAL 2 STYLE 7:

PIN 1. CATHODE 2. ANODE 3. CATHODE 4. ANODE STYLE 10:

PIN 1. GATE 2. SOURCE 3. DRAIN 4. SOURCE STYLE 5:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN

STYLE 8:

PIN 1. CATHODE 2. ANODE

3. EXTERNAL TRIP/DELAY 4. ANODE

STYLE 6:

PIN 1. ANODE 2. CATHODE 3. ANODE 4. CATHODE STYLE 9:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 11:

PIN 1. DRAIN 2. SOURCE 3. GATE 4. SOURCE

STYLE 12:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. NOT CONNECTED

98ASB42148B
