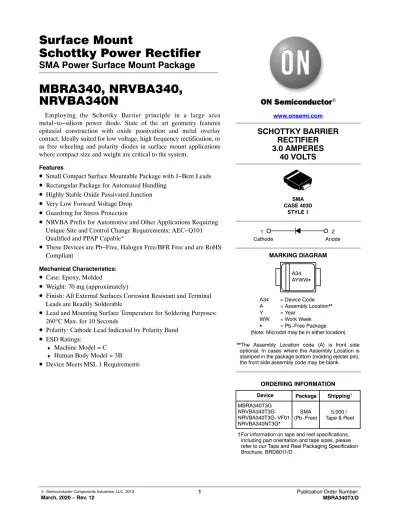

Schottky Power Rectifier
SMA Power Surface Mount Package
MBRA340, NRVBA340, NRVBA340N
Employing the Schottky Barrier principle in a large area metal−to−silicon power diode. State of the art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity diodes in surface mount applications where compact size and weight are critical to the system.
Features
• Small Compact Surface Mountable Package with J−Bent Leads
• Rectangular Package for Automated Handling
• Highly Stable Oxide Passivated Junction
• Very Low Forward Voltage Drop
• Guardring for Stress Protection
• NRVBA Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable*
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Mechanical Characteristics:
• Case: Epoxy, Molded
• Weight: 70 mg (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead and Mounting Surface Temperature for Soldering Purposes:
260 ° C Max. for 10 Seconds
• Polarity: Cathode Lead Indicated by Polarity Band
• ESD Ratings:
♦
Machine Model = C
♦
Human Body Model = 3B
• Device Meets MSL 1 Requirements
Device Package Shipping† ORDERING INFORMATION
SCHOTTKY BARRIER RECTIFIER 3.0 AMPERES
40 VOLTS
MARKING DIAGRAM SMA
CASE 403D STYLE 1
A34 AYWWG www.onsemi.com
MBRA340T3G NRVBA340T3G NRVBA340T3G−VF01 NRVBA340NT3G*
Cathode Anode
A34 = Device Code A = Assembly Location**
Y = Year
WW = Work Week G = Pb−Free Package
1 2
(Pb−Free)SMA 5,000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification Brochure, BRD8011/D.
**The Assembly Location code (A) is front side optional. In cases where the Assembly Location is stamped in the package bottom (molding ejecter pin), the front side assembly code may be blank.
(Note: Microdot may be in either location)
MBRA340, NRVBA340, NRVBA340N
www.onsemi.com 2
MAXIMUM RATINGS
Rating Symbol Value Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
VRRM
VRWM VR
40 V
Average Rectified Forward Current
(At Rated VR, TL = 100°C) IO
3.0 A
Non−Repetitive Peak Surge Current
(Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) IFSM
100 A
Storage/Operating Case Temperature Tstg, TC −55 to +150 °C
Operating Junction Temperature (Note 1) TJ −55 to +150 °C
Voltage Rate of Change
(Rated VR, TJ = 25°C) dv/dt
10,000 V/ms
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.
1. The heat generated must be less than the thermal conductivity from Junction−to−Ambient: dPD/dTJ < 1/RqJA. THERMAL CHARACTERISTICS
Characteristic Symbol Value Unit
Thermal Resistance − Junction−to−Lead (Note 2)
Thermal Resistance − Junction−to−Ambient (Note 2) RθJL
RθJA 15
81 °C/W
2. Mounted on 2″ Square PC Board with 1″ Square Total Pad Size, PC Board FR4.
ELECTRICAL CHARACTERISTICS
Characteristic Symbol Value Unit
Maximum Instantaneous Forward Voltage(Note 3) (IF = 3.0 A)
VF TJ = 25°C TJ = 100°C Volts
0.450 0.390
Maximum Instantaneous Reverse Current (VR = 40 V)
IR TJ = 25°C TJ = 100°C mA
0.3 15
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.
3. Pulse Test: Pulse Width ≤ 250 μs, Duty Cycle ≤ 2.0%.
TYPICAL CHARACTERISTICS
Figure 1. Typical Forward Voltage Figure 2. Maximum Forward Voltage 10
1
0.1
VF, INSTANTANEOUS FORWARD VOLTAGE (VOLTS)
0.10 0.30 0.50
TJ = 125°C
TJ = −55°C TJ = 25°C
IF, INSTANTANEOUS FORWARD CURRENT (AMPS)
0.20 0.40 0.60
TJ = 100°C
10
1
0.1
VF, MAXIMUM INSTANTANEOUS FORWARD VOLTAGE (VOLTS)
0.10 0.30 0.50
TJ = 125°C
TJ = −55°C TJ = 25°C
IF, INSTANTANEOUS FORWARD CURRENT (AMPS)
0.20 0.40
TJ = 100°C
0.60
Figure 3. Typical Reverse Current Figure 4. Maximum Reverse Current VR, REVERSE VOLTAGE (VOLTS)
100E−3 10E−3
10E−6 100E−6
30 40
20 10
0 IR, REVERSE CURRENT (AMPS)
100E−9
100E−12
TJ = 125°C 1E−3
1E−6
10E−9 1E−9
TJ = −55°C TJ = 25°C TJ = 100°C
VR, REVERSE VOLTAGE (VOLTS) 100E−3
10E−3
10E−6 100E−6
30 40
20 10
I, MAXIMUM REVERSE CURRENT (AMPS)R 0
TJ = 125°C
1E−3
1E−6
TJ = −55°C TJ = 25°C TJ = 100°C
Figure 5. Current Derating
25 50 75
0 2.5
IO, AVERAGE FORWARD CURRENT (AMPS)
TL, LEAD TEMPERATURE (°C)
Figure 6. Forward Power Dissipation
0.5 1.5 2 3
0 1 2.5
1.8
0 0.6
IO, AVERAGE FORWARD CURRENT (AMPS) PFO, AVERAGE POWER DISSIPATION (WATTS)
Figure 7. Capacitance 0.5
1 1.5 2 5
3 3.5 4.5
SQUARE WAVE dc
3.5 4.5 5
0.2 0.4 1.0 0.8 1.6
100 125 150
Figure 8. Typical Operating Temperature Derating
VR, REVERSE VOLTAGE (VOLTS) 30 25 20 15 10 5 1000 1000
C, CAPACITANCE (pF)
40
VR, DC REVERSE VOLTAGE (VOLTS) 30 25 20 15 10 5 0 115 105 95 85 75 65 55 125
TJ, DERATED OPERATING TEMPERATURE (°C) Ipk/IO = 10
Ipk/IO = 5 Ipk/IO = p
freq = 20 kHz 1.4
1.2 dc
SQUARE WAVE
Ipk/IO = p Ipk/IO = 5 Ipk/IO = 10 Ipk/IO = 20
35 TJ = 25 °C
40 35 RqJA = 22 °C/W RqJA = 43 °C/W
RqJA = 96 °C/W RqJA = 81 °C/W
4
4
RqJA = 63 °C/W
MBRA340, NRVBA340, NRVBA340N
www.onsemi.com 4
Figure 9. Thermal Response, Junction−to−Ambient (min pad) t, TIME (S)
0.0001 0.001 0.1
0.00001 0.01 1 10 100 1000
R(t), TRANSIENT THERMAL RESISTANCE (°C/W) 0.1
1 10 100
D = 0.5 0.2 0.1
SINGLE PULSE 0.05
0.02 0.01
Figure 10. Thermal Response, Junction to Ambient (1 inch pad) t, TIME (S)
0.0001 0.001 0.1
0.00001 0.01 1 10 100 1000
R(t), TRANSIENT THERMAL RESISTANCE (°C/W) 0.1
1 10 100
D = 0.5 0.2 0.1
SINGLE PULSE 0.05
0.02 0.01
SCALE 1:1
CASE 403DSMA ISSUE J
DATE 22 OCT 2021
xxxx = Specific Device Code A = Assembly Location
Y = Year
WW = Work Week G = Pb−Free Package
STYLE 1:
PIN 1. CATHODE (POLARITY BAND) 2. ANODE
STYLE 2:
NO POLARITY
STYLE 1 STYLE 2
STYLE 1 STYLE 2
xxxx
AYWWG xxxx
AYWWG GENERIC MARKING DIAGRAM*
*This information is generic. Please refer to device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
