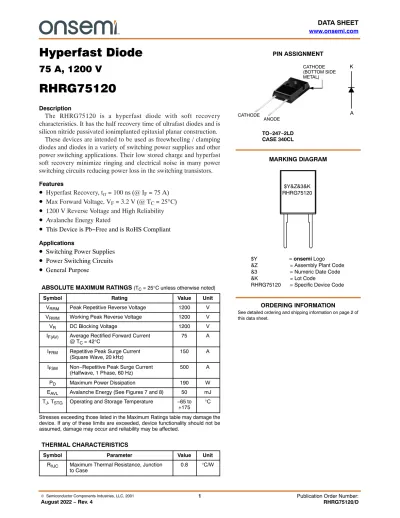

Hyperfast Diode 75 A, 1200 V

© Semiconductor Components Industries, LLC, 2001

August 2022 − Rev. 4 1 Publication Order Number:

RHRG75120/D

Hyperfast Diode

75 A, 1200 V

RHRG75120

Description

The RHRG75120 is a hyperfast diode with soft recovery characteristics. It has the half recovery time of ultrafast diodes and is silicon nitride passivated ionimplanted epitaxial planar construction.

These devices are intended to be used as freewheeling / clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.

Features

• Hyperfast Recovery, t _rr = 100 ns (@ I _F = 75 A)

• Max Forward Voltage, V _F = 3.2 V (@ T _C = 25 ° C)

• 1200 V Reverse Voltage and High Reliability

• Avalanche Energy Rated

• This Device is Pb−Free and is RoHS Compliant Applications

• Switching Power Supplies

• Power Switching Circuits

• General Purpose

ABSOLUTE MAXIMUM RATINGS (T

= 25°C unless otherwise noted)

Symbol Rating Value Unit

V

Peak Repetitive Reverse Voltage 1200 V

V

Working Peak Reverse Voltage 1200 V

V

DC Blocking Voltage 1200 V

I

Average Rectified Forward Current

@ T

= 42°C 75 A

I

Repetitive Peak Surge Current

(Square Wave, 20 kHz) 150 A

I

Non−Repetitive Peak Surge Current

(Halfwave, 1 Phase, 60 Hz) 500 A

P

Maximum Power Dissipation 190 W

E

Avalanche Energy (See Figures 7 and 8) 50 mJ T

, T

Operating and Storage Temperature −65 to

+175 ° C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Symbol Parameter Value Unit

R

Maximum Thermal Resistance, Junction

to Case 0.8 °C/W

TO−247−2LD CASE 340CL

MARKING DIAGRAM

$Y&Z&3&K RHRG75120

K

See detailed ordering and shipping information on page 2 of this data sheet.

ORDERING INFORMATION

$Y = onsemi Logo

&Z = Assembly Plant Code

&3 = Numeric Date Code

&K = Lot Code

RHRG75120 = Specific Device Code

CATHODE

CATHODE (BOTTOM SIDE METAL)

A

PIN ASSIGNMENT

RHRG75120

www.onsemi.com 2

ELECTRICAL CHARACTERISTICS (T

= 25°C unless otherwise noted)

Symbol Parameter Test Conditions Min Typ Max Unit

V

Instantaneous Forward Voltage

(Pulse Width = 300 ms, Duty Cycle = 2%) I

= 75 A

I

= 75 A, T

= 150°C −

− −

− 3.2

2.6 V

I

Instantaneous Reverse Current V

= 1200 V

V

= 1200 V, T

= 150°C −

− −

− 250

2 mA

mA T

Reverse Recovery Time (See Figure 6),

Summation of t

+ t

I

= 1 A, dI

/dt = 100 A/ms I

= 75 A, dI

/dt = 100 A/ m s −

− −

− 85

100 ns

t

Time to Reach Peak Reverse Current

(See Figure 6) I

= 75 A, dI

/dt = 100 A/ms − 60 − ns

t

Time from Peak I

to Projected Zero Crossing of I

Based on a Straight Line from Peak I

through 25% of I

(See Figure 6)

I

= 75 A, dI

/dt = 100 A/ms − 25 − ns

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

PACKAGE MARKING AND ORDERING INFORMATION

Device Device Marking Package Shipping

RHRG75120 RHRG75120 TO−247−2L 450 / Tube

www.onsemi.com 3

TYPICAL PERFORMANCE CURVES

Figure 1. Forward Current vs. Forward Voltage Figure 2. Reverse Current vs. Reverse Voltage

Figure 3. T

, t

and t

Curves vs. Forward Current Figure 4. Current Derating Curve 400

100

10

1 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 25 ° C

175°C 100°C

V

, Forward Voltage (V) I

, Forward Current (A)

1000

100

10

1

0.1 0 200 400 600 800 1000 1200

25°C 175°C

100°C

V

, Reverse Voltage (V) I

, Reverse Current ( m A)

100 80

20 0 60 40

1 10 80

T

= 25°C, dI

/dt = 100 A/ms

T

t

t

I

, Forward Current (A)

t, T ime (ns)

80

60

40

20

0 25 50 75 100 125 150 175

DC

SQ. WAVE

T

, Case Temperature (°C)

I

, A verage Forward Current (A)

RHRG75120

www.onsemi.com 4

TEST CIRCUITS AND WAVEFORMS

Figure 5. T

Test Circuit Figure 6. T

Waveforms and Definitions

Figure 7. Avalanche Energy Test Circuit Figure 8. Avalanche Current and Voltage Waveforms L

IGBT

CURRENT SENSE DUT

t1 t2

+

− V

AMPLITUDE AND

R

CONTROL dI

/dt t

AND t

Control I

V

R

V

0

I

t

t

t

dI

dt

0.25 I

I

DUT CURRENT

SENSE +

− I

= 1.6 A

L = 40 mH R < 0.1 W

E

= 1/2LI

[V

/(V

− V

)]

Q

= IGBT (BV

> DUT V

)

V

V

Q

L R

V

I

I

I V

t

t

t

t

XXXX = Specific Device Code A = Assembly Location Y = Year

WW = Work Week ZZ = Assembly Lot Code

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.

GENERIC MARKING DIAGRAM*

AYWWZZ XXXXXXX XXXXXXX

TO−247−2LD CASE 340CL

ISSUE A

DATE 03 DEC 2019
