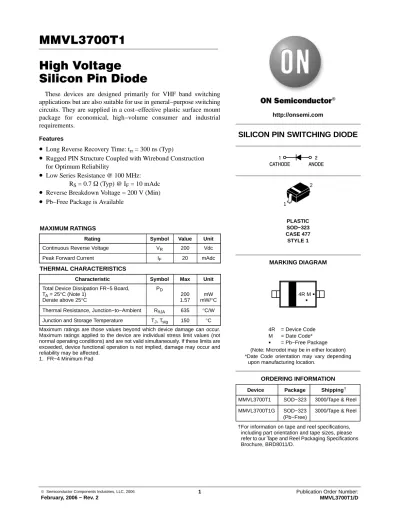

MMVL3700T1 High Voltage Silicon Pin Diode

© Semiconductor Components Industries, LLC, 2006

February, 2006 − Rev. 2

1 Publication Order Number:

MMVL3700T1/D

MMVL3700T1 High Voltage

Silicon Pin Diode

These devices are designed primarily for VHF band switching applications but are also suitable for use in general−purpose switching circuits. They are supplied in a cost−effective plastic surface mount package for economical, high−volume consumer and industrial requirements.

Features

• Long Reverse Recovery Time: t rr = 300 ns (Typ)

• Rugged PIN Structure Coupled with Wirebond Construction for Optimum Reliability

• Low Series Resistance @ 100 MHz:

R _S = 0.7 W (Typ) @ I _F = 10 mAdc

• Reverse Breakdown Voltage = 200 V (Min)

• Pb−Free Package is Available

MAXIMUM RATINGS

Rating Symbol Value Unit

Continuous Reverse Voltage V

200 Vdc

Peak Forward Current I

20 mAdc

THERMAL CHARACTERISTICS

Characteristic Symbol Max Unit

Total Device Dissipation FR−5 Board, T

= 25 ° C (Note 1)

Derate above 25 ° C

P

200 1.57

mW mW/ ° C Thermal Resistance, Junction−to−Ambient R

635 ° C/W Junction and Storage Temperature T

, T

150 ° C Maximum ratings are those values beyond which device damage can occur.

Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

1. FR−4 Minimum Pad

SILICON PIN SWITCHING DIODE

1 CATHODE

2 ANODE http://onsemi.com

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

Device Package Shipping

MMVL3700T1 SOD−323 3000/Tape & Reel MMVL3700T1G SOD−323

(Pb−Free)

3000/Tape & Reel ORDERING INFORMATION

PLASTIC SOD−323 CASE 477 STYLE 1

4R = Device Code M = Date Code*

G = Pb−Free Package

*Date Code orientation may vary depending upon manufacturing location.

MARKING DIAGRAM

(Note: Microdot may be in either location) 1

2

4R M G

G

MMVL3700T1

http://onsemi.com 2

ELECTRICAL CHARACTERISTICS (T

= 25 ° C unless otherwise noted)

Characteristic Symbol Min Typ Max Unit

Reverse Breakdown Voltage (I

= 10 m Adc)

V

200 − − Vdc

Diode Capacitance

(V

= 20 Vdc, f = 1.0 MHz)

C

− − 1.0 pF

Series Resistance (I

= 10 mAdc)

R

− 0.7 1.0 W

Reverse Leakage Current (V

= 150 Vdc)

I

− − 0.1 m Adc

Reverse Recovery Time (I

= I

= 10 mAdc)

t

− 300 − ns

TYPICAL CHARACTERISTICS

Figure 1. Series Resistance Figure 2. Forward Voltage V

, FORWARD VOLTAGE (VOLTS)

Figure 3. Diode Capacitance

T

, AMBIENT TEMPERATURE (°C) Figure 4. Leakage Current 500

400

1.0

, REVERSE CURRENT ( A)

100

−60 0.01

0.001

0 +100

V

= 15 Vdc

+140 +60

+20

−20 I R

0.1 1.0 10 3.2

2.4

1.6

0.8

0 0 4.0 12 14 16

I

, FORWARD CURRENT (mA) R S , SERIES RESIST ANCE (OHMS)

2.8

2.0

1.2

0.4

T

= 25°C

2.0 6.0 8.0 10

300 200 100

0 0.7 0.8 0.9

I F , FOR W ARD CURRENT (mA)

T

= 25°C

V

, REVERSE VOLTAGE (VOLTS) 0.1

2.0 10

−40 6.0

4.0

1.0

0.4 0.6

0.2

0 −10 −20 −30 −50

T

= 25°C

C T , DIODE CAP ACIT ANCE (pF) μ

0.04

0.004 4.0 40

0.4 600 700 800

8.0

0.8

H_E

SOD−323 CASE 477−02

ISSUE H

DATE 13 MAR 2007

SCALE 4:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETERS.

3. LEAD THICKNESS SPECIFIED PER L/F DRAWING WITH SOLDER PLATING.

4. DIMENSIONS A AND B DO NOT INCLUDE MOLD FLASH, PROTRUSIONS OR GATE BURRS.

5. DIMENSION L IS MEASURED FROM END OF RADIUS.

NOTE 3

D

1 2

b E

A3

A1

A C

XX = Specific Device Code M = Date Code

XX M XX M

GENERIC MARKING DIAGRAM*

NOTE 5

L 1

2

1.60 0.063 0.63 0.025

0.83 0.033

2.85 0.112

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

H

DIM MINMILLIMETERSNOM MAX A 0.80 0.90 1.00 A1 0.00 0.05 0.10

A3 0.15 REF

b 0.25 0.32 0.4 C 0.089 0.12 0.177 D 1.60 1.70 1.80 E 1.15 1.25 1.35

0.08

2.30 2.50 2.70 L

0.031 0.035 0.040 0.000 0.002 0.004

0.006 REF 0.010 0.012 0.016 0.003 0.005 0.007 0.062 0.066 0.070 0.045 0.049 0.053 0.003

0.090 0.098 0.105 MIN INCHESNOM MAX

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

STYLE 1:

PIN 1. CATHODE (POLARITY BAND) 2. ANODE

STYLE 2:

NO POLARITY

STYLE 1 STYLE 2

STYLE 1 STYLE 2

1

2

MECHANICAL CASE OUTLINE

PACKAGE DIMENSIONS
