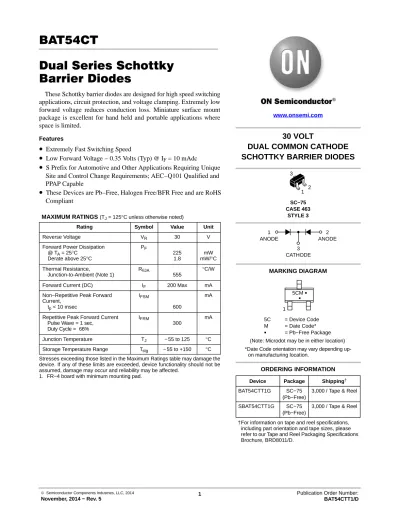

BAT54CT Dual Series Schottky Barrier Diodes

© Semiconductor Components Industries, LLC, 2014

November, 2014 − Rev. 5

Publication Order Number:

BAT54CTT1/D 1

BAT54CT

Dual Series Schottky Barrier Diodes

These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping. Extremely low forward voltage reduces conduction loss. Miniature surface mount package is excellent for hand held and portable applications where space is limited.

Features

• Extremely Fast Switching Speed

• Low Forward Voltage − 0.35 Volts (Typ) @ I F = 10 mAdc

• S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

MAXIMUM RATINGS (T

= 125 ° C unless otherwise noted)

Rating Symbol Value Unit

Reverse Voltage V

30 V

Forward Power Dissipation

@ T

= 25 ° C Derate above 25 ° C

P

225 1.8

mW mW/ ° C Thermal Resistance,

Junction-to-Ambient (Note 1)

R

555 ° C/W

Forward Current (DC) I

200 Max mA

Non−Repetitive Peak Forward Current,

t

< 10 msec

I

600

mA

Repetitive Peak Forward Current Pulse Wave = 1 sec,

Duty Cycle = 66%

I

300

mA

Junction Temperature T

− 55 to 125 ° C

Storage Temperature Range T

− 55 to +150 ° C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

1. FR−4 board with minimum mounting pad.

30 VOLT

DUAL COMMON CATHODE SCHOTTKY BARRIER DIODES

3 CATHODE 1

ANODE

2 ANODE

Device Package Shipping

ORDERING INFORMATION

SC−75 CASE 463

STYLE 3

MARKING DIAGRAM

BAT54CTT1G SC−75

(Pb−Free)

3,000 / Tape & Reel

†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.

5CM G G

5C = Device Code M = Date Code*

G = Pb−Free Package (Note: Microdot may be in either location)

*Date Code orientation may vary depending up- on manufacturing location.

1

SBAT54CTT1G SC−75 (Pb−Free)

3,000 / Tape & Reel 1 2

3

www.onsemi.com

BAT54CT

www.onsemi.com 2

ELECTRICAL CHARACTERISTICS (T

= 25 ° C unless otherwise noted) (EACH DIODE)

Characteristic Symbol Min Typ Max Unit

Reverse Breakdown Voltage (I

= 10 m A)

V

30 − −

V Total Capacitance

(V

= 1.0 V, f = 1.0 MHz)

C

− 7.6 10

pF Reverse Leakage

(V

= 25 V)

I

− 0.5 2.0 m Adc

Forward Voltage (I

= 0.1 mA) (I

= 1.0 mA) (I

= 10 mA) (I

= 30 mA) (I

= 100 mA)

V

−

−

−

−

−

0.22 0.29 0.35 0.41 0.52

0.24 0.32 0.40 0.50 0.80

V

Reverse Recovery Time

(I

= I

= 10 mAdc, I

= 1.0 mAdc, Figure 1)

t

− − 5.0

ns Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

Notes: 1. A 2.0 k W variable resistor adjusted for a Forward Current (I

) of 10 mA.

Notes: 2. Input pulse is adjusted so I

is equal to 10 mA.

Notes: 3. t

» t

+10 V 2 k

820 W

0.1 m F

DUT

V

100 m H

0.1 m F

50 W OUTPUT PULSE GENERATOR

50 W INPUT SAMPLING OSCILLOSCOPE

t

t

T

10%

90%

I

I

t

T

i

= 1 mA OUTPUT PULSE (I

= I

= 10 mA; measured

at i

= 1 mA) I

INPUT SIGNAL

Figure 1. Recovery Time Equivalent Test Circuit

BAT54CT

www.onsemi.com 3

C

, T O T AL CAP ACIT ANCE (pF) 100

0.0 0.1

V

, FORWARD VOLTAGE (VOLTS)

0.2 0.3 0.4 0.5

10

1.0

0.1

85 ° C

10

0

V

, REVERSE VOLTAGE (VOLTS) 1.0

0.1 0.01 0.001

5 10 15 20 25

0

V

, REVERSE VOLTAGE (VOLTS)

5 10 15 30

Figure 2. Forward Voltage

Figure 3. Leakage Current

Figure 4. Total Capacitance

− 40 ° C 25 ° C

T

= 150 ° C

0.6

− 55 ° C 1 50 ° C

1 25 ° C

100 1000

30

25 20

I

, REVERSE CURRENT ( m A) I

, FOR W ARD CURRENT (mA)

14 12 10 8 6 4 2 0

T

= 125 ° C

T

= 85 ° C

T

= 25 ° C

SC−75/SOT−416 CASE 463−01

ISSUE G

DATE 07 AUG 2015 SCALE 4:1

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.

0.20 (0.008)

D

−E−

−D−

b

e

3 PL

0.20 (0.008) E

C

L

A A1

STYLE 1:

PIN 1. BASE 2. EMITTER 3. COLLECTOR

STYLE 2:

PIN 1. ANODE 2. N/C 3. CATHODE 3

2

1

STYLE 3:

PIN 1. ANODE 2. ANODE 3. CATHODE STYLE 4:

PIN 1. CATHODE 2. CATHODE 3. ANODE

XX M G

XX = Specific Device Code M = Date Code

G = Pb−Free Package 1

STYLE 5:

PIN 1. GATE 2. SOURCE 3. DRAIN

H

DIM MINMILLIMETERSNOM MAX A 0.70 0.80 0.90 A1 0.00 0.05 0.10 bC 0.10 0.15 0.25 D 1.55 1.60 1.65 E

e 1.00 BSC

0.027 0.031 0.035 0.000 0.002 0.004 0.004 0.006 0.010 0.061 0.063 0.065

0.04 BSC MIN INCHESNOM MAX

0.15 0.20 0.30 0.006 0.008 0.012

*This information is generic. Please refer to device data sheet for actual part marking.

Pb−Free indicator, “G” or microdot “ G”, may or may not be present.

GENERIC MARKING DIAGRAM*

HL_E 0.10 0.15 0.20

1.50 1.60 1.70 0.004 0.006 0.008 0.060 0.063 0.067 0.70 0.80 0.90 0.027 0.031 0.035

0.787 0.031

0.508

0.020 1.000

0.039

ǒ

Ǔ

SCALE 10:1

0.356 0.014

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

SOLDERING FOOTPRINT*

1 2 3

1.803 0.071

MECHANICAL CASE OUTLINE

PACKAGE DIMENSIONS
