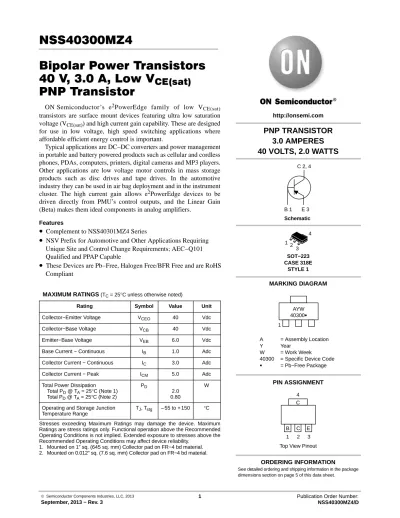

NSS40300MZ4
Bipolar Power Transistors 40 V, 3.0 A, Low V CE(sat) PNP Transistor
ON Semiconductor’s e
2PowerEdge family of low V
CE(sat)transistors are surface mount devices featuring ultra low saturation voltage (V
CE(sat)) and high current gain capability. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important.
Typical applications are DC−DC converters and power management in portable and battery powered products such as cellular and cordless phones, PDAs, computers, printers, digital cameras and MP3 players.
Other applications are low voltage motor controls in mass storage products such as disc drives and tape drives. In the automotive industry they can be used in air bag deployment and in the instrument cluster. The high current gain allows e
2PowerEdge devices to be driven directly from PMU’s control outputs, and the Linear Gain (Beta) makes them ideal components in analog amplifiers.
Features
• Complement to NSS40301MZ4 Series
• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
MAXIMUM RATINGS (TC = 25°C unless otherwise noted)
Rating Symbol Value Unit
Collector−Emitter Voltage VCEO 40 Vdc
Collector−Base Voltage VCB 40 Vdc
Emitter−Base Voltage VEB 6.0 Vdc
Base Current − Continuous IB 1.0 Adc
Collector Current − Continuous IC 3.0 Adc
Collector Current − Peak ICM 5.0 Adc
Total Power Dissipation Total PD @ TA = 25°C (Note 1) Total PD @ TA = 25°C (Note 2)
PD
2.0 0.80
W
Operating and Storage Junction Temperature Range
TJ, Tstg – 55 to + 150 °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
1. Mounted on 1” sq. (645 sq. mm) Collector pad on FR−4 bd material.
2. Mounted on 0.012” sq. (7.6 sq. mm) Collector pad on FR−4 bd material.
SOT−223 CASE 318E
STYLE 1
MARKING DIAGRAM Schematic
C 2, 4
B 1 E 3
Top View Pinout C
C E
B 4
1 2 3
PNP TRANSISTOR 3.0 AMPERES 40 VOLTS, 2.0 WATTS
See detailed ordering and shipping information in the package dimensions section on page 5 of this data sheet.
ORDERING INFORMATION PIN ASSIGNMENT http://onsemi.com
1
40300G AYW
A = Assembly Location
Y Year
W = Work Week
40300 = Specific Device Code G = Pb−Free Package
2 3 1
4
THERMAL CHARACTERISTICS
Characteristic Symbol Max Unit
Thermal Resistance, Junction−to−Case
Junction−to−Ambient on 1” sq. (645 sq. mm) Collector pad on FR−4 bd material Junction−to−Ambient on 0.012” sq. (7.6 sq. mm) Collector pad on FR−4 bd material
RqJA RqJA
64 155
°C/W
Maximum Lead Temperature for Soldering Purposes, 1/8” from case for 5 seconds TL 260 °C
ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted)
Characteristic Symbol Min Typ Max Unit
OFF CHARACTERISTICS
Collector−Emitter Sustaining Voltage (IC = 10 mAdc, IB = 0 Adc) VCEO(sus) 40 − − Vdc
Emitter−Base Voltage (IE = 50 mAdc, IC = 0 Adc) VEBO 6.0 − − Vdc
Collector Cutoff Current (VCB = 40 Vdc) ICBO − − 100 nAdc
Emitter Cutoff Current (VBE = 6.0 Vdc) IEBO − − 100 nAdc
ON CHARACTERISTICS (Note 3) Collector−Emitter Saturation Voltage
(IC = 0.5 Adc, IB = 50 mAdc) (IC = 1.0 Adc, IB = 20 mAdc) (IC = 3.0 Adc, IB = 0.3 Adc)
VCE(sat)
−
−
−
−
−
−
0.070 0.150 0.400
Vdc
Base−Emitter Saturation Voltage (IC = 1.0 Adc, IB = 0.1 Adc) VBE(sat) − − 1.0 Vdc Base−Emitter On Voltage (IC = 1.0 Adc, VCE = 2.0 Vdc) VBE(on) − − 0.9 Vdc DC Current Gain
(IC = 0.5 Adc, VCE = 1.0 Vdc) (IC = 1.0 Adc, VCE = 1.0 Vdc) (IC = 3.0 Adc, VCE = 1.0 Vdc)
hFE
200 175 100
−
−
−
− 350
−
−
DYNAMIC CHARACTERISTICS
Output Capacitance (VCB = 10 Vdc, f = 1.0 MHz) Cob − 40 − pF
Input Capacitance (VEB = 5.0 Vdc, f = 1.0 MHz) Cib − 130 − pF
Current−Gain − Bandwidth Product (Note 4) (IC = 500 mA, VCE = 10 V, Ftest = 1.0 MHz)
fT
− 160 −
MHz 3. Pulse Test: Pulse Width ≤300 ms, Duty Cycle ≤ 2%.
4. fT = |hFE| • ftest
150 100
75 50
25 0 0.5 1.0 1.5 2.0 2.5
PD, POWER DISSIPATION (W) TC
125 TA
TYPICAL CHARACTERISTICS
Figure 2. DC Current Gain Figure 3. DC Current Gain
IC, COLLECTOR CURRENT (A) IC, COLLECTOR CURRENT (A)
10 1
0.1 0.01
0.001 0 100 200 300 400 500 600
10 1
0.1 0.01
0.001 0 100 200 300 500 600 700
Figure 4. Collector−Emitter Saturation Voltage Figure 5. Collector−Emitter Saturation Voltage
IC, COLLECTOR CURRENT (A) IC, COLLECTOR CURRENT (A)
10 1
0.1 0.01
0.001 0.001
0.01 0.1 1
10 1
0.1 0.01
0.001 0.01
0.1 1
Figure 6. Collector Saturation Region Figure 7. VBE(on) Voltage
IB, BASE CURRENT (A) IC, COLLECTOR CURRENT (A)
1.0E−03 1.0E−04
0.01 0.1 1
10 1
0.1 0.01
0.001 0 0.1 0.2 0.3 0.4 0.5 0.6 1.2
hFE, DC CURRENT GAIN hFE, DC CURRENT GAIN
VCE(sat), COLLECTOR−EMITTER SATURATION VOLTAGE (V) VCE(sat), COLLECTOR−EMITTER SATURATION VOLTAGE (V)
VCE(sat), COLLECTOR−EMITTER SATURATION VOLTAGE (V) VBE(on), EMITTER−BASE VOLTAGE (V)
VCE = 1 V 150°C
−40°C 25°C
VCE = 4 V 150°C
−40°C 25°C 400
IC/IB = 10 150°C
−40°C 25°C
IC/IB = 50
150°C
−40°C 25°C
1.0E−02 1.0E−01 1.0E+00 0.7 0.8 0.9 1.0
1.1 VCE = 2 V
150°C
−40°C
25°C IC = 2 A
0.1 A
1 A 0.5 A
TYPICAL CHARACTERISTICS
Figure 8. Base−Emitter Saturation Voltage Figure 9. Base−Emitter Saturation Voltage IC, COLLECTOR CURRENT (A)
10 1
0.1 0.01
0.001 0 0.1 0.2 0.3 0.7 0.9 1.1 1.3
Figure 10. Input Capacitance Figure 11. Output Capacitance VEB, EMITTER BASE VOLTAGE (V) VCB, COLLECTOR BASE VOLTAGE (V)
6 5
4 3
2 1
0 0 50 100 150 200 250 300 350
35 30 25 20 15 10 5 0 0 20 40 60 80 100
Figure 12. Current−Gain Bandwidth Product Figure 13. Safe Operating Area IC, COLLECTOR CURRENT (A) VCE, COLLECTOR−EMITTER VOLTAGE (V)
1 0.1
0.01 0.001
0 20 40 60 120 140 180 200
100 10
1 0.01
0.1 1 10
VBE(sat), EMITTER−BASE SATURATION VOLTAGE (V)Cibo, INPUT CAPACITANCE (pF) Cobo, OUTPUT CAPACITANCE (pF)
fTau, CURRENT BANDWIDTH PRODUCT (MHz) IC, COLLECTOR CURRENT (A)
0.4 0.5 0.6 0.8 1.0
1.2 IC/IB = 10
150°C
−40°C
25°C
IC, COLLECTOR CURRENT (A)
10 1
0.1 0.01
0.001 0 0.1 0.2 0.3 0.7 0.9 1.1
VBE(sat), EMITTER−BASE SATURATION VOLTAGE (V) 0.4 0.5 0.6 0.8 1.0 1.2
IC/IB = 50
150°C
−40°C
25°C
TJ = 25°C
ftest = 1 MHz TJ = 25°C
ftest = 1 MHz
80 100 160
TJ = 25°C ftest = 1 MHz
VCE = 10 V
0.5 ms
10 ms
100 ms
1 ms
ORDERING INFORMATION
Device Package Shipping†
NSS40300MZ4T1G SOT−223
(Pb−Free)
1,000 / Tape & Reel
NSV40300MZ4T1G* SOT−223
(Pb−Free)
1,000 / Tape & Reel
NSS40300MZ4T3G SOT−223
(Pb−Free)
4,000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.
*NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
SOT−223 (TO−261) CASE 318E−04
ISSUE R
DATE 02 OCT 2018 SCALE 1:1
q
q
PACKAGE DIMENSIONS
98ASB42680B DOCUMENT NUMBER:
DESCRIPTION:
Electronic versions are uncontrolled except when accessed directly from the Document Repository.
Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.
PAGE 1 OF 2 SOT−223 (TO−261)
ISSUE R
DATE 02 OCT 2018
STYLE 4:
PIN 1. SOURCE 2. DRAIN 3. GATE 4. DRAIN
STYLE 6:
PIN 1. RETURN 2. INPUT 3. OUTPUT 4. INPUT
STYLE 8:
CANCELLED STYLE 1:
PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR
STYLE 10:
PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE STYLE 7:
PIN 1. ANODE 1 2. CATHODE 3. ANODE 2 4. CATHODE
STYLE 3:
PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN STYLE 2:
PIN 1. ANODE 2. CATHODE 3. NC 4. CATHODE
STYLE 9:
PIN 1. INPUT 2. GROUND 3. LOGIC 4. GROUND
STYLE 5:
PIN 1. DRAIN 2. GATE 3. SOURCE 4. GATE
STYLE 11:
PIN 1. MT 1 2. MT 2 3. GATE 4. MT 2
STYLE 12:
PIN 1. INPUT 2. OUTPUT 3. NC 4. OUTPUT
STYLE 13:
PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR
1
A = Assembly Location
Y = Year
W = Work Week
XXXXX = Specific Device Code G = Pb−Free Package
GENERIC MARKING DIAGRAM*
AYW XXXXXG
G
(Note: Microdot may be in either location)
*This information is generic. Please refer to device data sheet for actual part marking.
Pb−Free indicator, “G” or microdot “G”, may or may not be present. Some products may not follow the Generic Marking.
