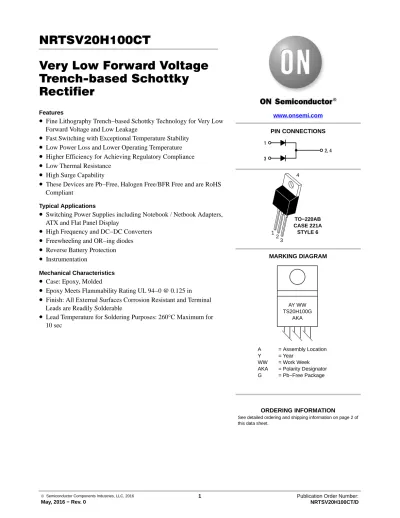

NRTSV20H100CT Very Low Forward Voltage Trench-based Schottky Rectifier

Very Low Forward Voltage Trench-based Schottky Rectifier

Features

• Fine Lithography Trench−based Schottky Technology for Very Low Forward Voltage and Low Leakage

• Fast Switching with Exceptional Temperature Stability

• Low Power Loss and Lower Operating Temperature

• Higher Efficiency for Achieving Regulatory Compliance

• Low Thermal Resistance

• High Surge Capability

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Typical Applications

• Switching Power Supplies including Notebook / Netbook Adapters, ATX and Flat Panel Display

• High Frequency and DC−DC Converters

• Freewheeling and OR−ing diodes

• Reverse Battery Protection

• Instrumentation

Mechanical Characteristics

• Case: Epoxy, Molded

• Epoxy Meets Flammability Rating UL 94−0 @ 0.125 in

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead Temperature for Soldering Purposes: 260 ° C Maximum for 10 sec

TO−220AB CASE 221A

STYLE 6 3

4

1 1 3

2, 4

2

MARKING DIAGRAM

AY WW TS20H100G

AKA

A = Assembly Location

Y = Year

WW = Work Week AKA = Polarity Designator G = Pb−Free Package

www.onsemi.com

See detailed ordering and shipping information on page 2 of

ORDERING INFORMATION

PIN CONNECTIONS

NRTSV20H100CT

www.onsemi.com 2

MAXIMUM RATINGS

Rating Symbol Value Unit

Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage

V

V

V

100 V

Average Rectified Forward Current

(Rated V

, T

= 126 ° C) Per device

(Rated V

, T

= 136 ° C) Per diode

I

20 10

A

Peak Repetitive Forward Current

(Rated V

, Square Wave, 20 kHz, T

= 123 ° C) Per device (Rated V

, Square Wave, 20 kHz, T

= 134 ° C) Per diode

I

40 20

A

Nonrepetitive Peak Surge Current

(Surge applied at rated load conditions halfwave, single phase, 60 Hz)

I

125 A

Operating Junction Temperature T

−55 to +150 ° C

Storage Temperature T

−55 to +150 ° C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Rating Symbol Value Unit

Typical Thermal Resistance per Device (Note 1) Junction−to−Case Junction−to−Ambient

R

R

1.5

69.5 ° C/W

° C/W 1. Assumes 150 mm

1 oz. copper bond pad, on a FR4 board.

ELECTRICAL CHARACTERISTICS (Per Leg unless otherwise noted)

Rating Symbol Typ Max Unit

Maximum Instantaneous Forward Voltage (Note 2) (I

= 5 A, T

= 25 ° C)

(I

= 10 A, T

= 25 ° C) (I

= 5 A, T

= 125 ° C) (I

= 10 A, T

= 125 ° C)

v

0.58 0.74 0.53 0.63

− 0.78

− 0.66

V

Maximum Instantaneous Reverse Current (Note 2) (V

= 70 V, T

= 25 ° C)

(V

= 70 V, T

= 125 ° C) (Rated dc Voltage, T

= 25 ° C) (Rated dc Voltage, T

= 125 ° C)

I

2 2 8 5.5

42 15

m A mA m A mA Diode Capacitance

(Rated dc Voltage, T

= 25 ° C)

C

75 − pF

Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

2. Pulse Test: Pulse Width = 300 m s, Duty Cycle v 2.0%

ORDERING INFORMATION

Device Package Shipping

NRTSV20H100CTG TO−220AB

(Pb−Free)

50 Units / Rail

TYPICAL CHARACTERISTICS

0.1 1.0 10.0 100.0

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

Figure 1. Typical Instantaneous Forward Characteristics

Figure 2. Maximum Instantaneous Forward Characteristics

V

, INSTANTANEOUS FORWARD VOLTAGE (V) V

, INSTANTANEOUS FORWARD VOLTAGE (V)

I

, INST ANT ANEOUS FOR W ARD CURRENT (A) I

, INST ANT ANEOUS FOR W ARD CURRENT (A)

T

= 25 ° C T

= 85 ° C T

= 125 ° C

T

= 150 ° C

T

= 125 ° C T

= 150 ° C

T

= 85 ° C T

= 25 ° C T

= −55 ° C

T

= −55 ° C

0.1 1.0 10.0 100.0

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8

1.E−06 1.E−05 1.E−04 1.E−03 1.E−02 1.E−01

10 20 30 40 50 60 70 80 90 100

1.E−07 1.E−06 1.E−05 1.E−04 1.E−03 1.E−02 1.E−01

10 20 30 40 50 60 70 80 90 100

Figure 3. Typical Reverse Characteristics Figure 4. Maximum Reverse Characteristics V

, INSTANTANEOUS REVERSE VOLTAGE (V) V

, INSTANTANEOUS REVERSE VOLTAGE (V)

I

, INST ANT ANEOUS REVERSE CURRENT (A) T

= 25 ° C

T

= 85 ° C T

= 125 ° C

T

= 150 ° C

T

= 125 ° C T

= 150 ° C

T

= 85 ° C

T

= 25 ° C

I

, INST ANT ANEOUS REVERSE CURRENT (A)

6 8 10 12 14 16 18 20

100 1,000

ACIT ANCE (pF)

, A VERAGE FOR W ARD CURRENT (A)

Square Wave dc

R

= 2.2 ° C/W

T

= 25 ° C

NRTSV20H100CT

www.onsemi.com 4

Figure 7. Current Derating, per Device Figure 8. Forward Power Dissipation T

, CASE TEMPERATURE ( ° C) I

, AVERAGE FORWARD CURRENT (A)

I

, A VERAGE FOR W ARD CURRENT (A) P

, A VERAGE FOR W ARD POW- ER DISSIP A TION (W)

Square Wave dc

R

= 1.5 ° C/W

Square Wave

dc I

/I

= 10

I

/I

= 5 I

/I

= 20

T

= 150 ° C

0 5 10 15 20 25 30 35

0 20 40 60 80 100 120 140 0

5 10 15 20 25

0 2 4 6 8 10 12 14

0.01 0.1 1 10 100

0.000001 0.00001 0.0001 0.001 0.01 0.1 1 10 100 1000

Figure 9. Typical Transient Thermal Response t, PULSE TIME (sec)

R(t), ( ° C/W)

Single Pulse 20%

50%

10%

5%

2%

1%

TO−220 CASE 221A

ISSUE AK

DATE 13 JAN 2022

SCALE 1:1

STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 2:

PIN 1. BASE 2. EMITTER 3. COLLECTOR 4. EMITTER

STYLE 3:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE

STYLE 4:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. MAIN TERMINAL 2 STYLE 7:

PIN 1. CATHODE 2. ANODE 3. CATHODE 4. ANODE STYLE 10:

PIN 1. GATE 2. SOURCE 3. DRAIN 4. SOURCE STYLE 5:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN

STYLE 8:

PIN 1. CATHODE 2. ANODE

3. EXTERNAL TRIP/DELAY 4. ANODE

STYLE 6:

PIN 1. ANODE 2. CATHODE 3. ANODE 4. CATHODE STYLE 9:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 11:

PIN 1. DRAIN 2. SOURCE 3. GATE 4. SOURCE

STYLE 12:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. NOT CONNECTED

PACKAGE DIMENSIONS
