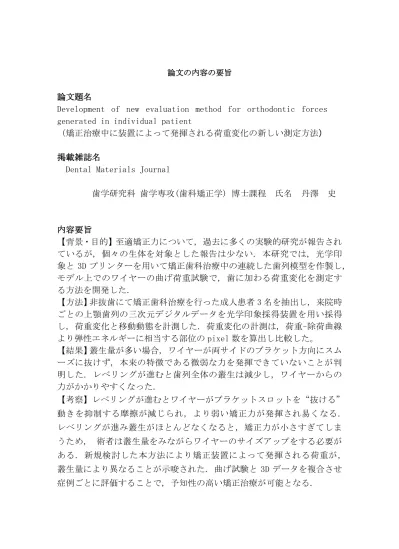

論文の内容の要旨

論文題名

Development of new evaluation method for orthodontic forces generated in individual patient

(矯正治療中に装置によって発揮される荷重変化の新しい測定方法)

掲載雑誌名

Dental Materials Journal

歯学研究科 歯学専攻(歯科矯正学) 博士課程 氏名 丹澤 史

内容要旨

【背景・目的】至適矯正力について, 過去に多くの実験的研究が報告され ているが, 個々の生体を対象とした報告は少ない. 本研究では, 光学印 象と

3D

プリンターを用いて矯正歯科治療中の連続した歯列模型を作製し, モデル上でのワイヤーの曲げ荷重試験で, 歯に加わる荷重変化を測定す る方法を開発した.

【方法】非抜歯にて矯正歯科治療を行った成人患者

3

名を抽出し, 来院時 ごとの上顎歯列の三次元デジタルデータを光学印象採得装置を用い採得 し, 荷重変化と移動動態を計測した. 荷重変化の計測は, 荷重-除荷曲線 より弾性エネルギーに相当する部位の

pixel

数を算出し比較した。

【結果】叢生量が多い場合, ワイヤーが両サイドのブラケット方向にスム ーズに抜けず, 本来の特徴である微弱な力を発揮できていないことが判 明した. レベリングが進むと歯列全体の叢生は減少し, ワイヤーからの 力がかかりやすくなった.

【考察】レベリングが進むとワイヤーがブラケットスロットを“抜ける”

動きを抑制する摩擦が減じられ, より弱い矯正力が発揮され易くなる.

レベリングが進み叢生がほとんどなくなると, 矯正力が小さすぎてしま

うため, 術者は叢生量をみながらワイヤーのサイズアップをする必要が

ある. 新規検討した本方法により矯正装置によって発揮される荷重が

,

叢生量により異なることが示唆された. 曲げ試験と

3D

データを複合させ

症例ごとに評価することで, 予知性の高い矯正治療が可能となる.
