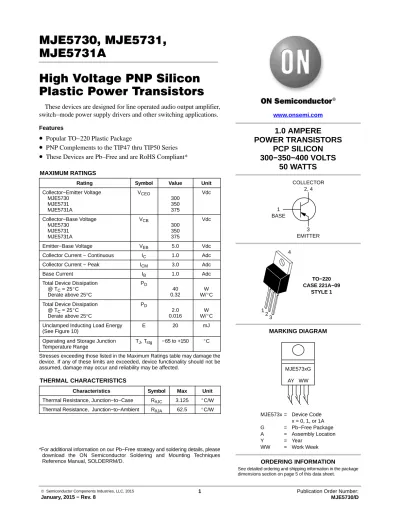

MJE5730, MJE5731, MJE5731A High Voltage PNP Silicon Plastic Power Transistors

MJE5731A

High Voltage PNP Silicon Plastic Power Transistors

These devices are designed for line operated audio output amplifier, switch−mode power supply drivers and other switching applications.

Features

• Popular TO−220 Plastic Package

• PNP Complements to the TIP47 thru TIP50 Series

• These Devices are Pb−Free and are RoHS Compliant*

MAXIMUM RATINGS

Rating Symbol Value Unit

Collector−Emitter Voltage MJE5730

MJE5731 MJE5731A

V

300 350 375

Vdc

Collector−Base Voltage MJE5730

MJE5731 MJE5731A

V

300 350 375

Vdc

Emitter−Base Voltage V

5.0 Vdc

Collector Current − Continuous I

1.0 Adc

Collector Current − Peak I

3.0 Adc

Base Current I

1.0 Adc

Total Device Dissipation

@ T

= 25 _ C Derate above 25 ° C

P

40 0.32

W W/ _ C Total Device Dissipation

@ T

= 25 _ C Derate above 25 ° C

P

2.0 0.016

W W/ _ C Unclamped Inducting Load Energy

(See Figure 10)

E 20 mJ

Operating and Storage Junction Temperature Range

T

, T

−65 to +150 _ C Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Characteristics Symbol Max Unit Thermal Resistance, Junction−to−Case R

3.125 _ C/W Thermal Resistance, Junction−to−Ambient R

62.5 _ C/W

*For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

1.0 AMPERE POWER TRANSISTORS

PCP SILICON 300−350−400 VOLTS

50 WATTS

TO−220 CASE 221A−09

STYLE 1

1

www.onsemi.com

MARKING DIAGRAM 2 3

MJE573x = Device Code x = 0, 1, or 1A G = Pb−Free Package A = Assembly Location

Y = Year

WW = Work Week MJE573xG

AY WW

See detailed ordering and shipping information in the package dimensions section on page 5 of this data sheet.

ORDERING INFORMATION 4

1 BASE

3 EMITTER COLLECTOR

2, 4

ELECTRICAL CHARACTERISTICS (T

= 25 _ C unless otherwise noted)

Characteristic Symbol Min Max Unit

OFF CHARACTERISTICS

Collector−Emitter Sustaining Voltage (Note 1) (I

= 30 mAdc, I

= 0)

MJE5730 MJE5731 MJE5731A

V

300 350 375

−

−

−

Vdc

Collector Cutoff Current (V

= 200 Vdc, I

= 0)

MJE5730

(V

= 250 Vdc, I

= 0) MJE5731

(V

= 300 Vdc, I

= 0) MJE5731A

I

−

−

−

1.0 1.0 1.0

mAdc

Collector Cutoff Current (V

= 300 Vdc, V

= 0)

MJE5730

(V

= 350 Vdc, V

= 0) MJE5731

(V

= 400 Vdc, V

= 0) MJE5731A

I

−

−

−

1.0 1.0 1.0

mAdc

Emitter Cutoff Current (V

= 5.0 Vdc, I

= 0)

I

− 1.0

mAdc ON CHARACTERISTICS (Note 1)

DC Current Gain

(I

= 0.3 Adc, V

= 10 Vdc) (I

= 1.0 Adc, V

= 10 Vdc)

h

30 10

150

−

−

Collector−Emitter Saturation Voltage (I

= 1.0 Adc, I

= 0.2 Adc)

V

− 1.0

Vdc Base−Emitter On Voltage

(I

= 1.0 Adc, V

= 10 Vdc)

V

− 1.5

Vdc DYNAMIC CHARACTERISTICS

Current Gain − Bandwidth Product (I

= 0.2 Adc, V

= 10 Vdc, f = 2.0 MHz)

f

10 −

MHz Small−Signal Current Gain

(I

= 0.2 Adc, V

= 10 Vdc, f = 1.0 kHz)

h

25 −

− Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

1. Pulse Test: Pulse Width ≤ 300 m s, Duty Cycle ≤ 2.0%.

, COLLECT OR-EMITTER VOL TAGE (VOL TS)

T

= 25 ° C 30

10

3.0

1.2

h FE , DC CURRENT GAIN

5.0

V

= 10 V

1.4

1 T

= 150 ° C

20

0.8 0.6

V

@ I

/I

= 5.0 0.2

0.4 25 ° C

-55 ° C 100

50 200

150 ° C

-55 ° C

I

, COLLECTOR CURRENT (AMPS) 1.0

0.8

V , VOL TAGE (V)

1.4 1.2

0.4

0 0.6

0.2

Figure 3. Base−Emitter Voltage

0.05 0.1 0.2 0.3 0.5 1.0 2.0

0.02 0.03

V

@ I

/I

= 5.0

T

= - 55 ° C

25 ° C

150 ° C

DERA TING F ACT OR

1.0

0

T

, CASE TEMPERATURE ( ° C)

0 50 175

0.8

0.6

0.4

0.2

75 100 125

Figure 4. Normalized Power Derating SECOND BREAKDOWN DERATING

THERMAL DERATING

25 150

10

5.0

Figure 5. Forward Bias Safe Operating Area V

, COLLECTOR-EMITTER VOLTAGE (VOLTS) 5.0

2.0

0.5

0.01

30 100

BONDING WIRE LIMIT THERMAL LIMIT

SECOND BREAKDOWN LIMIT I C

, COLLECT OR CURRENT (AMP)

dc 500 m s

0.05

10 20

1.0ms

200 300 500 1.0

0.2

50 0.1

0.02

T

= 25 ° C

100 m s

MJE5730 MJE5731 MJE5732

There are two limitations on the power handling ability of a transistor: average junction temperature and second breakdown. Safe operating area curves indicate I _C − V _CE limits of the transistor that must be observed for reliable operation; i.e., the transistor must not be subjected to greater dissipation than the curves indicate.

The data of Figure 5 is based on T _J(pk) = 150 _ C; T _C is variable depending on conditions. Second breakdown pulse limits are valid for duty cycles to 10% provided T _J(pk) ≤ 150 _ C. T _J(pk) may be calculated from the data in Figure 6. At high case temperatures, thermal limitations will reduce the power that can be handled to values less than the limitations imposed by second breakdown.

t, TIME (ms) 1.0

0.01

1 k 0.3

0.2

0.07

r(t) , TRANSIENT THERMAL

R

= r(t) R

R

= 3.125 ° C/W MAX D CURVES APPLY FOR POWER PULSE TRAIN SHOWN READ TIME AT t

T

- T

= P

q

P

t

t

DUTY CYCLE, D = t

/t

0.01

RESIST ANCE (NORMALIZED)

0.7

Figure 6. Thermal Response 0.5

0.1 0.05 0.03 0.02

0.02 0.1 0.2 0.5 1.0 2.0 5.0 10 20 50 100 200 500

0.2

SINGLE PULSE D = 0.5

0.05 0.1

0.02

0.01

t

Figure 7. Switching Time Equivalent Circuit TURN-ON PULSE

V

V

AP­

PROX.

-11 V

0 V

t

TURN-OFF PULSE

t

≤ 7.0 ns 100 ≤ t

< 500 m s

t

< 15 ns

APPROX. +9.0 V DUTY CYCLE ≈ 2.0%

V

V

R

R

SCOPE

+4.0 V C

<< C

51

t

t, TIME (s) μ

t, TIME (s) μ

0.02 0.05 0.1 0.2 0.5 1.0 2.0

5.0

I

, COLLECTOR CURRENT (AMPS) T

= 25 ° C V

= 200 V I

/I

= 5.0 2.0

1.0 0.5

0.2 0.1 0.05

Figure 8. Turn−On Resistive Switching Times Figure 9. Resistive Turn−Off Switching Times I

, COLLECTOR CURRENT (AMPS)

0.01 1.0 0.5

0.1 0.05 0.02

0.02 0.05 0.1 0.2 0.5 1.0 2.0

t

t

t

t

T

= 25 ° C

V

= 200 V I

/I

= 5.0 0.2

0.03 0.3

0.03 0.3

0.3 3.0

0.03 0.3

INPUT 50

50 V

= 10 V

R

= 100 W

TUT V

MONITOR

100 mH V

= 20 V

+ -

R

= 150 W

I

MONITOR R

=

0.1 W V

=

0

+ -

Test Circuit Voltage and Current Waveforms

INPUT VOLTAGE

COLLECTOR CURRENT COLLECTOR VOLTAGE

10 V V

0 V 0.63 A -5 V 0 V

100 ms t

≈ 3 ms (SEE NOTE 1)

MJE171

ORDERING INFORMATION

Device Package Shipping

MJE5730G TO−220

(Pb−Free)

50 Units / Rail

MJE5731G TO−220

(Pb−Free)

50 Units / Rail

MJE5731AG TO−220

(Pb−Free)

50 Units / Rail

TO−220 CASE 221A

ISSUE AK

DATE 13 JAN 2022

SCALE 1:1

STYLE 1:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 2:

PIN 1. BASE 2. EMITTER 3. COLLECTOR 4. EMITTER

STYLE 3:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE

STYLE 4:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. MAIN TERMINAL 2 STYLE 7:

PIN 1. CATHODE 2. ANODE 3. CATHODE 4. ANODE STYLE 10:

PIN 1. GATE 2. SOURCE 3. DRAIN 4. SOURCE STYLE 5:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN

STYLE 8:

PIN 1. CATHODE 2. ANODE

3. EXTERNAL TRIP/DELAY 4. ANODE

STYLE 6:

PIN 1. ANODE 2. CATHODE 3. ANODE 4. CATHODE STYLE 9:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

STYLE 11:

PIN 1. DRAIN 2. SOURCE 3. GATE 4. SOURCE

STYLE 12:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. NOT CONNECTED

PACKAGE DIMENSIONS

98ASB42148B

DOCUMENT NUMBER:
