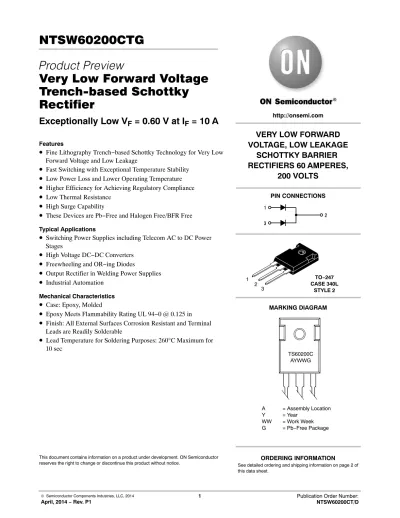

NTSW60200CTG Product Preview Very Low Forward Voltage Trench-based Schottky Rectifier

Product Preview

Very Low Forward Voltage Trench-based Schottky Rectifier

Exceptionally Low V _F = 0.60 V at I _F = 10 A

Features

• Fine Lithography Trench−based Schottky Technology for Very Low Forward Voltage and Low Leakage

• Fast Switching with Exceptional Temperature Stability

• Low Power Loss and Lower Operating Temperature

• Higher Efficiency for Achieving Regulatory Compliance

• Low Thermal Resistance

• High Surge Capability

• These Devices are Pb−Free and Halogen Free/BFR Free Typical Applications

• Switching Power Supplies including Telecom AC to DC Power Stages

• High Voltage DC−DC Converters

• Freewheeling and OR−ing Diodes

• Output Rectifier in Welding Power Supplies

• Industrial Automation Mechanical Characteristics

• Case: Epoxy, Molded

• Epoxy Meets Flammability Rating UL 94−0 @ 0.125 in

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead Temperature for Soldering Purposes: 260 ° C Maximum for 10 sec

VERY LOW FORWARD VOLTAGE, LOW LEAKAGE

SCHOTTKY BARRIER RECTIFIERS 60 AMPERES,

200 VOLTS

1 3

2 http://onsemi.com

PIN CONNECTIONS

TO−247 CASE 340L

STYLE 2 1 2

3

A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

MARKING DIAGRAM

TS60200C

AYWWG

NTSW60200CTG

http://onsemi.com 2

MAXIMUM RATINGS

Rating Symbol Value Unit

Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage

V

V

V

200 V

Average Rectified Forward Current (Rated V

, T

= 112°C) Per device (Rated V

, T

= 133°C) Per diode

I

60 30

A

Peak Repetitive Forward Current

(Rated V

, Square Wave, 20 kHz, T

= 115°C) Per device (Rated V

, Square Wave, 20 kHz, T

= 128°C) Per diode

I

120 60

A

Nonrepetitive Peak Surge Current

(Surge applied at rated load conditions halfwave, single phase, 60 Hz) I

300 A

Operating Junction Temperature T

−55 to +150 °C

Storage Temperature T

−55 to +150 °C

Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected.

THERMAL CHARACTERISTICS

Rating Symbol Value Unit

Typical Thermal Resistance

Junction−to−Case Per Diode Junction−to−Case Per Device Junction−to−Ambient Per Diode Junction−to−Ambient Per Device

R

R

0.72 0.63

40.62 40.17

°C/W

ELECTRICAL CHARACTERISTICS (Per Leg unless otherwise noted)

Rating Symbol Typ Max Unit

Instantaneous Forward Voltage (Note 1) (I

= 10 A, T

= 25°C) (I

= 15 A, T

= 25°C) (I

= 30 A, T

= 25 ° C) (I

= 10 A, T

= 125°C) (I

= 15 A, T

= 125 ° C) (I

= 30A, T

= 125°C)

V

0.74 0.79 1.04 0.60 0.64 0.74

− − 1.90

− − 0.85

V

Instantaneous Reverse Current (Note 1) (V

= 180 V, T

= 25°C)

(Rated dc Voltage, T

= 25°C) (V

= 180 V, T

= 125°C) (Rated dc Voltage, T

= 125°C)

I

3 5

5.3 7

100 −

30 −

mA mA

mA mA Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product performance may not be indicated by the Electrical Characteristics if operated under different conditions.

1. Pulse Test: Pulse Width = 300 ms, Duty Cycle v 2.0%

ORDERING INFORMATION

Device Package Shipping

NTSW60200CTG TO−220AB

(Pb−Free, Halide Free) 30 Units / Rail

TYPICAL CHARACTERISTICS

0.1 1 10 100

0.00 0.40 0.80 1.20 1.60 2.00 2.40

Figure 1. Typical Instantaneous Forward

Characteristics Figure 2. Maximum Instantaneous Forward Characteristics

V

, INSTANTANEOUS FORWARD VOLTAGE (V) V

, INSTANTANEOUS FORWARD VOLTAGE (V)

Figure 3. Typical Reverse Characteristics Figure 4. Maximum Reverse Characteristics V

, INSTANTANEOUS REVERSE VOLTAGE (V) V

, INSTANTANEOUS REVERSE VOLTAGE (V)

i

, INST ANT ANEOUS FOR W ARD CURRENT (A) i

, INST ANT ANEOUS FOR W ARD CURRENT (A)

I

, INST ANT ANEOUS REVERSE CURRENT (A) C, JUNCTION CAP ACIT ANCE (pF) I

, A VERAGE FOR W ARD CURRENT (A)

T

= 125 ° C

T

= 150°C

T

= 25°C

T

= 125 ° C

T

= 150 ° C

T

= 125°C

T

= 25 ° C

1.E−06 1.E−05 1.E−04

I

, INST ANT ANEOUS REVERSE CURRENT (A) 1.E−03 1.E−02 1.E−01

T

= 125°C T

= 150°C

T

= 25 ° C

T

= 25°C R

= 0.72°C/W

Square Wave DC T

= −55°C

T

= 25 ° C

T

= −55°C

100 1k 10k

T

= 150°C

1.E−07 0.1

1 10 100

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4

1.E−09 1.E−08 1.E−07 1.E−06 1.E−05 1.E−04 1.E−03 1.E−02

0 20 40 60 80 100 120 140 160 180 200

T

= −55°C T

= −55 ° C

0 5 10 15 20 25 30 35 40 45 50 55 60

0 20 40 60 80 100 120 140 160 180 200

10

NTSW60200CTG

http://onsemi.com 4

TYPICAL CHARACTERISTICS

Figure 7. Current Derating per Device T

, CASE TEMPERATURE (°C)

Figure 8. Forward Power Dissipation I

, AVERAGE FORWARD CURRENT (A)

I

, A VERAGE FOR W ARD CURRENT (A) P

, A VERAGE FOR W ARD POWER DISSIP ATION (W) Square Wave

dc

R

= 0.63°C/W

T

= 150°C Square Wave

dc I

/I

= 20

I

/I

= 10

I

/I

= 5

0 10 20 30 40 50 60 70 80 90 100 110 120

0 20 40 60 80 100 120 140 0

5 10 15 20 25 30 35 40 45 50 55 60

0 5 10 15 20 25 30 35 40

0.001 0.01 0.1 1 10 100

Figure 9. Typical Transient Thermal Response t, PULSE TIME (sec)

0.01

0.001 0.1

0.0001 0.00001

0.000001 R(t), TYPICAL TRANSIENT THER- MAL RESIST ANCE ( ° C/W)

1 10 100 1000

Single Pulse 20%

50%

10% 5%

2%

1%

TO−247 CASE 340L

ISSUE G

DATE 06 OCT 2021

GENERIC MARKING DIAGRAM*

XXXXX = Specific Device Code A = Assembly Location

Y = Year

WW = Work Week G = Pb−Free Package

STYLE 3:

PIN 1. BASE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

SCALE 1:1

STYLE 1:

PIN 1. GATE 2. DRAIN 3. SOURCE 4. DRAIN

STYLE 2:

PIN 1. ANODE 2. CATHODE (S) 3. ANODE 2 4. CATHODES (S)

STYLE 4:

PIN 1. GATE 2. COLLECTOR 3. EMITTER 4. COLLECTOR

XXXXXXXXX AYWWG

STYLE 6:

PIN 1. MAIN TERMINAL 1 2. MAIN TERMINAL 2 3. GATE 4. MAIN TERMINAL 2 STYLE 5:

PIN 1. CATHODE 2. ANODE 3. GATE 4. ANODE

*This information is generic. Please refer to device data sheet for actual part marking.
