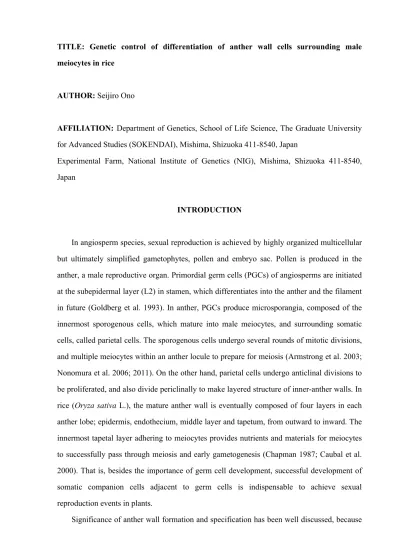

TITLE: Genetic control of differentiation of anther wall cells surrounding male meiocytes in rice
AUTHOR: Seijiro Ono
AFFILIATION: Department of Genetics, School of Life Science, The Graduate University for Advanced Studies (SOKENDAI), Mishima, Shizuoka 411-8540, Japan
Experimental Farm, National Institute of Genetics (NIG), Mishima, Shizuoka 411-8540, Japan
INTRODUCTION
In angiosperm species, sexual reproduction is achieved by highly organized multicellular but ultimately simplified gametophytes, pollen and embryo sac. Pollen is produced in the anther, a male reproductive organ. Primordial germ cells (PGCs) of angiosperms are initiated at the subepidermal layer (L2) in stamen, which differentiates into the anther and the filament in future (Goldberg et al. 1993). In anther, PGCs produce microsporangia, composed of the innermost sporogenous cells, which mature into male meiocytes, and surrounding somatic cells, called parietal cells. The sporogenous cells undergo several rounds of mitotic divisions, and multiple meiocytes within an anther locule to prepare for meiosis (Armstrong et al. 2003; Nonomura et al. 2006; 2011). On the other hand, parietal cells undergo anticlinal divisions to be proliferated, and also divide periclinally to make layered structure of inner-anther walls. In rice (Oryza sativa L.), the mature anther wall is eventually composed of four layers in each anther lobe; epidermis, endothecium, middle layer and tapetum, from outward to inward. The innermost tapetal layer adhering to meiocytes provides nutrients and materials for meiocytes to successfully pass through meiosis and early gametogenesis (Chapman 1987; Caubal et al. 2000). That is, besides the importance of germ cell development, successful development of somatic companion cells adjacent to germ cells is indispensable to achieve sexual reproduction events in plants.
Significance of anther wall formation and specification has been well discussed, because
defects in early anther-wall development frequently result in severe male sterility (reviewed in Zhang and Yang, 2014 and Kelliher and Walbot, 2014). Besides, a crucial role of tapetum in post-meiotic pollen development is well studied. When meiocytes finish their meiotic divisions and produce microspores, tapetum cells begin to degenerate by themselves through activating programmed cell death (PCD) pathway (Lee et al., 2004; Li et al., 2006; Li et al., 2011). At the same time, tapetum cells activate biosynthetic pathways to supply nutrients and pollen coat materials for developing pollen grains; such as enzymes catalyzing fatty-acid biosynthesis and lipid transfer (Li et al., 2010; Zhang et al., 2010).
On the contrary, little is known about the roles of anther wall cells, including tapetum, during meiotic stages. Several reports suggest a possibility of intercellular communication between meiocytes and anther wall cells, likely important to accomplish meiotic events properly (Heslop-Harison, 1966; Nonomura et al. 2003; Hord et al. 2006).
In this sutudy, I focused on the anther wall development at early meiotic stages, and also on intercellular communication between meiocytes and anther wall cells. For this purpose, I identified two anther-wall-specific transcription factors (AWTFs), specifically expressed in anther wall cells at early meiotic stages, were essential to achieve successful male gametogenesis. Furthermore, I identified seven genes putatively downstream of the AWTFs transcriptional cascades, tentatively named AWG1 to AWG7. This study revealed that transcription of the AWG7 gene, encoding an enzyme required for an RNA metabolic pathway, was activated directly by the AWTF1. The results of this study might be helpful findings to understand possible interactions between meiocytes and anther wall cells at meiotic stages.
MATERIALS AND METHODS
Plant materials
Among the rice Tos17 insertion mutant, msp1 mutant was originally isolated and maintained in our laboratory (Nonomura et al., 2003). awtf1 mutant was obtained from Rice Genome Resource Center on the National Institute of Agrobiological Sciences, Japan. A T-DNA insertion line on AWTF2 locus (awtf2) was obtained from seed stock center in Pohang
University of Science and Technology (POSTECH), Republic of Korea.
msp1, awtf1 and their wild type (WT) cultivar cv. Nipponbare were grown in the experimental field of National Institute of Genetics (NIG) in the city of Mishima, Shizuoka, Japan. awtf2 and some other transgenic lines were grown in the isolated green house in NIG and/or in the growth chamber, Biotoron (NK system).
Anther morphology observation
Plastic sections of rice anthers were made using Technovit7100 resin (Kulzer). Before infiltration, young panicles of rice plant were fixed with 4% paraformaldehyde in 1xPMEG buffer (50 mM PIPES, 10 mM EGTA, 5 mM MgSO4 and 4% Glycerol, pH6.8) and washed by 1xPMEG buffer 6 times. Then, anthers were dissected, dehydrated with ethanol series, infiltrated and solidificated by Technovit7100 resin according to manufacture’s instruction. Plastic blocks were sliced at 2 µm thick using a microtome (Leica RM2255). Sections were stained with 0.1% Toluidine blue O (Wako pure chemicals) for light microscopy observation.
Construction of pAWTF2::N-YFP-AWTF2 and pAWTF1::AWTF1-C-GFP and transformation into mutant plants
A SpeI-SpeI 7.4 kbp genomic fragment having EYFP sequence in AWTF2 translation initiation site in frame, 4 kbp upstream and 0.5 kbp downstream of AWTF2 gene was constructed in pBS-SK(-) vector using standard PCR with primers having restriction adapter sequences. Resultant SpeI-SpeI fragment was digested, blunt-ended and cloned into pGWB601 binary vector (Nakamura et al., 2010). A 7.4 kbp genomic fragment having sGFP sequence in AWTF1 C-terminus region, 2.4 kbp upstream and 0.7 kbp downstream of AWTF1 gene was also constructed in pPZP2H-lac binary vector (Fuse et al., 2001) using PCR, restriction cutting and ligation. Each construct was introduced into awtf2 and awtf1 calli using Agrobacterium mediated rice transformation method as described previously (Toki et al., 2006).
GFP and YFP signal observation in rice anther tissues.
YFP (or GFP) observations of anther samples were conducted using agarose section.
Anthers were dissected from young flowers and poured into pre-warmed 6% Seakem GTG agarose (Lonzo) gel. After the gelation, agarose blocks were sliced at 50 µm thick using a microslicer (MicroSlicer, ZERO1, D.S.K.), and mounted with a drop of VECTASHIELD with DAPI (Vector). Fluorescent signals of YFP (or GFP) and DAPI were captured using Fluoview FV300 CLSM system (Olympus).
RNA extraction and quantitative reverse transcription (qRT)-PCR
Anther samples from msp1, awtf1, awtf2 and their WT plants were carefully collected from young panicles and divide them according to their developmental stages. Total RNAs were extracted using TRIzol reagent (Life technologies) according to manufacture’s instruction. About 1 µg of total RNA in each samples were reverse transcribed using oligo(dT)12-18 primer (Invitrogen) and SuperscriptIII (Invitrogen) reverse transcriptase. After reverse transcription, samples were 20 fold diluted and assayed for raeltime PCR quantification using KAPA SYBR FAST universal qPCR Kit (KAPA biosystems). Realtime amplification was detected with Thermal Cycler Dice Real Time System (TAKARA). For internal standard, expression levels of Ubiquitine gene were quantified using further 5 fold diluted samples.
Chromatin immunoprecipitation-quantitative PCR (ChIP-qPCR)
Flowers at early meiotic stages (around 2.0 mm lemma length) were collected from plants carrying pAWTF2::N-YFP-AWTF2 or pAWTF1::AWTF1-C-GFP and fixed in the fixative (1% formaldehyde, 0.4 M sucrose, 0.1M Tris-Cl and 50 mM EDTA pH8.0). Flowers also collected and fixed from siblings having no transgene as negative control for each experiment. Nuclear fractions were extracted, sonicated and immunoprecipitated with anti-GFP antibody (MBL, No.598) and Dynabeas Protein A (Life Technologies). For antibody-negative control, half of nuclear fractions were also immunoprecipitated without anti-GFP antibody. IP fractions were washed, extracted and treated with ProteinaseK to digest plant proteins and antibodies. After phenol-chloroform extraction and ethanol precipitation, DNA samples were assayed realtime PCR quantification.
RESULTS
AWTF1 and AWTF2 are candidate genes which are preferentially expressed in anther wall cells
For exploitation of the genes preferentially expressed in anther wall cells, first I compared gene expression profiles in anthers between the WT and the rice mutant, multiple sporocyte1 (msp1) (Nonomura et al., 2003). Here, I used the microarray data for RNAs extracted from 0.4-mm anthers, including meiocytes undergoing premeiotic DNA replication, previously examined in my laboratory (Ueda et al., unpublished data). The MSP1 gene is specifically expressed in inner-anther walls, and its loss-of-function mutant produces anthers mostly lacking inner-walls, including the innermost tapetum layer. Thus, it was expected that the genes preferentially expressed in inner wall cells might be down-regulated in msp1 anthers.
From the comparison of microarray results between the WT and msp1 mutant, I found that two transcription factor genes, named AWTF1 and AWTF2, were 15.6-fold and 9.58-fold downregulated in the msp1 mutant anther, respectively. This result was further confirmed by qRT-PCR experiment using early-meiotic msp1 anthers.
Both awtf1 and awtf 2 mutations cause male sterile phenotypes
Putative loss-of-function mutants were identified to characterize the function of AWTF1 and AWTF2 genes in rice anther development. For the AWTF2 gene, a T-DNA tag line (Jeong et al., 2006), in which the T-DNA was inserted into the third intron of AWTF2 gene, was selected. For the AWTF1 gene, the line with an insertion of the endogenous retrotransposon Tos17 (Hirochika et al., 1996) into the second exon of AWTF1 gene was selected.
Both awtf2 and awtf1 homozygous plants showed normal vegetative growth compared to heterozygous and WT homozygous plants. At flowering stage, both awtf1 and awtf2 mutants exhibited immature, short and whitish anthers, in contrast to well-developed and yellowish anthers of WT plants. Stained with the iodine-potassium iodide, vegetative cells of mature pollen grains were filled with starch granules in the WT, whereas no mature pollen
was observed in both awtf mutants. In outcrossing with WT pollen grains, flowers of both awtf2 and awtf1 homozygous set seeds; 54.5 % (6/11) in the awtf2 and 78.3% (65/83) in the awtf1, while self-pollination resulted in complete sterility in both mutants. These results indicate that both of awtf2 and awtf1 homozygous mutants are male sterile due to defects in anther development.
The heterozygous awtf2 plants segregated fertile and male-sterile plants likely in a Mendelian fashion (19:9, χ2 = 1.92 for 3:1, P>0.38, N=27), though the population size was too small because of limited spaces to grow transgenic plants. This was the case also for the progeny of heterozygous plants in the AWTF1 line (137:41, χ2 =1.21 for 3:1, P>0.54, N=178). In both cases, I confirmed that T-DNA or Tos17 was inserted homozygously in all male-sterile plants. These results revealed that the male sterile phenotype segregated in AWTF2 and AWTF1 lines was genetically linked with the insertion of T-DNA and Tos17 sequences, respectively.
To further confirm that either T-DNA or Tos17 insertion caused male sterility in AWTF2 and AWTF1 lines, I performed the complementation tests of the mutant sterile phenotype by the genomic fragment harboring one of WT transcription factor genes. For the awtf2 mutation, the AWTF2 genomic fragment was tagged in frame with a reporter YFP gene, pAWTF2::N-YFP-AWTF2 (see Materials and Methods), and transformed into mutant homozygous plants. Two independent transgenic lines both recovered fertility in T0 generation, while plants bearing the empty vector, as a negative control, did not. In the selfed T1 generation, thirteen plants carrying pAWTF2::N-YFP-AWTF2 all recovered the fertility, and 9 plants without the transgene did not. For the awtf1 mutation, pAWTF1::AWTF1-C-GFP was introduced into mutant homozygous plants. Two independent plants, carrying pAWTF1::AWTF1-C-GFP recovered fertility at T0 generation, and furthermore, 15 fertile and 9 sterile T1 progenies were segregated again in complete correlation to presence or absence of the transgene. Thus, I concluded that the T-DNA and Tos17 insertions into AWTF2 and AWTF1 genes were a direct consequence of the male sterility in both lines.
awtf2 and awtf1 mutants have compromised anther development at different levels To characterize the male sterility of awtf2 and awtf1 in detail, the morphology of anther
cells was observed using plastic sections from pre-meiotic to post-meiotic stages. These observations turned out that the phenotypes of two awtf mutants were distinct from each other in the anther-wall-cell lineage.. In anthers at pre-meiotic or early-meiotic stages, the anther wall became WT-like, four-layered even in both awtf2 and awtf1 mutants. Prior to this stage, parietal cells generate the endothecium outward and the secondary parietal cells inward. The secondary parietal cells retain an undifferentiated state, and further develop middle layer and tapetum. At early four-layered stage, corresponding to early meiotic stage, characteristics of middle-layer cells were almost similar to those of tapetal cells, and no remarkable difference was observed between WT and both mutant anthers.
The morphological defects emerged in the awtf2 mutant at subsequent middle and late of four-layered stages, corresponding to meiotic-prophase I pachytene and later stages. In WT anthers at this stage, the outward middle layers and the inward tapetum, both derived from secondary parietal cells, began to differentiate with clear morphological differences; the cytoplasm components of tapetal cells became densely stained, and middle layer cells was extremely thinned to radial direction. However, in awtf2 mutant anthers, the innermost tapetum-like layer cells had no densely stained cytoplasm, and in addition, no thinning down of the second innermost layer occurred, resulting in both layers hardly distinct with each other in their cellular characteristics. In subsequent stages, tapetum-like cells in awtf2 anthers underwent excess periclinal divisions and partially made five or more wall layers, resulting in inward meiosytes were squashed and collapsed. Interestingly, I could not observe normally developed tetrad or microspores even in the later stages of awtf2 anthers, suggesting meiotic events were somewhat disrupted in awtf2 meiocytes.
In contrast to the awtf2 mutant, the awtf1 mutant anthers seemed to differentiate tapetum and middle layer normally. However, in subsequent stages, awtf1 anther displayed morphological defects in anther loculi. In WT anthers in this stage, developing pollen grains adhered to tapetal cells going to PCD, and cellular components from degenerated tapetum seemed to be kept at intercellular space between wall layer and pollen grains, resulting in a vacant space at the longitudinal axis of each anther locule. In contrast, in the awtf1 anthers, intercellular space in the anther locule was fully filled with tapetal cell components, and the circular shape in the cross section of loculi was frequently distorted, suggesting somewhat
unusual degeneration of tapetum.
As a summary of morphological observation, the awtf2 mutant shows obvious defects in differentiation of tapetum and middle layer, which occurs at middle-meiotic stage in WT anthers. The awtf1 anther seemed to differentiate middle layer and tapetum normally, while tapetal PCD and microspore development were likely impaired at post-meiotic stages. Though the developmental defect of awtf1 anthers seemed milder than that of awtf2, both defects gave a critical impact to anther development and male gametogenesis.
AWTF2 and AWTF1 expression in anther wall cells showing distinct patterns with each other
To know expression profiles of AWTF transcripts, qRT-PCR experiments were conducted using mRNAs extracted from anthers at various developmental stages; ST.1 corresponding to premeiotic interphase, ST.2 to meiotic leptotene, ST.3 to meiotic pachytene, ST. 4 to tetrad stage, ST.5 to post-meiotic microspore stage, and ST.6 to pollen maturation stage.
The AWTF2 expression was detected and peaked during ST.2 and ST.3, where middle layer and tapetum began to differentiate. AWTF2 expression was gradually downed at and after ST.4, when differentiation of tapetum and middle layer was completed. The expression of AWTF1 was also elevated and peaked at ST.2 and/or ST.3. However, after once downed at ST.4, the expression was elevated again at ST.5, when tapetum cells started PCD. Little amounts of AWTFf2 and AWTF1 transcripts were detected in the respective mutants throughout all anther developmental stages. Altogether, it was concluded that the expression of awtf2 was single-peaked at the onset of differentiation of tapetum and middle layer, and that the awtf1 had two distinct peaks in its mRNA expression; once at early-meiotic stage and another at post-meiotic stage.
The expression patterns of both AWTF2 and AWTF1 were also confirmed at a protein level. Here, transgenic lines expressing YFP-tagged AWTF2 and GFP-tagged AWTF1, that were used for the complementation test as described above, were employed for fluorescent microscopic observations. Since transgenic lines having pAWTF2::N-YFP-AWTF2 and pAWTF1::AWTF1-C-GFP rescued sterile awtf2 and awtf1 phenotypes, respectively, I
concluded that recombinant YFP-tagged AWTF2 and GFP-tagged AWTF1 proteins were both functional in planta, and these transgenic plants were used for the following experiments.
Subcellular localization of tagged AWTF signals were obesrved in various anther stages. In three-layered anthers, before ST.1, fluorescent signals were hardly observed. In the subsequent ST.2 and ST.3 stages, in which tapetum and middle layer differentiation was ongoing, strong expression of the YFP-tagged AWTF2 protein was prominent in tapetal cell nuclei, and in addition, weaker signals were observed in nuclei of middle layer cells. The signals were recognizable through middle-meiotic anther stages, but disappeared after the late-meiotic stages. The AWTF1-GFP signal also began to appear in anthers at the early-meiotic stage, and however, different from the AWTF2-YFP, the signal was restricted only in tapetal cell nuclei. The AWTF1 signal disappeared once at the middle-meiotic stage, but reappeared at the post-meiotic microspore stage. These observations revealed that AWTF2 protein accumulation in tapetal cell nuclei was in one peak in early four-layered stage anthers, but AWTF1 accumulation showed dual peaks at both the onset of four-layered stage and post-meiotic microspore stage, consistent with mRNA expression patterns of AWTF2 and AWTF1 genes.
AWTF2 is upstream to AWTF1
Severe developmental defects observed in awrf2 mutant in comparison to that of awtf1 implicated the genetic epistasis of awtf2 to awtf1. To validate this possibility, I measured the expression level of awtf1 gene in the awtf2 mutant and vise versa. As a result, the AWTF2 expression was unaffected by the awtf1 mutations. In contrast, the AWTF1 transcript was completely absent in the awtf2 mutant, despite that anther walls were four-layered. These results clearly showed that AWTF1 expression depended on the presence of functional AWTF2, while AWTF2 expression was independent of AWTF1.
The genetic relationship between AWTF2 and AWTF1 was also confirmed at the protein level. In transgenic plants carrying pAWTF1::AWTF1-C-GFP, the fluorescent signals were clearly detected in tapetal cell nuclei in WT homozygous and awtf2 heterozygous plants, while no signal was detected in the awtf2 mutant homozygous background, indicating that the
accumulation of AWTF1 protein depended on the AWTF2 gene function. In contrast, in transgenic plants carrying pAWTF2::AWTF2-C-YFP, the fluorescent signals were detected in tapetal cell nuclei in all three awtf1 homozygous mutant, suggesting that the awtf1 mutation did not affect the AWTF2 protein expression.
Genetic networks involve AWTF2 and AWTF1
To figure out the novel gene regulatory networks governed by AWTF2 and AWTF1, expression levels of functionally-unknown genes, which preferentially expressed in tapetal and/or middle layer cells, were examined and compared between WT and either of awtf2 or awtf1 anthers by qRT-PCR. To pick up rice genes expressed in anther wall cells, I employed again the microarray screening using msp1 mutant. Consequently, seven genes, downregulated in the msp1 mutant, were selected and named AWG1 to AWG7. Reduced expression of these genes were reconfirmed by qRT-PCR in msp1 mutant anthers at ST.2, This result implicates these genes preferentially expressed in pre-meiotic, developing inner-wall layers.
The expression of all seven genes were completely lost in the awtf2 mutant anthers. On the other hand, the expression patterns in the awtf1 were different among the genes. The expression of AWG1,AWG2, AWG3 and AWG4 was not significantly affected by the awtf1 mutation. The AWG5 expression peaked in WT anthers at meiotic ST.2 or ST.3, and the peak was shifted to post-meiotic ST.5 in awtf1 anthers. The expression of AWG6 and AWG7 were slightly down-regulated in awtf1 anthers at ST.2 and/or ST.3. The ST2 is corresponding to the anther stage in which the AWTF1 expression was the first to peak. These results suggest that at least, the AWG6 and AWG7 gene expressions are under the control of the first peak of AWTF1 in tapetal cells.
AWG7 is a candidate gene regulated by first of dual peaks of AWTF1 expression
The rice AWG7 gene encodes an enzyme important for an RNA metabolism pathway. Recent studies have revealed importance of post-transcriptional gene regulation in anther development. To ask whether the AWTF1 transcription factor controls the AWG7 expression of directly or not, I performed the chromatin immunoprecipitation-quantitative PCR
(ChIP-qPCR) analysis for anthers of transgenic plants carrying pAWTF1::AWTF1-C-GFP. Here, three cis regions upstream of the AWTF1 coding region were examined, and the nearest region to the transcription start site (TSS) (-573 to -468 from TSS) was significantly enriched in the ChIP-qPCR with the anti-GFP antibody. Rice genome encodes a gene paralogaous to AWG7, but no cis sequence upstream of the paralogue was enriched in the same ChIP-qPCR. This results strongly suggest that the AWTF1 protein directly binds to the upstream cis region and activate the transcription of the gene required for RNA metabolism in rice tapetum at early meiotic stage.
DISCUSSION
In this study, I experimentally demonstrated that two anther wall specific transcription factors in rice, AWTF1 and AETF2, are essential to male reproductive events. However, despite of their similarity in amino-acid sequences, biological functions differed with each other. Loss-of-function awtf2 mutant showed severe defects in differentiation of tapetum and middle layer cells, suggesting that AWTF2 promotes secondary parietal cells to differentiate into both cell types. The expression of seven anther-wall genes, AWG1 to AWG7, was completely lost in the awtf2 mutant. The AWTF2 transcription factor may activate a subset of genes for middle layer and tapetum differentiation, including AWG genes. No awtf2 mutant meiocytes accomplished meiosis. This fact reminds me the hypothesis that intercellular communication with anther-wall somatic cells is important to promote meiosis in male germ cells, and also suggest that proper cell type differentiation of tapetum and middle layer are indispensable for cell-to-cell communication supposed here.
On the other hand, I characterized the AWTF1 expression hypostatic to the AWTF2. The AWTF1 expression had dual peaks in tapetum; once at early-meiosis and another at post-meiosis. Since the awtf1 mutant displayed defects in tapetum degradation, it was expected that the second, post-meiotic AWTF1 expression likely functions in tapetum PCD. On the other hand, the first, early-meiotic AWTF1 expression was expected to be distinct from the post-meiotic expression, because the AWTF1 protein was completely gone once between
both expression peaks. The ChIP-qPCR experiments in this study revealed that AWG7 gene is one of direct targets of early-meiotic AWTF1. AWG7 is an enzyme involved in an RNA metabolic pathway. Thus, cell-to-cell communication including RNA-mediated signaling will be one of the most important and attractive subjects in future studies.
From previous results, development of anther-wall layers is known to require complicate gene regulatory networks. This study proved that the AWTF2-AWTF1 transcriptional cascade is involved in the regulatory networks, and plays important roles in anther wall development; such as secondary parietal-cell differentiation to tapetum and middle layer cells, and subsequent tapetal-cell-fate decision, including an RNA metabolic pathway. Further analyses for the AWTF2-AWTF1 regulatory cascade will bring new insights into biological functions of somatic companion cells non-cell-autonomously in plant germline development.
ACKNOWLEDGMENTS
I greatly acknowledge Dr. Ken-Ichi Nonomura to supervise this study. I also acknowledge the progress report committee members; Drs. Hiroyuki Araki, Hitoshi Sawa, Yumiko Saga and Yoshiaki Tarutani giving me helpful advices and suggestions. I am thankful to all current and past members of Experimental Farm Laboratory giving me helpful discussions and great encouragements.
