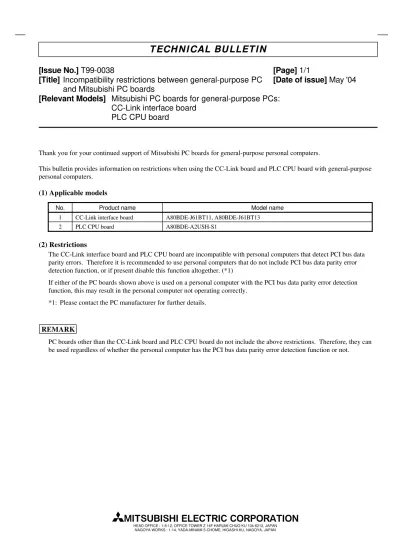

[Issue No.]
T99-0038
[Page]
1/1
[Title]
Incompatibility restrictions between general-purpose PC
[Date of issue]
May '04
and Mitsubishi PC boards
[Relevant Models]
Mitsubishi PC boards for general-purpose PCs:
CC-Link
interface
board
PLC
CPU
board
HEAD OFFICE : 1-8-12, OFFICE TOWER Z 14F HARUMI CHUO-KU 104-6212, JAPAN NAGOYA WORKS : 1-14, YADA-MINAMI 5-CHOME, HIGASHI-KU, NAGOYA, JAPAN
T ECH N I CAL BU LLET I N
Thank you for your continued support of Mitsubishi PC boards for general-purpose personal computers.
This bulletin provides information on restrictions when using the CC-Link board and PLC CPU board with general-purpose personal computers.
(1) Applicable models
No. Product name Model name
1 CC-Link interface board A80BDE-J61BT11, A80BDE-J61BT13
2 PLC CPU board A80BDE-A2USH-S1
(2) Restrictions
The CC-Link interface board and PLC CPU board are incompatible with personal computers that detect PCI bus data parity errors. Therefore it is recommended to use personal computers that do not include PCI bus data parity error detection function, or if present disable this function altogether. (*1)
If either of the PC boards shown above is used on a personal computer with the PCI bus data parity error detection function, this may result in the personal computer not operating correctly.
*1: Please contact the PC manufacturer for further details.
REMARK
