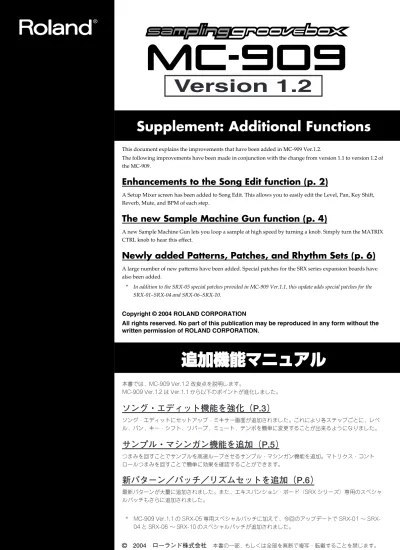

Version 1.2
Supplement: Additional Functions
This document explains the improvements that have been added in MC-909 Ver.1.2.
The following improvements have been made in conjunction with the change from version 1.1 to version 1.2 of
the MC-909.
Enhancements to the Song Edit function (p. 2)
A Setup Mixer screen has been added to Song Edit. This allows you to easily edit the Level, Pan, Key Shift,
Reverb, Mute, and BPM of each step.
The new Sample Machine Gun function (p. 4)
A new Sample Machine Gun lets you loop a sample at high speed by turning a knob. Simply turn the MATRIX
CTRL knob to hear this effect.
Newly added Patterns, Patches, and Rhythm Sets (p. 6)
A large number of new patterns have been added. Special patches for the SRX series expansion boards have
also been added.
*
In addition to the SRX-05 special patches provided in MC-909 Ver.1.1, this update adds special patches for the
SRX-01–SRX-04 and SRX-06–SRX-10.
Copyright © 2004 ROLAND CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of ROLAND CORPORATION.
追
追
追
追加
加機
加
加
機能
機
機
能マ
能
能
マニ
マ
マ
ニュ
ニ
ニ
ュア
ュ
ュ
アル
ア
ア
ル
ル
ル
本書では、MC-909 Ver.1.2 改良点を説明します。
MC-909 Ver.1.2 は Ver.1.1 から以下のポイントが進化しました。
ソング・エディット機能を強化（P.3）
ソング・エディットにセットアップ・ミキサー画面が追加されました。これにより各ステップごとに、レベ
ル、パン、キー・シフト、リバーブ、ミュート、テンポを簡単に変更することが出来るようになりました。
サンプル・マシンガン機能を追加（P.5）
つまみを回すことでサンプルを高速ループさせるサンプル・マシンガン機能を追加。マトリクス・コント
ロールつまみを回すことで簡単に効果を確認することができます。
新パターン／パッチ／リズムセットを追加（P.6）
最新パターンが大量に追加されました。また、エキスパンション・ボード（SRX シリーズ）専用のスペシャ
ルパッチもさらに追加されました。
* MC-909 Ver.1.1 の 05 専用スペシャルパッチに加えて、今回のアップデートで 01 ∼
SRX-04 と SRX-06 ∼ SRX-10 のスペシャルパッチが追加されました。
MC909_v12_je.book 1 ページ ２００４年１０月２８日 木曜日 午後２時７分Song Edit
A Setup Mixer screen has been added to Song Edit. This allows you to easily edit the Level, Pan, Key Shift, Reverb, Mute, and BPM of each step.
You must stop the song before you perform song editing operations.
Since the setup parameters you edit for each pattern are stored as song data, the setup data of the original pattern will not change.
If the system
Song Play Mode
is
“MODE2,”
and the same pattern as the currently-playing pattern is played as the next step, the setup
parameters of that step will be ignored.
1.
Select the song that you want to edit.
2.
In Song Mode, press [F2(Song Edit)] to access the Song Edit screen.
fig.songedit01a_503.
In the Song Edit screen, press [F5(Setup Mixer)] to access the Setup Mixer screen.
fig.songedit02_504.
Use [BWD]
or [FWD]
to select the step whose setup parameters you want to edit.
*
You can’t automatically proceed to the next step while editing a song.
5.
Use the [CURSOR] keys, [VALUE] dial, or [DEC][INC] to edit the setup parameters.
• You can press
[F1(Level)]
,
[F2(Pan)]
,
[F3(Key Shift)]
, or
[F4(Reverb Level)]
and use the Part Mixer sliders to edit the setup parameters. Use
[PART ASSIGN]
to switch the part (1-8/9-16) controlled by the sliders.
• Use
[PART (SELECT/MUTE)]
and part buttons
[1]
–
[16]
to specify the Mute status.
• Press
[F5 (BPM Click)]
to specify the BPM.
For details on each setup parameter, refer to “
About the setup parameters
” (p.26) in the MC-909
Owner’s Manual
.
6.
Save the song.
For details on how to save the song, refer to “
Saving a song
” (p.85) in the MC-909
Owner’s Manual
”.
Setup Mixer
ソング・エディット
ソング・エディットにセットアップ・ミキサー画面が追加されました。これにより各ステップごとに、 レベル、パン、キー・シフト、リバー
ブ、ミュート、テンポを簡単に変更することが出来るようになりました。
ソングの編集は、ソングを停止してから行ってください。
登録する各パターンのセットアップ・パラメーターをソング・データとして記憶しておくもので、元パターンのセットアップデータは変更
されません。
システムの Song Play Mode を「MODE2」にした場合は、今再生しているパターンと同じパターンを次のステップで再生すると、そのス
テップのセットアップ・パラメーターは無視されます。
1.
エディットするソングを選びます。
2.
ソング・モードで［F2（Song Edit）
］を押して、ソング・エディット画面にします。
fig.songedit01a_753.
ソング・エディット画面で［F5（Setup Mixer）］を押して、セットアップ・ミキサー画面にします。
fig.songedit02_754.
［BWD］
または［FWD］
でセットアップ・パラメーターを編集するステップを選びます。
※ ソングのエディット中は自動で次のステップには進みません。
5.
［CURSOR］キーや［VALUE］ダイヤル、
［DEC］
、
［INC］を使って各セットアップ・パラメーターを設定します。
•
［F1（Level）］
、［F2（Pan）
］
、［F3（Key Shift）］、［F4（Reverb Level）
］を押すことで、パート・ミキサーのスライダーを使って各セット
アップ・パラメーターを設定できます。［PART ASSIGN］でスライダーのパート（1 ∼ 8 ／ 9 ∼ 16）を切り替えます。
•
［PART（SELECT ／ MUTE）
］とパート・ボタン［1］∼［16］でミュートを設定します。
•
［F5（BPM Click）
］を押して、テンポを設定することができます。
各セットアップ・パラメーターに関して詳しくは、MC-909 付属の『取扱説明書』の『セットアップパラメーターについて』（P.24）をご
覧ください。
6.
ソングを保存します。
ソングの保存方法は、MC-909 付属の『取扱説明書』の『ソングの保存』（P.83）をご覧ください。
セットアップ・ミキサー
MC909_v12_je.book 3 ページ ２００４年１０月２８日 木曜日 午後２時７分The Sample Machine Gun function
A new Sample Machine Gun lets you loop a sample at high speed by turning a knob. Simply turn the MATRIX CTRL knob to hear this effect.
“
SMG
” (Sample Machine Gun) has been added as a
MATRIX CTRL#
(
CTRL1 Destination 1–4
(
Matrix Control 1 Destination 1–4
) on p.68 of the
MC-909
Owner’s Manual
).
When you execute Create Patch, “
SMG
” (Sample Machine Gun) will be the default value.
1.
In the top screen of Patch/Sample mode, move the cursor to the patch that you want to edit.
2.
Press [F2(Edit)] to access the Edit screen.
3.
Use [F1(Up)][F2(Down)] to select parameter group “CTRL 1.”
4.
Use the [VALUE] dial to make the following settings:
• “
CTRL1 Destination 1
” = “
SMG
,”
• “
CTRL1 Sens 1
” = “
+63
”
• “
CTRL1 Switch 1
” = “
ON
”
5.
When you’re finished editing, press [EXIT] to return to the top screen.
6.
Play a sample, and turn the MATRIX CTRL knob to hear the Sample Machine Gun effect.
The Sample Machine Gun function applies only to samples.
If
Auto Sync
is turned ON for a part, Auto Sync will not work while you’re using the Sample Machine Gun function.
With some samples, noise may occur at the looping point.
サンプル・マシンガン機能
つまみを回すことでサンプルを高速ループさせるサンプル・マシンガン機能を追加。マトリクス・コントロールつまみを回すことで簡単に効果
を確認することができます。
MATRIX CTRL # マトリックス・コントロール（MC-909 付属の『取扱説明書』の『CTRL1（コントロール 1）
』
P.66）の CTRL1 Destination 1
∼ 4（マトリックス・コントロール 1・デスティネーション 1 ∼ 4）に「SMG」（サンプル・マシンガン）が追加されました。
クリエイト・パッチしたときの初期値は「SMG」（サンプル・マシンガン）になります。
1.
パッチ／サンプル・モードのトップ画面で、設定を変更したいパッチにカーソルを合わせます。
2.
［F2（Edit）］を押して、エディット画面にします。
3.
［F1（↑）
］
、
［F2（ ↓）
］でパラメーター・グループ「CTRL 1」を選びます。
4.
［VALUE］ダイヤルを使用して、
「CTRL1 Destination 1」を「SMG」に
「CTRL1 Sens 1」を「+63」に
「CTRL1 Switch 1」を「ON」に設定します。
5.
エディット終了後は、
［EXIT］を押して、トップ画面に戻ります。
6.
サンプルを鳴らして、マトリクス・コントロールつまみを回すことで、サンプル・マシンガンの効果を確認することができます。
サンプル・マシンガン機能は、サンプルに対してのみ機能します。
Auto Sync を ON にしているパートはサンプル・マシンガン機能使用中は Auto Sync が効かなくなります。
サンプルによっては、ループのつなぎ目でノイズを発生する場合があります。
No. Name 033 Detuned Saw 034 Lead Scream 035 Ultimate Mod 036 Xtremity Saw 037 DarkStreet 038 SoftSoloBoo 039 Detroit Days 040 Trance Pad 041 Ring Lord 1 042 Ring Lord 2 043 Float < Back 044 Autumn Wind 045 Sync Aggress 046 Sawed Flute 047 Bugger Off! 048 Flying Sync 049 Critters 050 JustDreaming 051 The Noise 052 Velcro Synth 053 Go! 054 BoxBell Rel. 055 8Bit Kung-Fu 056 Velo Filt 057 Sub Signal No. Name 058 SAWS Galore 059 Saw SEQ 2 060 Ibiza Gtr 061 Carbon Saw 062 CutoffDeluxe 063 Toosure Lead 064 Charged Phsr 065 Syn Saw Lead 066 Enemy Craft 067 Detuned TB 068 Infected 069 MeteorCrater 070 Terminal Phs 071 HARD 072 JX Lead 073 Trance MS Ld 074 Sister Lead 075 Dark Lead 076 Trance LFO 077 ASleep 078 LFO Seq 079 Don`t Eat Me 080 Bright Dark 081 Jb`s Hit 082 MonstaTrick No. Name 083 TranceChord2 084 Hush Hush 085 Elecstars 086 Bad Bed 087 Dust Saw 088 8th WxBass 089 Club Saw04 090 Detune Bass3 091 So Bass 092 Carbon Bass 093 Dust Pulse 094 Slomo Bass 095 Wide TB 096 Barba Bass 097 Outside Bass 098 UK Bass 099 Delta Bass 2 100 Mental Bass 101 Tweeky Bass 102 Raid Bass 103 Purge Bass 104 Round 105 Hyde Bass 106 Detune Bass2 107 T-Live Bass No. Name 108 Methane Bass 109 303 Doggy 110 Super-G Saw 111 TB-ABC 112 Switched TB 113 Killer Bass 114 Cult Bass 115 Spacebuzzer 116 Partymonster 117 AmberPad 118 TrncPowerPad 119 LFO Pad Mod 120 LFOcean 121 Pizz Pad 122 I see More 123 Piano Bass 124 Clean E.Pno 125 Harpsibwoys 126 Islanalaphon 127 Lil' Bell 128 TranceString
Preset G
(CC#0=81, CC#32=70) No. Name 001 Mack Low Str 002 JPizz 003 Str Min Hit 004 Nu Skl SynBr 005 TrumpetSolo2 006 Symbiotech 007 Console 008 Trance Storm 009 Ants 010 Moon Shine 1 011 Moon Shine 2 012 Techno Pad 013 GK Riff 014 Low Taj Hit 015 Strinabition 016 Ruff Chord 017 Techno Hit 018 Bandpass Hit 019 Trance Hit 020 OHH Menu 2 021 NoisyPreset H
(CC#0=81, CC#32=71) 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No.TR909 Kick 5 AnalogKick10 TR909 Kick 1 AnalogKick 5 AnalogKick11 AnalogKick 4 AnalogKick10 AnalogKick 9 TR909 Kick 4 AnalogKick 6 Skool Kick Kick Menu 4 PlasticKick2 AnalogKick11 TR909 Kick 7 TR909 Kick 7 TR909 Kick 1 Sizzle Snr 1 TR909 SD 3 TR909 SD 1 Boys Snr 1 Keen Snr 1 TR909 SD 3 TR808 SD 7 TR909 SD 3 TR909 SD 3 Claptail Disc Clap TR606 Tom DR660 Snr TR909 SD 6 TR808 SD 5 TR909 SD 3 TR909 SD 3 Disc Clap R&B Rim 2 Swag Rim Cajon 2 TR808 Rim TR909 Rim TR808 Rim R8 Brush CHH TR909 Clap 1 TR808 Clap Hip Clap Hip Clap TR909 Clap 1 TR909 Clap 1 R8 Shaker A Tambourine1 TR909 Tom TR909 Tom Disc Clap R8 Comp Tom1 R8 Shaker B Maracas TR909 Tom TR909 Tom Claptail R8 Comp Tom3 Claptail R8 Shaker A TR909 Tom TR909 Tom MG Noise Fx Jngl Rim 1 Shaky CHH TR909 OHH 2 TR909 CHH 1 Regular CHH1 TR909 CHH 2 Analog Cym Hip PHH TR909 PHH 2 TR909 PHH 2 TR909 PHH 2 TR606 PHH 2 TR909 OHH 2 TR909 OHH 2 TR909 OHH 2 TR909 OHH 2 TR909 OHH 2 TR909 OHH 2 Neck OHH TR909 Crash TR808 OHH 1 TR909 Crash TR909 Crash TR909 Crash NaturalCrash TR909 Ride TR707 Ride TR909 Ride TR909 Ride TR707 Ride TR707 Ride
073 : Nordic Dance 074 : 909 Trance 4 075 : 909 Trance 5 076 : 909 Trance 6 077 : 909 Detroit 078 : Stomper Kit Preset (CC#0=82, CC#32=64)
079 : Euro Kit 2 080 : Electronica 081 : 909HardHouse 082 : 909 BrkBts 5 083 : 909 BrkBts 6 084 : Chill Out 1
085 : Chill Out 2 086 : Grit Kit 087 : Siren Kit 088 : Flash Kit 089 : R&B Voice
Pick Kick Low Kick 1 Kick Menu 3 TR909 Kick 1 MGTri HD TR808 Kick AnalogKick10 TR909 Kick 5 AnalogKick10 Low Kick 2 TB Dst Sqr TR808 Kick AnalogKick10 TR808 Kick Claptail TR909 Kick 3 OrchPrc Hit TR808 Kick Analog Snr 1 DJ Snare Modern Snr 1 DR660 Snr 106 Noise TR606 SD 2 Snare Menu 5 TR808 SD 4 TR909 SD 3 Modern Snr 1 LowDownSnr 1 TR606 Tom TR909 DstSD Frenzy Snr 3 R8 Shaker A RegularSnrR2 106 Noise Club CHH 1 Swag Rim Street Rim Natural Tom Neck Rim LowDownSnr 1 808 Maracas Claptail TR707 Clap Modern CHH Royal Clap TR909 Clap 1 Hip Clap TR606 Tom CHH Menu 2 TR909 OHH 1 Reso FX 106 Noise TR909 CHH 1 TR909 DstTom NaturalCrash TR909 Ride MG Attack 106 Noise TR909 CHH 2 Scratch 18 Regular OHH Perc Menu 4 Density 106 Noise TR808 Tom CHH Menu 2 Club CHH 1 TR909 Rim LowDownCHH TR909 OHH 2 TR808 CHH 1 Club CHH 2 Street PHH Cymbal Menu HipHop CHH TR808 CHH 1 TR909 PHH 1 TR909 OHH 2 Regular OHH Ah M Regular OHH TR808 OHH 1 TR606 OHH TR909 Crash Regular Ride OrangeHit 6 TR909 Crash TR808 OHH 1 TR606 Cym TR909 Ride TR909 Ride Back Hit Regular Ride NaturalCrash Regular Ride
TR808 Kick Artful Kick Wet Kick Low Kick 3 You know TR909 Kick 5 Low Kick 3 Artful Perc2 Hippie Kick Girl I can TR808 Kick Click Kick 1 Flange Snr Low Kick 2 Help me 1 Flange Snr R8 BrshSwill Reagae Snr Modern Snr 1 Baby help 1 TR808 SD 4 R8 BrshSwill Frenzy Snr 1 Tiny Snr 2 Help me 2 TR808 SD 5 Snare Menu 4 TR808 SD 4 LowDownSnr 2 Understand Street Rim TR808 Rim Step Rim Street Rim Baby help 2 TR808 Clap Real Clap 2 Hip Clap Club Clap Yeah Yeah Shaky CHH Tight Kick Maracas Hip Clap C'mon TR909 CHH 2 Real Clap 2 R8 Shaker A R8 Shaker A
TR808 Rim TR808 Rim R8 Shaker B R8 Shaker A TR909 CHH 2 TR909 CHH 1 Hip PHH Bristol CHH TR909 PHH 1 TR808 PHH 1 TR808 PHH 1 TR808 CHH 1 TR909 OHH 2 TR909 OHH 2 TR808 OHH 1 Tambourine3 TR606 Cym TR909 Ride DR55 CHH 1 Tambourine1 TR606 Cym NaturalCrash Bang OHH Regular Ride
Preset Patch List
Preset Rhythm Set List
Additional List
Additional List
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No.
SRX-01 Dynamic Drum Kits
SRX01 Poppin SRX01 StdFat SRX01StdJazz SRX01 JzFunk SRX01 70JFnk SRX01 Disco SRX01BigRock 001: 002: 003: 004: 005: 006: 007:
StudioK StudioK PwrBldK OldJazK 70PhnqK Disco K sft B.DeepK OhBabyK StreetK StudioK RoomJzK JzSoulK Disco K hrd BigRckK StdRckK StdRckK 70PhnqK StdJazK 70NtrlK OldFnkK WhamBmK PoppinS 1 StdRk1S 1 StdFatS 1 StdJazS 1 JazStkS 1 StdRk1S 1 BigRckS 1 PoppinSbuz StdRk1Sbuz StdFatSbuz StdJazSbuz JazStkSbuz StdRk1Sbuz BigRckSbuz PoppinS 2 StdRk1S 2 StdFatS 2 StdJazS 2 JazStkS 2 StdRk1S 2 BigRckS 2 PoppinSstk StdFatSstk StdFatSstk StdJazSstk JazStkSstk1 StdRk2Sstk BigRckSstk Tight S StdRk2S OhBabyS JzBrshS StdRk2S Tight S AlBeefS OhBabyT4 PwrBldT4 OhBabyT4 JazStkT3 JazStkT3 Tight T4 BigRckT3 OhBabyT3 PwrBldT3 OhBabyT3 JazStkT2 JazStkT2 Tight T3 BigRckT2 OhBabyT2 PwrBldT2 OhBabyT2 JazStkT1 JazStkT1 Tight T2 BigRckT1 OhBabyH cl StreetH cl OhBabyH cl JazStkH cl OhBabyH cl Disco H cl BigRckH cl OhBabyHpdl StreetHpdl OhBabyHpdl JazStkHpdl OhBabyHpdl Disco Hpdl StreetHpdl OhBabyHhcl StreetHhop OhBabyHhcl JazStkHhop OhBabyHhcl Disco H op BigRckHhop BalladCr YoMamaChina BalladCr JazStkCr BalladCr Light Splsh BigRckCr JazStkRd BalladRd BalladRd JazStkRd JazStkRd BalladRd BigRckRd
Rhythm Set (CC#0=92, CC#32=0, PC=001–007) Rhythm Set (CC#0=92, CC#32=2, PC=010–020) Patch (CC#0=93, CC#32=1, PC=001–010)
SRX-02 Concert Piano
Patch (CC#0=93, CC#32=3, PC=001–043)SRX-03 Studio SRX
No. Name No. Name 001 StereoPiano1 002 StereoPiano2 129 NightBlade 2 130 OB Str 909 131 TinyLove 909 132 GhettoStr909 133 MG Saw Pad 134 MovingPad909 135 GentlePad909 136 Ethernal 909 137 Hybrd Choir1 No. Name No. Name 003 StereoPiano3 004 StereoPiano4 138 Hybrd Choir2 139 Kid's Choir 140 M+F Choir 141 Plus One 142 StudioEPiano 143 Buzz AcGtr 144 Guitar Slide 145 Nylon Gtr 1 146 Nylon Gtr 2 No. Name No. Name 005 StereoPiano5 006 Dance Piano1 147 Electro Gtr 148 Jazzy 149 Jazzy Slide 150 Rich 12stGtr 151 Grunge Gtr 152 Mute 909 153 Touch Gtr 154 Majestic 909 155 Flute Attack No. Name No. Name 007 Dance Piano2 008 Pianoforte 156 Pan Pipe 909 157 Space Flute 158 MG Brs 909 159 909 Trombone 160 Mutes Tp 1 161 Mutes Tp 2 162 StudioBrass1 163 StudioBrass2 164 AltoSax909 1 No. Name No. Name 009 PnoTrance909 010 Trem AP Mod 165 AltoSax909 2 166 BariSax909 1 167 BariSax909 2 168 Honky Tenor1 169 Honky Tenor2 170 Wire Str Gtr 171 SoftoralRegular Kick Regular Kick Regular Kick Regular Kick Regular Kick Regular Kick Studio 1 K Studio 1 K Studio 1 K Studio 1 K Studio 1 K Studio 1 K Studio 2 K Studio 2 K Studio 2 K Studio 2 K Studio 2 K Studio 2 K Stdio1S 1 Stdio2S 1 Stdio1S 1 Stdio2S 1 Stdio3S 1 Stdio4S 1 Stdio1S 2 Stdio2S 2 Stdio1S 2 Stdio2S 2 Stdio3S 2 Stdio4S 2 Stdio1S flm2 Stdio2S flm2 Stdio1S flm2 Stdio2S flm2 Stdio3S flm2 Stdio4S flm2 Stdio1S stk Stdio2S stk Stdio1S stk Stdio2S stk Stdio3S stk Stdio2S stk R8 Clap Real Clap 2 Real Clap 2 Real Clap 2 Real Clap 2 Real Clap 2 StudioT3 StudioT3 StudioT3 StudioT3 StudioT3 StudioT3 StudioT2 StudioT2 StudioT2 StudioT2 StudioT2 StudioT2 StudioT1 StudioT1 StudioT1 StudioT1 StudioT1 StudioT1 StudioH cl1 StudioH cl1 StudioH cl1 StudioH cl1 StudioH cl1 StudioH cl1 StudioH cl2 StudioH cl2 StudioH cl2 StudioH cl2 StudioH cl2 StudioH cl2 StudioH op StudioH op StudioH op StudioH op StudioH op StudioH op NaturalCrash NaturalCrash NaturalCrash NaturalCrash NaturalCrash NaturalCrash Regular Ride Regular Ride Regular Ride Regular Ride Regular Ride Regular Ride
010 : SRX03 Rock 011 : SRX03 Room 012 : SRX03Studio1 013 : SRX03Studio2 014 : SRX03Studio3 015 : SRX03Studio4
SRX Special Data List
SRX special data can be used only if the corresponding wave expansion board is installed in the MC-909.
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. Patch (CC#0=93, CC#32=4, PC=001–030)
SRX-04 Symphonique Strings
No. Name No. Name No. Name No. Name No. Name 016 : SRX03 HipHop 017 : SRX03DrMenu1 018 : SRX03DrMenu2 019 : SRX03PrcMnu1 020 : SRX03PrcMnu2
Dance Kick 1 Studio 1 K Stdio4S 1 Cng2Lo Mute Bng4Lo Fingr Studio 1 K Studio 2 K Stdio4S 2 Cng2Lo Open Bng4Lo Fngrs Studio 2 K Stdio1S 1 Stdio4S flm Cng2Lo Roll Bng4Lo Mute CymbalS 1 Stdio1S 2 StudioT4 Cng2Hi Mute Bng4Lo Open CymbalS 2 Stdio1S flm StudioT3 Cng2Hi Open Bng4Lo Slap Stdio4S flm2 Stdio1S stk StudioT2 Cng2Hi SlpMt Bng4Hi FngMt Stdio2S stk Stdio2S 1 StudioT1 Cng2Hi SlpOp Bng4Hi FngOp Hip Clap Stdio2S 2 StudioT4 flm Cng2Hi Flam Bng4Hi Fngrs StudioT3 Stdio2S flm StudioT3 flm Cng2Hi Roll Bng4Hi Heel StudioT2 Stdio2S stk StudioT2 flm Timbale3 Hi Bng4Hi Slap StudioT1 Stdio3S 1 StudioT1 flm Tmbl3HiPaila Bng4Hi Open StudioH cl1 Stdio3S 2 StudioH cl1 Timbale3 Lo Bng4Hi Flam StudioH cl2 Stdio3S flm StudioH cl2 Tmbl3LoPaila Bng4Hi Roll StudioH op Stdio3S stk StudioH op
NaturalCrash CymbalS 1 StudioH pdl Regular Ride CymbalS 2
129 Imitate Bell 130 Juno Atk 909 131 Mystery 909 132 Mysterious 133 Sweep 909 134 SweepStr 1 135 AntiqueStr 2 136 MistyStr 909 137 SynStrings 2 138 Soft Mover 3 139 SquareStr909 140 BellyStr 909 141 EtherStr 909 142 EpicStr 909 143 Str mp 909 144 MarcStr 909 145 Spic Str 909 146 TreStr1 909 147 TreStr2 909 148 Hybrid Str 3 149 Hybrid Str 4 150 Horror Str.2 151 TremSt mp909 152 Slow Str 909 153 909 Unison 154 909 Sweep 1 155 909 Sweep 2 156 5th Str 909 157 Sweep Pad 2 158 Haunted 2 MC909_v12_je.book 7 ページ ２００４年１０月２８日 木曜日 午後２時７分
Additional List
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. Rhythm Set (CC#0=92, CC#32=7, PC=006–009) Patch (CC#0=93, CC#32=10, PC=066–089)
SRX-06 Complete Orchestra
No. Name No. Name No. Name No. Name No. Name
450 Uill Lead 1 451 Uill Lead 2 452 Sweep Str909 453 Mysterious 454 BellyStr 909 455 SquareStr909 456 BellyHrn 909 457 Sweep Str 2 458 5th Str 909 459 Soft Sweep 460 SweepStr 2 461 MovingPad909 462 GentlePad909 463 Ethernal 909 464 Slow Str 909 465 Super JP 1 466 Super JP 2 467 Hybrid Str 5 468 Hybrid Str 6 469 909 Orch 1 470 909 Orch 2 471 Hrn&Str 1 472 Hrn&Str 2 473 Hybrid Brass
Concert BD 3 Orch Hit Dim Gliss Maj Harp Maj Up Orch BD Orch Hit Maj Gliss Min Harp Maj Dwn Concert BD 1 Orch Hit Min Tremolo p Harp m7 Up Orch Snr Orch Hit Maj Tremolo sfz Harp m7 Dwn Concert Snr2 Orch Hit Min Tremolo f Harp 9th Up OrchSnr Roll Orch Hit Dim Pentatonic Harp 9th Dwn Slapstick Orch Hit f Gliss Maj Lp Harp +7 Up JingleBell 2 OrchestraHit Gliss Min Lp Harp +7 Dwn Finger Cym 2 Staccato p Cluster Harp b9 Up Perc Hit 2 Staccato f BoysAleluial Harp b9 Dwn Perc Hit 1 F.Horn Rip Boys Amen 1 Mute Triangl Brass Fall Boys Amen 2 Mute Triangl Tps Fall Amen Open Triangl Brass Stacc Alluia Cymbal Hit Tenor Grongkas
006 : SRX06OrchKit 007 : SRX06OrchHit 008 : SRX06OrchPhr 009 : SRX06HarpPhr
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 73 C4 C5 Note No. Rhythm Set (CC#0=92, CC#32=11, PC=012–019) Patch (CC#0=93, CC#32=14, PC=092–128 / CC#32=15, PC=001–010)
SRX-07 Ultimate Keys
No. Name No. Name No. Name No. Name No. Name
476 Pure Saw 1 477 Pure Saw 2 478 Pure Saw 3 479 JU2 Saw Wave 480 Pure Saw 4 481 Pure Square1 482 Pure Square2 483 Pure Square3 484 Pure Pulse 1 485 Pure Pulse 2 486 Pure Pulse 3 487 Pure Pulse 4 488 Pure Pulse 5 489 PureTriangle 490 Pure Sine 491 Pure PWM 492 Pure Unison 493 JP4 Bass 1 494 JP4 Bass 2 495 SH101 Bass 1 496 SH101 Bass 2 497 SH101 Bass 3 498 SH101 Bass 4 499 SH101 Bass 5 500 Poly Bass 1 501 Poly Bass 2 502 TB Bass 503 5th Grand 504 Cluster Pno 505 Soft E.Piano 506 Suitcase mf 507 Hard E.Piano 508 Soft Wurly 509 Buzz E.Piano 510 BPF Clv 511 Digital Wire 512 Digi Clavi 513 909 Keys 514 909 Bell 1 515 909 Bell 2 517 BPF Bell 518 Analog Bell2 519 Org Prc 909 520 Nylon Soft 521 Nylon Mid 522 Clean TC 909
Boomer Kick1 Comp Kick 3 Real Dry K3 Boomer Kick1 Boomer Kick1 Real Dry K3 Boomer Kick2 Comp Kick 2 Real Dry K2 Boomer Kick2 Comp Kick 3 Real Dry K2 Medium Kick Comp Kick 1 Real Dry K1 Medium Kick Lo-Fi Kick Real Dry K1 Ring Snare SlamRm sftSn SlmDry Snare Dry Snare RockOn Snr 1 DryFat Snare Ring rol Snr SlamRm rolSn SlamRm rolSn Dry rol Snr Ring rol Snr DryFat rolSn Ring flm Snr SlamRm flmSn Verb Snare Dry flm Snr RockOn Snr 2 DryFat flmSn Live Stick NaturalStick NaturalStick NaturalStick Live Stick NaturalStick Real Clap 2 Real Clap 2 Real Clap 2 Real Clap 2 Real Clap 2 Real Clap 2 13 MPL Tom Soft Tom 3 Soft Tom 3 Soft Tom 3 Verb Tom 5 13 MPL Tom 12 MPL Tom Soft Tom 2 Soft Tom 2 Soft Tom 2 Verb Tom 3 12 MPL Tom 10 MPL Tom Soft Tom 1 Soft Tom 1 Soft Tom 1 Verb Tom 1 10 MPL Tom 18 Hat cls 1 18 Hat cls 2 18 Hat cls 2 18 Hat cls 2 18 Hat cls 1 18 Hat cls 1 18 Hat pedal 18 Hat pedal 18 Hat pedal 18 Hat pedal 18 Hat pedal 18 Hat pedal 18 Hat opn 1 18 Hat opn 2 18 Hat opn 2 18 Hat opn 2 18 Hat opn 1 18 Hat opn 1 Long Crash 1 Long Crash 1 Long Crash 1 Long Crash 1 Long Crash 1 Long Crash 1 Long Ride 1 Long Ride 1 Long Ride 1 Long Ride 1 Long Ride 1 Long Ride 1
Real Dry K1 Real Dry K1 Lo-Fi Kick MG ThumpKick Meat Kick Ring Snare Real Dry K2 Real Dry K2 Stomp Kick MG Blip Kick Boomer Kick1 Ring rol Snr Real Dry K3 Real Dry K3 Deep Dry K SQR Kick Boomer Kick2 Ring flm Snr Funk Snare 1 Warm Snare Picc. Snare Choke Snare Medium Kick SlamRm sftSn SlamRm rolSn SlamRm rolSn Picc. rol Sn P5 X-mod Deep Dry K SlamRm rolSn Funk Snare 2 Warm flm Snr Picc. flm Sn LiteVerb Snr Real Dry K1 SlamRm flmSn NaturalStick NaturalStick NaturalStick Click Stick Real Dry K2 SlmDry Snare Real Clap 2 Real Clap 2 Real Clap 2 TR909 Clap 2 Real Dry K3 Dry Snare Soft Tom 3 Soft Tom 3 Soft Tom 3 MG Blip Tom3 Stomp Kick Dry rol Snr Soft Tom 2 Soft Tom 2 Soft Tom 2 MG Blip Tom2 Comp Kick 1 Dry flm Snr Soft Tom 1 Soft Tom 1 Soft Tom 1 MG Blip Tom1 Comp Kick 2 RockOn Snr 1 16 Hat cls 1 16 Hat cls 1 16 Hat cls 2 CR78 Hat cls Comp Kick 3 RockOn Snr 2 16 Hat pedal 16 Hat pedal 16 Hat pedal CR78 Hat Pdl Lo-Fi Kick Verb Snare 16 Hat opn 1 16 Hat opn 1 16 Hat opn 2 CR78 Hat opn Warm Snare Long Crash 1 Long Crash 1 Long Crash 1 Long Crash 1 Warm flm Snr Long Ride 1 Long Ride 1 Long Ride 1 Long Ride 1
DryFat Snare 18 Hat pedal 16 MPL Tom BW Jz 6/8 52 MM Slide 1 Wah Down 1 DryFat rolSn 18 Hat cls 1 13 MPL Tom BW Brush 66 MM Slide 2 Wah Up 1 DryFat flmSn 18 Hat cls 2 12 MPL Tom AL Slam 66 AL Slide Wah Down 2 Funk Snare 1 18 Hat hlf 1 10 MPL Tom AL Whack 76 JP Slide 1 Wah Up 2 Funk Snare 2 18 Hat hlf 2 Soft Low Tom AL Grunge 84 JP Slide 2 Gtr Feedback Picc. Snare 18 Hat opn 1 Soft Mid Tom BW Swamp 90 JP Slide 3 Gtr Scrap Picc. rol Sn 18 Hat opn 2 Soft Hi Tom BW Latin 102 AL Nz 1 Gtr Slid Nz Picc. flm Sn 16 Hat pedal LoVerb Tom BW Fusion112 AL Nz 2 Gtr Cut Nz Choke Snare 16 Hat cls 1 HiVerb Tom AL Funk 120 AL Nz 4 Gtr Slap LiteVerb Snr 16 Hat cls 2 AL Shuff.126 AL Nz 5 Live Stick 16 Hat hlf 1 AL Nz 7 NaturalStick 16 Hat hlf 2 AL Nz 8 Click Stick 16 Hat opn 1 AL Nz 9 16 Hat opn 2 JP Frls Nz 1
SRX07RingKit SRX07SlamKit SRX07VerbKit SRX07SlapKit SRX07RockKit SRX07 DryFat 012: 013: 014: 015: 016: 017:
018: 019: 020: 021: 022: 023:
024: 025: 026: 027: 028: 029: SRX07LiteFnk SRX07WarmKit SRX07 HiTune SRX07 Analog SRX07 BDMenu SRX07 SDMnu1
SRX07 SDMnu2 SRX07 HHMenu SRX07 TomMnu SRX07 LpMenu SRX07 BsMenu SRX07 GtMenu
Additional List
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No.
No. Name No. Name No. Name No. Name No. Name Patch (CC#0=93, CC#32=18, PC=065–086) Rhythm Set (CC#0=92, CC#32=15, PC=022–059)
SRX-08 Platinum Trax
449 SawsStack909 450 Intense 909 451 Triangle 909 452 EP Lead 909 453 Alpha Killer 454 S&H 909 455 JU&JP 909 456 JUNOSweep909 457 Daft Str 909 458 Sweep JUNO 459 Sweep Drone 460 MovingPad909 461 GentlePad909 462 Ethernal 909 463 Avalon 909 464 Slow Str 909 465 Super JUNO 1 466 Super JUNO 2 467 Hybrid Str 7 468 5th Str 909 469 Enigmatic909 470 909 SawBrassTR909 Dst BD ElectricKick Punchy K 2 Medium K2 Plastic BD 2 Jungle Crash Full House K Plastic Kick Dance Kick 4 Hicut K TR909 Kick 1 JungleKick 2 Plastic Kick Bottom K PurePhatKick Direct K Culture Kick JungleKick 1 TR909 Snr 6 TR909 Snr 2 PurePhat Snr Little SN TR808 Snr 1 Jungle Snr 1 TR909 Snr 5 TR909 Snr 6 Antigua Snr Headz Snare TR909 Snr 1 Jungle Snr 4 TR909 Snr 3 TR909 Snr 1 HipHop Snr 3 Urban Snare TR909 Snr 2 Break Snr TR909 Rim TR909 Rim SideStiker Real Rim TR909 Rim Real Rim Claptail TR909 Clap 2 TR707 Clap Real Clap 2 TR909 Clap 2 Shot Clap TR909 Tom 3 Organ Hit 2 BD Scratch 1 Triangle opn MidRealConga 808 KickBs 1 TR909 Tom 2 Ahhhhhh 2 BD Scratch 2 Triangle mt LowRealConga 808 KickBs 2 TR909 Tom 1 JUNO Blip 1 TechnoShaker Belltree FstAtkCngHi 808 KickBs 3 TR909 CHH 2 TR909 CHH 2 ShortNzMidHH Mid Hat TR909 CHH 1 ShortNzMidHH TR909 PHH 1 TR909 PHH 1 Overlord ShortOpen HH TR909 PHH 1 Noizzz HH TR909 OpHat TR909 OpHat HipHopMedHat Openopen HH TR909 OHH 2 Hi Open HH TR909 Cymbal TR909 Cymbal Crash 1 Long Crash 1 Long TR909 Crash TR909 Cymbal TR909 Ride TR909 Ride Lo-Fi Ride Lo-Fi Ride TR909 Ride Ride 3
Full Range K TR606 Kick 1 Video Kick Hall Kick 2 Hybrid Kick TR606 Snr 1 Dynamic K TR606 Kick 2 JungleKick 1 Funky Kick Rock Rim BD TR606 Snr 2 Hall Kick 2 TR707 Kick 1 Street Kick Too Big Kick TR909 Kick 3 TR606 Snr 3 DR Snare 2 TR707 Kick 3 TR707 Kick 2 Hall Kick 1 TR909 Kick 4 TR606 Snr 4 Wooden SN TR808 Kick 2 Turbo Kick Boom Kick 606 Dst Kick TR707 Snr 1 HpHpJazzySnr TR808 Kick 3 Hicut K FarNear Kick Hop Kick TR707 Snr 2 Lo-Fi Rim TR808 Kick 1 Full Range K Thump Kick DR Cmp Kick TR808 Snr 1 Real Clap 2 50Hz K Sub & Noiz K PurePhatKick Dance Kick 2 Rage Snare TR707 Tom 3 Amsterdam BD JungleKick 2 Sim Kick DrctRehrsalK Indus Snare TR707 Tom 2 TR909 Dst BD Jungle Kick Lo-Fi Kick Fat Clap K TooBig Snr TR707 Tom 1 Noizzy 909 K Hip Kick Direct K BeatBox Kik2 Overring Snr Lil' Hat Bottom 909 K Ninja Kick Tone K BeatBox Kick TekRok Snare Junk Hat Culture Kick Slamn'Kick 1 Dynamic K Roll Kick Cruis'n Snr Cym OHH Optic Kick Slamn'Kick 2 Clone K Slamn' Snr TR909 Cymbal Lo-Fi BD Dance Kick 4 Open Cut K Clap Snare Ride 3 Wet Kick Break Kick 1ToTheFloorK HpHpJazzySnr
Ragga Snr 2 Flat Snare CR78 Snare TR808 Rim CR78 CHH Openopen HH Lo-Fi Snare HipHop Snr 4 Electro Snr TR808 Rim 2 TR606 CHH OpenDitherHH Urban Snare Dance Snr 2 Sim Snare TR808 RimLng TR707 CHH Let It Go HH R&B Snare Whack Snr 2 Echo Snare TR909 Rim 808 HH BeatBox Hat Break Snr Tiny SN BeatBox Snr1 TR909 DstRim TR808 CHH 1 CR78 Hat Jungle Snr 1 Hi Snare BeatBox Snr2 TR707 Rim TR808 CHH 2 TR606 PHH Jungle Snr 2 Clap SN Roll Snare SideStiker TR909 CHH 1 TR707 PHH Jungle Snr 3 Cut Hats Snr Little SN Real Rim Open Soft HH TR808 PHH Jungle Snr 4 PurePhat Snr Cutted SN Bright Rim Noizzz HH TR909 PHH 1 Jungle Snr 5 AllInOne SN Live SN Ragga Rim JazzClosedHH TR909 PHH 2 Headz Snare DistortedSnr Back Rev SN Ragga Rim 1 Full Ambi HH Analog Shake Antigua Snr ShrtDirectSN Heavy SN Ragga Rim 2 Junk Hat CR78 OHH MC Snare Tone Comp SN Scrap Snr Lo-Fi Rim Open Hard HH TR606 DstOHH DR Snare 1 Stick SN High Rim SN Sizzle Rim FastOpnSynHH TR707 OHH HipHop Snr 3 Vintage SN Mid Rim SN BeatBox Rim Hi Open HH TR808 OHH Machine Snr Syn-SN Rim and SN VinylOpen HH 808 Open HH
SRX08 Techno SRX08 Trance SRX08 HipHop SRX08 R&B SRX08 House SRX08 DnB 022: 023: 024: 025: 026: 027:
028: 029: 030: 031: 032: 033:
034: 035: 036: 037: 038: 039:
SRX08 BrkBts SRX08BDMenu1 SRX08BDMenu2 SRX08BDMenu3 SRX08BDMenu4 SRX08SDMenu1
SRX08SDMenu2 SRX08SDMenu3 SRX08SDMenu4 SRX08RimMenu SRX08HHMenu1 SRX08HHMenu2
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No.
TR909 OHH 1 TR606 Tom TR909 Clap 2 SynthCongaHi HighShakeUp AnalogCwblHi TR909 OHH 2 TR606 Tom 2 Real Clap 1 SynthCongaLo HighShakeDwn AnalogCwblLo TR909 OHH 3 TR606 CmpTom Real Clap 2 TR808 Conga2 Snake Shake Tin Cowbell TR909 OpHat TR707 Tom Poly Clap TR808 Conga1 Shortie Real Bell Hi Vintage Hat TR707 CmpTom TS Clap AnalgCongaHi Klick Shake TR727 Agogo TR909 DstOHH TR808 Tom Clap Stop AnalgCongaLo Open Shake ReverbCowbel R8 OHH TR909 Tom HC2 Dry Clap MidRealConga Egg Shake HardTambourn Cym OHH TR909 DstTom Scratch Clap Surdo open Dirty Shake Tamb.Short 2 Rock OpHat Deep Tom Comp Clap ShortGuira 1 Sand Shake Tambourine 2 HipHopMedHat Electro Tom Claptail ShortGuira 2 Hit Shake Tamb. Long 2 B.Box OpHat Kick Tom Funk Clap Guira 1 B.Box Shaker CR78 Tamb 2 Garbage Tom HipHop Clap Guira 2 CR78 Cowbell Rattle Tamb Natural Tom Crackhed TR727Quijada TR707Cowbell Tack+Tambrn Can Tom MC Clap TechnoShaker TR808Cowbell TambourinHit Shot Clap Dance Shaker TR808 Cowbel Tamb Hit&Shk Room Clap Small Shake SynthCowbell NoizzyTambrn
SRX08HHMenu3 SRX08TomMenu SRX08ClpMenu SRX08PrcMnu1 SRX08PrcMnu2 SRX08PrcMnu3 040: 041: 042: 043: 044: 045:
Additional List
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No.
Light Tambrn VC A Ahhhhhh 1 Give it Up JUNO Blip 1 Bauw Hit SuprHighTamb VC E Ahhhhhh 2 Oh Yeah! Beam HiQ ClassicHseHt EffectTambrn VC I Breath Get Off JUNO Blip 2 Slice of Trp Jingle Bell VC O Kick it! Get Up Sci-Fi 2 Rattle Hit Schelle VC U Come on! Get On 1 PC-2 Spacers P.Phatt Hit Belltree VC One Funky! Get On 2 Analog Bird P-Zing Funky Tri VC Two Crazy! Dance ElectronFall Plock Drum Flex Canvas Laugh DJ! Do It ! GeigerCountr VibratingMtl Noiz Perc. Female Laugh Go! Jam ! Fuse EFX Tom Lp Shot Perc. Pretty Aou! Stop! House Music Scraping Air Gun BeatBox Perc Singing Ahh Good Eve Come On Neon Hum Panic Hi Bongo L.F Hoo! Say Yeah! Tic Buzzer Tick Lo Bongo L.F Uuha Scream! Tac Toy Gun 1 High Cut MuteCGA L.F Whouw Baby! Tigidi Toy Gun 2 Ping Pong Hi Conga L.F Eh Get on Up Tac Tac Cuica Hit MachineShout Lo Conga L.F Oh ! MC! Oh No ! Breath Hit Metal
Tuned 4 bit MachineNoise 61:Slow Grv 88:Crackl'n 95:Head Bobn 125:Basic 1 Toy Perc. Creepy 1 75:BoomRvBel 88:HmBeatBx2 95:Pure Phat 125:Basic 2 Metal Box 150:PhoneFrq 76:TrpHpKikn 89:BuzyFunky 96:PlainJane 125:ClpMania Metal Bang Distressed 78:NinjaBrek 89:Slamn'Grv 96:Jane 2 125:LowToEnd MetallicShot Tunnel Rain 80:Thump Grv 90:Swingn 98:Funkster1 125:LivZone1 FX Triangle UK Station 80:MetalHead 90:NoizyBoys 98:Funkster2 125:LivZone2 GlassBreakLp Heat Seeker 81:Ringn Kit 90:Swingdirt 104:BigBottm 125:LivZone3 PCM Press Droppin' 83:Big & Bad 91:NotopHpHp 104:Respect 125:LivZone4 ElectricDunk Boing 83:HmBeatBx1 91:Cruis'n 104:Riddim 125:LivZone5 Thrill Fireball 83:Poing Snr 91:Uptown 108:Gargle 125:LpFabric Drill Hit Firebomb 85:Snr Wall 91:BigBeauty 116:Elect'80 125:Puristc Sawing 86:Street 16 92:Jazzman 120:Electro1 125:FullHous Turbine 86:Bubbles 92:Overring 120:TeknoBNG 125:4thFloor CompresStart 88:TrenchTwn 92:Boom Town 132:Detroit 125:Front CompresStop 88:Cut Hats 92:Too Big 132:Agogo 125:Fatbrett Jack Hammer 88:Yo! 94:Ya Mon 138:Electro2 125:FatTrck1
125:BsWorx 1 125:HousePf1 125:BsWorx 2 125:HousePf2 125:Mid Beat 125:HousePf3 125:Offbt HH 125:HousePf4 125:Tamb Man 125:Pf&Str 1 125:AccntShk 125:Pf&Str 2 125:DoublShk 125:Pf&Str 3 125:Ganza 125:E-Groove 125:Triangle 125:SlowWah1 125:Conga 125:SlowWah2 125:ToneCong 125:OpenStr1 125:StpBongo 125:OpenStr2 125:FullBrzl 125:WahMute1 125:WahMute2 125:BendLick 125:Dry Funk 046: 047: 048: 049: 050: 051: 052: 053: 054: 055: 056: 057: 058: 059:
SRX08PrcMnu4 SRX08VoxMnu1 SRX08VoxMnu2 SRX08VoxMnu3 SRX08FXMenu1 SRX08FXMenu2
SRX08FXMenu3 SRX08FXMenu4 SRX08LpMenu1 SRX08LpMenu2 SRX08LpMenu3 SRX08LpMenu4
SRX08LpMenu5 SRX08PhrMenu
Patch (CC#0=93, CC#32=22, PC=031–112)
SRX-09 World Collection
No. Name No. Name No. Name No. Name No. Name
415 Voices 1 909 416 Voices 2 909 417 E.Gtr 1 909 418 E.Gtr 2 909 419 E.Gtr 3 909 420 E.Gtr 4 909 421 E.Gtr 5 909 422 E.Gtr 6 909 423 Mute.Gt1 909 424 Mute.Gt2 909 425 PdlStl 1 909 426 PdlStl 2 909 427 Requint 909 428 NylonGt 909 429 Ac.Gt 1 909 430 Ac.Gt 2 909 431 Ac.Gt 3 909 432 Reso.Gt1 909 433 Reso.Gt2 909 434 Violin 909 435 Fiddle 909 436 Pizz 909 437 StrAtk 909 438 Erhu 1 909 439 Erhu 2 909 440 Esraj 909 441 Kemanche 909 442 Flute 1 909 443 Flute 2 909 444 Pipe 1 909 445 Pipe 2 909 446 Pipe 3 909 447 Pipe 4 909 448 Pipe Tre 909 449 Pipe 5 909 450 Pipe 6 909 451 Pipe 7 909 452 Shaku 909 453 ShakuAtk 909 454 Tps 909 455 Tp 1 909 456 Tp 2 909 457 Tp 3 909 458 Tp 4 909 459 Tp Shake 909 460 TpGrrwah 909 461 Mute Tp 909 462 Tbs 1 909 463 Tbs 2 909 464 Tb 1 909 465 Tb 2 909 466 Tb 3 909 467 Tuba 909 468 BrsSect1 909 469 BrsSect2 909 470 BrsAtk 909 471 HuntPipe 909 472 Santur 909 473 Didgdoo 909 474 Mandolin Dn 475 Mandolin Up 476 Banjo 1 909 477 Banjo 2 909 478 ChinaGt1 909 479 ChinaGt2 909 480 Zither 909 481 Kanoun 909 482 Kayakeum 909 483 Pipa 909 484 Shami 909 485 AfroDrm 909 486 Cajon 909 487 Surdo 909 488 Conga 909 489 Bongo 909 490 ChinaPrc 909 491 JapanPrc 909 492 Doholla 909 493 Tablah 909 494 Clv&Cuica909 495 Shaker 909 496 CbsCxGnz 909 MC909_v12_je.book 10 ページ ２００４年１０月２８日 木曜日 午後２時７分
Additional List
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. Rhythm Set (CC#0=92, CC#32=19, PC=013–035)
Fat BD Maple Kick Bongo HiOp f Caixa Rim Conga Lo Mt PandeiroCrsh
Room Kick 2 Warm Kick Bongo Lo Hrd Caixa Roll Conga Roll PandeiroHit
Regular Kick Regular Kick Bongo Lo Sft Caixa Roll2 Conga Slap PandeiroL Hi
Maple Lo Snr NaturlHardSN Bongo LoOp f Cajon Hi Conga Thumb PandeiroL Lo
MapleSoft SN NaturlRimSht Bongo LoOpmf Cajon Lo CongaLoOp f PandeiroL Rm
R&B RegSnr 1 R&B RegSnr 3 Bongo LoSlap Cajon Rol Hi CongaLoOp mf PandeiroL Sp
Cross Stick2 Cross Stick2 BongoBell Mt Cajon Rol Lo Cowbell 1 PandeiroMute
Hand Clap 2 Claps Real BongoBell Op Caxixi Cowbell 2 PandeiroOpen
Studio Tom 3 Studio Tom 3 BongoHiSlap1 Chekere 1 Cowbell 3 PandeiroRim
Studio Tom 2 Studio Tom 2 BongoHiSlap2 Chekere 2 Cowbell Mt 1 PandeiroRoll
Studio Tom 1 Studio Tom 1 Cabasa Roll Chekere 3 Cowbell Mt 2 PandeiroS Op
Dixie HH Cls Dixie HH Cls Caixa Mute Clave! Cowbell Op 1 PandeiroS Rm
Dixie HH Pdl Dixie HH Pdl Caixa Mute2 Claves Lo 2 Cowbell Op 2 PandeiroS Sp
Dixie HH Opn Dixie HH Opn Caixa Open1 Conga Hi Mt MaracasUpDwn Quide Long
NaturalCrash NaturalCrash Caixa Open2 Conga Hi Op MtlGuiroLng Quide Short
Regular Ride Regular Ride Caixa Open3 Conga Link MtlGuiroSht Quijada
Rainstick Shaker Long Sabor! Tsuzumi 2 Hi Gamelan Gong Xiao Bo
Real Cabasa1 Shaker Short Arriba! Tsuzumi 2 mf Asian Gong 3 Asian Gong 5
Real Cabasa2 TamborimRim Ole! Tsuzumi 2 p Asian Gong 4 Shou Luo 1
RecoRecoLng TamborimRoll Uno! Tsuzumi Hi Asian Gong 6 Shou Luo 2
RecoRecoSht Tambrin Hit Dos! Tsuzumi Lo Asian Gong 7 Shu Ban 1
Repinique1 TambrinShake Tres! Wadaiko Ban Gu 1 Shu Ban 2
Repinique2 Timbale Hi Quatro! Wadaiko Rim Ban Gu 2 Shu Gu
RepiniqueHrd Timbale Lo Grito-Hahaha Ho Ban Gu 3 Shu Gu Rim
RepiniqueSft Timbale Side Grito-Ahaha! Yoh Ban Gu 4 Tang Gu Mt
Repique Open Timbales Rim Grito-Haahai iYooh Gu Hi Tang Gu Op
Repique Rim TimbalesFil1 Grito-Rrrrr! Yyoo Dude Gu Roll BaliCym Cls
Repique Roll TimbalesFil2 Tiquitito! Buk HuYinLuoH Mt BaliCym Opn
SambaBateria TimbalesFil3 Grito-Oa Oa! Buk Rim HuYinLuoH Op Ceng Ceng
SambaWhistle TimbalesFil4 Grito-Eh Eh! Changgo HuYinLuoL Mt Chenchen Cls
Shaker 1 TimbalesHand Ama ya ahi! Asian Gong 1 HuYinLuoL Op Chenchen Opn
Shaker 2 Timbles HiMt Fuego! Asian Gong 2 Nao Bo Kopyak Mt
SRX09 AcDrm1 SRX09 AcDrm2 SRX09 Latin1 SRX09 Latin2 SRX09 Latin3 SRX09 Latin4 013: 014: 015: 016: 017: 018:
019: 020: 021: 022: 023: 024: SRX09 Latin5 SRX09 Latin6 SRX09 Latin7 SRX09 Asia 1 SRX09 Asia 2 SRX09 Asia 3
59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. 59 63 64 65 67 69 71 66 68 70 60 62 61 72 74 73 C4 C5 Note No. Patch (CC#0=93, CC#32=23, PC=101–124)
SRX-10 Big Brass Ensemble
No. Name No. Name No. Name No. Name No. Name
101 Hybrid Brs 1 102 Reso Lead 1 103 Reso Lead 2 104 SweepBrs 909 105 MystriousHrn 106 Brs&Str1 909 107 SquareBrs909 108 BellyHrn 909 109 Sweep St&Brs 110 SoftSweepBrs 111 Sweeper 909 112 MovingPad909 113 GentlePad909 114 Ethernal 909 115 Slow Brs&Str 116 Tp + JP 117 Tb + JP 118 Hybrid Brs 2 119 909 Orch 1 120 909 Orch 2 121 Brs&Str 1 122 Hybrid Brs 3 123 Brs&Str 2 124 5th Hrn 909
Dhol 3 TablaBaya 1 Bendir 1 Gameran 1 180:LatinPt2 108:PndrPtn2
Dhol 4 TablaBaya 2 Bendir 2 Gameran 2 192:LatinPt1 138:PndrPtn3
Dhol 5 TablaBaya 3 Dawul Gameran 3 96:Cng6/8 1 132:AgogoPtn
Dholak 1 TablaBaya 4 Doholla Dom Gameran 4 96:Cng6/8 2 132:BotlePtn
Dholak 2 TablaBaya 5 Doholla Roll Gameran 5 144:CgBolero 104:BomboPtn
Dholak 3 TablaBaya 6 Doholla Sak Gameran 6 88:CgCumbia 126:SurdoPt1
Dholak 4 TablaBaya 7 Doholla Stop Gameran 7 168:CgChacha 108:SurdoPt2
Dholak 5 TablaBaya 8 Doholla Tak Gameran 8 160:CgMambo 138:CaixaPtn
Dholak 6 TablaBaya Ge Doira Dun Gameran 9 104:CgMriach Samba 1
Dholak 7 TablaBaya Ka Doira Tik Gameran 10 138:CgMarinr Samba 2
Dholak 8 TablaBaya Na Rek Dom Gameran 11 126:CgWonwn 132:TambrmPt
Dholak 9 TablaBaya Te Rek Open Gameran 12 100:TmblPtn3 108:RepnqPt1
Dholak Ga TablaBaya Ti Rek Tek BaliCym Opn 120:TmblPtn4 144:RepnqPt2
Dholak Na TablaBayaGin Rek Trill BaliCym Cls 132:TmblPtn1 96:Salsa
Dholak Ta TablaBayaSld Sagat Close Chenchen Cls 132:TmblPtn2 96:Cumbia
Dholak Tun TablaBayaTin Sagat Open Chenchen Opn 80:PndrPtn1 116:Mariachi
Cuica 2 Chenchen Ptn 120:Bnjo G 140:EGtr3 C+ EG C Bend 1
Shaker 1 Udu Pot MENU 120:Bnjo A 140:EGtr3 D+ EG C Bend 2
Shaker 2 92:DholakPh 120:Bnjo B 120:PdSt1 C EG D Bend 1
104:Shakin' 118:TablaByP 120:Bnjo Cm 120:PdSt1 D EG D Bend 2
Shaker 3 Tablah 1 120:Bnjo Cm+ 120:PdSt1 G EG D Bend 3
Didgeridoo 1 Tablah 2 120:Bnjo G-C 140:PdSt2 D EG E Bend 1
Didgeridoo 3 Tablah 3 120:BnjoG-C+ 140:PdSt2 G EG E Bend 2
78:Korea Ph Tablah 4 95:EGtr1 G 140:PdSt2 D+ EG E Bend 3
Korean Ens Tablah Bend 95:EGtr1 C 140:PdSt2 G+ EG Slide 1
Er Hu Phrase TablaBY 1 95:EGtr1 D Gtr Strum 1 EG Slide 2
GuZhengArpUp TablaBY 2 95:EGtr2 G Gtr Strum 2 EG Slide 3
GuZhengArpDn TablaBY 3 95:EGtr2 D Nyln GtrNz 1 EG Slide 4
118:ChinaPh1 120:Dhol Ph 140:EGtr3 G Nyln GtrNz 2 EG Slide 5
132:ChinaPh2 African Ens 140:EGtr3 C Bouzki Chd 1 EG Slide 6
78:GamelnP2 Morocco Ens 140:EGtr3 D Bouzki Chd 2 EG Slide 7
122:GamelnP1 140:EGtr3 G+ Bouzki Chd 3 EG Rake 1
SRX09 India1 SRX09 India2 SRX09MidEast SRX09Gamelan SRX09PhrMnu1 SRX09PhrMnu2
SRX09PhrMnu3 SRX09PhrMnu4 SRX09GtrPhr1 SRX09GtrPhr2 SRX09GtrPhr3
025: 026: 027: 028: 029: 030:
031: 032: 033: 034: 035:
656 C'mon Now 78 4 Roland US 657 Back in the Club 144 8 Justin Berkovi 658 Newe World 142 8 Justin Berkovi 659 Hardetroit 142 8 Justin Berkovi 660 In Fury 142 8 Justin Berkovi 661 MumbaiFill 142 8 Justin Berkovi 662 Bring it on 138 4 Justin Berkovi 663 Party Club 1 140 8 Manuel Schleis 664 Party Club 2 140 8 Manuel Schleis 665 Party Club 3 140 8 Manuel Schleis 666 GrooveTek 140 8 Manuel Schleis 667 UK Trance 1 140 16 Manuel Schleis 668 UK Trance 2 140 8 Manuel Schleis 669 German ClubZone1 140 16 Manuel Schleis 670 German ClubZone2 140 8 Manuel Schleis 671 Ibiza Sunset 140 8 Manuel Schleis 672 G-House 140 8 Manuel Schleis 673 NuSkool Breaks 110 4 David Åhlund 674 Acid Electro 125 8 David Åhlund 675 Tech-Hop 96 4 David Åhlund 676 Basement Beats 120 4 David Åhlund 677 Club Trance 140 8 David Åhlund 678 Gianna's Beat 85 4 David Åhlund 679 Tweeky Dn'B 180 8 David Åhlund 680 Dance-Hall 173 8 David Åhlund 681 Acid House -89 123 4 David Åhlund 682 Dark-Hop 82 4 David Åhlund 683 Drama Danz 136 8 Holger Lagerfeldt 684 Electroyant 135 8 Holger Lagerfeldt 685 Dark Site 138 8 Holger Lagerfeldt 686 Nonstop Motion 138 8 Holger Lagerfeldt 687 Bailando! 139 8 Holger Lagerfeldt 688 Angelic Dance 139 8 Holger Lagerfeldt 689 Karate Chops 135 4 Holger Lagerfeldt 690 Mystique River 142 4 Sterling Moss 691 Funktech 143 8 Sterling Moss 692 Lost Memory 140 8 Sterling Moss 693 Electro Nation 145 8 Sterling Moss 694 Happy Times 138 4 Sterling Moss 695 Forward Thinking 143 8 Sterling Moss 696 Light Intensive 138 8 Sterling Moss 697 Flamethrower 143 8 Sterling Moss 698 Sands of Time 140 8 Sterling Moss 699 ArenA 196 8 Tim Hüfken 700 South of Belgium 138 8 Tim Hüfken 701 Foam Party!! ! 142 4 Tim Hüfken 702 Techno Festival 141 8 Tim Hüfken 703 Dark Clouds 140 4 Tim Hüfken 704 Toxic Waste 138 8 Tim Hüfken 705 The Live! Chill 125 8 Tim Hüfken 706 BASS P!MPin' 140 8 Tim Hüfken 707 Filter Part6 119 8 Tim Hüfken 708 Bar@Night 125 4 Tim Hüfken 709 Tear it Down 94 4 Roland US 710 Keep it Cool 85 4 Roland US 711 Bouncin' Curly 82 4 Roland US 712 Ain't No More 98 4 Roland US 713 Merry Cherrie 104 4 Roland US 714 In the Dirt 98 4 Roland US
No. Pattern Name BPM Mes. Programmer
715 Dirty, Dirty 124 8 Roland US 716 Keep it on 100 4 Roland US 717 Can't Take it 86 4 Roland US 718 Cool, Hot Baby 76 4 Roland US 719 Hit Me 72 4 Roland US 720 Thugs 88 4 Roland US 721 Up Me 142 8 Roland US 722 Severe 94 4 Roland US 723 No Way Fake 96 4 Roland US 724 Fine Whine 96 4 Roland US 725 Sexy, Smooth 102 4 Roland US 726 Takin' it Up 94 4 Roland US 727 Night Bump 63 4 Roland US 728 UZAH 86 8 Roland US 729 POLLO 13 82 8 Roland US 730 WUNDRAN 86 8 Roland US 731 FEELYA 84 4 Roland US 732 Funk in Ma TrUnk 95 4 Roland US 733 Mikes Pimp Walk 95 4 Roland US 734 Beep This ! 97 8 Roland US 735 Come Now 105 4 Roland US 736 Wuts Crunk ? 97 4 Roland US 737 Feelin SmOOve 75 4 Roland US 738 Ma Phat BeaT 97 4 Roland US 739 Mike in Space 95 4 Roland US 740 Electric City 130 8 Roland US 741 Night Flight 108 4 Roland US 742 Tech Step 164 4 Roland US 743 Clubbers House 134 4 Roland US 744 Drum TrAQ 125 4 Roland UK 745 THUNDA II 138 8 Roland UK 746 Filter Disco 125 8 Eric Stamile 747 New Wave 127 4 Eric Stamile 748 Chill Out 82 8 Eric Stamile 749 Chinematic Break 140 8 Eric Stamile 750 Ambient House 2 133 8 Eric Stamile 751 No. 145 4 Kilian Schweer 752 Bright Darkness 150 8 Kilian Schweer 753 Trance Formula 1 145 8 Kilian Schweer 754 Agressor 145 8 Kilian Schweer 755 Chaos 4 Techno 150 8 Kilian Schweer 756 On No Trip 150 8 Kilian Schweer 757 Mute Mood 150 4 Kilian Schweer 758 Southpole Summer 145 4 Kilian Schweer 759 Techniculture 145 8 Kilian Schweer 760 RingMod Load 140 8 Kilian Schweer 761 Carbon Trance 142 8 Michel Pougin 762 Bendpassed Melo 142 8 Michel Pougin 763 Mystic Sequence 142 8 Michel Pougin 764 Momdollyo 142 8 Michel Pougin 765 Infinity of LFO 142 8 Michel Pougin 766 Let's Dance 142 8 Michel Pougin 767 Deep Bell 142 8 Michel Pougin 768 Club Manique 141 8 markus schneider 769 Tech String 141 8 markus schneider 770 Club Atomique 143 8 markus schneider 771 Trance Former 143 8 markus schneider 772 Club Electrique 141 8 markus schneider 773 Trance Sphere 141 8 markus schneider
No. Pattern Name BPM Mes. Programmer
Preset Pattern List
The sounds, phrases and patterns contained in this product are sound recordings protected by copyright. Roland hereby grants to purchasers of this product the permission to utilize the sound recordings contained in this product for the creation and recording of original musical works; provided however, the sound recordings contained in this product may not be sampled, downloaded or otherwise re-recorded, in whole or in part, for any other purpose, including but not limited to the transmission of all or any part of the sound recordings via the internet or other digital or analog means of transmission, and/or the manufacture, for sale or otherwise, of any collection of sampled sounds, phrases or patterns, on CD-ROM or equivalent means.
The sound recordings contained in this product are the original works of Roland Corporation. Roland is not responsible for the use of the sound recordings contained in this product, and assumes no liability for any infringement of any copyright of any third party arising out of use of the sounds, phrases and patterns in this product.
