e m
k
T
D(E)
E !
EF "#$ ! V %&'
d ()*!+-,-!+./0 Ea 123456 (Ea = V/d) F 783456 (F = βEa)
β 59:;
J <=>?
r $@A!BCD
t(y), v(y) NordheimE
φ FGE
q
ε0 HIJ
CNT
1.
)!K-LM!NCNTO1991PQRS TUVWQ,!X<Y(ZZ:[\]^
)!K-LM!NMWMT_`abca defgh[1-1]iFig. 1-1UjTEMkHlmZi noCNTpDO5q7nmQrfOs1µm_ tufgavwiCNTxyznpD{ff _,|}X~1fOQ`h
4_aQ
lyh\`w5<=_`a
lUchiVaQ,!X<UV w xfgh1995PUOQ5<
=UEZwtuxZU4fgavw[1-2, 1-3]i CNTOQUQ"@~ ¡¢|£
¤¥Qd¦§QX¨©Q&ª«¬©®¯
¬x°±fgQ²³x´c\gaµhi¶UQ FEFPDField Emission Flat Panel DisplayU·v aOQQr¸¹Qª¯ºQ»¼½¾
¶¿lÀÁw$@A!_`aQj Âd²³U]ÃľxÅxghi`[`QÆ b_OÇ4WQ10PÈ`hÉÊ
yQË34¯¬ÌÍwFEFPDÎÏÐÑ U·vafÁQÒÓ¬ÔÕUÖ`av4vi jnUOQCNT®×4QjgxØÙ_
ÚÛgwvÃz[ÜÝUVw²³ÞßÜW xÍwVUeÁwinnOQCNTàá3 4_jâãälåæ`hQCNTá
çlèéêµ=Zhcë¥+¥
_ìíîlïðhvihÒ`Qo.ñUV WQ>?lòó_Zw&ª«¬CNT
©UôõléZwi
2. CNT
1991PMWMTdeUöµQ1993PQ÷^)
!K-LM!NSWMTxdefgh[2- 1]iCNTOQjDxK-ø!A!ù¥úûü yýþUÍWQ`[yQµ4,|}X
~lzÒ4ÃQïZwVUQ
3Uy6Q 3UyÍwhcQ
¶y`avwiSWMTè{D0.4 nm[ \MWNT s100nm Í w xQèOQMWNTycQDyçU4
aµavwiïðwVUQ 4
x°±fgQOQ,|}X~107UÖ ZwCNTyfgavwihQCNT
¶Q¶U3¶OCNTíUVW
`QÃhy_`aÁwòóxÍ wi
2.1. CNTíííí
CNTOQ"¥~1^ !Þ"#
@~$!Xngl"#_vl%
chlzi%ch&!Þ"_'
f(w[UVaQ)*+,lhCNT l-wn_xçÍwijO)¥.
/¢ _01 gw +, UV a 2fg av wijgOFig. 2-1Uym`aÍwVUQCNT 345o6A)¥7X~(Ch) lQàá Fig. 1-1 The observation by TEM of multi-wall
coaxial nanotubes with various inner and outer diameters, di and do, and numbers of cylindrical shells N reported by Iijima in 1991: (a) N=5, do=67Å; (b) N=2, do=55Å; and (c) N=7, di=23Å, do=65Å [1-8].
"7X~a1Qa2¨89Ua
Ch:n•a1;m•a2:(n,m)
_`Q<ÌOQ(5,5) _ZihQ
<θ O=>_?ÛgQ@VUAB fgwi
θ= +
+ +
arccos 2
2 2 2
n m n nm m
(
0° ≤ ≤ °θ 30)
4·QnnθCDOQ!Þ"El F`h9GÍwi
n)¥7X~vxQ¶USWMT
3Uvlyh\ZiHIOJKU
ïðwxQË34<lFig. 2-2UmZi
2.2. CNTÞÞÞÞ L,!X<
1985PU·w"!¤de[\6PQ èbCNTOQRSTx,!X<UVW"
!¤ÓMl`avwoUQ"
¥~NY(OP:[\defghij CNTOMWNTÍhièbSWNTyQR STlUWnVW9f(h"¥~Xl Y(U¬vwn_-fghiO
',!X<yÂdfgavwinÞOQ Z[x\4Ã]vCNTUßvav wi,!X<U^¬fgw_34`al Fig. 2-3UmZi
b¤!c!de
¤!c!deOQFig. 2-4UmZV4
l¬vaQ"¥~A!f@~UQRST lghwn_Q]vSWNTlif(w n_xµwÞÍwxQjOkÃQl O\4vi
m rCVD
Fig. 2-5UÍwVUQn.op4&l=q.
,ë|_`a¬vQ,r!Î,sL¤
tlQ500°Cq1000°CQ
Fig. 2-2 Structures of CNT (SWNT). [2-2]
‾‾‾
‾ῑῑῑῑa1
‾
‾‾
‾ῑῑῑῑa2
Fig. 2-1 Graphene. [2-1]
RSTÐu_'Sf(wn_QCNTxr Z w i n g l r (chemical vapor
deposition)_?inÞ:UOQNvw
xUVw Uyi`hÞxÍWQSWNT
yMWNTyNçÍwi`[yQ iz UßvavwÞÍWQ{5Pà|
UNµwi

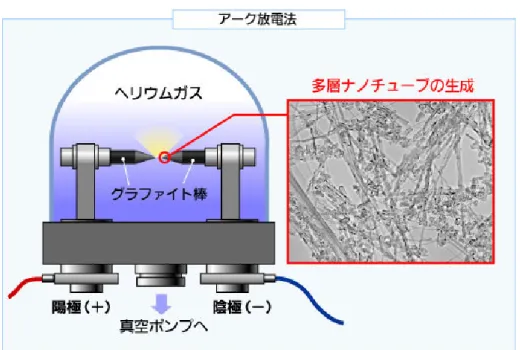

Fig. 2-3 Schematic of arc discharge method. [2-3]
Fig. 2-4 Schematic of laser assisted vapor deposition method. [2-3]
2.3. SWNT÷÷÷÷^^)^^)!))!!!KKKK--L--LMLLM!MM!!!NNNN Fig. 2-6QFig. 2-7USWNTTEMkH}lmZi
~OQD0.4nmSWNTx+U4
avwyÍwi
SWNT3àá¶OÓM3Uy3U yVÃð\gavwi@U`avÃi LpD_rf
è{pD0.4nm[\Q3UOéO4vO ÍwxQÓM3UO0.4nmq1.4nmUj pDx9:`avw_?Ûgavw[2-6]i
ÞQjrfOQ\4Ã_y100q200nmQþ O1µmÍWQ(ü4ÌOQ10mmU
ÖZwi b?
þQSWNTOLá÷LM!N_`a-
fg Q_V&xU4afgwi jgl+QhOQ!£_E`avwi j+#y?_`a1.3q1.5g/cm3
lmZ[2-7]i4·Q+ôU·
wSWNT./0O0.33nm_fgavwi Fig. 2-5 Schematic of chemical vapor deposition method. [2-3]
Fig. 2-6 TEM images of SWNTs grown by CVD. [2-4]
m36
3UêW6O100GPaQ
OTPaQÓMyêW6O10GPaQ
O1TPax\gavw[2-8, 11]iJIS Uafgavw¾O1GPaê
W6QWµg`h|/¤|¾U
O2GPaêW6lÓ`avwy
yÍwxQSWNT?x1/7Íwn _lÁw_QSWNTOÇ3Íwin
¯¬_`aQSWNTl5%g`h)!
"¥!x-fgQj9GQ90%yê
W6x&`Q900MPaxtufgavw [2-10]i`[`QSWNT36OÞ
_Z[4&UVw1\zµxµÃQ
Ò¶ivwÍWQ_
`hO4vi
3
QROx_V&Zðal`
avwxQSWNTQjgO"-Íw [2-11]iFig. 2-8UQÓfgh _SWNT¡
¢£¤lmZi_UQR¡¢
OQ¥10K»Uaèlm`Qjg
¦§U¨v©Uª\ZwiFig. 2-8(a) : OQ20K«4000W/m¬Kè
l m ` Q þ O ¥ _ 4 W Q 400W/m¬KÍwi¡¢xª\Zw
OQQR:>l®xQ§
Uzg&`h"-UVW¯°fgw x&Zw[\ÍWQ±²{±³
ª\l*´Zwi`[`QþOQ"
-UVw>µÀx&Ûa¥
¡¢_4wiÞQSWNT¡¢OQ Fig. 2-8(b)Um`hVUQ§U¨v»
O÷U&ZwiÓfghè¡¢
OQ1800q5900W/m¬K_¶xÍWQAB·$
Fig. 2-7 TEM image of SWNT bundle. [2-5].

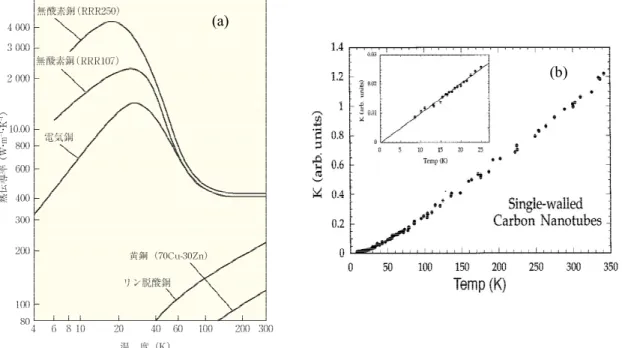

Fig. 2-8 Temperature dependence of thermal conductivity for copper (a) [2-12] and SWNT (b) [2-13].
(a)
(b)
M¤!·¸ÌOQþ6600W/m¬
K [2-11]_Q"¥~5ôι¥º+9
»¡¢¼lm`avwi
½3
SWNT3OQUVWvxÍ wi,!pL#,¾Ch=(n,n)OQR3ÍWQ
¿c¾Ch=(n,0)OC¢í3ÍwiÀ
_34 Ch=(n,m) yOQ)¥¾ _?ÛgQn-mx3¼_µOQR3ÍWQ ÀOC¢í3ÍwiC¢í3CNT
! q@£µfOCNTCDUÁÌZw n_y`avwi
hQ¡¢x¯°Zwn_4Ãfg w.|/¢@X¡¢xQQR3SWNTÂÃ MWNT¶4_`a3UÄfga vwi
2.4. MWNT]]]]^^^^))!))!!!KKKK----LLMLLM!MM!N!!NNN Fig. 2-9UMWNTTEMkH}lmZingOû üÅÆavwCaped MWNTǾ34kHÍ wi
MWNTO^./0O0.34nm_Ófgav aQn/0O"¡$!|¾`[È [4vhcQ^.É-¬O(ca{fv_
ÄÊfgwiaQèbËÌ_`aO èÍ^SWNTxj3Î3l Ïcavw_ÁaVvxQj{f4É-
¬ÍayèÍ^SWNT+UÛ [4x\ÐÑ`avw_y?Ûgavw[2-15]i
`[`QÉ_nÒQMWNTUzvaOQSWNT
&4UVw¶vlÓkµa v4vi
LpD_rf
N f ga v w _ V & MWNT p D O
20nmq100nmCDUÍwxQjUzv
aOÒÔÍwihQMWNTrfOQ
þO3q5µmQèO1mmÖ`avwÌ ytufgavw[2-16]i,|}X~OQSWMT _ÕU100lÖ÷UÖ`Q105v
fÁ\gavwi b36
MWNTêW6OQèÍ^11GPaq 63GPaQO270GPaq930GPax\
gavw[2-17]inOSWNT__V&ÕÆ
Íwi m3
Fig. 2-10UQMWNT¡¢ÓÌlmZ [2-18]iMWNT¡¢ySWNT_ÕU
§Uzg&Zw×ßUÍwxQvU 4w_OhÃÇ4wipD14nmMWNT
O320Kè3000W/m¬Klm`Qjª
\ZwihMWNT+QpD80nm
O Õ U a1500W/m¬KQ p D200nm O 300W/m¬K_¡¢OµÃª\`avwij gO]^LM!N.É-¬V4"-
¯°UÙwy_Øfgavw[2-18]i
3
Ù MWNTÚÛOUVaµ 4xÍwn_x`avw[2-19]inn_
[\QR3ÂÃC¢í34MWNTxÓÜU¤
Zwn_xÛ[wi`[`QXhO
+_`aMWNTlÝoQjOÒvh vCQR3U4avw_?Ûgavw[2-20]
xQj3xU4avw_O
Ò?Á4vi
Fig. 2-9 TEM images of MWNT. [2-14]
3.
3.1. 5555<<=<<===
QRY(5[\x<=fgwQj n56_5U£¤`aQ<
=xÛwiFig. 3-1(a)OQxÃQ [zQ56x»v<=l`Q
[\ÞU<=Q·¸@~=!<=Qß
· ¸ @ ~ = ! < = (Exteneded Schottkey
Emission) _01gwiY(x»ÃQ5
56xÃ4w_QlÅÆncavw 5à/·qáâx»ÃQãÃ4whcQ
~äxåµaQ<=OQFig. 3- 1(b)UmZVU4WQvÛæwQ5<=
_4wiFig. 3-1(c)OQFGEl5eV_ç`h oQY(_56U£¤`h<=
èévlmZi
<=Q·¸@~=!<=Qß·¸@
~=!<=UVw>?JTEQJsQJESOQjg êgJëfgwi[3-2]
J me
h kT
TE =4 3
( )
−kTπ 2 φ
exp (3-1)
ngO8ìQRichardson-DushmanëÍwi
J J e F
s= TE kT
exp
3
4 0
/ πε
(3-2) nË2KO·¸@~=!;_0íi
J J q
ES = s q π
( )
π
sin (3-3)
nnQ
q m
eF
= h
(
kT)
π
πε
4 0 3 1 4
(3-4)
`[`Qß·¸@~=!¾<=U·v aQyîï@xWQhQ56yîï
xw_Qj<=>?OJëfg wi
JES =JFN πρ
( )
πρ
sin (3-5)
Fig. 2-10 Temperature dependence of thermal conductivity for MWNT.
Fig. 3-1 (a) Electron emission at high temperature and low applied field, (b) Electron emission at low temperature and high applied field (field emission), (c) Emission regimes as a function of temperature and field for an emitter with φφφφ =5eV [3-1].
nnQË2KO·¸@~=!;ÍWQ
ρ φ
=kT t y
( )
me F
2
0 2
h (3-6)
(3-5)ëJFNxQJUïðwFowler-Nordheim UVw<=>?_4wi
3.2. Fowler-Nordheim
Fig. 3-1(b)Um`hUQY(5U·wXÞ ß56xýþUÃ4w_5à/·
qáâô~.xånwxQn gUVw<=>?OJëÀÁ\gwi
j=e n E D E F dE
∫
0∞( ) (
x x,)
x (3-7)nnQn(Ex)OQEx_Ex+dEx. !l
hQRô±x5à/·qá âU÷ð5PQ÷ðo.UñòZwóÍWQ
hQD(Ex, F)OQÍwôõ !ExQ Íw56FU·w~.áâ
ÍwiÉQn(Ex)OQFermi-DiracöA VWJëÀÁ\gwi
n E mk T E E
x B xkT f
( )
= − +
2 2 3 1 1
π h ln exp - (3-8)
h QD(Ex, F)O Q C ÷ Ç Ì _ ` a QWKB (Wentzel-Kramers-Brillouin )l¬vaQ
D E F m
he E
F v y
x
, x
( )
= −( )
( )
exp 8 2 3
1 2 3 2
π (3-9)
_Zn_xµwi`hxaQ56
iÆh~.UVw<=>?
OQ
j e F ht y
m
he F v y
=
( )
−( )
3 2 2
2 3
8
8 2 π φ 3
π φ
exp (3-10)
nnQv(y)_t(y)OQ y=
( )
e F3 1 2 φfgwNordheimEQÑ}¾lF`hø
Jùú;ÍwxQ_V&Q1 Íwi(3-10)ë8UVWQ
ln J F2 F
1
∝ (3-11)
x\gwi783456FOQÀÁ\gh 5 6 (Ea = V/d) _ 5 9 : ; field enhancement factorβl¬vaQ F = βEa_f gwi(3-11)ëE;lYûÎXû_`a£@~
`hyxF-N£@~_EfgQngxp¨l mZ4\1Qj>OQ5<=U åÙ`hyÍw_ü`avi(3-10)ë[
\yÛ[wVUQÀÁ\gh56µ 4>?lV_Zw4\1QFGE_
5 9:; x (ca ýó 4Ù _4 wi
4.
Ì_`aQFig. 4-1Uþ 5<=¶
·|/plmZiOQY(QY( æ|X.i!OQ@>[\Q
"óà£!A.!à£Q#E!ª
50l/sec_300l/sec A
!ïà£Qj`
aQLAùN.ø!
·¸à£Þ
fgavwihQ
v7!|'¾@Q 4ë|ÐÑ lö3Uðwhc UQ$ë|¢
_ë| ï%A (RGA) l ì & ` a v wif\UQè8Ù
lÕoU`'
µw!+@XL#
! l w n _
Q('¾§
l)Q*+U¨o.l¶U,-µ wVU`aÍwi
5. ! !" ! ! " " "# # # #$ $ $ $ % %& % % & & & ' '( ' ' ( ( ( ) ) ) )& & & &* * * * + + +
+! !, ! ! , , ,- - - - . . . ./ / / /
CNT©U·vaQ>_r¸¹ÖU ýó4-./_ìí3ÞlQ@Q7zUï 0`aïðwiTable 5.1Uj_clmZin g\&g[xZw_Q(é>?l
\g4vn_U4wiÌÁ1Q$@A!F GEl@1w2l`ayQ7!|'¾Îõ
-:'¾xv_([ÃFGEOx wn_U4WQµ4>lUwn_O
µ4vihQjgêgKOÉvU.
X`avwiÌÁ1Q53_63lÓZw hcÓÜ£s|OQÌÁ1QÍw4
2l³ÛQ¶l^¬Zw_1ó
2j5Þ6lÓµwi
4·QCNT©ýó46_`a>
_r¸¹ÍUQ»$@A|xÍwi»
$@A|lÓZwhcUOQQR3l mZCNTÄNQ<=5PÐ{QCNTY(
»õ-4&x74Þ
_4ÒihÒ`Q1á CNT[ \ <=
!ï8Î
$@A|UEZwtu OÍwxQ&ª«¬
© _` a X CNT9 á34$@A|
OÒ:øÍWQ nnOng?Â`
4vi
33.3 KΩΩΩΩ

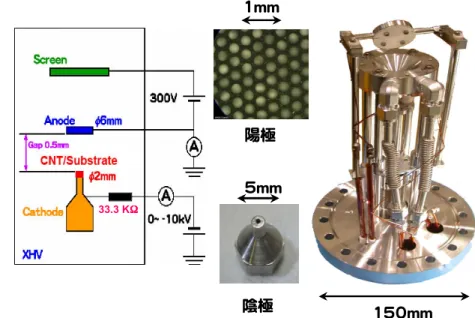

Fig. 4-1 Experimental setup for CNT field emitter.
Test Chamber TMP
RGA
Fig. 4-2 Overview of experimental setup for CNT field emitter.

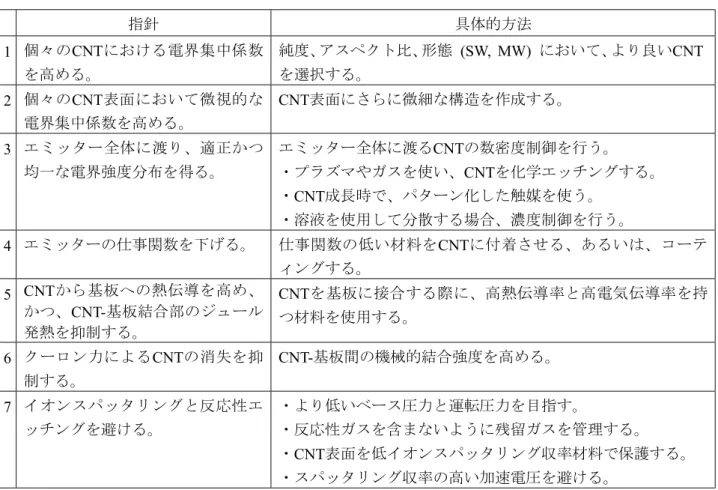

Table 5-1 >>_>>_r__r¸rr¸¸¸¹¹¹¹ÖÖÖÖUUýUUýýýóóóó4444../../_//_ì__ìììíííí3333ÞÞÞÞ
./ ìí3Þ
1 Ù CNTU·w59:;
lcwi
$Q,|}X~Q8; (SW, MW) U·vaQVWvCNT l<=Zwi
2 Ù CNT5U·vaÐ234 59:;lcwi
CNT5Uf\UÐI4l-Zwi
3 $@A!íU>WQ?ú[z {456ï8lwi
$@A!íU>wCNT?l³i ΣúÎë|l^vQCNTl @LZwi ÎCNTroQ A!`hSTl^i
Î@Al^¬`aï¯ZwQBl³i
4 $@A!FGEl@1wi FGE»vlCNTUef(wQÍwvOQr!/
¢Zwi
5 CNT[\à|®¡¢lcQ
[zQCNT-à|9¿M!
dlZwi
CNTlà|U'ZwÜUQ¡¢_¡¢l zl^¬Zwi
6 X!¾UVwCNT¼Cl Zwi
CNT-à|.396lcwi
7 ¥| @A._Á¯
@Ll)wi
ÎVW»v7!|'¾_ô'¾l.Zi
ÎÁ¯ë|l4vVUë|l§Zwi ÎCNT5l»¥| @A.lDEZwi Î| @A.lv&ª'l)wi
5.1. ÙÙ ÙÙ CNT55559999::::;;;;llll&&&&
1áCNT[\\gw5<=>Ó
OQZUCNTé5100µAUavwi ngO¶4OFGyQv vCNTlÐ\`Qjn[\Z[4vQ<
WZHW1áÒ<=`aQ¾·.r ÎA|/$@A!ûüQÊ 34$@A!_`aQMxµw[\Í wi`[`Q,},I>xòó4©
4\1Qò 9J_`aCNTxòó_4wi n=¢4CNTl9J`4x\Q
>x\gwVUZwOQ1áCNT
_aQõK4n_O4vi
2Låæ`hVUQCNTU¯Æ aQj40_¶OQMNgÍ wiNyO¤7 U³ÛgwVU 4aµhxQÕÆNyjÔÕCNT
^QpDQrfQ$Q)¥./¢x
UPhCNTOÒ\gav4vx#
ÍwijhcUOQjÄN-Qyò ó_4wxQ CNTOQÌÁ1Q"Z [OÄNä_O4\4viVaQÄ N-QÍayQ¶=Oø2
µ4vi`hxaQMNgR:[\Q5 9:;xµj4CNTlÓ3U<=Zw UOQQR3lmZCNTlÍwvOS
UQ$$xvn_VWQ Õíx\4vn_xýóQ,|}X~
Q8;SWQMWlQSEMl^aT UZw`[4v_ÚÛgwiþ OQj<=
lõKUZwhcQSEM(ôUY(la
`QSEMTU`avwCNT[\<=lj
µwVU`zzÍwi4·QC¢
í34CNTÚÛOQQR3lmZCNTU
V`100¼yµÃQïðwV
UQCNT±W¿M!d_<=fgh !ï8xXYéZw_vâãl
iÆwQ)wòóxÍwi
Ù CNT59:;l&f(wn_
ÒUÅZg1Q_3UOûüÅÆhQ pD{fÃQ,|}X~µvQSWNTl
^Á1vn_U4wi`[`QÓO[4\
`yjO4v_vn_lþ ²³Ì
mZiFig. 5.1(a)(b)OQZ pD20nm, µm rflzMWNT_pD1nm, mmrfl zSWNTSEM}Íwi~O$yvi`
[`Qng\CNT<=¶lZw _QCNT±W_`aÔ4¶lmZMWNTx '[3Uv<=¶lm`hiÓÜQ\
kHï[wVUQnSWNTOQ+
?xÍWUÃQPvZ]avaQ[zQ CNTxrvhcQjüx\4vijh cQ$@A!l-`hoUQv[Uy
<=äx\4vVUeÁwi^>SWNTyn
O^Á4vQ+lݵQr
vSWNTl,Ã`aQ<=älÎZ3
Q ZW_ `al bh i9 GQá 10mA/cm2 f g w c 5 O0.7V/µm_ MWNT¥CïU4WQd34lm
`hi
5.2. CNT55U55UUU··v··vavvaaaÐÐÐÐ222233433444559559:99:;::;;;llll
&&&&
CNTxvÃ\{fvpD_µ4,|}X~
lz_vayQ8eQ4òåOjü ÒÍwi`[`Q59:;l&f(Q [zQj59:äx]v&Q<=O
&Zwi`hxaQùNK-ù¥úÐ{
4X|A!lCNT5Uef(QCNTûü _Õ[jgBCDlzÐ{òål ]ÃQCNT5U-w_vÞO(caQ f´gviþ OQ2003PUnglhi/
jop (RuO2)Ó`hi
RuO2OQiÍwUyEÛ\ ÚÛ x|/¤|kbU»ÃQlÐuUWKv
`himä1500KÍwi6¾4i nÍwRuO4l=d_`a^¬Zwn_
UVWQMWNT®RuO2®OV3õKÍ wiRuO2®UOA_xÍwxQ ÉóÓMOQ®jvAl7U
¬vQ® Ooͨ¦ï%p 2@³hiFig. 5-2(a)(b)URuO2®«
MWNTTEM}ljgêgmZiMWNTâ5U ùNnm[\nmlÐuxqre`av aQjDOMWNTù¥ú1/10q1/15Íwn _xï[wiZðaRuO2OMWNTÍ5UÍ w_ç`aQTEM}VWj5?lB=Z w_4%_4WQXPSUVW`h_s`
hihQFig. 5-3UmZVUQSEM_EDX(
!ﯾX¨ï¦Qenergy-dispersive X-ray spectroscopy)UVWnlÐuO/jop
(a) (b)

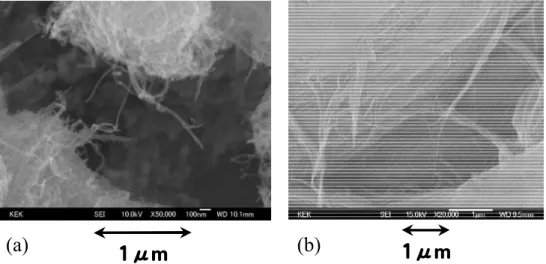

Fig. 5-1 SEM images of MWNTs (a) and SWNTs (b).
SWNTs: Courtesy of Dr. Kenji Hata, Research Center for Advanced Carbon Materials, AIST.
[\fgavwn_xfgQXPSUV WRuO2_`a¤l`hi`hxaQ jlÐuORuO2ÍWQýþUØ
\4vX|A!_`aÐ{òålMWNT 5U8`avwn_x`hiFig. 5-4UQ RuO2l®`hCNT[\FEM}lmZiCNT ûüÎt5[\6v<=xeÁwi CNT5eë|[\<=Q FEM}xuZwxþÍwi`[`QRuO2
l®`hCNTQng\ä[\
[z6v<=xövhinn_[\QRuO2
x8`hÐ{òåOQï3UOQCNTVW
µ459:;lzçxvn_x ï[wi¶UQCNT5UÐ{òål]Ã8
µwOQnV4Ð{ïX|A!
äÍwi
Õ²³xèQtufghingOQZnO ãvlMWNTUQjQN2ë|wDQ 900°C&`QX|A!8l`aQFig. 5-5 UÍwVUQj5UÐ{òål8`h
yÍw[5-1]i9GQ59:;x¼s
1900U4avwiZnOmäO2250K_v
OvxQÚÛOQRuO2UV`a107 yÃQµ4>U4w_jï¿
M!dxâãU4w_ÚÛgwihQTEM }[\ï[wVUQX|A!ù¥úxMWNT pDÍWQ[zQj5?x{fv
Qv59:;lhòålqrï
¯f(hxv_v./UÁZw_nÒ yÍwi
ÞQCNT5U¥| @A.Q x*U"Z[l-WQjïlòå_`a 59:;lcwÞyÍwxQ,}, I>lwhc$@A!UO?yO 4vi
(a)
(b)
Fig. 5-2 TEM images of MWNT before impreg- nated with nano-sized RuO2 particles (a) and after the impregnation (b).

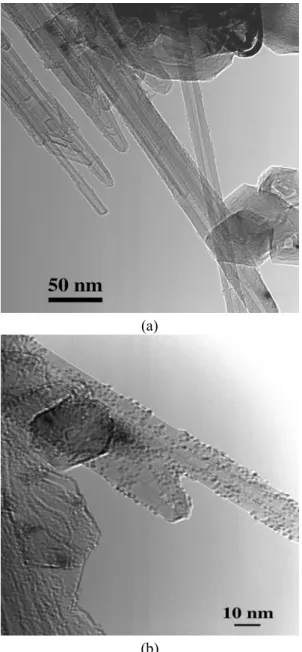

Fig. 5-3 SEM image of one MWNT with RuO2
clusters and EDX spectra at two spots.
Fig. 5-6UQRuO2®2lz`hMWNT_
2MWNTI-V¶lmZi{<OF-N£
@~Íwi®2UVWQc5OC ï@U4WQ3.5V/µm>?O200¼_
4wn_xï[hihQ59:;O980 [\3800Uxhi
Fig. 5-7OQj²³è?fgh®
vwc5x0.85V/µm@xhoI-V
¶lmZiÀtuÌUV`aQMWNTx [4W,vUyc5O¥ÕÆQ`
a\gw>?y¼]vn_xï[wi s5A/cm2>?èéU4w_QRuO2
®2l`hMWNTOQïZw|}2
~UVWà|[\CNT¼CxÃf gavwUyEÛ\ Q<=>xÔU4 WQ<yU4w4&Q¶xg aÃwn_xï[hiFig. 5-8Ujlm Zi¶7ØÙlJVUÁavwi
Q>?õ-U4w_QRuO2±W[CNT _9ÚÛµfxâãU4wi 9GQjïdÎRuO2ddxWQ
!pxRuO2¥y`ÃOjïÝ¥
l-win¥x59:`avwCNT 5RuO2l± | @AZwhcQRuO2ò åÎj ÍwCNTy¼CZwçx

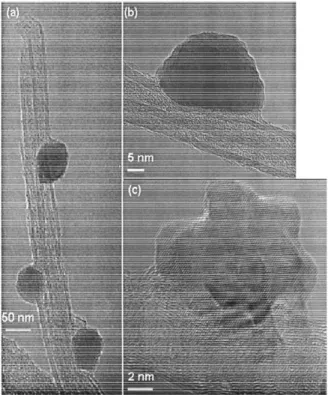

Fig. 5-4 The center FEM image showing strong electron emission from sub-nano sized RuO2 clusters at a MWNT surface.
Fig. 5-5 TEM image of (a) a bundle of CNTs with several ZnO particles attached to it after the annealing process, (b) a large ZnO particle annealed to the sidewall of the nanotube causing the deformation of the tube, and (c) a HRTEM image showing the lattice fringes of the ZnO particle of polyhedral shape. [5-1]
Íwi¼CZw_À59:äxËÛa 5<=lcQÕn_lWZi`[`Q jgyQV/µm56ZUA/cm2
>?xU\gwO¾xÍwi
hQnOQp>öôoÍWQ ö |ô4\110¼!X>?
UO¯µw_Á\gwi
5.3. $$@$$@@@AA!AA!!!ííUííU>UU>w>>w{ww{{{QQ[QQ[[[zzQzzQQQ????úú4úú444
55655666ïïïï8888
=¢4CNTl9J`4x\Q,}, I>x\gwVUZwUOQ$@
A!íU>WQ?ú[z{456ï8 xòóÍwijhcUOQZUTable 5-1U m`hVUQ$@A!íU>wCNT
?l³òóxÍwi
Fig. 5-9(a)(b)OjgêgQpß`hMWNT _¹pß`h| f/¢¥X_y0 1gwMWNTSEMkHÍwi&\y{
OÍWQ¶U(a)xUr`avwi
`[`Qp3Uï[wVUQ(a)<=
¶OQ(b)UV`aÃ4vingOWU
p ß` h Ù MWNTx ' ` ]a v aQµ459:;x\g4v[\Í wi\(b)OQ^ghïÎüx?Æ Uï¯`avwVUeÁwi
=¢4CNT$@A!l-ZwUOQ
µÃïaQ2zÞxÍwi1zOà|
UCNTlp'ZwÞÍwiy1zOQ
bCNTl4V\[Þà|U
`a-ZwÞÍwi_3UOQ«~U OCVDx¬v\gQrßyvxQ
v,|}X~lV_Zw_?yx W]w×ßUÍwQCNT.êµxòó _4wiÞQ~OQ«~VU
.êµyÔçO4vxQà|®_
ÕoU?Zwxjxvi Fig. 5-6 Effect of RuO2 impregnation on the
field emission characteristics.
Fig. 5-7 Low threshold field of emitter with RuO2 impregnation [5-2].
Fig. 5-8 Comparison between two emitters with and without RuO2 impregnation.
(a) (b)
Fig. 5-9 SEM images of oriented MWNT (a) and randomly oriented MWNT(b).
Fig. 5-10UÍwÖ÷4·$M¤!·¸OQ p`avwf1µmCNTpD4nmQ 2µm@Là|UÍg1Qè59:;
_>?l\gw_v9Gx\gav winn_[\yQFig. 5-9(a)$@A!
OQCNT.êµl`aQCNT?l@1w òóxÍwn_xï[wi
ìí34?ÞOQÌÁ1Q£
úÎë|UVwCNT @LQCNT
roU A!`hSTl^¬Q@Aï¯
BÍwii£úUVw CNT.êµÌlFig. 5-11UmZi3×10-2Pa il¢`Q5ï.Q600W£ú
CNTl`avwiFig. 5-11(a)[\(b)®Ï
4?xe\gwxQßkHï[wV
UCNT®_Z[iye\gwin
?UVWÕÆ5s100¼>
&_4WQp>>600µAQ>?6A/cm2 x\gh_`avwiFig. 5-12OQCNTr oU A!`hSTl^¬`hÌlmZi(a) OSTl5U(hr9GÍWQ(b) OQpD8µmx@L12.7µmafgh·
q+!|Xl^¬`aQSTãvl A!
`h9GÍwiCNT?OQ A!
UVW107á/mm2[\1ª\`Q>?O10
Fig. 5-10 Simulation of the equipotential lines of the electrostatic field for tubes of 1 µµµµm height and 2 nm radius, for distances between tubes of 4, 1, and 0.5 mm; along with the corresponding changes of the field enhancement factor ββββ and emitter density (b), and current density (c) as a function of the distance [5-3].
Fig. 5-11 SEM and TEM images of CNTs. (a) SEM image of as-grown CNTs. (b) TEM image of as-grown CNTs. (c) and (d) SEM image of plasma-treated CNTs The diameter of each CNT covered dot is about 70 µµµµm. (e) TEM image of sandwich-grown CNTs. (f) and (g) TEM image of plasma-treated CNTs [5-4].
¼_4WQ10V/µm1A/cm2p>>?x
\gavwi=¢4CNT$@A!Q
$@A!µfU£WQ\gw>?
xÇ4wiX456EalÕÆU`ayQ
$@A!:_U·vaQnü jG_y0ðw8#ÙxEÛaQX
459:;x[4WÇ4wO Íwin älâãU`avwtuOÉ_nÒO4v xQþ OÙ {f4CNT$@A!x
$@A!5ÐÑl4vV VÒ ïUCNTl`aQFEA (field emission array) l-`avwingUVW$@A!üj GO4Ã4WQCNTxûU¼C`a`
âãy ªfgw_Áavwi
5.4. $$@$$@A@@A!AA!!!FFFFGGEGGEEEllll»»»»@@@@
CNTFGEOs4.5eV_Ï`a»vO
4viVaQCNT$@A!FGEl@
1whcUQFGE»vlCNTUeÎ r!/¢Zw_vÞOQ`a¡`
vdÊO4vxQ*Í_óa4[
hingOj]Ãxmäx»ÃQd'
v,).QRUVwyÍWQ>?
_4w_dd`avhçxvi`[`Q èQFig. 5-13UÍwVUQmä2900KQFG E2.6eVLaB6l2nmv¢CNTU(ht uxÍWQf´gvi1áMWNT[\5<
=ÓMU·vaQLaB6r!~ø`UV`Qc
5xsCï0.9V/µmQè>_`a¼ 70µAx\gavwihÒ`Qï÷ðU·
w20%y>õxÍw_tufgavwin gO7!|'¾xýþUkÃQ10-5PaÍw
Që|UVwLaB6ïÝ´³[Qe
FGExØÙ_ÚÛgwi
(a) (b)
Fig. 5-12 An aligned array of carbon nanotubes grown from a uniform catalyst (a), carbon nanotube array grown from a patterned catalyst (b). [5-5]
Fig. 5-13 (a) TEM images for LaB6 tip-modified MWCNT emitter; (b) high magnification image for the emitter’s tip showing that most of LaB6 was deposited on the tip of the MWCNT dark area; (c) EDX spectrum of the emitter’s tip. [5-6]
5.5. CNT [[[[\\\\££££¤¤´¤¤´Q´´QQQ9999¿¿¿¿MMMM!!!! d
d d
dQQQQCNT¼¼¼¼CCCC
=¢CNT$@A![\,},I>
>x\gwVUZwUOQ$@A!
¥ CNTà|U`[Wfgav wòóxÍwingUO2zxÍwi1z OQ?ú4CNTlà|UÓU'Zw n_UVWQCNT[\à|®¡¢lcQ [zQCNT-à|9¿M!dlZ wn_xµw[\ÍwingxÓµ4 v_CNT9x¦Ã4WQCNT¼Cl§Ãi yLzOQCNTlà|UÓU'Z wn_UVWQ6¾4UåÙZwCNT¼ ClZwn_xfgw[\Íwi
5.3KïðhVUQCNT$@A!-
UOQbCNTlà|UZwÞ
_à|UCNTlp'ZwÞÍwi«
~OQýþUXv©<=ª@Q
ÔÕ?ú4yl<=µwi~
OQCNT[\£¤´Q9¿M!
dQCNT굫µ_v./l
¬Ò_Zw_Q± _rÞQ9GQCNT
çUsx=w_Á\gwiUQCNT
ç:UÁw_à|UhSTxj CNT_à|.9¾l»@f(wn_yÁ
\gwQ2<=Oçßµ4
®¯_4wi
Fig. 5-14OQSià|Up'rf(hMWNTl
^¬`Qþ xM`h$@A!5 kHÍwijgêg2°kHï[wV
UQ100mA/cm2>?UÖ`hÒ
Q`ñ²fgQCNTO³ÃQSià|y78 3U@m`hxe\gwingOQCNT¼ CUJåfgh<xØÙ_ÚÛgQCNT¼C _Y([\ë|<=Qj`aQ!pU Vw0¥QjUånw| @ A._ë|<=Qf\4w¥Q<
ö_vk´µlW`h9GÍÒi
¼C7ØÙOQ\[UCNT_à|_9
x¦vn_ÍwiFig. 5-15 (b)UQ2µmY(- Y(./0U·vaQ(a)VU<=`a vhMWNTx130V%'UQ}nj]«
a¼C`hkHlmZinQà|
UFe_NiSTxÍWQjï¦f_
ÚÛx.¶fgavwiÕ4ØÙÍwxQFig.
5-16OQÕÆrfCNTjCDx3nmo
OQ$@A!x0.3µA>±²fga`
vQÞQCDx20nmU4w_¡¢xv
150µAzxQjg>OCNT lavwSi¥XL@£x@
aQCNTxj·U¸avh_vn_lm
`avwi
þ yQbUO@nl^vÙCNTlà
Fig. 5-14 Optical microscope images and SEM images of MWNTs on a silicon substrate before and after serious damages during the emission.
|Uï¯f(hWQSià|Up'rf(hCNT l^¬`avhxQÆb[\>l3U`
avhE;Q¹vÔÕnÝÏUºW»
VÒi=¢CNT$@A!OQÙ CNTl`[WZwOƼÍwxQ Lz$@A!UÍw105q108áyCNT íUjjGl{U³µ>\(Q`[yQÈ
3U$@A!l-ZwòóxÍwi
þ OQCNT_Á¯xV3»y´³
`QÁ¯OQQ¡¢Q¡¢
U½gwU4wTiQRUÅ`QQR
@Á¯CNTlà|UZwÞl Áhiþ On6'2lï[WKÃ
|}~_0Vvwi|}~2UVWQ Table 5-1:53_635Þx1Ó
µwiÆb}OQ100µmTi¾l^¬`
avhxQOQv±WÎv6à|55U·
w$¿_}²5{lÀÁZw hcQ~| @ATiãvl-`
avwiÀQR_Ç4WQTil^¬`h}
OQ1000°CV3»³ÁwhcQ}
:à|y{U`ÎZÃQl
HIy¿`ÎZviFig. 5-18O}fgh CNT_Tiv55SEMkHÍwi:Â
SEMkH[\O÷+#MWNTx}
fgavwxï[wiFig. 5-19U55
EDXï%9GlmZiTivt[\CNTtUß [aà U6x`avwxe=
fgQTiC^8lÄÛ(wiFig. 5-19OQ, s~Aï¯`hMWNT_Ti¾}`h MWNTI-V¶Íwi}fghMWNT OQ4V/µm56100mA/cm2x\gQ
hQÕÆ56VZw_Q200¼[\1
¼>?&xe=fgavwijQ }2U 4ÀÁlýÅh9GQFig. 5-20 UÍwVUQÆ5è6CNT©_`aQ 4V/µm5620A/cm2Q9.6V/µm330A/cm2
>?UÖZwU4hin
$@A!5POs70µm>ÍW4x\Qp>
>O20mAviQn$@A!l
^vQFEA(field emission array)N-l³av wxQngxÓZg1Q |ôoUO, },I!X>xfgwi
CNT$@A!¸¹OQJKUïðw¥
| @A._Á¯@Lâãx 4g1QVUQCNT±WdQ9
¿M!dUVwCNT¼CQj`
aQ5UVwCNT¼CÏwiFig. 5-21OQ Fig. 5-15 (a) and (b) SEM micrograph of a nanotube of 0.66µµµµm length and 5-nm radius with the
anode positioned at 2µµµµm distance before (a) and after (b) the destruction of the tube.
[5-7]
Fig. 5-16 I-E curves [(a) and (c)] of several test cycles just before failure: (a) L=1µµµµm, r=3 nm, (c) L=1µµµµm, r=20 nm. Inset of (a) is the corresponding SEM image of the CNT emitter. (b) and (d) are the corresponding SEM images of the failure sites. [5-8]
Ti CNT
200nm
CNT Ti
400nm 2000nm
CNT
Ti
Fig. 5-17 SEM images of the interfaces between Ti film and CNTs after the rooting process.
Fig. 5-18 Line elemental analysis of Ti and C at the interface between Ti film and CNTs with EDX.
Fig. 5-19 Comparison of MWNT rooted in Ti film with MWNT dispersed by use of acetone.
Ti
C
10-5 10-4 10-3 10-2 10-1 100 101 102 103
0 2 4 6 8 10
Emission Current Density (A/cm2 )
Electric Field (V/µµµµm)
!"#$%&
'()
%*+,(
Fig. 5-20 I-V characteristics of rooted MWNTs with Ti film and Ti particles.
6x10-8Paô'¾U·w,s~@nï¯
MWNT_}`hMWNT¸¹vÍ wi>?x{fÃQ}]yÃ4 [hoVÍwxQ}`h$@A
!O\[U10¼¸¹lzn_xï[
wi
f\U}]xÀÁfgw_Fig. 5-22U m`hVUQ5A/cm2>?l¿`4x
\800o.s1ÇÈ.p>öôxµ
wVU4hi$@A!CNTx
¼C`aQ>l¿Zw56OÉ[
U§ZwxQj§ïOs3%Uhi
§xnöÃ_çZw_10P.
öôy5Ê&Uwn_xÄf gwi
5.6. ¥¥¥¥|||| @@@@AAAA....____ÁÁÁÁ¯¯¯¯@@L@@LLL l
ll lóóóó))))
_3UQCNT<=¶UZwë
|ÐÑOQR$@A!UVZw_\4v _?Ûgavwhc[Q 4ë|l¬vh
ö34²³OSaito\[5-9]²³Ítufga v4vi`[`Që|5<=¶
-%./01 2./1
Fig. 5-22 Endurance and stability test of rooted MWNTs for one month.
3!445!.&6783 9:$## ;25!!$<+'()%
Fig. 5-21 Life time of rooted MWNTs and aceton-dispersed MWNTs.
UZwÐÑUObzÁ\gQ¯¬o ë| '_j lF Zw_ ýó 4âã Í wijLzOQë|eUVwFGE
ÍWQyLzOQë|UVwÁ¯
@L_¥| @A.UVw
<=ä®Íwi~âãµf OQ7U&ª'U£¤Zwing\
âãl)whcUOQ1)VW»v7!|'¾_
ô'¾l.ZQ2)Á¯ë|l4vV
Uë|l§ZwQ3)CNT5l»¥|
@A.lDEZwQ4) | @A .lv&ª'l)wQî xÍÒiFig.5-22Q1)_2)îÒ_
4wxQp>öôyë|'¾Oîï
»ÃQÐÑOTfgav4vi |ô
Íg1QÁ¯@L_¥| @A.
ÐÑOf\U\4Ã4wxQeUVw FGE®ÐÑOµÃ4wn_U*Zw òóxÍwi
UQë|'xv_5<=>O&
VUZwÍÒ[ijÌ_`aQ Fig. 5-23UQ1x10-5PaNeë|_tdl¢`
ho>o.lmZi vËë|_Á¯ë|l¢Zwn_UVWQ
| @A._ | @A.Ð ÑycaQvxU=wO ÍwiNe
ë|Q¢Zw_$@·¸>x÷
Uª\`Q24o.È`h_nÒ>ª
\Ox7%Uhi`[`QtdQ f´gvn_UQ¢Q10o.Ã[a
>x&`a!XlÌÁQª\UÆhÍ _OQ¹v}!|÷ª\`Q24o.UOQ b>45%ª\`hiNeë|OQ
÷$43¥| @A.UVWCNT xlaQ>xª\Zw_Á\
gwi`[`QtdOQCNT5
FGEª\hOAdsorbate Tunneling State dUVw>&_CNT® 3¥
| @A._3¥| @A.
xýÍUVw>ª\xo.3UZ whcQjV49GU4h_ØU`av wi&\yë|¢lÎ`ay
>óÏOøÃQtdOQNeUðQ ú´3¼µ4_4hi
6. 0 0 0 0! ! ! !
r¸¹l¿`zzQCNT[\>lÖZ whc./l:UQCNT$@A!
#l_chi ø!Alè?`zzQj ë¥+¥lÓ³`aQf\Uç
$@A!lwn_OõKO4vi¶UQ CNT$@A!-U·vaO?U Fig. 5-23 Influence of Ne gas and water vapor on field emission current from MWNTs.
E`aQj`aQ$@A!õ-U·vaOCNT
¼CUE`a 34_²³xÔ Ð`avwif\4w>&hcUyQn g\Ñ㮺W»bxòóÍWQ²³ XxWlZwi
Ò ÒÒ
Ò ÓÓÓÓ ÔÔÔÔ
[1-1] S.Iijima, Nature, 354, 56 (1991).
[1-2] A.G.Rinzler, J.H.Hafner, P.Nikolaev, L.Lau, S.G.Kim, D.Tomanek, P.Nordlander, D.T.Colbert, E.Smalley, Science, 269, 1550 (1995).
[1-3] W.A.de Haar, A.Chatelain, D.Ugarte, Science, 270, 1179 (1995).
[2-1] S.Iijima, T.Ichihashi, Nature, 363, 603 (1993).
[2-2] http://www.elec.mie-u.ac.jp/em/saito/structure.ht ml
[2-3] http://www1.infoc.nedo.go.jp/kaisetsu/nan/na05/i ndex.html
[2-4] M.Dresselhaus, G.Dresselhaus, P.Avouris,
"Carbon Nanotubes", Springer Verlag (2000).
[2-5] L-C.Qin, X.Zhao, K.Hirahara, Y.Miyamota, Y.Ando, S.Iijima, Nature, 408, 50 (2000).
[2-6] S.Bandow, S.Asaka, Phys. Rev. Lett, 80, 3779 (1998).
[2-7] www.nanoelectronics.jp/kaitai/nanotube/propertie s2.htm
[2-8] Y.Xia, M.Zhao, Y.Ma, M.Ying, X.Liu, P.Liu, L.Mei, Phys. Rev.B, 65, 155415 (2002).
[2-9] S.Ogata, Y.Shibutani, Phys. Rev.B, 68, 165409 (2003).
[2-10] R.Andrews, D.Jacques, A.M.Rao, T.Rantell, F.Derbyshire, Y.Chen, J.Chen, R.C.Haddon, Appl.
Phys. Lett., 75, 1329 (1999).
[2-11] S.Berber, Y.K.Kwon, D.Tomanek, Phys. Rev.
Lett, 84, 4613 (2000).
[2-12] »O ÕÖ×ÖQØÙÖÚQ(»
QR¡!A9 (1981).
[2-13] J.Hone, M.Whitney, C.Piskoti, A.Zettl, Phys. Rev.
B, 59 R2514 (1998).
[2-14] http://www.elec.mie-u.ac.jp/em/saito/mwcnt.html [2-15] K.Tanaka, H.Aoki, H.Ago, T.Yamabe,
K.Okahara, Carbon, 35, 121 (1997).
[2-16] Z.Tu, S,Li, P.Bruke, AVS 51st, NS-TuM12, (2004).
[2-17] M.F.Yu, O.Lourie, M.J.Dyer, K.Moloni, T.F.Kelly, R.S.Ruoff, Science, 287, 637 (2000).
[2-18] P.Kim, L.Shi, A.Majumdar, P.L.McEuen, Phys.
Rev. Lett. 87, 215502 (2001).
[2-19] T.W.Ebbesen, H.J.Lezec, H.Hiura, J.W.Bennet, H.F.Ghaemi, T.Thio, Nature, 382, 54(1996).
[2-20] Û:2Q)!K-LM!NQ ÕÜQ
19(2001).
[2-21] °ÝÞ³Q ðÓQß²³ à
(2004).
[2-22] Liu HuarongQ ðÓQß²³ à
(2007).
[3-1] A.Loiseau, P.Launois, P.Petit, S.Roche, J.P.Salvetat, "Understanding Carbon Nanotubes", Springer, Berlin Heidelberg (2006).
[3-2] A.Modinos, "Emission Spectroscopy", Plenum Press (1984).
[5-1] Joshua M. Green, Lifeng Dong, Timothy Gutu, Jun Jiao, John F.Conley, Jr., and Yoshi Ono, J.
Appl. Phys. 99, 094308 (2006).
[5-2] M. Sveningsson, R. E. Morjan, O. A. Nerushev and Eleanor E.B. Campbell, Appl. Phys. Lett. 85, 4487 (2004).
[5-3] L. Nilsson, O. Groening, C. Emmenegger, O.
Kuettel, E. Schaller, L. Schlapbach, H. Kind, J.- M. Bonard, K. Kern, Appl. Phys. Lett. 76, 2071 (2000)
[5-4] Z. Chen, D. Den Engelsen, P. K. Bachmann, V.
Van Elsbergen, I. Koehler, J. Merikhi, D. U.
Viechert, Appl. Phys. Lett. 87, 243104 (2005).
[5-5] M.E. Read, et al, in Proceedings of the 2001 Particle Accelerator Conference, Chicago, 2001), p. 1026.
[5-6] Wei Wei, Kaili Jiang, Yang Wei, Peng Liu, Kai Liu, Lina Zhang, Qunqing Li, Shoushan Fan, Appl. Phys. Lett. 89, 203112 (2006).
[5-7] Jean-Marc Bonard, Kenneth A. Dean, Bernard F.
Coll, Christian Klinke, Phys. Rev. Lett. 89, 197602 (2004).
[5-8] N.Y. Huang, J. C. She, Phys. Rev. Lett. 93, 075501 (2004).
[5-9] Y.Saito, T.Nishianca, T.Kato, S.Kondo, T. Tanaka, J. Yotani and S. Uemra, Mol. Crys. Liq. 387, 79(2002).
![Fig. 2-3 Schematic of arc discharge method. [2-3]](https://thumb-ap.123doks.com/thumbv2/123deta/7074701.2312481/4.892.187.708.254.604/fig-schematic-of-arc-discharge-method.webp)
![Fig. 2-6 TEM images of SWNTs grown by CVD. [2-4]](https://thumb-ap.123doks.com/thumbv2/123deta/7074701.2312481/5.892.189.707.161.560/fig-tem-images-swnts-grown-cvd.webp)
![Fig. 2-8 Temperature dependence of thermal conductivity for copper (a) [2-12] and SWNT (b) [2-13].](https://thumb-ap.123doks.com/thumbv2/123deta/7074701.2312481/6.892.134.756.737.1085/fig-temperature-dependence-thermal-conductivity-copper-swnt-b.webp)
![Fig. 2-9 TEM images of MWNT. [2-14]](https://thumb-ap.123doks.com/thumbv2/123deta/7074701.2312481/7.892.467.798.127.464/fig-tem-images-of-mwnt.webp)
